CAOFEN F80 User manual

Page 1 of 61
Foreword
Welcome to CAOFEN Electric Motorcycle World.
Dear CAOFEN F80 Electric Motorcycle Users：
We will guide you to understand and get familiar with the functions of the F80 Electric Motorcycle, and how to use and
maintain it in a correct and safe way.
To ensure your safety, we recommend you to be familiar with and understand the F80 Electric Motorcycle so that you
can drive it safely and reliably under various road conditions. Please read the Manual carefully before driving, and
always comply with the following requirements: the Manual will provide you with a comprehensive overview of the
basic features of the F80 Electric Motorcycle, important information about the motorcycle's equipment, and important
recommendations and warnings that you should follow. It also contains information you need to know about motorcycle
maintenance, maintenance methods and preventive measures for operation. If you have any operation and maintenance
problems not included in the Manual, please contact your local CAOFEN authorized distributor. We are always at your
service. Wish you a happy riding travel with your CAOFENF80 Electric Motorcycle.
The Manual contains important information, precautions, warnings and hazard tips of CAOFENF80 about motorcycle
use. The figures in the Manual may be slightly different from this motorcycle in details, but the principles depicted are
the same.
---------------------------------------------------------------------------------------------
*Note: CAOFEN Electric Motorcycle has maintained a continuous and intensive development of structure, equipment and accessories, ensuring that
the motorcycle products constantly comply with new safety and quality standards. Therefore, there are differences between the contents of the Manual
and your motorcycle. CAOFEN reserves the right to correct errors. Accordingly, none of these data, figures or descriptions can be used as a basis for
any claims.

Page 2 of 61
Table of Contents
1、Warning Signs ................................................................................................................................................................................................................ 5
2. Overview of Product Diagrams ...................................................................................................................................................................................... 6
VIN Code of the Motorcycle .......................................................................................................................................................................................... 6
Motorcycle Head ............................................................................................................................................................................................................ 7
Left Side .......................................................................................................................................................................................................................... 8
Right Side ....................................................................................................................................................................................................................... 8
Frame Interior ............................................................................................................................................................................................................... 10
3. Meter Assembly .............................................................................................................................................................................................................. 11
Meter Display Instruction ............................................................................................................................................................................................. 12
4. Left and Right Brake Lever Switches .......................................................................................................................................................................... 13
Combination switch of left brake lever ........................................................................................................................................................................ 13
Combination switch of right brake lever ...................................................................................................................................................................... 14
5. Startup controller ........................................................................................................................................................................................................... 15
6. Battery Pack and Charging Mode ................................................................................................................................................................................ 16
Battery pack .................................................................................................................................................................................................................. 16
Battery outline drawing ................................................................................................................................................................................................ 17
Charging step ................................................................................................................................................................................................................ 18
7. Environment and Precautions ...................................................................................................................................................................................... 19
Use environment ........................................................................................................................................................................................................... 19
Charging Environment .................................................................................................................................................................................................. 20
Storage Environment .................................................................................................................................................................................................... 21
Precautions for Battery Use .......................................................................................................................................................................................... 22
8. Side Stand ....................................................................................................................................................................................................................... 23
9. Service Chamber ............................................................................................................................................................................................................ 24
10. Riding Guide ................................................................................................................................................................................................................. 25
Precautions before Riding ............................................................................................................................................................................................. 25
Riding Protection Warning ........................................................................................................................................................................................... 25
Pre-riding Inspection .................................................................................................................................................................................................... 26
Adjustment of Sensitive Parts before Riding................................................................................................................................................................ 27
Adjustment of Handlebar .............................................................................................................................................................................................. 27

Adjustment of Rear-view Mirror .................................................................................................................................................................................. 27
Shock Absorber - Front Absorber Adjustment ....................................................................................................................................................... 28
■ Rebound damping adjustment ................................................................................................................................................................................... 28
■ Spring preload adjustment ......................................................................................................................................................................................... 29
■ Air chamber pressure adjustment .............................................................................................................................................................................. 30
Shock Absorber - Rear Shock Absorber Adjustment ............................................................................................................................................. 31
■ Rebound damping adjustment ................................................................................................................................................................................... 31
■ Compression damping adjustment ............................................................................................................................................................................ 32
■ Spring preload adjustment ......................................................................................................................................................................................... 33
■ Airbag inflation setting .............................................................................................................................................................................................. 33
Precautions for Shock Absorber ............................................................................................................................................................................... 34
■ Precautions for installation: ....................................................................................................................................................................................... 34
■ Precautions for use .................................................................................................................................................................................................... 34
■ Surface cleaning ........................................................................................................................................................................................................ 34
Drive Chain Adjustment ............................................................................................................................................................................................... 35
Motorcycle Start ........................................................................................................................................................................................................... 36
Acceleration Slip Regulation (ASR) ............................................................................................................................................................................ 36
Precautions for Riding .................................................................................................................................................................................................. 37
Braking Technology ..................................................................................................................................................................................................... 37
Motorcycle Shutdown Steps: ........................................................................................................................................................................................ 38
11. Tips on Routine Maintenance ..................................................................................................................................................................................... 39
Maintenance items and intervals .................................................................................................................................................................................. 39
Battery Pack Replacement -- Removal ......................................................................................................................................................................... 42
Battery Pack Replacement -- Assembly ....................................................................................................................................................................... 43
Drive Chain Maintenance ............................................................................................................................................................................................. 44
Tire and Rim Maintenance ........................................................................................................................................................................................... 45
Brake System Maintenance ....................................................................................................................................................................................... 46
Brake disc inspection .................................................................................................................................................................................................... 46
Brake fluid level inspection .......................................................................................................................................................................................... 47
Brake Shoe Inspection .................................................................................................................................................................................................. 48
Page 3 of 61
Motorcycle Cleaning ................................................................................................................................................................................................... 49

Safe Motorcycle Storage ............................................................................................................................................................................................. 49
12. Troubleshooting ........................................................................................................................................................................................................... 50
13. Fault Code ..................................................................................................................................................................................................................... 52
14. Technical Parameters of the Motorcycle ................................................................................................................................................................... 55
15. Torque of Motorcycle Components ............................................................................................................................................................................ 57
16. List of Motorcycle Maintenance Tools ....................................................................................................................................................................... 59
17. Schematic Diagram of Electrical Circuit ................................................................................................................................................................... 60
Main Circuit Diagram ................................................................................................................................................................................................... 60
Electrical Diagram of the Motorcycle
Page 4 of 61
.......................................................................................................................................................................... 61

Page 5 of 61
1. Warning Signs
Indicates that there is more detailed information on other page.
This product is a high-performance electric motorcycle. Please pay attention to the following items when driving:
● Users are not allowed to modify this motorcycle;
● Users should comply with local laws and regulations;
● Any modification to the equipment of this product will affect the performance of the motorcycle.
Please read and understand all the labels on this motorcycle because they contain important safety information and operating skills. Please do not
Prompts the warning that shall be noticed - indicating that minor injury or serious damage to the motorcycle may by caused if
Prompts the hazard warnings that shall be noticed - indicating that death or serious injury may be directly caused if appropriate preventive
measures are not taken or wrong methods are used. For the safety of you, others and products, please avoid damage when saving.
appropriate preventive measures are not taken. For the safety of you, others and products, please do not damage this sign when storing the motorcycle.
remove the labels. If any label is illegible or missing, please contact CAOFEN distributor.

2. Overview of Product Diagrams
Page 6 of 61

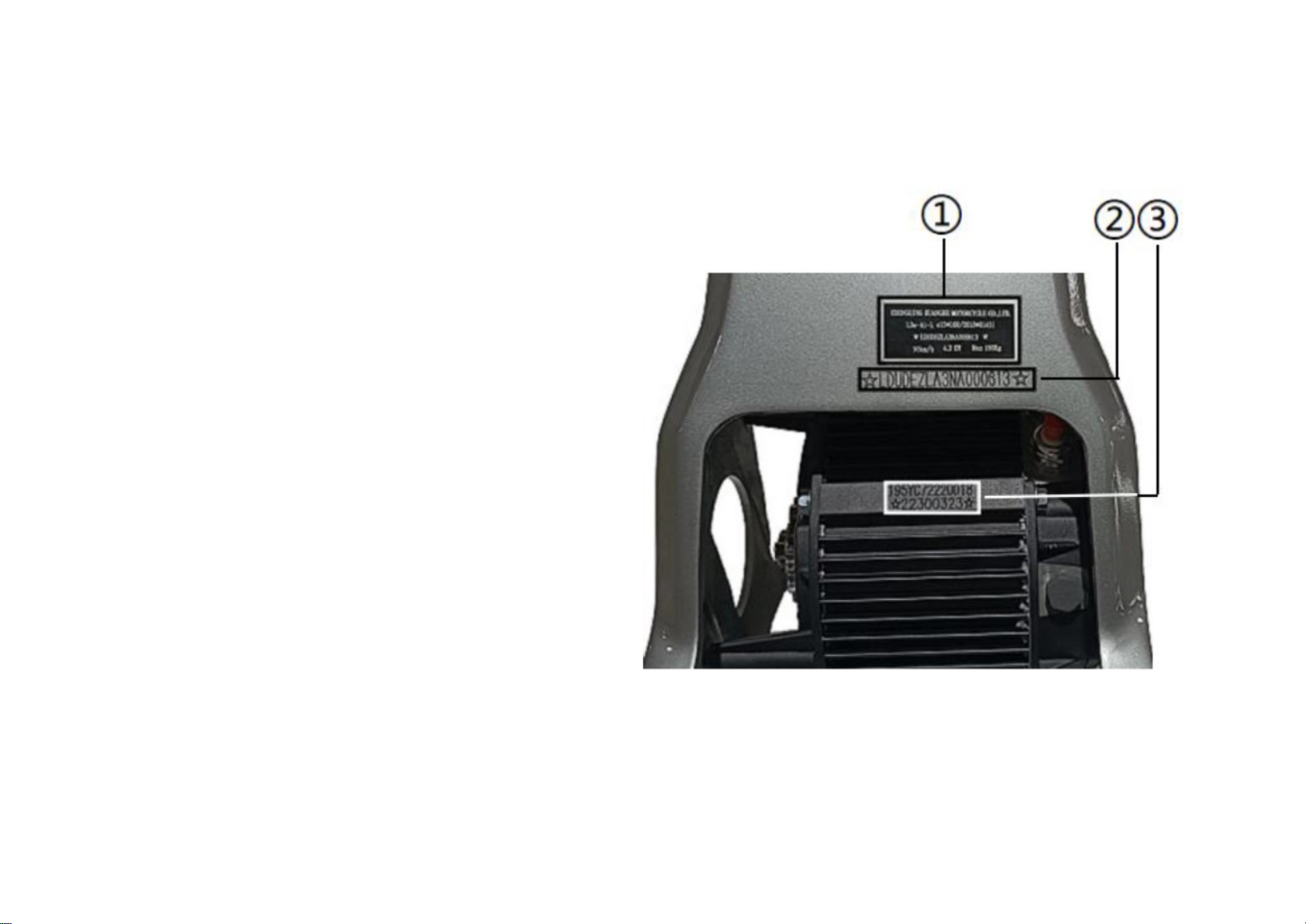

VIN Code of the Motorcycle
1、Vehicle Nameplate
2、Vehicle Identification Number (VIN)
3、Motor model and factory number

Motorcycle Head
1. Rear view mirror
2. Handlebar
3. Meter ( 10)
4. Lock cover of handlebar bracket
5. Front brake oil cup
6. Brake lever
7. Left handle grip
8. Left switch ( 12)
9. Handlebar bracket
10. Model logo
11. Cover for rearview mirror mounting
12. Right throttle grip and switch ( 13)
13. Right handle grip
Page 7 of 61

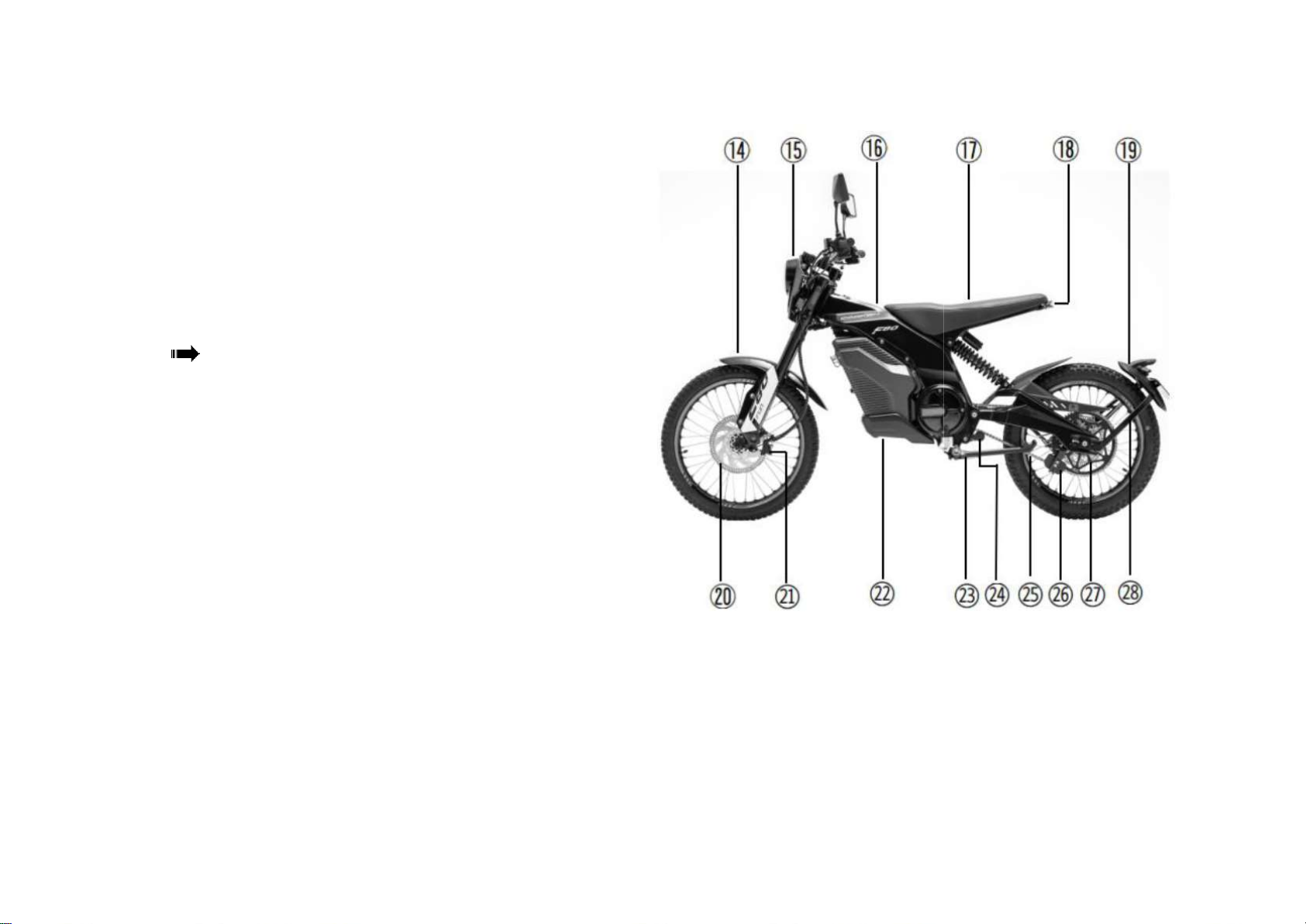

Left Side
14. Front fender
15. Headlamp
16. Frame
17. Seat
18. Rear lamp
19. Rear section of rear fender
20. Front brake disc
21. Front brake caliper
22. Lower guard plate of battery
23. Side stand
24. Tensioner
25. Chain ( 36,48)
26. Chain guide
27. Rear sprocket
28. Left bracket of rear fender
Page 8 of 61

29. Rear license plate lamp
30. Rear tire
31. Front section of rear fender (chain case)
32. Front shock absorber ( 28)
33. Front tire
34. Rear fender bracket
35. Chain adjusting top block
36. Rear rim assembly
37. Chain adjusting bolt
38. Rear brake caliper
39. Rear fork assembly
40. Rear shock absorber ( 31)
41. Pedal
42. Decorative cover
43. Battery ( 16)
44. Rear rim
Page 9 of 61
Right Side

Frame Interior
45. Drive controller
46. Steering lock controller
47. DCDC converter
48. Horn
49. Integrated terminal block Assembly ( 23)
50. Motor
Page 10 of 61

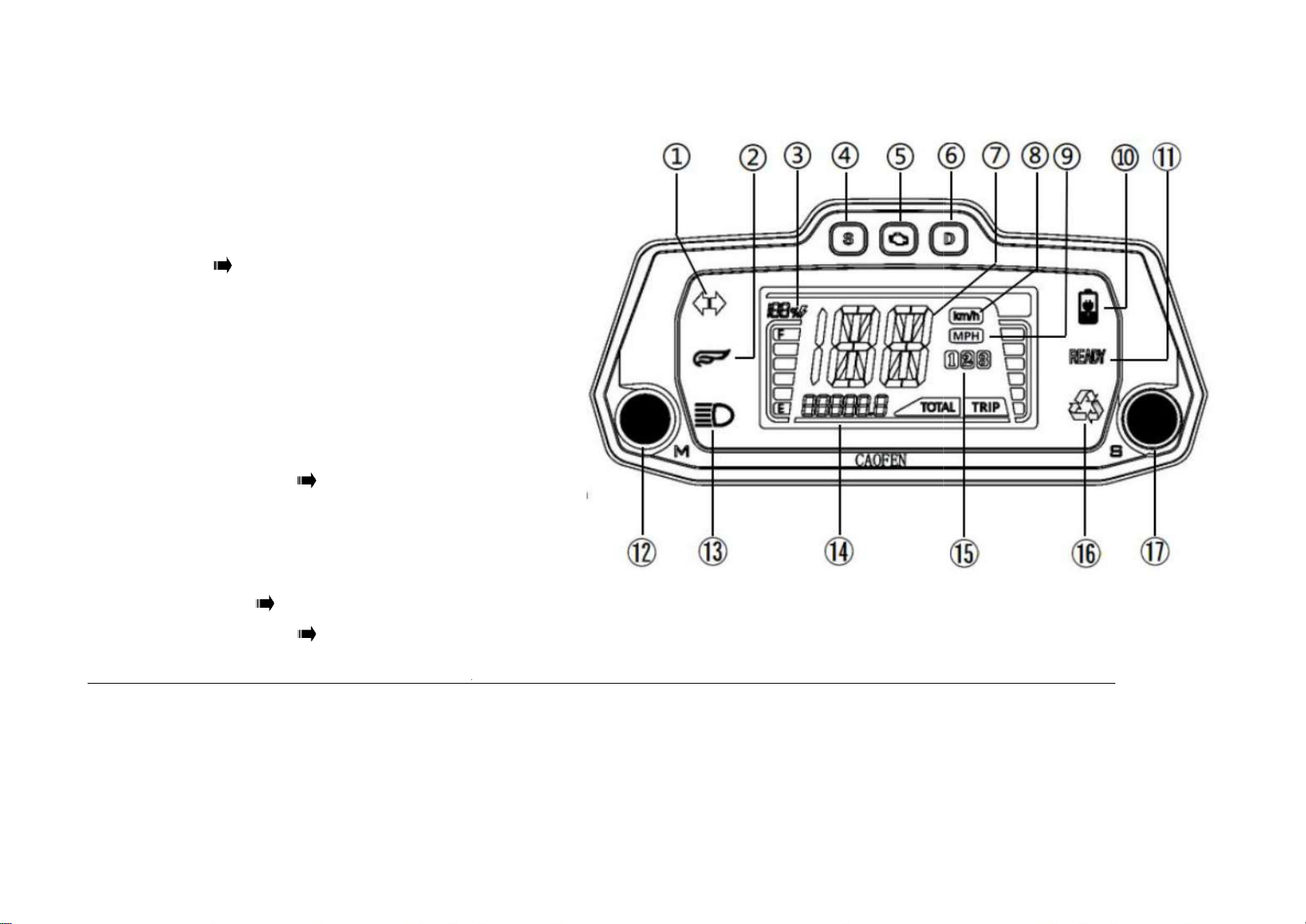

3. Meter Assembly
1. Turn indicator
2. Entertainment mode
3. SOC display
4. Power gear display
5. Fault display ( 53)
6. Drive gear display
7. Speed display
8. Speed unit (km)
9. Speed unit (mile)
10. Charging warning light
11. Driving lamp
12. Function switch button ( 11)
13. High beam indicator
14. Total ODO display/fault code display
15. Current drive gear
16. Energy Recovery ( 11)
17. Function switch button ( 11)
Tip: The meter of your F80 Electric Motorcycle may be slightly different from the description in the Manual, but the function
Page 11 of 61
Tip: The meter of your F80 Electric Motorcycle may be slightly different from the description in the Manual, but the function
Tip: The meter of your F80 Electric Motorcycle may be slightly different from the description in the Manual, but the function
is the same.

Page 12 of 61
Meter Display Instruction
* Press the remote control button of the startup controller, and the LCD screen of the instrument will light up
High beam: The meter is initially set into the daily running light, press the Light button on the left switch assembly of the left brake lever, and the
high beam will be turned on.
Left and right turn signals: When the steering switch on the left brake lever switch assembly is pushed to the left, the left front and rear turn
signals will flash; when the steering switch is pushed to the right, the right front and rear turn signals will flash.
Entertainment mode display: When it is on, there is no traction control (that is, no brake is powered off), and when it is off, there is traction
control (that is, the brake is powered off).
Sport gear: When the S indicator flashes, Gear D is applied; when it is steady on, Gear 1 applied; when flashing slowly, Gear 2 applied; when
flashing fast, Gear 3 applied.
Drive gear: Press the N/D button on the right brake lever to control the Gear D indicator to light up or off; 1. Steady on: Gear D is applied and the
motorcycle can be driven; 2. OFF: Gear N is applied.
Indicator: it is controlled by the steering lock key or the Start button (depending on the power-on switch of the motorcycle); 1. If it is steady on, the
motorcycle will be started; 2. If it is turned off, the motorcycle will not be started.
Energy Recovery indicator: 1. Steady on: the auxiliary brake is applied to recover the energy after a delay of 20 ms when the
braking signal is detected
(or the speed is reduced by 10%); 2. Flashing: the energy is recovered after the throttle is released; 3. Off: the energy recovery is disabled.
Charging warning light: 1. Off: sufficient power; 2. Steady on: warning for insufficient power; 3. Flashing: the battery is in low voltage and should be
charged as soon as possible.
Function switch button - M button: 1. Press it once: switch the display of Trip and Total; the trip and maximum speed are displayed at the same time;
the speedometer shows the current speed when the motorcycle is running; 2. Press and hold it: switch the mileage unit between km and mile;
S button: In Trip mode, press and hold the S button for more than 2 seconds, and the Trip and Max. Speed will be cleared zero synchronously.

4. Left and Right Brake Lever
Switches
Combination switch of left brake lever
Page 13 of 61
Switches
① High and low beam switch
Press upward to turn on the high beam.
Press downward to turn on the low beam.
② Left turn signal switch
Push leftward to turn on the front and rear left turn signals.
③ Right turn signal switch
Push rightward to turn on the front and rear right turn signals.
④ Horn switch
Press the switch and the horn will sound.
Push leftward to turn on the front and rear left turn signals.
Push rightward to turn on the front and rear right turn signals.

Page14 of 61
Combination switch of right brake lever
①Enterainment mode switch
Press upward for 3 seconds to turn this mode on and off.
②Energy recovery indicator
1. Steady on: the auxiliary brake is applied to recover the energy after a delay of
20 ms when the braking signal is detected (or the speed is reduced by 10%);
2. Flashing: the energy is recovered after the throttle is released.
3. Off: the energy recovery is disabled.
③ Right throttle grip
Turn the grip backward to accelerate
④ Gear and Neutral shift button
Instrument movement D gear lights on and off (default N gear every time you
start)
1. If steady on, the Gear D is applied and the motorcycle can be driven;
2. If lighting off, the Neutral Gear is applied (not displayed) and the motorcycle
cannot be driven;
⑤ Gear shift button
Power gear display: the button circulates in Gears 1, 2 and 3; when the indicator is
steady on, Gear 1 applied; when flashing slowly, Gear 2 applied; when flashing
fast, Gear 3 applied. The gear number is also displayed in the current gear area of
the meter.

5. Startup controller
Electronic key (remote control)
Electronic key: after the battery switch is turned on, the remote control will beep once, indicating that the
power gets ready, press the ON button on the remote control and the steering lock will be unlocked; press
the OFF button and the lock
NOTE
When the remote control is applied, ensure that the battery is properly installed in the motorcycle, and the
effective remote control distance should not be over 20 meters. When the motorcycle
remote control, the distance between the remote control and the motorcycle should not be less than 1.2
meters.
Page15 of 61
Electronic key: after the battery switch is turned on, the remote control will beep once, indicating that the
power gets ready, press the ON button on the remote control and the steering lock will be unlocked; press
the OFF button and the lock
bolt extends downward to the lock-
up direction.
NOTE
When the remote control is applied, ensure that the battery is properly installed in the motorcycle, and the
effective remote control distance should not be over 20 meters. When the motorcycle
remote control, the distance between the remote control and the motorcycle should not be less than 1.2
Electronic key: after the battery switch is turned on, the remote control will beep once, indicating that the
power gets ready, press the ON button on the remote control and the steering lock will be unlocked; press
up direction.
When the remote control is applied, ensure that the battery is properly installed in the motorcycle, and the
effective remote control distance should not be over 20 meters. When the motorcycle
is controlled by the
remote control, the distance between the remote control and the motorcycle should not be less than 1.2

6.Battery Pack and Charging Mode
Battery pack
There are three battery specifications (72V48Ah, 32Ah, 30Ah) available for CAOFEN electric motorcycles. Unique fully submerged liquid cooling
and heat management solution is adopted for 72V48Ah and 72V32Ah batteries, greatly guaranteeing the safety and service life of the battery.
Liquid cooling technology of battery:
● CAOFEN's unique fully submerged liquid cooling and heat management solution in the industry
● IP67 battery module is fully submerged in the compound environment-friendly liquid cooling solvent. The solvent with high specific heat capacity
is conducive to rapid heat dissipation and heat balance of the battery. The typical temperature difference is not more than 2 ℃ so as to maintain the
consistency of cell temperature and effectively extends the battery service life.
● Internal power battery system, BMS and other electrical components are all covered with liquid "safety film" and arranged in flame-retardant ABS
frame structure, and the battery cells are all kept independently insulated in all directions. A flexible shockproof EVA is placed between the two cells,
with coolant flowing in the middle to isolate water and air, providing a different guarantee for battery safety and creating a larger time window of life
safety in extreme cases.
● The cell is gold-plated to ensure sufficient current capacity and 5,000 times of plugging and unplugging. The terminal is designed to be locked,
namely it can be locked in place to ensure full contact under all working conditions. Special machining technology allows the motorcycle to meet the
IP68 waterproof and dustproof requirements.
● The low-temperature charging system (0 to -40℃) is capable to charge the battery anytime and anywhere in case of emergencies, and prevent the
cell from dangerous charging at low temperature.
● The magnesium alloy case has superior strength protection and excellent heat dissipation performance. The weight of the case is 1/3 less than that
Page16 of 61
of the aluminum alloy case of the same volume and 1/5 of the weight of the steel case, enabling the motorcycle to have more endurance mileage.

Page17 of 61
Schematic Diagram of Battery Shape and Components
1. Battery switch
2. Waterproof and dustproof cap
3. Charging socket
4. Explosion-proof pressure relief valve
5. Discharge cathode holder
6. Discharge anode holder (communication, normal
power supply)
Tip: The Battery of your F80 Electric Motorcycle may be slightly different from the picture in the Manual, but the function and wiring definition are
the same.

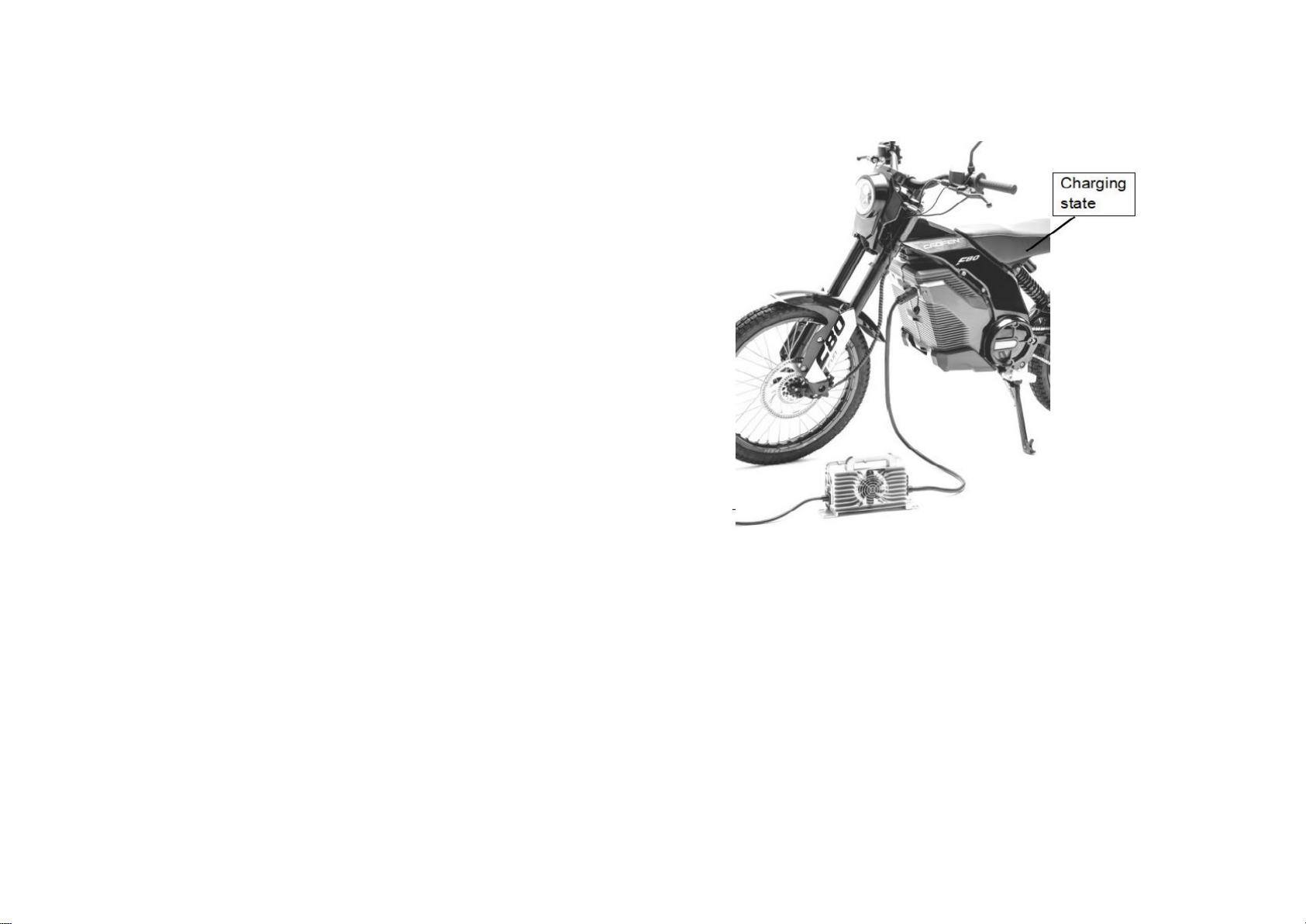

Motorcycle Charging Mode
Charging procedure
1. Check the charger and ensure that it is the original one matched with the
battery.
2. Turn on the battery power switch.
3. Connect the charger output plug with the battery charging port (check
whether it is plugged in place).
4. Connect the mains power input terminal of the charger to the AC socket
(input voltage: AC110V-AC220V).
5. After 3-5 seconds, the charger indicator flashes, the fan rotates and the
charger start charging; after the battery is fully charged, the indicator turns
green and flashes.
6. After fully charged, cut off the commercial power supply, and then
Page18 of 61
remove the power plug.
Battery User Manual
● Before putting the battery into service, please ensure that it is original, and do not use other brands or types of batteries.
● Before use, check whether the battery is in good condition, and ensure that there is no obvious damage, liquid leakage, water immersion, smoking,
overheating, etc.
● For the safety during transportation, the rated capacitance of the battery is 50%-80% when it is delivered. Due to the influence of self-consumption
factors such as transportation and storage cycle, there is low battery power or even no power when the battery is used for the first time. It is normal,
and do not worry. Just charge it once according to the instructions.
● Do not connect the charger to AC power supply or charge the battery in a confined space or at high temperature.

7. Environment and Precautions
Page19 of 61
Operating Environment
● Use the liquid-cooled battery
between -40 ℃ and 50 ℃.
● Use lithium iron phosphate
battery between -10℃ and 45℃.
● Protect the battery from being
soaked by water, beverages and
corrosive liquids.
● Do not wash the interior and
meter of the motorcycle with water
cannon.
● Keep your motorcycle or battery
away from open flame, heat source,
and flammable and explosive gas or
liquid.
● Keep the metal or other
conductive objects from entering the
battery case.
● Do not short-circuit the anode
and cathode of the battery with wire
or other metal object.
■ At low temperatures, the available capacity of the battery will be decreased to different degrees, which will shorten the riding mileage. As long as it
is not abnormally decreased significantly, it is normal. If you have questions, please contact the local distributor or after-sales service center of
CAOFEN.
■ If the battery is abnormal in heating, scorched smell, smoking or special sour liquid leakage, stop using it immediately and contact the local
after-sales service center or our company in time!
■ The battery cannot be repaired by the user. If it is abnormal, please contact the distributor. Unprofessional disassembly may cause the battery to be
heated, smoked, caught on fire or exploded. If the user opens the battery case without permission, he will not enjoy the three-pack policy. If the user
opens the battery case without permission, the Three Guarantees policy will become inapplicable.
