SSR Motorsports Lazer5 User manual

1
Lazer5 Owner’s Manual

2
Preface
Thank You for purchasing the Lazer5 50cc Moped, it will bring you years of plea-
surable riding in a safe to operate package.
Riding a moped is one of the most exciting past times. For your safety, you
should read this owner’s manual carefully and follow these instructions before
you ride.
This manual introduces regular maintenance and service, please follow these
instructions, it will help you to keep your moped in good running order and func-
tioning for years to come.
Our company never stops improving our quality and performance, this may lead
to color or structural changes not outlined in this manual. We apologize if this
brings you any inconvenience.
SSR Motorsports

3
Important Notice
1. Driver and passenger
This moped is designed for one driver and one passenger only.
2. Road condition for driving
This moped is only suitable for driving on roads.
3. Please read this manual carefully. Following the instructions outlined here will make your
moped more durable and stable.
Please note the following words:
Warning: Means if you DO NOT follow the instructions, it could lead to serious damage for
driver and passenger.
Caution: Means if you DO NOT follow the instructions, it may cause the person/s to be injured
or damage to the moped.
Notice: Provide useful information
This user manual is proprietary to this moped. If this vehicle is sold, you should pass this
manual on to the new owner together with the vehicle.
Do not copy or translate any part of this manual without the expressed written permission of
SSR Motorsports.
This vehicle uses motorcycle grade engine oil.
---The special lubrication oil for motorcycles.

4
Special Notice
Warning: This moped must use the correct spec fuse, DO NOT use other spec fuses or
operate without a fuse. Incorrect fuses may cause damage to the vehicle or re.
Fuse position: next to the battery.
Fuse spec: Main Fuse 10 Amp.
If you blow the main fuse, before you replace the fuse you should perform a simple check of
the vehicle for electrical shorts. If after replacing the fuse it blows again, send the vehicle to an
authorized SSR dealership for inspection.
Notice:
* When changing the battery for the rst time be aware of the positive and negative terminals.
If you connect the battery to the wrong terminals check the main fuse immediately. Even if the
main fuse is not blown you should take your motorcycle to a SSR dealership for inspection. An
incorrect connection could lead to electrical system damage.
* Before replacing the fuse, turn off the ignition switch and remove the key.
* When replacing the fuse, use caution not to damage the bottom of the fuse, otherwise it may
cause failure or other electrical system damage.
Forbidden Modications:
Please do not change the original parts position, otherwise it will seriously effect ve-
hicle performance and safety and may even cause the vehicle to operate improperly.
Modication examples include: electronic, emissions and/or fuel system, these changes
may also be illegal. Our company will not take any responsibility for any of these chang-
es made.

5
Preface
Important Notice
Special Notice
Safety Information........................................................6
Safe Riding..................................................................6
Riding Gear.................................................................6
Helmet..........................................................................6
Riding in Rain..............................................................6
Moped VIN Number.....................................................7
Part Description...........................................................8
Speedometer................................................................9
Parts Operation..........................................................10
Key...............................................................10
Ignition Switch...............................................10
Left Switch....................................................10
Right Switch..................................................11
Fuel Tank......................................................12
Transmission Shifter Lever...........................12
Side Stand....................................................13
Tool Kit..........................................................13
Rear Shock Absorbers..................................13
Mirrors...........................................................13
Gasoline and Engine Oil Information.........................14
Engine Break-In.........................................................14
Pre-riding Inspection..................................................15
Riding your Moped.....................................................16
Starting the Engine.......................................16
Starting.........................................................16
Riding Up Slopes..........................................16
Using the Brakes and Stopping....................16
Inspections and Maintenance....................................17
Maintenance Schedule............................17/18
Engine Oil Change........................................19
Spark Plug....................................................20
Throttle Cable Adjustment............................20
Idle Adjustment.............................................20
Carburetor.....................................................20
Drive Chain...................................................21
Brakes...........................................................22
Tires..............................................................23
Air Filter Maintenance...................................23
Parts Lubrication...........................................24
Battery...........................................................24
Fuse.............................................................25
Headlight.......................................................26
Bulb Replacement........................................26
Storage Information...................................................27
Specication...............................................................28
Electrical Diagram......................................................29
Table of Contents

6
Safety information
Safety Regulations:
1. Before riding perform a pre-ride inspection
of your vehicle to prevent accidents.
2. Rider must posses a legal driving license,
and do not allow those without a driving
license to use your moped.
3. To avoid accidents with other drivers the
rider should:
• Wear bright colored clothing.
• DO NOT ride close to other vehicles.
4. Strictly obey trafc regulations, do not cut
in and out of trafc rapidly.
5. Most accidents are caused by speeding,
you should follow the speed limit at all times.
6. When making turns, use the turn signal
indicators.
7. Use caution when riding in parking lots,
the fast lane, and at intersections.
8. DO NOT modify your moped or remove
parts, it may effect it’s function or void your
warranty.
9. DO NOT add accessories that will effect
riding your moped, DO NOT overload elec-
tronic parts.
Clothing:
1. For safety reasons, the rider must wear a
helmet, eye protection, boots, gloves and a
riding jacket/pants. A passenger should also
wear the same gear listed above.
2. While riding, the exhaust system will be
hot, DO NOT touch the exhaust system while
riding or after riding until it has cooled com-
pletely.
3. DO NOT wear loose tting clothing while
riding, it could become caught on the motor-
cycle leading to an accident.
Helmet:
It is extremely important to wear a good qual-
ity helmet and glasses/goggles if not a full
face helmet.
Riding in the rain:
Take special care when riding in the rain, the
braking distances are twice as long when
compared to dry riding.

7
Moped VIN Number
Vehicle Identication Number (VIN) and the
engine number are used for registration of
your moped. Please record your numbers for
future use.
VIN Number is stamped into the vehicle
frame on the right side of the steering stem
(1). Engine Number is stamped on the lower
engine crankcase on the left side (2). Prod-
uct information label is on the vehicle frame
on the right side below the seat (3).
VIN Number:__________________________
Engine Number:_______________________

8

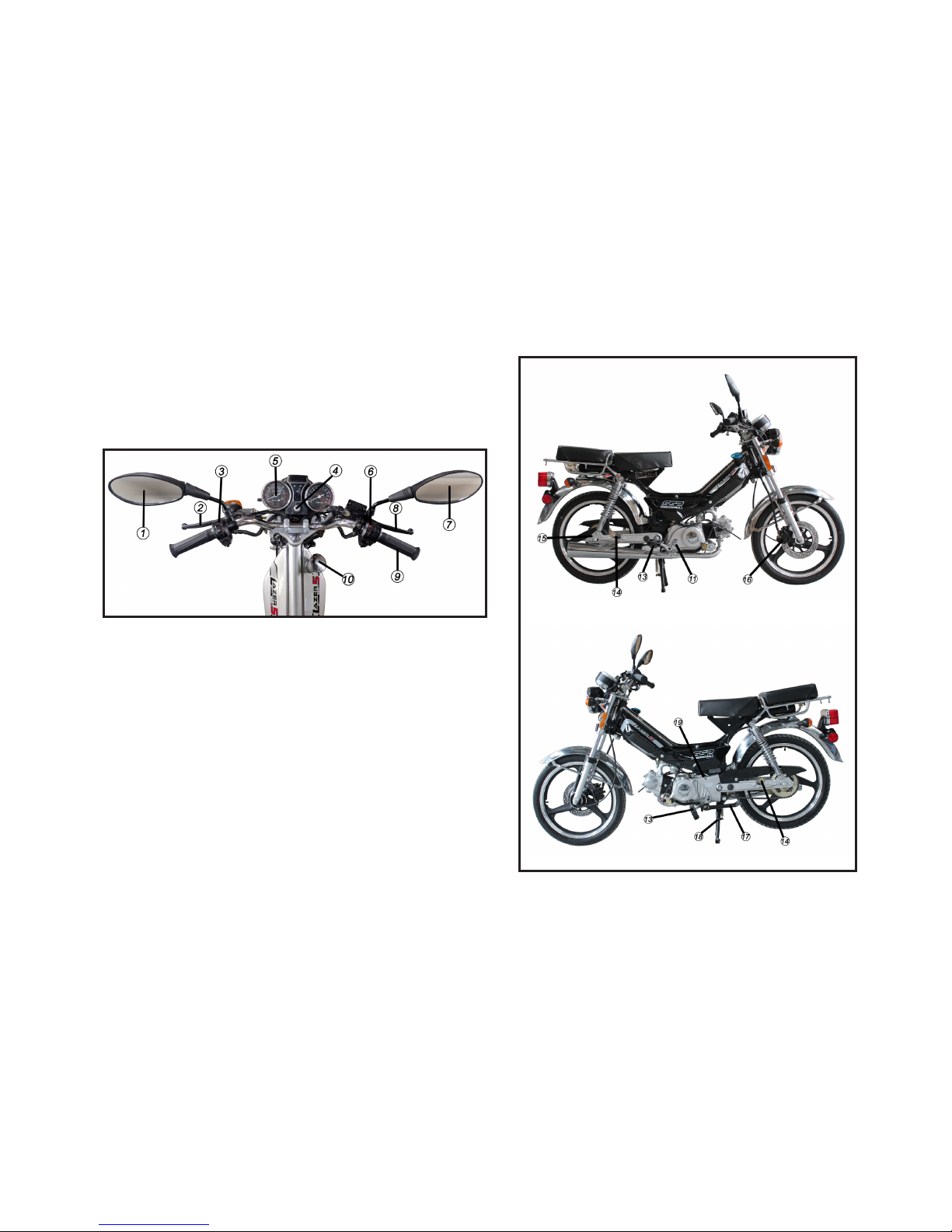

Parts Description
(1) Left Mirror
(4) Ignition Switch
(7) Right Mirror
(10) Fuel Tank
(14) Rear Footrest
(17) Side Stand
(19) Neutral / Drive
Switch
(2) Rear Brake Lever
(5) Speedometer
(8) Front Brake Lever
(11) Oil Filler Cap
(15) Rear Drum
Brake
(3) Left Side Switch
(6) Right Side Switch
(9) Throttle Grip
(13) Rider Pedals
(16) Front Brake Lever
(18) Center Stand

9

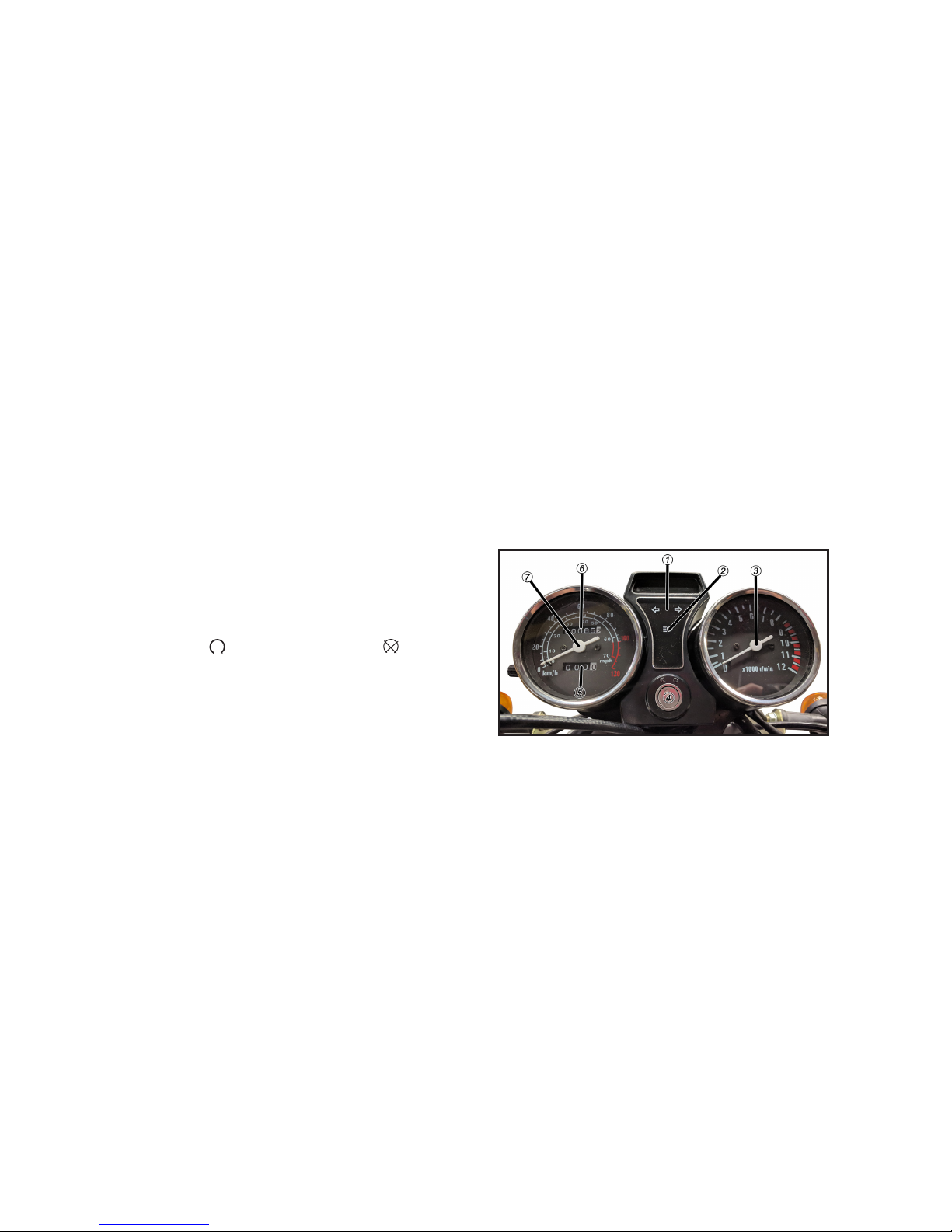

Speedometer
(1) Turn Signal Indicators
When the left turn signal is switched on, the left
indicator will ash.
When the right turn signal is switched on, the right
indicator will ash.
(2) High Beam Indicator
When the high beam headlight is switched on, the
high beam indicator will also turn on.
(3) Tachometer
When the engine is running the tachometer will
display the current engine revolutions per minute
displayed as 1X1,000 r/min.
(4) Ignition Switch
The ignition switch has two positions “ON” dis-
played as and “OFF” displayed as . Turn the
ignition switch to the “ON” position in order to start
the engine using the start button.
(5) Trip Meter
This records the total driving distance but unlike
the odometer it can be reset to track trip distance
or distance until fueling is necessary. Rotate the
knob on the left side to return it to zero.
(6) Odometer
This records the total driving distance.
(7) Speedometer
This indicates the driving speed in kph and mph.

10
Parts Operation

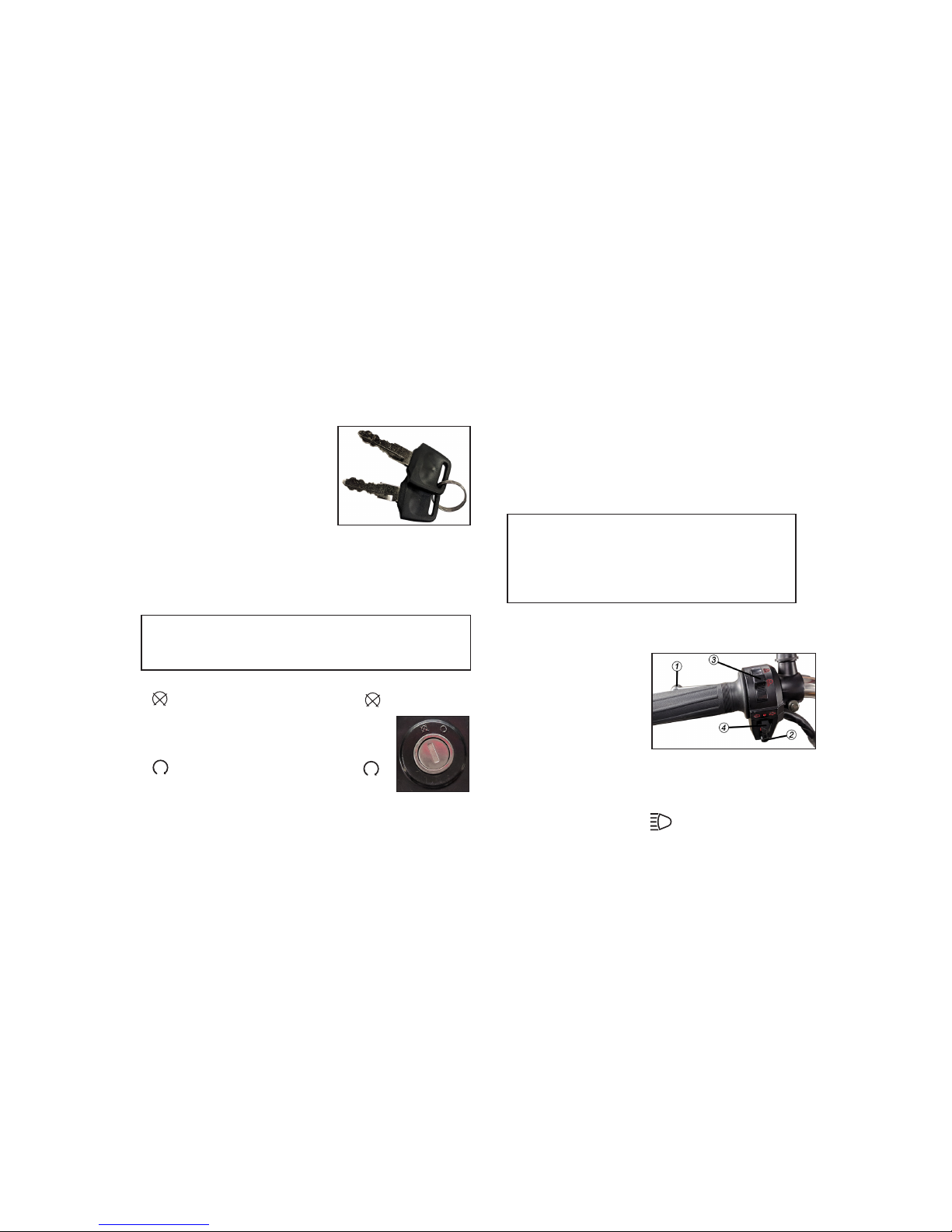

• Key
This vehicle comes with two
keys, both can be use to
start the moped and open
all the locks. Please keep
one key in a safe place. If
you loose your key or need
another one, please contact your closest
dealer.
• Ignition Switch
To prevent theft, when you park please use
this handlebar lock function. Turn the handle-
bars to the left, insert the key into the steer-
ing lock and turn the key to the right, it will
lock the handlebars. Then you can remove
the key from the steering lock.
• Left Switch Group
(1) Rear Brake Lever
When starting the
engine pull in either
brake lever to
prevent the vehicle
from lurching forward.
(2) Horn Button
When you press the horn
button, the horn will sound.
(3) Hi / Low Beam Switch
when the switch is in “ “ position, the high
beam is on, and the speedo high beam indi-
cator light will be on as well.
Warning:
DO NOT turn off the key or remove it while riding,
otherwise you could loose control of the vehicle.
“ “ logo......when the key is on “ “
position, there is no power and cannot
start engine, the key can be removed
from the switch.
“ “ logo......when the key is on “ “
position, it has electrical power and the
engine can be started, the key cannot
be removed.
• Steering Lock
Notice:
When parking your moped please lock
the handlebars and remove the key to pre-
vent theft. Always park your moped in an
appropriate place.

11
(2) Start Button
When you press this “ “ button, the engine
will start.
(3) Throttle Grip
The throttle grip controls the speed of the en-
gine. When you want to accelerate, turn the
grip toward the rear of the motorcycle.
(4) Front Brake Lever
When braking, please grip the right side lever
gradually.
(5) Headlight Switch
Use this switch to turn off or on the headlight.
DO NOT turn off the headlight while the en-
gine is running and the moped is in use.
When the switch is in “ “ position, the low
beam is on.
(4) Turn Signal Switch
Press the left side turn signal “ “ the left
side turn signal light will ash. Press right
side turn signal “ “ the right side turn sig-
nal light will ash. To turn off the turn signal,
return the switch to the middle position.
• Right Switch Group
(1) Hazard Light Switch
When this switch is in the “ “ position, the
front and rear turn signals will blink in unison.
When the switch is in the “ ● “ position, the
front and rear turn signals will be off.
Warning:
When changing lanes or turning, always
use the turn signal indicator. Shut off the
turn signal as soon as you have completed
your turn.
Warning:
Only use the Hazard Light Switch for emer-
gency situations. Don’t use this switch for
any other reason other than an emergency.

12

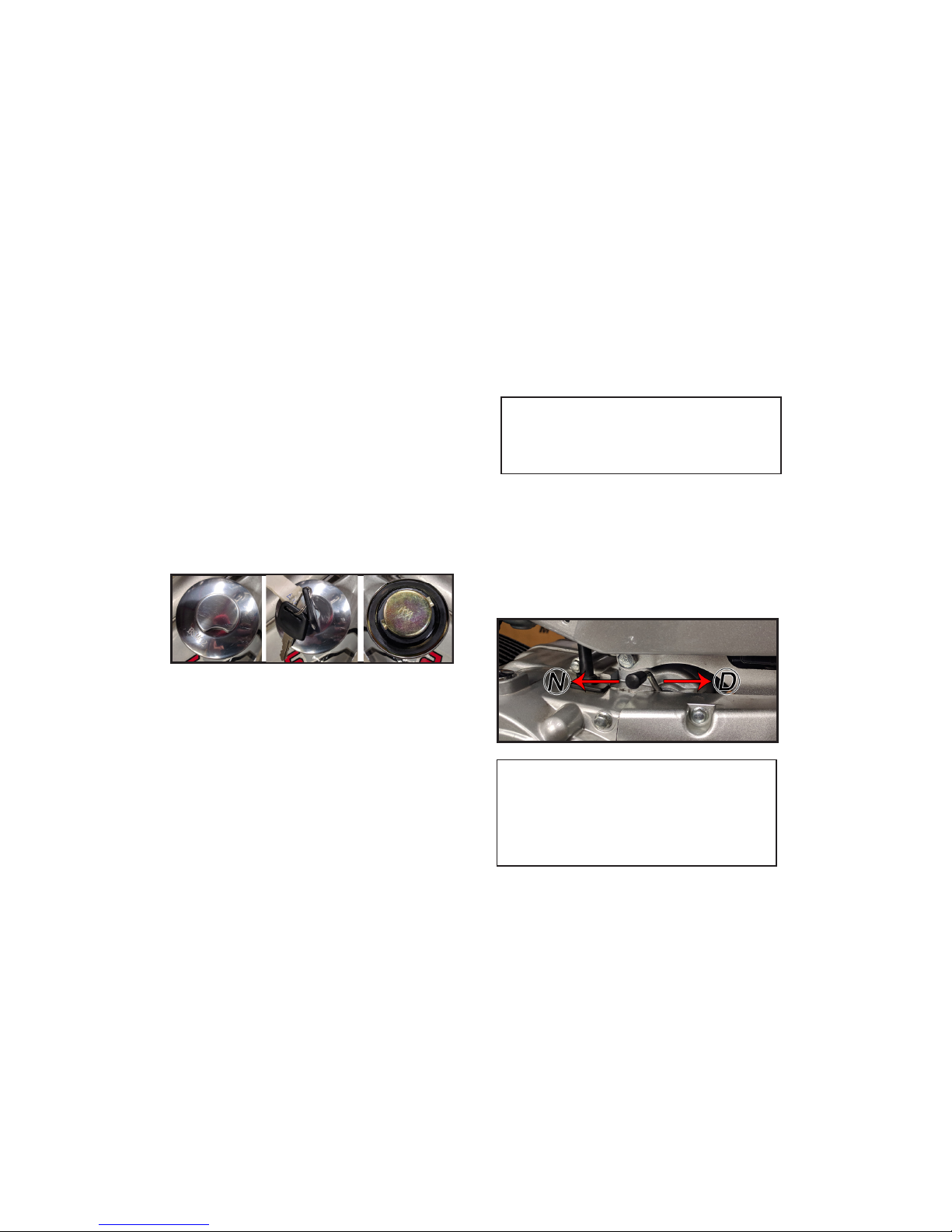

• Fuel Tank
Your moped is not equipped with a fuel
gauge, make sure to refuel your moped be-
fore you run out of fuel.
First open the dust cover and then insert the
key and turn it counterclockwise to unlock.
Turn the cap counterclockwise to remove
it. After lling with gasoline reinstall the fuel
tank cap by turning it clockwise. Then turn
the key clockwise to lock the cap.
Your moped is also equipped with a fuel
petcock valve. This valve has three pos-
tions, On, Off, and Reserve. If left on the
On position when it runs out of gas it can be
switched to Reserve for a small amount of
additional fuel.
ON = Upper Symbol
OFF = “ •” Symbol
Reserve = Lower Symbol
• Gear Shift Lever
This vehicle is equipped with a neutral / drive
switch to enable pedaling of your moped.
The transmission is in the neutral position
when the lever is pressed toward the front of
the moped, drive is engaged when the lever
is pressed toward the rear of the moped.
Warning:
Please DO NOT overll the fuel tank.
DO NOT splash gasoline on the engine
while hot, it is very dangerous.
Caution:
DO NOT switch the transmission position
when the vehicle is moving. Only move the
lever when the moped is stationary. When
the engine is in neutral, there is no neutral
indictor lamp.

13
• Side Stand
The side stand is on the left side of
the moped, be sure to use the stand
when parking the vehicle.
• Center Stand
The center stand is on the left side of
the moped behind the side stand. Use the
center stand when servicing the moped or if
more secure footing is needed.
• Tool Kit
Your moped includes a tool kit. The tool kit
includes a screw-driver, screwdriver handle,
a 14/12 wrench, a 10/8 wrench, an Allen
wrench, and a spark plug socket.
• Rear Shock Absorbers
This vehicles rear shock absorbers include
a spring and liquid dampening. The shock
absorber can be adjusted according to differ-
ent road conditions. To adjust, use a spanner
wrench to rotate the collar at the bottom of
the spring on the rear shock. Use the dia-
gram below for reference.
• Adjustable Mirrors
To adjust the mirrors, loosen the bottom nut
if needed to move the mirror in closer. Other-
wise adjust the head of the mirror into a posi-
tion where you can see clearly behind you.
Caution:
Don’t park your moped on a slope, other-
wise your moped may fall over.

14
Gasoline and Oil Information
• Gasoline
Please use unleaded gasoline. Please use
octane of #91 or above.
• Oil
Please use SJ or above SJ grade engine oil.
Use the viscosity chart below to determine
the best viscosity for your region.
Engine Break-In
• Top Speed
During the rst 1,000 miles of operation, do
not run the engine at high speed or acceler-
ate too quickly. RPM’s should not exceed
80% of the maximum RPM.
• Engine Speed Change
Speed should always be variable, it should
change frequently, it helps the engine parts
to break-in smoothly.
• Avoid Long Distances at Low Speeds
To help prevent damage and to assist the
engine break-in period long distance travel
at low speeds should be avoided until the
engine is past the rst 1,000 miles of use.
The chart below shows the recommended
maximum RPM’s during the break-in pe-
riod.
Caution:
Use only unleaded gasoline as this will
prolong the life of the spark plug.
First 500 miles Under 5,000 RPM
First 1,000 miles Under 6,000 RPM
Over 1,000 miles Under 7,500 RPM

15
• Before Riding
Check the engine oil level before operating
your moped every time.
• First Service Maintenance
The rst 600 mile maintenance is the most
important service to have performed. Please
tighten all hardware and change the oil.
• Special Notice
Once your moped has 200 miles on it return
the dealership for an oil change. Then after
600 miles return to the dealership for an oil
change and air lter cleaning. After the 600
mile service the next oil change will be done
at 1,500 miles or one year, whichever comes
rst.
Check engine oil level frequently.
• Before Riding
Before riding check the items in the chart to
the right.
Caution:
600 mile maintenance should be per-
formed according to this manual. Please
pay special attention to the “Caution” and
“Warning” notes.
Item Check Points
Handlebar
1) Stable
2) Turning Flexibility
3) Not Loose
Brakes 1) Brakes feel rm
2) No uid leaks
Tires
1) Correct Air Pressure
2) Check Tire Wear
3) No Cracks or Damage
Fuel Enough for planned
travel
Lights Check function of all
lights
Indicators
Check high-beam, neu-
tral light, and turn signal
indicators
Horn Check Function
Oil Check for correct level
Throttle 1) Rotates Freely
2) Engine Accelerates
Drive Chain 1) Correct Adjustment
2) Lubrication

16
Riding your Moped
• Starting the Engine
Turn the key to the “ “ position, the engine
can be started in both drive and neutral.
• Start
Apply the front brake by pulling in the lever,
then press the start button marked “ “
until the engine starts and runs, you will want
to use the choke if the engine is cold.
• Riding on Inclines
When riding up and incline, your mopeds
speed will decrease and it may stall. When
this happens you will want to also pedal your
moped to assist your hill climb.
• Using the Brakes and Parking
You should completely close the throttle and
gradually apply the front and rear brakes
evenly when bringing your moped to a stop.
Your moped should be parked on at ground
whenever possible. If your moped must be
parked on an incline, please lock the handle-
bars and angle the front wheel into the curb
to keep it from rolling. You can also use the
center stand when parking on an incline but
you will need to face the front of your moped
up the hill, not down.
Caution:
New riders tend to use only the front or
rear brake, this will cause either system
used to wear out the brake pads/shoes
more quickly. Using only the front or rear
brake will also increase braking distances.
Warning:
Only using the front or rear brakes is dan-
gerous, especially in wet conditions. This
can cause loss of control. Always apply
both brakes evenly. DO NOT brake sud-
denly as this may cause wheel lock up and
vehicle skidding.

17
Maintenance
The following chart shows the maintenance schedule. When each service interval is reached
you must perform the services outlined below. Suspension, Engine, Electronic System, Carburetor
and Tires are key components. These items may require a professional technician to perform.
Maintenance Symbols: I: Inspect/Adjust C: Clean R: Replace A: Adjust L: Lubricate T: Torque

18
* When the mileage exceeds the highest mileage on the table, please restart the table at the
600 mile interval
* If riding in a dusty environment clean/lube/oil the air lter and chain more frequently.

19
• Oil Change and Oil Level Check
Check the engine oil level
before you start the engine.
When checking the oil level,
make sure the vehicle is on
at ground. Remove the dip-
stick and wipe it clean with
a rag. Reinsert the dipstick
without screwing it in. Remove the dipstick
and observe the oil level, it should be at the
upper area of the XXXXX pattern.
The engine oil capacity is 700cc.
When draining the oil,
place an oil pan under
the drain plug, then
remove the drain plug.
(1). When completely
drained reinstall the
oil drain bolt.
Torque the bolt to 20-25Nm.
(2.) Fill the engine with 700cc’s of fresh oil.
(3.) Use a clean, dry rag to clean the oil ller
cap/dipstick and engine cover surface.
(4.) Check the oil level with the dipstick and
verify it is at the upper portion of the XXXXX.
(5.) Apply a small amount of oil to the dipstick
o-ring then screw it into place and tighten by
hand.
(6.) Start the engine and allow the engine to
idle for a few minutes then turn off the en-
gine.
(7.) Remove the dipstick and clean it with a
rag. Reinsert the dipstick without screwing it
in and then remove it to observe the oil level.
(8.) If the oil level is sufcient, reinstall the
dipstick, if not repeat step 5 and 7 until the oil
level is correct.
Caution:
The best time to change the oil is when the
engine is warm. The moped should be
supported vertically on the center stand so
the warm oil will exit the engine quickly.
Caution:
Replace the oil dipstick o-ring and the oil
drain bolt crush washer every time you
change the oil to avoid leakage.

20

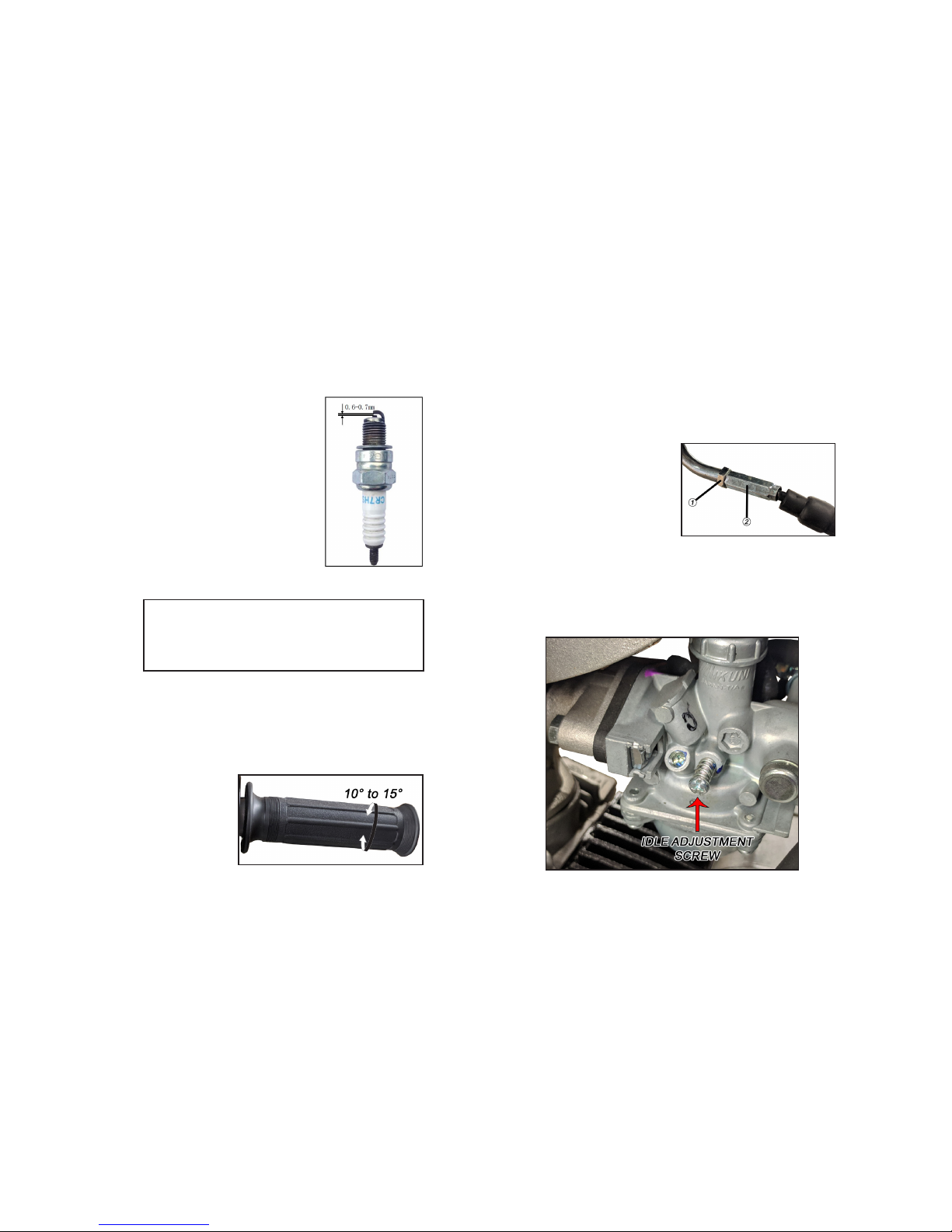

• Spark Plug
Use a small wire brush
or a spark plug cleaner to
clean the carbon deposits
from the plug in the rst 600
miles of use and after every
2,600 miles of riding. Every
5,000 miles, the spark plug
should be replaced.
Spark Plug Type: NGK C7HSA
• Throttle Cable Adjustment
1. Turn the throttle grip to check if it reacts
quickly or not.
2. Check the throttle cable freeplay, it
should have 10° to 15° of freeplay at the
handlebar grip.
Caution:
DO NOT over torque the spark plug. Over
torque could lead to cylinder head thread
damage.
Please follow these steps to adjust the throt-
tle grip travel distance.
1. Pull back the throttle
cable cover.
2. Loosen the nut (1).
3. Adjust the screw (2)
until 10°~15° of travel
is achieved.
4. Tighten the nut (1).
• Engine Idle / Fuel Screw Adjustment
Use the idle adjustment screw to raise or
lower the idle as needed.
