Capitol Energy Systems TWC46 User manual

Page 2
Operation Guide
Model TWC46 Wi-Fi Thermostat
72 H
AUTO
FAN
ON
74
2
75 C
4:30 PM
SYS MOT
Fan On
Link Ok
Temperature
Setting
Warmer
Cooler
Fan
ON/ OFF
ON/ OFF
Internet
Connectio
n
Room
Temperature
Set Points
Time
In Session Display
Out of Session Display
DCN: 141-01778-12
75
OFF

Page 3
Table of Contents
Wiring 4

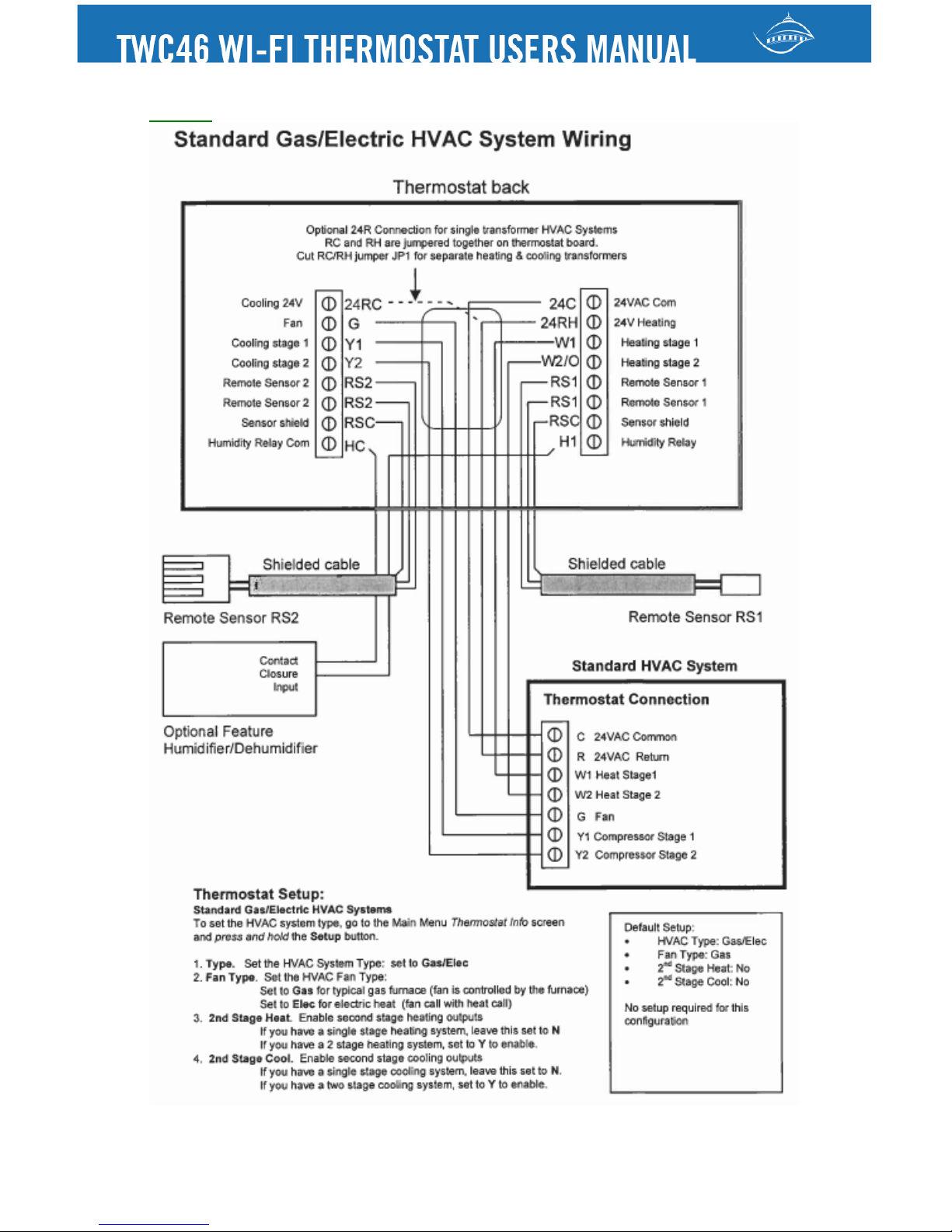

o Gas/ Electric 4

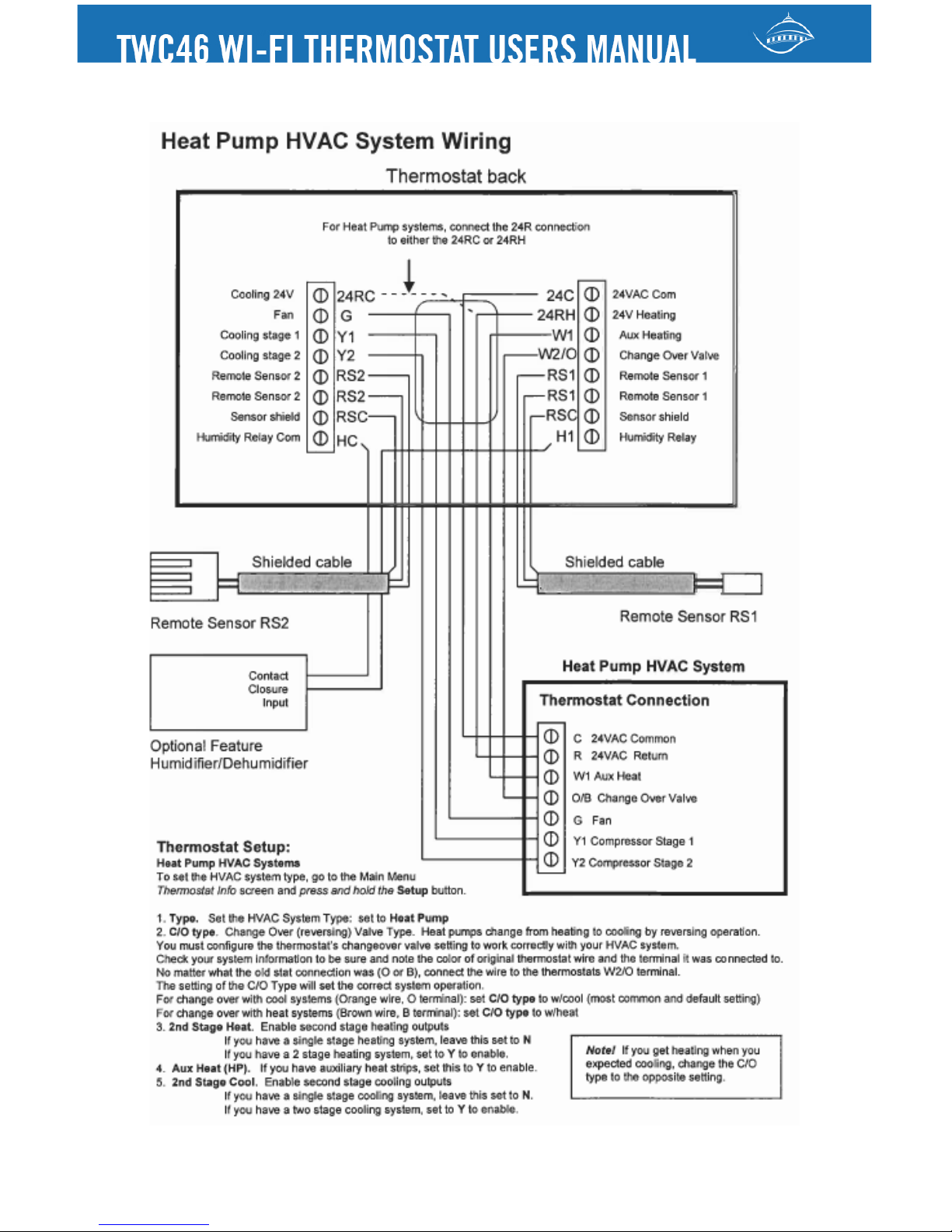

o Heatpump 5
Accessing the Thermostat Menu 6
Initial Set-Up 5
o Mechanical 6
User Settings Menu 8
o Filter Service 8
o Maintenance Service 8
o Screen Timeout 9
o F/C Settings 9
o Sensor Calibration 9
o Backlite Display 9
Main Menu
o Schedules 10
o Occupied Settings 12
o Away Setpoints 12
o Thermostat Info 13
o Wifi Network Status 14
o Wifi Setup 14
Installer Settings 14
o Display Lock 14
o Service Mode 15
o System Settings 15
o Max Heat SP 15
o Min Cool SP 15
o Min Run Time 15
o Min Off Time 15
o Fan Cycler 15
o Remote Sensors 15
o Restore Defaults 15
System Status Indicators 15
Thermostat Operation 16
Troubleshooting 17

Page 4
Wiring

Page 5

Page 6
Accessing the Thermostat Menu
The programming menu’s on the thermostat will normally be locked to
prevent tampering since all of the programming should be done online
through the EMS. To access the thermostats programming menu’s you
need to enter a code.
Hold down the number one button then enter the following sequence:
UP – UP – Down - Down – 2 - 4 – 2 - 4
Then release the number 1 button
The EMS sends a command to lock the programming screens to prevent
tampering. If you are unable to use the up and down arrows in the Menu
Selection Screen hold down the #2 and #3 buttons to launch the Installer
Settings Menu
Display Lock: Use the + and – button until you display the U (Unlock)
button to unlock the programming screens.
Initial Set-Up
Set Clock: The first screen you will see is to set the clock. You do not
need to set the time since the time will automatically be set once the
thermostat connects to the online EMS. Press the #1 back button to
access the next menu.
75
On
64H
82C
AUTO
FAN
Sys Off
4:30
PM
Link Ok
1
2
3
4
UP
DOWN
Installer Settings
Select
Display Lock U
Service Mode
Network Settings
System Settings
Done

Page 7
.
User Settings: The next menu which appears is the User Settings.
Press the #1 Done button
Menu Selection: The next menu which appears is Menu Selection. Use
the down arrow to scroll down to Thermostat Info.
Thermostat Info
The Thermostat Info screen displays the current configuration of the
thermostat. Press the #4 Setup button to open the Mechanical Settings
Menu
Back
Set
Set Clock
Time 08:00 AM
Date 01/01/11
Day Mon
+
-
User Settings
Select
Set Clock
Filter Service
Maint Service
Screen Timeout 0
Done
Menu Selection
Select
Thermostat Info
WiFi Network Status
WiFi Setuo
Done
Done
Setup
TW45 Version: 01.02.03
WiFi Radio Version: 02.26.02
System Type: Standard
Fan Type: Gas
Thermostat Address: 1
Thermostat Info
Status

Page 8
Mechanical Settings
• Type – Use the + and – buttons to choose Gas/ Elec or Heatpump
• Fan Type – if HVAC type = Standard: Gas or Elect
OR
• Changeover – if HVAC type = Heat Pump: Changeover with cool or
changeover with heat
• 2nd Stage Heat – Use the + and – button for Y (yes) or N (no)
• 2nd Stage Cool - Use the + and – button for Y (yes) or N (no)
Press the #1 Done button once the mechanical settings are properly
entered.
User Settings Menu
Menu Items:
• Set Clock > go to the clock setting screen
• Filter Service > go to the filter timer setup
screen
• Maint Service > go to the maintenance timer
setup screen
• Screen Timeout > sets the time in seconds to
switch to the minimized screen
• F/C Settings > go to the F/C mode selection screen
• Sensor Calibration > go to the sensor calibration screen
• Backlight/Display > go to the backlight and display setup screen
Filter Service: Go to the Filter Service Screen to set/reset the filter
timer/alert. This screen shows the filter runtime in hours and the service
interval alert in hours (typically 300 hrs). You can change the service
interval with the +/- buttons. You should reset the service alert after you
have changed the filter.
Maintenance Service: Go to the Maintenance Service Screen. On this
screen you can sets/reset the maintenance timer/alert.
The Maintenance Service screen will show the accumulated Heat and
Cool runtime hours as well as the Service Interval that will be used to
trigger a Maintenance alert.
User Settings
Select
Set Clock
Filter Service
Maint Service
Screen Timeout 0
Done
Mechanical Settings
Type Gas/Ele
Fan Type Gas
2nd Stage Heat N
2nd Stage Cool N
Done
+

Page 9
Service interval is 3000 hours. Use the +/- buttons to adjust service
interval.
Press reset to clear the service alert and reset the runtimes to zero.
When the combined HEAT and COOL Runtime hours equals the Service
Interval hours, a “Maint” message will be displayed as a reminder that
the HVAC system may require periodic maintenance. Pressing the
Menu button will take you to the Filter Service screen. The Reset button
can be pressed and the HEAT and COOL Runtime values will be reset to
zero.
Screen Timeout: Minimized Screen. Set the display timeout time in
seconds. Options are 0 or 15 to 120 (default set to 0 seconds). This is
the time before the main thermostat screen reverts to the minimized
temperature only display screen, after the last button press. The
Minimized Screen feature is disabled by setting this time to “0”.
! Any button press will restore the main thermostat screen display.
F/C Settings: Go to the F/C Settings Screen. Select which temperature
display mode you desire, Fahrenheit (F) or Celsius (C).
Sensor Calibration: Go to the Sensor Calibration Screen. This screen
allows you to adjust the calibration of the internal sensor. You can
change the temperature calibration by +/- 7 degrees using the + and –
buttons
When the Sensor Calibration screen is selected it will show the current
temperature calibration and the current number of degrees of offset
being applied (typically 0). If the sensor’s actual temp is (74) with 0
degrees of offset and you want it to show 75, then press “+” to add 1
degree and it will show (75).
! You can refresh the info on this screen by pressing the right hand
(blank) button.
When you close this screen, it may take a few seconds for the
temperature displayed on the main thermostat screen to update to the
new temperature selected.
Backlite/Display: Go to the Backlite/Display settings screen. This
menu allows you to set the backlight timeout period and adjust the
display contrast.
Backlite Timeout: Sets the time from last button press that the backlite
will timeout and turn off. The timeout value is adjustable from 0 or 20 to

Page 10
120 seconds. If set to “0”, the Backlite will always be ON. If set in the
range of 20 to 120 seconds, the Backlite will turn OFF after the selected
time expires.
ON Level: Sets the backlight brightness when it is on. Adjustable from
0 to 100% in 5% steps. Screen will change brightness as you adjust
setting.
OFF Level: Sets the backlight brightness when it is off. Adjustable from
0 to 100% in 5% steps. Can be 0% = off or a low level for night viewing.
Contrast: Sets the contrast level of the LCD display, adjustable from 0 to
20. Use this control to adjust the sharpness of the display. To light and
the display looks faded, too dark and dark lines will appear in the display.
Typically, 10-15 is a good setting. Adjust as needed.
Menu Selection
• Schedules > Optional, used to view and set programmable
schedules
• Occupied Settings > set occupied cool setpoint and heat setpoint
• User Settings > set various user preferences
• Usage Graph > show heating and cooling run times
• Away Setpoints > show and set the heating and cooling setback
setpoints
• Thermostat Info > displays thermostat setup info
• WiFi Network Status > displays IP Network Info
• WiFi Setup > Set IP Network parameters
Use the
UP/DOWN
buttons to
select the
desired menu
item
Press SELECT to go to
the menu item screen
Press DONE to go back
to the main thermostat
screen
Menu Selection
Select
Energy Usage
Utility Set up
Messages
Schedul es
Done

Page 11
Schedules: Provides for local schedule control. This will be overridden
by the EMS if the thermostat is connected online. The Schedules Screen
allows you to review and set the setback schedule for the thermostat.
The thermostat has a 4 x 7 schedule. Four times a day can be selected
for changes to the heating and cooling setpoints. Each day of the week
can have a different schedule. Groups of days can be copied with the
same schedule. When the thermostat is set to “Run” mode, the schedule
will be executed daily, with the setpoints being changed as per that days
schedule stored in the thermostat. “Hold” mode stops schedule
operation and holds the current setpoints until changed manually or by
network commands.
The Schedules Screen gives you the option of setting a custom setback
schedule or to load one of two preset schedules.
Menu Options
• Heat and Cool: You can change the individual
day/hour and setpoints for the Heating and
Cooling schedule by selecting this menu item.
• Preset: Comfort: This is a preset schedule
with mild setbacks. Select this menu item to
load the Comfort schedule into the thermostat. Confirmation screen
will be displayed for Yes/No entry.
• Preset: EnergyMiser: This is a preset schedule with deeper
setbacks. Select this menu item to load the EnergyMiser schedule
into the thermostat. Confirmation screen will be displayed for
Yes/No entry.
Schedule Screen
When you select the Heat and Cool Schedule menu item,
the “day” schedule programming screen opens and the
schedule for current day will be displayed. Use the scroll buttons
to highlight the data to be modified. Once the data has been
highlighted, use the +/- buttons to change the value of the data.
To copy a days schedule to another day or group of days, move the
cursor to “C” on the bottom right of the schedule screen. When you
highlight the “c”, the button below will become “Copy”. Press this button
to change to the Copy Schedule Screen.
Select Schedule
Select
Heat and Cool
Preset: Comfort
Preset: Energy Miser
Done
DONE
NEXT
Monday Schedule
Time Heat Cool
Wake 06:00 A 70 79
Day 08:00 A 62 85
Eve 04:00 P 70 78
Sleep 10:00 P 62 82 C
+
-

Page 12
Copy Schedule Screen
The Copy Schedule screen is a sub screen of the Schedule screen.
The Copy Schedule screen allows you to copy a day’s schedule
to another day or group of days.
First select the day to be copied in the Schedule screen.
Scroll to the “c” at the bottom of the Schedule screen to highlight it.
The “Next” button will change to the “Copy” button.
Press the “Copy” button to open the Copy Schedule screen.
Scroll through the days and select the days you want to copy the
schedule to by setting the “N” under each day to “Y” by using the Yes/No
buttons.
After selecting all the days desired, press the “COPY” button.
Exit the Copy Schedule screen with the “DONE” button.
Occupied Settings:
Use the buttons under the + and – keys to set the occupied setpoints.
This will be set and overridden by the EMS if the thermostats are
connected online.
Away Setpoints
Away setpoints are used when the thermostat is set to the setback or
away mode. Use the buttons under the + and – keys to set the away
setpoints. This will be set and overridden by the EMS if the thermostats
are connected online.
BACK
COPY
Copy Monday Schedule
T0
Tue Wed Thu Fri Sat Sun
N N N N N N
Yes
No
Done
Set
Occupied Settings
-
+
Occ Cool SP 74
Occ Heat SP 68

Page 13
Thermostat Info
The Thermostat Info screen displays the current configuration of the
thermostat. This information is useful for quick check of firmware
versions and HVAC system setup.
Thermostat information displayed is:
• Thermostat Version - Model and firmware version number.
• WiFi Radio Version – Firmware version of the WiFi radio
• System Type - Standard or Heat Pump HVAC system
• Fan Type – if HVAC type = Standard: Gas or Elect
OR
• Changeover – if HVAC type = Heat Pump: Changeover with cool or
changeover with heat
• Network Address – This is an internal address, not the IP address
Thermostat Info Screen
Mechanical Settings
Press the #4 Setup button to open the Mechanical Settings Menu
Use up/down buttons to select
setpoint to change
Use +/- buttons to increase or
decrease the temperature
Press DONE to store the
setting and exit back to the
main menu
Done
Setup
TW45 Version: 01.02.03
WiFi Radio Version: 02.26.02
System Type: Standard
Fan Type: Gas
Thermostat Address: 1
Thermostat Info
Status
Done
Set
Away Mode Setpoints
-
+
Away – Heat 65
Away – Cool 80

Page 14
• Type – Use the + and – buttons to choose Gas/ Elec or Heatpump
• Fan Type – if HVAC type = Standard: Gas or Elect
OR
• Changeover – if HVAC type = Heat Pump: Changeover with cool or
changeover with heat
• 2nd Stage Heat – Use the + and – button for Y (yes) or N (no)
• 2nd Stage Cool - Use the + and – button for Y (yes) or N (no)
Relay Info
Pres the #2 Status button on the Thermostat info screen to assess the
Relay States Screen. Here you will find the commands that the
thermostat is passing to the HVAC Unit.
WiFi Network Status
This screen displays all known network status parameters as shown
below:
Ad Hoc Mode
The Wi-Fi radio can also be placed into Ad Hoc mode which enables
Peer-to-Peer communication without a network router. ***This is the only
way to program the TW46 thermostat.
• Enable Ad Hoc mode by pressing the “+” key at the appropriate
screen
• This sets the Thermostat IP Address to: 192.168.0.1 and the Subnet
to: 255.255.255.0
• Use your PC to connect to the thermostat and set the wifi settings.
Done
SSID: roving1 Chan: 10
Security: WPA2 DHCP: ON
IP: 192.168.1.100 : 2000
SUB: 255.255.255.0 Auth: Y
GW: 192.168.1.1 Assoc: Y
WiFi Network Status
Mechanical Settings
Type Gas/Ele
Fan Type Gas
2nd Stage Heat N
2nd Stage Cool N
Done
+
Done
Setup
W1: Off
W2: Off
Fan: O n
Y1: Off
Y2: Off
Relay States
Status

Page 15
Installer Settings
When you are in the Menu Selection Screen hold down the #2 and #3
buttons to launch the Installer Settings Menu
Display Lock: Use the + and – button until you display the U button to
unlock the programming screens. The EMS sends commands to lock
these menu’s when not in use to prevent changing thermostat settings.
Service Mode: Use the + and – buttons to change the test mode to Y
when servicing the HVAC unit. This will disable the EMS temperature set
point parameters for 2 hours to allow for testing the unit outside of
normal temperature set points.
System Status Indicators
System Settings:
Max Heat SP: Use the + and – buttons to adjust the maximum heat set
point. This will be set and overridden by the online EMS.
Min Cool SP: Use the + and – buttons to adjust the minimum cool set
point. This will be set and overridden by the online EMS.
Min Run Time: Use the + and – buttons to adjust the minimum run time.
The default is 3 minutes.
Min Off Time: Use the + and – buttons to adjust the minimum off time.
The default is 5 minutes.
Fan Cycler: Use the + and – buttons to adjust the minimum run time.
The default is 0 minutes for the fan ON time and 10 minutes for the fan
OFF time.
Remote Sensors
Restore Defaults: Use the arrows to select the Yes option to restore all
factory defaults.
Installer Settings
Select
Display Lock U
Service Mode
Network Settings
System Settings
Done

Page 16
System Status Indicators
When the main thermostat screen is displayed, the on-screen labels
indicate the following.
System Operation mode indicator
“SYS OFF” displayed > System is OFF
“SYS MOT”1 displayed > System is OFF and Minimum Off Time (MOT)
delay On is active
“HEAT ON” displayed > System is ON and heating
“COOL ON” displayed > System is ON and cooling
“HEAT MRT”2 displayed > System is ON and heating. Minimum Run
Time (MRT) delay off is active.
“COOL MRT” displayed > System is ON and cooling. Minimum Run
Time (MRT) delay off is active.
Staging display
“2nd Stg” displayed > Stage 2 heating or cooling is ON
“Aux Heat” displayed > Stage 3 heating is ON
For Heat Pump systems only: “EHEAT” > emergency heat mode active
Home/Away display
Home mode is active (current setpoints are being used)
Away setback mode is active (setback setpoints are being used)
System Alerts
Alert Text displayed > Specific alert text (Filter or Maintenance Timer)
Thermostat Operation
Minimum Run Time (MRT)
The thermostat has a Minimum Run Time after the start of any heating or
cooling call. This minimum run time assures even heating and cooling
cycles. The MRT delay will keep the system on even if reaches setpoint
or you change the setpoint to a temperature that would satisfy the call,
until the MRT expires. Changing the Mode to OFF will cancel the MRT
and the system will turn off immediately. The MRT can be adjusted in the
Installer Settings menu of the thermostat.
Minimum Off Time (MOT)
The thermostat has a Minimum Off Time after any heating or cooling call
is finished. This delay prevents rapid heating/cooling cycles and also
provides “short cycle protection” for compressor calls. This delay may be
noticeable when you change a setpoint and it does not respond

Page 17
immediately due to another call that has recently completed and the
MOT delay timer is preventing the system from restarting. The MOT
delay time can be adjusted in the Installer Settings menu of the
thermostat. There is a minimum of 5 minutes delay to assure
compressor protection.
Trouble Shooting
The thermostat LCD reads “COOL ON”, but hot air is supplied
Or
The thermostat LCD reads “HEAT ON”, but cool air is supplied
Go to the thermostat info menu (pg 7) and double check that the
thermostat is configured correctly for the HVAC unit. Double check if it is
set for Gas/ Electric or Heat pump and if the changeover is set correctly.
If changing the settings does not fix the problem double check the wiring
to confirm it is wired correctly for gas/ electric or heat pump. Refer to the
wiring diagrams on pages 3 & 4.
The thermostat is displaying “No Link”
Here are a few steps to walk through to reestablish connectivity
1. Double check that there is a Wifi signal where the thermostat is
being installed. You can do this by confirming the wifi signal is
accessible from a smart phone or laptop.
2. Double check that the wifi credentials were entered correctly.
3. Press the restore default button
Working on the HVAC unit
When doing repair work on the HVAC unit, you can set the thermostat
into maintenance mode through the online software. This will override
the temperature settings for 2 hours so you can test the unit as needed.
Capitol Energy Solutions Technical Support can be reached at (916)
443-5395

Page 18
INFORMATION TO USER
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for
Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.

Page 19
