Caple WD290BK User manual

Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
Sense Warming Drawer
Instruction Manual
WD290BK

Instruction manual WD290BK
2Please keep this instruction manual for future reference
CONTENTS
Warnings 3
Environmental Protection 8
Warranty 8
Electrical Connection 9
Installation 11
Using for the First Time 12
Appliance Controls 13
Operation 13
Troubleshooting 16
Care and Maintenance 17
Installation Dimensions 18
Technical Data 19
Caple Contact Details 20

3
Please keep this instruction manual for future reference Instruction manual WD290BK
SAFETY INFORMATION
Read carefully all the instructions contained in this manual. It
provides you with important information regarding the safe
installation, use and maintenance of the appliance as well as
useful advice for getting the best out of your warming drawer.
Keep this booklet in a safe place for future reference.
-This appliance is compliant with current safety regulations.
-This appliance is intended to be used in household and
similar applications such as:
• Staff kitchen areas in shops, offices and other working
environments
• Farm Houses
• By clients in hotels, motels and other residential type
environments
• Bed and breakfast type environments
-This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.

Instruction manual WD290BK
4Please keep this instruction manual for future reference
SAFETY WITH CHILDREN:
-This appliance can be used by children aged from 8 years
and above.
-Children less than 8 years of age should be kept away
unless continuously supervised or they have been shown
how to use it in a safe manner. Children must be able to
understand and recognise the possible dangers caused by
incorrect operation.
-Children should be supervised in the vicinity of the drawer.
Never allow children to play with the appliance.
-Remember that children have very delicate skin which is
more sensitive to heat. Therefore, do not allow children to
play with the appliance.
-Cleaning and user maintenance should not be carried out
by children without supervision.
-Materials used for packaging (nylon, staplers, Styrofoam
etc) may cause harmful effects to children, they should be
disposed of immediately.
-Children can injure themselves on an open drawer. Do not
let children sit on the open drawer, lean against it or swing
on it.

5
Please keep this instruction manual for future reference Instruction manual WD290BK
TECHNICAL SAFETY:
-Maintenance and repair work must be made only by
authorised Caple service technicians. Installation and repair
work that is carried out by unauthorised technicians may
endanger you.
-While the drawer is under warranty, repairs should only
be undertaken by a Caple authorised service technician.
Otherwise, the warranty will be invalidated.
-It is dangerous to alter or modify the specifications of the
appliance in any way. The requirements for this appliance
are stated on the rating label.
-Risk of injury due to electric shock. Any contact with live
connections or tampering with the electrical or mechanical
components of the drawer will endanger your safety and
may lead to the appliance malfunctioning. Do not open the
appliance housing under any circumstances.
-To maintain the efficiency and safety of your appliance, we
recommend you always use original spare parts and to call
only our authorised Caple Service agents in case of need.
-Multi-socket adapters and extension leads should not be
used to connect the drawer to the mains electricity supply.
-The electrical system of this appliance may be used safely
only when it is correctly connected to an efficient earthing
system in compliance with the safety standards currently in
effect.

Instruction manual WD290BK
6Please keep this instruction manual for future reference
INSTALLATION WARNINGS:
-Prior to installation, ensure that the local distribution
conditions (electricity voltage and frequency) and the
requirements of the appliance are compatible.
-During installation the appliance must be completely
disconnected from the mains electricity supply.
-Do not operate the appliance before it is fully installed.
-The appliance must be installed by an authorised technician.
-Caple is not responsible for any damage that may
be caused by defective placement and installation by
unauthorised persons.
-When unpacking the appliance, make sure that it is not
damaged during transportation.
-In the case of any defect; do not use the appliance and
contact your retailer or Caple Service immediately.
-If the supply cord is damaged, it must be replaced by a
Caple service technician or similarly qualified persons in
order to prevent a hazard.
-Make sure that the appliance is firmly secured to the
cabinet.
DURING USE:
-Improper use may nonetheless cause damage to persons
and/or property.

7
Please keep this instruction manual for future reference Instruction manual WD290BK
-The inside of the appliance can reach a temperature of
up to 75˚C when the thermostat is set to the maximum
position. When taking out hot dishes, use appropriate oven
gloves as necessary. Do not let them get wet or damp. Heat
transfers through damp and wet material more quickly with
the risk of scalding or burning yourself.
-If the on button is pressed, the drawer will start heating and
there is the danger of burns.
-Do not use the appliance to keep warm, re-heat or cook
foods and beverages. Humidity from foods or beverages
may cause problems for the appliance.
-Do not lean or sit on the open drawer. The telescopic
carriage may be damaged.
-The maximum load of the drawer is 25kg.
-Do not keep plastic or flammable objects in the appliance.
When the appliance it turned on, they may melt or catch
fire.
-Do not use the appliance to heat the room.
-Never under any circumstances insert objects (e.g.
screwdrivers, pointed objects, paper, etc.) through the slots
in the protection grille of the heating element and fan.
CLEANING AND MAINTENANCE:
-Always switch off the appliance from the mains isolating
the electrical supply before any cleaning or maintenance.
-Never use steam cleaners. They may cause short circuits and
damage the appliance.

Instruction manual WD290BK
8Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is
marked according to the European Directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date of
purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together with
proof of purchase.
If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all applicable
legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.

9
Please keep this instruction manual for future reference Instruction manual WD290BK
ELECTRICAL CONNECTION
CONTACT A QUALIFIED ELECTRICIAN FOR THE ELECTRICAL CONNECTION OF
THIS PRODUCT
Before connecting the appliance to the electrical mains, ensure that the technical data (voltage: V
and frequency: Hz ) indicated on the rating plate concur with those of the electrical mains.
This appliance has a 3amp fuse rating.
If in doubt, contact a qualified electrician.
If the plug is disconnected from the electrical power cord, a qualified electrician will be required
to insert and connect the appliance. Contact a qualified technician who is knowledgeable of local
standards and of any additional regulations issued by the local electric company, and who ensures
that work is carried out in compliance with these standards.
IMPORTANT:
Check that the appliance is correctly connected to an approved earth wire to ensure electrical
safely. If necessary, have the system checked by a qualified electrician. If the electrical outlet is no
longer accessible after insertion, or if a fixed connection is to be made, the installer must provide a
separation device for each pole.
Valid separation devices include switches with a contact opening of at least 3mm. Caple shall not
be held liable for damage to individuals or property due to lack or interruption of the earth wire.
ATTENTION: EARTH CONNECTION IS REQUIRED BY LAW.
If the appliance is connected to the mains with an extension cord. Make sure that the extension
cord and the connection are insulated against humidity.
Never open the covering of the appliance if you come into contact with wires that carry voltage
or if you modify the electrical and mechanical structure of the appliance, it is possible that the
appliance will malfunction during operation.

Instruction manual WD290BK
10 Please keep this instruction manual for future reference
If installation, maintenance and repair work is not carried out correctly, there may be hazards for
the user. Caple declines all liability for this type of personal injury or property damage. During
the warranty period, repairs may be carried out by authorised service agents only. Otherwise,
guarantee coverage will be void.
Installation, repair and cleaning work are to be carried out only with the machine disconnected
from the electrical mains. The appliance is disconnected from the electrical mains in the following
cases:
- The main switch of the electrical system is off.
- The safety switch is off.
- The appliance is unplugged.
USEFUL INFORMATION
The appliance is designed exclusively for the heating of dishes which are suited for this purpose.
The appliance is equipped with a hot air system. A fan creates excellent distribution of warmth
from the drawer heating element. Air circulation heats the dishes evenly and quickly. A protection
grille prevents contact with the heating element and the fan. The base of the drawer is covered
with anti-slip material to keep dishes from moving when it is opened or closed.

11
Please keep this instruction manual for future reference Instruction manual WD290BK
INSTALLATION
SAFETY INSTRUCTIONS FOR INSTALLATION
Before connecting the appliance to the electrical mains, compare the connection data (voltage and
frequency) indicated on the rating plate with the data of the electrical mains.
The data must match, otherwise the appliance may be damaged.
If in doubt, contact a qualified technician.
Make sure that the electrical outlet is easily accessible even after the appliance has been inserted.
The warming drawer can only be inserted with other appliances with a maximum weight of 40 kg
that are provided with adequate cooling ventilation.
For installation with combination appliances, follow the instruction and building in dimensions
shown in the ‘Installation dimensions’ section.
Insertion and installation of this appliance may be performed by qualified personnel who ensure
safe operating conditions.
The dimensions of the housing are obtained from the size of the warmer drawer plus
measurements of the appliance combined with it.
INSTALLATION INSTRUCTIONS
› Install the warming drawer directly onto a shelf within the cabinet to support the appliance.
› The combined appliance i.e. oven, is then positioned directly onto the warming drawer without
the need for additional shelves.
› Ensure the warming drawer is well centred and aligned in the cabinet.
› Open the drawer and secure to the housing unit by inserting the 2 screws provided into the
fixing holes.

Instruction manual WD290BK
12 Please keep this instruction manual for future reference
USING FOR THE FIRST TIME
When using the appliance for the first time, clean it as follows:
› Clean the surface with a soft cloth and then dry it.
› Pre-heat the empty drawer for at least two hours. Turn the temperature knob to the maximum
setting, in order to eliminate any residual grease, oil, or manufacturing resins which may cause
unpleasant odours during heating.
› Air out the room.
› Upon completion of this operation, the appliance is ready to be used for the first time.

13
Please keep this instruction manual for future reference Instruction manual WD290BK
APPLIANCE CONTROLS
5
BEFORE THE FIRST USE
When using the appliance for the first time. Clean it as follows:
Clean the surface with a soft cloth and then dry it.
Pre-heat the empty drawer for at least two hours. Tum the temperature knob to the maximum
setting, in order to eliminate any residual grease, oil, or manufacturing resins which may cause
unpleasant odours during heating.
Air out the room.
Upon completion of this operation, the appliance is ready tobe used for the first time.

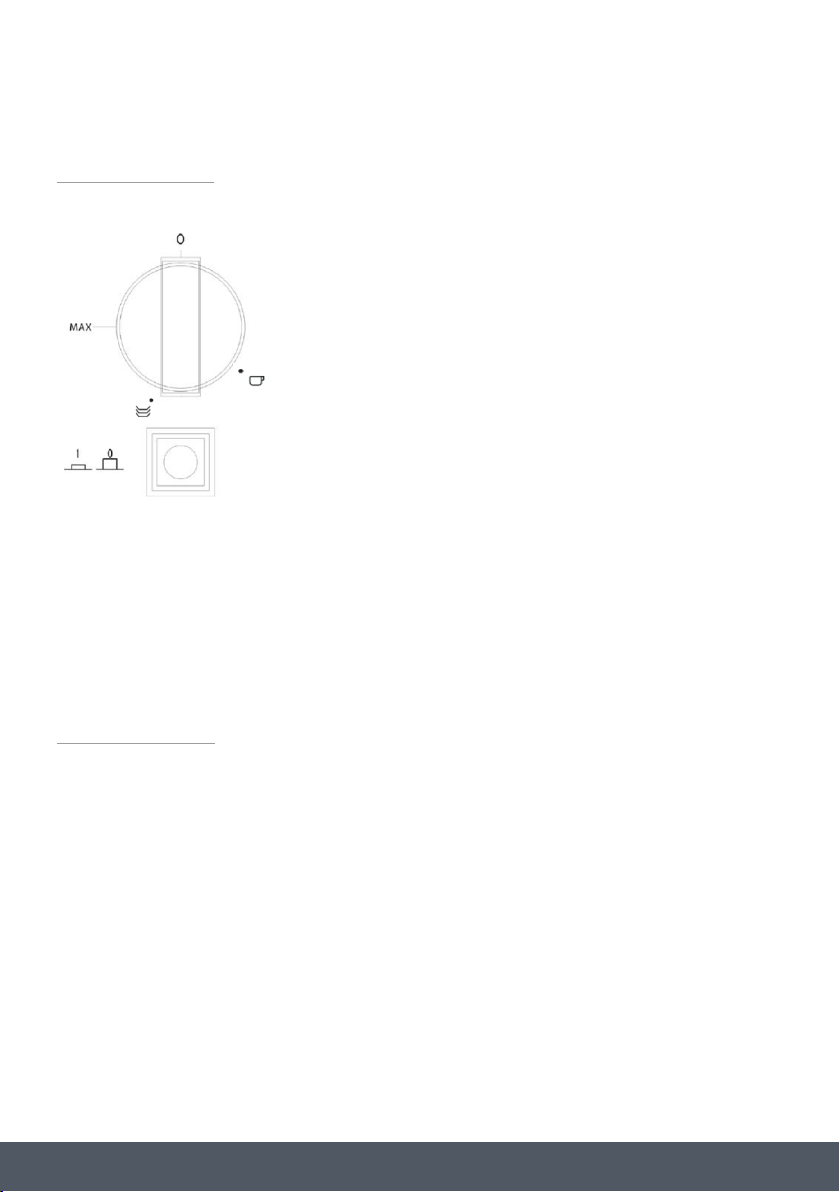

APPLIANCE CONTROLS
The control elements are the temperature knob and the luminous ON-OFF switch.
With the switch pressed (position 1) the drawer is on, whereas when the switch is released
(position 0) the drawer is off. These parts can be seen only when the drawer is open.
When the drawer is closed, a control light located on the front of the appliance lets you see
whether the drawer is on.
OPERAT ION
-Place the dishes in the drawer
-Select a temperature
- Turn on the appliance; the switch will light up
- Close the drwer gently
- Turn off the appliance before removing the heated dishes.
TEMPERATURE SELECTION
The temperature knob lets you select a temperature between approximately 30℃and 75℃.
Turn the temperature knob clockwise only, until it reaches it stop position (MAX).
Do not force it beyond the stop, otherwise thethermostat will be damaged.
The temperaturescale does not show absolute temperatures in ℃,but rather symbols that
represent the best temperature for respective groups of dishes, i.e cups - approx.40℃
The control elements are the temperature knob and the luminous ON-OFF switch. With the switch
pressed (position 1) the drawer is on, whereas when the switch is released (position 0) the drawer
is off. These parts can be seen only when the drawer is open. When the drawer is closed, a control
light located on the front of the appliance lets you see whether the drawer is on.
OPERATION
› Push the drawer gently to open and then pull the drawer out fully
› Place the dishes in the drawer
› Select a temperature
› Turn on the appliance; the switch will light up
› Close the drawer gently
› Turn off the appliance before removing the heated dishes

Instruction manual WD290BK
14 Please keep this instruction manual for future reference
TEMPERATURE SELECTION
The temperature knob lets you select a temperature between approximately 30ºC and 75ºC. Turn
the temperature knob clockwise only, until it reaches it’s stop position (MAX). Do not force it
beyond this point, otherwise the thermostat will be damaged.
The temperature scale does not show absolute temperatures in ºC,but rather symbols that
represent the best temperature for respective groups of dishes, i.e cups - approx.40ºC.
FOR CUPS OR GLASSES - APPROX 40ºC
When contained in glasses which are previously heated to this temperature, hot beverages do not
cool so rapidly and the container can be touched without any problem.
PLATES/DISHES - APPROX.60ºC
Foods placed in these dishes will stay warm longer. Depending on personal sensitivity, the dishes
can be touched without any danger. Use oven gloves if necessary.
MAX APPROX. 75ºC
For dishes.
The thermostat is set to the maximum temperature.
The containers can be touched with appropriate oven gloves.
HEATING TIMES
The time required to heat dishes, glasses and so on depends on several factors:
› Material and thickness of the dishes
› Amount of load
› Arrangement of load
› Temperature setting
For this reason it is not possible to provide absolute information.
It is advisable to determine the best settings for your needs based on practical experience.

15
Please keep this instruction manual for future reference Instruction manual WD290BK
LOAD CAPACITY
Load capacity depends on the size of the dishes.
The following examples are approximate.
Also remember that the drawer can sustain a maximum weight of 25kg.
This warming drawer is designed to hold 12 place settings.
Note: These examples are a guide only. The actual quantities may differ.
OR A CHOICE OF :
32 plates ø26cm
48 soup dishes ø22cm
60 soup bowl ø10cm
20 plates ø28cm
20 pizza plates ø36cm
100 espresso cups
50 cappuccino cups
30 glasses

Instruction manual WD290BK
16 Please keep this instruction manual for future reference
TROUBLESHOOTING
Repair of electrical appliances is to be carried out by qualified, authorised service agents only.
Improperly or incorrectly performed repairs may create further hazards for the safety of the user.
Various factors affect heating time, for example:
Material and thickness of dishes, size of load, arrangement of load, temperature setting. Optimal
heating times for dishes are subjective. Therefore, it is advisable to determine them on a trial and
error basis according to your own preferences.
TROUBLES SOLUTION
If the dishes are not warm enough
The appliance is on
The right temperature has been set
The heat outlets have been covered by large plates or bowls
The dishes have been heated for a sufficient period of time.
If the dishes do not get warm
There is fan noise: the fan is working,
but the heating element might be defective
If the fan is not working, it may be defective
The main switch of the electrical system is off.
The electrical power cord is unplugged or damaged
If the dishes overheat: The temperature setting device may be defective
The on/off switch does not light up
when the appliance is switched on: The control light of the switch is defective
If the problem still persists, please contact Caple service for assistance:
T - 0117 938 7420
E - [e-mail]

17
Please keep this instruction manual for future reference Instruction manual WD290BK
CARE AND MAINTENANCE
Cleaning operations are to be undertaken only when the appliance is disconnected from the
electrical mains. The appliance is disconnected from the electrical mains in the following cases:
› The mains switch of the electrical system is off.
› The safety switch is off.
› The appliance is unplugged.
When unplugging the appliance, do not pull on the cord. Take hold of the plug and remove.
Clean all surfaces with a soft sponge, a bit of detergent and lukewarm water. Then dry all surfaces
with a soft cloth.
IMPORTANT:
The area of the grille for the protection of internal components and the area of the switch and
thermostat must not be cleaned with water.
Any penetration of liquids or other substances into electrically live parts may cause failures or short
circuits, creating hazards for the user.
The front of the appliance can easily scratch if mistreated.
The glass surface should be cleaned with a special non-abrasive product.
DO NOT USE:
Detergents that contain soda, acids or chloride, abrasive detergents (powder or cream) abrasive
sponges (e.g.steel wool pads) or sponges that contain residual abrasive detergent.
ANTI-SLIP BOTTOM
The anti-slip bottom of the drawer can be hand-washed with warm water and a gentle detergent.
Dry thoroughly afterwards.
Put the anti-slip bottom back in the drawer only when it is completely dry.

Instruction manual WD290BK
18 Please keep this instruction manual for future reference
INSTALLATION DIMENSIONS
*Please note the 60cm oven dimensions may vary from the above
depending on which model is used.
DIMENSIONS
542mm
295mm
547mm
298mm
593mm
116mm
578mm
540mm
20mm
25mm
5mm
595mm
555mm
594mm
min. 500mm
50mm
880mm
560mm

19
Please keep this instruction manual for future reference Instruction manual WD290BK
TECHNICAL DATA
Total power:
380-460W
Connection and protection:
AC 220-240V/50 Hz

Caple Service
Fourth Way
Avonmouth
Bristol
BS11 8DW
T: 0117 938 1900
E: [e-mail]
www.caple.co.uk
