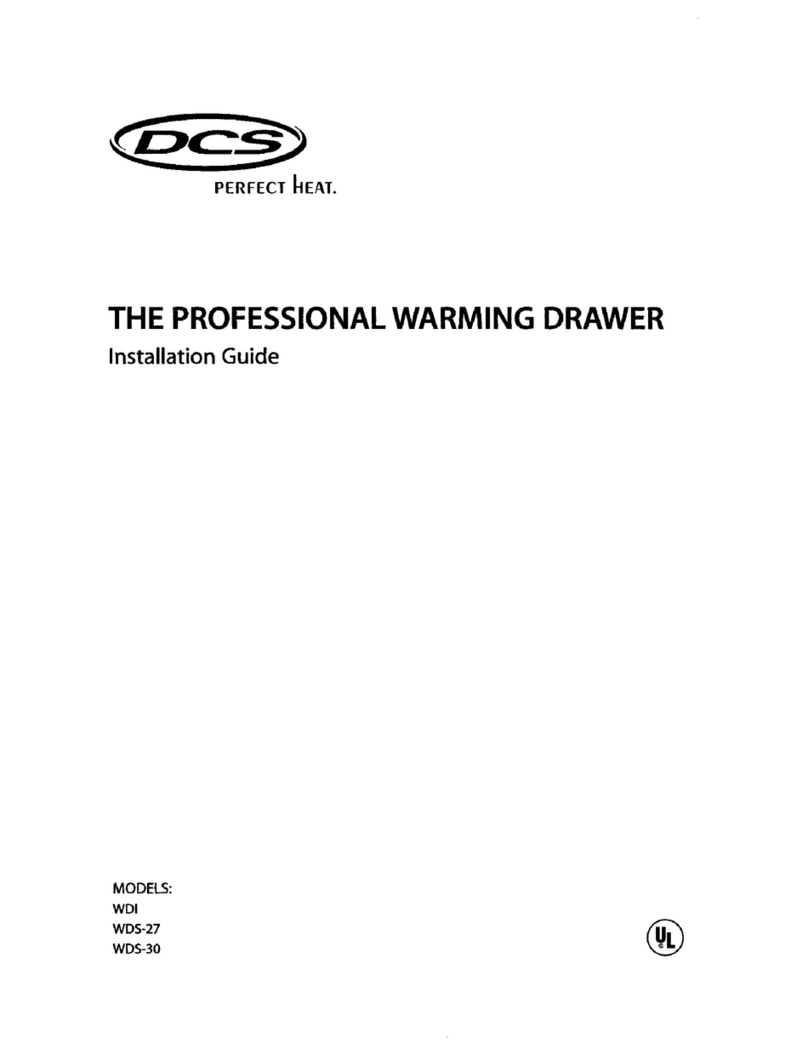

THE PROFESSIONAL WARMING DRAWER
Installation Guide
MODELS:
WDI
WDS-27
WDS-30

Thank you for selecting this DCS Warming Drawer. Because of its unique features, we have developed this
Installation Guide. It contains valuable information on how to properly install your new Warming Drawer
for years of safe and enjoyable use.
For your convenience, product questions can be answered by a DCS Customer Care Representative by
phone:[phone], or email: [e-mail].
NOTE:Inspect the product to verify that there is no shipping damage. If any damage is
detected, call the shipper and initiate a damage claim. DCS by Fisher & Paykel is not
responsible for shipping damage.
DO NOTdiscardany packing material (box, pallet, straps) until the unit has been inspected.
WARNING
The warming drawer is not intended to be used in conjunction with water. DO
NOTfill the drawer or warming cavity with water. Doing so could create a
shock hazard resulting in a possible injury.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING: SMOTHER FLAMES with a close-
fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out immediately EVACUATE AND
CALL THE FIRE DEPARTMENT. NEVER PICK UP A FLAMING PAN - You may be
burned.DO NOTUSE WATER, including wet dishcloths or towels - a violent
steam explosion will result.Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how
to operate it.
2. The fire is small and contained in the area where it started.
3. The firedepartment is being called.
4. You can fight the fire with your back to an exit.
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE.
AMESSAGE TO OUR CUSTOMERS
1
NOTE: Please write the Model, Code, and Serial Numbers on this page for references (located
on the inside right panel of the drawer cavity behind the right drawer side. See page 5).
MODEL NUMBER CODE SERIAL NUMBER

TABLE OF CONTENTS
2
SAFETY PRACTICES & PRECAUTIONS...........................................................................................................3-4
FEATURES................................................................................................................................................................................5
INSTALLATION INSTRUCTIONS........................................................................................................................6-10
Specifications............................................................................................................................................................6
Mounting Installation ........................................................................................................................................7-8
Warming Drawer Integrated ...............................................................................................................................9
Wall Oven and Microwave and Warming Drawer Installation................................................................9
WIRING DIAGRAM..........................................................................................................................................................10
SERVICE ..................................................................................................................................................................................11
WARRANTY..........................................................................................................................................................................12

READ AND UNDERSTAND THESE PRECAUTIONS
■Read this Installation Guide thoroughly before installation. This will help to reduce the risk of
fire, electric shock, or injury to persons.
■Remove all packaging materials from your appliance.
■Install according to instructions. See page 6-9 to insure proper installation and servicing.
■Be sure to have a qualified service technician install and ground this appliance.
■Plug into rated outlet: 120 Volts AC, 5 amp minimum circuit requirement.
PREHEATING INSTRUCTIONS
The Warming Drawer is designed to keep cooked foods warm for extended periods of time. The
drawer must be pre-heated before use on high (see Use and Care Guide). If the warming drawer isn’t
pre-heated, the internal temperature of the food being warmed could fall below the minimum safe
level and bacteria could develop. Always preheat the drawer according to the instructions described
in the warming drawer Use and Care Guide.
■Children should not be leftalone or unattended in an area where appliances are in use. They
should never be allowed to turn knobs, push buttons, sit or stand on any part of an appliance.
■Children in walkers,or children crawling can be attracted to the round door handle and may
grab and open the warming drawer. This can result in injury from the door being pulled open
on a child, or severe burns if it is in use and hot.
WARNING:
Do not store items of interest to children in, above or around any appliance.
Children could be seriously injured if they should climb onto the appliance to
reach these items.
Becertain to use only dry pot holders: Moist or damp pot holders on hot surfaces may cause burns
from steam. Do not use a towel or other bulky cloth in place of pot holders.
■Never store anything in the warming drawer. Flammable materials can catch fire, plastic items
maymelt or ignite and other types of items could be ruined.
■Do not hang articles from any part of the appliance or place anything against the drawer. Some
fabrics are quite flammable and could catch on fire.
■For safety reasons and to avoid damage to the appliance, never sit, stand, or lean on the
warming drawer door.
■For personal safety, wear proper apparel. Loose fitting garments or hanging sleeves should
never be worn while using this appliance. Some synthetic fabrics are highly flammable and
should not be worn while using this appliance.
■Donot use aluminum foil to line any part of the warming drawer. Using a foil liner could result
in a fire hazard, or the obstruction of the flow of heat and ventilation air. Foil is an excellent heat
insulator and heat will be trapped underneath it. This trapped heat can upset the performance
of the warming drawer parts.
WARNING:
This appliance is designed for warming food. Based on safety considerations,
never use the warming drawer to warm or heat a room.
SAFETY PRACTICES AND PRECAUTIONS
3

SAFETY PRACTICES & PRECAUTIONS
■As with any cooking or heating appliance, never leave the warming drawer unattended when
warming food, this could be a fire hazard.
■Only certain types of glass, heat proof glass-ceramic, ceramic, earthenware or glazes are
suitable for use in this warming drawer. Utensils that are not thermally heat safe may break
with sudden temperature changes.
■Never heat unopened containers, a build up of pressure may cause the container to burst.
■Grease is flammable, avoid letting grease deposits collect in the warming drawer, clean up
spillage.
■DO NOT use water on grease fires. Turn OFF the warming drawer, then smother the fire with
baking soda or use a dry chemical or foam-type fire extinguisher.
■When opening the drawer while keeping sauces warm, tomato sauce, etc., the drawer must be
opened slowly to avoid spillage.
■Use care when opening a hot warming drawer; to avoid severe burns, open slowly, allow the
hot air or steam to escape before reaching in to remove or replace any foods.
■Donot repair or replace any part of this appliance unless it is specifically recommended in this
manual. All other servicing should be referred to a qualified Service Technician. Service
Technicians must disconnect the power supply before servicing this appliance.
■When using the warming drawer: DO NOT TOUCH THE INTERIOR SURFACES or the exterior
area immediately surrounding the door until it has had sufficient time to cool to avoid burn
injuries.
■Clean the warming drawer with caution. Avoid steam burns; do not use a wet sponge or cloth
to clean the appliance while it is hot. Some cleaners produce noxious fumes if applied to a hot
surface. Followdirections provided by the cleaner manufacturer.
■Besure all the controls are turned off and the appliance is cool before using any type of aerosol
cleaner on or around the appliance. The chemical that produces the spraying action could, in
the presenceof heat, igniteor cause metal parts to corrode.
■Do not touch the heating element or interior surfaces of the warming drawer, even if they
appear dark in color. They may still be hot enough to cause burn injury, allow sufficient time to
cool.
■Donot allowflammable materials which mayignite to come in contact with the hot heating
element or the interior surface of the warming drawer until the unit has had a sufficient time to
cool.
4

FEATURES
5
Fig.01
*Moist/crisp feature not available on fully integrated model (WDI).
Moist/
Crisp
Knob
Power
Indicator
Lens
Thermostat
Control
Knob
Stainless
Steel
Tray
Power
Indicator
Light
Stainless
Steel
Drawer
Model and Serial
Tag Location
(located on the inside
rightpanel of the drawer
cavity behind the
rightdrawer side)

INSTALLATION INSTRUCTIONS
6
WDS-27
WDS-30
A
9-7/8” 25-5/16”
9-7/8” 25-5/16”
24” (min.)
24” (min.)
SPECIFICATIONS
The cabinet depth from the outer edge of the face frame to the inside back of the cabinet or wall
should be at least 24” (see figure 02).
The Warming Drawer should be installed into a base cabinet with minimum outside dimensions of
13-1/4” high by 30” wide by 24” deep for 30” models. For 27” models 13-1/4” high by 27” wide by 24”
deep. For WDI Model 15-1/4” high by 26-3/4” wide by 24” deep (see figure 03 and figure 04).
Power supply required: 120VAC; 5A min., 15A max. circuit.
A
BC
1-1/2" min.
to bottom of
countertop
A120 voltAC
outlet should be
locatedbelowthe
Warming Drawer
2x4'sor similar
support
WDS -10-1/4"
WDI -11-7/8"
WDS-27 =26-7/8"
WDS-30=29-7/8"
WDI =26-3/4"
23-7/8"
WDS-30=29-7/8"
WDI =26-3/4"
25-1/16"
28-3/16"
POWER
CORD
9-7/8"
24"
POWER
CORD
9-7/8"
1"
11-1/4"
BC
CUTOUT DIMENSIONS
Fig. 02
Fig.03 Fig.04
CUT OUT DIMENSIONS
WARMING DRAWER DIMENSIONS
(FRONT VIEW)
WDS-27 & WDS-30 DIMENSIONS
(SIDE VIEW)
WDI
11-1/4” 26-1/8” 24” (min.)
WDI

MOUNTING INSTALLATION
The lower rear corners of the cabinet need to provide proper support to the back of the Warming
Drawer and the anti-tip mounting clips. A 120 volt AC outlet should be located no further than 36
inches from the back center of the Warming Drawer. Illustrations suggest one possible bottom
support, but the consumer is not limited to this idea for mounting configuration.
STEP 1
The bottom rear section of the cabinet should be made of solid plywood or 2x4 and needs to be
installed to hold the anti-tip mounting clips and support the weight of Warming Drawer, which is
90 lbs.
STEP 2
Use the screws provided to attach the mounting clips which must be installed for anti-tip safety to the
bottom support at the back. See placement dimensions in figure below.
STEP 3
The Warming Drawer has slots on the back side where it will slide onto the anti-tip mounting clips.
See page 8. Plug power cord into AC outlet.
STEP 4
Fasten the front face to the cabinet by passing the screws through the holes of the front face of the
warming drawer to finish the installation. See page 8.
NOTE: Bottom support made of plywood or other solid wood construction capable of supporting
the weight of the warming drawer.
INSTALLATION INSTRUCTIONS
7
Slide drawer
on to Anti-Tip
mounting clips
mounting clips
21-1/2"
C
Fig. 05

INSTALLATION INSTRUCTIONS
8
Center line
to Center line
for mounting clips for
WDS-30
WDS-27
21-1/8"
WDI
Fig.06
Fig. 07

INSTALLATION INSTRUCTIONS
9
WARMING DRAWER INTEGRATED (WDI)
Custom Panel Installation
1. Remove drawer as per instructions. (See Use & Care Manual.)
2. Check the dimensions of the front template. (See fig. 08.)
3. Cut the custom panel to required dimensions, knowing that the panel must cover the front
template plus 1/8” on all four sides for a good presentation. The thickness of the custom panel
must be greater than 3/8” to allow for clearance of the tips of the screws holding the drawer
when the custom panel is mounted.
4. Center the paper template provided on the back of the custom panel to pre-drill 1/4” holes
(5/16” depth) to allow for clearance of the tips of the screws holding the drawer.
5. Fasten the custom panel with the supplied screws as shown in fig. 08 .
Fig.08
11-7/8”
26-3/4”
Front template
(WDI only)
Screws to hold
custom panel to
Warming Drawer
Fig. 09
Custom Panel
Use template
provided
27”
12-1/8”
Holes todrill

10
WIRING DIAGRAM
AUX. SWITCH
LIGHT
WARMING ELEMENT
500 WATTS, 120 VAC.
GND
L1
NEU
STRAIN RELIEF
1
THERMOSTAT
TEMP. SWITCH
2
12
4
3
2
1
25-5/16" (WDS-27 &30)
26-1/8" (WDI)
11-1/16" (WDS)
12-5/8" (WDI)
9-7/8" (WDS)
11-1/4"(WDI)
15-3/4"
18-3/4"
warming drawer
cutout
A)
B)
C)
D)
E)
B
double
wall oven
cutout
A
D
warming drawer
cutout**
C
B
single
wall oven
cutout
microwave
cut-out
A
E
C
**Thefloor ofthe opening shouldbeconstructed of plywood strong enough
to support theweight ofthe oven.
SINGLE WALL OVEN AND MICROWAVE
AND WARMING DRAWER
INSTALLATION
Fig. 10
DOUBLE WALL OVEN AND
WARMING DRAWER
INSTALLATION
INSTALLATION INSTRUCTIONS

11
HOW TO OBTAIN SERVICE
HOW TO OBTAIN SERVICE:
Before you call for service:
1)Is the circuit breaker tripped or the fuse blown?
2) Is there a power outage in the area?
For warranty service, please contact your local service provider or DCS Customer Care Representative
at [phone]. Before you call, please have the following information ready:
■Model Number (located on the inside right panel of the drawer cavity behind the right drawer
side. See page 5).
■Serial Number (located on the inside right panel of the drawer cavity behind the right drawer
side. See page 5).
■Code (located on the inside right panel of the drawer cavity behind the right drawer
side. See page 5).
■Date of installation
■Abrief description of the problem
Your satisfaction is of the utmost importance to us. If a problem cannot be resolved to your satisfaction,
please write to Customer Care or email: customer[email protected]
Write:
Fisher & Paykel Appliances, Inc.
Attention: DCS Customer Care
5900 Skylab Road
Huntington Beach, CA 92647

WARRANTY
LIMITED WARRANTY
When you purchase a new DCS Professional Warming Drawer you automatically receive a One Year
Limited Warranty covering parts and labor for the entire product for servicing within the 48 mainland
United States, Hawaii, Washington D.C. and Canada. In Alaska the Limited Warranty is the same except
that you must pay to ship the Product to the service shop or the service technician’s travel to your
home. Products for use in Canada must be purchased through the Canadian distribution channel to
ensure regulatory compliance.
FISHER & PAYKEL UNDERTAKES TO:
Repair without cost to the owner either for material or labor any part of the Product, the serial number
of which appears on the Product, which is found to be defective. In Alaska, you must pay to ship the
Product to the service shop or for the service technician’s travel to your home.
If we are unable to repair a defective part of the Product after a reasonable number of attempts, at our
option we may replace the part or the Product, or we may provide you a full refund of the purchase
price of the Product (not including installation or other charges).
This warranty extends to the original purchaser and any succeeding owner of the Product for products
purchased for ordinary single-family home use. All service under this Limited Warranty shall be
provided by Fisher & Paykel or its Authorized DCS Service Agent during normal business hours.
HOW LONG DOES THIS LIMITED WARRANTY LAST?
Our liabilityunder this Limited Warranty for the entire product expires One Year from the date of
purchase of the Product by the first consumer.
Our liability under any implied warranties, including the implied warranty of merchantability (an
unwritten warranty that the Product is fit for ordinary use) also expires One Year (or such longer period
as required by applicable law) from the date of purchase of the Product by the first consumer. Some
states do not allowlimitations on howlong an implied warrantylasts,so this limit on implied
warranties may not apply to you.
THIS WARRANTY DOES NOT COVER:
A. Service calls that are not related to any defect in the Product. The cost of a service call will
be charged if the problem is not found to be a defect of the Product. For example:
1. Correct faulty installation of the Product.
2. Instruct you how to use the Product.
3. Replace house fuses, reset circuit breakers, correct house wiring or plumbing, or
replace light bulbs.
4. Correct fault(s) caused by the user.
5. Change the set-up of the Product.
6. Unauthorized modifications of the Product.
7. Noise or vibration that is considered normal, for example, drain/fan sounds, regenera-
tion noises or user warning beeps.
8. Correcting damage caused by pests, for example, rats, cockroaches etc.
12

WARRANTY
13
B. Defects caused by factors other than:
1. Normal domestic use or
2. Use in accordance with the Product’s User Guide.
C. Defects to the Product caused by accident, neglect, misuse, fire, flood or Act of God.
D. The cost of repairs carried out by non-authorized repairers or the cost of correcting such
unauthorized repairs.
E. Travel Fees and associated charges incurred when the product is installed in a location
with limited or restricted access. (i.e. airplane flights, ferry charges, isolated geographic
areas).
F. Normal recommended maintenance as set forth in the Product’s User Guide.
If you have an installation problem contact your dealer or installer. You are responsible for
providing adequate electrical, exhausting and other connection facilities.
We are not responsible for consequential or incidental damages (the cost of repairing or
replacing other property damaged if the Product is defective or any of your expenses
caused if the Productis defective). Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply
to you.
HOW TOGETSERVICE
Please read your User Guide. If you then have any questions about operating the Product, need the
name of your local DCS Authorized Service Agent, or believe the Product is
defective and wish service under this Limited Warranty, please contact your dealer or call us at:
TOLL FREE 1-888-936-7872 or contact us through our web site: www.dcsappliances.com
You may be required to provide reasonable proof of the date of purchase of the Product before the
Product will be serviced under this Limited Warranty.
COMMERCIAL USE
This warranty applies to appliances used in residential applications; it does not cover their use in
commercial situations.
NO OTHER WARRANTIES
This Limited Warranty is the complete and exclusive agreement between you and Fisher & Paykel
Appliances Inc. regarding any defect in the Product. None of our employees (or our Authorized
Service Agents) are authorised to make any addition or modification to this Limited Warranty.
Warrantor: Fisher & Paykel Appliances, Inc.
If you need further help concerning this Limited Warranty, please call us at the above number, or
write to: Fisher & Paykel Appliances, Inc., 5900 Skylab Road, Huntington Beach, CA 92647
This Limited Warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
Fisher & Paykel Appliances Inc. is a leading manufacturer of premium quality cooking and specialty
appliances under the Fisher & Paykel and DCS brands.

NOTE
14

CHAUFFE-PLATS PROFESSIONNEL
Guide d'installation
MODELS:
WDI
WDS-27
WDS-30

ÀL'INTENTION DE NOS CLIENTS
1
Nous vous remercions d'avoir choisi ce chauffe-plats DCS. Nous avons conçu ce Manuel d'installation et
d'entretien pour expliquer les fonctions uniques de cet appareil. Il contient des informations extrêmement
utiles sur la façon correcte de faire fonctionner votre nouveau chauffe-plats et d'en faire l'entretien. Vous
pourrez ainsi en profiter pendant des années en toute sécurité.
Si vous avez des questions au sujet de notre produit, communiquez avec un représentant du centre de
service à la clientèle DCS par téléphone :1-888-936-7872, ou par courriel : customer.car[email protected]om.
REMARQUE :Inspecter le produit pour vérifier qu’il n’a pas été endommagé pendant
l’expédition. En cas de dommages, contacter le transporteur et entamer une déclaration pour
dommage. DCS by Fisher & Paykel n’est en aucun cas responsable des dommages pendant
l’expédition.
Ne pas jeter le matériau d’emballage (boîte, palette, sangles) avant d’avoir inspecté l’unité.
AVERTISSEMENT
Le chauffe-plats n'est pas conçu pour être utilisé avec de l'eau. NE remplissez
PAS le tiroir ou le logement du chauffe-plats avec de l'eau. Cela pourrait créer
un risque de choc et causer des blessures.
AVERTISSEMENT
POUR RÉDUIRE LES RISQUES DE BLESSURES EN CAS DE FEU DE GRAISSE SUR LA
CUISINIÈRE, RESPECTEZ LES CONSIGNES SUIVANTES : ÉTOUFFEZ LES FLAMMES
àl'aide d'un couvercle hermétique, d'une plaque à biscuits ou d'un plateau
métallique,puis éteignez le brûleur. ÉVITEZ DE VOUSBRÛLER. Si les flammes
ne s'éteignent pas immédiatement, ÉVACUEZ LES LIEUX ET APPELEZ LES
POMPIERS. NE SOULEVEZ JAMAIS UN RÉCIPIENT EN FEU - Vous pourriez vous
brûler. N'UTILISEZ PAS D'EAU, y compris des serviettes mouillées - une
explosion de vapeur violente pourrait en résulter. Utilisez un extincteur
SEULEMENT si :
1 Vous êtes sûr qu'il s'agit d'un extincteur de classe ABC et savez comment le
faire fonctionner.
2.Le feu est limité et restreint à la zone où il s'est déclenché.
3. Leservicedes pompiers a été appelé.
4. Vous pouvez combattre l'incendie le dos tourné vers une sortie.
VEUILLEZ CONSERVER CE MANUEL À TITRE DE RÉFÉRENCE.
REMARQUE : Veuillez noter les numéros de modèle et de série sur cette page pour information.
(Voir page 5.)
NUMÉRO DE MODÈLE CODE NUMÉRO DE SÉRIE

TABLE DES MATIÈRES
2
MESURES DE SÉCURITÉ ET DE PRÉCAUTION..........................................................................................3-4
CARACTERISTIQUES DU CHAUFFE-PLATS ....................................................................................................5
INSTRUCTIONS DE MONTAGE..........................................................................................................................6-10
Specifications............................................................................................................................................................6
Montage et Installation.....................................................................................................................................7-8
Chauffe-plats intégré ............................................................................................................................................9
Four, micro-ondes et installation de chauffe-plats ..................................................................................10
SCHEMADE CABLAGE................................................................................................................................................11
SERVICE ..................................................................................................................................................................................12
GARANTIE.............................................................................................................................................................................13

MESURES DE SÉCURITÉ ET DE PRÉCAUTION
VEUILLEZ LIRE ET BIEN ASSIMILER CES CONSIGNES
■Veuillez lire attentivement ce manuel d'installation avant d'installer votre nouvel appareil.
Ceci vous permettra de réduire les risques d'incendie, de chocs électriques ou de blessures.
■Retirez tout le matériel d'emballage de l'appareil.
■Procédez à l'installation conformément aux instructions. Pour assurer une installation et un
entretien corrects, consultez les pages 6 à 9.
■Confiez la mise à la terre de l'appareil à un technicien qualifié.
■Branchez l'appareil dans une prise de 120 V C.A., 5 A minimum.
INSTRUCTIONS DE PRÉCHAUFFAGE
Le chauffe-plats est conçu pour garder les aliments cuits à une température chaude pendant de
longues périodes. Il doit être préchauffé avant toute utilisation (Voir le manuel d'utilisation et
d'entretien.). Il doit être préchauffé pendant une demi-heure au moins à température maximum. Si
le chauffe-plats n'est pas préchauffé, la température interne des aliments chauffés pourrait baisser à
un niveau dangereux propice au développement des bactéries. Préchauffez toujours le chauffe-plats
selon les instructions de la section du manuel qui traite de l'utilisation et d'entretien.
■Les enfants ne doivent pas être laissés seuls ou sans surveillance dans un endroit où l'on utilise
ce type d'appareil. Ilne faut jamais les laisser tourner ou enfoncer des boutons, ni s'asseoir ou
se tenir debout sur l'appareil.
■Des enfants en marchette ou à quatre pattes peuvent être attirés par la poignée ronde de la
porteet la saisir pour ouvrir le chauffe-plats. Ils pourraient alors se blesser ou être brûlés
sérieusement si l'appareil est en fonctionnement et qu'il est chaud.
AVERTISSEMENT :
Évitez de ranger des articles pouvant attirer les enfants dans l'appareil, au-
dessus ou à proximité. Les enfants pourraient être blessés sérieusement s'ils
grimpent sur l'appareil pour atteindre ces articles.
Utilisez seulement des gants isolants secs :Les gants humides sur des surfaces chaudes peuvent
provoquer des brûlures causées par la vapeur. N'utilisez pas de serviette ou de chiffon épais à la place
de gants isolants.
■Ne rangez jamais rien dans le chauffe-plats. Des matériaux inflammables pourraient prendre
feu, des éléments en plastique pourraient fondre ou s'enflammer et d'autres types d'objets
pourraient être détruits.
■Ne suspendez aucun article sur l'appareil et ne placez aucun objet contre lui. Certains
matériaux sont extrêmement inflammables et pourraient prendre feu.
■Pour des raisons de sécurité et pour ne pas endommager l'appareil, évitez de vous asseoir, de
vous tenir debout ou de vous appuyer contre la porte du chauffe-plats.
■Pour assurer votre propre sécurité, habillez-vous de façon appropriée. Ne portez jamais de
vêtements ou de manches lâches lorsque vous utilisez l'appareil. Certains tissus synthétiques
sont extrêmement inflammables et ne doivent pas être portés pendant l'utilisation de
l'appareil.
■Ne recouvrez aucune partie du chauffe-plats avec du papier aluminium. L'utilisation de papier
aluminium peut créer un risque d'incendie ou empêcher la circulation de la chaleur et de l'air
de ventilation. C'est un excellent isolant thermique qui peut emprisonner la chaleur. Celle-ci
pourrait alors affecter la performance des pièces du chauffe-plats.
3
