CAR LAB IMMO Emulator Immo Renault User manual

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
1
EMULATOR IMMO
RENAULT
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
2
5 NR – Renault Clio 1,2 etrol
with one robe lambda (gel)
Syrius 32 without CAN
Syrius 34 1,4 1,6 2,0
EMS 3132
1,9 2,2 and 2,5 Dci without CAN
1,5 Dci without CAN
1,9 Dti 1 lug
1,9 Dti 2 lugs
1,9 Diesel DCU3
2,8 Td
3,0 gasoline 1 lug
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
3
Thank you for urchasing our device.
Thank you for urchasing our device.
Emulator immo to Renault cars
Emulator immo to Renault cars
re laces damaged immobilizer or the car
re laces damaged immobilizer or the car
key.
key.
It function after made changes in memory
It function after made changes in memory
content of Engine Control Module ECM.
content of Engine Control Module ECM.
In case of losing the car keys or a car
In case of losing the car keys or a car
burglary, it enable to drive off from the road
burglary, it enable to drive off from the road
to the car service.
to the car service.
Due to a low cost you can leave it in the car
Due to a low cost you can leave it in the car
instead of buying a new immo or making car
instead of buying a new immo or making car
keys du licate.
keys du licate.
Two LEDs indicating:
Two LEDs indicating:
green
green - ower - ower
red red – transmission (it is blinking all the – transmission (it is blinking all the
time).
time).
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
4

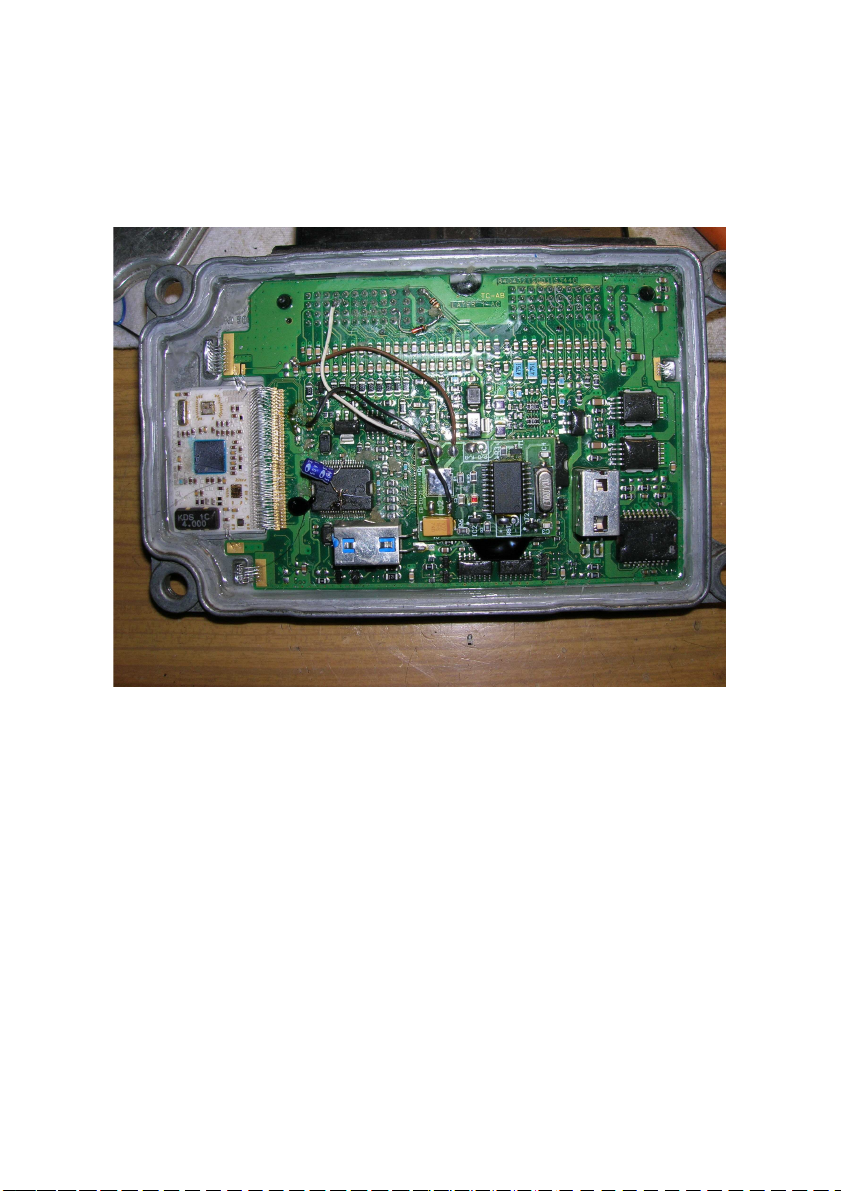

ECU 1,2 (gel)
ECU 1,2 (gel)
C-1uF
C-1uF
R-100
R-100
Dz-3V8
Dz-3V8
Break out PIN in lug where we connect the
Break out PIN in lug where we connect the
unblocker.
unblocker.
C- connect one leg to lus 5V and second to
C- connect one leg to lus 5V and second to
27
27th
th leg of unit.
leg of unit.
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
5
Syrius 32 without CAN
In ECM Syrius 32
is a flash 29f200 or 29f400.
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
6
From 4000 to 7FFF
In the addresses from 4000 to 7FFF find values
64 C7 and change these values everywhere
and two units before them into FF FF FF FF.
Do it in the whole ma from 4000 to 7FFF !!!
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
7

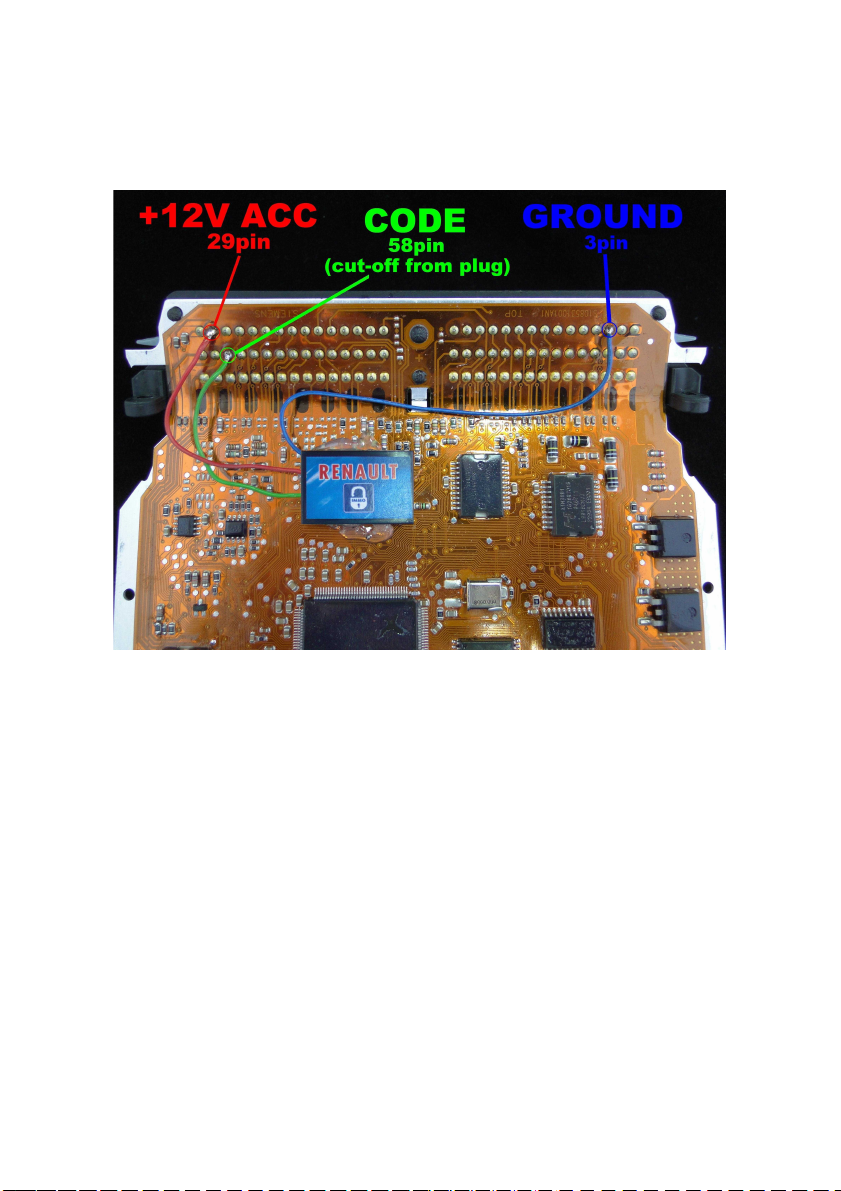

Connecting emulator to ECM:
Connecting emulator to ECM:
+12V ACC – 29 in
+12V ACC – 29 in
CODE – 58 in
CODE – 58 in
GROUND – 3 in
GROUND – 3 in
cut off 58 in from lug !!!
cut off 58 in from lug !!!
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
8
If transducer CAN A82C250 is on the late in
the com uter, the ECM will not work with
emulator !!!
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
9
Syrius 34 1,4 1,6 2,0
In ECM Syrius 34 is flash 29f200
or 29f400.
To fit to the emulator,
all the contents need to be re laced into files
Syrius 34 1,4 1,6 or 2,0.
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
10
Power for the emulator take from the ca acitor
at the flash.
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
11
EMS 3132
In the EMS3132 drivers is
flash 29f200 or 29f400.
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
12
In the addresses from 4000 to 7FFF find
values 64 C7 and change these values
everywhere and two units before them into
FF FF FF FF.
Do it in the whole ma from 4000 to 7FFF !
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
13
Power for the emulator take from the ca acitor
at the flash.
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
14

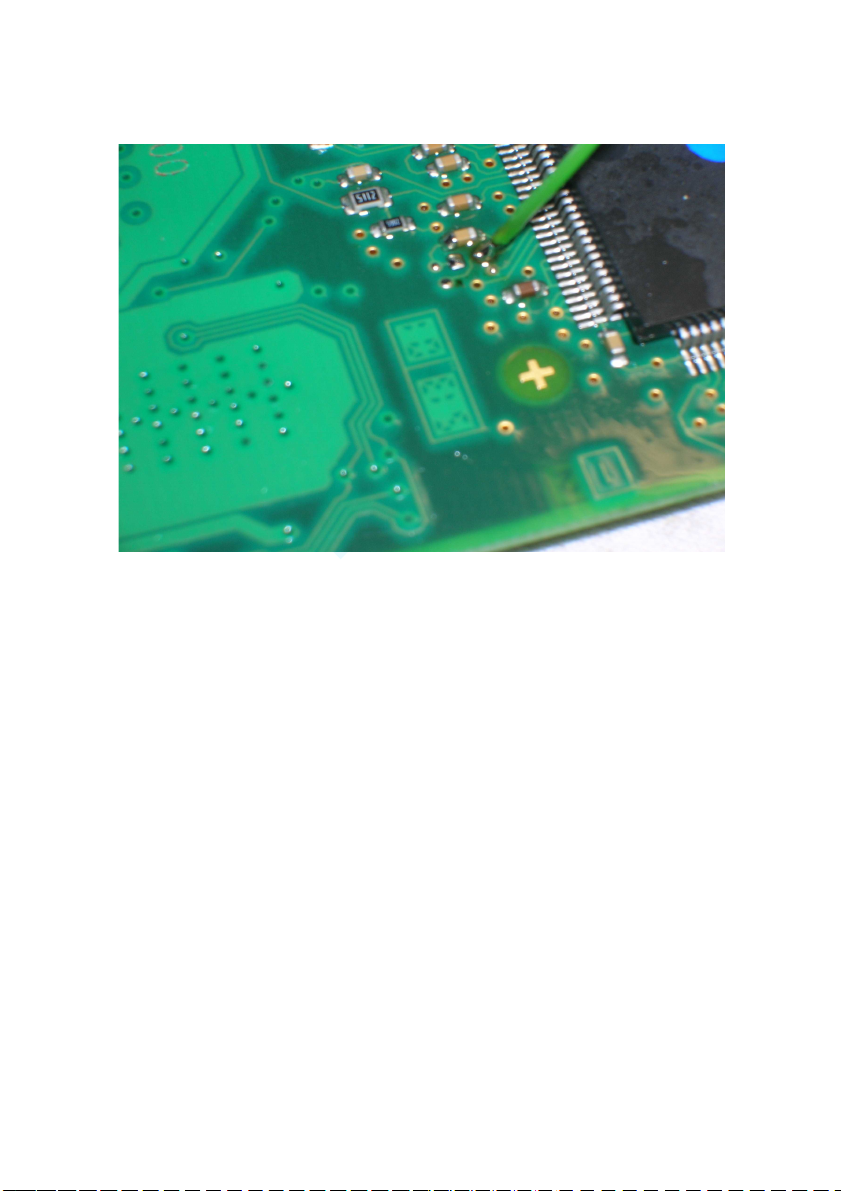

Connect emulator as ictured by unsoldering
the ca acitor.
Connect to the oint which goes to the
rocessor.
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
15
1,9 2,2 and 2,5 Dci without CAN
Renault Laguna 1,9 Dci 1999 year mechanical
ignition switch.
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
16

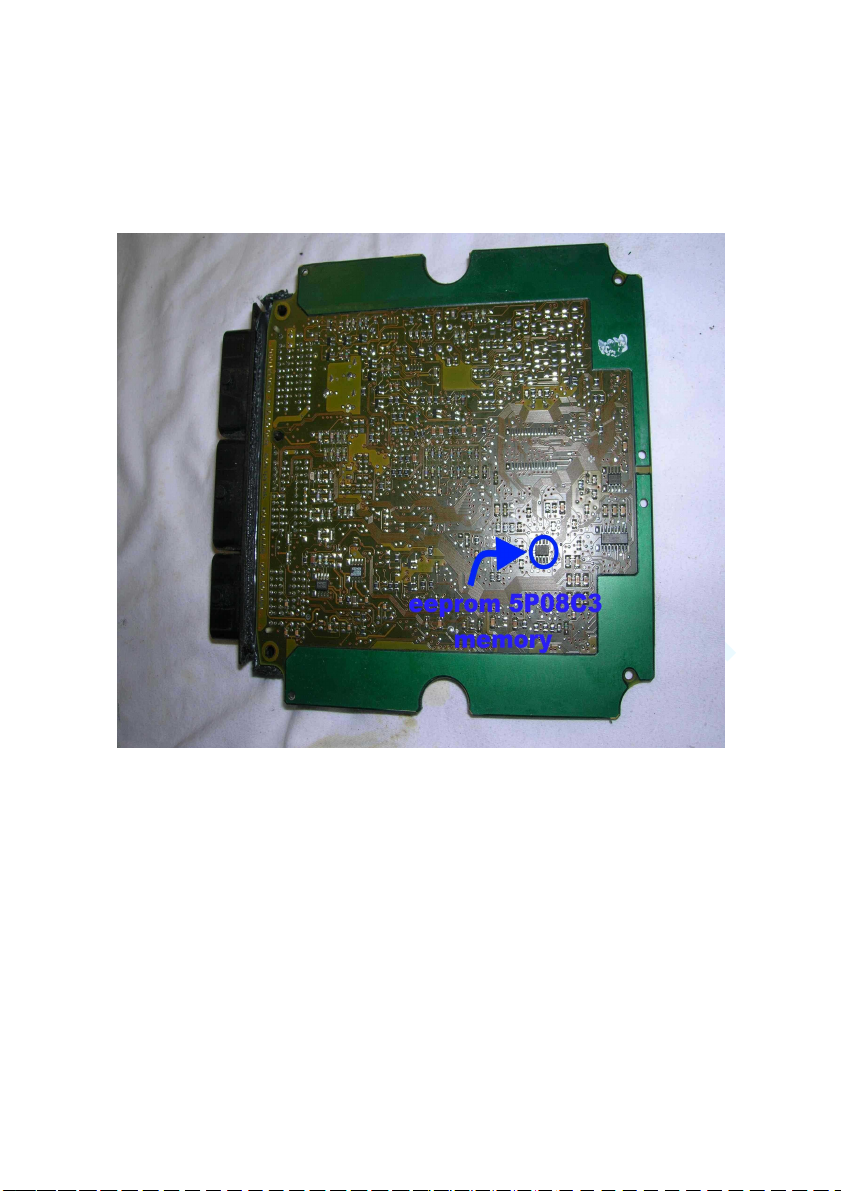

In memory 5P08C3
in the addresses: 003E, 003F, 0040, 0041
and 0044, 0045, 0046, 0047 ty e FF.
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
17

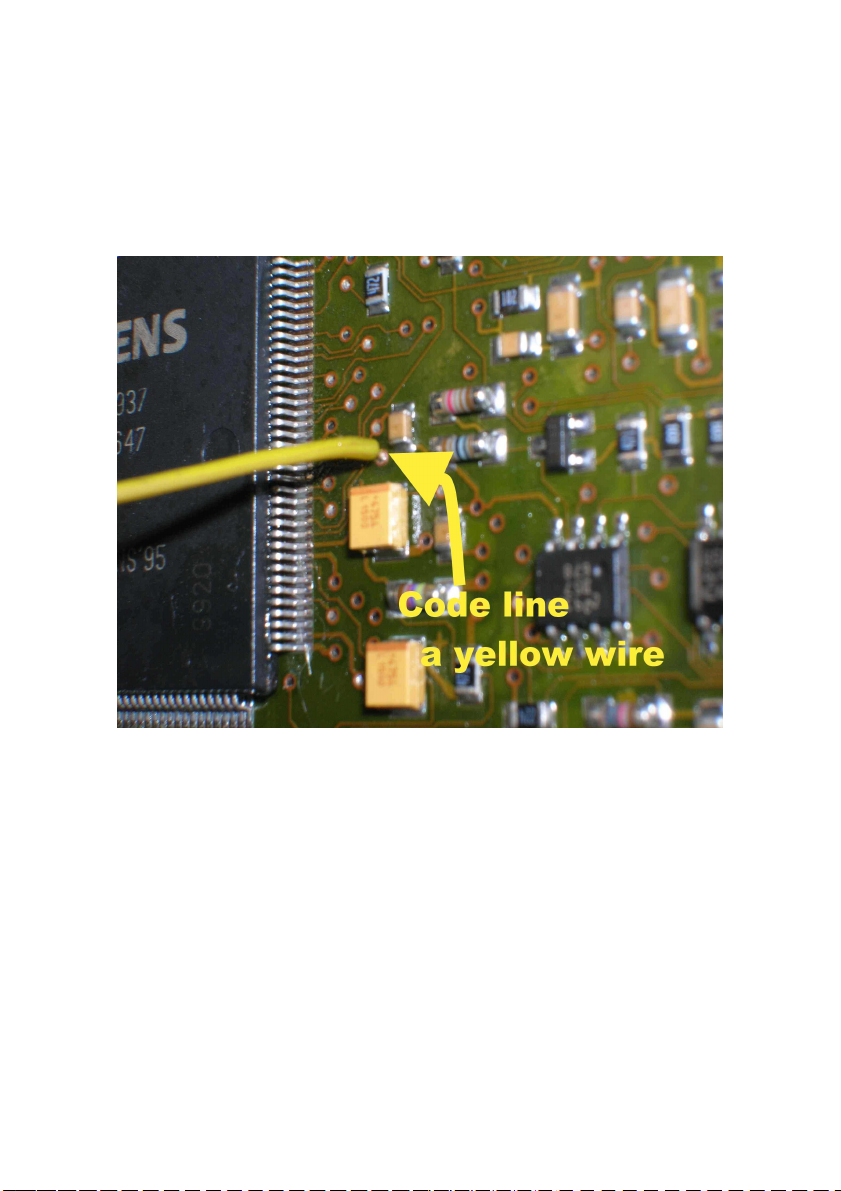

In ECM, immo line (code) of emulator solder to
the oint as ictured.
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
18
Power for the emulator take from the ca acitor
on the driver late.
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
19
Remove resistor 334.
Turn on the ignition for 30 seconds, turn it off
for 30 seconds and re eat it a few times.
www.carlabimmo.com

www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
www.carlabimmo.com
20
1,5 Dci without CAN
Unlock version without odometer.
Re lace content of 25080 and connect
emulator, immo line is 10 in of rocessor,
visible in the hoto, which must be held u .
Power take from ca acitor at the memory.
Add injectors and settings by Cli
or Launch.
