Car + 3505151 User manual
-2-
OPERATION GUIDANCE

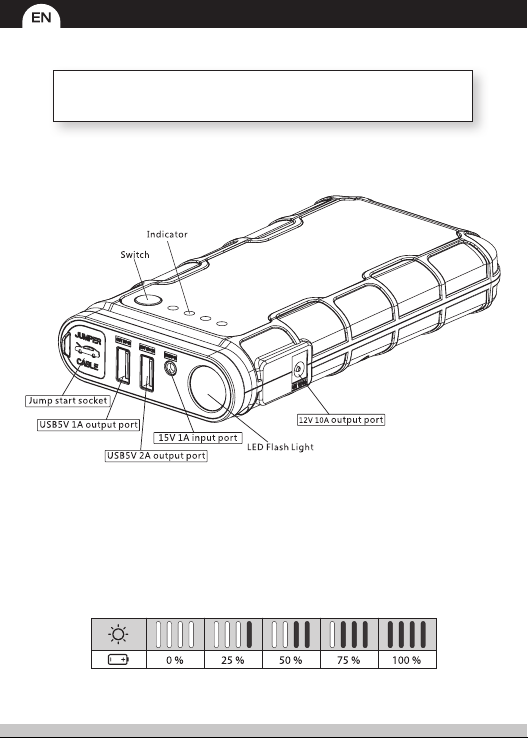

Indicator
Press the switch to check the storage level of the jump starter. The indicator will ash one
by one during the period of charging.
Different number of solid indicators show different storage level of power. AII indicators light
off when the charging is paused or completed.
JUMP START & POWER STATION
Always follow basic safety precautions when using electrical appliances.
Read all instructions carefully, Please keep this instruction manual for easy
reference.
BOOST
reverse correct
Original Manual
-3-
BOOST
reverse correct
BOOST
reverse correct
BOOST
reverse correct
BOOST
reverse correct
Charging instructions
1. Plug the home adaptor into the universal socket.
2. Connect 15V 1A input port of EPOWER to the other end of home adaptor
Or
1. Plug the car adaptor into the socket of cigarette lighter.
2. Connect 15V 1A input port of the jump starter to the other end of car adaptor.
Jump start 12V vehicle Instruction
1. Connect the blue plug fully seated into the host, and make sure
the Cable Indicator is off.
2. Connect Red Clamp to the positive (+) battery terminal, Black
Clamp to the negative (-) battery terminal.
3. Operate following the instruction of the Cable Indicator:
4. Start the vehicle.
5. When the vehicle is started, remove the jumper cable from the vehicle battery. Leave
the vehicle’s engine running.
JUMP START & POWER STATION
BOOST
reverse correct
GREEN LIGHT on: Telling
the connection circuit is
working, you can turn on
the engine to jump-start
directly.
RED LIGHT on with
buzzing: Telling the
connection is wrong, and
buzzing to alarm to correct
the clamps as step 2
mentioned above, wait until
the GREEN LIGHT is on to
turn on the engine.
GREEN LIGHT blinking
with buzzing: Saying
the vehicle battery is low,
press the “BOOST” button,
wait until GREEN LIGHT
becomes solid, then turn on
the engine within 30s.
No Lights on, No buzzing:
Saying the vehicle’s
battery may be damaged,
after conrm the clamps
connection is correct,
press the “BOOST” button,
wait until GREEN LIGHT
is on, and then turn on the
engine within 30s.
Original Manual
-4-
JUMP START & POWER STATION
FAC
Q. How to turn off this appliance?
A. This appliance will power off automatically when no load or charging is complete.
Q. How long time to full charge the jump starter?
A. Approx. 4 hours through the Quick Charge input.
Q. How many times can this appliance charge for my cell phone?
A. Depend on the battery capacity of your cell phone. Take iPhone6 as an example, can
full charging 8 times.
Q. How long will this appliance on a full charge take to supply the Notebook?
A. 4-6 hours.
Q. How many times can this appliance jump start the vehicle if it is in full battery?
A. Approx. 40 times.
Q. What’s the lifetime of the jump starter?
A. Usually 3-5years in normal condition.
Q. How long does the battery last still can jump start the car after fully charged?
A. 6-12 months, however, we suggest to recharge it every 3 months.
TROUBLE SHOOTING
FINDING
No response when
pressing the switch
button.
CAUSE
Low voltage protection of
jump starter is started.
REMEDIES
Plug the adaptor into
the 15V 1A input port to
activate.
Charging Cell Phone or Tablet Instructions
1. Plug the switch cable B to USB 5V 2A output port.
2. Select appropriate connector and connect it to your mobile phones ar table!.
3. Press the switch button to charge.
Far power supply to 12V vehicle products or 12V electronics
1. Plug the optional switch cable to 12V 1OA output port.
2. Connect the optional switch cable and 12V vehicle product or 12V electronics.
3. Press the switch button to power supply.
LED ash light
Press the switch 3 seconds to start the LED ash light.
There are 4 modes of LED light appear in order (normal. strobe. SOS. off) if you press slightly.
Original Manual
-5-
JUMP START & POWER STATION
O: Indicate all homogeneous materials’ hazardous substances content are below the
MCV limit specied in the Standard 2002/95/EC (RoHs).
TOXIC AND HARMFUL SUBSTANCES
Pb Hg Cd Cr (Vi) PBB PBDE
OOOOOO
WARNING
1. Always make sure the blue plug of jumper cable connect with the jump start’s socket light
before jumping start the vehicle. Otherwise, it will affect the results, even causing the melt
of the blue plug.
2. Always check if the jumper clamps are well connected, check if the vehicle battery
connector is rusted or dirty, clean it before jumping start the vehicle. DO NOT jump start
again alter 3 attempts. otherwise, it will damage the host. And check your vehicle if it has
other trouble.
3. DO NOT connect the two clamps. Otherwise, it may be dangerous!
4. DO NOT disassemble the host. Otherwise, it may be dangerous!
5. Always take care when using the appliance.
6. The appliance is not intended for use by young or inrm persons without supervision.
7. Do not use as a toy.
8. Do not allow the appliance to become wet.
9. Do not operate the appliance in exploding atmospheres, such as in the presence of
ammable liquids, gases or dust.
10. Do not modify or disassemble the jump starter. Only a repair technician may repair this
unit.
11. Do not expose the appliance to heat.
12. Do not store in locations where the temperature may exceed 70ºC.
13. Charge only at ambient temperatures between 0 and 40ºC.
14. Charge only using the charger provided with the appliance.
15. Under extreme conditions, battery leakage may occur. Carefully wipe the liquid off using a
cloth and avoid skin contact when you notice liquid on the batteries. In case of skin or eye
contact, rinse immediately with clean water and seek medical attention.
16. At the end of their useful life, discard the appliance with due care for our environment.
Original Manual
-6-
JUMP START & POWER STATION
WARRANTY INFORMATION
1. We offer a limited warranty for this product against any defects in material and
workmanship for a period of 6 months from the date of purchase by the end user/
consumer. The conditions of the warranty are as follows:
2. The warranty is only valid upon presentation of the original receipt (from dealer/retailer)
by the original purchaser with the product to be repaired or replaced.
3. The warranty is void if the serial number, date of purchase and label has been removed.
4. The warranty does not cover damage or product failure resulting from normal wear
and tear, physical abuse, improper installation, misuse, modication or repairs by
unauthorized third parties.
5. We do not assume responsibility for any loss or damage incurred during shipment or
as a result of a force majeure.
6. We are not liable for any incidental or consequential damages arising from the use or
misuse of this product.
7. All warranty claims are limited to repair or replacement of the defective product and at
the sole discretion of us.
8. If we repair or replace the product, the product will be covered for the remaining
time of the original warranty period. Repair or replacement may involve the use of
reconditioned units which are equivalent in function. Replaced part or product
becomes the property of us.
9. Consumable components such as batteries are not covered by the warranty.
CAUTION
1. Do not jump start the vehicle if lees than 3 indicators are lighting. Do not connect the
positive and negative poles to the opposite poles, or connect the two clamps together,
otherwise may occur accident.
2. If the engine does not start within 3 seconds, stop cranking and wait at least 30
seconds before attempting to start the vehicle again.
3. Do not disassemble the host or use it as car battery, otherwise may occur accident.
4. Do not crush the product or put it into re, otherwise may occur accident.
5. Keep away from children to avoid any accident.
Original Manual
-7-
JUMP START & POWER STATION
EU Declaration of Conformity in accordance with the EU Machinery Directive
2006/42/EC
The declaration hereunder solely concerns the original machinery and composition, any
additional parts or modications made by the end user are not covered and this declaration
will not be valid should the product be modied in any way without our authorization.
Mr. Angel CAÑARDO, CEO of Suministros Exteriores, S.A., hereby declares under his
responsibility that our Jump Start & Power Station (reference code 3505151) fully conforms
to all relevant provisions of the EU Machinery Directive 2006/42/EC.
The applicable regulation is NF EN 1494: 2000+A1: 2009.
This declaration covers machinery with series numbers from SG17100 through to SG18999.
Sant Joan Despí, Spain. 21/11/2017
Angel Cañardo Aranguren
Director General Suministros Exteriores SA.
Original Manual
200A
400A
15V - 1A
5V - 1A
5V - 2A
12V - 10A
Arrancador
Booster
Awiamento
Starthulp
Arrancador
Strömbooster
171 x 87
x 31 mm
450 g -20ºC
-
60ºC
