Carbine 32cs User manual

1
OWNER ’S MANUAL
®
SECURITY SYSTEM with KEYLESS ENTRY

2
Congratulations
Congratulations on the purchase of this CARBINE security system.
Reading this owners guide prior to using the system will familiarize
you with it’s many features. If issues arise or you have questions,
contact your installing dealer first. Additionally, you can contact us
online at www.carbine.com or call 310-735-2000.

3

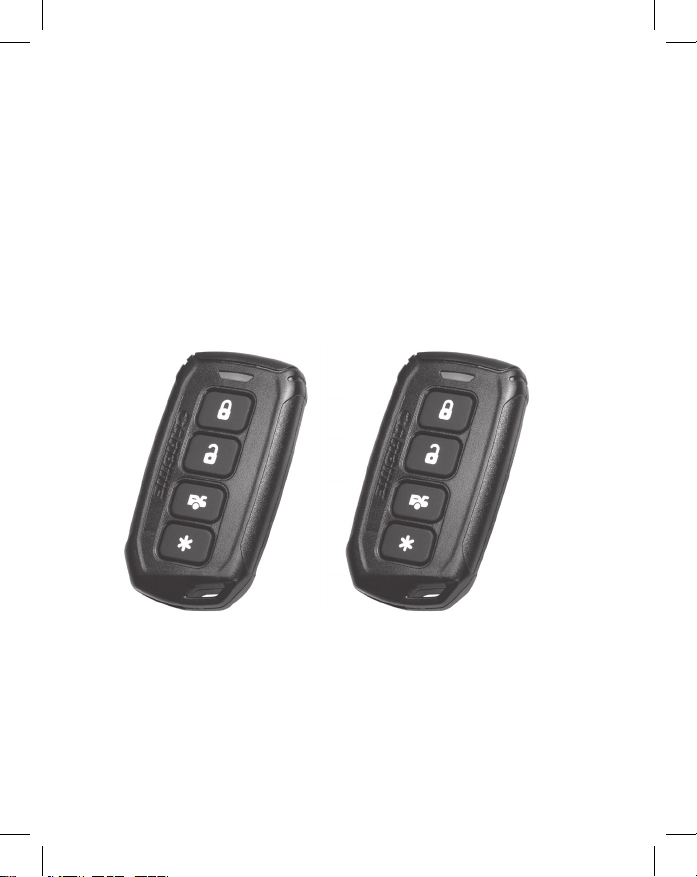

Replacement Remote Controls
To purchase replacement remote controls, please
see your authorized dealer/installer or visit us at
www.carbine.com
Remote part numbers are found on the back of the remote control.

4
Contents
Congratulations ............................................................................. 2
Replacement Remote Controls....................................................... 3
4-Button Remote Configuration...................................................... 5
Using the System
Arming/ Disarming ........................................................................ 6
Disarm without a Transmitter......................................................... 6
Panic Alarm ................................................................................... 7
Channel #3 and #4 Operation ........................................................ 7
Valet Mode .................................................................................... 8
Trigger the System......................................................................... 9
Tamper Warnings........................................................................... 9
Replacement Remote Pairing....................................................... 10
Battery Replacement ................................................................... 11

5
Remote Controls

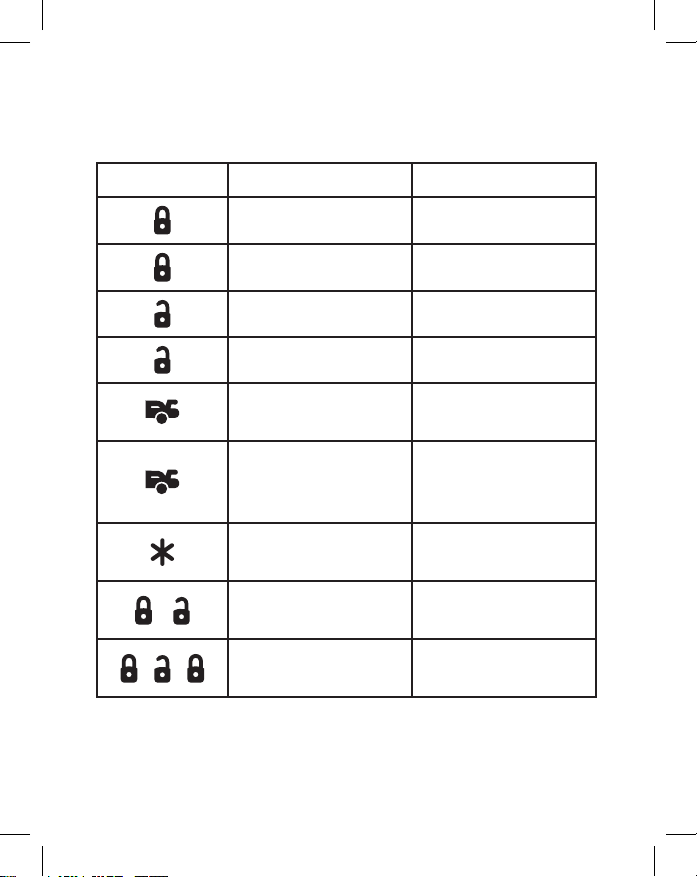

4 Button Remote Configuration
Button Function Action
Arm/ Lock Press and Release
Turn Off Panic Alarm Press and Release
Disarm/ Unlock Press and Release
Turn Off Panic Alarm Press and Release
Activate Trunk Release
(CH#3)
Press and Hold for
2 Seconds
Initiate Silent Arm or
Disarm
Press and Release
Before Pressing Lock
or Unlock
Panic Alarm On/Off Press and Hold for
2 Seconds
+AUX Channel 4 Output Press Both and Hold
for 3 Seconds
--Valet Mode On/Off Press each button in
sequence

6
Lock/ Arm
- Press and release the button to arm the security system
and lock the doors. The parking lights will flash one time.
(door lock control must be installed)
Unlock/ Disarm
- Press and release the button to disarm the security
system and unlock the doors. The parking lights will flash
two times. (door lock control must be installed)
Silent Arm/ Disarm
Quickly press and release the button before pressing the
or button to initiate silent mode. The system will lock or unlock
without arming or disarming chirps.
Note: If the system had previously been triggered, the tamper
warning chirps will always sound upon disarm.
Disarm without the Remote Control
Your CARBINE system has an override mode that allows you to
disarm your system in the event that you have lost or damaged
your remote controller.
- While the alarm is sounding, turn the ignition key to On,
then press and release the valet switch button. This will
disarm the system.
Note: If your system was installed and programmed to “Automati-
cally Arm”, the system should be placed into “Valet Mode”
to prevent it from become re-armed until you can correct
the issue with your remote control.

7
Panic Alarm
1. Press and hold the button for 3 seconds to activate panic
alarm. Once activated, the panic alarm will sound the horn or
siren and flash the parking lights for 30 seconds.
2. Press and release the or button to stop the
panic mode.
Note: You can also press and hold the button for
3 seconds to stop the panic alarm.
Trunk Release (CH#3)
Press and hold the button for 3 seconds to
release the trunk/ hatch lid
- The vehicle must have electronic trunk control
- The trunk release control option must be installed
AUX Output Activation (CH#4)
Depending on your installation, your installer may have connected
the channel #4 output to your vehicle. To activate the AUX/CH#4
output, press and hold the + buttons together for 2 seconds.
This action will energize the White/Blue wire for as long as you hold
the buttons down. The operation of AUX Channel #4 is programmable.

8
Valet Mode (By Valet Button)
Valet mode is a convenience when you take your car in for service
or allow someone who may not be familiar with your security
system drive your vehicle.
- All doors must be closed
- Turn the ignition key On then Off.
- Press and release the valet button (1) time.
The status LED will be on.
- Repeat the procedure to turn off the valet mode.
The status LED will be off.
Valet Mode (By Remote)
Valet mode is a convenience when you take your car in for
service or allow someone who may not be familiar with your
security system drive your vehicle. To activate Valet Mode using
your remote control. Repeat the following procedure.
1. Open the driver’s door.
2. Press - - on your remote control.
3. The LED status indicator will be on solid.
4. Repeat 1 and 2 above to exit Valet Mode.
The status LED indicator will be off.

9
Trigger the System
If at any time the system becomes triggered, the horn/siren will
sound for 30 seconds and then re-arm. If a protected entrance is
left open, the alarm will sound for three, 30 second cycles and then
the protected entrance is bypassed while the remaining detection
zones are active.
Tamper Warning at Disarm
If the alarm had been triggered while you were away from the
vehicle, upon disarming, a 4-chirp tamper disarm warning will
occur. In addition to the 4-chirp warning, the status LED will
flash a distinctive number of times to indicate which alarm
zone set off the alarm.
Tamper LED Flashes Trigger Source
1 Doors
2Hood/ Trunk
4 Shock Sensor
5Ignition Voltage
6 Tilt Sensor

10
Pairing a Replacement Remote Control
Your CARBINE system remote controls are already paired to the
control module. If you are replacing or adding remotes to your
system, they must be programmed (paired) to the control module
before they will operate the system. In order to perform remote
control pairing, you must know where your “Valet Button is located
as you will use the button and the LED indicator to perform the
pairing function.
Remote Pairing Procedure
1. Open the driver’s door.
2. Insert the ignition key into the key cylinder.
Turn ON the ignition key
3. Press and release the valet button then press and hold the valet
button for 1.5 seconds. The LED flashes and the horn chirps
(if connected). Release the valet button. The system will stay in
Pairing mode for 60 seconds.
5. Press and hold the button on the new remote control.
6. Press and release the button 5 times. The LED on the
remote will begin a steady flash. Release all buttons.
The LED will flash for 15 seconds.
7. Press and release the button on the new transmitter. The
horn/siren chirps and the LED flash pauses to indicate that the
new remote is programmed.
8. Turn the ignition key to the Off position. A long chirp from the
horn confirms that the pairing mode is off.
Note: Your CARBINE security system will accept codes from
up to (4) transmitters.

11
Replacing the Remote Controller Battery
The CARBINE remote controllers are powered by a CR2032 Lithium
battery. When the battery begins to weaken, the operating range of
the remote control is reduced and the LED indicator on the remote
will begin to dim.
To replace the battery, follow the enclosed procedure.
1. There is a slot built into the remote case. Use a dime or small
flat blade screwdriver to separate the top and bottom cases of
the transmitter.
2. Use a pencil to remove the battery from it’s holder.
3. Insert the new battery with the (+) pole of the battery facing up.
4. Re-assemble the top and bottom cases and snap them
back together.
5. Press the buttons to make sure the LED indicator flashes.
separate here with
dime or small flat blade
screwdriver

®
© Copyright 2021 Magnadyne Corporation. All Rights Reserved. No part of this publication may
be produced without the expressed written permission of Magnadyne Corporation.
www.carbine.com | call 310-735-2000 | UM-32CS
GOVERNMENT REGULATIONS
This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) This device must accept any interference
received, including interference that may cause
undesirable operation.
This equipment has been tested and found to com-
ply with the limits for a class B digital device, pur-
suant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television, which can be determined by turning
the equipment OFF and ON, the user is encouraged
to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced
radio / TV technician for help.
WARNING! Changes or modifications not
expressly approved by the party responsible
for compliance could void the user’s authority
to operate this device.
