Cardini GC9S300 User manual

*&66WDLQOHVV6WHHO
*&*%ODFN*ODVV
*$6&22.723
,16758&7,210$18$/
Read this manual carefully before operation
1RWH3LFWXUHVLQWKLVPDQXDODUHIRUUHIHUHQFHRQO\

Safety warnings
DO NOT USE OR STORE FLAMMABLE MATERIALS IN OR NEAR
THIS APPLIANCE
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE
WHILE IT IS INOPERATION.
7+,6$33/,$1&(SHALL NOT BE USED AS A SPACE HEATER.
DO NOT MODIFY THIS APPLIANCE
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
7+,6$33/,$1&(,6)25,1'225+20(86(21/<
Dear customer:This gas hotplate is manufactured for household useRQO\.
Our appliances are packed in environmentally friendly materials which may be
recycled, deposited or destroyed without any hazard to the environment. Such
packaging materials are also labelOed accordingly.
Once the life cycle your appliance is over, make sure not to pollute the environment,
and deliver it to the authoULVed collectors of old household appliances.
‘THE INSTRUCTIONS PACKAGED WITH THIS APPLIANCE CONTAIN IMPORTANT INFORMATION
ABOUT INSTALLATION AND USE’;
These instructions are only valid IRUXVHLQ$XVWUDOLD
Instructions for connection:The appliance must be connected in compliance with the instructions
attached to it, as well as in compliance with relevantORFDO regulations and standards. The connection may
onlybe performed by a qualified person.
Rating plate:The rating plate indicating the basic information on the appliance is attached to thelower
side of the hob.
Gas Hob Models:
 *&G
 *&6
GAS HOB

,1'(;
Important warnings 4
Installation 5-6
Connecting to the power mains 6-7
Connecting to the gas supply 7-9
Technical information 9
'HVFULSWLRQRIKRE 
2SHUDWLRQ 
&OHDQLQJDQGPDLQWHQDQFH 
3UREOHPVROYLQJJXLGH 
3

4
Important warnings
Installation of the appliance into a kitchen worktop and its connection to the
power mains and the gas supply may only be performed by an adequately qualified technician.
When the appliance is in use, additional heat and moisture are emitted into the room.
When the appliance is used for a prolonged period of time at a high performance level,intensive
ventilation or use of kitchenUDQJH hood is required in the room where the appliance is installed.
Do not use the gas burners, if the flame seems unstable.
If you smell gas in the room, immediately close the gas supply valve either on the gas
bottle or gas pipeline, extinguish all sources of open fire (including cigarettes), aerate
the room, do not turn on any electric appliances, and call a natural gas expert.
The main gas supply valve should also be closed if gas burners will be out of use for a
long period of time (e.g. when going on holiday).
The appliance and its accessible parts become hot during use. Care should be taken
to avoid touching heating elements. Children less than 8 years of age shall be kept away unless
continuously supervised.Prevent the children IURP hangLQJ around the appliance and warn them
properlyagainst the danger of burns.
This appliance is not recommended for children, persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they are under direct supervision or instruction
by a person responsible for their safety
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Children should be supervised to ensure that they do not play with the appliance.
WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may
result in fire.Be sure WRhave the preparation of such food (fries) under constant control.
Never try to extinguish a fire with water, but switch off the appliance and then cover
flame e.g. with a lid or a fire blanket.
WARNING: Danger of fire: do not store items on the cooking surfaces.
WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of
electric shock.
Do not use a high-pressure steam cleaner or hot steam to clean the appliance.
Never place any metal objects upon the hob surface, such as knives, forks, spoons,
pot lids, and the like, as they may get very hot.
The hob cannot be activated by external timers or remote control systems.
Do not use the cooking hob for room heating.
Do not place empty pans on the hob.
Make sure that the parts of the burners are correctly positioned / installed.
Hob surface should not be used as a worktop. Sharp objects may cause scratches.
Preparing food in thin aluminum of plastic containers on hot cooking zones is not
allowed. Do not place any plastic objects or aluminum foil on the hob surface.
If there is a wall power outlet located near the hob and another appliance is plugged
into it, make sure the power cord does not come into contact with the hot cooking
zones.
Do not store any temperature-sensitive objects, materials, or substances underneath
the hob, e.g. detergents, sprays, etc.
In case of a failure of the appliance, immediately disconnect the appliance from the
power mains,WXUQRIfWKHJDVYDOYHand contact the service centUH.
The appliance is manufactured in compliance with the relevant effective safety
standards.
After a prolonged use of cast iron plates, the area of the plate and the edge of the
cooking zone may discolour. Repair serviceRIWKHFDVWLURQSODWHV is not covered by warranty.
Don't connect the hob to the power supply with an extension cable or multiple sockets,
because they don't assure a sufficient safety (e.g. overheating risk of multiple sockets).
Connect the equipment to a permanent connection.
Don't use pan, pots, grills or grilled stones, of bigger size than the maximum
specified for every single burner; in particular you must not cover more burners
simultaneously. The accumulation of heat could damage the appliance.
The symbol on the product or on its packaging indicates that this product may
not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of thisproduct.
For more detailed information about recycling of this product, please contact
your local city offi ce, your household waste disposal service or the shop where
you purchased the product.

5
INSTALLATION
Important warnings
This appliance must be installed by an authorised person in accordance with this instruction manual, AS/NZS 5601 –
Gas installations (installation and pipe sizing), local gas fitting regulations,
local electrical regulations, local water regulations, local health regulations, 1DWLRQal&RQVWUXFWLRQ Code of Australia
and any other government authority.
 ,QVWDOODWLRQRIWKHDSSOLDQFHLQWRDNLWFKHQZRUNWRSDQGLWVFRQQHFWLRQWRWKHSRZHUPDLQVPD\RQO\EHSHUIRUPHGE\DQ
adequately qualified technician.
 9HQHHURURWKHUILQLVKRIWKHSLHFHRINLWFKHQIXUQLWXUHLQWRZKLFKWKHKRELVWREHEXLOWLQVKRXOGEHWUHDWHGZLWKKHDW
resistant glue (100°C); otherwise, the worktop finish may be discoloXred or deformed.
 &RRNLQJKRELVGLPHQVLRQHGWREHEXLOWLQWRWKHZRUNWRSRYHUDSLHFHRINLWFKHQIXUQLWXUHZLWKDZLGWKRIPPRU
more.
 $IWHULQVWDOODWLRQWKHIURQWWZRIDVWHQLQJHOHPHQWVVKRXOGEHIUHHO\DFFHVVLEOHIURPEHORZ
 7KHNLWFKHQIXUQLWXUHHOHPHQWXQGHUQHDWKWKHKREVKRXOGQRWEHILWWHGZLWKDGUDZHU,IWKHNLWFKHQIXUQLWXUHHOHPHQWKDV
a horizontal partition wall, it should be installed no less than min 20mm from the lower surface of the FRRNtop. The space
between the partition wall and the hob must be empty; no objects should be placed into thHgap.
 +DQJLQJRUZDOOPRXQWHGNLWFKHQHOHPHQWVVKRXOGEHLQVWDOOHGKLJKHQRXJKQRWWRLQWHUIHUHZLWKWKHZRUNSURFHVV
 7KHGLVWDQFHEHWZHHQWKHFRRNLQJKREDQGWKHNLWFKHQKRRGVKRXOGEHQROHVVWKDQLQGLFDWHGLQWKHLQVWUXFWLRQVIRU
kitchen hood installation. The minimum distance is 700 mm.
 7KHGLVWDQFHEHWZHHQWKHDSSOLDQFHHGJHDQGWKHDGMDFHQWWDOONLWFKHQIXUQLWXUHHOHPHQWVKRXOGDPRXQWWRQROHVVWKDQ
150 mm.
 0LQLPXPGLVWDQFHEHWZHHQWKHEXLOWLQFRRNLQJKREDQGWKHUHDUZDOOLVLQGLFDWHGRQWKHLQVWDOODWLRQGUDZLQJ
 &RRNLQJKREVFDQEHLQVWDOOHGLQWRZRUNWRSVWKDWDUH0WRPPWKLFN
 2QO\RYHQVILWWHGZLWKDFRROLQJIDQPD\EHLQVWDOOHGXQGHUQHDWKWKLVFRRNLQJKRE
 %HIRUHLQVWDOOLQJDQRYHQWKHUHDUZDOORIWKHNLWFKHQIXUQLWXUHHOHPHQWVKRXOGEHUHPRYHGLQWKHDUHDRIWKHFRRNLQJ
hob cutout.
Overhead clearances—(Measurement A) Range hoods and exaust fans shall be
installed in accordance with the manufacturer’s relevant instructions. However, in
no case shall the clearance between the highest part of the hob of the gas
cooking appliance and a range hood be less than 600 mm .
Side clearances—(Measurement B & C) Where B, measured from the periphery
of the nearest burner to any vertical combustible surface, or vertical combustible
surface covered with toughened glass or sheet metal, is less than 200 mm, the
surface shall be protected to a height C of not less than 150 mm above the hob
for the full dimension (width or depth) of the cooking surface area. Where the gas
cooking appliance is fitted with a non flammable splashback, protection of the
rear wall is not required.
Gas inlet is located at the rear right 25mm from the edge.

6
Installing the foam
gasket
Before inserting the appliance into the opening in the kitchen worktop, the supplied foam
gasket must be attached to the lower side of the glass ceramic (glass) cooking hob (see
figure above).
'RQRWLQVWDOOWKHDSSOLDQFHZLWKRXWWKHIRDPJDVNHW
The gasket should be attached to the appliance in the following way:
- Remove the protective film from the gasket.
- Then, attach the gasket to the lower side of the glass, approximately 2-3 millimetres
from the edge (as shown in the figure). The gasket must be attached along the entire
length of the glass edge and should not overlap at the corners.
- When installing the gasket, make sure that the glass does not come into contact with
any sharp objects.
Installation procedure
( Steel hobs)
:RUNWRSPXVWEHSODFHGDEVROXWHO\KRUL]RQWDO
6XLWDEO\SURWHFWWKHHGJHVRIWKHFXWDSHUWXUH
&RQQHFWWKHFRRNLQJKREWRWKHPDLQVSRZHUVXSSO\VHHLQVWUXFWLRQVIRUWKH
connection of the cooking hob to mains power supply).
3XWWKHVXSSOLHGVSULQJVLQWKHLUSODFHV
,QVHUWWKHKRELQWRWKHFXWDSHUWXUH
3UHVVWKHKREILUPO\WRZDUGVWKHZRUNWRSIURPDERYH
6HDOWKHFXWVXUIDFHVZLWKDVXLWDEOHVHDODQWWRDYRLGVZHOOLQJFDXVHGE\PRLVWXUH
The sealant must be heat resistant.
Installation procedure
( Glass hobs)
 Worktop must be absolutely horizontal.
 Seal the cut surfaces with a suitable sealant to avoid swelling
caused by moisture. The sealant must be heat resistant.
 Feed the mains connection cable down through the cut-out.
 Insert the appliance into the cut-out.
 Centre the appliance in the cut-out.
 Fix the appliance to the worktop by means of the bracketsand
accessories provided.
Holes are provided in the bottom of the tray where you can attach
the screws C that hold the brackets B in place.
 'RQRWLQVWDOOWKHDSSOLDQFHZLWKRXWWKHIRDPJDVNHW
CONNECTING TO THE POWER MAINS
 7KHDSSOLDQFHPD\RQO\EHFRQQHFWHGE\DQDXWKRULVHGVNLOOHGWHFKQLFLDQ
 (OHFWULFV\VWHPSURWHFWLRQVKRXOGFRPSO\ZLWKDOOUHOHYDQWUHJXODWLRQV
 7KHFRQQHFWLRQFOLSVFDQEHDFFHVVHGZKHQWKHFRQQHFWLRQFOLSFRYHUVDUHRSHQHGUHPRYHG
 %HIRUHFRQQHFWLQJWKHDSSOLDQFHPDNHVXUHWKHYROWDJHLQGLFDWHGRQWKHUDWLQJSODWHLV
consistent with the voltage in your home circuit.
 7KHUDWLQJSODWHZLWKEDVLFLQIRUPDWLRQLVDWWDFKHGRQWKHORZHUVLGHRIWKHKRE
 7KHDSSOLDQFHLVPDQXIDFWXUHGIRUXVHZLWKWKHSRZHUVXSSO\YROWDJH9a
 ,QRUGHUWRPDNHDIL[HGFRQQHFWLRQWRWKHPDLQVLQVHUWDQDOOSROHFLUFXLWEUHDNHU
between the appliance and the mains. This device shall have a contact separation in all
poles, providing full disconnection under overvoltage category III conditions.
 *LYHQWKHSURWHFWLRQIURPWKHULVNRIILUHDSSOLDQFHVRIWKLVW\SHPD\EHLQVWDOOHGLQD
worktop next to a piece of kitchen furniture that is taller than the appliance (when
installed); however, in this case, a kitchen furniture element must be installed on the other side, adjacent to the
appliance.
 7KHFXUUHQWFRQGXFWLQJDQGLVRODWHGSDUWVPXVWEHSURWHFWHGIURPDQ\SRVVLELOLW\RIGLUHFWFRQWDFW
Model *CG Notice：please add
two pieces foam strip ( in the
accessory bag) at the rear of the hob
baseplate when you installWKHKRE

7
WARNING!
 %HIRUHDQ\LQWHUYHQWLRQGLVFRQQHFWWKHDSSOLDQFHIURPWKHSRZHUPDLQV&RQQHFWWKH
appliance in compliance with the electric connections diagram supplied; make sure the
relevant network voltage is observed! The ground wire should be connected to the
clip indicated by the earthing symbol.
 7KHPDLQVFDEOHVKRXOGEHIHGWKURXJKWKHIDVWHQLQJFOLSZKLFKSURWHFWVLWIURPEHLQJ
accidentally pulled out.
 $IWHUFRQQHFWLQJWKHDSSOLDQFHWXUQRQDOOFRRNLQJ]RQHVKHDWHUVIRUDSSUR[LPDWHO\
three minutes to make sure they are operating correctly.
 ,QFRUUHFWFRQQHFWLRQPD\GHVWUR\SDUWVRIWKHDSSOLDQFHPDNLQJWKHZDUUDQW\YRLG
 %HIRUHFRQQHFWLQJWKHDSSOLDQFHPDNHVXUHWKHYROWDJHLQGLFDWHGRQWKHUDWLQJSODWHLV
consistent with the voltage in your home network. Connection voltage should be checked
by a qualified technician using a corresponding measuring device!
 &RQQHFWLRQFDEOHRQWKHEDFNRIWKHDSSOLDQFHVKRXOGEHOHGLQVXFKZD\WKDWLWGRHV
not touch the appliance back wall, as this part will get very hot during operation.
7KHIROORZLQJFDQEHXVHGIRUFRQQHFWLRQ+99)
CONNECTING TO THE GAS SUPPLY
 7KHDSSOLDQFHPXVWEHFRQQHFWHGLQFRPSOLDQFHZLWKDOOUHOHYDQWUHJXODWLRQVDQGLWPD\RQO\EHXVHGLQZHOO
ventilated/ aerated rooms. Before connecting or using the appliance, please read the instruction manual.
 %HIRUHLQVWDOOLQJDQGFRQQHFWLQJPDNHVXUHWKHORFDOQDWXUDOJDVVXSSO\QHWZRUNDQGFRQQHFWLRQW\SHRIJDVDQG
pressure), are compatible with your appliance version.
7KHFDWHJRU\ZLWKWKHUHODWHGW\SHVRIJDVZKLFKFDQEHXVHGDUHLQFOXGHGLQ7DEOHފ7(&+1,&$/,1)250$7,21ފ
 7KHYHUVLRQRIWKLVDSSOLDQFHLVLQGLFDWHGRQWKHUDWLQJSODWH
 7KLVDSSOLDQFHLVQRWVXLWDEOHIRUFRQQHFWLRQWRDEXUQLQJIXPHVH[KDXVWV\VWHPLHDFKLPQH\
The appliance must be installed and connected in compliance with the relevant effective installation regulations.
Special care must be taken to ensure adequate ventilation / aeration (a = min. 100 cm2 ).
Connection
The gas connection must be made in accordance with the local standards. When installing, fit a safety tap at the end of
the pipeline. The appliance leaves the factory tested and set for the type of gas indicated on the plate inside the bottom
guard, close to the gas connection pipe. Make sure that the type of gas to be supplied to the appliance is the same as that
shown on the plate. Otherwise, follow the instructions provided in the “Adapting to different types of gas” section.
'LDJUDP02'(/6*&6*&*
'$1*(5 92/76',6&211(&7
32:(5%()25(6(59,1*81,7

8
For maximum efficiency and minimum consumption, make sure that the gas
supply pressure complies with the values shown on the appliance. A suitable
pressure regulator must be installed on the supply pipeline. The union must
be fitted on the end of the gas train. Complete with G½” threaded nut, fit the
gasket between the components as shown in the illustration. The gaskets
must comply with the local standards. Screw the parts together without
forcing it, fit the union so that it points in the direction required, then tighten
all parts. Flexible hose assembly must be certified to AS/NZS 1869 class B or D, be of
appropriate internal diameter for the total gas consumption, be kept as short as possible
(not exceeding 1200mm), must not be in contact with the floor or any hot or sharp
surfaces. The hose assembly must not be subject to strain, abrasion, kinking or
deformation.
After connecting the gas hob, check the joints for any leaks.
Natural Gas: the supplied regulator must be fitted to the appliance inlet connection.
Gas pressure must be adjusted to 1.0 kPa when approximately 50% of the burners are
on high flame, the appliance test point is located on the regulator.
LPG: the supplied test point adaptor must be fitted to the appliance inlet connection. Gas
pressure must be adjusted to 2.75 kPa, the appliance test point is located on the test
point adaptor.
Gas leakage and operation of the appliance must be tested by the installer before
leaving. Check burner flames are blue in colour, stable and completely ignite at both high
and low flame settings with no appreciable yellow tipping, carbon deposition, lifting,
floating, lighting back or objectionable odour. Test burners individually and in
combination. When satisfied with the operation of the cooker, instruct the user on the
correct method of operation. Not suitable for use with aftermarket lids or covers.
Where the data plate is obscured by cabinetry when the cooker is in the installed
position, place the supplied duplicate data plate to a suitable adjacent surface or within
this instruction manual for future reference.
Only use pipes and seals in accordance with the Standards. These pipes must be
installed so that, when fully extended, their length does not exceed 2000 mm. For easier
installation and to prevent gas leaks, attach the swivel coupling to the cook top first, and
then to the gas mains pipe. Inverting this sequence may hamper the gas seal between
the pipe and the cook top.
Important: when the installation is complete, check that all couplings are
completely sealed by using a soapy solution. Never use a flame. Also ensure that
the flexible pipe cannot come into contact with any moving part of the cook top
(e.g. drawer) and that it is not in a position where it could be damaged.
After the connection, check the burners for correct operation.
The flames must be clearly visible, and should be blue and green at the centre.
Adaptation to a different
type of gas
 7KHSURFHGXUHRUDGDSWDWLRQRIWKHFRRNHUWRDQRWKHUW\SHRIJDVGRHVQRWUHTXLUH
removal of the appliance from the worktop.
 %HIRUHDGDSWLQJGLVFRQQHFWWKHDSSOLDQFHIURPWKHSRZHUPDLQVDQGFORVHWKHJDV
supply valve.
 5HSODFHWKHH[LVWLQJQR]]OHVIRUQRPLQDOWKHUPDOORDGZLWKFRUUHVSRQGLQJQR]]OHVIRU
the new gas type (see table QH[WSDJH).
 $IWHUILQLVKLQJWKLVVHTXHQFHUHSODFHWKHROGVHWWLQJODEHOZLWKWKHQHZRQHSURYLGHGIRU
the new injectors.
Adjustment elements To leave the adjustment elements accessible, please observe the following instructions:
Remove the support grid and burner covers with respective crowns.
In double burners, adjustment elements are accessible behind the main nozzle
protective plate.
Remove the control knobs, including the gaskets.
Gas valve
Minimum thermal load regulation valve.

9
Setting the minimum level
1. Light the burner as already described.
2. Turn the tap to the minimum flame position.
3. Remove the control knobs.
4. LPG to NG:
Use a thin blade screwdriver to turn the by-pass screw located in the centre of the
gas valve shaft, as shown on the image. Gently turn the by-pass screw clockwise to
the end, then turn it anti-clockwise – 1/2 turn for the triple flame burner, 3/4 turn
for the large rapid burner, also 1/2 turn for the medium semi-rapid burner, and 3/8 turn for the
auxiliary burner.
NG to LPG:
Use a thin blade screwdriver to turn the by-pass screw located in the centre of the gas valve shaft
as shown on the image. Gently turn the by-pass screw clockwise to the end.
5. Finally, check that the burner does not go out when the tap is turned quickly from the maximum
to the minimum position.
Warning: these tasks may only be carried out by a qualified technician, authorized by the gas
distributing
company or authorized service center!
NOZZLE TABLE
TECHNICAL INFORMATION

10
1
1

3
4
5
6
7
1.Semi-Rapid burner
2.Wok support
3.Wok burner
4.Rapid burner
5.Pan supports
6.Auxiliary burner
7.Control knobs
Description of the hob
A
B
C
D
E
A
A
B
D
C
E
A:Burner
B:Burner Head
C:Burner Bowl
D:Electrode
E:Theemocouple(where fitted)
Hob control elements
The symbols on the control knobs mean the following:
No gas flow or'Off
Maximum gas flow or 'high' flame and lighting position
Minimum gas flow or low' flame
Burner controlled by control knob
All operating positions must be set between the maximum and
minimum flow settings, and never between the maximum setting
and the closed position.
Model:*&6
Model:*&6


11
A:Burner
B:Burner Head
C:Burner Bowl
D:Electrode
E:Theemocouple(where fitted)
Important warnings: The gas burners are fitted ZLWKD flame failure device. If the burner flame is extinguished
accidentally or unintentionally, e.g. Zhen some liquid boils over or
when there is draught in the room, WKHgas supply is automatically cut off, thus
preventing the gas from being emitted into the room.
'RQRWSODFHDQ\WKLQJHJDIODPHWDPHURUDQDVEHVWRVPDWEHWZHHQWKHSDQDQGSDQVXSSRUWDV
serious damage to the appliance may result.
'RQRWUHPRYHWKHSDQVXSSRUWDQGHQFORVHWKHEXUQHUZLWKDZRNVWDQGDVWKLVZLOOFRQFHQWUDWHDQG
deflect the heat onto the hotplate.
'RQRWXVHODUJHSRWVRUKHDY\ZHLJKWVWKDWFDQEHQGWKHSDQVXSSRUWRUGHIOHFWIODPHRQWRWKHKRWSODWH
/RFDWHWKHSDQFHQWUDOO\RYHUWKHEXUQHUVRWKDWLWLVVWDEOHDQGGRHVQRWRYHUKDQJWKHDSSOLDQFH
8VHRQO\DZRNVXSSRUWVXSSOLHGRUUHFRPPHQGHGE\WKHPDQXIDFWXUHURIWKHDSSOLDQFH
1HYHUXVHWZREXUQHUVRUKHDWVRXUFHVWRKHDWRQHVLQJOHSDQ'RQRWXVHJULOOSDQV
earthenware casserole dishes, etc. for a long period of time on maximum power
especially on glass gas hobs.
3DQVVKRXOGEHSODFHGRQWKHKREFDUHIXOO\'RQRWVWULNHWKHKREDQGGRQRWSODFH
excessive weight on it.
3ODFHWKHSDQVRQWKHSDQVXSSRUWVQHYHUGLUHFWO\RQWKHEXUQHU0DNHVXUHWKDWWKH
pan supports and burner caps are correctly positioned before using the appliance.
6WDLQOHVVVWHHOZRUNLQJWDEOHFDQEXUQLVKZKHQVXEMHFWHGWRH[FHVVLYHKHDW7KHUHIRUH
we don’t recommend prolonged cooking with soapstone, earthenware pans or cast
iron plates. Avoid the use of aluminum foil to protect the working table during cooking
operation.
'RQRWXVHFDVWLURQSODWHVRUJULGGOHVIRUFRRNLQJRUKHDWLQJIRRGRQWKHEXUQHUV
(check the sizes of pot allowed for each kind of burner) specially onglass gas
hobs
&RRNWRSVKRXOGQRWEHXVHGDVDZRUNWRS6KDUSREMHFWVFDQFDXVHVFUDWFKHV
3UHSDULQJIRRGLQWKLQDOXPLQXPRUSODVWLFFRQWDLQHUVRQKRWFRRNLQJ]RQHVLVQRW
allowed. Do not place any plastic objects or aluminum foil on the cooktop.
,IVXJDULVVSLOWRQDKRWFRRNWRSRUDVXJDUODGHQIRRGLPPHGLDWHO\ZLSHWKHKRE
7RJHWWKHEHVWIURPWKHEXUQHUVXVHIODWERWWRPHGSRWVZLWKDGLDPHWHUVXLWHGWRWKH
burner being used.
)RUVPDOOHUGLDPHWHUSRWVDQGSDQVFRIIHHDQGWHDSRWVHWFWKHSRZHURIWKHEXUQHU
being used has to be regulated in order to ensure that the flame laps the bottom of the
pot without spilling over.
'RQRWXVHSRWVZLWKFRQFDYHRUFRQYH[ERWWRPV
Burner Minimum diameter Maximum diameter
220mmLarge(rapid) 180mm
Medium(semirapid) 120mm 200mm
80 mm 160mm
220mm 260mm
Small(Auxiliary)
Triple crown /
Double crown(wok)
Cookware

12
OPERATION
Ignition and operation
of the burners
User’s instructions
This appliance must be used for the purpose it was designed for, i.e. domestic cooking.
Any other use is considered to be improper and therefore dangerous.
The manufacturer will accept no liability for any damage caused by improper, incorrect or
irrational use.
Using the burners
 ,IWKHEXUQHUVDUHQRWXVHGIRUVHYHUDOGD\VZDLWDIHZVHFRQGVEHIRUHOLJKWLQJWKHPLQ
order to release any air from the pipes.
 $VWKHFRRNWRSEXUQHUVDUHILWWHGZLWKDQDXWRPDWLFLJQLWLRQWROLJKWWKHPVLPSO\SUHVV
and turn the handle to the small star. The appliance uses a spark ignition generator.
 ,IWKHIODPHGRHVQRWLJQLWHZLWKLQILYHVHFRQGVWXUQWKHNQREEDFNWRWKHSRVLWLRQDQG
repeat the procedure; if the electric ignition GRHV not work due to a power failure ordamp
spark plugs, the gas can also be ignited using a gas lighter.
 )RUPRGHOVZLWKDIODPHIDLOXUHGHYLFHZKLFKLQWHUUXSWVWKHJDVIORZVKRXOGWKHIODPH
DFFLGHQWDOO\go out) the burners are ignited as described above, but ensure the knob is
pressed infor 5 to 6 seconds after the flame has ignited. After this time, which gives the
safetydevice enough time to cut-in, the flame will be on permanently.
 7KHIODPHFDQWKHQEHVHWEHWZHHQWKHPD[LPXPDQGPLQLPXPOHYHO$Q\VHWWLQJ
between 0 and the large flame is not recommended, as the flame is not stable in this
interval and may be extinguished.
7RH[WLQJXLVKWKHIODPHDQGFORVHWKHEXUQHUJDVVXSSO\URWDWHWKHFRQWURONQREWRWKH
‘Gas valve closed’ position.
WARNING: once the cook top has been cleaned, ensure that the burners are firmly in
their seats and do not interfere with the igniter.
WARNING: if the burner flame is extinguished accidentally, turn off the knob and leave it
for at least one minute before trying to re-ignite it.
CAUTION: The gas cooking appliance use may cause heat, humidity and products of
combustion in the room where LWis installed. Ensure that the kitchen is well ventilated
especially when the appliance is in use: keep open any natural ventilation holes or install
a mechanical ventilation device (mechanical extractor hood).
Prolonged intensive use of the appliance may call for additional ventilation, for example
opening of a window, or more effective ventilation, for example increasing the level of
mechanical ventilation where present.
CAUTION: Accessible parts may be hot when the hob is in use. Young children should be
kept away.
CAUTION: This appliance is for cooking purposes only. It must not be used for other
purposes, for example room heating.
CLEANING AND MAINTENANCE
Do not use a steam cleaning appliance to clean this appliance. The steam could
reach the electrical components and cause a short circuit.
 The appliance should be cleaned regularly, preferably after each use, after cooling
down.
 To avoid water marks and limescale deposits, use a soft cloth to dry surfaces that have
been cleaned with water.
 Food that has boiled over can cause discolouration of the burner parts and the
stainless steel cooktop. Remove any soiling immediately.
To avoid damaging the outer surfaces of your appliance, do not use:
 cleaning agents containing soda, alkalines, ammonia, acids or chlorides
 cleaning agents containing descaling agents
 stain or rust removers
 abrasive cleaning agents, e.g. powder cleaners and cream cleaners
 solvent-based cleaning agents
 dishwasher cleaner
 grill and oven cleaners
 glass cleaning agents
 hard, abrasive brushes or sponges, e.g. pot scourers, brushes or sponges which have
been previously used with abrasive cleaning agents
 sharp pointed objects (these can damage the seal between the frame and the worktop).
Stainless steel surfaces
&OHDQVWDLQOHVVVWHHOVXUIDFHVXVLQJDPLFURILEUHFORWKRUZLWKDVROXWLRQRIZDUPZDWHU
DQGDOLWWOHZDVKLQJXSOLTXLGDSSOLHGZLWKDVRIWVSRQJH,QWKHFDVHRIVWXEERUQGULHGRQVRLOLQJVRDN
ILUVW)LQDOO\GU\ZLWKDVRIWFORWK
7KHVWDLQOHVVVWHHOFRRNWRSFOHDQHUFDQEHXVHGWRFOHDQWKHIUDPHZKHQUHTXLUHG$SSO\
ZLWKDQHYHQSUHVVXUHIROORZLQJWKHGLUHFWLRQRIWKHJUDLQ
7KHFDUHSURGXFWIRUVWDLQOHVVVWHHOFDQEHXVHGDIWHUFOHDQLQJWRKHOSNHHS\RXU
DSSOLDQFHORRNLQJJRRGDQGWRKLQGHUUHVRLOLQJ
$SSO\VSDULQJO\ZLWKDVRIWFORWKIROORZLQJWKHLQVWUXFWLRQVRQWKHSDFNDJLQJ

13
Printed surfaces :
The printing can be damaged if soiling (e.g. food or fluids that contained salt, olive oil) is
not removed immediately.
Remove any soiling immediately.
Do not use any stainless steel cleaner on printed surfaces.
This will rub off the print.
Pan support and control knob:
Do not clean the pan support in a dishwasher.
Remove the pan support. Clean the pan support and the control knob with a solution of
warm water and a little washing-up liquid applied with a soft sponge. Stubborn
soiling should be soaked first.
After cleaning, dry all surfaces with a clean cloth.
Burners :
Do not clean any parts of the burner in a dishwasher.
The burner should be dismantled and then cleaned by hand using a solution of warm
water and a little washing-up liquid applied with a soft sponge.
Parts of the burner that cannot be removed should be wiped clean with a damp cloth
only.
The ignition candle and the candle flame failure device should be very carefully wiped
clean using a well wrung out cloth.
Do not let the ignitor get wet. If it gets wet, it will not spark.
After cleaning, dry all surfaces with a clean cloth.
Make sure that the flame slits are clean and completely dry.
The surface of the burner crown cover will become more matt with time. This is quite
normal and will not affect the operation of the cooktop.
Annual service by an authorised person is recommended, or if any of the following
conditions are noticed; incomplete ignition, appreciable yellow tipping, carbon
deposition, lifting, floating, lighting back or objectionable odour.
Glass surface:
After each use of the glass surface, wait for it to cool down and clean it; otherwise, even
the smallest food residue will be burnt onto the hot surface next time you use the
appliance.
For regular cleaning and maintenance of the glass surface, use special conditioning
agents which form a protective layer on the surface, shielding it from dirt.
Before each use, wipe any dust or other particles from the hob surface and pan bottom
as these could scratch the surface
Careful: steel wool, abrasive sponges, and abrasive detergents can scratch the glass
surface. Glass surface can also be damaged by aggressive sprays and inappropriate or
insufficiently shaken (mixed) liquid cleaning agents
Signs and indications on the hob may be worn if aggressive cleaning aids are used on
cooking zone edges, or if pans with damaged bottom or used.
Warning: All damage described above predominantly relates to the aesthetics, i.e.
appearance of the appliance and do not affect its functionality directly. Such errors
cannot be the subject of a warranty claim.

14

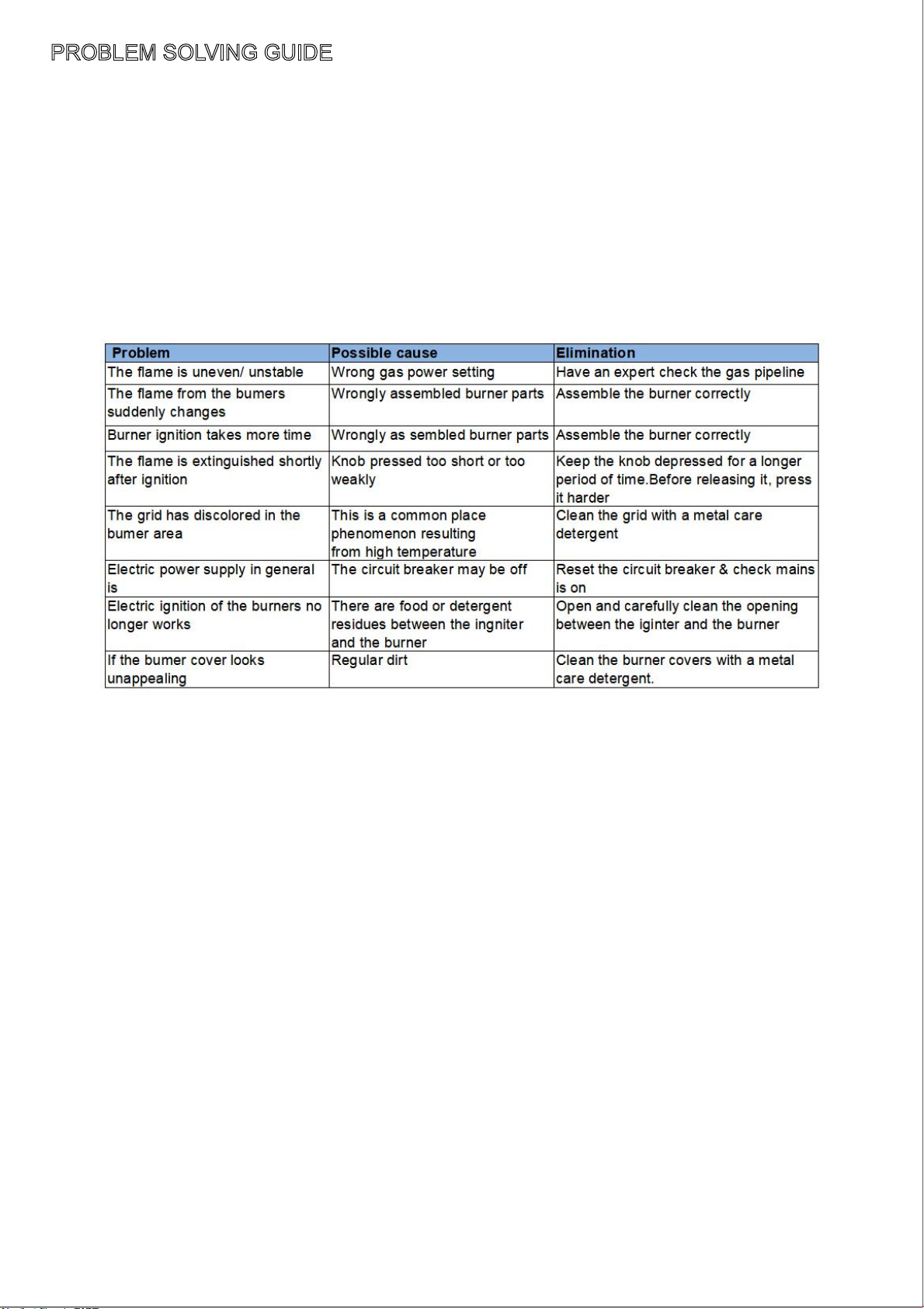

PROBLEM SOLVING GUIDE
ƒ 'XULQJWKHZDUUDQW\SHULRGRQO\DVHUYLFHFHQWHUDXWKRULVHGE\WKHPDQXIDFWXUHUPD\carry out any
repairs.
ƒ %HIRUHPDNLQJDQ\UHSDLUVPDNHVXUHWKHDSSOLDQFHLVGLVFRQQHFWHGIURPWKHSRZHUmains either by
removing the fuse or by disconnecting the power plug from the wallRXWOHW7XUQRIIWKHJDVYDOYH
ƒ 8QDXWKRULVHGWDPSHULQJZLWKDQGUHSDLUVRIWKHNLWFKHQUDQJHFRRNLQJKREFDQresult in electric shock or
short circuit; hence, do not attempt to perform any repairs
by yourselves. Leave such tasks to an expert or an authorised service unit.
ƒ ,QFDVHRIPLQRUIDXOWVRUSUREOHPVZLWKWKHDSSOLDQFHRSHUDWLRQFKHFNWKHIROORZLQJinstructions to see
whether you can eliminate the cause yourself.
A visit by a service technician during the warranty period will be charged if the applianceis not functioning
because of improper use. Store these instructions in a place wherethey are always readily accessible; if
you pasVthe appliance to another person, theinstructions should also be included.
Following is some advice on rectifying common problems.
If the problem persists despite observing the instructions above, call an authoriVed
service technician. Elimination of any errors or warranty claims that result from
improper connection or use of the appliance is not covered by our warranty. In such
cases, the costs of repair are borne by the user.
&DUGLQL$SSOLDQFHV
(PDLOVHUYLFH#FDUGLQLFRPDX
:HEKWWSZZZFDUGLQLFRPDX
