Cardini DS6120 User manual

DISHWASHER
INSTRUCTION MANUAL
Read this manual carefully before operation
Note: Pictures in this manual are for reference only.
Part II: Special Version
DS6120
semi-integrated

Contents
Quick User Guide.....................................................
01
02
03
04
05
06
07
08
09
Preparing and Loading Dishes..................................
Using Your Dishwasher...........................................
Error Codes.............................................................
Technical Information..............................................
Contents...................................................................
Programming the Dishwasher................................
2
Product Fiche..........................................................
Warranty & Service.................................................
NOTE:
•If you cannot solve the problems yourself, please ask for help from a professional
technician.
•The manufacturer, following a policy of constant development and updating of the
product, may make modifications without giving prior notice.
2
3
4
6
12
14
15
16
16

Quick User Guide
3
3
5
Please read the corresponding content in the instruction manual for the
detailed operating method.
2Removing the larger residue on
the cutlery
3Loading the baskets
4Filling the dispenser Selecting a program and
running the dishwasher
Inside Outside
1Install the dishwasher
(Please check the section 7 "INSTALLATION INSTRUCTION"
of PART 1: Generic Version).

4
Using Your Dishwasher

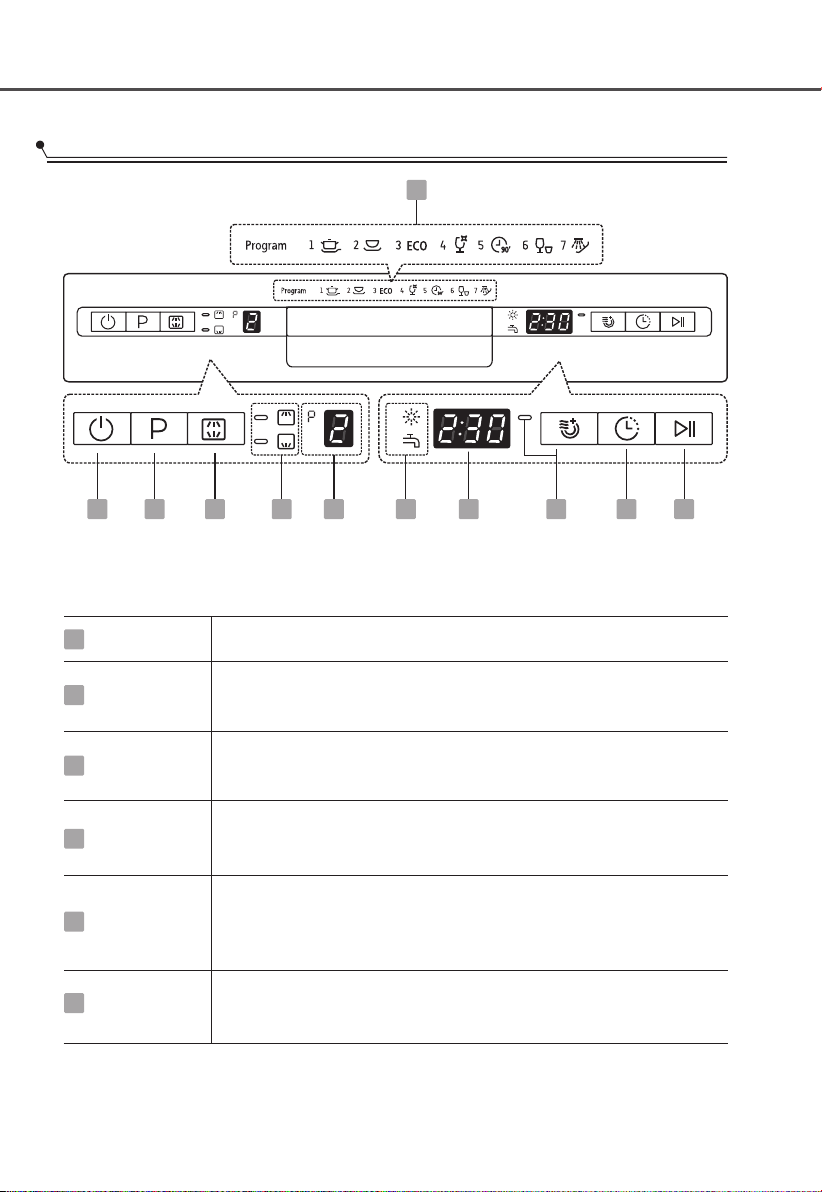

Control Panel
Operation (Button)
Power
Delay
Program
Press this button to turn on your dishwasher, the screen lights up.
Press this button to set the delayed hours for washing. You
can delay the start of washing up to 24 hours. Each press of
this button delays the start of washing by one hour.
Select the appropriate washing program, the selected
program indicator will be lit.
1
5
3
2
4 Extra Drying
To start the selected washing program or pause it when
the dishwasher is working.
6 Start / Pause
Press the button to select either upper basket or lower
basket loaded, and the response indicators will be lit.
Alt
To dry dishes more completely. (It can only be used with
Intensive, Heavy, ECO, Glass, 90min)
9
2
1 3 10 10 45 687

5
Display
Alt indicator
Upper basket loaded
To show upper basket loaded function starting up or not.
Lower basket loaded
To show lower basket loaded function starting up or not.
Warning
Indicator
To show which program has been selected.
To show the remaining time, delay time, error code etc.
Rinse Aid
8
10
Intensive
For heaviest soiled crockery, such as pots, pans,
casserole dishes and dishes that have been sitting with
dried food on them for a while.
Normal
For normally soiled loads, such as pots, plates, glasses
and lightly soiled pans, standard daily cycle.
ECO
For normally soiled loads, such as pots, plates, glasses
and lightly soiled pans, standard daily cycle.
Glass
For lightly soiled crockery and glass.
90 Min
For normally soiled loads that need quick wash.
Rapid
A shorter wash for lightly soiled loads that do not
need drying.
Soak
To rinse dishes that you plan to wash later that day.
” indicator is lit, it means the dishwasher is low If the “
7
9Program
Indicator
on dishwasher rinse aid and requires a refill.
Water Tap
If the “ ” indicator is lit, it means the water tap is closed.
screen

6
Preparing and Loading Dishes
Consider buying utensils which are identified as dishwasher-proof.
For particular items, select a program with the lowest possible temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
Cutlery with wooden, china or mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Are of limited suitability:
Some types of glasses can become dull after a large number of washes
Silver and aluminum parts have a tendency to discolour during washing
Glazed patterns may fade if machine washed frequently
For washing the following cutlery/dishes
Are not suitable:

6
7
Scrape off any large amounts of leftover food. Soften remnants of burnt food in
pans. It is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
(Features and appearance of baskets and cutlery baskets may vary from
your model).
Place objects in the dishwasher in following way:
Items such as cups, glasses, pots/pans, etc. are faced downwards.
Curved items, or ones with recesses, should be loaded aslant so that water can
run off.
All utensils are stacked securely and cannot tip over.
All utensils are placed in a way that the spray arms can rotate freely during
washing.
Load hollow items such as cups, glasses, pans etc. With the opening facing
downwards so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage, glasses should not touch one another.
The upper basket is designed to hold more delicate and lighter dishware such
as glasses, coffee and tea cups.
Long bladed knives stored in an upright position are a potential hazard!
Long and / or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and
for reasonable consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could easily
fall out of the basket.
Removing the dishes
To prevent water dripping from the upper basket into the lower basket, we
recommend that you empty the lower basket first, followed by the upper basket.
WARNING
Items will be hot! To prevent damage, do not take glass and
cutlery out of the dishwasher for around 15 minutes after the
program has ended.
Recommendations for loading the dishwasher

8
WARNING
Do not let any item extend through
the bottom.
Always load sharp utensils with
the sharp point down!
For the best washing effect, please load the baskets referring to the standard
loading options on the last section of Part 1: Generic Version
For the best washing effect, please load the baskets referring to the standard
loading options on the last section of Part 1: Generic Version

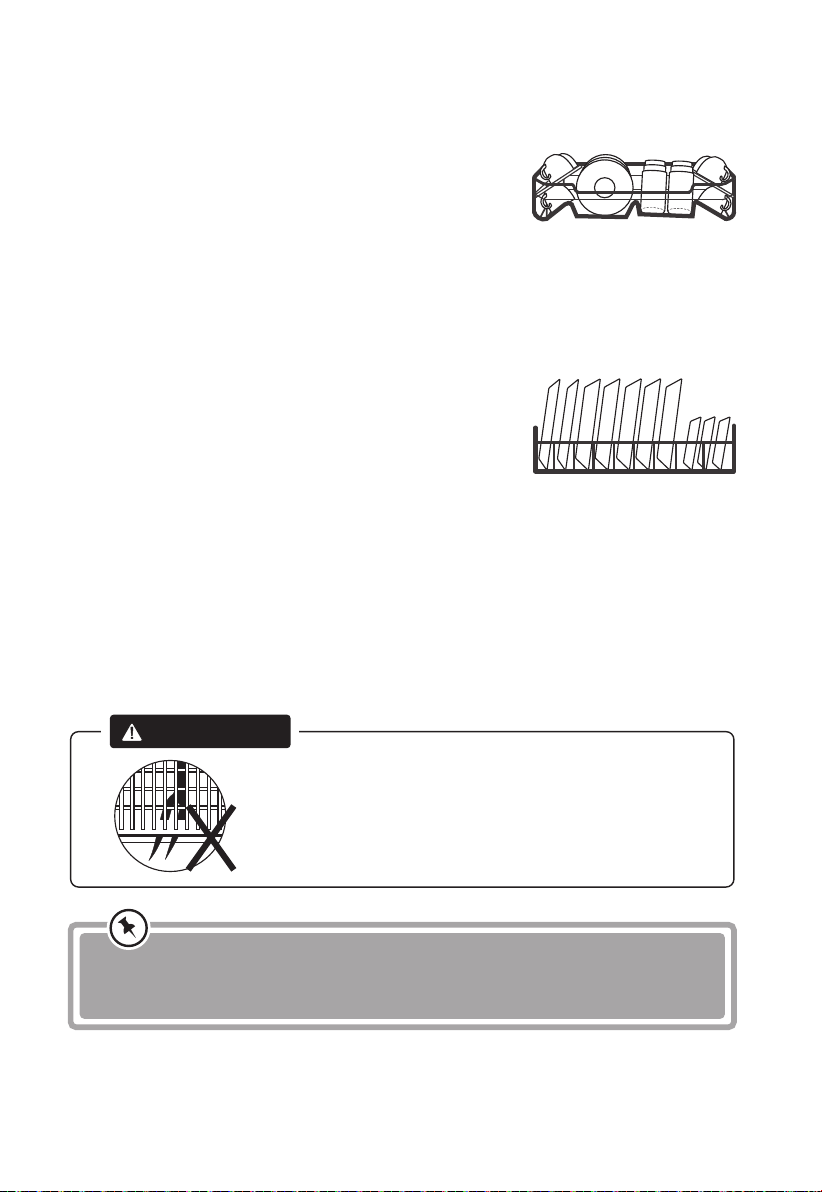

Loading the upper basket
The upper basket is designed to hold more delicate and
lighter dishware such as glasses, coffee and tea cups
and saucers, as well as plates, small bowls and shallow
pans (as long as they are not too dirty). Position the
dishes and cookware so that they will not get moved by
the spray of water.
Loading the lower basket
We suggest that you place large items and the most
difficult to clean items into the lower basket: such as
pots, pans, lids, serving dishes and bowls, as shown
in the figure below. It is preferable to place serving
dishes and lids on the side of the racks in orderto
avoid blocking the rotation of the top spray arm.The
maximum diameter advised for plates in front of the
detergent dispenser is 19 cm, so as not to hamper
it opening.
Loading the cutlery basket
Cutlery should be placed in the cutlery rack separately from each other in the
appropriate positions, and do make sure the utensils do not nest together,
this may cause bad performance.

9
The rinse aid is released during the final rinse to prevent water from forming droplets
on your dishes, which can leave spots and streaks. It also improves drying by allowing
water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.
WARNING
Only use branded rinse aid for dishwasher. Never fill the rinse aid
dispenser with any other substances (e.g. Dishwasher cleaning agent,
liquid detergent). This will damage the appliance.
When to refill the rinse aid dispenser
Unless the rinse-aid warning light ( ) on the control panel is on, you can
always estimate the amount from the colour of the optical level indicator located
next to the cap. When the rinse-aid container is full, the indicator will be fully dark.
The size of the dark dot decreases as the rinse-aid diminishes. You should never let
the rinse aid level be less than 1/4 full.
As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator
changes, as illustrated below.
Full 3/4 full 1/2 full 1/4 full Empty
Function Of The Rinse Aid And Detergent
Function of detergent
The chemical ingredients in the detergent are necessary to remove, crush and
dispense all dirt out of the dishwasher. Most of the commercial quality detergents
available are suitable for this purpose.
WARNING
Proper Use of Detergent:
Use only detergent specifically made for dishwasher use. Keep your
detergent fresh and dry.
Don't put powdered detergent into the dispenser until you are ready to wash
dishes.
Dishwasher detergent is corrosive! Keep dishwasher
detergent out of the reach of children.

10

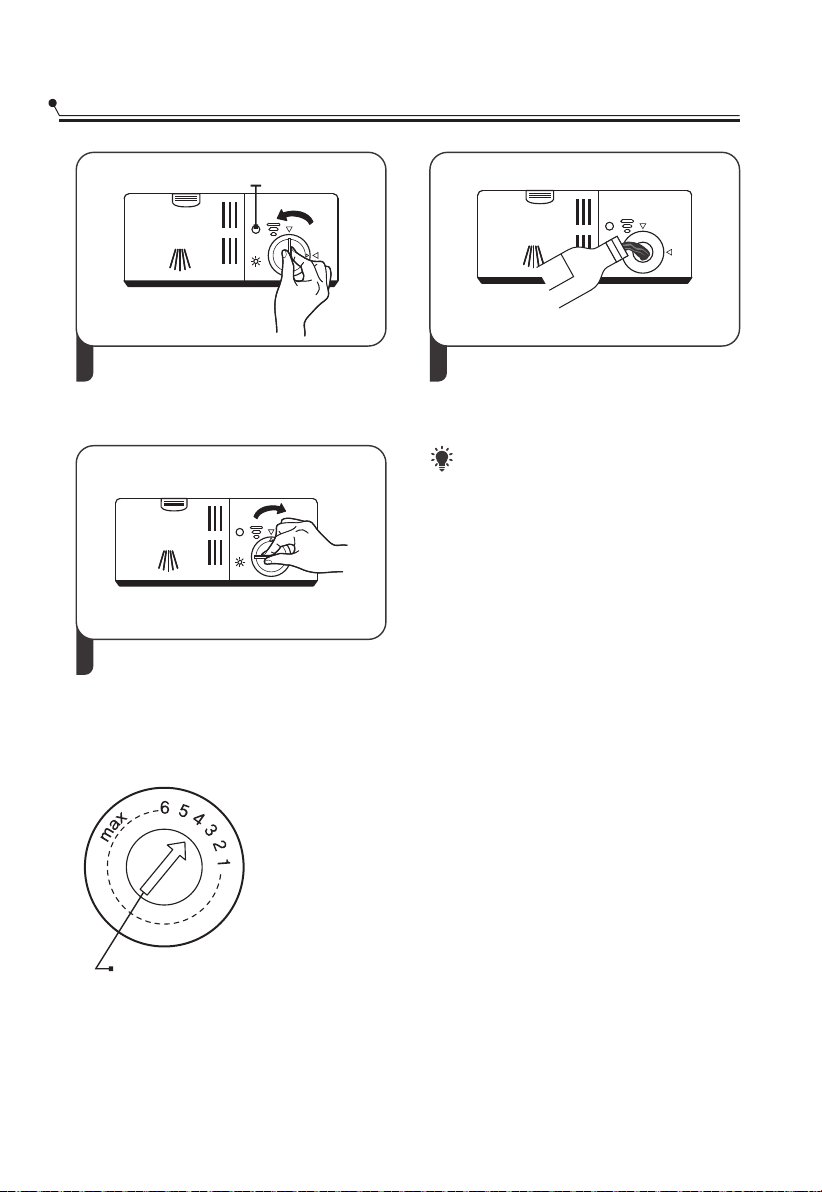

3Replace the cap by inserting it aligned
with "open" arrow and turning it to the
closed (right) arrow.
Carefully pour in the rinse-aid into
its dispenser, whilst avoiding any
overflow.
NOTE:
Clean up any spilled rinse aid
with an absorbent cloth to avoid
excessive foaming during the
next wash.
1 2
To open the dispenser, turn the
cap to the "open" (left) arrow and
lift it out.
Rinse-Aid indicator
Filling The Rinse Aid Reservoir
Adjusting the rinse aid reservoir
The rinse aid reservoir has six settings. Both the
recommended setting and the factory setting is “4”. If the
dishes are not drying properly or are spotted, adjust the
dial to the next higher number until your dishes are spot-
free. Reduce it if there are sticky whitish stains on your
dishes or a bluish film on the glassware or knife blades.
Adjust lever (Rinse)

11
Filling The Detergent Dispenser
1
Press the release catch on the detergent 2
dispenser to open the cover.
Push latch to open
AAB
Add detergent into the larger cavity
(A) for the main wash cycle.
For more heavily soiled wash loads,
also add some detergent into the
smaller cavity (B) for the pre-wash
cycle.
3Close the cover and press on it until
it locks into place.
NOTE:
Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.

12

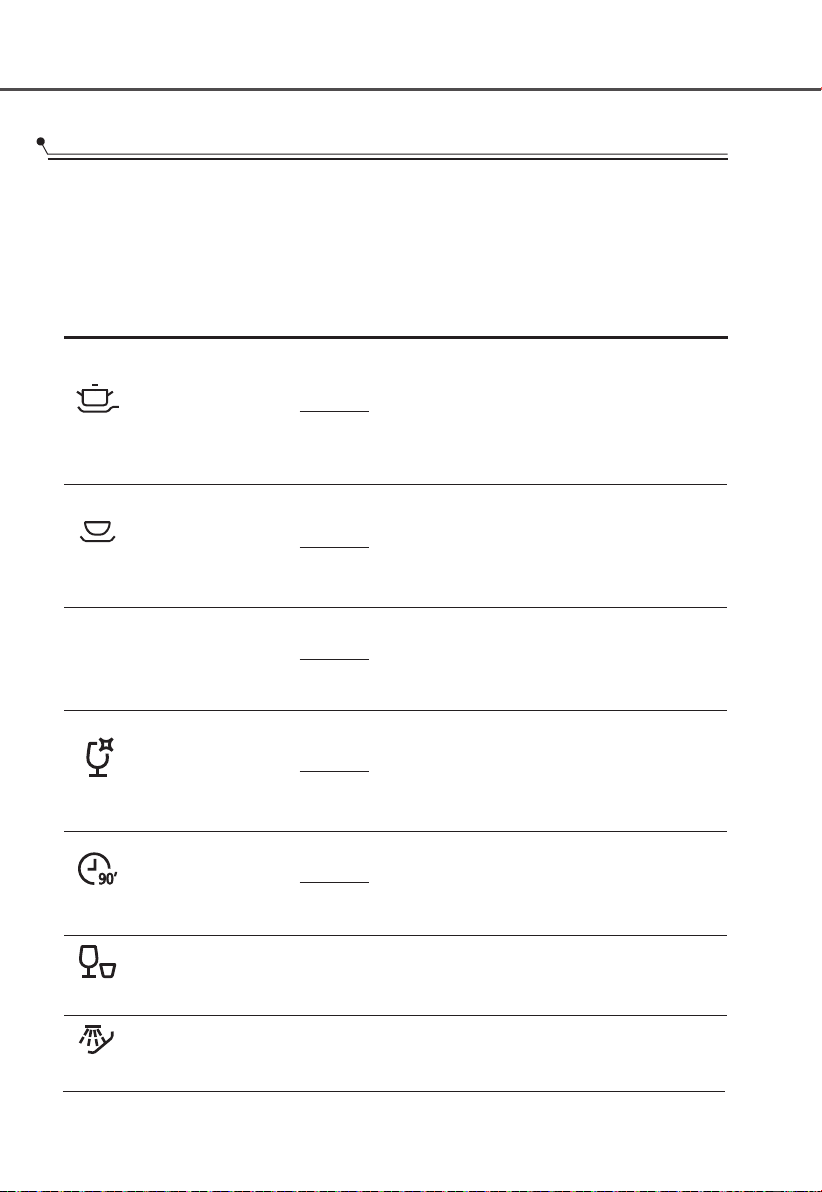

Programming the Dishwasher
Wash Cycle Table
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also shows various information
about the programs.
Program Running
Time(min)
Energy
(Kwh)
Water
(L)
Description
Of Cycle
Detergent
Pre/Main
170
30
0.73
0.6
12.7
11.5
Pre-wash
Wash(45°C)
Rinse(48°C)
Drying
Wash(40°C)
Rinse
Rinse(45°C)
25g
90 1.2 11.5
125 0.8 13
Pre-wash
Wash(42°C)
Rinse
Rinse(60°C)
Drying
5/27.5g
(Or all in 1)
Wash(65°C)
Rinse
Rinse(65°C)
Drying
Glass
90 Min
Rapid
170
160
1.5
1.3
17.5
13.5
Pre-wash(50°C)
Wash(60°C)
Rinse
Rinse
Rinse(65°C)
Drying
Pre-wash(45°C)
Wash(55°C)
Rinse
Rinse(65°C)
Drying
Heavy
Intensive
5/27.5g
(Or all in 1)
5/27.5g
(Or all in 1)
5/27.5g
(Or all in 1)
25g
(Or all in 1)
ECO
(*AS/NZS 2007.1)
8 0.02 4
Pre-wash
Soak

13
Starting A Wash Cycle
1. Draw out the lower and upper basket, load the dishes and push them back.
It is recommended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply refer to last page ”Product fiche”.
Make sure that the water supply is turned on to full pressure.
4. Close the door and press the Power button to switch on the machine.
5. Choose a program, the response light will turn on. Then press the Start/Pause
button, the dishwasher will start its cycle.
Changing The Program Mid-cycle
A wash cycle can only be changed if it has been running for a short time
otherwise, the detergent may have already been released and the dishwasher
may have already drained the wash water. If this is the case, the dishwasher
needs to be reset and the detergent dispenser must be refilled. To reset the
dishwasher, follow the instructions below:
1. Press the Start/Pause button to pause the washing.
2. Press the program button for more than 3 seconds - the program will cancel.
3. Press the program button to select the desired program.
4. Press the Start/Pause button, after 10 seconds, the dishwasher will start.
3 sec

14

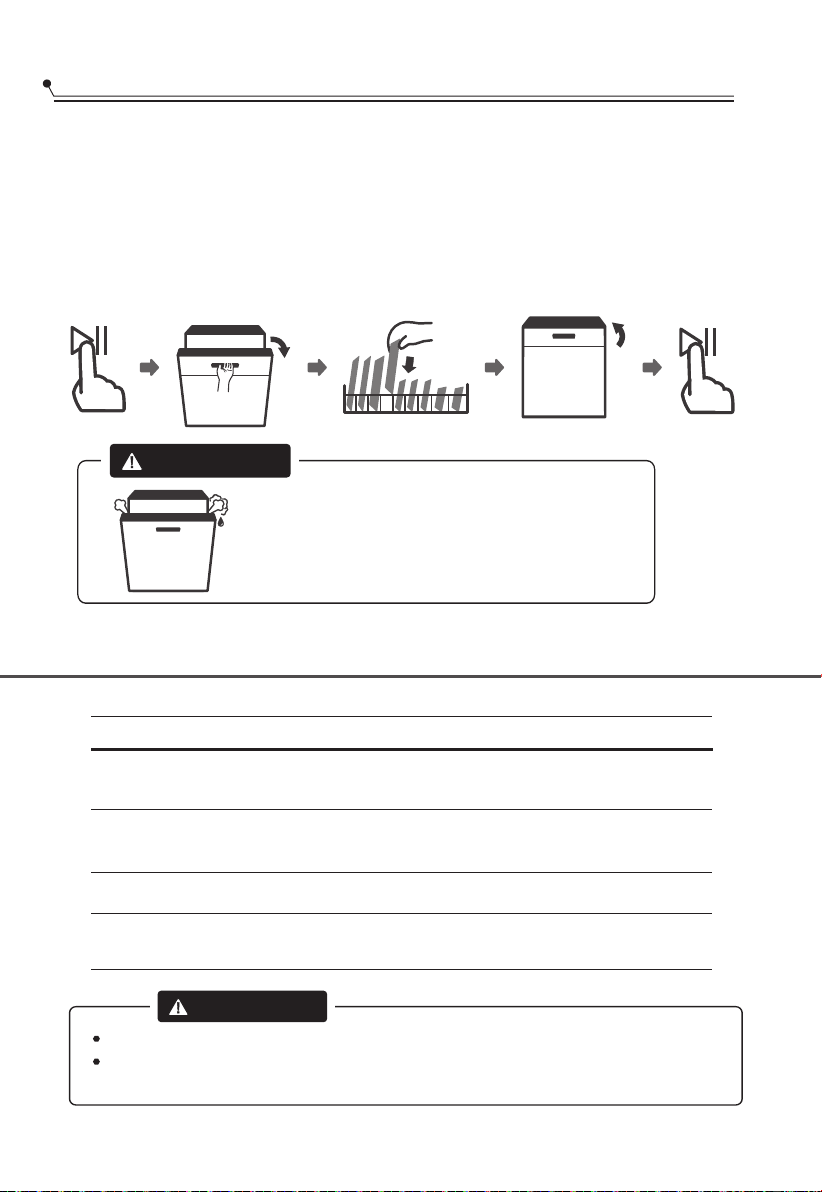

Forgot To Add A Dish?
A forgotten dish can be added any time before the detergent dispenser opens.
If this is the case, follow the instructions below:
1. Press the Start/Pause button to pause the washing.
2. Wait 5 seconds then open the door.
3. Add the forgotten dishes.
4. Close the door.
5. Press the Start/Pause button after 10 seconds, the dishwasher will start.
After 5 sec
WARNING
It is dangerous to open the
door mid-cycle, as hot steam
may scald you.
If there is a malfunction, the dishwasher will display error codes as per the table below:
Code Meaning Possible Cause
Longer inlet time.
Not reaching
required temperature.
Overflow.
Malfunction of heating element.
Some part of the dishwasher leaks.
E1
E3
E4
Tap is not open, or water intake is
restricted, or water pressure is too low.
E8
Open circuit or break of distributary valve.
Failure of orientation
of distributary valve.
WARNING
If overflow occurs, turn off the main water supply before calling a service technician.
If there is water in the base pan because of an overfill or small leak, the water
should be removed before restarting the dishwasher.
Error Codes

15

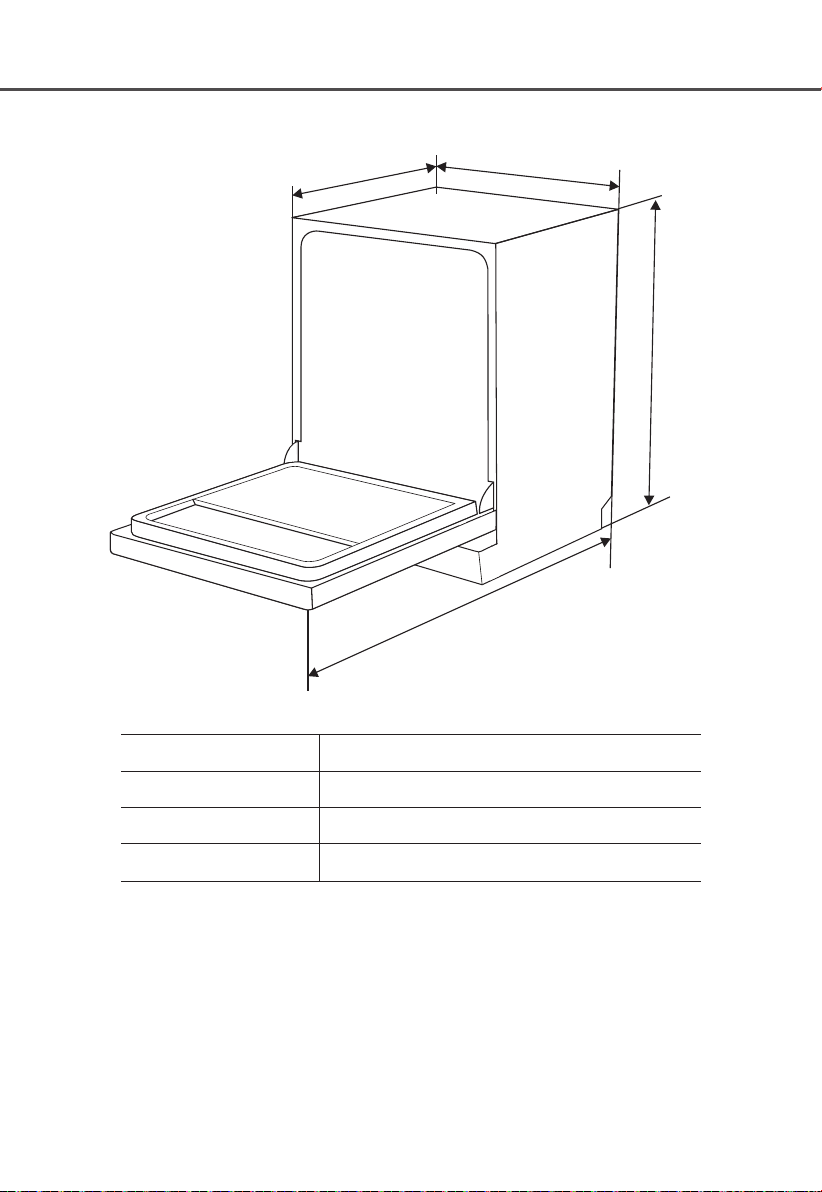

Height (H)
Width (W)
Depth (D1)
Depth (D2)
815mm
598mm
570mm (with the door closed)
1150mm (with the door opened 90°)
W
D1
H
H
D2
Technical Information

16
Manufacturer
Type / Description
Standard place settings
Energy efficiency class
Energy consumption of the standard cleaning cycle
Water consumption of the standard cleaning cycle
Program duration of the standard cleaning cycle
Noise level
Mounting
Power consumption
Water pressure (flow pressure)
Cardini Appliances
DS6120
14
0.73 kWh
12.7 litre
170 min
1760-2100W
49 dB(A) re 1 pW
Built-in
0.04-1.0MPa=0.4-10 bar
Water consumption class
Standard cleaning cycle ECO
3.5
4.5
Rated voltage / frequency AC 220-240V/50Hz
Product Fiche
Warranty & Service
For warranty information, please visit the Cardini website: www.cardini.com.au
For any service issues, please email our customer care team: [email protected]
Rev A
