Carlisle BINKS 84-346 User manual

77-1758-R12 (6/2020) 1 / 4 www.carlisleft.com
11
14
18
19
16 17 21
25
20 22
13
15
10
9
8
7
65
4
3
27
24
23
26
228
1
12
12
26
29
FOR MODEL 84-415
REGULATOR
UNREGULATED
FLUID INLET
REGULATED FLUID OUTLET
DETAIL “A”
See
Detail
“A”
STEM
FOLLOWER
WASHER
PIN
NOTE
Pre-assemble items 11, 12, 13, 18,
25 and 26 and tighten to
120 – 150 inch-pounds.
Item #1 screws: Tighten
to 35 –45 inch-pounds.
ITEM PART
NO. NO. DESCRIPTION QTY.
1 20-3699◆SOC. HD. CAP SCREW 10-24 x 1".... 6
2 20-4456 LOCKNUT
(84-415).......................... 1
3 72-337 SWIVEL NUT ................................. 1
4 73-50 D. M. NIPPLE ................................ 1
5 83-1636 GAUGE
(0 - 15 PSI)........................... 1
6 83-2052 GAUGE LENS (Replacement) ............ 1
7 84-40 CONNECTOR ................................ 1
8 84-321 BONNET........................................ 1
9 84-322* SCREW .......................................... 1
10 84-325* STEM ASSEMBLY .......................... 1
11 84-328 DISC .............................................. 1
12 84-329▲■ DIAPHRAGM ................................ 1
13 84-331 NUT............................................... 1
14 84-335▲VALVE ........................................... 1
15 84-318 TAIL PIECE .................................... 1
16 84-340* KEY ............................................... 1
ITEM PART
NO. NO. DESCRIPTION QTY.
17 84-341*▲SPRING.......................................... 1
18 84-327 RETAINER ..................................... 1
19 84-344 BODY............................................ 1
20 84-337 INLET ............................................ 1
21 84-353▲SPRING.......................................... 1
22 84-355 CAP ............................................... 1
23 84-393 SOCKET......................................... 1
24 84-395▲ROD .............................................. 1
25 84-398 DISC .............................................. 1
26 84-399▲■ DIAPHRAGM ................................ 1
27 84-450▲SEAT.............................................. 1
28 84-460 BODY (84-415) ................................ 1
29 84-463▲■ GASKET ........................................ 1
* Parts used only on Model 84-346 Regulator.
◆Before installing regulator, tighten all 6 flange screws securely.
▲Part of Repair Kit No. 84-591.
■ Part of Seal Kit Part No. 84-592.
PARTS LIST
When ordering, please specify Part No.
EN
SERVICE MANUAL
LOW PRESSURE DIAPHRAGM FLUID REGULATORS
WITH ZINC BODY
84-346 KEY OPERATED 84-415 REMOTE CONTROL (OBSOLETE)

EN
77-1758-R12 (6/2020)2 / 4www.carlisleft.com
LOCK OUT / TAG-OUT
Failure to de-energize, disconnect, lock out and tag-out all power
sources before performing equipment maintenance could cause
serious injury or death.
OPERATOR TRAINING
All personnel must be trained before operating finishing
equipment.
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture,
malfunction, or start unexpectedly and result in serious injury.
PROJECTILE HAZARD
You may be injured by venting liquids or gases that are released
under pressure, or flying debris.
PINCH POINT HAZARD
Moving parts can crush and cut. Pinch points are basically any
areas where there are moving parts.
INSPECT THE EQUIPMENT DAILY
Inspect the equipment for worn or broken parts on a daily basis.
Do not operate the equipment if you are uncertain about its
condition.
In this part sheet, the words WARNING, CAUTION and NOTE are used to
emphasize important safety information as follows:
Hazards or unsafe practices which
could result in minor personal injury,
product or property damage.
!
CAUTION
Hazards or unsafe practices which
could result in severe personal
injury, death or substantial property
damage.
!
WARNING
Important installation, operation or
maintenance information.
NOTE
Read the following warnings before using this equipment.
READ THE MANUAL
Before operating finishing equipment, read and understand all
safety, operation and maintenance information provided in the
operation manual.
WEAR SAFETY GLASSES
Failure to wear safety glasses with side shields could result in
serious eye injury or blindness.
NEVER MODIFY THE EQUIPMENT
Do not modify the equipment unless the manufacturer provides
written approval.
IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PROVIDE THIS INFORMATION TO THE OPERATOR OF THE EQUIPMENT.
FOR FURTHER SAFETY INFORMATION REGARDING THIS EQUIPMENT, SEE THE GENERAL EQUIPMENT SAFETY BOOKLET (77-5300).
KNOW WHERE AND HOW TO SHUT OFF THE EQUIPMENT
IN CASE OF AN EMERGENCY
PRESSURE RELIEF PROCEDURE
Always follow the pressure relief procedure in the equipment
instruction manual.
NOISE HAZARD
You may be injured by loud noise. Hearing protection may be
required when using this equipment.
STATIC CHARGE
Fluid may develop a static charge that must be dissipated through
proper grounding of the equipment, objects to be sprayed and all
other electrically conductive objects in the dispensing area. Improper
grounding or sparks can cause a hazardous condition and result in
fire, explosion or electric shock and other serious injury.
WEAR RESPIRATOR
Toxic fumes can cause serious injury or death if inhaled.
Wear a respirator as recommended by the fluid and solvent
manufacturer’s Safety Data Sheet.
TOXIC FLUID & FUMES
Hazardous fluid or toxic fumes can cause serious injury or death if
splashed in the eyes or on the skin, inhaled, injected or
swallowed. LEARN and KNOW the specific hazards or the fluids
you are using.
KEEP EQUIPMENT GUARDS IN PLACE
Do not operate the equipment if the safety devices have been
removed.
!
WARNING
AUTOMATIC EQUIPMENT
Automatic equipment may start suddenly without warning.
FIRE AND EXPLOSION HAZARD
Improper equipment grounding, poor ventilation, open flame or
sparks can cause a hazardous condition and result in fire or
explosion and serious injury.
MEDICAL ALERT
Any injury caused by high pressure liquid can be serious. If you
are injured or even suspect an injury:
• Go to an emergency room immediately.
• Tell the doctor you suspect an injection injury.
• Show the doctor this medical information or the medical alert
card provided with your airless spray equipment.
• Tell the doctor what kind of fluid you were spraying or
dispensing.
GET IMMEDIATE MEDICAL ATTENTION
To prevent contact with the fluid, please note the following:
• Never point the gun/valve at anyone or any part of the body.
• Never put hand or fingers over the spray tip.
• Never attempt to stop or deflect fluid leaks with your hand,
body, glove or rag.
• Always have the tip guard on the spray gun before spraying.
• Always ensure that the gun trigger safety operates before
spraying.

EN
77-1758-R12 (6/2020) 3 / 4 www.carlisleft.com

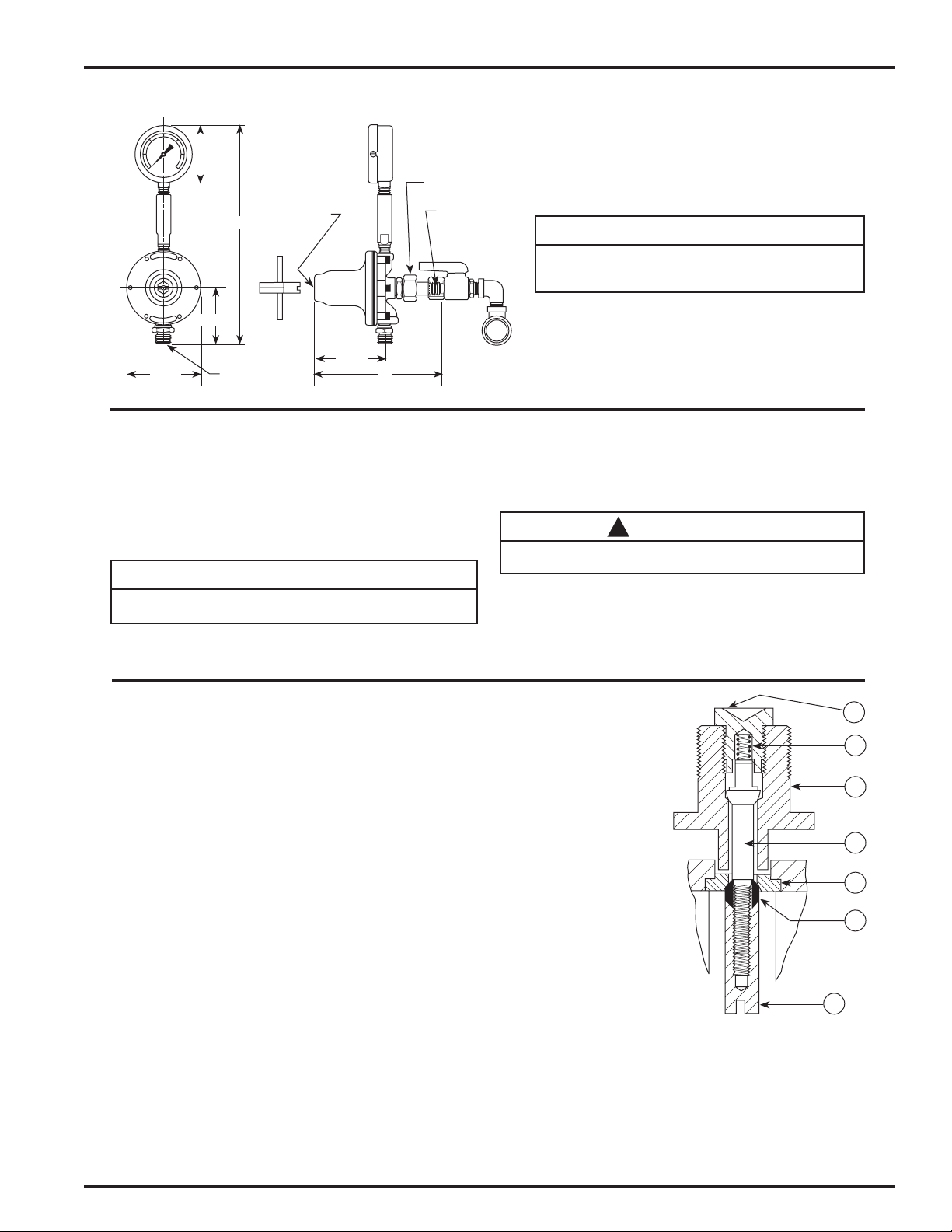

INSTALLATION DATA
Installation is simplified by the use of a swivel nut inlet
connection (see illustration). This is standard on all
models; it eliminates the cost of a union, and provides a
quick and convenient method to easily remove the unit
from the line.
OPERATING INSTRUCTIONS
MOUNTING: Regulator (3/8" NPT (m) Inlet) may be mounted
in either a horizontal or vertical position. However, in all cases:
to operate properly, gauge riser tube must be in a vertical
position.
REGULATION: Use slotted end of key. Clockwise rotation
increases pressure; counter-clockwise rotation reduces pressure.
BLOW BACK: Use hexagon end of key. Turn counterclockwise
and gauge will read inlet pressure (main line pressure).
To shut off, turn key clockwise and gauge will return to normal
regulated reading when flow begins.
BUZZING: When regulated pressure climbs, it normally indi-
cates dirt on the seat; trigger gun rapidly to flush seat. If climb-
ing continues, open regulator to main line to flush. If climbing
still persists, replace valve and seat.
SERVICE INSTRUCTIONS
TO REPLACE FLUID VALVE AND SEAT:
Remove regulator from line by loosening
the swivel nut; always blow back regulator
before removing. At inlet, remove (counter-
clockwise rotation) slotted cap nut with
screwdriver; ball valve will slide off rod.
Unscrew (counter-clockwise rotation) hexa-
gon inlet retainer; valve seat will be
removed with retainer.
Remove valve seat from retainer and
replace if worn. Ball valve may be reversed
and reused unless both sides are worn.
To reassemble: insert valve seat into retain-
er; note position of shoulder. Place ball
valve on rod, and screw cap nut on rod and
tighten. Screw hex retainer on to body and
tighten. Regulator requires no adjustments.
TO REPLACE DIAPHRAGM:Remove
regulator from line. At inlet, remove slotted
cap nut with screwdriver; ball valve will
slide off rod.
Remove bonnet by loosening (6) socket head
cap screws. Clamp diaphragm assembly in
vise, loosen nut (13) and remove diaphragm.
To reassemble: reverse above procedure.
NOTE
Due to variations in diaphragm stretch, fluid flow may
not shut-off when the pressure is backed off to zero.
Install an inlet valve if complete shut-off is required.
NOTE
Fluid should be flowing through regulator when regulating
pressure.
CAUTION
When blowing back to reverse-flush regulator, be sure air
pressure does not exceed maximum rating of gauge.
!
Regulation Range 1 to 12 PSI 0.84 Kg/CM2
Max. Rec. Flow 12 Oz./Min. 357 C.C./Min.
Max. Inlet Pressure 100 PSI 7 Kg/CM2
2-3/4"
10-1/2"
UNION
CONNECTION
2-11/16"
3-1/2"
3-3/8"
6"3/8 NPS OUTLET
3/8 NPT INLET
Models with
remote control
air inlet 1/8
NPT(f) connect
to self-relieving
type air
regulator.
23
21
18
24
27
14
22

EN
