OEM Tools 24415 Service manual

UNPACKING
After unpacking unit, inspect carefully for
any damage that may have occurred during
transit. Check for loose, missing, or damaged
parts. If any damage is observed, a shipping
damage claim must be filed with carrier. Do
not use the OEMTOOLS®Air Ratchet if broken,
bent, cracked or damaged parts (including
labels) are noted. Any Air Ratchet that appears
damaged in any way, operates abnormally
or is missing parts should be removed from
service immediately. If you suspect that the Air
Ratchet was subjected to shock load (a load
that was dropped suddenly, unexpectedly, etc.)
immediately discontinue use until it has been
checked by a factory authorized service center.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and others by observing
all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property.
Please retain instructions for future reference.
Operating Instructions and Parts Manual 24415
12/15
2015 OEMTOOLS
¼” DRIVE SUPER DUTY AIR
IMPACT RATCHET WRENCH
The following safety information is provided as a guideline to help you operate your Air Ratchet under the safest possible conditions. Any tool or
piece of equipment can be potentially dangerous to use when safety or safe handling instructions are not known or not followed. The following safety
instructions are to provide the user with the information necessary for safe use and operation. Please read and retain these instructions for the
continued safe use of your tool. Failure to follow instructions listed below may result in serious injury. In addition, make certain that anyone that uses
the equipment understands and follows these safety instructions as well.
WARNING
Explanation of Safety Signal Words
CAUTION
: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.
: Provide clarity and helpful information.
WARNING
CAUTION
NOTES
Thank you very much for choosing an OEMTOOLS Product!
For future reference, please complete the owner’s record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin
using it. This tool is designed for certain applications only. OEMTOOLS cannot be responsible for issues arising from modification. We strongly
recommend this tool is not modified and/or used for any application other than that for which it was designed. If you have any questions
relative to a particular application, DO NOT use the tool until you have first contacted customer service to determine if it can or should be performed
on the product.

2
Operating Instructions and Parts Manual 24415
¼” DRIVE SUPER DUTY AIR
IMPACT RATCHET WRENCH
12/15
2015 OEMTOOLS
IMPORTANT INSTRUCTIONS
AND SAFETY RULES
1. Know your tool. Read this manual carefully. Learn the tool’s
applications and limitations, as well as, potential hazards specific to
it.
2. Keep work area clean and well lit. Cluttered or dark work areas
invite accidents.
3. Keep children away. All children should be kept away from the work
area. Never let a child handle a tool without strict adult supervision.
4. Do not operate this tool if under the influence of alcohol or drugs.
Read warning labels on prescriptions to determine if your judgment
or reflexes are impaired while taking drugs. If there is any doubt, do
not attempt to operate.
5. Use safety equipment. Eye protection should be worn at all times
when operating this tool. Use ANSI approved safety glasses. Everyday
eyeglasses are NOT safety glasses. Dust mask, non-skid safety shoes,
hard hat or hearing protection should be used in appropriate conditions.
6. Wear proper apparel. Loose clothing, gloves, neck-ties, rings,
bracelets or other jewelry may present a potential hazard when
operating this tool. Keep all apparel clear of the tool.
7. Don’t overreach. Keep proper footing and balance at all times when
operating this tool.
8. Check for damage. Check your tool regularly. If part of the tool is
damaged it should be carefully inspected to make sure that it can
perform its intended function correctly. If in doubt, the part should
be repaired. Refer all servicing to a qualified technician. Consult your
dealer for advice.
9. Keep away from flammables. Do not attempt to operate this tool
near flammable materials or combustibles. Failure to comply may
cause serious injury or death.
10. Store idle tools out of the reach of children and untrained persons.
Tools may be dangerous in the hands of untrained users.
11. Maintain tools with care.
12. Keep tools dry and clean.
13. Do not use a damaged tool. Tag damaged tools “Do not use” until
repaired.
14. Use only accessories that are recommended by the manufacturer
for your model. Accessories that may be suitable for one tool may
become hazardous when used on another tool.
15. Tool service must be performed only by qualified repair personnel.
Service or maintenance performed by unqualified personnel could
result in a risk of injury.
16. When servicing a tool, use only identical replacement parts. Use of
unauthorized parts or failure to follow maintenance instructions may
create a risk of injury.
17. Maintain a safe working environment. Keep the work area well lit.
Make sure there is adequate surrounding workspace. Keep the work
area free of obstructions, grease, oil, trash, and other debris. Do not
use this product in a damp or wet location.
18. Maintain labels and nameplates on this product. These carry
important information. If unreadable or missing, contact customer
service.
19. Before use, read and understand all warnings, safety precautions,
and instructions as outlined in the vehicle manufacturer’s service
manual. It is beyond the scope of this manual to properly describe
the correct procedure and test data for each vehicle.
20. Always perform vehicle service in a properly ventilated area.
Never run an engine without proper ventilation for its exhaust.
Stop work and take necessary steps to improve ventilation in the
work area if you develop momentary eye, nose, or throat irritation
as this indicates inadequate ventilation.
WARNING
• Disconnect from air supply before changing accessories or servicing.
• Check correct air pressure is maintained and not exceeded.
• Due to possible presences of asbestos dust from brake linings, when
working around vehicle brake systems we recommend you wear
suitable respiratory protection.
NOTE: The manufacturer declines any and all responsibility for damage
to vehicles or components if said damage is the result of unskillful
handling by the operator or of failure to observe the basic safety rules set
forth in the instruction manual.
WARNING
Read Rules for Safe Operation and Instructions Carefully.
IMPORTANT SAFETY INSTRUCTIONS
The warnings, precautions, and instructions discussed in this manual
cannot cover all possible conditions and situations that may occur. The
operator must understand that common sense and caution are factors
which cannot be built into this product, but must be supplied by the
operator.
1. Use only attachments recommended or sold by manufacturer. Use of
non-recommended attachments may result in fire, electric shock or
injury.
2. Do not disassemble the Air Ratchet. Take it to a qualified professional
when service or repair is required.
3. Keep air hose away from heat, oil and sharp edges. Check air hose for
wear before each use and ensure that all connections are secure.
4. Only use accessories that are specifically designed for use with an
Air Ratchet.
5. Wear approved safety eye/face shield, ear defenders and hand
protection.
6. When not in use disconnect from air supply and store in a safe dry,
childproof location.
7. DO NOT use the Air Ratchet for tasks it is not designed to perform.
8. DO NOT carry the Air Ratchet by the air hose, or yank the hose from
the air supply.
9. DO NOT operate the Air Ratchet if you are tired or under the
influence of alcohol, drugs or intoxicating medication.
10. DO NOT direct air from the air hose at yourself or others.
11. Do not lay the tool down until it has come to a complete stop.
Moving parts can grab the surface and pull the tool out of
your control.
VIBRATION PRECAUTIONS
This tool vibrates during use. Repeated or long-term exposure to vibration
may cause temporary or permanent physical injury, particularly to the
hands, arms and shoulders. To reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for an extended period
should first be examined by doctor and then have regular medical
check-ups tonsure medical problems are not being caused or
worsened from use. Pregnant women or people who have impaired
blood circulation to the hand, past hand injuries, nervous system
disorders, diabetes or Raynaud’s Disease should not use this tool.
If you feel any symptoms related to vibration (such as tingling,
numbness and white or blue fingers), seek medical advice as soon
as possible.
2. Do not smoke during use. Nicotine reduces the blood supply to the
hands and fingers, increasing the risk of vibration-related injury.
WARNING

3
Operating Instructions and Parts Manual 24415
¼” DRIVE SUPER DUTY AIR
IMPACT RATCHET WRENCH
12/15
2015 OEMTOOLS
3. Wear suitable gloves to reduce the vibration effects on the user.
4. Use tools with the lowest vibration when there is a choice.
5. Include vibration-free periods each day of work.
6. Grip tool as lightly as possible while still keeping safe control of it.
Let the tool do the work.
7. To reduce vibration, maintain tool as explained in this manual. If
abnormal vibration occurs, stop immediately.
DISPOSAL
At the end of the useful life of the OEMTOOLS Air Ratchet, dispose of the
components according to all state, federal and local regulations.
PURPOSE
The OEMTOOLS ¼” Air Ratchet has increased power to size and weight
ratio for use in numerous applications, such as the removal of steering
arms, water pumps, brake caliper bolts and alternators. It is particularly
good for hard-to-reach high torque fasteners and work in confined areas
where the patented reactionless design eliminates risk of finger/hand
trapping.
PRODUCT SPECIFICATIONS
Drive: 1/4”
Free Speed: 700 RPM
Max Torque: 50 Ft/Lbs.
Air Consumption: 3.1 CFM
Lightweight: 1.32 Lbs.
Air Inlet Thread Size: 1/4” NPT
Recommended Air Pressure: 90 PSI
Length: 6.5”
Exhaust: Rear
WARNING
Ensure the air supply is clean and does not exceed 90 PSI while operating
the Air Ratchet. Excessive wear will result if air pressure is too high and/
or you use unclean air. This can shorten the product life and may be
dangerous causing damage and/or personal injury.
OPERATING INSTRUCTIONS
WARNING
Ensure you read, understand and apply safety instructions before use.
1. Always inspect, maintain and operate in accordance with ANSI
safety code for portable air tools (ANSI B186.1) and other local
safety codes and regulations.
2. Do not operate this tool over 90 PSI air pressure.
3. Always disconnect this tool from the air supply before installing,
adjusting or removing any accessory from this tool or before
performing maintenance.
4. Do not carry any air tool by the hose. Keep air hose away from heat
and sharp objects.
5. Continuous use of vibrating air tools by susceptible users may cause
damage to hands.
6. Always lubricate and maintain the tool in safe operating condition.
7. Only use accessories which are specifically designed for use with an
Air Ratchet.
8. Connect the Air Ratchet to the air hose.
AIR SUPPLY
Ensure that the Air Ratchet air valve (or trigger) is in the “off” position
before connecting to the air supply. Always use clean dry air as excessive
moisture will lower the available torque and rust the interior moving parts.
Make sure all hoses and fittings are of the recommended size and be
sure the units are not used with less than or more than the recommended
pressure of the tool (90 PSI).
WARNING
TO PREVENT SERIOUS INJURY FROM EXPLOSION:
Use only clean, dry, regulated, compressed air to power this tool. Do not
use oxygen, carbon dioxide, combustible gases or any other bottled gas
as a power source for this tool.
LUBRICATION
Proper lubrication of this air tool is critical to the operation and life of the
unit. Units can be severely damaged or have excessive wear placed on
working parts if not lubricated. We recommend the use of air tool oil or
3-in-1 machine oil which is available at most auto parts locations. The
tool should be lubricated each time it is used. During daily prolonged use,
lube heavily 3 or 4 times during the day.
WARNING
Any excess oil in the motor is immediately expelled from the exhaust port.
Always direct exhaust port away from people or objects.
MAINTENANCE
WARNING
Disconnect the Air Ratchet from air supply before changing accessories,
servicing or performing maintenance.
1. Replace or repair damaged parts. Use genuine parts only.
Unauthorized parts may be dangerous and will invalidate the
warranty.
2. If the air system does not have an oiler then lubricate the Air Ratchet
daily with a few drops of air tool oil into the air inlet.
3. Blow out air line to clear it of accumulated dirt and moisture.
4. Connect tool and operate tool to allow oil to be carried to the interior
of the tool.
5. Clean the Air Ratchet after use.
6. DO NOT use worn or damaged attachments.
TROUBLESHOOTING
Problem Cause Remedies
Unit will
not work
Plugged air inlets Remove fitting and clean
Interior is rusted Disassemble, clean, lube and reassemble
Unit lacks
power
Low air supply Check hoses, tanks, etc.
Lack of lubrication Lube properly and retry
Internal parts Dirty and gummed Disassemble, clean, lube
Components worn Disassemble, determine parts requiring
replacement and repair

4
Operating Instructions and Parts Manual 24415
¼” DRIVE SUPER DUTY AIR
IMPACT RATCHET WRENCH
12/15
2015 OEMTOOLS
OEMTOOLS®ONE YEAR WARRANTY
If for up to one year from the date of purchase of this OEMTOOLS product you find any defect in material
or workmanship, through normal usage, return it to the place of purchase, or to OEMTOOLS for repair
or replacement at our discretion. In order to obtain this service send your tool and proof of purchase,
transportation pre-paid, to OEMTOOLS Q.A. Dept, 3580 E. Raines Road #3, Memphis, TN 38118. We will not
be responsible for lost or damaged goods during transportation, please insure your package. If our inspection
verifies the defect, we will either repair or replace the product at our election, or we may elect to refund
the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired
products at our expense, but if we determine there is no defect, or that the defect resulted from causes not
within the scope of our warranty, then you must bear the cost of returning the product.
OEMTOOLS does not provide warranty for products labeled other than OEM or OEMTOOLS. OEMTOOLS will
not provide any warranty for products subjected to abnormal use. Abnormal use includes, but is not limited to,
abuse, accident, alteration, neglect, and unauthorized or unreasonable use or repairs. This warranty does not
cover bits, blades, files, batteries, or calibration. We recommend that you maintain your tools and sharpen or
replace blades, bits, files, and batteries as necessary. OEMTOOLS reserves the right to make any changes in
construction or design at any time without any obligation in incorporating such changes to tools or equipment
previously sold.
OEMTOOLS makes every effort to assure that its products meet high quality and durability standards, and
warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of one year from the date of purchase. This warranty does not apply to damage due directly or indirectly
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special
or consequential damages arising from the use of our product. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS. This warranty gives you specific legal rights, and you may
also have other rights, which vary from state to state.
NOTE:
Not all components of the
Air Ratchet are replacement items, but are
illustrated as a convenient reference
for location and position in the assembly
sequence. OEM and/or its distributors
have provided the parts list and assembly
diagram as a reference only. Neither
OEM and/or its distributors make any
representation or warranty of any kind to
the buyer and/or user of this tool that he
or she is qualified to do any repairs or
replace any parts of this product. OEM
and its distributors expressly state that
all repairs or parts replacement should be
done by certified or licensed technicians.
The buyer assumes all risk and liability
arising out of his or her repairs or parts
replacement to the original production.
Item # Part Name Qty.
1 Air Inlet 1
2 Motor Housing 1
3Throttle Valve 1
4 Spring 1
5 O-Ring 1
6 Valve Screw 1
7 Pin 1
8 Grip Ring 1
9 Trigger 1
10 Spring Pin 1
14 Spring Pin 1
15 Ball Bearing 1
16 Rear End Plate 1
17 Cylinder 1
18 Rotor 1
19 Rotor Blade 4
20 Front End Plate 1
21 Ball Bearing 1
22 Hammer Case 1
23 O-Ring 1
24 Rubber Ring 1
26 Coupling Nut 1
27 Ball Bearing 1
28 Grease Fitting 2
30 Ratchet Housing Assembly 1
30-1 Ratchet Housing 1
32 Drive Bushing 1
33 Ratchet Yoke 1
34 Ratchet Housing Cover 1
35 Reverse Knob Assembly 1
35-1 Reverse Knob 1
36 Thrust Washer 1
37 Spring Pin 1
38 Ratchet Anvil Assembly 1
39 O-Ring 1
40 Retainer 1
41 Spring 1
42 Pin 1
43 Ratchet Pawl 1
44 Pin 1
45 Thrust Washer 1
47 Retainer 1
48 Hammer Frame 1
49 Hammer 1
50 Hammer Pin 2
51 Standard Anvil 1
52 O-Ring 1
53 Exhaust Deflector 1
54 Retainer 1
55 Spring 2
56 Steel Ball 2

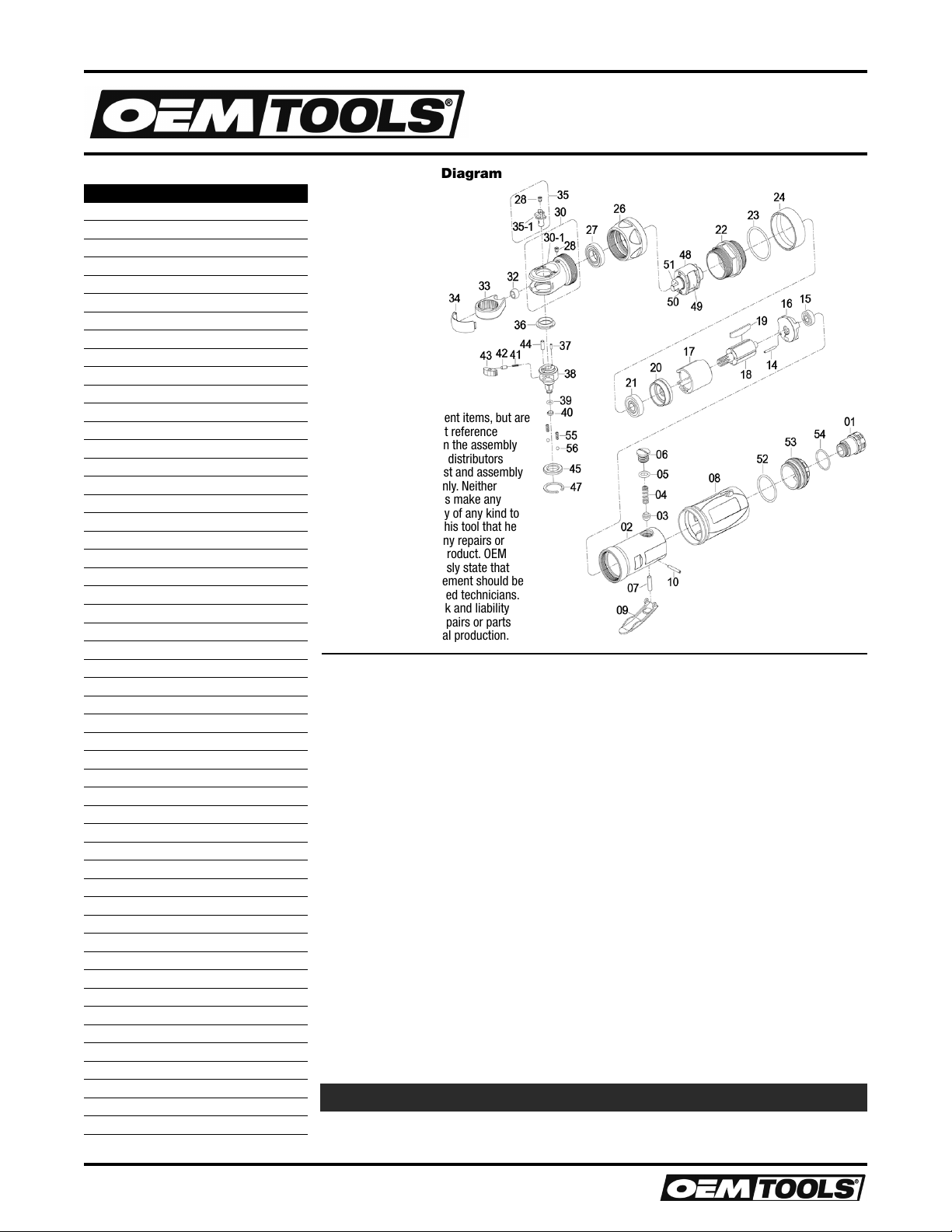

Parts List Parts Diagram
CONTACT US
3580 E. Raines Road, Suite 3, Memphis, TN 38118 (1-866-458-2472)
email: [email protected]
