CARMEN sport C82006 Mounting instructions

TRIPLE HEAD
FLEX AND PIVOT
SHAVER
MODEL C82006
YOUR SAFETY &
INSTRUCTION MANUAL
PLEASE READ CAREFULLY

2
TECHNICAL DATA
Description: Triple Head Flex And Pivot Shaver
Model: C82006
Input: 220-240V ~ 50Hz
Output: DC 2.4V 90mA
DOCUMENTATION
We declare that this product conforms to the following product
legislation in accordance with the following directive(s):
2004/108/EC Electromagnetic Compatibility Directive.
2006/95/EC Low Voltage Directive.
2011/65/EU Restriction of Hazardous Substances Directive.
RKW Quality Assurance, United Kingdom
WARRANTY
This product is guaranteed for 12 months from the date of original
purchase. If any defect arises due to faulty materials of workmanship,
the faulty products must be returned to the place of purchase. Refund
or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the
instructions contained in this instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable
parts.
• RKW has limited liability for incidental or consequential loss or
damage.
• This guarantee is only Valid in the UK and Eire Only.
AN EXTENDED WARRANTY IS AVAILABLE FOR THIS
APPLIANCE. SEE BACK PAGE FOR DETAILS..

3
Product safety
When using any electrical appliance, basic safety precautions should
always be followed including the following:
• Check that the voltage of the main circuit corresponds with the rating
of the appliance before operating.
• Please ensure that the appliance is used on a stable, level, and heat
resistant surface.
• Do not immerse cords, plugs or any part of the appliance in water or
any other liquid.
• Do not leave the appliance unattended while it is operating.
• Close supervision is necessary when any appliance is used by or
near children or pets.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children
without supervision.
• Switch off at the wall socket then remove the plug from the socket
when not in use or before cleaning.
• If the supply cord or appliance is damaged, stop using the appliance
immediately and seek advice from the manufacturer or its service
agent or a similarly qualied person.
• Do not let the cord hang over the edge of a table or counter or let it
come into contact with any hot surfaces.
• The use of accessory attachments is not recommended by the
appliance manufacturer, apart from those supplied with this product.
• Do not pull the plug out by the cord as this may damage the plug
and/or the cable.
• Do not use this product for anything other than its intended use.
• This appliance is for household use only.

4
H
I
G
H
V
O
L
T
A
G
E
• Do not carry the appliance by the power cord.
• Do not use the appliance outdoors.
• Do not use while bathing, or place or store appliance where it can fall
or be pulled into tub or sink.
• Do not use the appliances on irritated skin or skin with varicose vein,
rashes, spots, moles or wounds without consulting your doctor rst
• Using the appliance may cause reddening or irritation of the skin.
This is a normal reaction that quickly disappear. However, you should
consult your doctor if the irritation has not disappeared within three
days.
• People with a reduced immune response, e.g. during pregnancy,
or people who suffer from diabetes mellitus, haemophiliac or
immunodeciency should also consult their doctor rst.
• To prevent damage and injuries, keep the running appliance away
from your hair, eyebrow, eyelashes, clothes, threads, cord, brushes,
etc.
• Only use the appliance in combination with adaptor supplied.
• Do not use any extension cord with this appliance.
• For additional protection, the installation of a residual current device
(RCD) having a rated residual operating current not exceeding 30 mA
is advisable in the electrical circuit supplying the bathroom. Ask your
installer for advice.
• If any appliance or charging unit falls into water, unplug it
immediately. DO NOT REACH INTO WATER!
• Never use while sleeping or drowsy.
• Do not place the appliance on any surface while it is operating or
while the switch is turned on.
• Do not leave the appliance charging overnight or if you are not in the
home.
• In the unlikely event the appliance develops a fault, stop using
it immediately and seek advice from the service department:
[phone]
R
O
T
A
T
I
N
G
P
A
R
T
S

5
DISPOSAL OF THE UNIT
Appliances bearing the symbol shown here may not be
disposed of in domestic rubbish. You are required to
dispose of old electrical and electronic appliances like this
separately.
Please visit www.recycle-more.co.uk or
www.recyclenow.co.uk for access to information about the recycling
of electrical items. Please visit www.weeeireland.ie for access to
information about the recycling of electrical items purchased in Ireland.
The WEEE directive, introduced in August 2006, states that all electrical
items must be recycled, rather than taken to landll.
Please arrange to take this appliance to your local Civic Amenity site for
recycling, once it has reached the end of its life.
WHAT’S IN THE BOX
Instruction Manual
1. Individual Flexing Head
2. Cutter Assembly
3. Head Release Button
4. On/Off Switch
5. Charge Indicator
6. Trimmer Button
7. Power Port
8. Cleaning Brush
9. Head Guard
10. Adaptor
BEFORE YOUR FIRST USE:
1. Remove the appliance from the box.
2. Charge the appliance as directed.
3. Please retain all packaging until you have checked and counted
all the parts and the contents against the parts list.
Dispose of the packaging in a responsible manner.
WARNING: DO NOT IMMERSE THE UNIT IN WATER.
2
1
36 8
9
10
7
4
5

6

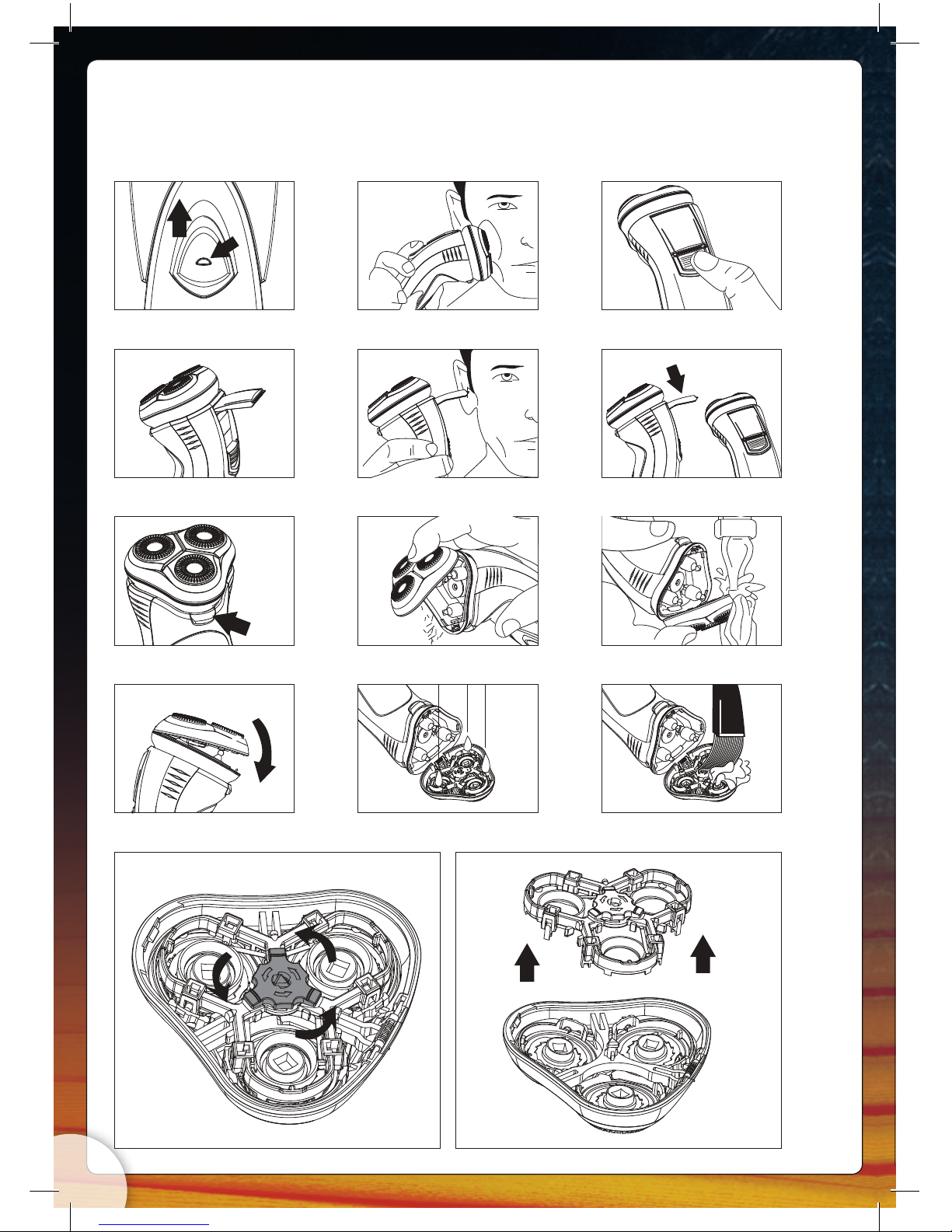

USING YOUR APPLIANCE
FIG.1
FIG.4
FIG.7
FIG.10
FIG.13
FIG.2
FIG.5
FIG.8
FIG.11
FIG.3
FIG.6
FIG.9
FIG.12
FIG.14

7
FIG.15
FIG.17
FIG.16
FIG.18
FIG.19

8
4
USING YOUR APPLIANCE
Before rst use, remove all packaging. Connect the charger to the
shaver then connect the charger to the 220-240V AC mains supply.
A full charge will take around 8 hours.
Shaving tips
Make sure your hands are dry when using the shaver and keep away
from water
• Hold the shaver at right angles to the face for best results.
• Try to keep all 3 shave heads in contact with the face
• Use short circular motion when shaving
• Do not press hard against the skin as this could damage the shaver
or cause a rash
• Use the trimmer feature to trim longer hair, beards etc.
CLEANING AND MAINTENANCE
• Ensure the shaver is switched off and disconnected from the charger
before cleaning
• Never immerse the shaver body in water or other liquid
• Do not use chemical or abrasive cleaners
After each use
• Clean the shaver after each use. Press the release button (g 7) and
open the head assembly. Gently tap out the excess hair clippings
(g 8). If necessary rinse the removed head assembly under water.
Ret head assembly after cleaning.
Periodic maintenance
• Perform periodic maintenance after around 300 minutes use.
• Place a drop of liquid soap on the inside near the cutter (g 11)
• Brush soap out thoroughly using the brush (g 12)
• Detach head and unscrew the lock according to the diagram marked
on the lock (g 13) then remove the lock bracket (g 14).
• Remove each head assembly then clean with cleaning brush and
water before re-assembly.
• If you experiance skin irriation after many uses, it could be an
indication that the heads are worn and need to be replaced.

9
NOTES

10
4
NOTES

11
NOTES

We hope you enjoy your
appliance for many years.
As a thank you for purchasing
one of our fantastic products,
we are giving you an extra
2 years peace of mind.
To receive your extra 2 years
guarantee, register your
appliance online
by visiting
www.signaturebrand.co
Thank You!
Should you have a problem
with your appliance or need any
spare parts please call our
Service Department on:
[phone]
Distributed throughout the UK
by RKW LTD
