Casa DFSS60BB User manual

--


Product picture only for reference

05
03
CONTENTS
PRODUCT OVERVIEW
6
02
04
06
1
01 SAFETY INFORMATION
3
Earthing Instructions
Disposal
3
5
INSTALLATION INSTRUCTION
About Power Connection
Position The Appliance
Water Supply And Drain
Connection Of Drain Hoses
7
7
8
8
9
USING YOUR DISHWASHER
Control Panel
Function Of The Rinse Aid And Detergent
Filling The Rinse Aid Reservoir
Filling The Detergent Dispenser
Basket Used Tips
Preparing And Loading Dishes
Loading The Baskets According To En50242
10
10
12
13
14
15
16
19
PROGRAMMING THE DISHWASHER
Wash Cycle Table
Starting A Cycle Wash
Changing The Program Mid-cycle
Forget To Add A Dish?
21
21
22
22
23
MAINTENANCE AND CLEANING
External Care 26
Internal Care 26
Caring For The Dishwasher 29
24
24
24
27

TROUBLESHOOTING TIPS
Error Codes
28
31
NOTE:
Reviewing the section on troubleshooting Tips will help you solve some
common problems by yourself.
If you cannot solve the problems by yourself, please ask for help from a
professional technician.
The manufacturer, following a policy of constant development and updating of
the product, may make modifications without giving prior notice.
If lost or out-of-date, you can receive a new user manual from the manufacturer
or responsible vendor.
07
08
2
TECHNICAL INFORMATION
Product Fiche
32
33

3
SAFETY INFORMATION
WARNING
When using your dishwasher, follow the precautions listed below:
Earthing Instructions
This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of an electric shock by providing a path of least
resistance of electric current. This appliance is equipped with an earthing
conductor plug.
Installation and repair can only be carried out by a qualified technician.
This appliance is intended to be used in household and similar applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type
environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not
be done by children without supervision.
This appliance is not intended for use by persons (including children ) with reduced
physical, sensory ormental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Packaging material could be dangerous for children!
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not immerse the unit, cord or plug
in water or other liquid.
Please unplug before cleaning and performing maintenance on the appliance.
Use a soft cloth moistened with mild soap, and then use a dry cloth to wipe it
again.

4
The plug must be plugged into an appropriate outlet that is installed and earthed
in accordance with all local codes and ordinances.
Improper connection of the equipment-earthing conductor can result in the risk of
an electric shock.
Check with a qualified electrician or service representative if you are in doubt
whether the appliance is properly grounded.
Do not modify the plug provided with the appliance; If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Open the door very carefully if the dishwasher is operating, there is a risk of
water squirting out.
Do not place any heavy objects on or stand on the door when it is open. The
appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Warning: Knives and other utensils with sharp
points must be loaded in the basket with their
points facing down or placed in a horizontal
position.
Some dishwasher detergents are strongly alkaline. They can be extremely
dangerous if swallowed. Avoid contact with the skin and eyes and keep children
away from the dishwasher when the door is open.
Check that the detergent powder is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked “dishwasher safe” or the
equivalent.
For unmarked plastic items not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse agents recommended for use in an automatic
dishwasher.
Never use soap, laundry detergent, or hand washing detergent in your
dishwasher.
The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
During installation, the power supply must not be excessively or dangerously bent
or flattened.
Do not tamper with controls.

5
The appliance needs to be connected to the main water valve using new hose sets.
Old sets should not be reused.
To save energy, in stand by mode , the appliance will switch off automatically
while there is no any operation in 30 minutes .
Disposal
For disposing of package and the appliance please go to a
recycling center. Therefore cut off the power supply cable and
make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper and
should be disposed in the waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling
of this product.
For more detailed information about recycling of this product, please contact your
local city office and your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.

6
PRODUCT OVERVIEW
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
IMPORTANT:
Cutlery basket Lower basket
Pictures are only for reference, different models may be different. Please prevail
in kind.
NOTE:
upper spray arm
Upper basket
Cup rack
Dispenser
Filter assembly
Lower spray arm
Inner pipe

7
INSTALLATION INSTRUCTION
Ensure the voltage and frequency of the power being corresponds to those on the
rating plate. Only insert the plug into an electrical socket which is earthed properly. If
the electrical socket to which the appliance must be connected is not appropriate for
the plug, replace the socket, rather than using a adaptors or the like as they could
cause overheating and burns.
Electrical requirements
Electrical connection
Ensure that proper earthing exists before use
About Power Connection
WARNING
For personal safety:
Do not use an extension cord or an adapter plug with this appliance.
Do not, under any circumstances, cut or remove the earthing connection
from the power cord.
.The installation of the pipes and electrical equipments should be done by professionals
Attention
WARNING
Electrical Shock Hazard
Disconnect electrical power before installing dishwasher.
Failure to do so could result in death or electrical shock.
Please look at the rating label to know the rating voltage and connect the dishwasher
to the appropriate power supply. Use the required fuse 10A, time delay fuse or circuit
breaker recommended and provide separate circuit serving only this appliance.

8
Water Supply And Drain
Cold water connection
Connect the cold water supply hose to a threaded 3/4(inch)
connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an
extended period of time, let the water run to make sure that
the water is clear. This precaution is needed to avoid the risk of
the water inlet to be blocked and damage the appliance.
Please close the hydrant after using.
NOTE:
Position The Appliance
Position the appliance in the desired location. The back should rest against the wall
behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is
equipped with water supply and drain hoses that can be positioned either to the right
or the left sides to facilitate proper installation.
Levelling the appliance
Once the appliance is positioned for levelling,
the height of the dishwasher may be altered via
adjustment of the screwing level of the feet.
In any case,the appliance should not be inclined
more than 2 .°
NOTE:
Only apply to the free standing dishwasher.

Extension hose
Water outlet
How to drain excess water from hoses
Syphon connection
If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained
directly into the sink. It will be necessary to drain excess water from hoses into a bowl
or suitable container that is held outside and lower than the sink.
Connect the water drain hose. The drain hose must be correctly fitted to avoid water
leaks. Ensure that the water drain hose is not kinked or squashed.
The waste connection must be at a height less than 100 cm (maximum) from the
bottom of the dish. The water drain hose should be fixed .
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 meters; otherwise the cleaning effect of the dishwasher
could be reduced.
Connection Of Drain Hoses
Please securely fix the drain hose in either position A or position B
B
A
MAX 1000mm
Counter
Drain hose
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run
into the sink, making sure to avoid bending or crimping it. The height of drain pipe
must be less than 1000mm. The free end of the hose must not be immersed in water
to avoid the back flow of it.
Back of dishwasher
Water Inlet
Drain Pipe
Mains Cable
9

USING YOUR DISHWASHER

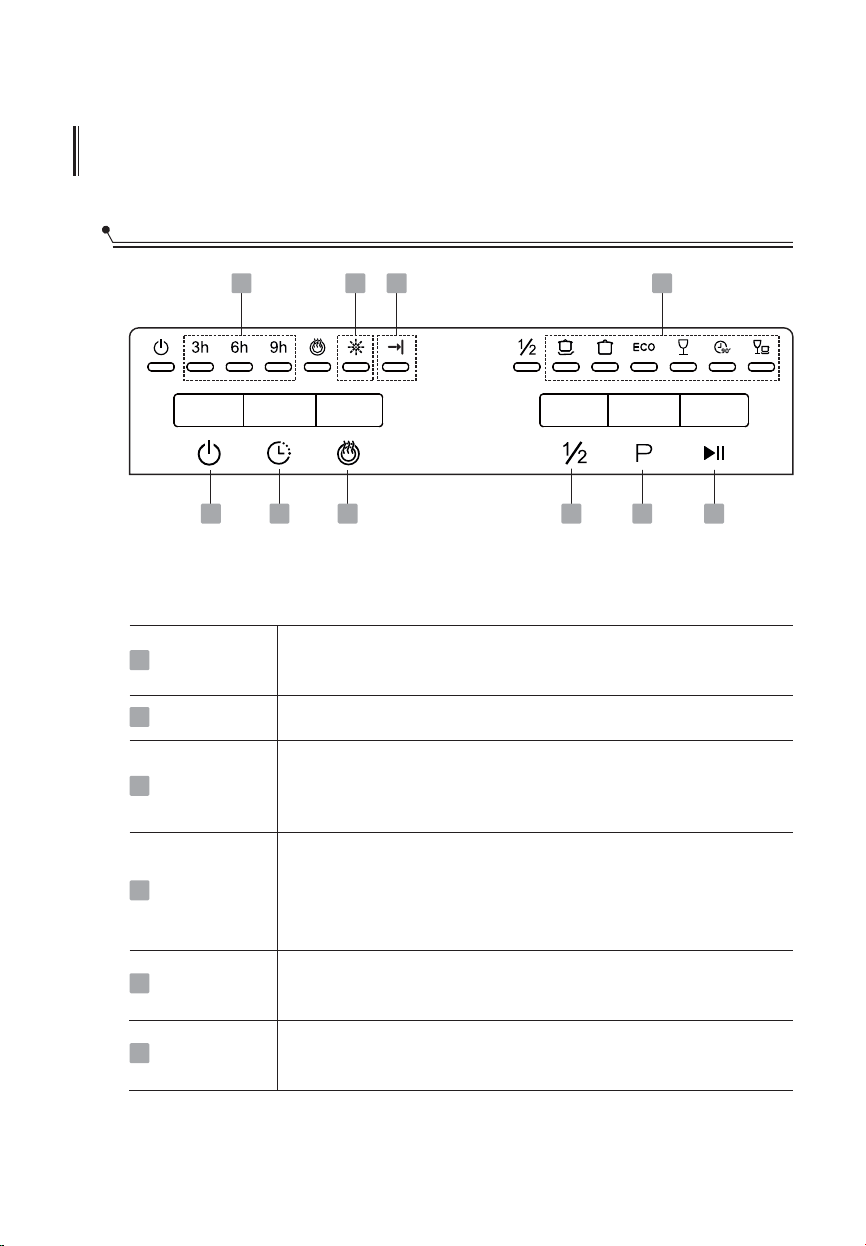

Control Panel
Operation (Button)
Half-load
Program Press this button to select the appropriate washing program, corr
-esponding indicator will be lit.
2
1
10
4 53
8
6
97
Press the button to start the selected washing program or pause
the working program.
Start / Pause
Extra Drying
Power
Delay
Press this button to turn on your dishwasher, the screen lights up.
When pressing this button, corresponding indicator will be lit.
Press the button to set the delay time.
When you have about or less than 6 place setting dishware to
wash, you can choose this function to save energy and water. (It
can only be used with Intensive, Heavy, ECO, Glass and 90 min.)
When pressing this button, corresponding indicator will be lit.
1
2
3
4
5
6
If you want to dry your dishes more completely, please select this
function.
When pressing this button, corresponding indicator will be lit.
10

11
Program end
when the program is end, the indicator will be lit.
Display
Program
indicator
7
Delay time
8To show the delay time(2h/4h/6h/8h).
Warning
indicator
9
Rinse Aid
If the “ ” indicator is lit, it means the dishwasher is low
on dishwasher rinse aid and requires a refill.
Water Faucet
If the “ ” indicator is lit, it means the water faucet closed.

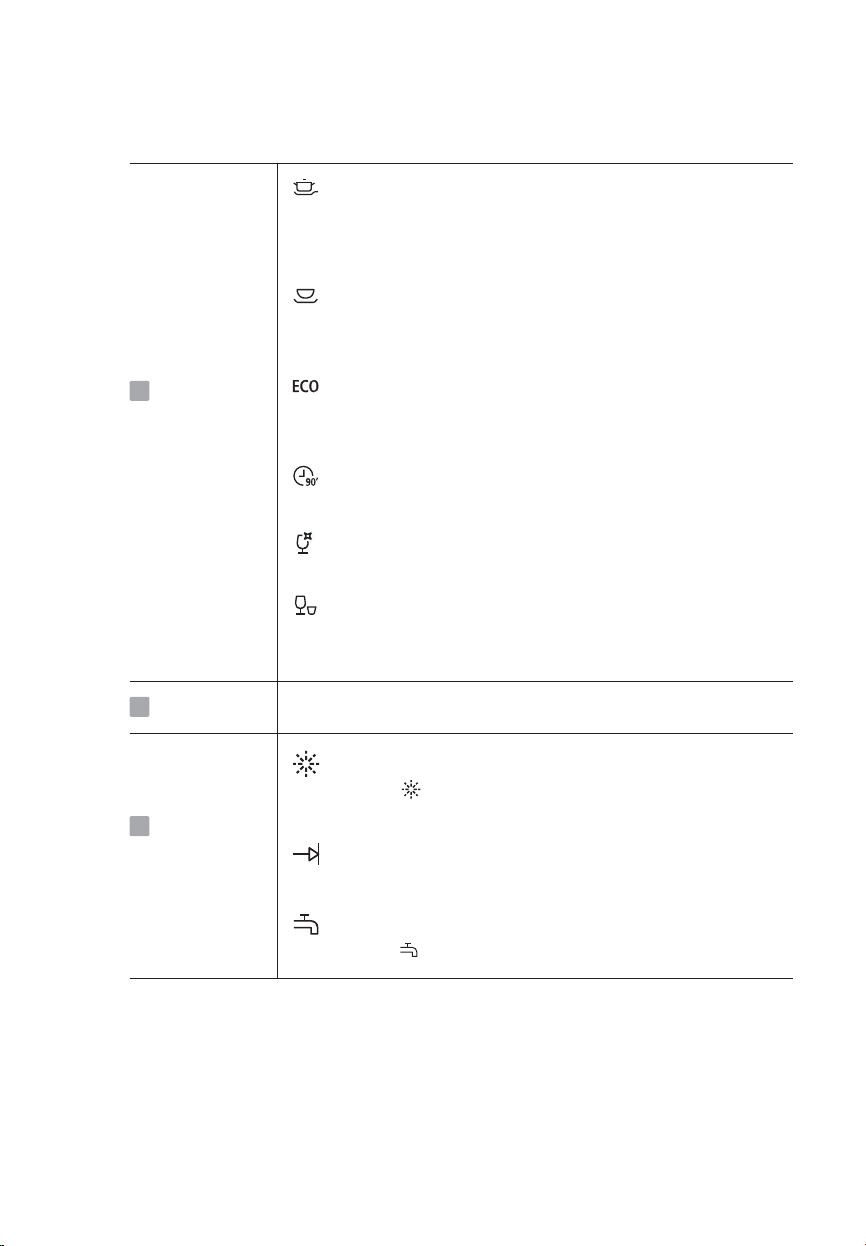

Intensive
For heaviest soiled crockery, such as pots, pans, casserole
dishes and dishes that have been sitting with dried food on
them for some time.
Heavy
For heavily soiled loads, such as pots, plates, glasses and
lightly soiled pans.
ECO
For normally soiled loads, such as pots, plates, glasses and
lightly soiled pans, standard everyday cycle.
Rapid
A shorter wash for lightly soiled loads that do not
need drying.
90 mins
For lightly soiled plates and pans that need quick wash.
Glass
For lightly soiled crockery and glass.

The rinse aid is released during the final rinse to prevent water from forming droplets
on your dishes, which can leave spots and streaks. It also improves drying by allowing
water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.
WARNING
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser
with any other substances (e.g. Dishwasher cleaning agent, liquid detergent).
This would damage the appliance.
Function Of The Rinse Aid And Detergent
When to refill the rinse aid dispenser
Unless the rinse-aid warning light ( ) on the control
panel is on, you can always estimate the amount from the
color of the optical level indicator located next to the cap.
When the rinse-aid container is full, the indicator will be
fully dark. The size of the dark dot decreases as the rinse-
aid diminishes. You should never let the rinse aid level be
less than 1/4 full.
Full 3/4 full 1/2 full 1/4 full Empty
Optical level indicator
As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator
changes, as illustrated below.
Function of detergent
The chemical ingredients that compose the detergent are necessary to remove, crush and
dispense all dirt out of the dishwasher. Most of the commercial quality detergents are
suitable for this purpose.
12
WARNING
Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent
fresh and dry.
Don't put powdered detergent into the dispenser until you are ready to wash
dishes.
Dishwasher detergent is corrosive! Keep dishwasher
detergent out of the reach of children.

13
3Close the rinse aid reservoir cap by
rotating it clockwise.
NOTE:
Clean up any spilled rinse aid with
an absorbent cloth to avoid
excessive foaming during the next
wash.
1 2
Remove the rinse aid reservoir cap
by rotating it counterclockwise.
Carefully pour in the rinse-aid into
its dispenser, whilst avoiding it to
overflow.
Filling The Rinse Aid Reservoir
Adjusting the rinse aid reservoir
Adjust lever(Rinse)
Turn the rinse aid indicator dial to a number between 1 and 6.
The higher the number, the more rinse aid the dishwasher uses.
If the dishes are not drying properly or are spotted, adjust the
dial to the next higher number until your dishes are spot-free.
Reduce it if there are sticky whitish stains on your dishes or a
bluish film on glassware or knife blades.

14
Filling The Detergent Dispenser
1 2
Press the release catch on the detergent
dispenser to open the cover.
Push latch to open
AAB
Add detergent into the larger cavity
(A) for the main wash cycle .
For more heavily soiled wash loads,
also add some detergent into the
smaller cavity (B) for the pre-wash
cycle .
3Close the cover and press on it until
it locks into place.
NOTE:
Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.

Adjusting the upper basket
The height of the upper basket can be easily adjusted to accommodate taller dishes
in either the upper or lower basket.
To adjust the height of the upper rack, follow these steps:
4
1Pull out the upper basket. 2Remove the upper basket.
3Re-attach the upper basket to upper
or lower rollers.
Push in the upper basket.
lower position
upper position
Basket Used Tips
Folding back the cup shelves
To make room for taller items in the upper basket, raise the cup rack upwards.
You can then lean the tall glasses against it. You can also remove it when it is not
required for use.
15

raise upwards fold backwards
Folding back the rack shelves
The spikes of the lower basket are used for holding plates and a platter.
They can be lowered to make more room for large items.
Preparing And Loading Dishes
Consider buying utensils which are identified as dishwasher-proof.
For particular items, select a program with the lowest possible temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
Cutlery with wooden, horn china or mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Some types of glasses can become dull after a large number of washes
Silver and aluminum parts have a tendency to discolor during washing
Glazed patterns may fade if machine washed frequently
For washing the following cutlery/dishes
Are not suitable
Are of limited suitability
16

Items such as cups, glasses, pots, pans, etc. are faced downwards.
Curved items, or ones with recesses, should be loaded aslant so that water can run
off.
All utensils are stacked securely and can not tip over.
All utensils are placed in the way that the spray arms can rotate freely during
washing.
Load hollow items such as cups, glasses, pans etc. With the opening facing
downwards so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage, glasses should not touch one another.
The upper basket is designed to hold more delicate and lighter dishware such as
glasses, coffee and tea cups.
Long bladed knives stored in an upright position are a potential hazard!
Long and sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall
out of the basket.
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in
pans. It is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
(Features and appearance of baskets and cutlery baskets may vary from
your model.)
Place objects in the dishwasher in following way:
17

Loading the upper basket
The upper basket is designed to hold more delicate and
lighter dishware such as glasses, coffee and tea cups and
saucers, as well as plates, small bowls and shallow pans
(as long as they are not too dirty). Position the dishes
and cookware so that they will not get moved by the
spray of water.

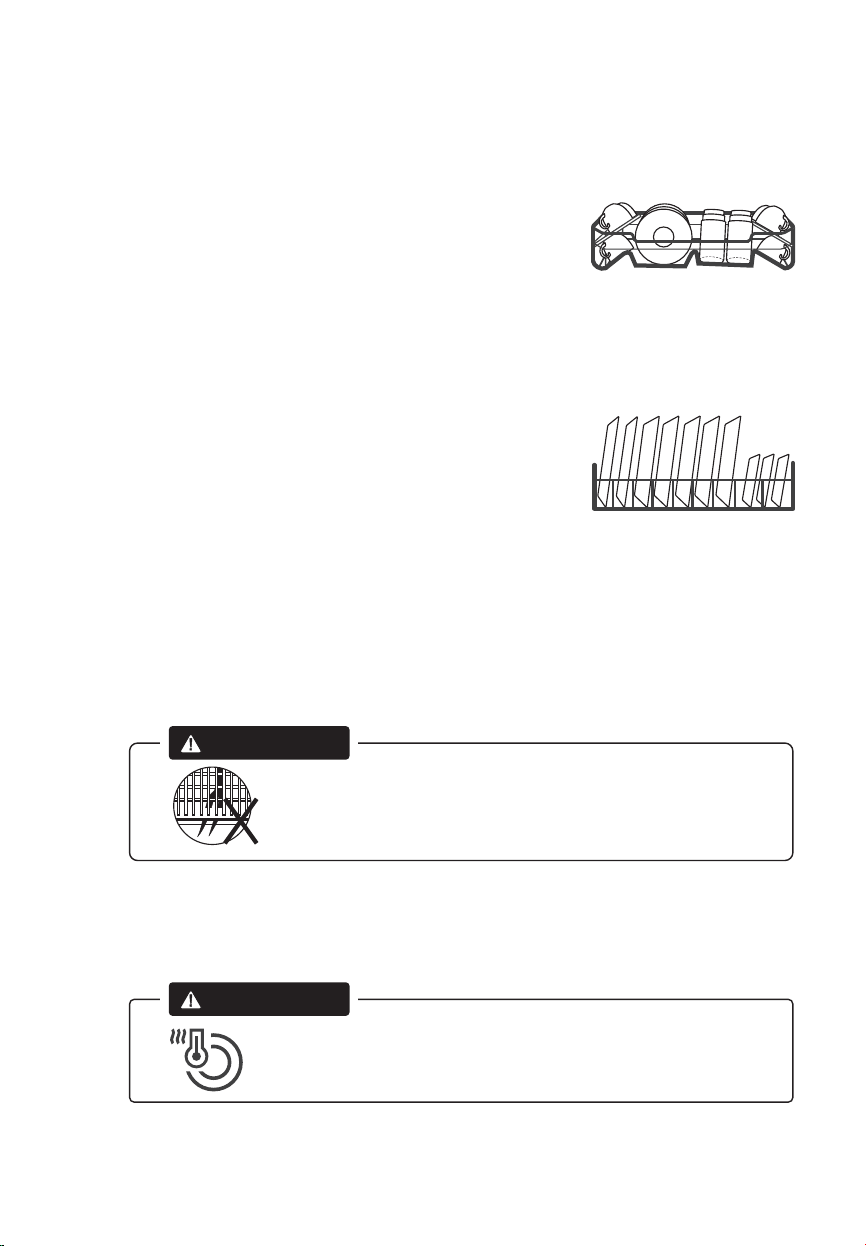

Loading the lower basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and bowls,
as shown in the figure below. It is preferable to place
serving dishes and lids on the side of the racks in order to
avoid blocking the rotation of the top spray arm.
The maximum diameter advised for plates in front of the
detergent dispenser is of 19 cm, this not to hamper the
opening of it.
WARNING
Do not let any item extend through the bottom.
Always load sharp utensils with the sharp point down!
Loading the cutlery basket
Cutlery should be placed in the cutlery rack separately from each other in the
appropriate positions, and do make sure the utensils do not nest together, this may
cause bad performance.
To prevent water dripping from the upper basket into the lower basket, we
recommend that you empty the lower basket upper basket.
first, followed by the
Removing the dishes
WARNING
Items will be hot! To prevent damage, do not take glass and
cutlery out of the dishwasher for around 15 minutes after the
program has ended.
18
