Operation Guide 4754
MA0607-EA
Getting Acquainted
Congratulations upon your selection of this CASIO watch. To get the most out of your
purchase, be sure to read this manual carefully.
•For watch with the elapsed time bezel
Rotate the elapsed time bezel to align the mark with
the minute hand. After certain amount of time elapsed,
read the graduation on the elapsed time bezel which the
minute hand points to. The elapsed time is indicated.
Elapsed time bezel
50
40
30
20
10
•Some water resistant models are equipped with a
screw lock crown.
•With such models, you must unscrew the crown in the
direction noted in the illustration to loosen it before
you can pull it out. Do not pull too forcibly on such
crowns.
•Also note that such watches are not water resistant
while their crowns are loosened. Be sure to screw the
crowns back in as far as they will go after making any
setting.
About This Manual
•For the sake of simplicity, the sample displays in this
manual do not show the analog hands of the watch.
•All of the displays in this manual show black-on-white.
•Button operations are indicated using the letters shown
in the illustration.
•Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the “Reference” section.
Timekeeping Mode Calendar Mode Alarm Mode Stopwatch Mode Countdown Timer Mode
Press .
General Guide
•Press Ato change from mode to mode.
Screen To do this:
Toggle between Summer Time ( ) and
Standard Time ( )
Reset the seconds to
Change the hour or minutes
Toggle between 12-hour ( ) and 24-hour
() timekeeping
Do this:
Press C.
Use C.
Press C.
City code
SMT indicator
Current time for
the selected city code
(Hour : Minutes Seconds)
PM indicator
Timekeeping
This watch features separate digital and analog
timekeeping. The procedures for setting the digital time
and analog time are different.
The Timekeeping Mode digitally displays the current time
in 29 cities (19 time zones) around the world.
•The same city code is displayed in the Timekeeping
Mode and the Calendar Mode. The city code that
appears first when you enter the Timekeeping Mode is
the city code that was on the display the last time you
were in the Calendar Mode.
•All of the operations in this section are performed in the
Timekeeping Mode, which you enter by pressing A.
Digital Time
Use the Timekeeping Mode to set and view a digital display of the current time.
When setting the digital time, you can also configure settings for daylight saving time
(Summer Time or SMT), and the 12/24-hour format.
•This watch is preset with a number of city codes, each of which represents the time
zone where that city is located. When setting the digital time, it is important that you
select the correct city code for your Home City (the code for the city where you
normally use the watch). If your location is not included in the preset city codes,
select the preset city code that is in the same time zone as your location.
•Note that all of the times for the city codes are displayed in accordance with the
digital time settings you configure in the Timekeeping Mode.
•After you correctly set your Home City time, you can set the watch up for
timekeeping with a different city code simply by changing the city code in the
Timekeeping Mode.
To set the digital time
1. In the Timekeeping Mode, use Band Cto scroll
through the city codes (time zones) until the one you
want to use as your Home City is displayed.
Press Bto scroll eastward through the city codes.
Press Cto scroll westward through the city codes.
•For full information about city codes, see the “City
Code Table”.
2. After you select the city code, hold down Buntil the
SMT (Summer Time) on/off status starts to flash, which
indicates the setting screen.
3. Press Bto move the flashing in the sequence shown below to select the other
settings.
SMT (Summer Time) Seconds Hour
Minutes(Exit the setting screen) 12/24-Hour format
4. When the setting you want to change is flashing, use Cto change it as described
below.
5. Press Ato exit the setting screen.
•See “Digital Time Summer Time (SMT) Setting” below for details about the SMT
setting.
Digital Time Summer Time (SMT) Setting
Summer Time (daylight saving time) advances the digital
time setting by one hour from Standard Time. Remember
that not all countries or even local areas use Summer
Time.
To toggle the Timekeeping Mode digital time between
SMT and Standard Time
1. In the Timekeeping Mode, use Band Cto scroll
through the city codes (time zones) until the one you
want to use as your Home City is displayed.
Press Bto scroll eastward through the city codes.
Press Cto scroll westward through the city codes.
•For full information on city codes, see the “City Code
Table”.
2. After you select the city code, hold down Buntil the
SMT (Summer Time) on/off status starts to flash, which
indicates the SMT setting screen.

2
Operation Guide 4754

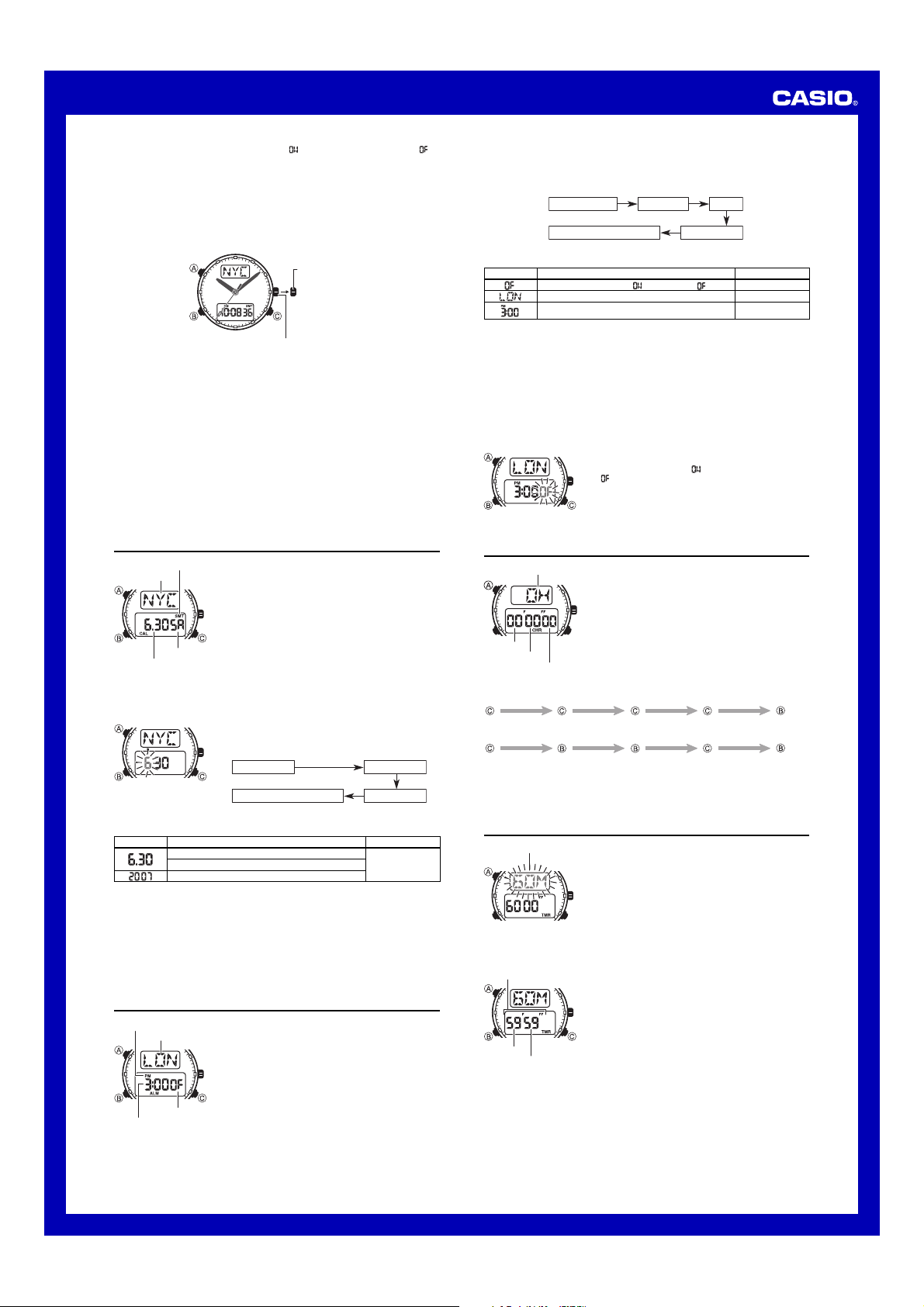

3. Press Cto toggle between Summer Time ( displayed) and Standard Time (
displayed).
4. Press Ato exit the setting screen.
•The SMT indicator appears on the screen to indicate that Summer Time is turned
on.
Setting the Analog Time
Perform the procedure below when the time indicated by the analog hands does not
match the time of your Home City time.
To adjust the analog time
Crown (Normal position)
First click
1. In the Timekeeping Mode, pull the crown out when the second hand reaches the 12
o’clock position. This will stop the second hand.
2. Rotate the crown to adjust the hands. When adjusting the minute hand to its final
setting, move it to about four or five minutes past the time you want to set and then
back it up to the final setting.
3. When the digital time display reaches 00 seconds, push the crown back in to the
normal position to restart analog timekeeping.
Viewing the time in another city
To view the time in another city
In the Timekeeping Mode, use Band Cto scroll through the city codes.
Press Bto scroll eastward through the city codes.
Press Cto scroll westward through the city codes.
•For full information about city codes, see the “City Code Table”.
•If the current time shown for a city is wrong, check your Home City time settings
and make the necessary changes.
City code
SMT indicator
Day of week
Month.Day for
the selected city code
City code
PM indicator
On/Off status
Alarm time for
the selected city code
Screen To do this:
Change the month
Change the day
Change the year
Do this:
Press C.
Calendar
The watch’s calendar normally makes allowances for
different month lengths and leap years.
•The same city code is displayed in the Calendar Mode
and the Timekeeping Mode. The city code that appears
first when you enter the Calendar Mode is the city code
that was on the display the last time you were in the
Timekeeping Mode.
•All of the operations in this section are performed in the
Calendar Mode, which you enter by pressing A.
Setting the Date
To set the date
1. In the Calendar Mode, hold down Buntil the month
starts to flash, which indicates the setting screen.
2. Press Bto move the flashing in the sequence shown
below to select the other settings.
Month Day
(Exit the setting screen) Year
3. When the setting you want to change is flashing, use Cto change it as described
below.
4. Press Ato exit the setting screen.
Viewing the calendar in another city
To view the calendar in another city
In the Calendar Mode, use Band Cto scroll through the city codes.
Press Bto scroll eastward through the city codes.
Press Cto scroll westward through the city codes.
•For full information about city codes, see the “City Code Table”.
Alarm
You can set the Daily Alarm. When the alarm is turned on,
the alarm tone sounds when the alarm time is reached.
•In the Alarm Mode, you can specify a city code so the
alarm sounds when the time in the city code you specify
reaches the alarm time. For example, you can configure
the alarm to sound at 3:00 p.m. London time even if you
are in New York.
•All of the operations in this section are performed in the
Alarm Mode, which you enter by pressing A.
Hours
1/100 second
Minutes
Seconds
Screen To do this:
Toggle between Alarm on ( ) and Alarm off ( )
Change the City code
Change the hour or minutes
Do this:
Press C.
Press C(east).
Press C(+).
Countdown start time
To set the alarm time
1. In the Alarm Mode, hold down Buntil the alarm on/off status starts to flash, which
indicates the setting screen.
2. Press Bto move the flashing in the sequence shown below to select the other
settings.
On/Off setting City code Hour
(Exit the setting screen) Minutes
3. When the setting you want to change is flashing, use Cto change it as described
below.
•When setting the alarm time using the 12-hour format, take care to set the time
correctly as a.m. (AM indicator) or p.m. (PM indicator).
4. Press Ato exit the setting screen.
Alarm Operation
The alarm sounds at the preset time for about 10 seconds, regardless of the mode the
watch is in.
•To stop the alarm tone after it starts to sound, press any button.
To test the alarm
In the Alarm Mode, hold down Cto sound the alarm.
To turn the alarm on and off
1. In the Alarm Mode, hold down Buntil the alarm on/off
status starts to flash, which indicates the setting screen.
2. Press Cto toggle it on ( displayed) and off
(displayed).
•Turning on the alarm displays the alarm on indicator on
the screen.
•The alarm on indicator flashes while the alarm is
sounding.
Stopwatch
The stopwatch lets you measure elapsed time, and split
times.
•The display range of the stopwatch is 11 hours,
59 minutes, 59.99 seconds.
•The stopwatch measurement operation continues even
if you exit the Stopwatch Mode.
•Exiting the Stopwatch Mode while a split time is frozen
on the display clears the split time and returns to
elapsed time measurement.
•All of the operations in this section are performed in the
Stopwatch Mode, which you enter by pressing A.
To measure times with the stopwatch
Elapsed Time
Start Stop Re-start Stop Clear
Start Split Split release Stop Clear
Split Time
Display split time.
After about 10 seconds,
the display will change
automatically to elapsed time.
Countdown Timer
The countdown timer can be set within a range of one
minute to 60 minutes. An alarm sounds when the
countdown reaches zero.
•You can set a start time in the range of 1 to 60 minutes
in 1-minute increments.
•All of the operations in this section are performed in the
Countdown Timer Mode, which you enter by pressing
A.
To set the start time
In the Countdown Timer Mode, press Bto change the start time.
To use the countdown timer
Press Cwhile in the Countdown Timer Mode to start the
countdown timer.
•The countdown timer operation continues even if you
exit the Countdown Timer Mode.
•Press Cwhile a countdown operation is in progress to
pause it. Press Cagain to resume the countdown.
•To completely stop a countdown operation, first pause it
(by pressing C), and then press B. This returns the
countdown time to its starting value.
Countdown time
Minutes
Seconds

3
Operation Guide 4754
Reference
This section contains more detailed and technical information about watch operation.
It also contains important precautions and notes about the various features and
functions of this watch.
Auto Return Feature
•If you leave a screen with flashing digits on the display (except Countdown Timer
Mode), for two or three minutes without performing any operation, the watch
automatically exits the setting screen.
•If you leave the watch in the Alarm Mode for two or three minutes without performing
any operation, it returns to the Timekeeping Mode automatically.
Scrolling
Cis used in various modes and setting screens to scroll through data on the display.
In most cases, holding down Cduring a scroll operation scrolls through the data at
high speed.
Initial Screens
When you enter the Timekeeping, Calendar, or Alarm Mode, the data you were
viewing when you last exited the mode appears first.
Timekeeping
•Resetting the seconds to while the current count is in the range of 30 to 59
causes the minutes to be increased by 1. In the range of 00 to 29, the seconds are
reset to without changing the minutes.
•With the 12-hour format, the PM indicator appears on the display for times in the
range of noon to 11:59 p.m. and AM indicator appears for times in the range of
midnight to 11:59 a.m.
•With the 24-hour format, times are displayed in the range of 0:00 to 23:59, without
any indicator.
•The 12-hour/24-hour timekeeping format you select in the Timekeeping Mode is also
applied in Alarm mode.
•The times for all the city codes of the Timekeeping Mode are calculated in
accordance with each city’s UTC differential.
•The UTC differential is a value that indicates the time difference between a
reference point in Greenwich, England and the time zone where a city is located.
•The letters “UTC” is the abbreviation for “Universal Time Coordinated”, which is the
world-wide scientific standard of timekeeping. It is based upon carefully maintained
atomic (cesium) clocks that keep time accurately to within microseconds. Leap
seconds are added or subtracted as necessary to keep UTC in sync with the Earth’s
rotation.
Calendar
•The year can be set in the range of 2006 to 2099.
•The watch’s built-in full automatic calendar makes allowances for different month
lengths and leap years. Once you set the date, there should be no reason to change
it except after you have the watch’s battery replaced.
*Based on data as of December 2005.
City Code Table
HNL Honolulu –10.0 Papeete
ANC Anchorage –09.0 Nome
LAX Los Angeles –08.0 San Francisco, Las Vegas, Vancouver, Seattle/Tacoma,
SAN San Diego Dawson City
DFW Dallas/Fort Worth
CHI Chicago –06.0 Houston, New Orleans, Winnipeg
MEX Mexico City
NYC New York –05.0 Montreal, Detroit, Miami, Boston, Panama City,
Havana, Lima, Bogota
SAO Sao Paulo –03.0 Rio De Janeiro, Brasilia, Montevideo
BUE Buenos Aires
UTC +00.0 Dublin, Lisbon, Casablanca, Dakar, Abidjan
LON London
PAR Paris Milan, Amsterdam, Algiers, Hamburg,
ROM Rome +01.0 Frankfurt, Vienna, Stockholm
BER Berlin
MAD Madrid
JNB Johannesburg +02.0 Cairo, Jerusalem, Athens, Helsinki, Istanbul, Beirut, Damascus,
Cape Town
MOW Moscow +03.0 Jeddah, Kuwait, Riyadh, Aden, Addis Ababa, Nairobi
DXB Dubai +04.0 Abu Dhabi, Muscat
KHI Karachi +05.0 Male
DEL Delhi +05.5 Mumbai, Kolkata
BKK Bangkok +07.0 Jakarta, Phnom Penh, Hanoi, Vientiane
SIN Singapore Kuala Lumpur, Taipei, Manila,
HKG Hong Kong +08.0 Perth, Ulaanbaatar
BJS Beijing
TYO Tokyo +09.0 Seoul, Pyongyang
SYD Sydney +10.0 Melbourne, Rabaul
GUM Guam
NOU Noumea +11.0 Port Vila
AKL Auckland +12.0 Wellington, Christchurch, Nadi, Nauru Island
City City UTC Other major cities in same time zone
Code Differential
