Cecilware CTR2.86LD User manual

Cecilware Corporation 43-05 20th. Avenue, LIC NY 11105
Tel: [phone].932.1414 •Fax: [phone]
®
Since 1911
®
Since 1911
www.cecilware.com
NR68A (11/08)
Countertop Refrigerators
Instruction Manual
Models:
CTR2.68LD - Countertop Refrigerator
CTR3.75 - Countertop Refrigerator
Table of Contents
Model specications . . . . . . . . . . . . . . . . . . . . . pg. 2
Setting and temperature adjustments . . . . . . . . pg. 2

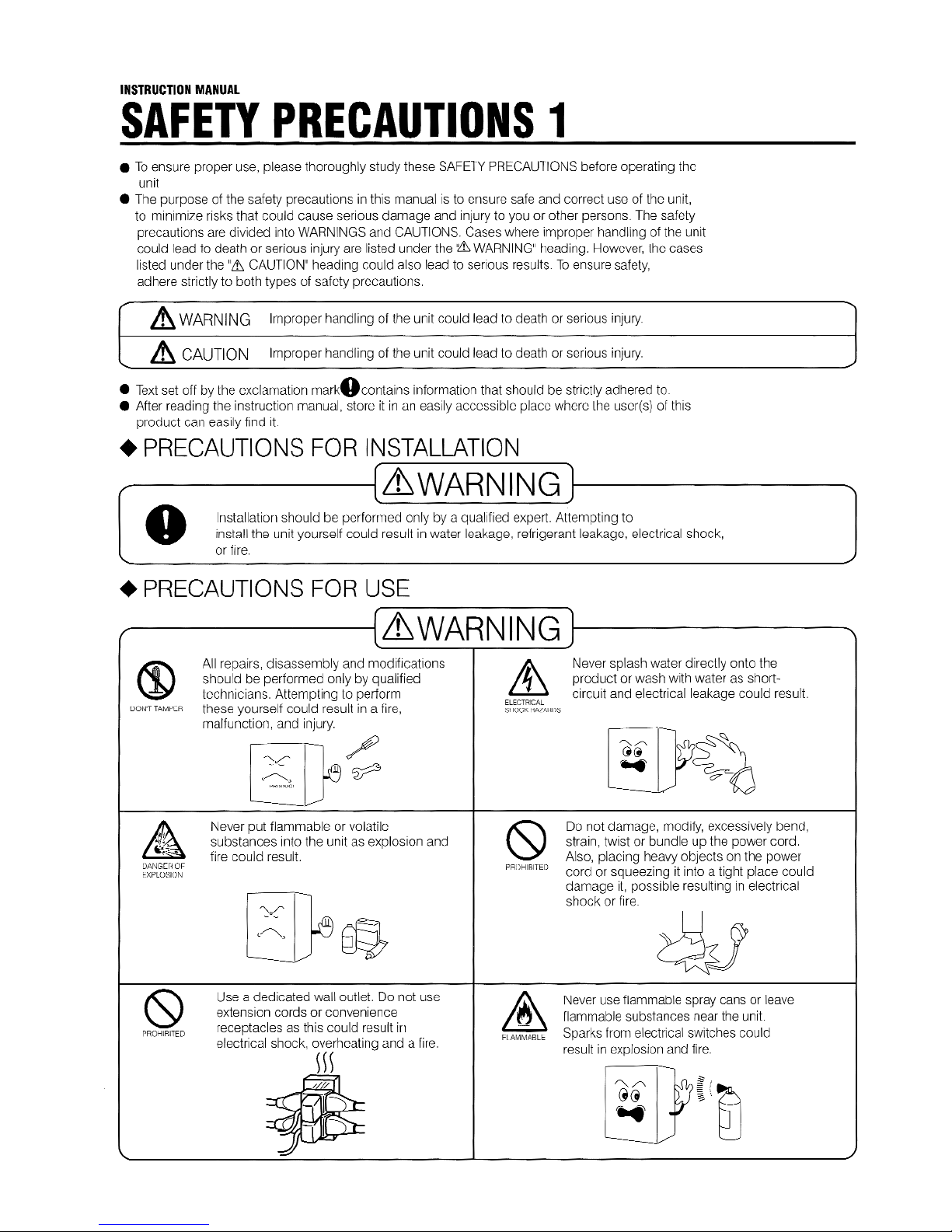

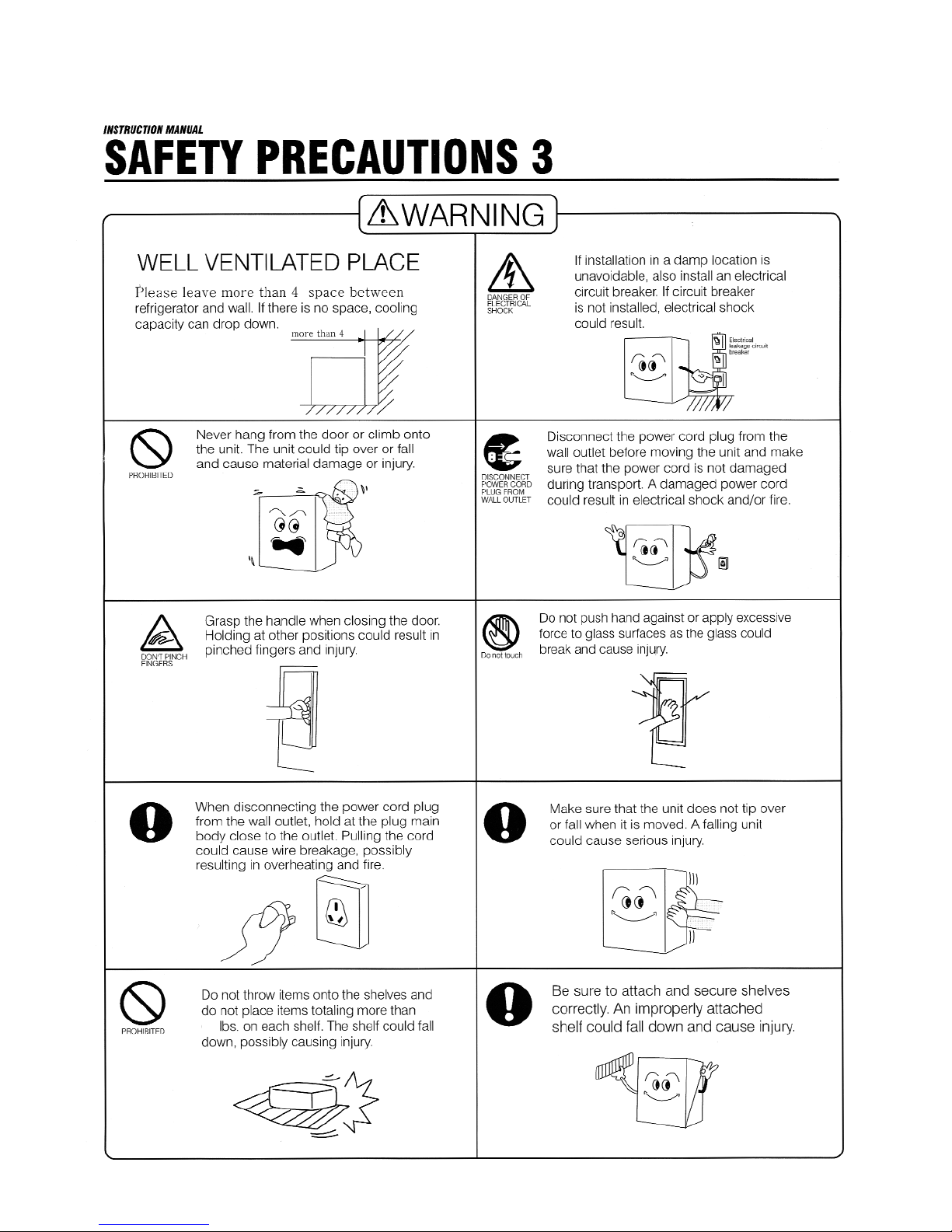

Safety precautions . . . . . . . . . . . . . . . . . . . . . . . pg. 3-5
How to use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 6
Cleaning instructions . . . . . . . . . . . . . . . . . . . . . pg. 7
What to do if the following occurs . . . . . . . . . . . pg. 8
Portability & storage, maintenance, caution . . . pg. 9
Before requesting service . . . . . . . . . . . . . . . . . pg. 10
Graphic templets for CTR2.68LD . . . . . . . . . . . . pg. 11
Data Label / Wiring Diagram . . . . . . . . . . . . . . . pg. 11
Spare parts list . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 12
CTR2.86LD
with Lighted Display
CTR3.75

2

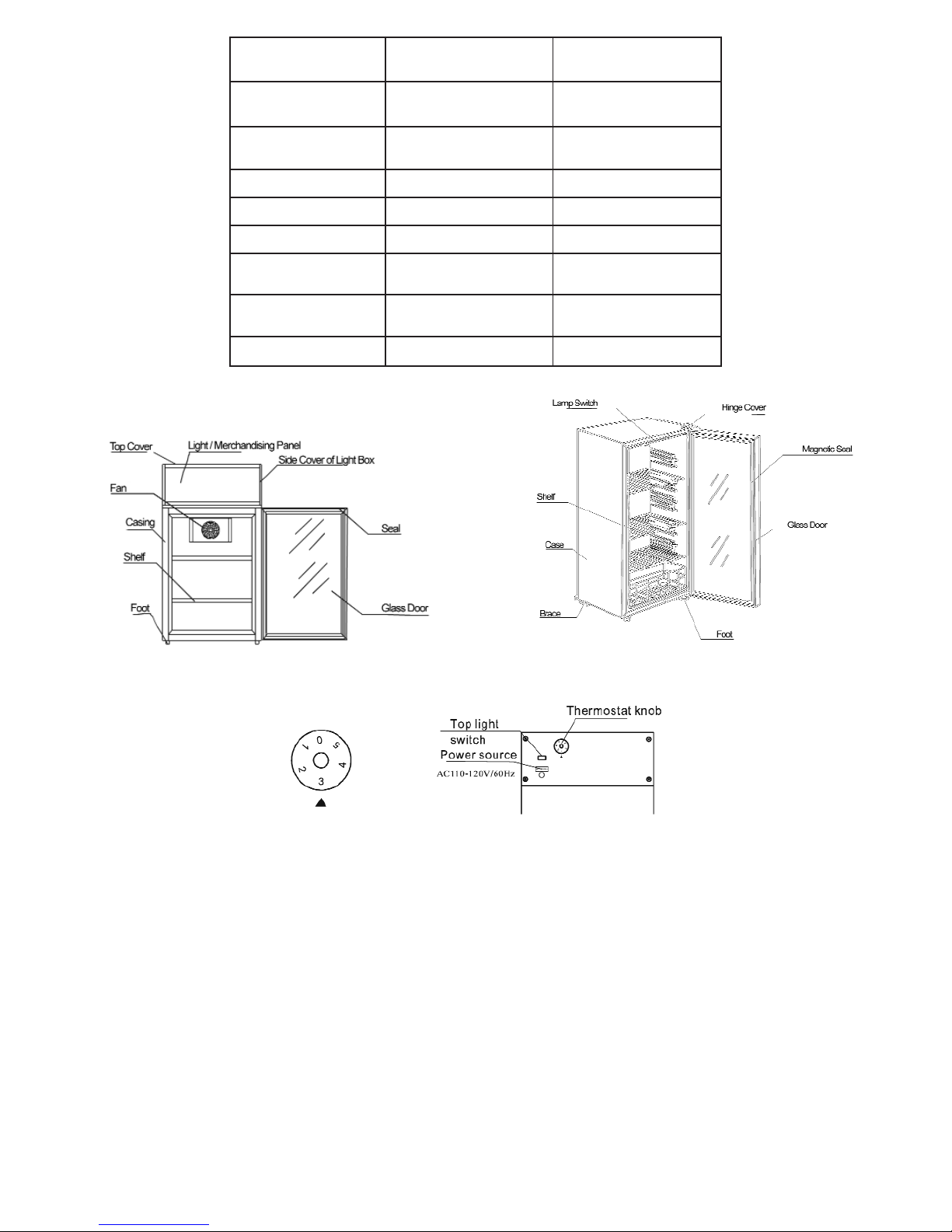

Model
Number CTR2.68LD CTR3.75
Dimensions
(WxDxH) 18"x183/8" x 36½" 18¾"x18"x 33¼"
Inner Cabinet
Dimensions 147/16"x 125/8"x 253/8" 16" x 14" x 29"
Capacity 2.68 cu. ft. 3.75 cu. ft.
Electrical 110V, 60 HZ, 1.8A 110V, 60 HZ, 2A
Input Power 92W 92W
Power
Consumption 1.0KW Hr/24Hrs. 1.2KW Hr/24Hrs.
Refrigerant R134A - Thermoelectric
Cooling R134A
Ship Weight 90 lbs. 85 lbs.
Setting and Temperature Adjustments
1. Adjust the storage temperature through the temperature controller.
2. The temperature adjustable capacity is from “1”-“5”. Adjust the storage temperature
by turning the temperature controller clockwise. The“5” setting is for colder storage
temperature. The knob can turn freely but can't turn clockwise from “5” to“1”.
Factory setting position is on “3” position.
3. Check if the knob is on the appropriate position before using. Frequent adjustments
is not appropriate when using.
4. Position “0” means refrigerator is off.
CTR2.68LD CTR3.75LD

3

4

5
"
"
30

6

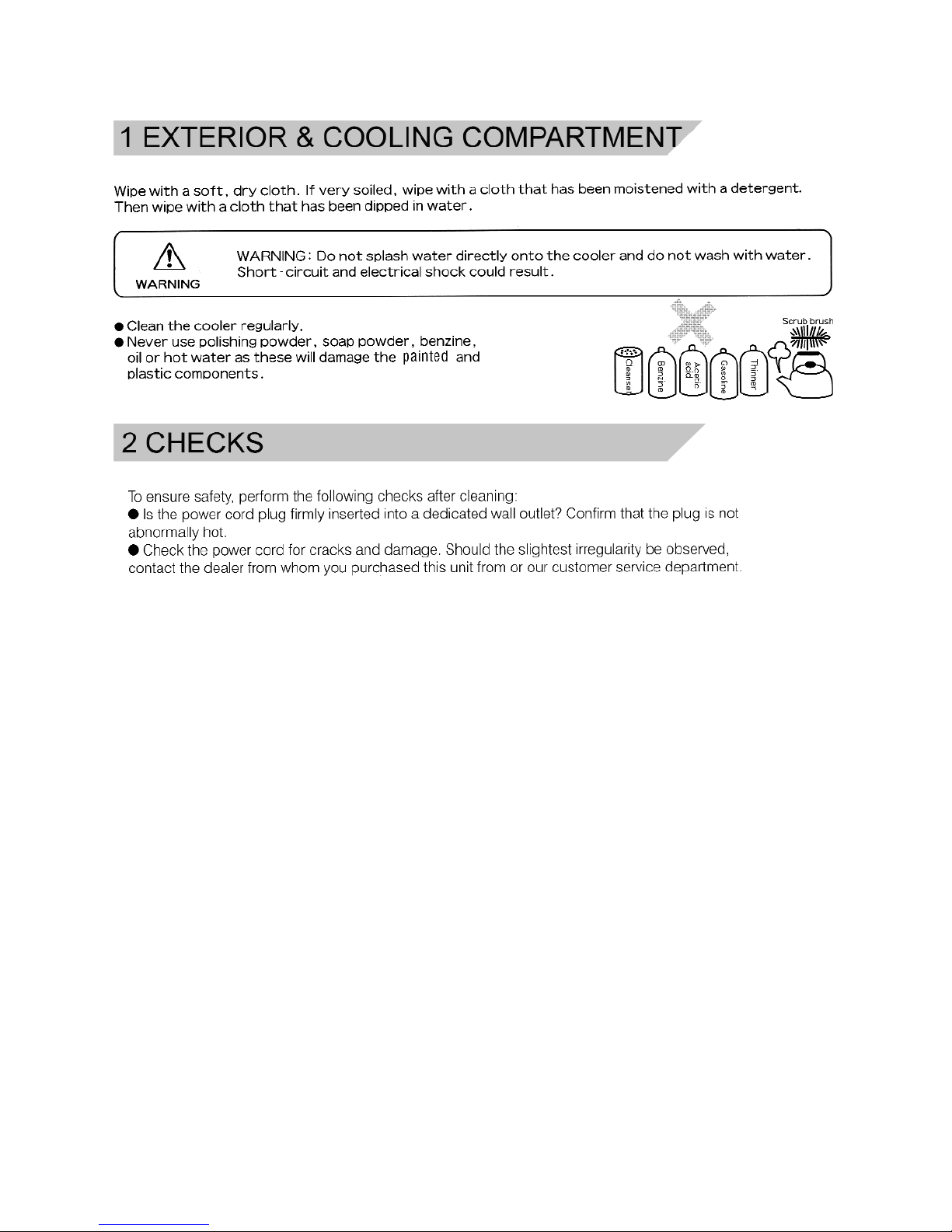

7

8

9
Portability and storage
1. Keep the unit vertical when carrying the unit, the angle to the horizontal line should not
be over 50°, otherwise it will damage the compressor and affect normal operation of the
unit.
2. Adjust the height with all the four feet adjusted.
3. After moving the unit, let it stand for 30 minutes before switching it on.
4. Running: close the door and connect the power. Turn on the light switch. The
temperature should be suitable for normal use after half hour.
5. After connecting the power, the unit should be kept empty for one hour.
Maintenance
Disconnect the power supply before performing maintenance on the machine!
1. Keep the door gasket clean, remove it from the door and wash it. Dry and seal it as
before. Putting some talcum powder on the magnetic surface would prolong its service
life.
2. Light replacement: remove the top cover, take out the light, replace with a new light,
then mount it again.
3. Use a soft cloth and dip some water or soap (Non-caustic, neutral detergent is also
available) to clean the unit. Dry the unit after cleaning to avoid rust.
4. Do not use organic liquid, boiled water, washing powder or acid products to clean the
unit. Rinsing the case with water is not allowed. Do not use a hard brush to clean the
case.
5. If the unit will not be used for a long time, disconnect the power, clean it by following
the above steps, wipe off the water inside the case with a soft cloth. Discard the water
in the water plate.
Caution
1. The unit is not suitable for storage of blood, pharmaceutical products and biological
products
2. Do not place heavy articles on the top of the unit.

10

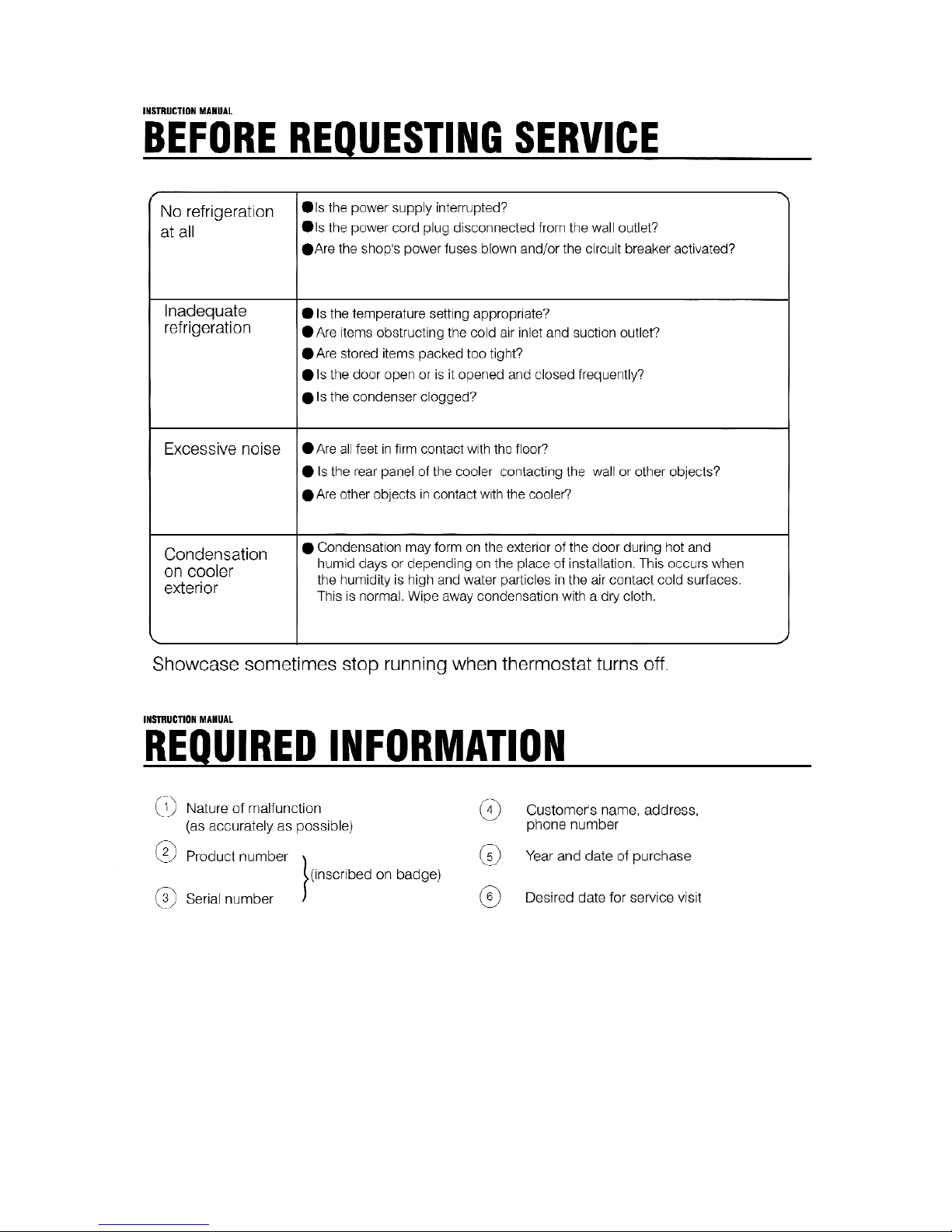

Before calling for service,
please have the following
information available:

11

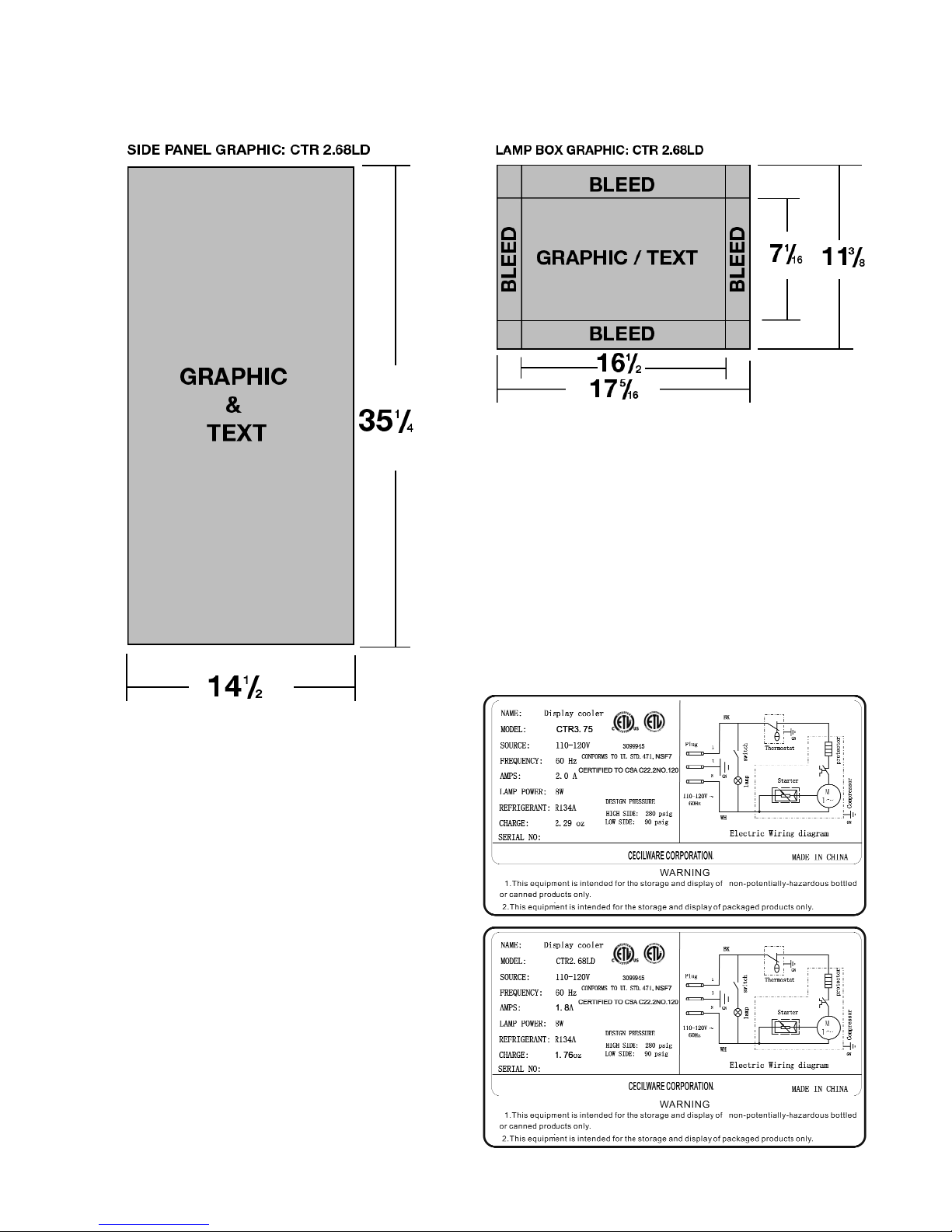

Graphic Templates
Data Label / Wiring Diagram

12
Cecilware Corporation 43-05 20th. Avenue, LIC NY 11105
Tel: [phone].932.1414 •Fax: [phone]
E-mail: [e-mail]
®
Since 1911
www.cecilware.com
Spare Parts List
List
Part # Model # Description Price
08711 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . . Big Foot . . . . . . . . . . . . . . . . . . . . . . . . . . . $ 3.50
08726 . . . . . . . . CTR3.75 . . . . . . . . . . . . . . . . . . Bottom Basket Shelf . . . . . . . . . . . . . . . . . 9.30
08705 . . . . . . . . CTR2.68-LD . . . . . . . . . . . . . . . Canopy logo plastic . . . . . . . . . . . . . . . . . . 12.30
08707 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . . Compressor . . . . . . . . . . . . . . . . . . . . . . . . 172.20
08708 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . Dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.90
08709 . . . . . . . . CTR3.75 . . . . . . . . . . . . . . . . . . Fluorescent lamp . . . . . . . . . . . . . . . . . . . . 6.20
08710 . . . . . . . . CTR2.68-LD . . . . . . . . . . . . . . . Fluorescent lamp . . . . . . . . . . . . . . . . . . . . 9.20
08716 . . . . . . . . CTR2.68-LD . . . . . . . . . . . . . . . Glass door . . . . . . . . . . . . . . . . . . . . . . . . . 55.40
08717 . . . . . . . . CTR3.75 . . . . . . . . . . . . . . . . . . Glass door . . . . . . . . . . . . . . . . . . . . . . . . . 67.60
08718 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . . Hinge Bottom . . . . . . . . . . . . . . . . . . . . . . . 3.10
08720 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . . Hinge Upper . . . . . . . . . . . . . . . . . . . . . . . . 3.10
08735 . . . . . . . . CTR1.75LD, CTR3.75 . . . . . . . Inner Light . . . . . . . . . . . . . . . . . . . . . . . . . 6.20
08731 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . . Key to Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.10
08730 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . . Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.10
08721 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . . Power Supply Cord . . . . . . . . . . . . . . . . . . 9.30
08725 . . . . . . . . CTR2.68-LD . . . . . . . . . . . . . . . Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.20
08727 . . . . . . . . CTR3.75 . . . . . . . . . . . . . . . . . . Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.20
08728 . . . . . . . . CTR2.68-LD . . . . . . . . . . . . . . . Side canopy cover left . . . . . . . . . . . . . . . . 4.90
08729 . . . . . . . . CTR2.68-LD . . . . . . . . . . . . . . . Side canopy cover right . . . . . . . . . . . . . . . 4.90
08712 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . . Small Foot . . . . . . . . . . . . . . . . . . . . . . . . . 3.10
08701 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . . Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.10
08703 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . . Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . 9.80
Specications are subject to change without prior notice; prices valid until December 31, 2009
