Celexon HomeCinema User manual
Operating instructions
celexon HomeCinema Frame
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully
before connecting or operating this product. Please retain these instructions for future
reference.
Version: 32422_061
1
The purpose of these operating instructions is to familiarise you with the operation of
this this product. Therefore, keep these instructions in a safe place so that you can access
them at any time.
• The purpose of these operating instructions is to familiarise you with the operation
of this this product. Therefore, keep these instructions in a safe place so that you
can access them at any time.
• Before installation, please refer to the enclosed data sheet for further safety and use
instructions.
• Do not begin installation until you have read and understood the complete
operating instructions.
• This product must be installed on a level, clean surface with sufcient space around
the installation area.
• It is mandatory to carry out the installation of a frame screen with another person
to ensure safe installation.
• Remove the product from its packaging and remove all packaging materials. Make
sure that there is no packaging material on or in the product. If you notice any
damage to the packaging, also check for damage to the product. If you notice
any external damage to the unit or unexpected unusual functioning, do not
continue to use or assemble the product. Immediately contact the dealer from
whom you purchased the product or celexon directly (Web: www.celexon.co.uk, Mail:
info@celexon.co.uk) for further information.
• To ensure trouble-free operation, the product must only be used indoors and is NOT
suitable for outdoor use.
• The use of the screen and accessories is forbidden to children under 16 years of age.
• Ensure that no children play with the screen or are in the vicinity without
supervision.
• Converting or modifying the product compromises product safety.
• Caution: Risk of injury! Never modify the product yourself. Never carry out repairs
yourself!
• This product may only be used in its original, unmodied condition.
• Do not use the product in the vicinity of devices that emit gases or water or in a
dusty environment.
• Handle the product with care. It can be damaged by knocks, blows or falling from a
• from even a small height.
• Keep the product away from moisture and heat.
WARNINGS
2
• Never immerse the product in water or other liquids.
• Use the product only in its intended manner. Other use may result in damage to the
product or its surrounding environment.
• Tighten the screws but do not overtighten them. Overtightening (e.g. by using
a cordless screwdriver) this can cause damage and affect the secure hold of the
screen.
• Suspended loads must be checked for strength and load-bearing capacity at least
twice a year.
• Failure to follow the above instructions may result in personal injury and damage
to the product or equipment attached to it. Incorrect installation or use may also
invalidate the
• warranty may be voided.
• If you are unsure about the use of the product, please contact your
specialist personnel, your dealer or celexon directly (Web: www.celexon.co.uk, Mail:
info@celexon.co.uk).
• Technical changes and errors expected.
The manufacturer accepts no responsibility for damage to property or personal
injury, if the screen is used outside the recommended specications, or in the event of
improper installation. Do not use this screen in the vicinity of heaters or air conditioners.
Also, do not mount the product in direct sunlight or in front of a window. Due to the
temperature-sensitive PVC surface, the projection screen fabric may be permanently
damaged.
We recommend that you wait approx. 2 hours after delivery before installing the
projection screen. This way you will allow the screen to acclimatise, especially when
moving from a cold to a warm environment (or vice versa).
Please avoid any stains on the surface of the screen. These may not be able to be
removed.
• Note the front and back of the fabric when attaching it.
• Please check ALL parts for damage or scratches before assembling!
• The screen may ONLY be assembled on a soft, padded surface. Otherwise the frame
coating may scratch.
• For permanent atness, please note the following:
1. Do not touch the projection surface with your hands
2. Do not fold the projection surface
3. Do not paint or write on the projection surface
3
The information in this document is subject to change without notice by the
manufacturer. Changes will be added to subsequent versions of this manual.
Errors expected.
CARE INSTRUCTIONS
NEVER clean the screen with alcohol or other cleaning agents containing
solvents. Use only a soft and clean cloth. If necessary, dirt can be removed
from the surface with a mild soap solution (max. 5%). It is essential to avoid
contact with pointed or sharp objects. These could permanently damage the
projection screen fabric. Further instructions can be found in the enclosed
projection screen instructions.
DISCLAIMER
IN THE BOX
2x Frame Horizontal A
16x M5x8mm screws
4x Ø4x40mm wall screws
2x Frame Vertical B
2x Wall Brackets
4x plastic dowels
4x Corner connector C
1x Projection screen fabric
2x PVC rods long
2x PVC rods short
Tension springs
1x Tension spring tool
4
INSTALLATION NOTES
Before installation, please check that all the parts listed above are included! If
parts are missing, contact the dealer from whom you purchased the product
and wait for the parts to arrive before completing the installation. Install the
screen in a position that is fully visible to all viewers! The optimum installation
height corresponds to the position of the viewers in the centre of the screen
with the screen fabric extended: eye level = lower third of the screen surface.
The enclosed mounting material is intended for a solid stone wall. If necessary,
obtain suitable mounting material for your Installation surface.

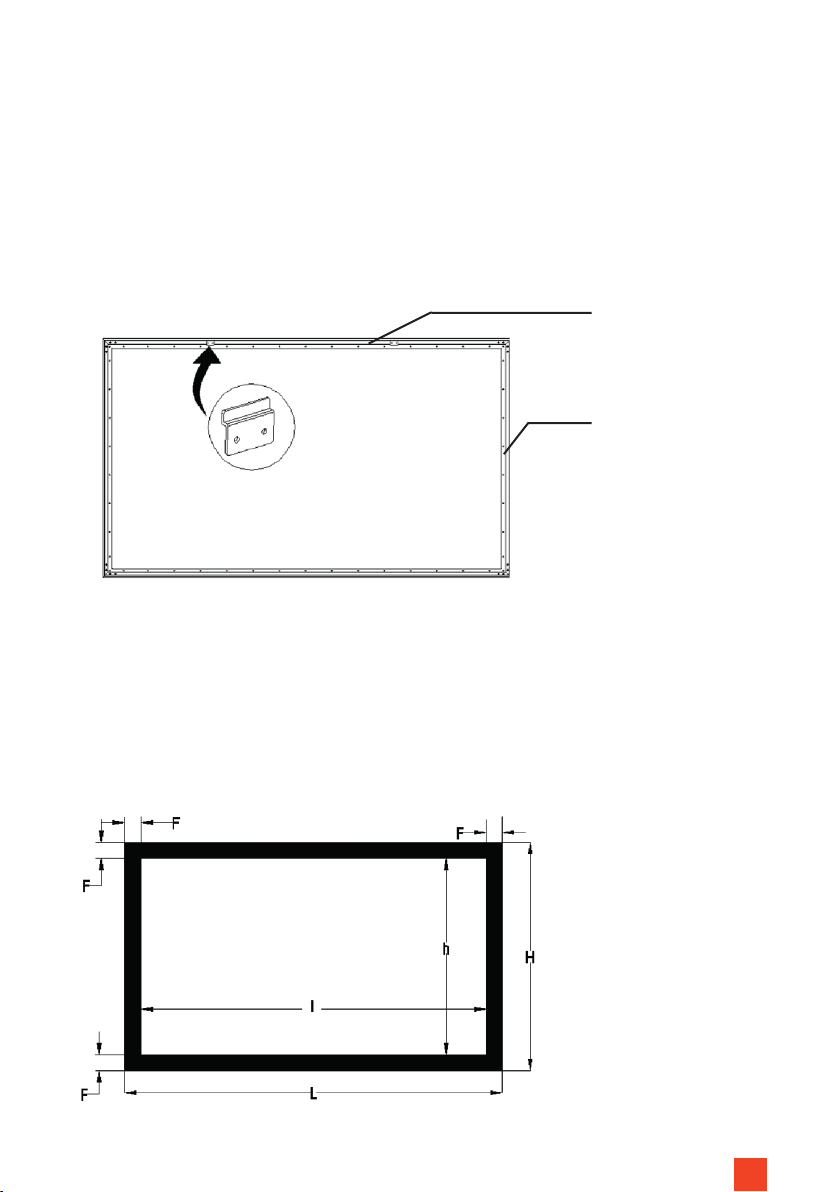

Horizontal
Aluminium frame
Vertical
Aluminium frame
F = 65 mm (l <= 240 cm)
F = 87 mm (l > 240 cm)
Outer frame height (H) for screens
• Up to 240 cm screen width = projection surface (h)+130 mm
• Over 240 cm screen width = projection surface (h)+174 mm
Outer frame width (L) for screens
• Up to 240 cm image width = projection width (l)+130 mm
• Over 240 cm image width = projection width (l)+174 mm
5
STEP 1: ASSEMBLY FRAME
1. Lay out the 4 aluminium struts on a soft surface (2x horizontal & 2x
vertical) parallel to each other in a rectangle (Fig. 3). Push two corner
connectors into each end of a horizontal frame piece and attach the two
vertical frame pieces onto it (Fig. 4, 5 and 6).
2. Slide the remaining two corner connectors into the lower
horizontal frame and push them onto the vertical frame as shown in Fig. 7.
(Note: The two corner connectors must be pushed into the vertical
frame at the same time and evenly, so do this step with help from a second
person). Align the frame so that the holes in the corner connectors match
the holes in the frame. Insert the M5x8mm screws into each hole, check
again that the frame is correct and tighten the screws all around (6-8 Nm)
(Fig. 8 and 9).
Fig. 7 Fig. 8
Fig. 9
Fig. 3
Fig. 5 Fig. 6
Fig. 4
A
B
C
6
STEP 2: FABRIC ATTACHMENT
1. Insert the PVC rods into the fabric pockets. It is recommended to carry out
this procedure with 2 people.
2. Spread out the fabric (observe the correct side!) and rst fasten two
tensioning hooks in each corner of the frame. Tension the fabric only in
all 4 corners at rst. Continue all the way round with all the other springs.
(Fig. 10, 11 and 12). Note: When tensioning the springs with the enclosed
tool, always use one hand and pull the spring with the second hand until it
can be hooked into the fabric. Carry out this step in pairs. The fabric may
seem too small, but it must be as you have to put a lot of tension on the
spring to achieve the atness required.
3. Measure the distance between the two hanging points on the frame.
The two wall brackets should each be positioned approx. 50cm from the
outer edge. Mark the measurement on your wall (horizontally) and pre-drill
holes for the wall brackets. Fix the wall brackets with the enclosed mounting
material. Carefully hang the screen into the brackets (Fig. 13 and 14).
Fig. 10
Fig. 13
Fig. 14
Fig. 11 Fig. 12
To mount the frame, two people
should lift it, one on each side. Lift
and hang the frame at the same
time onto the mounting brackets.
This completes the installation.
