Celona AP 20 User manual

Installation Guide

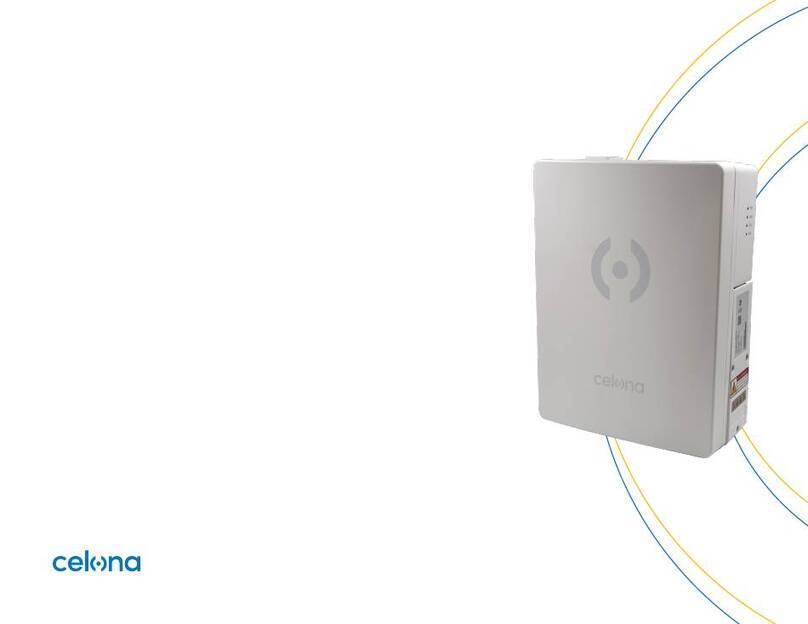

Celona Indoor
Access Point
AP 20
Enabling cellular wireless connectivity for enterprise
environments, within private spectrum options
© Copyright 2023 Celona Inc. All rights reserved.

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 2
Contents
Introduction 3
About the AP 3
Package Contents 3
Ethernet ports 3
Power input 3
GPS 3
Status LEDs and Interfaces 3
Mounting 4
Installation Overview 4
Mounting the Access Point 4
Install on Prelude and Suprafine T-bar 5
Install on silhouette and interlude T-bar 7
Install on a wall 10
Powering the Access Point 12
Access Point Discovery and Provisioning 12 Configuring the Access Point 12
Solution Architecture 13
Celona AP 20 capabilities 13
Operations and Maintenance 14
Security 14
Phase and time synchronization 14
Data and voice connectivity 14
Power save mode 14
Radio access technology 15
Supported frequency band 15
Seamless session mobility 15
Coverage area 15
Transmit power 15
Supported system bandwidth 15
Troubleshooting 16
Contacting Support 16 Warranty 16

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 3
Package Contents
Verify that you have received the
items below. If any item is missing or
damaged, contact your Celona partner
or reseller for instructions.
• The Access Point
• Mounting bracket and screws
• PoE injector
Introduction
This document provides the necessary guidance to
help the user enable services on the Celona Indoor
Access Point AP 20 capable of private 5G connectivity.
Identity Color Status Description
System Blue
Steady on Power is on
OFF No power supply
4G Blue
Steady on Radios are up and transmitting
OFF Radios are non-operational
5G Blue
Steady on Radios are up and transmitting
OFF Radios are non-operational
About the AP
Celona AP 20 is an indoor 4G/5G NR access point as a
part of Celona’s 5G LAN solution portfolio, supporting
Sub-6 Ghz frequency bands (3.55–3.7 GHz). AP 20
oers highly deterministic performance over the air,
less than 10ms latency and exceptional coverage. With
an enterprise-ready operational model, Celona AP 20
access point is designed for mission-critical use cases
in indoor and semi-ruggedized environments. Like all
Celona access points, the AP 20 supports plug-and-play
deployment, remote provisioning, centralized cloud-
based management and seamlessly integrates into the
enterprise network.
Celona AP 20 is a fully integrated indoor access
point that can be used for 4G or 5G NR operation in
enterprise environments. The presence of both 4G
and 5G radios allows enterprises to future-proof their
infrastructure as the device ecosystem evolves from 4G
to 5G. Celona AP 20 is 3GPP Release 15 compliant 5G
NR access point and 3GPP Rel. 13 TDD compliant 4G LTE
Indoor Access Point that supports 2x2 MIMO, up to 256
QAM modulation, subcarrier space of 30 KHz and can
be ceiling or wall mounted.
Ethernet ports
The Celona AP 20 has 1/2.5 Gigabit Ethernet port.
Power input
Celona AP 20 supports IEEE 802.3bt Type 4 (PoE++)
connectivity. PoE++ can be provided by a PoE++
injector (AC to PoE power, included in the AP) or a
PoE++ capable switch. The drawn power is ≤ 71 W.
GPS
A Subminiature Version A (SMA) coaxial RF connector port is available for GPS. If obtaining GPS lock is
dicult, connecting a GPS puck to the Celona AP 20 may help achieve lock. The GPS puck is typically
placed closer to a window where there is line of sight visibility to the sky and a cable is extended from
the GPS puck to the SMA connector port for GPS on the Celona AP 20.
Status LEDs and Interfaces
The Celona AP 20 has 2 LEDs providing the following visual statuses for System, 5G

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 4
Main parts of mounting kit assembly
Active grid bracket
Pay attention
to install mark
Fixed grid bracket
Mounting kit
Bracket block x2
Installation Overview
The Celona AP 20 can be wall or ceiling mounted and has four omni-
directional internal antennas. Internal antennas are down-tilt toward
the front of the AP. Before you mount and deploy your access point, we
recommend that you perform a wireless design to determine the best
location to install your access point.
The AP requires an operational Celona Edge for discovery and network
service. Celona recommends installation and deployment of the Celona
Edge prior to installation of access points. Have the following information
about your wireless network design available:
• Locations for access point installation
• Mounting requirements for each location: suspended from a drop-
ceiling, surface mount on a hard ceiling, or on a flat horizontal surface
Installing the access point involves the following steps:
1. Mounting the Access Point
2. Powering the Access Point
3. Access Point Discovery and Provisioning
4. Configuring the Access Point
Mounting the Access Point
The Celona mount-kit supports several mounting methods, including
from a suspended drop- ceiling, hard surface ceiling, and on a flat
horizontal surface such as a wall. The standard mounting hardware
included with the AP supports these mounting methods.
Mounting

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 5
Install on Prelude and Suprafine T-bar
Mounting
Loosen these two M4*10 screws
Pull out the active grid bracket
in the arrow direction
Step 1: Loosen two screws and pull out the active grid bracket.
1
2
Screws M4*10
2
1
Step 2: Push the active grid bracket to hold the T-bar
Put the fixed grid bracket
to hold one side of T bar
Push the active grid bracket in the arrow direction to
clamp onto the other side of the T-bar
1 2
Step 3: Fix the active grid bracket and fasten the two
screws to prevent the mounting kit from slipping.
Fasten these two screws
M3*9 to prevent slipping
Tighten the two screws M4*10
to fix the active grid bracket
1
2
1
2
2
1

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 6
Mounting
Step 4: Slide device to mounting kit, aligning the four screws and the slot.
Before slide the device
Slide device by arrow
direction to hold on
mounting kit.
1
M3*9 screw
1
Step 5: Fasten one M3*9 screw to fix device and mounting kit.

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 7
Mounting
Install on silhouette and interlude T-bar
Step 1: Fix two bracket blocks onto the two grid brackets. Step 2: Loosen two screws and pull out the active grid bracket.
Loosen these two M4*10 screws
Pull out the active grid bracket
in the direction of the arrow
1
2
Fasten four screws to combine the two
bracket blocks on the grid bracket
1
Screws M4*10
Screws M4*10

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 8
Mounting
Step 3: Push the active grid bracket to the T-bar. Step 4: Fix the active grid bracket and fasten
two screw to prevent mounting kit from slipping
Fasten these two screws M4*10 to
secure the active grid bracket
Fasten one M3*9
or M3*6 screw.
1) Interlude’ XL T bar: use
screw M3*9;
2) Silhouette’ 1/4 and 1/8 XL
T bar: use screw M3*6.
Put the bracket block
on the fixed grid
bracket against one
side of the T-bar
Push the bracket block on
active grid bracket by arrow
direction to clamp another
side of T bar.
1
Fasten one screw M4*25.
2
3
1
1
2
3

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 9
Mounting
Step 5: Slide device to mounting kit, aligning the four screws and the slot.
Before slide the device
Step 6: Fasten one M3*9 screw to fix device and mounting kit.
Slide device by arrow
direction to hold on
mounting kit.
1
M3*9 screw
1

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 10
Install on a wall
Mounting
Step 1: Disassemble two grid brackets from
the mounting kit.
Step 2: Drill four holes on the wall using bit size Φ
8.00mm. See below of the distances.
Step 3: Insert the four expansion screws into holes.
Loosen these four M4*10 screws,
then remove the two grid brackets
Only the mounting kit will
be used for wall mounting
Hole distance: 167.20*124.00mm
Hole depth: 40.00mm
Wall
Expansion screw
1
124.00mm
167.20mm

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 11
Mounting
Step 4: Place the mounting kit to the wall and fasten the four nuts. Step 5: Slide the device to attach to the mounting kit.
Fasten four M6 nuts
with torque: 35kgf/cm
Align the four screws on the device
to the mounting kit slots
Fasten screw M3*9.
Slide the device down until
the spring hook on the
mounting kit meets the
groove of the device
1
1
3
2

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 12
Powering the Access Point
The Celona AP 20 can be powered by IEEE 802.11bt (POE++) on the WAN Ethernet port or
connected to an AC electrical outlet using the optional AC power injector/adapter.
Access Point Discovery and Provisioning
The AP will connect to the Celona Orchestrator for provisioning and discover the Celona Edge
within the network on-premises or in the private/public cloud based on the site assignment.
The AP will then connect directly to the Celona Edge and establish control and data plane
connections. Once this is completed, the 5G LED on the AP will turn blue, signifying the private
5G network is operational. This will take approximately 2-3 minutes.
Configuring the Access Point
The Celona AP 20 supports zero-touch provisioning. The AP is preconfigured with details
necessary to discover the Celona Orchestrator and the Celona Edge automatically. After the
AP discovers the Celona Orchestrator and the Celona Edge, the AP gets provisioned with
operational parameters and is authorized to transmit. The Celona Edge alone controls the
radio frequency transmission of the Celona AP 20. Once the AP has gone operational, it is able
to provide services to mobile stations. The mobile stations can interact with the enterprise
network via the Celona Edge. The user data and control signals are encrypted. The Celona AP
20 performance is periodically monitored by the Celona Edge and operational parameters are
continually optimized if necessary. Refer to the Celona Orchestrator configuration guide for
detailed instructions on configuring Celona access points.

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 13
Solution Architecture
The high-level architecture that enables the Celona AP 20 is shown below.
The system consists of the essential functions detailed in Figure 1: System
Architecture. The Celona Orchestrator performs AP authentication, validates the
AP’s serial number, determines the network the AP needs to connect to and finally
directs the Celona AP 20 to the serving Celona Edge.
Each Celona AP 20 obtains service via its serving Celona Edge. The Celona Edge
registers the Celona AP 20, arbitrates spectrum with a FCC approved Spectrum
Access Service (SAS) system in the United States and algorithmically determines
the most optimal radio parameters for the AP.
The Celona Edge becomes automatically aware of the Celona AP 20’s location and
its existing surrounding radio environment. Once the AP is admitted by the Celona
Edge, the AP can commence radio transmissions and service the mobile stations.
Celona AP 20 capabilities
The following sections give the reader the capabilities of the Celona Indoor Access
Point (AP), which is based on the Qualcomm platform. The AP hosts functions to
provide the following services:
• Resource management with admission and flow control
• Encryption of user data and control streams
• Registering mobile stations with Celona Edge for connectivity services
• Paging the mobile stations that are in power save mode
• Fairness in allocation of resources across multiple stations in uplink & downlink
directions
• Measurement configurations and handling of mobility of mobile stations
Celona APs
5G
Devices
with Celona SIM Celona Orchestrator
Powered by AI/ML
Celona Edge
Micro-services architecture

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 14
Operations and Maintenance
The Celona AP 20 is operationally maintained by the Celona Orchestrator and
Celona Edge using NETCONF. Celona AP 20’s radio parameter provisioning,
performance monitoring and fault monitoring occur over the NETCONF interface.
Celona AP 20’s performance is monitored between every 5 minutes and 15 minutes
based on the periodicity determined by the Celona Edge. If a fault surfaces on the
AP, the fault is automatically propagated by the AP to the Celona Edge and the
Celona Orchestrator.
Security
The certificates that are required to establish HTTPS connections with the Celona
Orchestrator and the IPSEC channel with the Celona Edge are installed to the
Indoor AP at the factory. If the certificates need to be updated or replaced,
the process is automatically triggered and managed by the Celona Edge. The
certificates conform to the industry compliant X.509 standard. The IPSEC gateway
is provisioned at the Celona AP 20 through the Celona Orchestrator. IKEv2 is used
to establish the IPSEC tunnel between the Celona AP 20 and the Celona Edge.
Phase and time synchronization
Celona AP 20 supports Time Division Duplex (TDD) which has strict requirements
for maintaining time and phase synchronization so that it does not interfere with
neighboring APs. The Celona AP 20s have a built-in, high-fidelity GPS chip that can
establish location as well as maintain clock synchronization.
The AP’s carrier frequency accuracy, time and phase drifts are disciplined by the
onboard GPS clock. If the AP cannot obtain a GPS lock for any reason, Celona
AP 20 synchronizes with a Precision Time Protocol (PTP) server to maintain time,
phase, and frequency synchronization.
Data and voice connectivity
Mobile stations can access data, video, and voice applications over the enterprise
IP network via the Celona Edge after the Celona AP 20 has its radio enabled. Note
that the Celona AP 20 can provide voice, video, and data sessions simultaneously
to mobile stations. Celona AP 20 automatically determines the capability of mobile
stations before determining whether requested services can be accommodated.
Celona AP 20 and Celona Edge perform admission control for mobile stations
and Celona Edge enforces authentication of the mobile station before accepting
service requests and keep all control signals and user data encrypted.
Celona AP 20 employs sophisticated adaptive modulation and code rate control
for adapting mobile station link according to the dynamic channel conditions
seen on the air interface. It also employs eective power control to keep transmit
powers from the mobile stations as low as practicable.
Power save mode
Celona AP 20 enables, and controls power save options on the mobile stations.
When a mobile station has encountered a long lull in data volume, Celona AP 20
monitors trac volume on each flow enabled at the mobile station.
When the trac volume is zero for a duration of time, duration determined by the
Celona AP 20 based on mobile capability as well as current loading in the system,
Celona AP 20 enables Power Save mode on the mobile station. While in power
save mode, the mobile station can turn o its receiver and transmitter functions
for the most part except for essential functions. This increases the battery standby
time on the mobile stations.
When the mobile station is in power save mode and if there is user data destined
towards the mobile station, Celona Edge pages the mobile station indicating data
arrival via the Celona AP 20 in order to awaken the station.

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 15
Radio access technology
Celona AP 20 implements an extensive set of 3GPP worldwide standards to provide
advanced, 5th-generation packet radio service to mobile stations.
Supported frequency band
The Celona AP 20 is a 3GPP Release 15 compliant integrated 5G NR with external
antenna support, operating within the 3550-3700 MHz spectrum band. AP 20
supports 2x2 MIMO (multiple-input, multiple-output), up to 256-QAM modulation
and can be ceiling or wall mounted. Any Celona AP 20 within a Celona private 5G
network is automatically assigned frequency and power levels by Celona’s unique
Self Organizing Network (SON) software function, after the Celona Edge retrieves
available frequency channels per AP from SAS, given each AP’s geo-location.
Frequency Band Support (SKUs)
AP20-48 3.55-3.7 GHz
Seamless session mobility
If there are multiple Celona AP 20s in the system all connecting to the same Celona
Edge, the Celona AP 20 s can enable seamless mobility for mobile stations. The
source and target Celona AP 20s handle the transfer of contextual information
corresponding to existing flows setup for the mobile station automatically.
Coverage area
The coverage area of each Celona AP 20 depends on several factors:
• Transmit power authorized by the Spectrum Manager
• Transmit power set on the Celona AP 20 by Celona Edge
• Number of other APs operating on the same frequency in the geographic area
• Proximity of other APs operating on a dierent frequency but in the same band
• Building type and material types used within the building
• Expected minimum for data rate at the edge of coverage
As a rule of thumb, at maximum transmit power, the Celona AP 20 should provide
coverage between 10,000 and 25,000 square feet.
Transmit power
The Celona AP 20 can transmit at a maximum power of 24 dBm max per port, plus
a built-in omni with max 6 dBi antenna gain.
Supported system bandwidth
The Celona AP 20 supports one sector, and the system bandwidths are supported
are 20/40 MHz
Operations and Maintenance
Power Adapter/Injector Details
UL Listed - 56Vdc
1.6A/min
0.8A + 0.8A/min

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 16
Troubleshooting
System LED is not blue:
• Ensure the AP 20 has a POE++ (802.11bt) connection. POE (802.11 at) is not
sucient.
• Please check for loose connections between the POE++ injector / POE++ switch
and the Celona AP 20.
Contacting Support
Celona support is available via [email protected].
Warranty
As part of an active Celona subscription, Celona AP 20 comes with a limited
warranty that includes advanced replacement for RMA.

© Copyright 2023 Celona Inc. All rights reserved.
Installation Guide Celona Indoor Access Point AP 20 17
900 E Hamilton Ave Suite 200,
Campbell, CA 95008, United States
[email protected]
celona.io
© Copyright 2023 Celona Inc. All rights reserved.
