Celsus Sound Hi-Res SOUND User manual

HiFi Sound
Hi-Res SOUND

www.celsus-sound.com
1
FCC Notice - Declaration of Conformity Information
This device complies with part 15 of the FCC Rules. Operation is subject to
the condition that this device does not cause harmful interference (1) this
device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible
for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment
should be installed and operated with minimum distance between 20cm the
radiator your body: Use only the supplied antenna.
FCC ID: 2AD6J-HIRESSOUND
WARNING: Only peripherals complying with the FCC class B limits may be
attached to this equipment.

www.celsus-sound.com
2
Changes or modifications made to this equipment, not expressly approved
by us or parties authorized by us could void the user’s authority to operate
the equipment. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Notice for customers: The following information is only applicable to
equipment sold in countries applying EU Directives.
EU Declaration of Conformity
Hereby, Celsus Sound Audio, Inc. declares that
this device is in compliance with the essential
requirements and other relevant provisions of
Directive 2004/108/EC.
The manufacturer of this product is Celsus Sound Audio, Inc., 1712 Pioneer
Ave. Ste 1885, Cheyenne, Wyoming 82001, USA
The Authorized Representative for EMC and product safety is Celsus Sound
Audio, Inc., 1712 Pioneer Ave. Ste 1885, Cheyenne, Wyoming 82001, USA.
For any service or guarantee matters please refer to the addresses given in
separate service or guarantee documents.
For customers in Europe
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European
countries with separate collection systems)
This symbol on the product or on its packaging indicates
that this product shall not be treated as household waste.
Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural
resources. For more detailed information about recycling of

www.celsus-sound.com
3
this product, please contact your local Civic Office, your
household waste disposal service or the shop where you
purchased the product.
Safety Instructions
There are two categories of Safety Instructions included in this manual:
Product Warnings, (i.e., what must never be done to assure
avoiding those hazards that could cause bodily injury or property
damage); and
User Directions (i.e., what must always be done to assure the safe
use of your device).
The Safety Instructions contained in this manual have been categorized in
accordance with the seriousness of the potential hazards through the use of
Signal Words. Those Signal Words, and their intended meanings, are as
follows:
DANGER: Indicates that a failure to observe the Safety Instructions could
result in death or catastrophic bodily injury.
WARNING: Indicates that a failure to observe the Safety Instructions could
result in serious bodily injury.
CAUTION: Indicates that a failure to observe the Safety Instructions could
result in minor bodily injury or property damage.
NOTE: Designates important information that relates to activities and/or
conditions that might result in loss of data and/or damage to your device.
Safe Use and Operation of Your Device
This equipment emits stray RF energy and will interfere with the reception
of signals by airborne electronic navigational devices or medical devices. Do
not operate this equipment near any sensitive medical devices.
WARNING: Use only grounded AC power cords.
Always immediately disconnect the power to the equipment in the event
the device emits an unusual odor or sound or generates smoke.

www.celsus-sound.com
4
WARNING: Never attempt to disassemble, repair or make any modification
to your device. Disassembly, modification or any attempt at repair could
cause bodily injury or property damage, as well as damage to the device
itself.
WARNING: Your device is not a toy. Never allow children to play with your
device. Misuse, rough or improper handling of your device by children could
result in serious bodily injury for any of the enumerated safety warnings in
this manual. In addition, always keep all accessories and components out of
the reach of small children as small parts might present a choking hazard.
Seek immediate medical attention if choking occurs or if any small part has
been swallowed.
CAUTION: Never raise the sound volume level too high when using your
device with earphones. An excessive sound volume level could cause
damage to your hearing.
WARNING: To reduce the risk of fire or electric shock, do not expose the
unit to moisture or water.
Do not allow foreign objects to get into the enclosure. If the unit is exposed
to moisture, or a foreign object gets into the enclosure, immediately
disconnect the power cord from the wall. Take the unit to a qualified service
person for inspection and necessary repairs.
Read all the instructions before connecting or operating the component.
Keep this manual so you can refer to these safety instructions.
Heed all warnings and safety information in these instructions and on the
product itself. Follow all operating instructions.
Do not use this unit near water.
You must allow a minimum 10 cm or 4 inches of unobstructed clearance
around the unit. Do not place the unit on a bed, sofa, rug, or similar surface
that could block the ventilation openings. If the unit is placed in a bookcase
or cabinet, there must be ventilation of the cabinet to allow proper cooling.
Keep the component away from radiators, heat registers, stoves, or any
other appliance that produces heat.

www.celsus-sound.com
5
The unit must be connected to a power supply only of the type and voltage
specified on the rear panel.
Connect the component to the power outlet only with the supplied power
supply cable or an exact equivalent. Do not modify the supplied cable.
Do not route the power cord where it will be crushed, pinched, bent,
exposed to heat, or damaged in any way. Pay particular attention to the
power cord at the plug and where the cord exits the back of the unit.
The power cord should be unplugged from the wall outlet during a lightning
storm or if the unit is to be left unused for a long period of time.
Immediately stop using the component and have it inspected and/or
serviced by a qualified service agency if:
The power supply cord or plug has been damaged.
Objects have fallen or liquid has been spilled into the unit.
The unit has been exposed to rain.
The unit shows signs of improper operation.
The unit has been dropped or damaged in any way.

www.celsus-sound.com
6
Celsus SP-One Speaker
Spacious sound stage, commanding bass, exemplary coherence
and musicality
Size notwithstanding, the Celsus SP-One speaker can fill a
room with audiophile-quality sound. The SP-One’s expansive
soundstage, commanding bass and overall musicality puts it at
the forefront of “bookshelf” speakers. And for more personal
applications, the SP-One’s excellent nearfield characteristics,
especially at low volume settings, makes it the perfect desktop
companion. The SP One's enclosure is made of a dense,
premium-quality, naturally finished bamboo. The carbon-fiber
woofer, featuring an aluminum waveguide, nicely
complements the cabinet's sophisticated styling.
Design features that enable SP-One to outperform similar
speakers
1) Deep Bass Carbon Fiber Woofer: lightweight 3.5 inch
woven carbon-fiber cone, wave reflection structure and

www.celsus-sound.com
7
custom-designed magnet together produce a 55Hz frequency
normally typical of larger woofers.

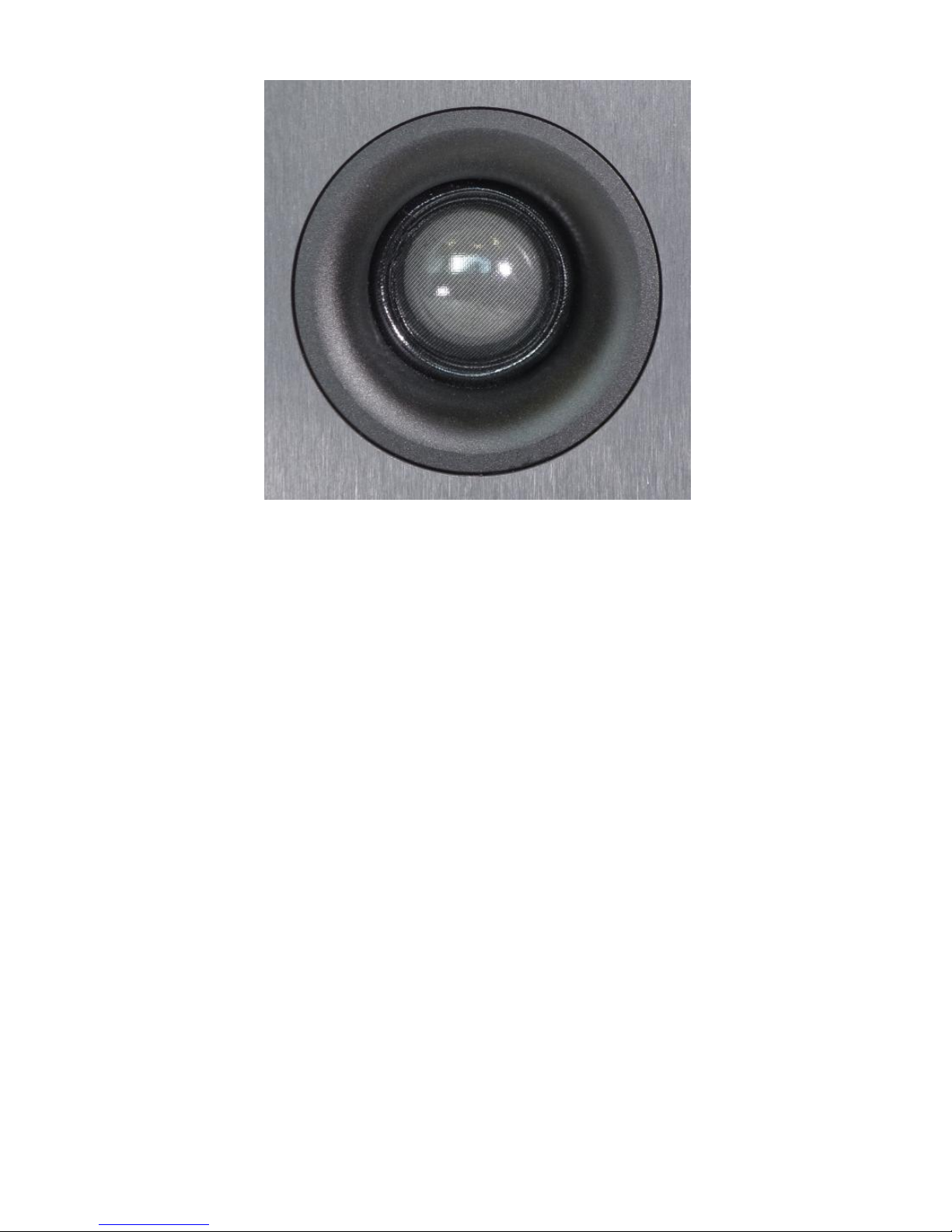

2) Tweeter: soft dome, horn-loaded driver for a wide
dispersion of highs –a design that lowers the crossover
frequency in order to achieve a flatter frequency response.

www.celsus-sound.com
8
The soft-dome tweeter’s high-energy magnetic flux and self-
cooling capability together produce an audibly clearer signal.
3) Frequency Division: By carefully matching tweeter and
woofer characteristics, the SP-One eliminates the need for a
traditional crossover network, so often a source of degraded
sonic. Instead, the SP-One employs a single custom capacitor
as a frequency divider for a more detailed and vivid sound.

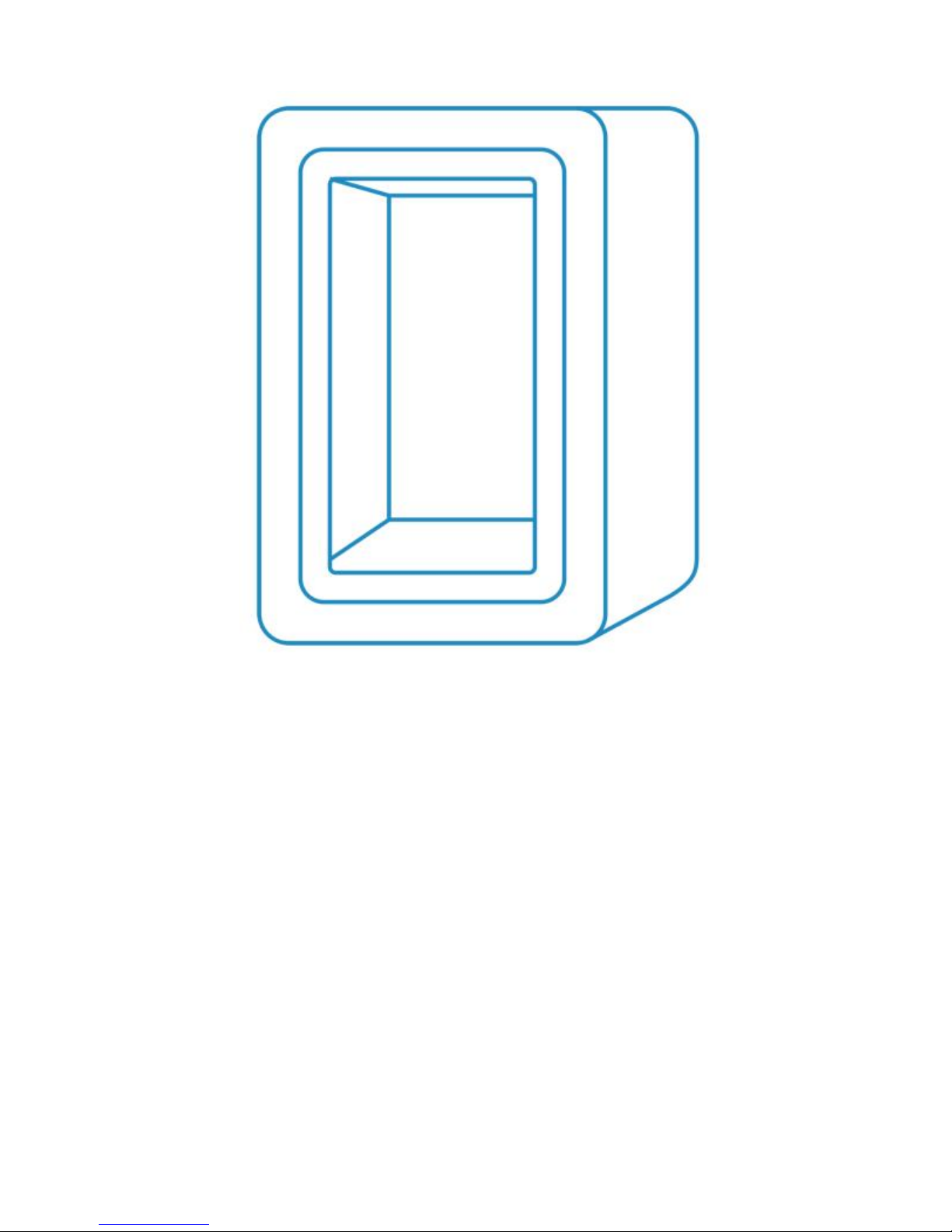

4) The SP-One’s double cavity allows for a bass reflex design
capable of delivering powerful dynamics.

www.celsus-sound.com
9
5) CD-quality Bluetooth sound: together, the 4.0 Bluetooth
transmitter and receiver module with aptX technology plus the
SP-One’s noise-reduction circuit deliver CD-quality sound.
6) Optimized Active Speaker Design: the SP-One audiophile-
grade power amplifier‘s specific compatibility with speaker and
Bluetooth module bring to life a vast, imposing soundstage
rich in the music’s smallest details.
Features:
Enclosure is made of a dense, premium-quality,
naturally finished bamboo

www.celsus-sound.com
10
Carbon Fiber Woofer with wave reflection structure and
custom-designed magnet together produces 55Hz deep
bass and the most coherent sound.
Soft dome, horn-loaded tweeter for a wide dispersion
of highs
A single custom capacitor replaces complex crossover
for a more detailed and vivid sound.
Double cavity cabinet design allows for deep bass and
powerful dynamics.
Optimized active speaker design
Specification:
Frequency Response: 55Hz to 22kHz
Impedance: 6 Ohms
Power Rating: 60Watt RMS
Sensitivity: 88dB
Inputs: Bluetooth & Line In
Power Supply: AC adapter (DC19.5V, 4.5A)
5V DC charging Port for external accessory
Dimension (H x W x D): 195 X 130 X 180mm
Weight: 2.3Kg
User Guide

www.celsus-sound.com
11
The 5V charger output on the back of SP-One can be used to
power an external WiFi Audio receiver or use as a charger for
your mobile device.

www.celsus-sound.com
12
Speaker Placement and Setup
1. The Active Speaker (the unit that has the back panel as
shown in the illustration above) should be placed on the
right.
2. The speakers should be at least 1.5 meters apart, and
about 1 meter away from the wall.
3. Connect the two speakers using the cable provided.
4. Use only the included AC adapter to power up the
speaker. It is designed to work with worldwide AC from
100 to 240V.
There are three ways to configure the SP-One:
1) SP-One as a Bluetooth speaker
a. Set the switch on the back of the speaker to
WIRELESS. A LED will blink rapidly in red and blue
color o indicate that it is in pairing mode. It will turn
to blinking blue color when it is paired with a source
device.
b. Connect your Bluetooth source device (smartphone,
tablet or computer) to the SP-One.
c. To manually un-pair the speaker from a source
device, press and hold the small PAIR DISABLE
button for 3 seconds.
2) SP-One as an active speaker using AUX input
a. Set the switch on the back of the speaker to AUX.
b. Connect the analog output from an external source
to the RCA input of SP-One.

www.celsus-sound.com
13
3) SP-One as a passive speaker
a. You might want to use an external Integrated
Digital Amplifier (which has USB and optical inputs
for connecting to other digital source devices) to
drive SP-One instead of its internal power amplifier.
b. Connect the external power amplifier speaker
cables to the left and right SP-One speaker
terminals (do not connect to the RCA inputs). Unlike
the AUX and Bluetooth configuration, you do not
connect the speaker cables between the two speakers.
They are both connected to the external amplifier.
Accessories
Antenna
Speaker cable
Line In cable
AC power adapter and power cord
Manual
Two sets of Rubber feet for speakers

14
Celsus Sound’s Limited Warranty and Limitation of
Liabilities
ADDITIONAL RIGHTS
FOR CONSUMERS, WHO ARE COVERED BY CONSUMER PROTECTION LAWS OR
REGULATIONS IN THEIR COUNTRY OF PURCHASE OR, IF DIFFERENT, THEIR COUNTRY
OF RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY ARE IN ADDITION TO
ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS
AND REGULATIONS. THIS WARRANTY DOES NOT EXCLUDE, LIMIT OR SUSPEND ANY
RIGHTS OF CONSUMERS ARISING OUT OF NONCONFORMITY WITH A SALES
CONTRACT. SOME COUNTRIES, STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION MAY
LAST, SO THE LIMITATIONS OR EXCLUSIONS DESCRIBED BELOW MAY NOT APPLY
TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS THAT VARY BY COUNTRY, STATE OR PROVINCE. THIS LIMITED
WARRANTY IS GOVERNED BY AND CONSTRUED UNDER THE LAWS OF THE COUNTRY
IN WHICH THE PRODUCT PURCHASE TOOK PLACE.
LIMITED WARRANTY
For a period of ONE (1) YEAR from the date of retail purchase by the original end-user
purchaser (“Warranty Period”), Celsus Sound warrants (in) this product against defects in
materials and workmanship, and (ii) that each Product, unmodified and under normal use
and conditions, will substantially comply with Celsus Sound’ applicable written technical
documentation for the Product. Celsus Sound reserves the right to make substitutions
and modifications from time to time in the specifications of Products sold by Celsus Sound,
provided that such substitutions or modifications do not materially affect overall Product
performance.
If a hardware defect exists and a valid claim is received within the Warranty Period, at its
option and to the extent permitted by law, Celsus Sound will (1) repair the hardware
defect at no charge, using new or refurbished replacement parts, (2) exchange the product
with a product that is new or which has been manufactured from new or serviceable used
parts and is at least functionally equivalent to the original product, or (3) refund the
purchase price of the product. Celsus Sound may request that you replace defective parts
with user-installable new or refurbished parts that Celsus Sound provides in fulfillment of
its warranty obligation. A replacement product/part assumes the remaining warranty of
the original product or ninety (90) days from the date of replacement or repair, whichever
provides longer coverage for you. When a product or part is exchanged, any replacement
item becomes your property and the replaced item becomes Celsus Sound's property.
When a refund is given, your product becomes Celsus Sound's property.
OBTAINING WARRANTY SERVICE

15
If you purchased the product in the U.S., deliver the product, at your expense, to any
Celsus Sound Service Center located in the U.S. If you purchased the product outside of
the U.S., deliver the product to any Celsus Sound Authorized Importer in the country
where you purchased the product. Be aware, however, that not all countries have Celsus
Sound Authorized Service Providers (‘NASP’) and not all Authorized Service Providers
outside the country of purchase have all parts or replacement units for the product. If the
product cannot be repaired or replaced in the country it is in, it may need to be sent to a
different country or returned to the country of purchase at your expense for repair or
replacement. If you seek service in a country that is not the country of original purchase,
you will comply with all applicable import and export laws and regulations and be
responsible for all custom duties, V.A.T. and other associated taxes and charges. Where
international service is available, Celsus Sound may repair or exchange defective products
and parts with comparable products and parts that comply with local standards.
You can always deliver the product to Celsus Sound’s U.S. main service center for
obtaining warranty service, however, you may have to pay for return shipping cost.
Celsus Sound may send you user-installable new or refurbished replacement product or
parts to enable you to service or exchange your own product (“DIY Service”). Upon receipt
of the replacement product or part, the original product or part becomes the property of
Celsus Sound and you agree to follow instructions, including, if required, arranging the
return of original product or part to Celsus Sound in a timely manner.
When providing DIY Service requiring the return of the original product or part, Celsus
Sound may require a credit card authorization as security for the retail price of the
replacement product or part and applicable shipping costs. If you follow instructions,
Celsus Sound will cancel the credit card authorization, so you will not be charged for the
product or part and shipping costs. If you fail to return the replaced product or part as
instructed or the replaced product or part is not eligible for warranty service, Celsus Sound
will charge the credit card for the authorized amount.
EXCLUSIONS AND LIMITATIONS
This Limited Warranty applies only to hardware products manufactured by or for Celsus
Sound that can be identified by the "Celsus Sound" trademark, trade name, or logo affixed
to them. The Limited Warranty does not apply to any non-Celsus Sound hardware
products or any accessories, even if packaged or sold with Celsus Sound hardware. Non-
Celsus Sound manufacturers, suppliers, may provide their own warranties. Other
accessories distributed by Celsus Sound under the Celsus Sound brand name are not
covered under this Limited Warranty. This warranty does not apply: (a) to damage caused
by accident, abuse, misuse, misapplication, liquid contact, fire, earthquake, non-Celsus
Sound products, or other external causes; (b) to damage caused by service performed by
anyone who is not a NASP; (c) to a product or a part that has been modified without the
written permission of Celsus Sound; (d) to consumable parts, such as batteries, or
protective coatings designed to diminish over time unless failure has occurred due to a
defect in materials or workmanship; (e) to cosmetic damage, including but not limited to
scratches, dents, and broken plastic on ports; (f) to defects caused by normal wear and

16
tear or otherwise due to the normal aging of the product; or (g) if any Celsus Sound serial
number has been removed or defaced.
Important: Do not open the hardware product. Opening the hardware product may cause
damage that is not covered by this warranty. Only Celsus Sound or a NASP should
perform service on this hardware product.
THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR
WRITTEN, EXPRESS OR IMPLIED. CELSUS SOUND SPECIFICALLY DISCLAIMS ANY AND
ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF CELSUS SOUND
CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED
WARRANTY, ALL SUCH WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN
DURATION TO THE DURATION OF THIS WARRANTY. No Celsus Sound reseller, agent,
or employee is authorized to make any modification, extension, or addition to this
warranty.
CELSUS SOUND IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR
CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED
TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPLACEMENT OF
EQUIPMENT AND PROPERTY, ANY COSTS OF RECOVERING, REPROGRAMMING, OR
REPRODUCING ANY PROGRAM OR DATASTORED IN OR USED WITH CELSUS SOUND
PRODUCTS, AND ANY FAILURE TO MAINTAIN THE CONFIDENTIALITY OF DATA
STORED ON THE PRODUCT. CELSUS SOUND SPECIFICALLY DOES NOT REPRESENT
THAT IT WILL BE ABLE TO REPAIR ANY PRODUCT UNDER THIS WARRANTY OR MAKE
A PRODUCT EXCHANGE WITHOUT RISK TO OR LOSS OF PROGRAMS OR DATA.
Some states and provinces do not allow the exclusion or limitation of incidental or
consequential damages or exclusions or limitations on the duration of implied warranties
or conditions, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights that vary by state or
province.
Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that
the unit is within the Warranty period must be presented to obtain warranty service.
REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY
OF THE CONSUMER.
CELSUS SOUND SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS
PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON
THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
