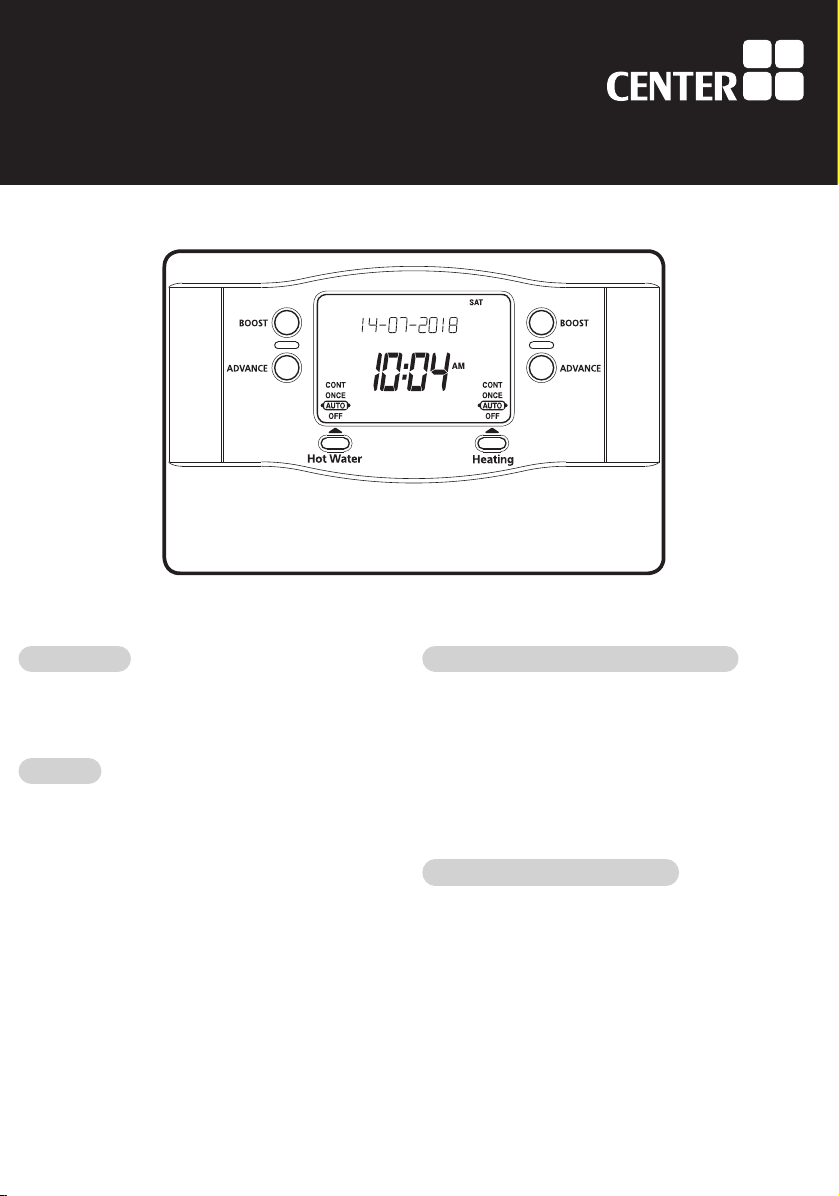

Introduction
The programmer controls your central heating system.
It will enable you to select the times when heating and
hot water are switched ON and OFF.
Features
•Weekday/weekend heating programme.
•
Weekday/weekend hot water programme.
•Three ON/OFF switching times per day.
•
Built-in programme with typical ON/OFF times.
•ADVANCE buttons for heating and hot water.
•BOOST buttons for heating and hot water, giving
up to 3 hours of boost.
•Settings stored in non-volatile memory to prevent
loss of programme during power cuts.
•12 hour am/pm or 24 hour clock format.
The programmer and other controls in your
central heating system will provide comfortable
temperatures in your home when you want them.
12 hour am/pm or 24 hour clock display
Your programmer can operate on 12 hour am/pm or
24 hour clock formats. To change the format, ensure
the slider is in the Run Programme position then press
the +and
-
buttons together for about 3 seconds. All
the displayed times will be automatically changed to
the new format.
Repeating this procedure will change the clock display
back to the original format.
Weekday/Weekend Programming
When setting the programme times (slider is in Set
Heating or Set Hot Water positions) the applicable
days will be displayed as a block of days (Mon...Fri or
Sat...Sun). The Day button will switch between the
Weekday and Weekend programmes when pressed.
Operating Your Controller
Normal Operation
For normal operation the slider must be in the Run
Programme position.
A red indicator lamp shows when the heating or hot
water is switched ON.
Two Mode buttons are provided to select how the
heating and hot water are controlled.
Keep pressing the
Heating
Mode button to scroll
through the 4 possible modes:
Off - The heating will remain OFF.
Auto - The heating will be switched ON and OFF
automatically according to the heating programme.
Once - The heating will come ON at the first
programmed ON time and go OFF at the last
programmed OFF time.
Cont. - The heating will remain ON continuously.
The Hot Water
Mode
button operates in the same
manner as described above for the Heating Mode
button.
Boost
The BOOST buttons switch the heating or hot water
ON for up to 3 hours without altering the programme.
Pressing either button once will give one hour boost,
and the words HEATING +1 HR or HOT WATER +1 HR
show on the display to confirm the button has been
pressed.
When the red indicator lamp is OFF, pressing the
BOOST button switches the heating or hot water ON
for just one hour.
When the red indicator lamp is ON, pressing the
BOOST button extends the programmed ON period
by one hour.
Further presses of the BOOST buttons will increase
the boost period by one hour for each button press,
up to a maximum of 3 hours. The display will change
to show the number of hours of boost, for example
HEATING +3 HR or HOT WATER +2 HR.
To cancel the boost hours, keep pressing the BOOST
button until the HEATING + (1, 2 or 3) HR or HOT
WATER + (1,2 or 3) HR disappears from the display.
Advance
The ADVANCE buttons switch the heating or hot
water ON or OFF without altering the programme.
When the indicator lamp is ON, pressing the ADVANCE
button switches the heating or hot water OFF until the
next programmed ON time.
When the indicator lamp is OFF, pressing the
ADVANCE button switches the heating or hot water
ON until the next programmed OFF time.
Power Failure
Your programmer stores the programme in non-volatile
memory to ensure correct operation after a mains
supply power cut. Date/time/mode are saved regularly
so you may only need to correct the time after a power
cut of more than a few minutes. Follow the instructions
for “Setting the Correct Date/Time” overpage.
User Guide
for 340006 (EHE0200363) Programmer
Ref: 4277
Whilst every care has been taken to ensure that the information included in
this document was accurate at the time of printing, we reserve the right to
change specifications at any time.
The photographs reproduced in this publication are within the constraints of
the printing process and are NOT to be used for matching purposes. E&OE.
Wolseley UK, The Wolseley Center, Harrison Way, Spa Park,
Royal Leamington Spa, CV31 3HH
For further information telephone 0344 292 7062
WEEE Directive 2012/19/EU
At the end of the product life dispose
of the packaging and product in a
corresponding recycling centre. Do
not dispose of the unit with the usual
domestic refuse. Do not burn the product.
Setting Your Programmer
Setting the Correct Date/Time
To set the correct date and time, unclip the fascia on
the front of the programmer.
STEP 1
Move the slider to the
Set Date/Time position.
The day of the month
will now be flashing
to indicate it can be
changed.
STEP 2
To change the day, press the + or
–
buttons until the
correct day is displayed. Then press the Confirm/Next
button to confirm and move to the next setting.
STEP 3
Set the month, year and time in the same way, pressing
Confirm/Next to move on each time.
STEP 4
Move the slider to Run Programme to complete
setting the date and time.
Setting the Hot Water Programme
The hot water programme has three ON/OFF switching
times per day. Each time can be set between 3.00 am and
2.50 am (on the next day) to allow you to programme
the hot water to stay on past midnight, if required.
STEP 5
Move the slider to the Set Hot Water position. The
words HOT WATER will now be visible on the display
and the days for Monday to Friday and the first ON
time will now be flashing.
STEP 6
Use the + and – buttons to set the first ON time. Each
press of the button will change the time by 10 minutes.
STEP 7
Press the Confirm/Next button once to confirm any
changes and display the first OFF time. Set this time
using the + and
–
buttons.
STEP 8
By pressing the
Confirm/Next
and + or
–
buttons the
two remaining ON/OFF times can be set. If you only
require two ON/OFF times per day it is recommended
you set the second OFF time equal to the second ON
time. Be sure to press
Confirm/Next
after making any
changes.
STEP 9
This completes setting the hot water programme for
Monday to Friday.
You now have a choice to set the programme for
Saturday and Sunday:-
Choice 1 Press the Day button to switch to
programming Saturday and Sunday. The ON/OFF
times for Saturday and Sunday can then be set as
described in steps 6 to 8.
or
Choice 2 Press the Copy button to copy the Monday
to Friday programme into Saturday and Sunday.
*NOTE*
1. When pressing the +button, the next ON or OFF
marker may start to flash. If this happens the next
programme time will have been changed. Press
the Confirm/Next button to check and adjust this
programme time if necessary.
2. When pressing the - button, the previous ON or OFF
marker may start to flash. If this happens the previous
programme time will have been changed. Follow the
procedure in “Reviewing Programme Times” to
check and adjust this time if necessary.
Moving the slider to the next position completes
setting the hot water programme.
Setting the Heating Programme
The heating programme has three ON/OFF switching
times for every day. Each time can be set between
3.00 am and 2.50 am (on the next day) to allow you
to programme the heating to stay on after midnight
if required.
STEP 10
Move the slider to the Set Heating position. The word
HEATING will now be visible on the display, and the
days Monday to Friday and the first ON time will now
be flashing.
STEP 11
The required heating programme for Monday to Friday
and Saturday/Sunday can now be set by following
the same procedure as “Setting the Hot Water
Programme” in steps 6 to 9.
STEP 12
Moving the slider to the next position completes
setting the heating programme.
Reviewing Programme Times
To review your hot water programme move the slider
to the Set Hot Water position.
To review your heating programme move the slider to
the Set Heating position.
To review the programme times for a day press the
Confirm/Next button repeatedly. Any of these times
can be adjusted by using the + and
–
buttons.
Press the Day button to review weekday or weekend
programmes.
3.00am
4.00am
5.00am
6.00am
7.00am
8.00am
9.00am
10.00am
11.00am
12.00am
1.00pm
2.00pm
3.00pm
4.00pm
5.00pm
6.00pm
7.00pm
8.00pm
9.00pm
10.00pm
11.00pm
12.00pm
1.00am
2.00am
3.00am
HEATING
HOT WATER

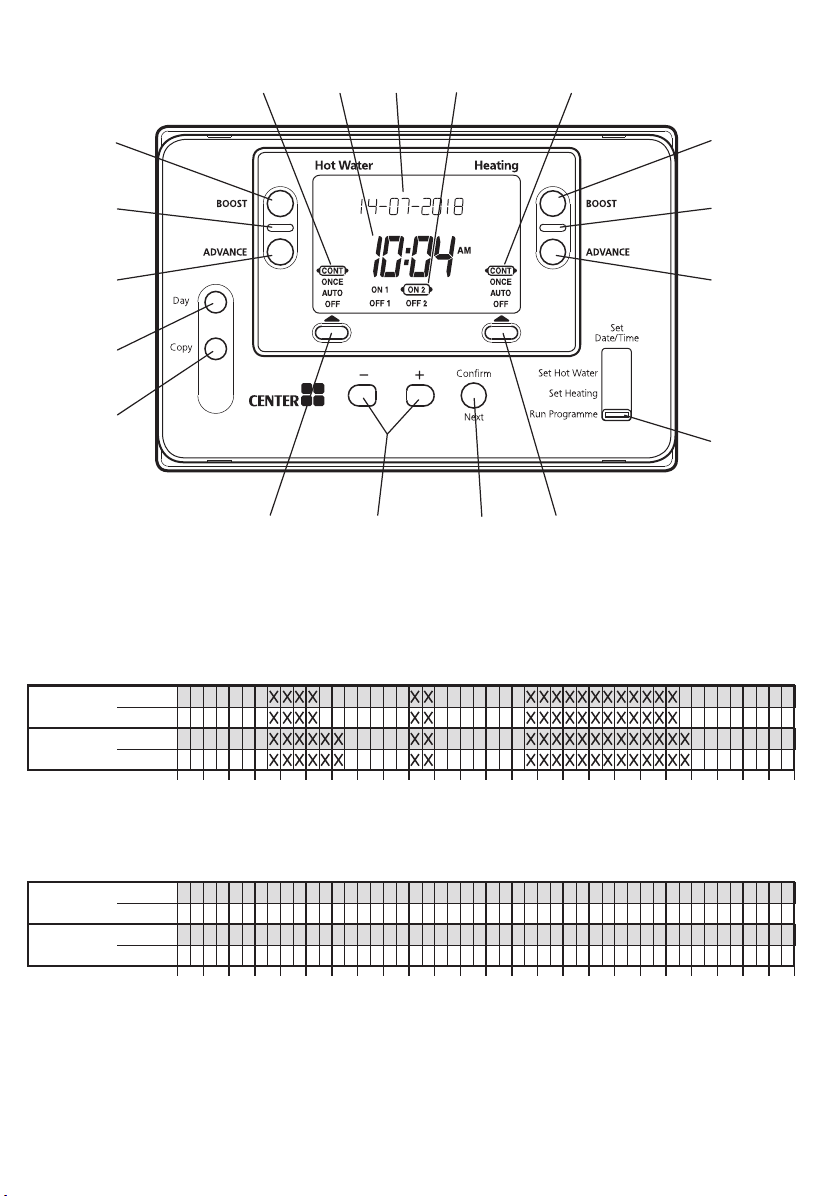

Built-in Programme
HOT WATER
MODE INDICATOR
HEATING MODE
INDICATOR
TIME
DISPLAY
DATE
DISPLAY
PROGRAMME
TIME MARKERS
HEATING
BOOST
BUTTON
HOT WATER
BOOST
BUTTON
HEATING
INDICATOR
LAMP
HOT WATER
INDICATOR
LAMP
HEATING
ADVANCE
BUTTON
HOT WATER
ADVANCE
BUTTON
COPY
PROGRAMME
BUTTON
DAY SELECT
BUTTON
HEATING MODE
BUTTON
CONFIRM/NEXT
BUTTON
– AND +
BUTTONS
HOT WATER
MODE BUTTON
SLIDER
