Elpas Wi-Fi Man Down Tag
P/N: 5-MDT00433-0
User Guide
www.CenTrak.com
Page 1 of 13
Aug 2021
0Introduction
This User Guide provides basic instructions for the successful usage
of the Elpas Wi-Fi Man Down Tag.
CAUTION! Reasonable effort was made to ensure that the specifications and other information in this guide are accurate and complete at the time of its
publication. Nonetheless
, all information contained in this document is subject to change at any time without prior notice. Any modifications to this equipment
without prior written consent of
CenTrak Inc. will void all warranties including the pertinent regulatory certifications and as such revoke your authority to operate
this product. Furthermore
, unauthorized modifications may also result in damage to this device and may cause a safety hazard to the users.
Product Description
The Elpas Wi-Fi Man Down Tag is a personal duress button device with optional pull cord
and fall detection capabilities and is designed for real-time monitoring and tracking of staff
members and visitors. This tag is designed for both seniors in assisted living facilities or
workplace staff members that may be subject to attack or injury in high-risk environments.
Alerts may be triggered either by squeezing the two side buttons. When worn on a belt, a
short rip cord may be attached to a belt loop so that an alert is transmitted
when the cord is pulled.
Note: Users can also wear the Elpas Wi-Fi Man Down Tag as a pendant using a lanyard. If you choose
to do so, make sure you use a lanyard for which, the force required to unlatch the tether switch is less
than the force required to open the clasp.
The pull mechanism is particularly useful for seniors with arthritis
who have difficulties pressing buttons.
The Elpas Wi-Fi Man Down tag detects falls and alarms when
tilted horizontally. To prevent false alarms, the device indicates a pre-alarm
by beeping and vibrating giving the wearer a chance to cancel the alarm
before it is transmitted by pressing on the front cancel button.
(Actual products may vary from photo)
Button press or pull cord (pull cord is present only in Fall detect version) should be used
as the primary means of calling for help even after a fall. The fall detection is meant to
alert in the event that the victim falls unconscious and may not trigger if not sufficiently
horizontal.
Elpas Man Down Tags may be monitored by Elpas local controllers and/or by CenTrak
Omni Software. Elpas Low Frequency Beacons or IR readers may be used to provide
room level indoor location.
Note: Users who do not require it, can disable the IR functionality to prolong battery life. See page 3.
Outputs on all Elpas network devices can be used to drive sirens, strobe lights or PA
systems. Alerts may be sent to various handheld devices such as DECT handsets using
Omni DECT interfaces or to IOS or Android smartphones using the Omni Go app.
Calls may be cleared by exposing the Elpas Wi-Fi Man Down Tag to a responder’s
handheld LF beacon requiring that staff arrive at the location of the caller.
Warning: When IR location is needed, placing the Elpas Wi-Fi Man Down Tag in a pocket or covered area
will significantly reduce the IR range of the device. The Elpas Wi-Fi Man Down Tag should only
be worn on the outside of the user’s clothing.

Elpas Wi-Fi Man Down Tag – User Guide
Page 2 of 13
Aug 2021
Emergency Call Button Events
Factory Default: B1=0 (Button Up)
Activation/Emergency Call: Pressing both buttons, simultaneously, for at least 1 second or pulling the cord is - B1=1 (Button Down) and
last LF location, 6 RF messages, 3 for B1 Down and 3 for last LF, are transmitted (each @ 4ms in duration), 312.5ms apart.
Upon button release, B1=0 (Button Up), 3 RF messages are transmitted (each @ 4ms in duration), 312.5ms apart.
Fall Detection - The Elpas Wi-Fi Man Down tag detects a fall when tilted. The device will report when it goes from vertical to horizontal or
vice versa and remains in that position for ten seconds or longer.
Alert Testing (Elpas Shield Test event):Pressing either button alone, B1=1 (Button Down), 3 RF messages are transmitted (each @ 4ms
in duration), 312.5ms apart.
Upon button release, B1=0 (Button Up) 3 RF messages are transmitted (each @ 4ms in duration), 312.5ms apart.
Product Specifications:
RTLS Technologies Wi-Fi 2.4GHz / UHF 433.92MHz / LF 125KHz; IR (800nm)
Maximum Power RF 10mW @ 433MHz / LF 65dBµA/m @ 10m @ 125KHz
Maximum Tx Power 10dBm @ 433MHz
Programmable via Mobile Provisioning App
Wi-Fi (Motion Stationary) Default
Recommendation: Use low value for DTIM. Recommended value = 1
Use low value for beacon interval time – recommended value 100ms or less
Factory Programmed
RF (Motion/Stationary) Default: Supervision messages every 30secs /60secs
IR (Motion/Stationary) Default: Supervision messages every 5secs /60secs
RF under LF Default: 6 RF transmissions (each transmission @ 4ms in duration), 312.5ms apart
IR under LF Does not transmit
Event Messages
Button Pre ss/Release
Lo w Battery
3 RF transmissions (each transmission @4ms in duration), 312.5ms apart
Supervised Events
Button Press Release, LF Chokepoint and tamper, Low Voltage Motion
Power S ource
3V/1000 mAh battery: Sony CR2477 or Panasonic CR2477
Battery Life 12 months under normal working assumptions
LED Status Indicator Button Press/Release | Motion/Stationary | Entering/Exiting LF Field | Low Battery
Badge ID Unique, factory-programmed ID
Construction Nylon Plastic (IP65)
Dimensions (H x W x D) 8.3 x 4.4 x 1.7 cm (3.3 x 1.7 x 0.7 inches)
Weight 44.4 grams (1.56 ounces)
Placem ent Belt or Lanyard
Operating
Environment
Temp: -30°C to 60°C (-22°F to 140°F) Humidity: 95% non-condensing
WARNING: The battery life decreases if the tag is exposed to temperatures above 50°C
Managem ent S oftware Omni V5.2 or higher
Regulatory IC, FCC, and CE compliant
Warranty 1 year limited (excluding battery)
Pre-fall Alarm Buzzer and vibration
Product offerings and specifications are subject to change without notice.
Ordering Information
Part Number: Description:
5-MDT00433-0 Elpas Man Down Tag
Accessories
Part Number: Description
5-LW009800-0 Elpas Shield belt Clip (set of 5)
5-LW009700-0 Elpas Shield Pull Cord (set of 5)
5-LW009900 Elpas Shield Canvas Case

Elpas Wi-Fi Man Down Tag – User Guide
Page 3 of 13
Aug 2021
Provisioning
Given the two-way nature of the Wi-Fi channel, the transmission characteristics of the tag will be configurable using a mobile app called the
Man Down Provisioning App (see Provisioning App details section of this document).
The following is a list of provisioned options:
Wi-Fi Encryption Type
Wi-Fi Password String Hidden
Network Priority
When multiple networks are defined and visible by
the tag, the tag will join the priority network
Omni Server Address String IP Address or Host ame of Omni Server
Transmission
Characteristics
Motion Supervision
Int Seconds 300
Interval between Wi-Fi supervision messages when
tag is in motion
Motionless Supervision
Int Seconds 300
Interval between Wi-Fi supervision messages when
tag is stationary
Report Entry to LF Boolean FALSE
If true, tag will report LF event upon each entry to
LF Field
Report Departure from LF
FALSE
If true, tag will report LF event upon transitions
between motion and motionless
Report Motion Events
FALSE
If true, tag will report LF event upon transitions
between motion and motionless
Front Button Press Int
1
1 - one - Do not report
2 - Down Only - Report only button down
3 - Both - Report both down and up
Report Tilt Boolean FALSE
Report Fall Boolean FALSE NOTE: Fall detection can be turned off using the
front button
Report Test Boolean FALSE Single side push
Transmit IR Boolean FALSE
Transmit RF Boolean FALSE
Transmit Wi-Fi Boolean FALSE
Use Vibration Feedback
Boolean
FALSE
Vibrate on pre-fall alarm
Wi-Fi Provisioning App
The Wi-Fi Provisioning App is available for Android and iOS.
To begin using the app:
1. Configure your mobile phone to be a hotspot.
2. Navigate to your mobile phone’s Hotspot settings.
3. Click the ellipses in the top right corner.

Elpas Wi-Fi Man Down Tag – User Guide
Page 4 of 13
Aug 2021
4. Click Configure Mobile Hotspot.
5. Set the Network Name and Password:
Network Name: TagSetup.
Password: 11223344.
6. Click Save.
7. To connect the device to the handset take the Elpas tag and press any of the side buttons.
Hold it for 10 seconds.
8. Open the Wi-Fi Provisioner App.
9. Connected to: indicates the devices is not connected yet .
10. Once it connects the screen will show the device name and the firmware version.
11. The entire configuration is sent to the device. There is no option to read information from the device, information that was displayed
on the device is overwritten each time the configuration is written.
There are two options available:
Write – save all the configured fields to the device, overwrite all the current settings for the device.
End – test the connection but no other action is required, the same functionality as Cancel, disconnect the device.

Elpas Wi-Fi Man Down Tag – User Guide
Page 5 of 13
Aug 2021
Configuration
NOTE: It is not necessary to be connected to the Wi-Fi to do the configuration.
The configuration of the device is as follows:
1. Omni hostname or IP indicates the IP address where the Omni server is based.
2. Add network, will only be active if there are no Wi-Fi networks available.
NOTE: There is a limit of only one Wi-Fi network.
NOTE: Currently, only one Wi-Fi network is supported.
a. To set up a network from this screen, click Add network.
b. << Back will return to the previous screen.
c. Provide the Wi-Fi network SSID.
d. If Encryption type is not Open provide the Wi-Fi network password.

Elpas Wi-Fi Man Down Tag – User Guide
Page 6 of 13
Aug 2021

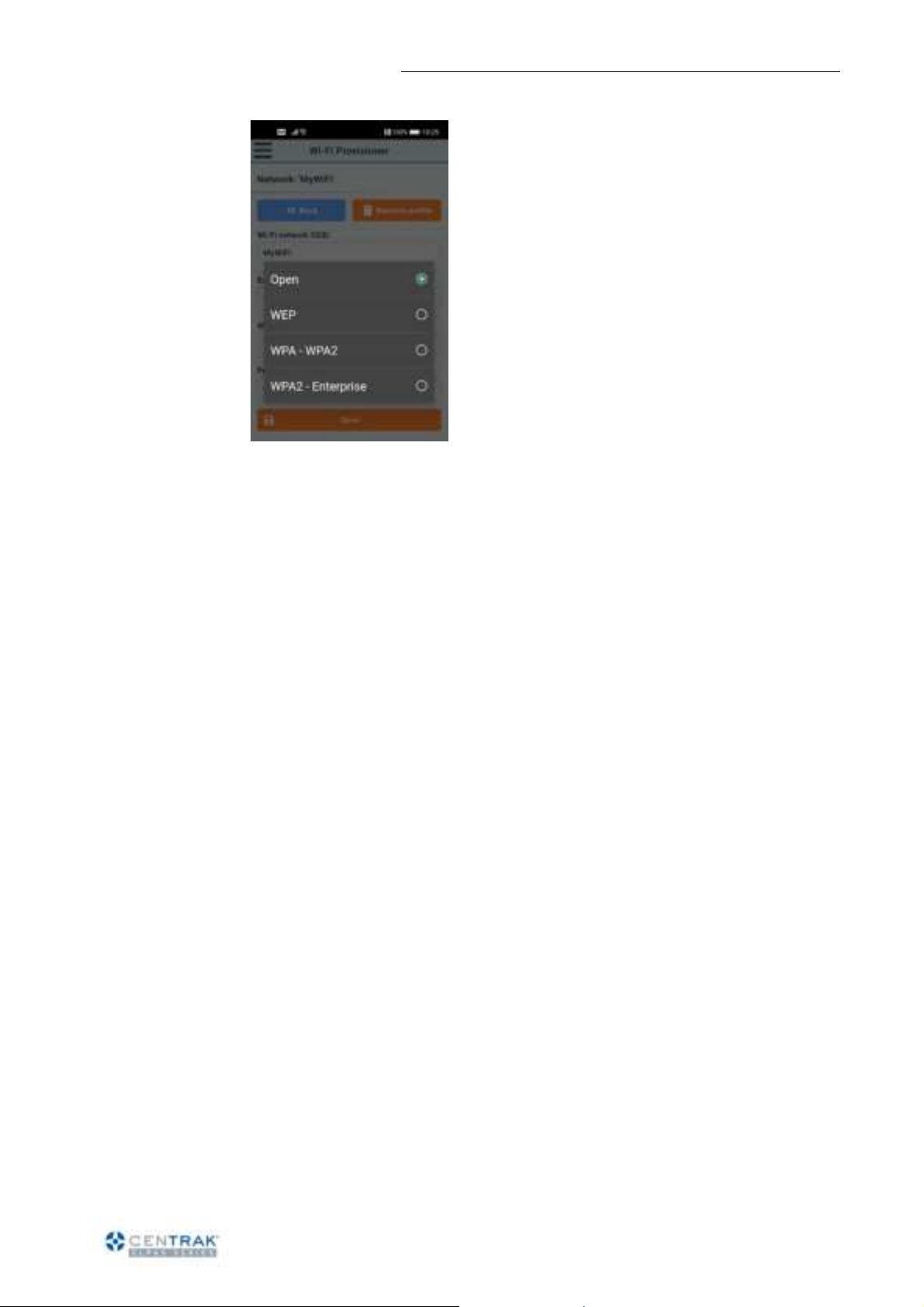

i. The Encryption type options that are provided are:
3. Remove Profile will remove the Wi-Fi information.
4. Click Save, the information is saved and returns to the main screen.

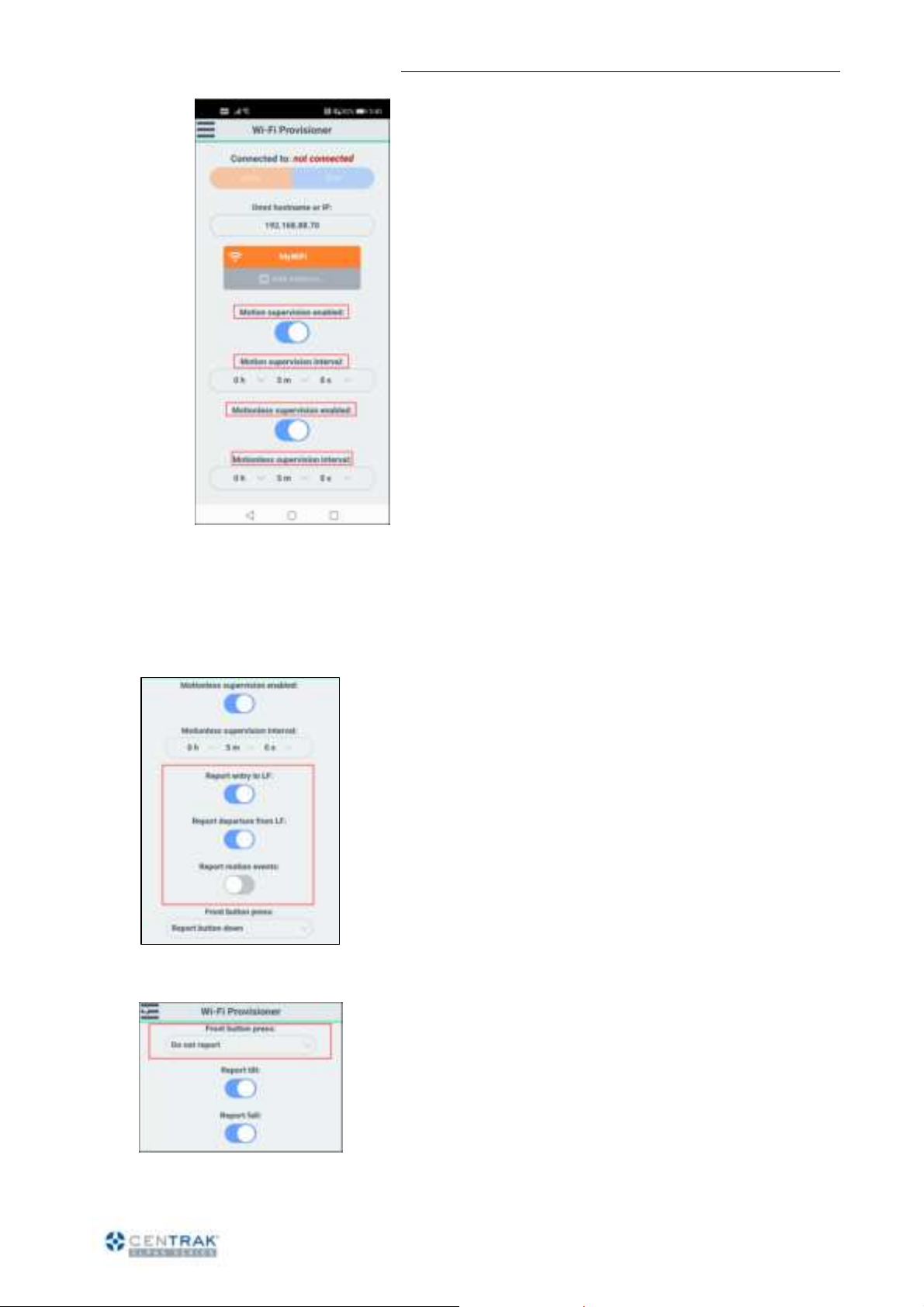

5. Enable Motion Supervision by selecting the toggle switch.
Motion Supervision intervals can be set using the dropdown arrows.
The device, while being in motion, sends a supervision message to Omni at the intervals selected.
As per the example below a message will be sent every 5 minutes:
a. The device turns on.
b. Connects to the Wi-Fi network.
c. Submits the message.
d. Returns to sleep mode, turning the Wi-Fi off and preserving battery life.
NOTE: The minimal supervision value is 5 minutes and is only valid for the Wi-Fi channel.
For the RF channel the value is factory set to be 10 seconds. The IR channel is NOT used for motion supervisions!
6. Enable Motionless Supervision by selecting the toggle switch.
Motionless Supervision intervals can be set using the dropdown arrows.
The device, while not in motion/stationary, sends a supervision message to Omni at the intervals selected.
As per the example below a message will be sent every 5 minutes:
a. The device turns on.
b. Connects to the Wi-Fi network.
c. Submits the message.
d. Returns to sleep mode, turning the Wi-Fi off and preserving battery life.
NOTE: The minimal supervision value is 5 minutes and is valid only for the Wi-Fi channel.
For RF and IR channels the value is factory set at 60 seconds.

Elpas Wi-Fi Man Down Tag – User Guide
Page 7 of 13
Aug 2021
7. Report entry to LF:
If active, when the device moves into an area with a LF beacon, a message is sent with the LF ID to Omni.
8. Report departure from LF:
If active, when the device moves out of an area with a LF beacon, a message is sent with the LF ID to Omni.
9. Report Motion Events:
A message is sent when the device starts or stops moving. By default this option is disabled.
10. Front button press:
The device has a front button that can be pressed.
There are three options to select from:
Do not report – do not send a message

Elpas Wi-Fi Man Down Tag – User Guide
Page 8 of 13
Aug 2021
Report button down (default) – when the button is pressed a message is sent
Report button down and up – in both cases, up and down, a message is sent
11. Report tilt:
Will report when the device goes from vertical to horizontal or vice versa and remains in that position for ten seconds or longer.
12. Report test (single side press):
The device has two side buttons. When this option is activated, if either of the buttons is pressed, a supervision message that
tests the connectivity between Omni and the Wi-Fi device is sent.
13. Transmit IR:, Transmit RF:, Transmit Wi-Fi:
Whichever of these options are activated, the device will use to transmit the messages. If all three are activated all three will be
used. If the device will not be required for a time and needs to be put into a deep sleep, disable all three options and no data
will be transmitted until the device is re-activated. A warning will be issued and needs to be confirmed. The device will need to
be reconfigured when activated again.
NOTE: This option should only be used when the device will not be used for a time for example, going on vacation.
14. Vibration feedback:
Produces a vibration on the pre-fall alarm. This option is off by default as it is a battery consuming feature.
15. Reset defaults:
Will reset all the settings to their default status.
16. Once the configuration is complete:
a. Return to the main screen.
b. Connect the device if it is not connected.
c. Select Write to save the configuration.
A confirmation message will confirm that the configuration was successful stored on your device.
d. The device will automatically be disconnected.

Elpas Wi-Fi Man Down Tag – User Guide
Page 9 of 13
Aug 2021
Initial Activation & Software Enrollment
The Elpas Wi-Fi Man Down Tag is shipped from the factory in
Sleep Mode to conserve battery power during transit.
1. Prior to initial usage, remove the Activation Label and
simultaneously press, both of the emergency call push buttons
for at least 7 seconds.
This action Awakens Elpas Wi-Fi Man Down Tag from Sleep Mode
and also enrolls its unique factory installed ID Number (a six-digital
hexadecimal value) into the Host RTLS Application.
If the Enrollment process is successful, the Red LED
Status Indicator of the transmitter lights up for 3 seconds.
Battery Replacement
CAUTION! Risk of explosion if battery is replaced an in
type. Dispose of used batteries according to the
manufacturer’s instructions.
1. Temporarily suspend usage of Elpas Wi-Fi Man Down Tag in
the host RTLS application.
2. Place Elpas Wi-Fi Man Down Tag on its right side. Remove
the 2 screws that hold the battery cover to the body.
3. First time replacement: Utilize the pull tab (find it with the
Bat▼mark engraved on the back) to slide the battery out of
the Transmitter.
Future replacements: In the absence of the pull tab, remove
the cover from the other side, and use a plastic instrument to
slide the battery out.
Dispose of the used battery in accordance with local
regulations.
CAUTION! After removing the battery please wait at
least 30 seconds before installing the replacement battery
so as to not cause damage to the tag or to negatively affect
the tag’s operational performance.
4. Slide the new battery into the transmitter. Recommended
battery: CR2450 lithium battery.
IMPORTANT! Ensure that the positive (+) side of the
battery faces up.
5. Close the side-cover(s) such that the screw holes are
correctly aligned. Tighten the 2 screws snugly into place. Do
not over-tighten as this may strip the case’s threads.
6. Reactivate the Transmitter in the Host RTLS Application.
Disabling/Enabling IR
By default, IR functionality is on.
1. Press button B1 (squeeze both side buttons) for five
seconds. The LED Flashes five times.
A single flash means IR is now on.
A double flash means IR is now off.
2. While the LED flashes, squeeze the side buttons again,
three short presses, to change from the current state. The
LED flashes again, as before, to indicate the new state.
Safety Issues
It is the responsibility of the system installer to ensure that the
appropriate staff members are suitably trained in the usage and
maintenance of Elpas Wi-Fi Man Down Tag.
Additionally, Supervisory Alerts should be configured in the Host
RTLS Application to notify staff members that Elpas Wi-Fi Man
Down Tag is:
In a low battery condition, or
 Not properly transmitting location and status data.
Note: The above configured Supervisory Alerts should be triggered
periodically to ensure system integrity.
Alert Testing
When you press either the left or the right emergency call push-
button individually, you trigger Elpas Wi-Fi Man Down Tag to emit a
Test Alert Message for the host RTLS application to confirm that the
unit is functioning properly.
CAUTION!
Before you remove the battery, press any
button for 4 seconds to discharge any residual voltage
from capacitors.

Elpas Wi-Fi Man Down Tag – User Guide
Page 10 of 13
Aug 2021
Note: If you do not press three times in five seconds (while
the LED flashes), the tag remains in the original state.

Elpas Wi-Fi Man Down Tag – User Guide
Page 11 of 13
Aug 2021
RF Transmissions in LF Fields
For Moving Transmitter
LF Response Time: Onboard LF receiver polls every 250ms to check if the Transmitter is in an LF zone
Transmission Rate: 3 RF event transmissions (each transmission about 2ms in duration), at 0.4 second intervals.
If the Transmitter stays in an LF zone, then repeated at 2 seconds intervals.
Transmitted Message Type: RF Data Message includes ID code of LF Beacon. Motion bit, M=1.
For Motionless Transmitters
LF Response Time: Onboard LF receiver polls every 250ms to check if the transmitter is in an LF zone
Transmission Rate: 3 RF supervision transmissions (each transmission about 2ms in duration), 0.4 seconds apart:
If the Transmitter stays in a LF zone for more than 10 minutes, then repeated at 15 second intervals.
Transmitted Message Type: RF Data Message includes ID code of LF Beacon. Motion bit, M=0
Cleaning & Disinfection Procedures
Use an appropriate antibacterial disinfectant such as Dispatch
®
Hospital Cleaner Disinfectant with Bleach from Caltech Industries
(http://www.caltechind.com) to clean the Lone Worker Transmitter.
Since ‘Cleaning Procedures’ may vary according to facility guidelines, thus the procedures given below are for illustrative purposes only:
Option 1 – Using Dispatch Disinfectant Spray
1. Lightly wet a disposable towel with Dispatch spray.
Do not saturate the towel
2. Wipe the outer surfaces of the sensor
3. Wipe the sensor with a dry disposable towel
4. Allow the sensor to air dry
5. Return the clean sensor to inventory or usage
6. Dispose of used towels per facility policies
Option 2 – Using Dispatch Disinfectant Towels
1. Open a new Dispatch pre-moistened towel
2. Wipe the outer surfaces of the sensor
3. Wipe the sensor with a dry disposable towel
4. Allow the sensor to air dry
5. Return the clean sensor to inventory or usage
6. Dispose of used towels per facility policies
Pull Switch Cleaning:
Frequent use of the pull switch may result in a buildup of dust on the mechanism. Dust buildup causes friction
which requires added force to pull and restore the switch. Should this occur,
clean the switch using a compressed air duster. Gently
spray on the pull switch, an
d use a brush (often included with the canister).
Alert Event Configuration in Omni
There are nine alert events relevant to the Lone Worker tag.
Lone Worker Fall Alarm (Fall Detect version only):When the
tag tilts and the pre-alert event is not cancelled within 15
seconds, the tag transmits the Lone Worker Fall alert which
indicates that the user has fallen and unable to function.
Lone Worker Front Button Press: In regular version, B2
down. In Fall Detect version, to cancel an alert event, the user
can press the button in the front of the tag. To cancel a Pre
Alarm event, the user can place the tag in the up-right position.
If the tag is repositioned, it transmits the Cancel (cancel the
pre-alert) event.
Lone Worker Panic: When under duress, the user can press
both of the side buttons, simultaneously, or pull the cord to
transmit a Lone Worker Panic alert.
Lone Worker Pull Cord Restore: When the user inserts the
cord back into place, the tag transmits a cancellation for the
pre-alert event.
Lone Worker Pre-Alert: When the tag tilts, it transmits a
Pre Alarm event. The pre-alert lasts for 15 seconds during
which, the user can cancel it.
Note that the Pre-Alarm and Fall event messages may
be disabled (and re-enabled) by pressing the front
button for approximately 10 seconds. The tag beeps
when the Fall function is disabled/enabled.
Lone Worker Single Side Button: To test the alerts, the
user can press either of the side buttons to transmit a Lone
Worker single-side button event.
Low Battery: When the battery of the tag runs low, it
transmits a low battery event.
Motion: When the tag is in motion, it transmits a Motion
event.
Stationary: When the tag is stationary, it transmits a
Stationary event.

Elpas Wi-Fi Man Down Tag – User Guide
Page 12 of 13
Aug 2021
Users can configure all or some of these alert events in one alert object, the Elpas Badge Alert object.
Note: This document includes only the Lone Worker Transmitter alert event specific instructions. For further information regarding alert configuration, see Eiris
Configuration Guide, section 5.

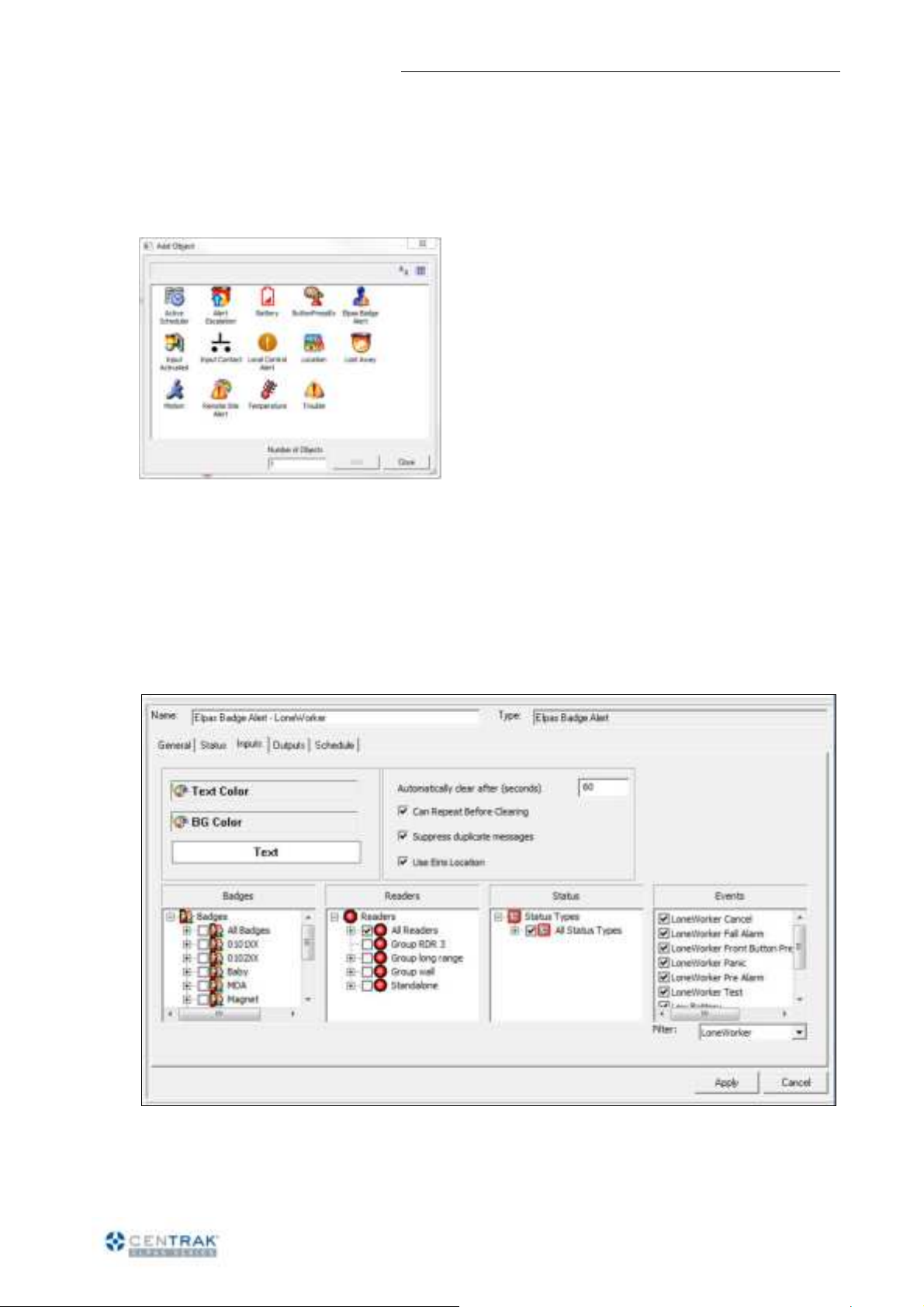

To configure Lone Worker alerts:
1. In the EV2 setup mode, right-click the Alerts branch and select Add by Type. The alerts Add Object window opens.
2. Select Elpas Badge Alert and click Add. A new Elpas Badge Alert object is created and opens in its General tab.
3. In the Name field, enter the name you choose (one that includes Lone Worker is recommended since the object is also used for
other badges).
4. Open the Inputs tab.
5. Under the Events pane, from the Filter drop-down list, select Lone Worker. The Lone Worker related events appear in the
Events pane.
6. Select the check-boxes of the events for which you want the alerts.

FCC regulatory conformance：This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
RF Exposure
The SAR limit adopted by FCC is 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported to the FCC for this
device type complies with this limit. The highest SAR value reported to the FCC for this device type when using in portable exposure
conditions is 0.258 W/kg.
IC regulatory conformance
This device complies with CAN ICES-3 (B)/NMB-3(B).
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subjectto the following two conditions:
(1) this device may not cause harmful interference, and
(2) thisdevice must accept any interference received, including interference that may cause undesiredoperation.
Cet appareil est conforme à la norme CAN ICES-3 (B)/NMB-3 (B).
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre
le fonctionnement.
RF Exposure
The SAR limit adopted by IC is 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported to the IC for this device
type complies with this limit. The highest SAR value reported to the IC for this device type when using in portable exposure conditions
is 0.258 W/kg.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
Such modifications could void the user’s authority to operate the equipment.
