Central Pneumatic 92208 Parts list manual

AIR IMPACT WRENCH
AND
RATCHET SET
ASSEMBLY AND OPERATION
INSTRUCTIONS
Model 92208
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
Copyright©2004 by Harbor Freight Tools®. All rights reserved. No portion
of this manual or any artwork contained herein may be reproduced in any shape
or form without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
REV 11h

SKU 92208 For technical questions, please call 1-800-444-3353. Page 2
Save This Manual
You will need the manual for the safety warnings and precautions, assembly instruc-
tions, operating and maintenance procedures, parts list and diagram. Keep your invoice with
this manual. Write the invoice number on the inside of the front cover. Keep the manual and
invoice in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING: When using tools, basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment.
Read all instructions before using this product!
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools in damp or
wet locations. Don’t expose to rain. Keep work area well lit. Do not use electrically
powered tools in the presence of flammable gases or liquids.
3. Keep children away. Children must never be allowed in the work area. Do not let
them handle machines, tools, extension cords, or air hoses.
4. Store idle equipment. When not in use, tools must be stored in a dry location to
inhibit rust. Always lock up tools and keep out of reach of children.
5. Use the right tool for the job. Do not attempt to force a small tool or attachment
to do the work of a larger industrial tool. There are certain applications for which this
tool was designed. It will do the job better and more safely at the rate for which it was
intended. Do not modify this tool and do not use this tool for a purpose for which it
was not intended.
6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in
moving parts. Protective, electrically nonconductive clothes and nonskid footwear are
recommended when working. Wear restrictive hair covering to contain long hair.
Specifications
Air Inlet 1/4”-18 NPT (All tools)
Maximum Operating Pressure 90 PSI (All tools)
Air Ratchet
Dimensions 1-5/8” D x 10-3/8” L
Drive Size 3/8” Sq.
Maximum Torque Output 50 Ft. Lbs.
Air Consumption 4 CFM
No Load RPM 150 (Reversible)
Impact Wrench
Dimensions 2-3/4” W x 7-1/4” L x 8” H
Drive Size 1/2” Sq.
Maximum Torque Output 240 Ft. Lbs.
Air Consumption 4 CFM
RPM 6,500 (Reversible)
BPM 1,020

SKU 92208 For technical questions, please call 1-800-444-3353. Page 3
7. Use eye and ear protection. Always wear ANSI approved impact safety goggles.
Wear a full face shield if you are producing metal filings or wood chips. Wear an ANSI
approved dust mask or respirator when working around metal, wood, and chemical
dusts and mists.
8. Do not overreach. Keep proper footing and balance at all times. Do not reach over or
across running machines or air hoses.
9. Maintain tools with care. Keep tools clean for better and safer performance. Follow
instructions for lubricating and changing accessories. Inspect tool cords and air hoses
periodically and, if damaged, have them repaired by an authorized technician. The
handles must be kept clean, dry, and free from oil and grease at all times.
10. Disconnect air supply. Disconnect air hose when not in use.
11. Remove adjusting keys and wrenches. Check that keys and adjusting wrenches
are removed from the tool or machine work surface before connecting the tool.
12. Avoid unintentional starting. Be sure the trigger is released when not in use and
before connecting to the air source. Do not carry any tool with your finger on the
trigger, whether it is connected or not.
13. Stay alert. Watch what you are doing, use common sense. Do not operate any tool
when you are tired.
14. Check for damaged parts. Before using any tool, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform its
intended function. Check for alignment and binding of moving parts; any broken parts
or mounting fixtures; and any other condition that may affect proper operation. Any
part that is damaged should be properly repaired or replaced by a qualified technician.
Do not use the tool if the trigger does not operate properly.
15. Guard against electric shock. Prevent body contact with grounded surfaces such as
pipes, radiators, ranges, and refrigerator enclosures.
16. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty. Only use accessories
intended for use with this tool. Approved accessories are available from Harbor Freight
Tools.
17. Industrial applications must follow OSHA guidelines.
18. Do not operate tool if under the influence of alcohol or drugs. Read warning
labels if taking prescription medicine to determine if your judgement or reflexes are
impaired while taking drugs. If there is any doubt, do not operate the tool.
19. Use proper size and type extension cord. If an extension cord is required, it must
be of the proper size and type to supply the correct current to the compressor without
heating up. Otherwise, the extension cord could melt and catch fire, or cause electrical
damage to the compressor. Check your air compressor’s manual for the appropriate
size cord.
20. Maintenance. For your safety, maintenance should be performed regularly by a
qualified technician.

SKU 92208 For technical questions, please call 1-800-444-3353. Page 4
21. Compressed air only. Never use combustible gas as a power source.
22. Use both hands. The torque generated from these tools can cause the tools to break
free of your grasp, causing serious injury and damage. Always operate the tools with
both hands.
23. WARNING: The brass components of this product contain lead, a chemical known to
the State of California to cause birth defects (or other reproductive harm).
(California Health & Safety code § 25249.5, et seq.)
Note: Performance of the compressor (if powered by line voltage) may vary depending
on variations in local line voltage. Extension cord usage may also affect tool perfor-
mance.
Warning:The warnings, cautions, and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be under-
stood by the operator that common sense and caution are factors which cannot be built
into this product, but must be supplied by the operator.
Unpacking
When unpacking, check to make sure all of the parts listed on pages 10-13 are included.
If any parts are missing or broken, please call Harbor Freight Tools at the number on the cover
of this manual as soon as possible.
Operation
Note: The directions below apply to both tools.
1. You will need to prepare a 1/4” air connector (not included) to connect to the Air Inlet on
back of the air tool’s handle. First, remove the plug from the Air Inlet. Then, wrap the
1/4” air connector with pipe thread seal tape before threading it into the Air Inlet.
Connect the 3/8” ID Air Source Hose (not included) to the tool.
Note: If you are not using an automatic oiler system, before operation, add a few drops of
Pneumatic Tool Oil to the airline connection. Add a few drops more after each hour of
continual use.
2. Set the air pressure on your compressor to 90 PSI. Do not exceed the recommended
air pressure of 90 PSI.
3. Check the air connection for leaks. Once you are satisfied there are no leaks, turn off
the air compressor and disconnect the tool.
For best service you should incorporate an oiler, regulator, and inline filter, as shown in
the diagram above. Hoses, couplers, oilers, regulators, and filters are all available at Harbor
Freight Tools.
1/4”-NPT
Air Tool

SKU 92208 For technical questions, please call 1-800-444-3353. Page 5
Air Impact Wrench Operation
Warning!! This Impact Wrench supplies
powerful torque and is designed to be
operated with two hands. Failure to op-
erate the Impact Wrench with two hands
may result in serious injury.
Note: Turn off your air compressor and
disconnect the air hose when you
are changing sockets. After you
attach the socket, attach the air
hose and turn the air compressor
on.
1. Select the appropriate size 1/2”
drive socket for your needs.
2. Push and snap the socket onto
the Anvil (18).
Tightening
Note: Slide the Reverse Valve (3) toward the front of the Wrench.
3. If available, check the recommended torque specification for the nut. To accurately
tighten hardware, use a torque wrench (not included) to tighten the nut to the proper
setting instead of the impact wrench.
4. Tighten the nut as tight as you can by hand.
5. Place the socket over the nut you wish to tighten.
6. Grip the Impact Wrench firmly with two hands and gently squeeze the Trigger (4).
Note: With the Trigger (4) released, fine tune the air flow with the Air Regulator (12) knob.
Note: If the Impact Wrench cannot tighten the nut to your satisfaction, do not raise the air pres-
sure on the compressor over 90 PSI. Pressures above 90 PSI will strip the workpiece
and damage the tool. Use other appropriate methods and tools to tighten the nut.
7. When the nut is tightened, release the Trigger (4). Turn off the air compressor and
disconnect the hose.
8. Always use a torque wrench to make sure that any nuts/bolts tightened using
this tool are tightened properly. Due to the nature of impact wrenches, they cannot
be relied upon to ensure proper tightening of nuts/bolts.
Loosening
Note: Slide the Reverse Valve (3) toward the rear of the Wrench.
9. Place the socket over the nut you wish to loosen.
10. Grip the Impact Wrench firmly with two hands and gently squeeze the Trigger (4).
Note: If the Impact Wrench cannot loosen the nut, do not raise the air pressure on the com-
pressor over 90 PSI. Do not attempt to loosen the nut with the Impact Wrench. Use
other appropriate methods and tools to loosen the nut.
11. When the nut is loosened, release the Trigger (4). Turn off the air compressor and
disconnect the hose.
12. If needed, remove the nut from the socket.
FIGURE 1
Reverse
Valve (3)
Air Inlet (10)
Tr i g g e r
(4)
A n v i l
(18)
Screw (40)
Air Regulator
(12)

SKU 92208 For technical questions, please call 1-800-444-3353. Page 6
Air Ratchet Operation
Warning! Do not use a “cheater” or other extension to increase torque for this tool. Do
not exceed the maximum torque rating on this tool.
Warning! Disconnect the Ratchet from the air source when attaching and removing
sockets. There is no safety lock mechanism on this tool; always disconnect from the
air source when not in use.
Refer to the photograph above.
1. Attach a 3/8” drive socket to the Ratchet Anvil (22a).
2. By following the directions on page 4, attach the Ratchet to the air source hose.
3. Gently press the Trigger (35a) to activate the Ratchet. Do not force the unit; allow it to
do the work for you. To change direction (loosen vs. tighten), stop the tool and move
it away from the workpiece, then turn the Reverse Switch (21a).
4. To adjust the torque, readjust the air pressure by changing the setting on the compressor.
Do not exceed the maximum air pressure of 90 PSI for this tool at any time.
5. When you are finished working, turn off the compressor and disconnect the air source
hose.
Warning! There may still be air in the Ratchet. Squeeze the Trigger (35a) and activate the
Ratchet to expel any air still inside the tool.
6. Remove the socket.
Maintenance
1. Make sure the air tool is disconnected from the air hose before attempting any main-
tenance.
2. If you are not using an automatic oiler system, put a few drops of pneumatic tool oil
through the air line before and after each use. During use, add a few drops every
hour.
3. Wipe the Tool down with a lint free cloth after each use.
4. Make sure the tool’s body, especially the Anvil (22a / 18), is clear of dirt and debris. If
possible, spray it with compressed air before each use.
5. For the Impact Wrench:
Apply a few drops of oil to the oil entry port before each use. Remove the Screw (40),
add the oil, then replace the Screw (40) - see FIGURE 1, page 5.
FIGURE 2
Air Inlet
Trigger (35a) Anvil
(22a)
Reverse Switch (21a)

SKU 92208 For technical questions, please call 1-800-444-3353. Page 7
NOTE: Some parts are listed and shown for illustration purposes only and are
not available individually as replacement parts.
Air Impact Wrench Assembly Diagram
Parts List
Part Description Part Description Part Description Accessories
(not shown above)
1 Housing 16 Screw 31 Spring
2 Valve Sleeve 17 Anvil Bushing 32 Pin 3/8” to 1/2” Adapter
3 Reverse Valve 18 Anvil (1/2”) 33 Rear Gasket 7/16” Impact Socket
4 Trigger 19 Hammer Cage 34 Rear Cover 1/2” Impact Socket
5 Pin 20 Hammer Pin 35 Washer 9/16” Impact Socket
6 Bushing 21 Hammer Dog 36 Screw 5/8” Impact Socket
7 Valve Stem 22 Drive Cam 37 Rubber Cover 11/16” Impact Socket
8 Steel Ball 23 Cylinder Pin 38 Exhaust Deflector 3/4” Impact Socket
9 Spring 24 Cylinder 39 Screw 13/16” Impact Socket
10 Air Inlet 25 Rotor 40 Screw 7/8” Impact Socket
11 Screen 26 Rotor Blade 41 Anvil Collar 15/16” Impact Socket
12 Air Regulator 27 Front End Plate 42 O-Ring 1” Impact Socket
13 O-Ring 28 Ball Bearing 43 Rubber Strap Blowmold Case
14 Spring 29 Rear End Plate 44 Screw
15 Oil Seal 30 Pin 45 Brass Silencer

SKU 92208 For technical questions, please call 1-800-444-3353. Page 8

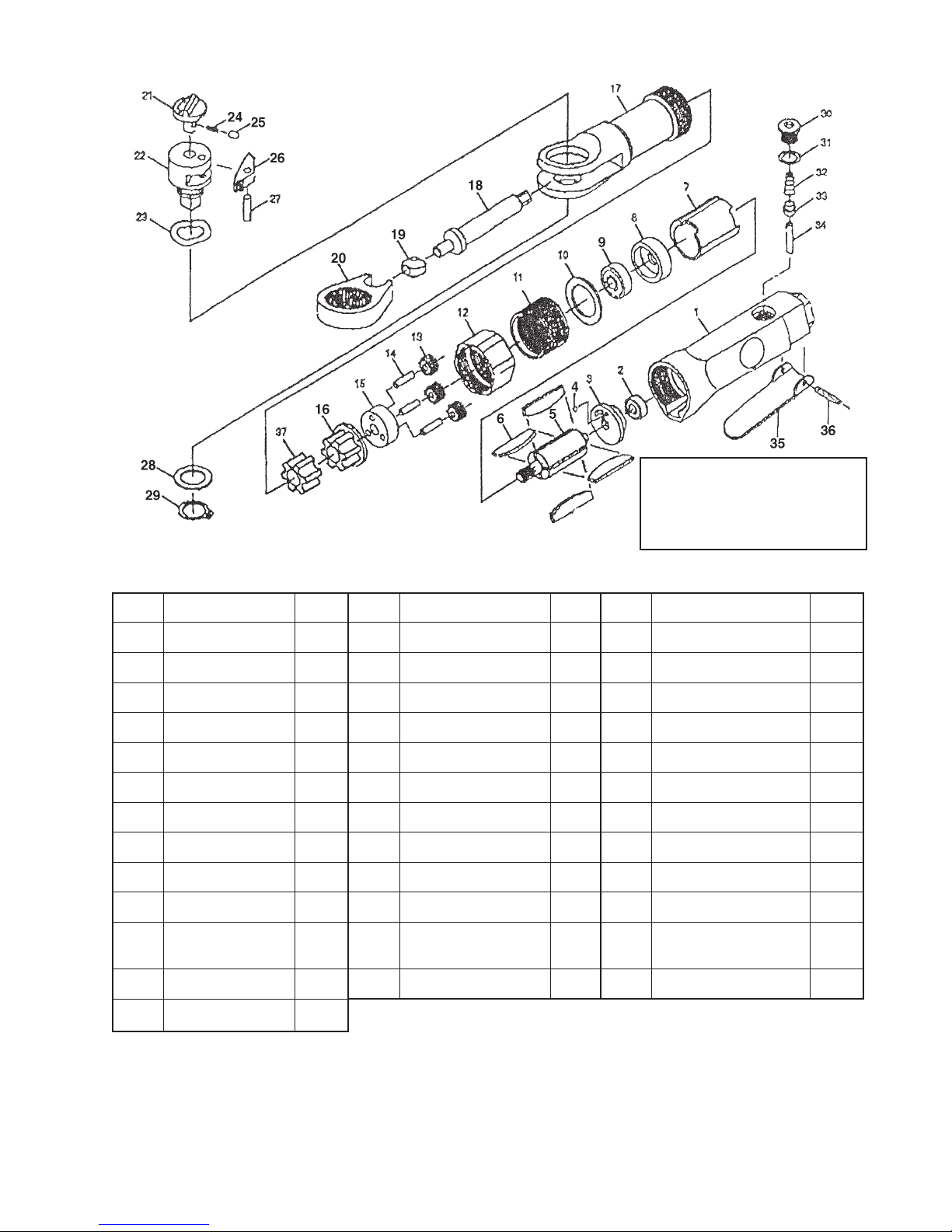

Assembly Diagram A - Air Ratchet
Parts List A
Part Description Qty. Part Description Qty. Part Description Qty.
1a Housing 1 14a Idler Gear Pin 3 26a Ratchet Pawl 1
2a Rear Bearing 1 15a Idler Gear Plate 1 27a Pin 1
3a Rear Plate 1 16a Bushing 1 28a Washer 1
4a Steel Ball 1 17a Ratchet Housing 1 29a Retaining Ring 1
5a Rotor 1 18a Shaft 1 30a Valve Plug 1
6a Rotor Blade 4 19a Drive Bushing 1 31a O-Ring 1
7a Cylinder 1 20a Ratchet Yoke 1 32a Spring 1
8a Front Plate 1 21a Reverse Switch 1 33a Valve Stem Bushing 1
9a Front Bearing 1 22a Ratchet Anvil 1 34a Valve Stem 1
10a Washer 1 23a Wave Washer 1 35a Trigger 1
11a Thread Ring
Gear 1 24a Spring 1 36a Spring Pin 1
12a Clamp Nut 1 25a Lock Pin 1 37a Bushing 1
13a Idler Gear 3
NOTE:All part numbers referred
to on this diagram are indi-
cated with a suffix of a. For
example, part 1a refers to
part 1on this diagram.

SKU 92208 For technical questions, please call 1-800-444-3353. Page 9
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDEDTHE PARTS DIAGRAMS INTHIS
MANUAL AS A REFERENCETOOL ONLY. NEITHERTHE MANUFACTURER NOR DISTRIBUTOR MAKES
ANY REPRESENTATION ORWARRANTY OF ANY KINDTOTHE BUYERTHAT HE OR SHE IS QUALIFIED
TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY
PARTS OFTHE PRODUCT. IN FACT,THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES
THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSEDTECHNICIANS AND NOT BYTHE BUYER.THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality
and durability standards, and warrants to the original purchaser that this product is free from
defects in materials and workmanship for the period of 90 days from the date of purchase. This
warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or
accidents, repairs or alterations outside our facilities, criminal activity, improper installation,
normal wear and tear, or to lack of maintenance. We shall in no event be liable for death,
injuries to persons or property, or for incidental, contingent, special or consequential damages
arising from the use of our product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation of exclusion may not apply to
you. This warranty is expressly in lieu of all other warranties, express or implied, including the
warranties of merchantability and tness.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the complaint
must accompany the merchandise. If our inspection veries the defect, we will either repair or
replace the product at our election or we may elect to refund the purchase price if we cannot
readily and quickly provide you with a replacement. We will return repaired products at our
expense, but if we determine there is no defect, or that the defect resulted from causes not
within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specic legal rights and you may also have other rights which vary
from state to state.
REV 11h
