SAFETY AND
OPERATING
MANUAL
14” (36 CM) 10 A
LAWN MOWER
model number 060-0739-0

2
model number 060-0739-0
CANADA: 1-844-428-7277

3
Read and understand this instruction manual thoroughly before using the
product. It contains important information for your safety as well as operating
and maintenance advice.
Keep this instruction manual for future use. Should this product be passed on to
a third party, this instruction manual must be included.
3026035

4
model number 060-0739-0
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions. Read all instructions and follow them with
use of this product.
TABLE OF CONTENTS
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions. Read all instructions and follow them with
use of this product.
TABLE OF CONTENTS
Product safety 5
Safety Instructions for walk-behind mowers 7
Safe Practices for Walk-Behind Mowers 7
Safe Operation practices for walk-behind mowers 8
SYMBOLS 11
COMPONENT LIST 12
TECHNICAL DATA 13
ACCESSORIES 14
ASSEMBLY 15
Fitting The Handle 15
Grass collection bag assembly 16
Grass collection bag fitting 17
Removing/Emptying collection bag 18
Installing/Removing mulch insert 18
OPERATION 20
Starting And Stopping 20
Adjusting the cutting height 20
Collection Bag fill indicator 21
Mowing Tips 21
MAINTENANCE 22
Blade sharpening 22
To Sharpen Blade In A Vice 22
Blade Balancing 23
Blade maintenance 23
Storage 23
EXPLODED VIEW 25
PARTS LIST 26
WARRANTY 28

5
PRODUCT SAFETY
A) FOR ALL DOUBLE-INSULATED LAWN
MOWERS
1) Replacement Parts
When servicing use only identical
replacement parts.
2) Polarized Appliance Connections
To reduce the risk of electric shock,
this appliance has a polarized plug (one
blade is wider than the other) and will
require the use of a polarized extension
cord. The appliance plug will fit into a
polarized extension cord only one way.
If the plug does not fit fully into the
extension cord, reverse the plug. If the
plug still does not fit, obtain a correct
polarized extension cord. A polarized
extension cord will require the use of
a polarized wall outlet. This plug will
fit into the polarized wall outlet only
one way. If the plug does not fit fully
into the wall outlet, reverse the plug.
If the plug still does not fit, contact
a qualified electrician to install the
proper wall outlet. Do not change
the equipment plug, extension cord
receptacle, or extension cord plug in
any way.
B) FOR ALL LAWN MOWERS
1) Avoid dangerous environments -
Don’t use lawn mowers in damp or
wet locations.
2) Don’t use in rain.
3) Keep children away - All visitors
should be kept a safe distance from
work area.
4) Dress properly - Do not wear loose
clothing or jewellery. They can
be caught in moving parts. Use
of rubber gloves and footwear
is recommended when working
outdoors.
5) Use safety glasses - Always use
face or dust mask if operation is
dusty.
6) Use the right appliance - Do not use
a lawn mower for any job except
that for which it is intended.
7) Ground Fault Circuit Interrupter
(GFCI) protection should be
provided on the circuit(s) or
outlet(s) to be used for the lawn
mower. Receptacles are available
having built-in GFCI protection and
may be used for this measure of
safety.
8) Warning - To prevent electric shock
use only with an extension cord
suitable for outdoor use, such as
SW, SOW, STW, STOW, SJW, SJOW,
SJTW, or SJTOW.
9) Extension Cord - Make sure your
extension cord set is in good
condition. When using an extension
cord, be sure to use one heavy
enough to carry the current your
product will draw. For lengths that
are less than 25’, 50’, 100’ or 150’,
no. 18 AWG, 16 AWG, 14 AWG or 12
AWG extension should be used. An
undersized cord will cause a drop
in line voltage resulting in loss
READ ALL INSTRUCTIONS
WARNING! When using electric lawn mowers, basic safety precautions should always be
followed to reduce the risk of fire, electric shock, and personal injury, including the following:
WARNING: Risk of injury could occur if the lawn mower is operated without the catcher
assembly attached.
WARNING: The use of any other accessory or attachment might increase the risk of injury.

6
model number 060-0739-0
PRODUCT SAFETY
of power and overheating. (NOTE:
Table 1 shows the correct size to
use depending on cord length and
nameplate ampere rating. If in
doubt, use the next heavier gauge.
The smaller the gauge number
the heavier the cord.) To reduce
the likelihood of disconnection of
lawn mower cord from the cord set
during operating:
i) Make a knot as shown in Figure 1, or
iI) Use one of the plug-receptacle
retaining straps or connectors
described in this manual.
10) Don’t abuse cord - Never pull
lawn mower by cord or yank it to
disconnect from receptacle. Keep
cord from heat, oil, and sharp edges.
11) Don’t force lawn mower - It will do
the job properly and safer at the
rate for which it was designed.
12) Don’t overreach - Keep proper
footing and balance at all times.
13) Stay alert - Watch what you are
doing. Use common sense. Do not
operate lawn mower when you are
tired.
14) Disconnect lawn mower -
Disconnect the lawn mower from
the power supply when not in use,
before servicing, when changing
accessories such as blades, and the
like.
15) Store idle lawn mower indoors -
When not in use, lawn mower should
be stored in an indoor dry and
locked-up place - out of reach of
children.
16) Maintain lawn mower with care -
Keep cutting edges sharp and clean
for best and safest performance.
Follow instructions for lubricating
and changing accessories. Inspect
lawn mower cord periodically and
if damaged, have it repaired by an
authorized service facility. Inspect
extension cords periodically and
replace if damaged. Keep handles
dry, clean, and free from oil and
grease.
17) Keep guards in place and in working
order.
18) Keep blades sharp.
19) Keep hands and feet away from
cutting area.
20)Objects struck by the lawn mower
blade can cause severe injuries to
persons. The lawn should always be
carefully examined and cleared of
all objects prior to each mowing.
21) If lawn mower strikes a foreign
object, follow these steps:
i) Stop lawn mower. Release the
switch.
ii) Unplug power cord.
iii) Inspect for damage.
iv) Repair any damage before
restarting and operating the lawn
mower.
22)Use identical replacement blades
only.
Table 1
Minimum gauge for extension cords
Ampere
rating
Volts Total length of cord
120V 25’ 50’ 100’ 150’
7.2 m 15.2m 30.4m 45.7m
more
than
not
more
than
AWG
0 6 18 16 16 14
610 18 16 14 12
10 12 16 16 14 12
12 16 14 12 not
recommended

7
CORD
SET
APPLIANCE CORD
(A) TIE CORD AS
SHOWN
(B) CONNECT PLUG
AND RECEPTACLE
SAFETY INSTRUCTIONS FOR
WALK-BEHIND MOWERS
IMPORTANT
SAFE PRACTICES FOR
WALK-BEHIND MOWERS
GENERAL OPERATION
1. Read, understand, and follow all
instructions on the machine and in
the manual(s) before starting.
2. Do not put hands or feet near or
under the machine. Keep clear of
the discharge opening at all times.
3. Only allow responsible adults, who
are familiar with the instructions,
to operate this machine.
4. Clear the area of objects such
as rocks, wire, toys, etc., which
could be thrown by the blade. Stay
behind the handle when the motor
is running.
5. Be sure the area is clear of
bystanders before operating. Stop
machine if anyone enters the area.
6. Do not operate machine barefooted
or while wearing sandals. Always
wear proper footwear.
7. Do not pull machine backward
unless absolutely necessary.
Always look down and behind
before and while moving backward.
8. Never direct discharged material
toward anyone. Avoid discharging
material against a wall or
obstruction. Material may ricochet
back toward the operator. Stop
the blade when crossing gravel
surfaces.
9. Do not operate machine without
the entire grass catcher, discharge
guard, rear guard, or other safety
protective devices in place and
working.
10. Never leave a running machine
unattended.
11. Stop the motor and wait until
the blade comes to a complete
stop before cleaning the machine,
removing grass catcher, or
unclogging the discharge guard.
12. Operate machine only in daylight or
good artificial light.
13. Do not operate machine while
under the influence of alcohol or
drugs.
14. Never operate mower in wet grass.
Always be sure of your footing;
walk, never run.
15. Disengage the drive system, if
so equipped, before starting the
motor.
16. If the machine should start to
vibrate abnormally, stop the
motor and check for the cause
immediately. Vibration is generally
a warning of trouble.
17. Always wear eye protection when
operating machine.
18. See manufacturer’s instructions
for proper operation and
installation of accessories. Only
use accessories approved by the
manufacturer.
SLOPE OPERATION
Slopes are a major factor related to
slip and fall accidents, which can
PRODUCT SAFETY

8
model number 060-0739-0
result in severe injury. Operation on all
slopes requires extra caution. If you
feel uneasy on a slope, do not mow it.
1. Mow across the face of slopes;
never up and down. Exercise
extreme caution when changing
direction on slopes.
2. Watch for holes, ruts, bumps,
rocks, or other hidden objects.
Uneven terrain could cause a slip
and fall accident. Tall grass can
hide obstacles.
3. Do not mow on wet grass or
excessively steep slopes. Poor
footing could cause a slip and fall
accident.
4. Do not mow near drop-offs,
ditches, or embankments. You
could lose your footing or balance.
CHILDREN
Tragic accidents can occur if the
operator is not alert to the presence
of children. Children are often
attracted to the machine and the
mowing activity. Never assume that
children will remain where you last
saw them.
1. Keep children out of the mowing
area and under the watchful care
of a responsible adult other than
the operator.
2. Be alert and turn mower off if a
child enters the area.
3. Never allow children to operate the
machine.
4. Use extra care when approaching
blind corners, shrubs, trees, or
other objects that may block your
view of a child.
SERVICE
GENERAL SERVICE
1. Keep all nuts and bolts tight to
ensure the equipment is in a safe
working condition.
2. Never tamper with safety devices.
Check their proper operation
regularly.
3. Keep machine free of grass, leaves,
or other debris build-up.
4. If you strike a foreign object, stop
and inspect the machine. Repair, if
necessary, before starting.
5. Never make any adjustments or
repairs with the motor running.
6. Always unplug electric mowers
before adjusting, cleaning, or
repairing.
7. Check grass collection components
and the discharge guard frequently
and replace with manufacturer’s
recommended parts, when
necessary.
8. Mower blades are sharp. Wrap the
blade or wear gloves, and use extra
caution when servicing them.
9. Maintain or replace safety and
instruction labels, as necessary.
SAFE OPERATION PRACTICES FOR
WALK-BEHIND MOWERS
1. Safety Instructions
1.1 Training
a) Read the operating and service
instruction manual carefully.
Be thoroughly familiar with the
controls and the proper use of the
equipment.
b) Never allow children to operate a
power mower.
c) Keep the area of operation clear
of all persons, particularly small
children, and pets.
d) Do not use a mower for any
job except that for which it is
PRODUCT SAFETY

9
intended.
1.2 Preparation
a) Thoroughly inspect the area where
the equipment is to be used and
remove all stones, sticks, wires,
bones, and other foreign objects.
b) Do not operate the equipment
when barefoot or wearing sandals.
Always wear proper footwear.
c) Disengage the self-propelled
mechanism or drive clutch on units
so equipped before starting the
motor.
d) Never attempt to make a wheel
height adjustment while the motor
is running.
e) Mow only in daylight or in good
artificial light.
f) Never operate the equipment on
wet grass. Always be sure of your
footing. Keep a firm hold on the
handle and walk, never run.
1.3 Operation
a) Do not put hands or feet near or
under rotating parts. Keep clear of
the discharge opening at all times.
b) Stop the blade(s) when crossing
gravel drives, walks, or roads.
c) After striking a foreign object,
stop the motor, unplug, thoroughly
inspect the mower for any damage,
and repair the damage before
restarting and operating the
mower.
d) If the equipment should start
to vibrate abnormally, stop the
motor and check immediately for
the cause. Vibration is generally a
warning of trouble.
e) Stop the motor and unplug
whenever you leave the equipment,
before cleaning the mower housing,
and before making any repairs or
inspections.
f) Shut the motor off and wait until
the blade comes to a complete
stop before removing the grass
catcher or before unclogging the
chute.
g) Mow across the face of slopes,
never up and down. Exercise
extreme caution when changing
direction on slopes. Do not mow
excessively steep slopes.
h) Never operate the mower without
proper guards, plates, or other
safety protective devices in place.
i) Do not wash with a hose. Avoid
getting water in motor and
electrical connections.
1.4 Maintenance
a) Check the blade and the motor
mounting bolts at frequent
intervals for proper tightness.
b) Keep all nuts, bolts, and screws
tight to ensure the equipment is in
a safe working condition.
c) Check collection bag frequently
for deterioration and wear,
and replace worn bags. Check
that replacement collection
bags comply with the original
manufacturer’s recommendations
or specifications.
d) Replace the blade if it is bent or
cracked. An unbalanced blade
causes vibration that could damage
the motor drive unit or cause
personal injury.
e) Sharpen a dull blade equally at
each end to maintain the balance.
f) Clear the blade thoroughly and
check its balance by supporting it
horizontally on a thin nail through
its centre hole. The nail should also
be in a horizontal position. If either
end of the blade rotates downward,
PRODUCT SAFETY

10
model number 060-0739-0
remove some metal from the
heavy or lower end until the blade
is balanced. It is balanced when
neither end drops.
SAVE THESE INSTRUCTIONS
PRODUCT SAFETY

11
SYMBOLS
KEEP HANDS AND FEET AWAY
GARDER MAINS ET PIEDS À DISTANCE Blade Warning
Keep hands and feet clear of mower deck and discharge
opening at all times.
Danger thrown objects.
Keep bystanders/children away.
Safety alert.
Do not mow up and down on slopes.
Read the operator’s manual.
Wear ear protection
SYMBOLS

12
model number 060-0739-0

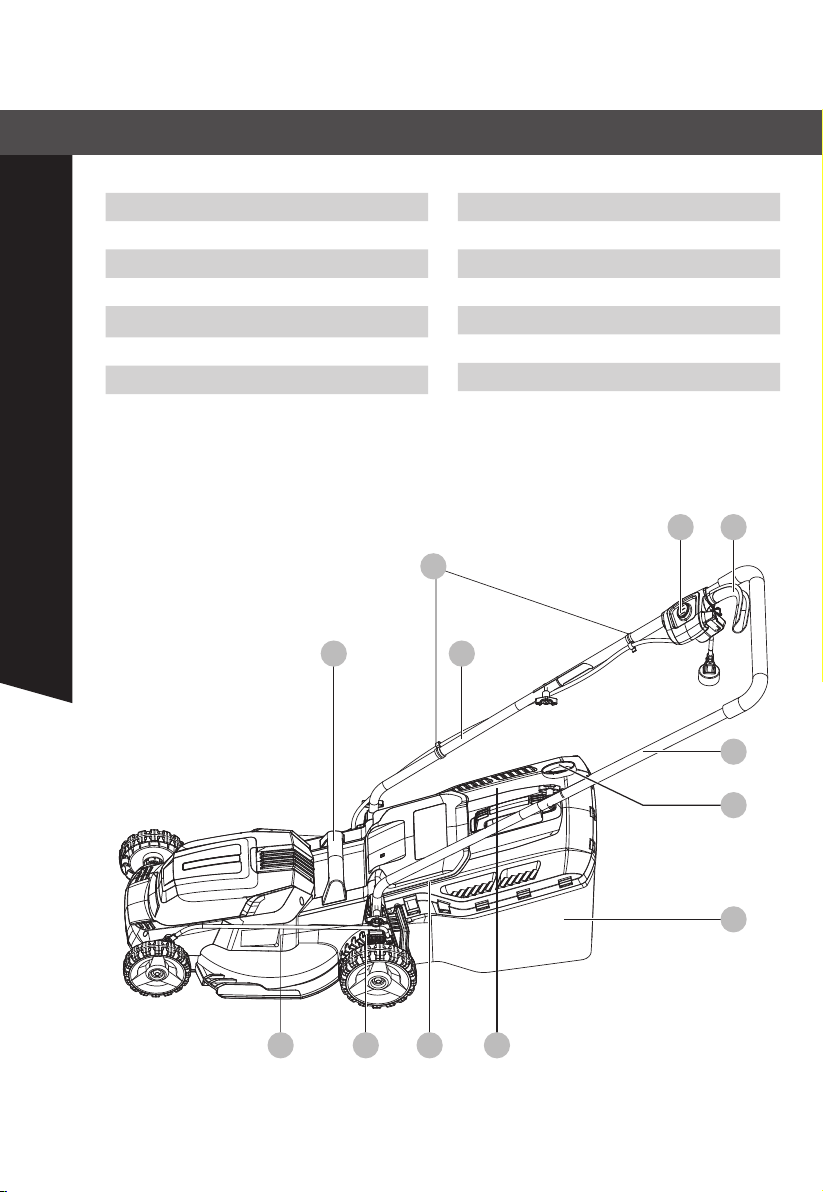

1. Safety switch
2. Switch lever
3.
Upper handle
4. Grass bag fill indicator
5. Grass collection bag
6. Handle knob, upper
7. Safety flap
8. Cutting height adjusting lever
9. Handle knob, lower
10. Carry handle
11. Lower handle
12.
Mulch insert *(See Fig. E)
13. Blade (See Fig. L1)
14. Blade bolt (See Fig. L1)
15. Cable clips
10 11
15
1
3
5
6789
4
2
* Not all the accessories illustrated or described are included in standard delivery.
COMPONENT LIST

13
TECHNICAL DATA
Rated voltage 120V~60Hz
Rated power 10A
Deck Width 14”(36CM)
Cutting path 13”(33cm)
No load speed 3400 RPM
Front wheel diameter 5 1/2”(14cm)
Rear wheel diameter 6 5/16” (16 cm)
Cutting height 1”-3”(2.5-7.5 cm)
Cutting height positions 6
Grass collection capacity 0.85 BUSHELS (30 L)
Machine weight 20 lb 4 oz(9.2 kg)

14
model number 060-0739-0
ACCESSORIES
Grass collection bag 1
We recommend that you purchase your accessories from the same store that
sold you this product. Refer to the accessory packaging for further details. Store
personnel can assist you and offer advice.

15
ASSEMBLY
IMPORTANT! Before you assemble the lawn mower, check the accessory page to ensure no
accessories are missing.
A1 A2
B1 B2
B3
OPERATION INSTRUCTION
NOTE: Before using this product, read the instruction book carefully.
INTENDED USE
This product is intended for domestic lawn mowing.

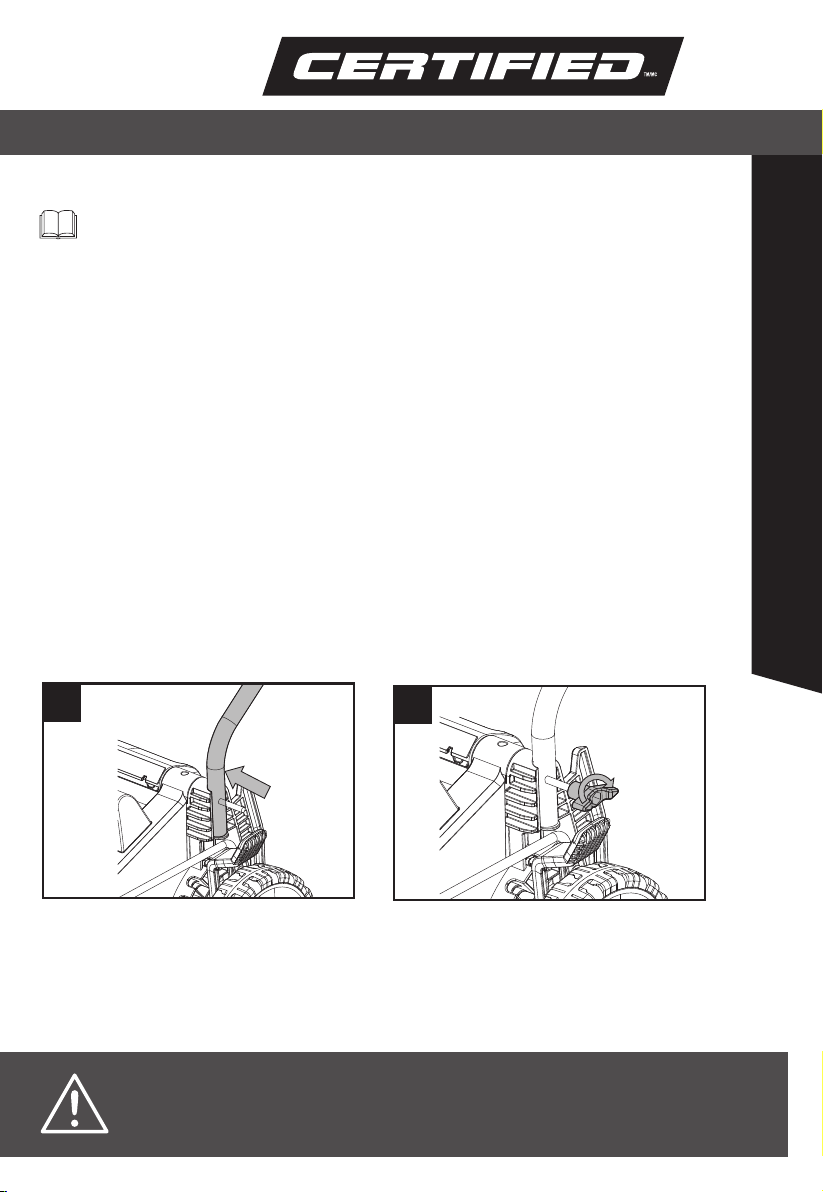

FITTING THE HANDLE (See Fig. A1-B3)
Fitting the lower handle
1) Insert the lower handle (11) into the holes on the deck. (See Fig. A1)
2) Attach the lower handle (11) to the deck with the handle knobs. Be sure to
carefully align the holes found on the lower handles and the deck. (See Fig. A2)
Fitting the upper handle
1) Lift the upper handle (3). Align the holes between the upper handle (3) and lower
handle (11). (See Fig. B1)
2) Choose one of the two holes in the lower handle for desired handle’s height.
Insert the securing knob into the holes and tighten them with the handle knobs
provided, making sure the cable is not twisted. (See Fig. B2, B3)
3) Fasten the cable to the upper handle and the lower handle with the cable clips
ASSEMBLY

16
model number 060-0739-0
A1 A2
B1 B2
B3
GRASS COLLECTION BAG ASSEMBLY
Connect the grass bag handle to the bag top as shown in Fig. C1-C4.
STEP 1: Align the front and back parts of the handle with the front and rear slots on
the grass collection bag. (See Fig. C1)
STEP 2: Press the front of the handle briefly. Then push it forward. Push down the
back of the handle. (See Fig. C2)
STEP 3: Clip the plastic clips over the metal frame. (See Fig. C3)
NOTE: Depress the grass collection bag slightly to ensure that it is completely
installed.
WARNING: Don’t fit the handle in reversed direction. Fit the
handle as shown in Fig. C1.
ASSEMBLY

17
GRASS COLLECTION BAG FITTING (See Fig. D1-D3)
1) Turn the mower off, wait until blade stops and remove safety switch (1).
2) Open the safety flap. Pick up the grass collection bag by the handle, and position
grass collection bag on the upper hooks on the mower (See Fig. D1-D2).
3) Release the safety flap. Ensure the grass collection bag is installed securely
(See Fig. D3).
NOTE: Depress the grass collection bag slightly to ensure that it is completely
installed.
D1 D2
D3
1
2
1
2
C1 C2
C3 C4
Back Part
Front Part 3
2
1
ASSEMBLY

18
model number 060-0739-0
REMOVING/EMPTYING THE GRASS COLLECTION BAG
Hold the grass collection bag, lift the safety flap (7) and hold up. Remove grass
collection bag (5).
INSTALLING MULCH INSERT (See Fig. E)
1) Unplug tool, and wait for blade to come to a complete stop.
2) Raise the safety flap and hold it up.
3) Slide the mulching insert (12) into the discharge opening until it is firmly in
contact with the deck.
4) Release safety flap and ensure it is properly closed.
REMOVING MULCH INSERT (See Fig. F)
To remove the mulching insert so you can collect the grass, follow the steps listed n
the next page
D1 D2
D3
1
2
1
2
ASSEMBLY
WARNING: Always check that the safety flap can close the discharge
opening tightly before using. Never lift the safety flap (7) when the
lawn mower is being used without fitted grass collection bag.
E
F
G1
1
2
1
2
12
G2

19
1) Unplug mower, and wait for blade to come to a complete stop.
2) Raise the safety flap and hold it up.
3) Grasp the middle of the insert, lift and pull out the mulching insert completely.
4) The safety flap is spring loaded. When you release it, the flap will return to the
closed position.
E
F
G1
1
2
1
2
12
G2
ASSEMBLY

20
model number 060-0739-0

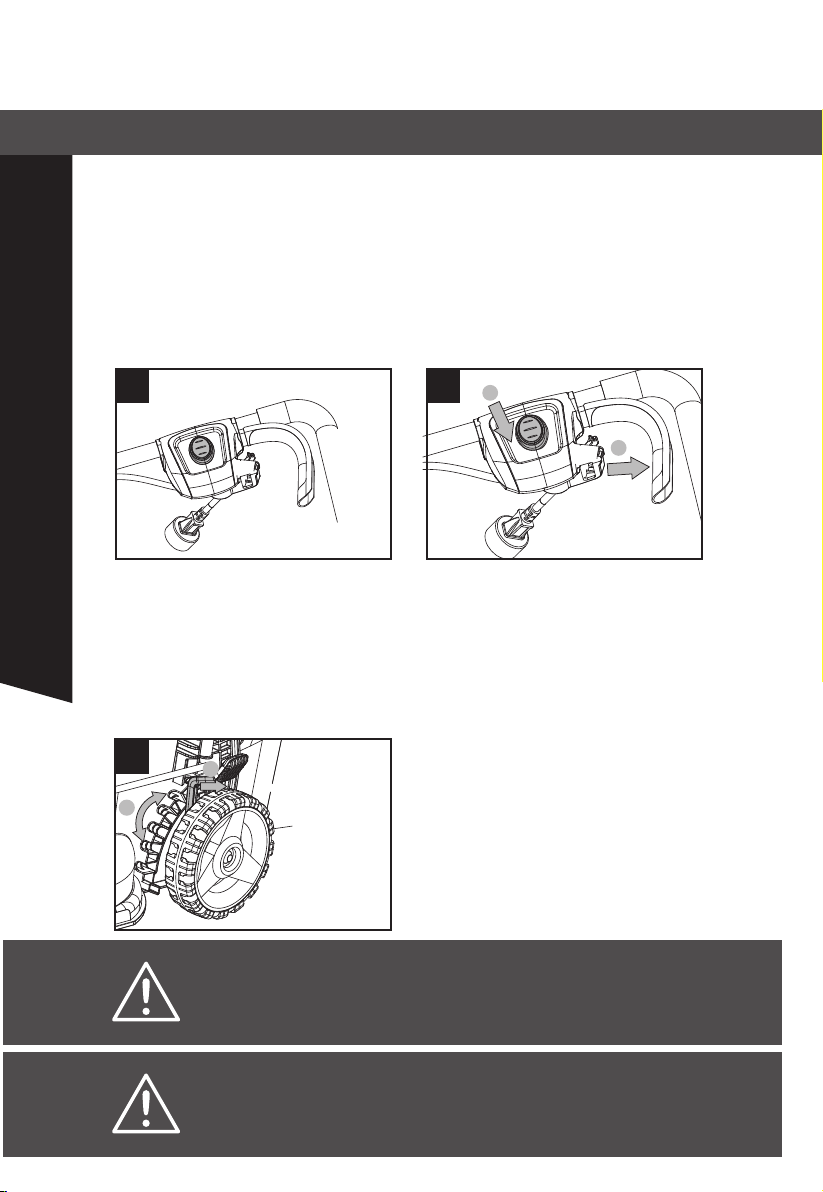

STARTING AND STOPPING
STARTING (SEE FIG. G1, G2)
To prevent accidental starting, the lawn mower is fitted with a safety switch.
Press and hold the safety switch button. Next, depress the switch lever and
release the safety switch.
STOPPING
When the switch lever is released, the lawn mower will be switched off.

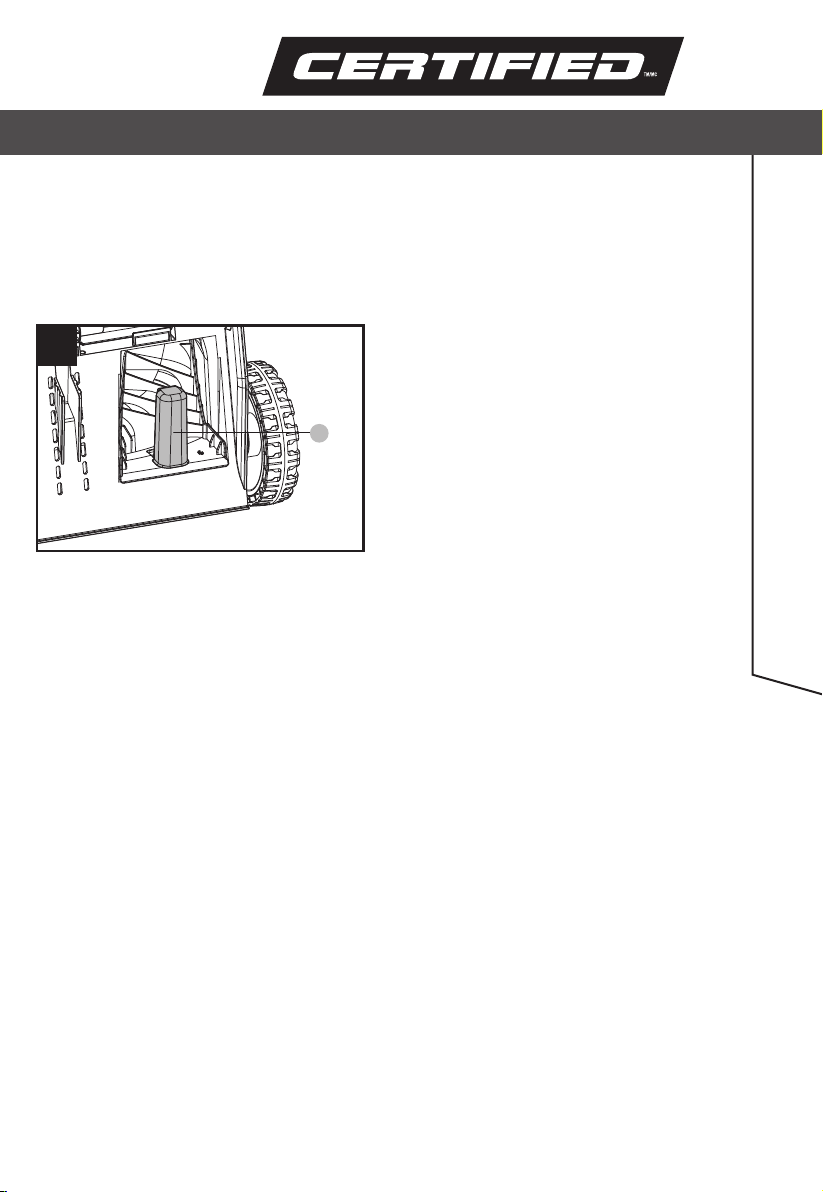

ADJUSTING THE CUTTING HEIGHT (SEE FIG. H)
CAUTION: DO NOT TOUCH ROTATING BLADES.
For the first cutting of the season, a high cutting adjustment should be
selected. The lawnmower can be set to 6 cutting heights between 1"(2.5 cm) and
3"(7.5 cm). For this purpose, move the cutting height adjustment lever outwards
then adjust to the preferred position.
EF
G1
1
2
1
2
12
G2
WARNING! Stop, release switch lever and wait until the motor stops
before adjusting height. The blades continue to rotate after the machine
is switched off, a rotating blade can cause injury.
WARNING! The blade continues to rotate for a few seconds after the
machine is switched off. Allow the motor/blade to stop rotating before
switching “on” again. Do not rapidly switch off and on.
OPERATION
HI
J K
1a
b
2
J-3
J-2
J-1
K-3
K-2
K-1
