CERTIFIED 060-0753-4 User manual

22” (56 CM) 3-IN-1 PUSH LAWN MOWER
TONDEUSE À POUSSER 3 IN 1 DE 22 PO (56 CM)
model number 060-0753-4
IMPORTANT:
Please read this manual carefully before running this lawn mower and save
it for reference.
IMPORTANT :
Veuillez lire attentivement ce guide d’utilisation avant d’utiliser cette
tondeuse à essence et le conserver aux fins de consultation ultérieure.
English version... Page 2
French version... Page 29
INSTRUCTION
MANUAL
GUIDE
D’UTILISATION

DD
For problems or ques�ons, DO NOT RETURN TO STORE.
Please contact one of our Customer Service Agents who
would be happy to assist you.
For Customer Assistance Please Call:
CANADA: 1-844-428-7277
STOP

2
model no. 060-0753-4 I contact us: 1-844-428-7277
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions. Read all instructions
and follow them with use of this product.
TABLE OF CONTENTS
Technical Specifications 3
Parts List 4
Intended Use 6
Safety Information 7
Assembly 10
Adjustment 15
Operation 16
Storing and Maintenance 20
Troubleshooting 25
Warranty 27
TABLE OF CONTENTS

3
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Engine type
Engine displacement
Engine max. power
Engine speed
Cutting path
Grass bag capacity
Max. torque
Height adjustments
Front wheel diameter
Back wheel diameter
Ignition
Fuel tank
Oil tank
Spark plug type
Single cylinder 4-stroke
174 cc
2.9 kW/ 3600 RPM
3100±100 RPM
21” (53 cm)
60 L
6.5 ft. lbs @ 2500 rpm
1 1/4 to 3 3/4" (3.1 to 9.5 cm)
8” (20 cm)
12” (30 cm)
TCI
1.2 L
0.4 L
K7RTC/TORCH

4
model no. 060-0753-4 I contact us: 1-844-428-7277
PARTS LIST

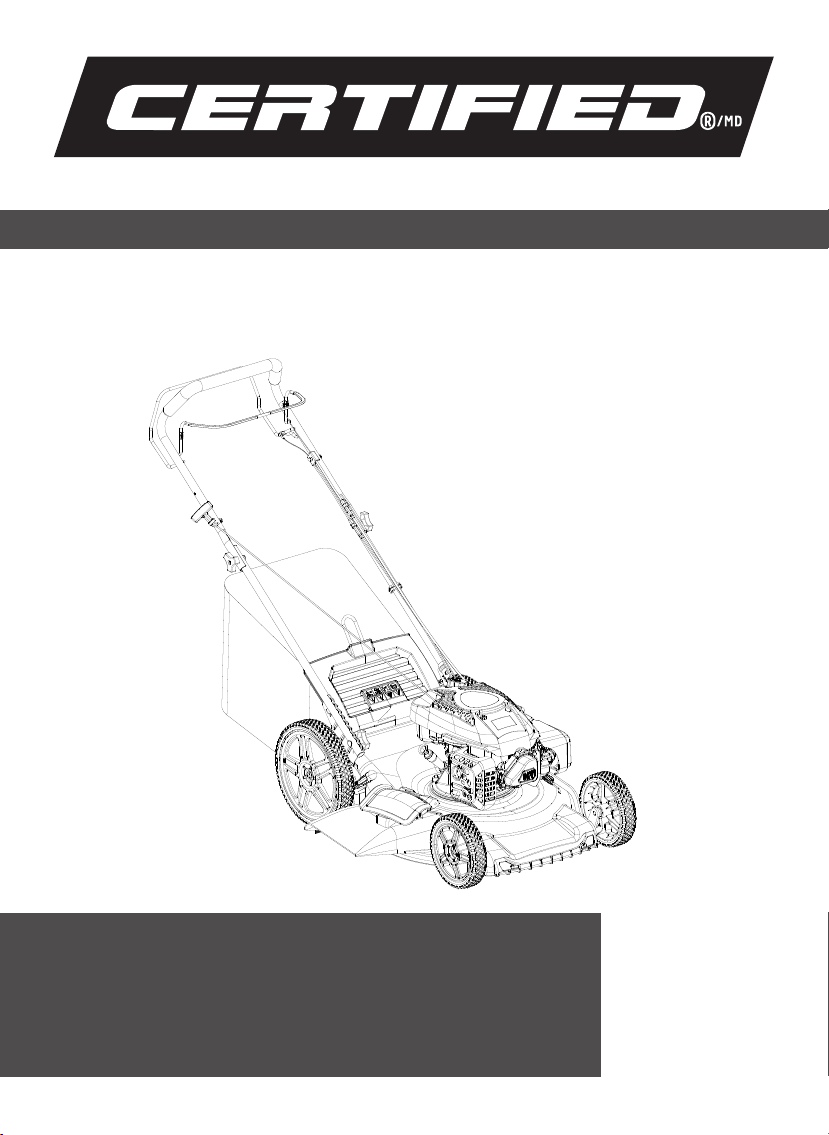

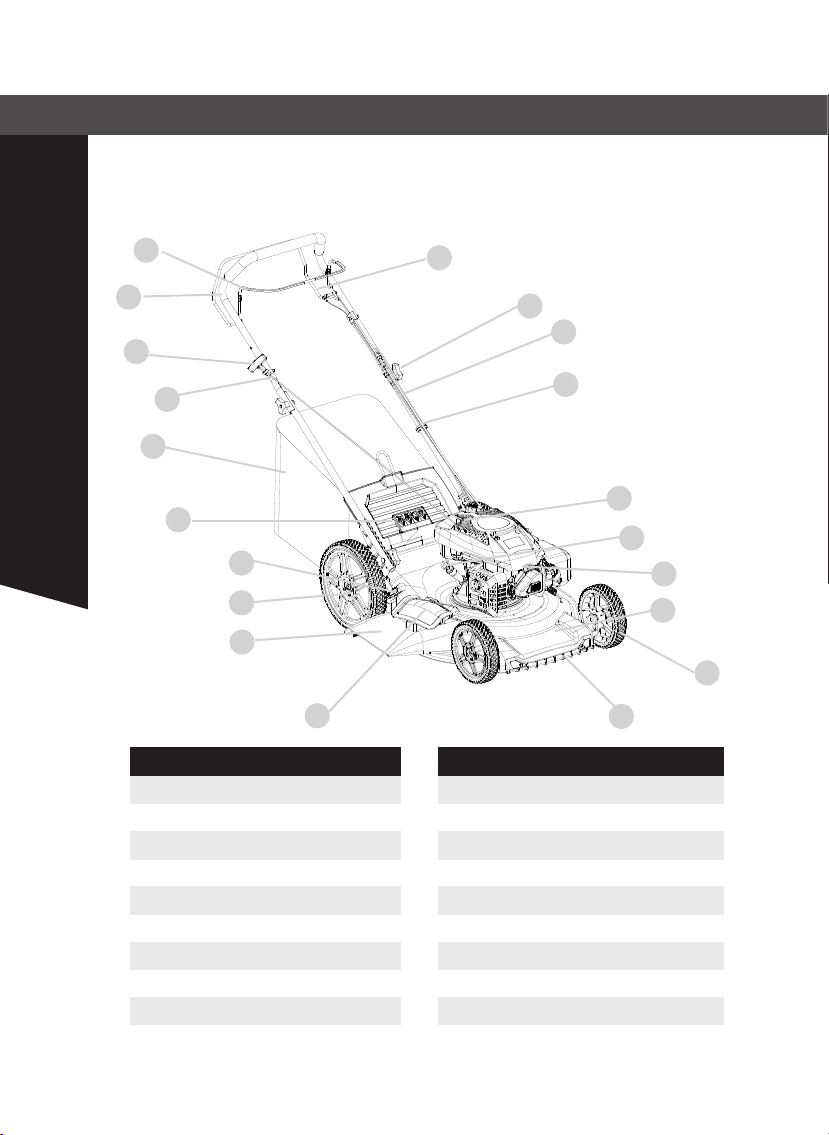

KNOW YOUR LAWN MOWER
No. Part
1 Operator presence control bar
2 Upper handle
3 Starter handle
4 Rope guide
5 Grass bag
6 Ejector flap
7 Height-adjusting handle
8 Rear wheel
9 Side discharge chute
10 Side discharge cover
No. Part
11 Front wheel
12 Front bumper
13 Cutting deck
14 Spark plug cover
15 Engine oil cap
16 Fuel tank cap
17 Cord clip
18 Lower handle
19 Fixing knob with arc head bolt
20 Self-propelling control bar
1
2
3
4
5
6
7
8
9
20
17
18
19
16
15
14
13
12
11
10 Fig. 1

5
PARTS LIST

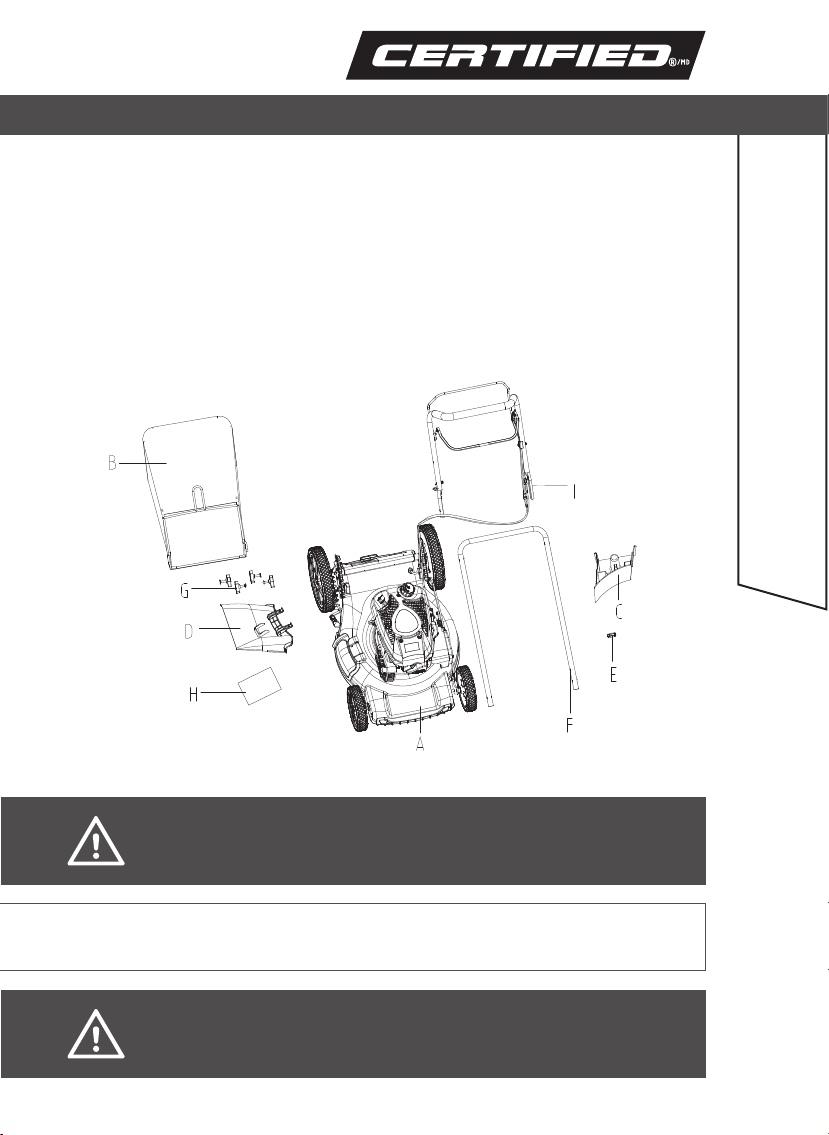

Carefully remove the machine from its packaging and check that the following parts are included:
A. Main mower deck (with upper handle) 1 pc
B. Grass bag with holder 1 pc
C. Plastic mulching plug 1 pc (inside the mower)
D. Side discharge chute 1 pc
E. Cord clip 1 pc
F. Lower handle bar 1 pc
G. Fixing knob with arc head bolt M8 4 pcs
H. Manual 1 pc
Fig. 2
WARNING!
• If any parts are damaged or missing, do not operate this tool until the missing parts are replaced.
Failure to heed this warning could result in serious personal injury.
WARNING!
• This item requires a two-person lift to remove from the packaging. Make sure that you have
sufficient space to put the lawnmower down. Keep your feet apart so that you have a stable
position, bend at the knees and keep your back straight.
NOTE:
• Always recycle the packaging in accordance with local recycling programs.
PARTS LIST

6
model no. 060-0753-4 I contact us: 1-844-428-7277
INTENDED USE
This gas-powered lawnmower has been designed for cutting lawn areas in private house and hobby
gardens.
The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of
misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any
kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial
applications. Our warranty will be voided if the machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
INTENDED USE

7
SAFETY INFORMATION
IMPORTANT
Please read these instructions fully before
assembling and operating.
Description of Symbols
Symbols are used in this manual to attract your
attention to possible risks. The safety symbols
and the explanations which accompany them
must be perfectly understood. The warnings
themselves do not prevent the risks and
cannot be a substitute for proper methods of
avoiding accidents.
Warning Symbols on the Machine
..... WARNING! To reduce the risk
of injury, user must read
instruction manual.
..... This symbol, before a safety
comment, indicates a
precaution, a warning or a
danger. Ignoring this warning
can lead to an accident for
yourself or for others. To
limit the risk of injury, fire,
or electrocution always
apply the recommendations
indicated.
..... Do not open or remove safety
shields while engine is
running.
.... Look behind while backing.
.... Steep slope hazard.
.... Severing of toes or fingers –
Rotary mower blade.
.... Thrown or flying objects –
Whole body exposure.
..... Keep bystanders away.
SAFETY INFORMATION

8
model no. 060-0753-4 I contact us: 1-844-428-7277
Safety instructions
Training
1. Read the instructions carefully. Be familiar
with the controls and the proper use of the
equipment.
2. Never allow children or people unfamiliar
with these instructions to use the
lawnmower. Local regulations can restrict
the age of the operator.
3. Never mow while people, especially
children, or pets are nearby.
4. Keep in mind that the operator or user
is responsible for accidents or hazards
occurring to other people or their property.
Preparation
1. While mowing, always wear substantial
footwear and long trousers. Do not operate
the equipment when barefoot or wearing
open sandals.
2. Thoroughly inspect the area where the
equipment is to be used and remove
all objects which can be thrown by the
machine.
3. Warning - gas is highly flammable.
- Store fuel in containers specifically
designed for this purpose.
- Refuel outdoors only and do not smoke
while refueling.
- Add fuel before starting the engine.
Never remove the cap of the fuel tank
or add gas while the engine is running
or when the engine is hot.
- If gas is spilled, do not attempt to
start the engine but move the machine
away from the area of spillage and
avoid creating any source of ignition
until gas vapours have dissipated.
- Replace all fuel tank and container
caps securely.
4. Replace faulty mufflers.
5. Before using, always visually inspect to
see that the blades, blade bolts and cutter
assembly are not worn or damaged. Replace
worn or damaged blades and bolts in sets
to preserve balance.
6. On multi-bladed machines, take care as
rotating one blade can cause other blades
to rotate.
Operation
1. Do not operate the engine in a confined
space where dangerous carbon monoxide
fumes can collect.
2. Mow only in daylight or in good artificial
light.
3. Avoid operating the equipment in wet
grass, where feasible.
4. Always be sure of your footing on slopes.
5. Walk, never run.
6. For wheeled rotary machines, mow across
the face of slopes, never up and down.
7. Exercise extreme caution when changing
direction on slopes.
8. Do not mow excessively steep slopes.
9. Use extreme caution when reversing or
pulling the lawnmower towards you.
10. Stop the blade(s) if the lawnmower has to
be tilted for transportation when crossing
surfaces other than grass, and when
transporting the lawnmower to and from
the area to be mowed.
11. Never operate the lawnmower with
defective guards, or without safety
devices, for example deflectors and/or
grass catchers, in place.
12. Do not change the engine governor settings
or over speed the engine.
13. Disengage all blade and drive clutches
before starting the engine.
14. Start the engine or switch on the motor
carefully according to instructions and
with feet well away from the blade(s).
SAFETY INFORMATION

9
15. Do not tilt the lawnmower when starting
the engine or switching on the motor,
except if the lawnmower has to be tilted
for starting. In this case, do not tilt it more
than absolutely necessary and lift only the
part which is away from the operator.
16. Do not start the engine when standing in
front of the discharge chute.
17. Do not put hands or feet near or under
rotating parts. Keep clear of the discharge
opening at all times.
18. Never pick up or carry a lawnmower while
the engine is running.
19. Stop the engine and disconnect the spark
plug wire, making sure that all moving parts
have come to a complete stop, and where a
key is fitted remove the key:
- Before clearing blockages or unclogging
chute.
- Before checking, cleaning or working on
the lawnmower.
- After striking a foreign object. Inspect
the lawnmower for damage and make
repairs before restarting and operating
the lawnmower.
- If lawnmower starts to vibrate
abnormally (check immediately).
20. Stop the engine and disconnect the spark
plug wire, making sure that all moving parts
have come to a complete stop, and where a
key is fitted remove the key:
- Whenever you leave the lawnmower.
- Before refueling.
21. Reduce the throttle setting during engine
shut down and, if the engine is provided
with a shut-off valve, turn the fuel off at
the conclusion of mowing.
22. Go slow when using a trailing seat.
SAFETY INFORMATION
Maintenance and storage
1. Keep all nuts, bolts and screws tight to
be sure the equipment is in safe working
condition.
2. Never store the equipment with gas in the
tank inside a building where fumes can
reach an open flame or spark.
3. Allow the engine to cool before storing in
any enclosure.
4. To reduce the fire hazard, keep the engine,
muffler, battery compartment and gas
storage area free of grass, leaves, or
excessive grease.
5. Check the grass catcher frequently for
wear or deterioration.
6. Replace worn or damaged parts for safety.
7. If the fuel tank has to be drained, this
should be done outdoors.

10
model no. 060-0753-4 I contact us: 1-844-428-7277
ASSEMBLY
CAUTION! Read complete INSTRUCTION MANUAL before operating this machine.
IMPORTANT! THIS LAWN MOWER IS SHIPPED WITHOUT OIL OR GASOLINE IN THE ENGINE.
Your new lawn mower has been assembled at the factory with the exception of those parts left
disassembled for shipping purposes. All parts, such as nuts, washers, bolts, etc., necessary to
complete the assembly have been placed in the parts bag. To ensure safe and proper operation of
your lawn mower, all parts and hardware you assemble must be tightened securely. Use the correct
tools as necessary to ensure proper tightness.
To remove lawn mower from carton
1. Remove loose parts included with mower.
2. Cut down two end corners of carton and lay end panel down flat.
3. Remove all packing materials except padding between upper and lower handle and padding
holding operator presence control bar to upper handle.
4. Roll lawn mower out of carton and check carton thoroughly for additional loose parts.

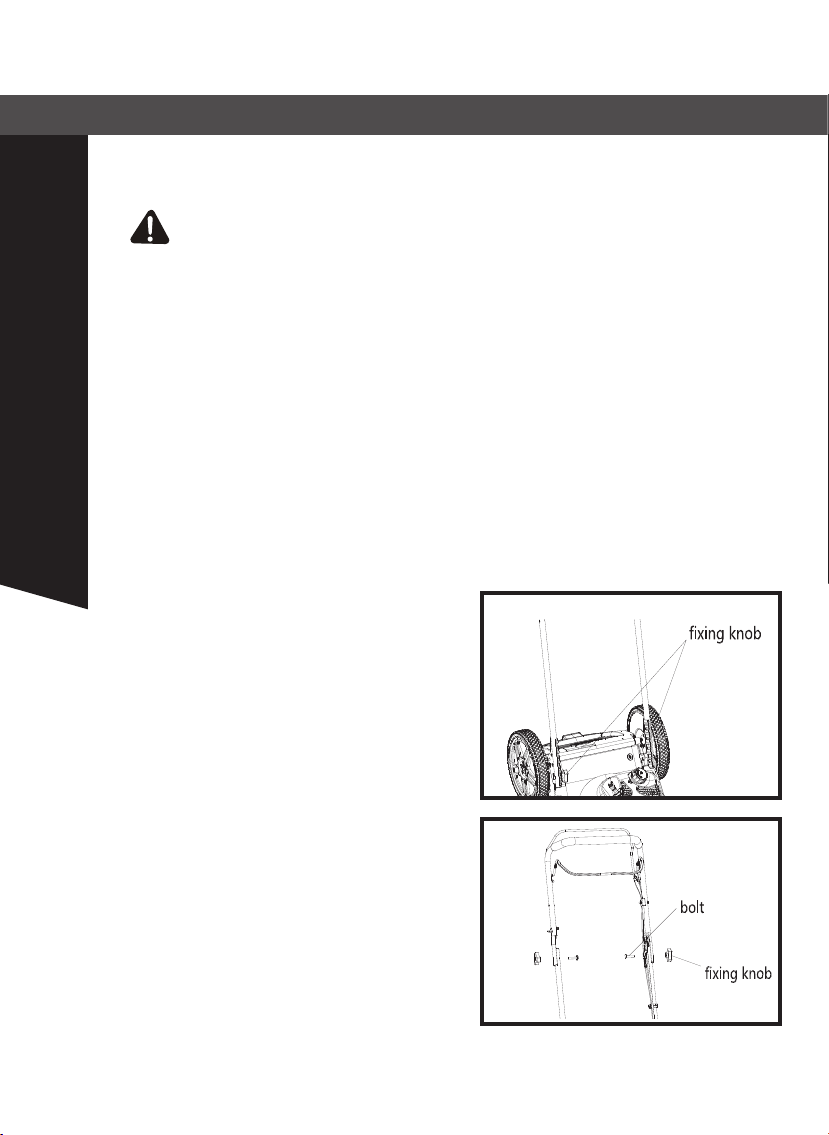

Assembling the handle
As shown in Figs. 3 and 4
IMPORTANT: Unfold handle carefully to avoid
pinching or damaging the control cables.
1. Insert the lower handle to the two side
brackets.
2. Fasten the lower handle to the device by
using two arc head bolts and two fixing
knobs on each side.
3. Unfold the upper handle and attach it to
lower handle by using two arc head bolts
and two fixing knobs on each side.
ASSEMBLY
Fig. 3
Fig. 4

11

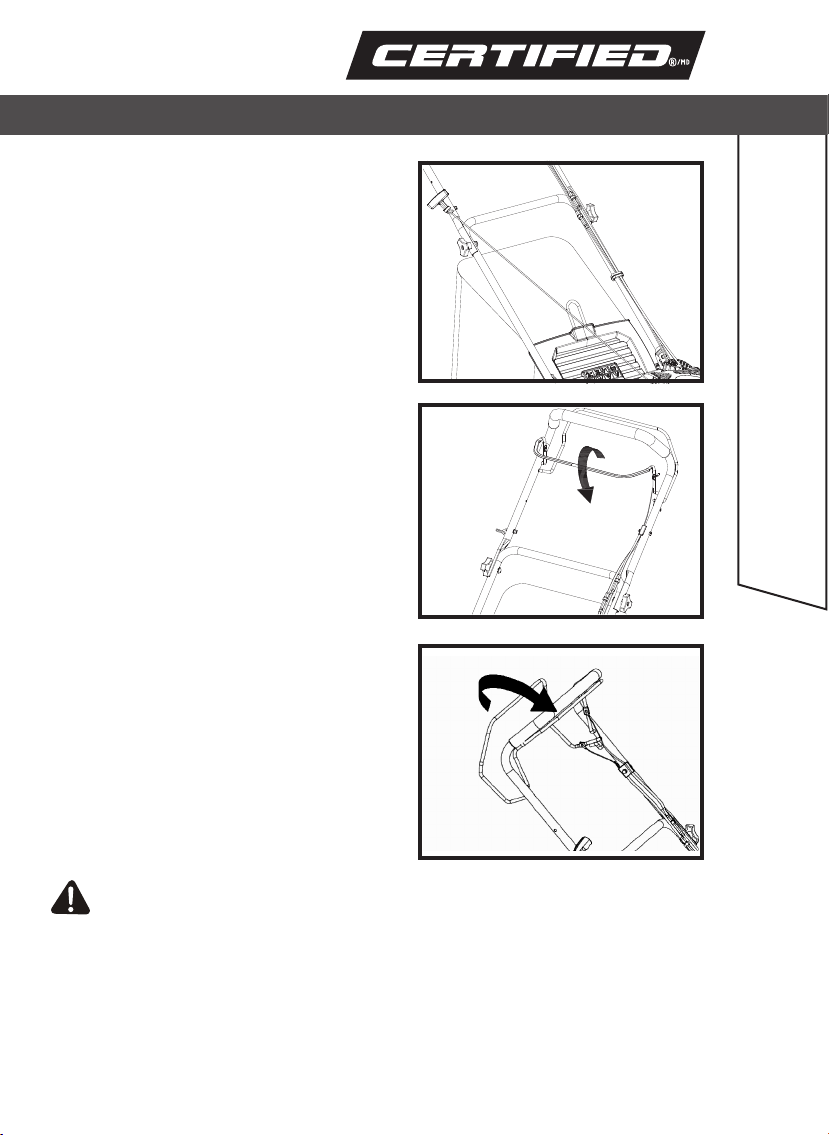

Tying down the connection cord
As shown in Fig. 5
Attach the connection cord to the handle with
the cord clip (supplied).

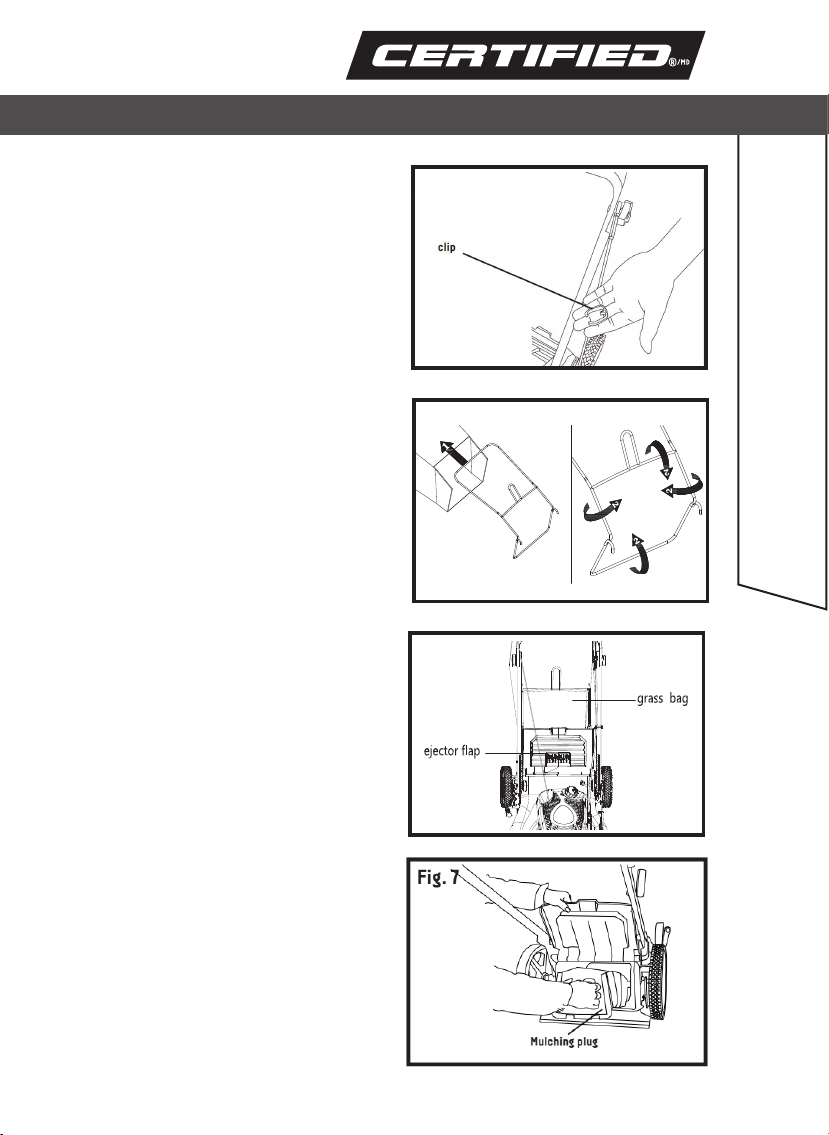

Assembling the grass bag
As shown in Fig. 6-1
1. Put the grass bag frame into the grass
bag with the rigid part of the bag on the
bottom. Make sure the frame handle is
outside of the bag top.
2. Slip the vinyl bindings over the frame.
Attaching the grass bag to the
mower
As shown in Fig. 6-2
1. Lift the ejector flap with one hand and hook
in the grass bag.
2. Release the ejector flap to secure the grass
bag in position.
Assembling the mulching plug
As shown in Fig. 7
1. Remove the grass bag
2. Push the plastic mulching plug into the
discharge chute until it is locked in place.
3. Release the flap. It will close back to cover
the mulching plug.
ASSEMBLY
Fig. 5
Fig. 6-2
Fig. 6-1

12
model no. 060-0753-4 I contact us: 1-844-428-7277
Assembling the side discharge chute
As shown in Fig. 8
NOTE: When changing to the side
discharge, remove the grass bag and
insert the mulching plug.
1. Lift the side discharge cover with one hand
and hook in the side discharge chute with
the other hand.
2. Release the side discharge cover to secure
the chute in position.

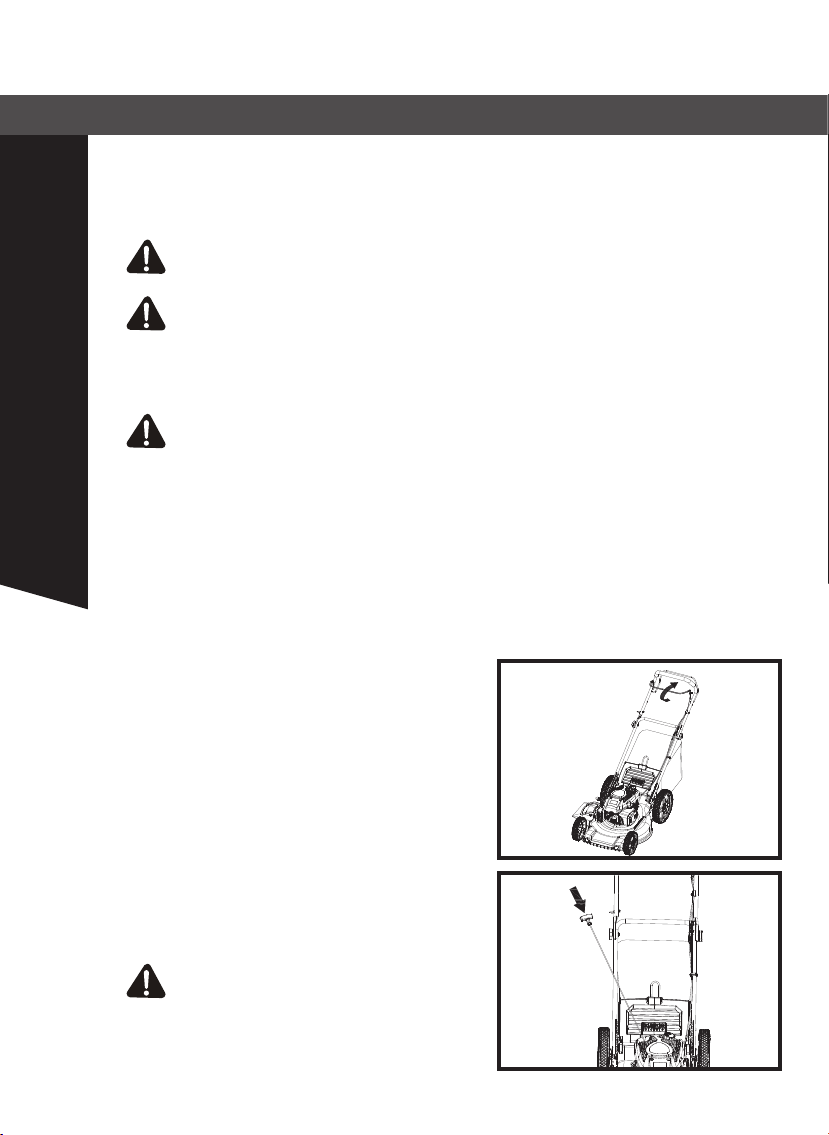

Checking and filling engine oil
As shown in Figs. 9 to 11
CAUTION! The following procedures and
adjustments must be performed before
the engine is started.
Do not attempt to make any of these
adjustments while the engine is
running.
CAUTION! To prevent engine damage,
the engine is shipped without oil or gas.
The engine must be filled with the
correct grade of oil and gas before
starting the engine.
NOTE! Running the engine with a low oil level will cause engine damage. It is recommend
that high-detergent, premium-quality 4-stroke engine oil used. Using non-detergent oil
can shorten the engine’s service life, and using 2-stroke oil will damage the engine.
CAUTION! Always use high-quality detergent oil classified SAE30 oil (or equivalent, such
as SAE 10W/30, often called 4-stroke lawnmower oil).
Never use additives with recommended oil.
To prolong the life of your engine it is important that the oil is changed after the first 5
hours of use.
NOTE: To check the engine oil level, stop engine and place the mower on a level
surface.
ASSEMBLY
Fig. 9
engine oil filler neck

13
1. Remove the oil filler dipstick and wipe oil from
it with a clean cloth (see Fig. 9).
2. Insert the dipstick into the oil filler neck, but
do not twist it closed (see Fig. 9-1).
3. Remove the dipstick and check the oil level:
the oil level must be between the Min and Max
marks on the dipstick. If near the lower level,
fill to upper lever with the recommended oil
(SAE30 or equivalent). Do not overfill. Wipe
away any spilled oil (see Fig. 10).
4. Align the ribs of the cap with the groove of the
filler neck, then rotate to secure it (see Fig. 11).
Fig. 9-1
ASSEMBLY
Fig. 10
Fig. 11

14
model no. 060-0753-4 I contact us: 1-844-428-7277
Filling with engine fuel
As shown in Fig. 12
CAUTION! Always use clean, fresh unleaded gas. Purchase fuel in quantities that can be
used within 30 days. Never mix oil with gas.
CAUTION! Do not fill into the base of neck to allow for fuel expansion. Do not overfill the
fuel tank.
CAUTION! WARNING! Gas is highly flammable and extreme caution must be taken when
handling or working with it. Keep out of reach of children.
CAUTION! To prevent engine damage the engine is shipped without oil or gas. The engine
must be filled with the correct grade of oil and gas before starting the engine.
WARNING! Refuel in a well-ventilated area with the engine stopped. Do not smoke or
allow flame or sparks in the area where the engine is refueled or where gas is stored. Avoid
repeated or prolonged contact with skin or inhalation of vapour.
WARNING! Gasoline with up to 10% ethanol (gasohol) is acceptable.
Do not use unapproved gasoline, such as E15 and E85.
1. Clean the area around the gas filler cap
before removing the cap. Remove the
warning tag, and check the fuel level (see
Fig. 12).
2. Refill the tank if the fuel level is low.
3. Refuel carefully to avoid overfilling or
spilling fuel.
There should be no fuel in the filler neck.
4. Clean up any overflow or splashes of gas
before starting the engine.
5. Tighten the filler cap after filling: finger
tight only (see Fig. 12-1).
ASSEMBLY
Fig. 12
Fig. 12-1

15
ADJUSTMENT
Setting the cutting height
As shown in Fig. 13
CAUTION! Adjust the cutting height
only when the engine is switched off
and the spark plug has been pulled.
NOTE: For shipping purposes the height
adjustment position may not be adjusted to the
cutting position. Before operating the mower
adjust cutting height to the normal cutting
position.
The cutting height is centrally adjusted with cutting height adjusting handle. Different cutting
heights can be selected.
Pull the adjusting handle out and select the desired cutting height. The handle snaps into the
desired position.
From position 1 to position 7, the cutting heights range from 1 1/4 to 3 3/4'' (31 to 95 mm).
Setting required function
NOTE: This lawnmower has three functions. Change functions by changing the installed
accessories as shown in the following chart.
To convert mower mulching plug grass bag side discharge duct
For rear bagging ×√×
For mulching √××
For side discharging √×√
“√”: installed “×”: removed
ADJUSTMENT
Fig. 13
3 3/4'' (95 mm) 1 1/4'' (31 mm)

16
model no. 060-0753-4 I contact us: 1-844-428-7277
OPERATION
Start and stop the engine
WARNING: the blade begins to rotate as soon as the engine is started.
NOTE: Do not operate the machine in enclosed or poorly-ventilated areas as the exhaust
gas contains toxic substances.
Keep hands, feet, hair and clothing away from the moving parts of the machine. The
exhaust and other parts of the machine will become hot during use.
Make sure that the blade is securely fastened before starting the engine.
NOTE: to start the engine, make sure that the spark plug cover is located on the plug and
the machine is filled with sufficient oil and gas.
To start the engine
NOTE: Due to protective coatings on the engine, a small amount of smoke may be present during
the initial use of the lawn mower. This is normal.
NOTE: Your engine may be equipped with an automatic choke system. No priming or choking is
required before starting for these models. On other models, either a choke lever or a priming bulb is
provided. Use this to start a cold engine.
1. The engine equipped with an automatic
choke system. No priming or choking is
required before starting for your mower.
2. Stand behind the mower. Pull the operator
presence control bar toward upper handle
with one hand and place the other hand on
the starter handle (see Fig. 14).
3. Pull the starter handle out approximately
4 to 6" (10 to 15 cm) until you feel a
resistance and then start the engine with
a sharp pull (see Fig. 14-1). DO NOT allow
the starter rope to snap back.
NOTE: If the engine fails to start after
three pulls, repeat the process.
OPERATION
Fig. 14
Fig. 14-1

17
4. Once the engine is running, put the starter
rope into the rope guide (see Fig. 15).
To stop the engine
As shown in Fig. 16
Release the operator presence control bar. It
will return to its initial position and the engine
will automatically switch off.
Drive control
As shown in Fig. 17
1. Self-propelling is controlled by holding the
starter level down to the handle and pulling
the self-propelling bar to the handle.
2. To stop forward motion without stopping
the engine, release the self-propelling
bar. Hold the operator presence control
bar. down against the handle to continue
mowing without self-propelling.
NOTE: After releasing the self-
propelling bar, if the mower will not roll
backwards, push the mower forward
slightly to disengage the drive wheels.
OPERATION
Fig. 15
Fig. 16
Fig. 17

18
model no. 060-0753-4 I contact us: 1-844-428-7277

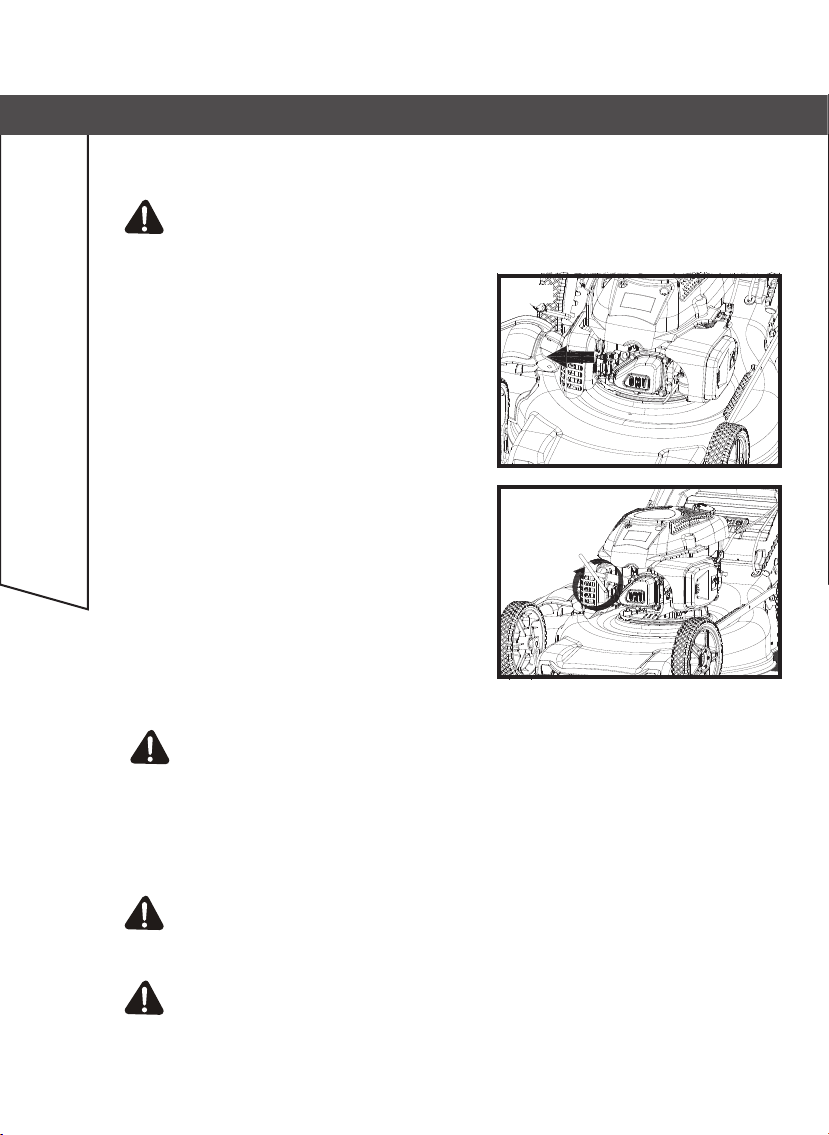

To clean a flooded engine
NOTE: if the engine won’t start after you have pressed the starter several times, the
engine may be flooded with excess fuel. Use following procedure to clear and start a
flooded engine.
1. Release the operator presence control bar
to stop engine.
2. Remove the spark plug, dry it, and then re-
install it.
(1) Remove the spark plug cover (see Fig. 18).
(2) Use the spark plug socket wrench (not
supplied) to remove the spark plug (see Fig.
18-1).
(3) After drying, replace the spark plug.
NOTE: Install the spark plug carefully by hand to avoid cross-threading. After the plug is
seated, tighten 1/8 to 1/4 turn with the spark plug socket wrench to compress the washer.
3. Pull the operator presence control bar toward upper handle.
4. Operate the starter as described above.
Mowing
WARNING: Always observe the strictest safety procedures when using the lawnmower.
Carefully read the safety instructions of this manual before using the lawnmower.
WARNING: Never open the ejector flap when the grass bag has been detached (to be
emptied) and the engine is still running. The rotating blade can cause serious injuries!
OPERATION
Fig. 18
Fig. 18-1

19
1. Select your required height and function settings.
2. Start the engine and allow it run, and set it to required speed.
See “To start the engine”.
3. Keep a firm grip on the upper handle with engine stop/start lever and drive lever (clutch lever)
closed and walk along with it self-propelling to start mowing.
Working tips
1. Walk, never run with the mower, and be very careful when mowing uneven or rough ground.
2. Mow across slopes, never up and down.
3. Be careful when changing the direction of the mower on a slope.
4. Do not mow excessively steep slopes.
5. The best result will be achieved if the grass is dry. Wet grass will tend to clog the blade and the
grass collection system.
6. Grass grows at different rates at different time of the year. Never use the lowest cutting height
for the first cut of the season or in drought conditions.
7. Only about one third of the grass height should be cut.
8. Do not cut high or wet grass when mulching to ensure that the cut grass can be scattered
effectively. When you have been cutting for several minutes, please stop the mower and clean
the blade and the deck.
9. Do not remove grass debris in the mower casing or on the blade by hand or with your feet.
Instead, use suitable tools such as a brush or broom.
Emptying the grass bag
As soon as grass clippings start to trail the lawnmower, it is time to empty the grass bag.
NOTE: Before taking off the grass bag, switch off the engine and wait until the blade has
come to a stop.
1. To take off the grass bag, use one hand to lift up ejector flap and the other to grab onto the
carry handle. The ejector flap automatically falls down after removing the grass bag and closes
off the rear chute opening.
2. Empty the grass debris in the grass bag, and refit grass bag.
NOTE: If any grass residue is caught in the discharge chute, clean it using a brush. Do not
remove grass debris in the mower casing or on the blade by hand or with your feet. Instead,
use suitable tools such as a brush or broom. To ensure that the cut grass can be collected
into grass bag, the discharge opening and inside the mower casing must be cleared of any
blockage.
OPERATION
