CERTIFIED 060-0740-4 Installation manual

IMPORTANT :
Please read this manual carefully before running this
rotary tool and save it for reference.
SAFETY AND
OPERATING
MANUAL
17” (43 CM) 12A
LAWN MOWER
model number 060-0740-4

2
model no. 060-0740-4
CANADA: 1-844-428-7277

3
Read and understand this instruction manual thoroughly before using the
product. It contains important information for your safety as well as operating
and maintenance advice.
Keep this instruction manual for future use. Should this product be passed on to
a third party, this instruction manual must be included.
3025736

4
model no. 060-0740-4
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions. Read all instructions and follow them with
use of this product.
TABLE OF CONTENTS
Product safety 5
Safety instructions for walk-behind mowers 7

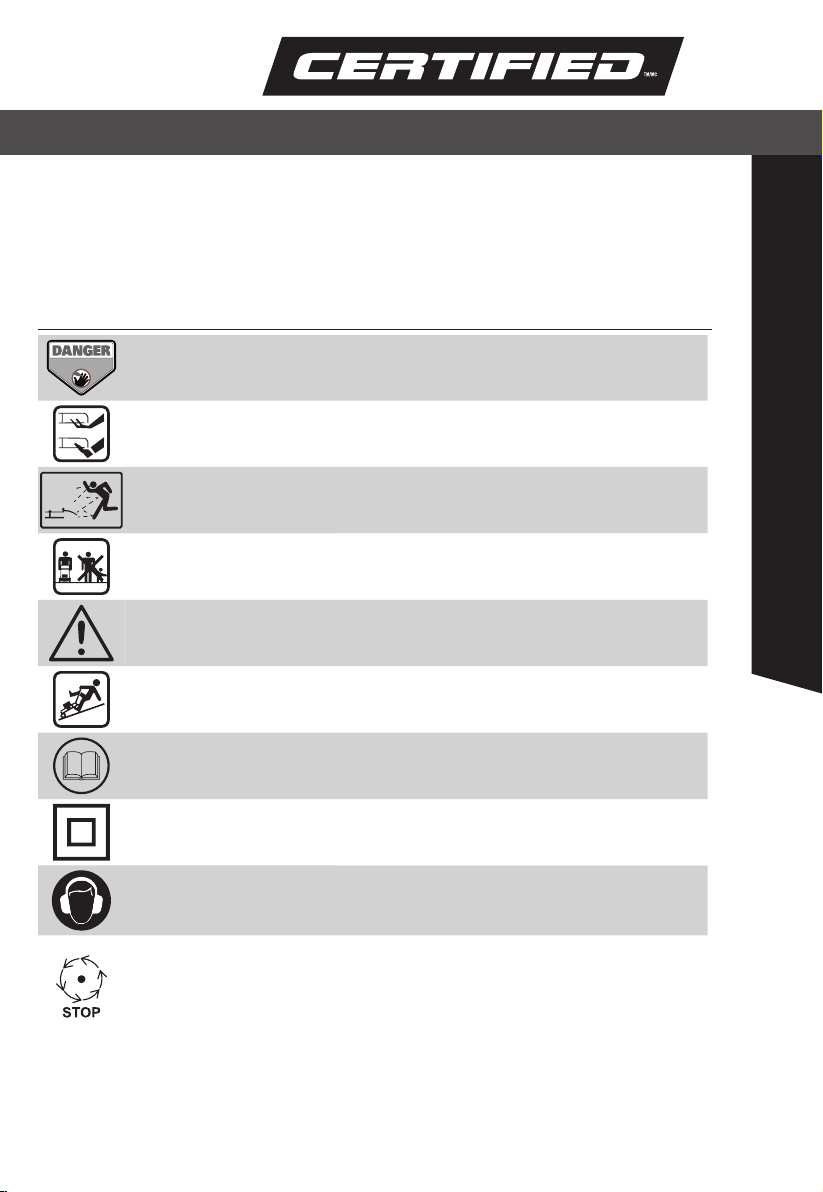

SYMBOLS 11

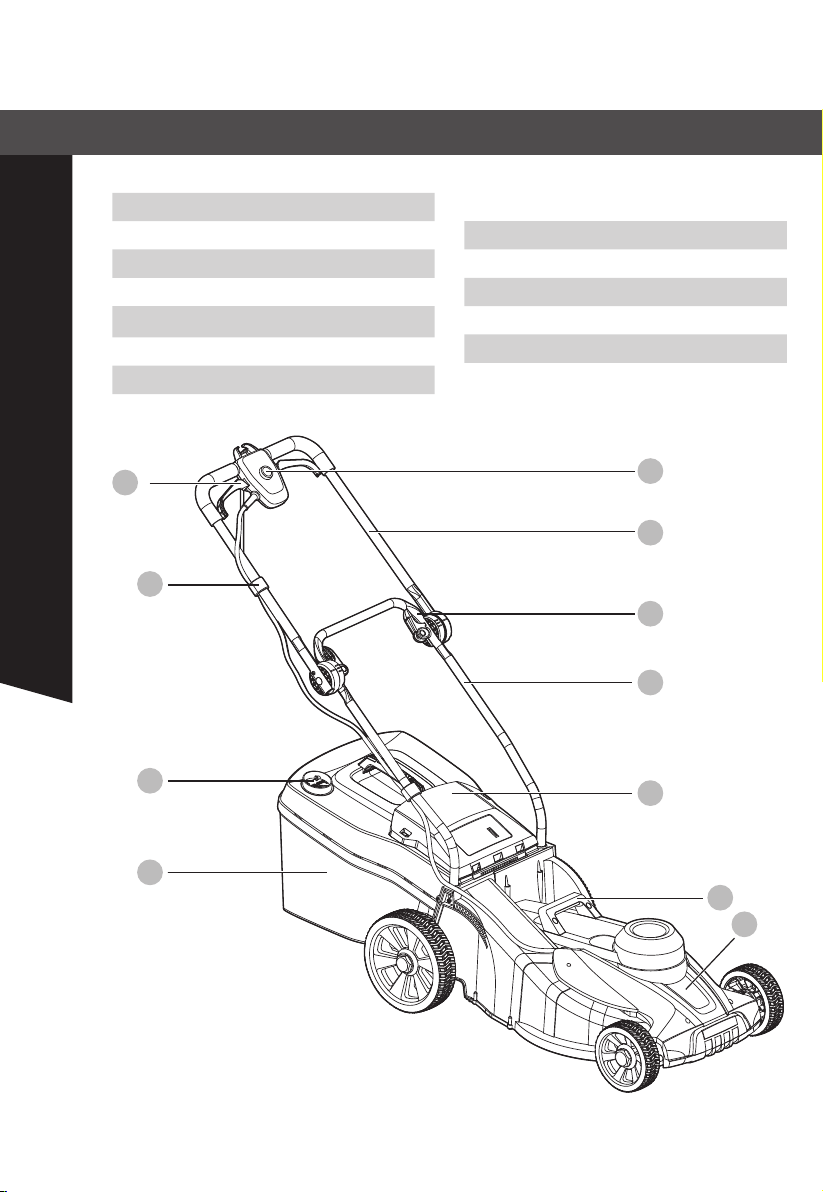

COMPONENT LIST 12
TECHNICAL DATA 13
ACCESSORIES 14
ASSEMBLY 15

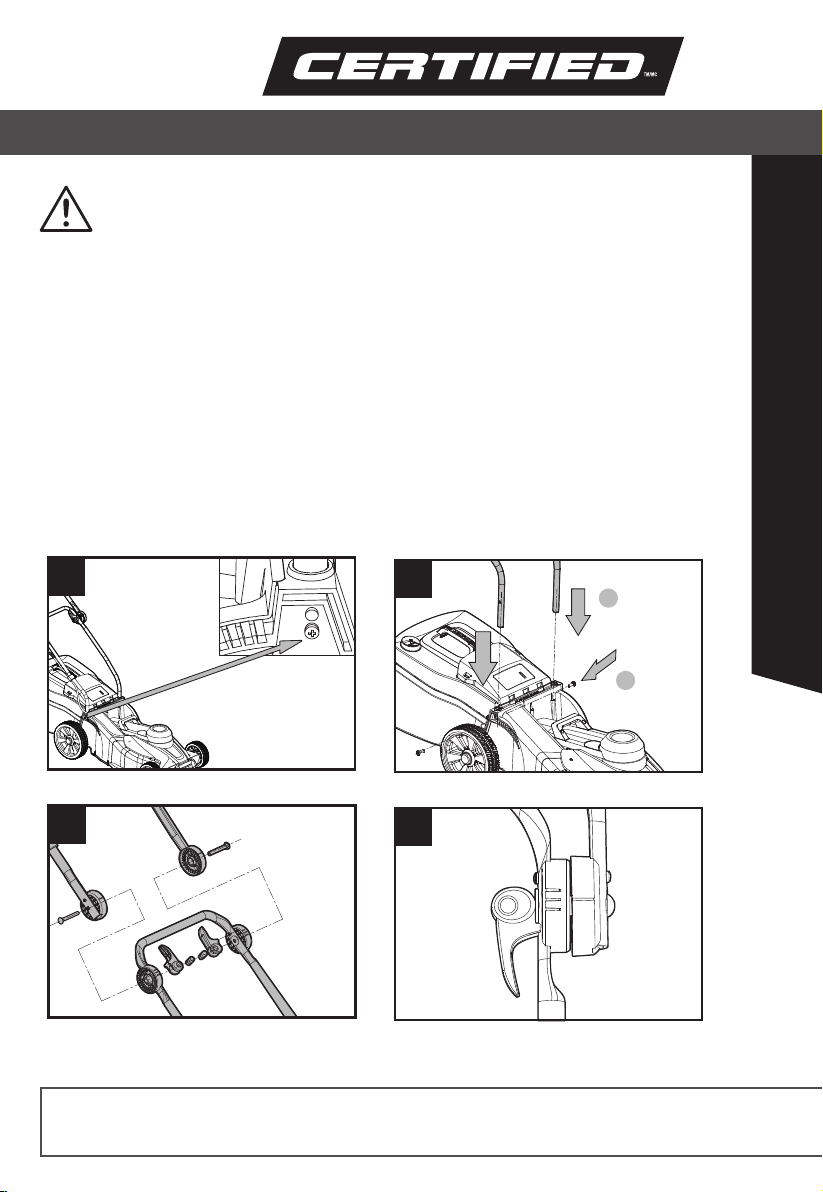

Fitting The Handle 15
Grass Collection Bag Assembly 16
Grass Collection Bag Fitting 17
Removing/Emptying Grass Collection Bag 17
Handle Adjustment 18
OPERATION 19
Starting And Stopping 19
Installing Mulch Insert (Not Included) 19
Removing Mulch Insert (Not Included) 19
Adjusting The Cutting Height 20
Grass Bag Fill Indicator 20
Rear Discharge 20
Mowing Tips 21
Mulching Mowing Tips 21
MAINTENANCE 23
Blade Maintenance 23
To Sharpen Blade In A Vice 24
Blade Balancing 24
Storage 25
Exploded view 26
Parts list 27
Warranty 29
TABLE OF CONTENTS

5
PRODUCT SAFETY
READ ALL INSTRUCTIONS
a) FOR ALL DOUBLE-INSULATED LAWN
MOWERS
1) Replacement Parts
When servicing use only identical
replacement parts.
2) Polarized Appliance Connections
To reduce the risk of electric shock,
this appliance has a polarized
plug (one blade is wider than the
other) and will require the use
of a polarized extension cord.
The appliance plug will fit into a
polarized extension cord only one
way. If the plug does not fit fully
into the extension cord, reverse
the plug. If the plug still does not
fit, obtain a correct polarized
extension cord. A polarized
extension cord will require the
use of a polarized wall outlet. This
plug will fit into the polarized wall
outlet only one way. If the plug
does not fit fully into the wall
outlet, reverse the plug. If the
plug still does not fit, contact a
qualified electrician to install the
proper wall outlet. Do not change
the equipment plug, extension cord
receptacle, or extension cord plug
in any way.
b) FOR ALL LAWN MOWERS
1) Avoid dangerous environments.
Don’t use lawn mowers in damp or
wet locations.
2) Don’t use in rain.
3) Keep children away - All visitors
should be kept a safe distance from
work area.
4) Dress properly - Do not wear loose
clothing or jewellery. They can
be caught in moving parts. Use
of rubber gloves and footwear
is recommended when working
outdoors.
5) Use safety glasses - Always use
face or dust mask if operation is
dusty.
6) Use the right appliance - Do not use
a lawn mower for any job except
that for which it is intended.
7) Ground Fault Circuit Interrupter
(GFCI) protection should be
provided on the circuit(s) or
outlet(s) to be used for the lawn
mower. Receptacles are available
having built-in GFCI protection and
may be used for this measure of
safety.
8) Warning - To prevent electric shock
use only with an extension cord
suitable for outdoor use, such as
SW, SOW, STW, STOW, SJW, SJOW,
SJTW, or SJTOW.
9) Extension Cord - Make sure your
extension cord set is in good
condition. When using an extension
cord, be sure to use one heavy
enough to carry the current your
product will draw. For cord lengths
that are less than
25’, 50’, 100’ or 150’, No. 18 AWG, 16
WARNING! When using electric lawn mowers, basic safety precautions should always be
followed to reduce the risk of fire, electric shock, and personal injury, including the following:
WARNING: Risk of injury could occur if the lawn mower is operated without the catcher
assembly attached.
WARNING: The use of any other accessory or attachment might increase the risk of
injury.
PRODUCT SAFETY

6
model no. 060-0740-4
AWG, 14 AWG or 12 AWG extension
cords should be used. An undersized
cord will cause a drop in line voltage
resulting in loss of power and
overheating. (NOTE: Table 1 shows
the correct size to use depending
on cord length and nameplate
ampere rating. If in doubt, use the
next heavier gauge. The smaller
the gauge number the heavier the
cord.) To reduce the likelihood of
disconnection of lawn mower cord
from the cord set during operating:
i) Make a knot as shown in Figure 1,
or
iI) Use one of the plug-receptacle
retaining straps or connectors
described in this manual.
10) Don’t abuse cord - Never pull
lawn mower by cord or yank it to
disconnect from receptacle. Keep
cord from heat, oil, and sharp edges.
11) Don’t force lawn mower - It will do
the job properly and safer at the
rate for which it was designed.
12) Don’t overreach - Keep proper
footing and balance at all times.
13) Stay alert - Watch what you are
doing. Use common sense. Do not
operate lawn mower when you are
tired.
14) Disconnect lawn mower -
Disconnect the lawn mower from
the power supply when not in use,
before servicing, when changing
accessories such as blades, and the
like.
15) Store idle lawn mower indoors -
When not in use, lawn mower should
be stored in an indoor dry and
locked-up place - out of reach of
children.
16) Maintain lawn mower with care -
Keep cutting edges sharp and clean
for best and safest performance.
Follow instructions for lubricating
and changing accessories. Inspect
lawn mower cord periodically and
if damaged, have it repaired by an
authorized service facility. Inspect
extension cords periodically and
replace if damaged. Keep handles
dry, clean, and free from oil and
grease.
17) Keep guards in place and in working
order.
18) Keep blades sharp.
19) Keep hands and feet away from
cutting area.
20)Objects struck by the lawn mower
blade can cause severe injuries to
persons. The lawn should always be
carefully examined and cleared of
all objects prior to each mowing.
21) If lawn mower strikes a foreign
object, follow these steps:
i) Stop lawn mower. Release the
switch.
ii) Unplug power cord.
iii) Inspect for damage.
iv) Repair any damage before
restarting and operating the lawn
mower.
22)
Use identical replacement blades only.
Table 1
Minimum gauge for extension cords
Ampere
rating
Volts Total length of cord
120V
25’ 50’ 100’ 150’
7.2 m 15.2 m 30.4
m45.7 m
more
than
not
more
than
AWG
0 6 18 16 16 14
610 18 16 14 12
10 12 16 16 14 12
NOTE- Only the applicable parts of the Table
need to be included
SAFETY INFORMATION

7
SAFETY INFORMATION

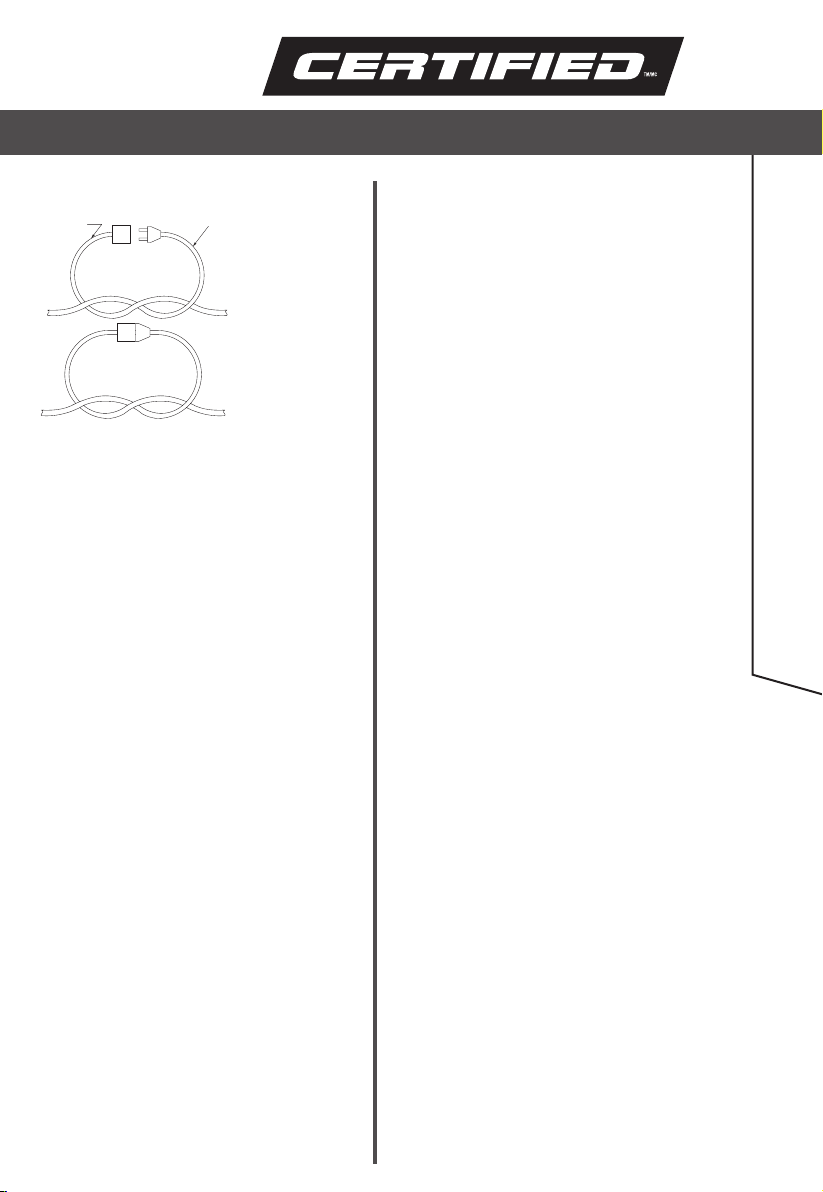

Figure 1
Method of securing cord set
SAFETY INSTRUCTIONS FOR
WALK-BEHIND MOWERS
IMPORTANT
SAFE PRACTICES FOR WALK-BEHIND
MOWERS
GENERAL OPERATION
1) Read, understand, and follow all
instructions on the machine and in
the manual(s) before starting.
2. Do not put hands or feet near or
under the machine. Keep clear of
the discharge opening at all times.
3. Only allow responsible adults, who
are familiar with the instructions,
to operate this machine.
4. Clear the area of objects such
as rocks, wire, toys, etc., which
could be thrown by the blade. Stay
behind the handle when the motor
is running.
5. Be sure the area is clear of
bystanders before operating. Stop
machine if anyone enters the area.
6. Do not operate machine barefooted
or while wearing sandals. Always
wear proper footwear.
7. Do not pull machine backward
unless absolutely necessary.
Always look down and behind
before and while moving backward.
8. Never direct discharged material
toward anyone. Avoid discharging
material against a wall or
obstruction. Material may ricochet
back toward the operator. Stop
the blade when crossing gravel
surfaces.
9. Do not operate machine without
the entire grass catcher, discharge
guard, rear guard, or other safety
protective devices in place and
working.
10. Never leave a running machine
unattended.
11. Stop the motor and wait until
the blade comes to a complete
stop before cleaning the machine,
removing grass catcher, or
unclogging the discharge guard.
12. Operate machine only in daylight or
good artificial light.
13. Do not operate machine while
under the influence of alcohol or
drugs.
14. Never operate mower in wet grass.
Always be sure of your footing;
walk, never run.
15. Disengage the drive system, if
so equipped, before starting the
motor.
16. If the machine should start to
vibrate abnormally, stop the
motor and check for the cause
immediately. Vibration is generally
a warning of trouble.
17. Always wear eye protection when
operating machine.
18. See manufacturer’s instructions for
proper operation and installation of
accessories. Only use accessories
approved by the manufacturer.
CORD
SET
APPLIANCE CORD
(A) TIE CORD AS
SHOWN
(B) CONNECT PLUG
AND RECEPTACLE

8
model no. 060-0740-4
SLOPE OPERATION
Slopes are a major factor related to slip
and fall accidents, which can result in
severe injury. Operation on all slopes
requires extra caution. If you feel
uneasy on a slope, do not mow it.
1. Mow across the face of slopes;
never up and down. Exercise
extreme caution when changing
direction on slopes.
2. Watch for holes, ruts, bumps, rocks,
or other hidden objects. Uneven
terrain could cause a slip and
fall accident. Tall grass can hide
obstacles.
3. Do not mow on wet grass or
excessively steep slopes. Poor
footing could cause a slip and fall
accident.
4. Do not mow near drop-offs, ditches,
or embankments. You could lose
your footing or balance.
CHILDREN
Tragic accidents can occur if the
operator is not alert to the presence of
children. Children are often attracted
to the machine and the mowing
activity. Never assume that children
will remain where you last saw them.
1. Keep children out of the mowing
area and under the watchful care of
a responsible adult other than the
operator.
2. Be alert and turn mower off if a
child enters the area.
3. Never allow children to operate the
machine.
4. Use extra care when approaching
blind corners, shrubs, trees, or
other objects that may block your
view of a child.
SERVICE
GENERAL SERVICE
1. Keep all nuts and bolts tight to
ensure the equipment is in a safe
working condition.
2. Never tamper with safety devices.
Check their proper operation
regularly.
3. Keep machine free of grass, leaves,
or other debris build-up.
4. If you strike a foreign object, stop
and inspect the machine. Repair, if
necessary, before starting.
5. Never make any adjustments or
repairs with the motor running.
6.
Always unplug electric mowers before
adjusting, cleaning, or repairing.
7. Check grass collection bag
components and the discharge
guard frequently and replace with
manufacturer’s recommended
parts, when necessary.
8. Mower blades are sharp. Wrap the
blade or wear gloves, and use extra
caution when servicing them.
9. Maintain or replace safety and
instruction labels, as necessary.
SAFE OPERATION PRACTICES FOR WALK-
BEHIND MOWERS
1.Safety Instructions
1.1 Training
a) Read the operating and service
instruction manual carefully.
Be thoroughly familiar with the
controls and the proper use of the
equipment.
b) Never allow children to operate a
power mower.
c) Keep the area of operation clear
of all persons, particularly small
children, and pets.
SAFETY INFORMATION

9
d) Do not use a mower for any
job except that for which it is
intended.
1.2 Preparation
a) Thoroughly inspect the area where
the equipment is to be used and
remove all stones, sticks, wires,
bones, and other foreign objects.
b) Do not operate the equipment
when barefoot or wearing sandals.
Always wear proepr footwear.
c) Disengage the self-propelled
mechanism or drive clutch on units
so equipped before starting the
motor.
d) Never attempt to make a wheel
height adjustment while the motor
is running.
e) Mow only in daylight or in good
artificial light.
f) Never operate the equipment on
wet grass. Always be sure of your
footing. Keep a firm hold on the
handle and walk, never run.
1.3 Operation
a) Do not put hands or feet near or
under rotating parts. Keep clear of
the discharge opening at all times.
b) Stop the blade(s) when crossing
gravel drives, walks, or roads.
c) After striking a foreign object,
stop the motor, unplug, thoroughly
inspect the mower for any damage,
and repair the damage before
restarting and operating the
mower.
d) If the equipment should start
to vibrate abnormally, stop the
motor and check immediately for
the cause. Vibration is generally a
warning of trouble.
e) Stop the motor and unplug
whenever you leave the equipment,
before cleaning the mower housing,
and before making any repairs or
inspections.
f) Shut the motor off and wait until
the blade comes to a complete stop
before removing the grass catcher
or before unclogging the chute.
g) Mow across the face of slopes,
never up and down. Exercise
extreme caution when changing
direction on slopes. Do not mow
excessively steep slopes.
h) Never operate the mower without
proper guards, plates, or other
safety protective devices in place.
i) Do not wash with a hose. Avoid
getting water in motor and
electrical connections.
1.4 Maintenance
a) Check the blade and the motor
mounting bolts at frequent
intervals for proper tightness.
b) Keep all nuts, bolts, and screws
tight to ensure the equipment is in
a safe working condition.
c) Check collection bag frequently
for deterioration and wear,
and replace worn bags. Check
that replacement collection
bags comply with the original
manufacturer’s recommendations
or specifications.
d) Replace the blade if it is bent or
cracked. An unbalanced blade
causes vibration that could damage
the motor drive unit or cause
personal injury.
e) Sharpen a dull blade equally at
each end to maintain the balance.
f) Clear the blade thoroughly and
check its balance by supporting it
horizontally on a thin nail through
SAFETY INFORMATION

10
model no. 060-0740-4
its centre hole. The mail should also
be in a horizontal position. If either
end of the blade rotates downward,
remove some metal from the
heavy or lower end until the blade
is balanced. It is balanced when
neither end drops.
SAVE THESE INSTRUCTIONS
SAFETY INFORMATION

11
Some of the following symbols may be used on this product. Please study them and
learn their meanings. Proper interpretation of these symbols will allow you to operate
the product effectively and safely.
Symbol Name Designation/Explanation
KEEP HANDS AND FEET AWAY
GARDER MAINS ET PIEDS À DISTANCE CPSC Danger Label
Keep hands and feet clear of mower deck
and discharge opening at all times.
Thrown objects from mower deck.
Keep bystanders/children away.
Safety alert.
Do not mow up and down on slopes.
Read the operator’s manual.
Double insulation
Wear ear protection.
Blade continues to rotate after the
machine is switched off. Wait until all
machine components have completely
stopped before touching them.
SYMBOLS

12
model no. 060-0740-4
1. Switch lever
2. Cable clip
3.
Grass bag fill indicator
4. Grass collection bag
5. Safety button
6. Upper handle
7. Lock cam lever
8. Lower handle
9. Safety flap
10. Carry handle
11. Motor cover
12.
Mulch insert *(See Fig. F)
13. Blade bolt * (See Fig. J1)
14. Blade (See
* Fig. J1)
1
2
3
4
10
9
8
7
6
5
11
COMPONENT LIST
*Not included

13
Rated Voltage 120 V~60 Hz
Rated Power 12 A
No load speed 3500 RPM
Cutting width 16“(41 cm)
Front wheel diameter 5 1/2” (14 cm)
Rear wheel diameter 8 1/4” (21 cm)
Cutting height 1 1/2” - 3 1/2” (3.8-8.8 cm)
Cutting height positions 6
Grass collection capacity 1.3 BUSHELS (45 L)
Machine Weight 29 LB (13.2 KG)
TECHNICAL DATA

14
model no. 060-0740-4
Spanner 1
Grass collection bag 1
Cable clips 2
Handle knobs 2
We recommend that you purchase your accessories from the same store that
sold you this product. Choose the type according to the work you intend to
undertake. Refer to the accessory packaging for further details. Store personnel
can assist you and offer advice.
ACCESSORIES

15
Important! Before you assemble the lawn mower, check the accessories
according to the information on the Accessories page. Ensure the
accessories are complete.
FITTING THE HANDLE (SEE FIG. A1- A5)
1) Remove the screws (X2) on the both side of deck. (Fig. A1)
2) Insert the lower handle (8) into the holes on the deck provided. (Fig. A2)
3) Secure with the screws provided. (Fig. A2)
4) Attach the upper handle (6) with the bolts and lock cam lever (7) to the
lower handle (9). (Fig. A3)
5) Tighten the two Lock cam levers. Check that the handle is FULLY secured.
The cam lever pressure can be adjusted by adjusting the lock cam lever (7)
clockwise/counter-clockwise. DO NOT OVER TIGHTEN. (Fig. A4)
NOTE:Ensure the bolts are fully inserted through the handles before fitting the
handle knobs.
1
2
A1 A2
A3 A4
A5
ASSEMBLY

16
model no. 060-0740-4
6) Attach the cable clips (2) provided, to
the upper and lower handle. Insert the
cable into the clips ensuring there is
enough cable slack. (Fig. A5)
GRASS COLLECTION BAG ASSEMBLY
Connect the grass collection bag handle to the
bag top as shown in Fig. B1-B4.
Step 1. Press the front of the handle
briefly. (Fig. B2)
Step 2. Then push it forward. (Fig. B2)
Step 3. Push down the back of the handle. (Fig. B2)
Step 4. Finally, clip the plastic clips over the metal frame. (Fig. B3)
1
2
A1 A2
A3 A4
A5
Front Part
Back Part
1
2
3
B1
B3
B2
B4
WARNING: Don’t fit the handle in reversed direction. Fit the
handle as shown in Fig. B1.
ASSEMBLY

17
GRASS COLLECTION BAG FITTING (SEE C1,
C2, C3)
1) Unplug mower, and wait for blade to
come to a complete stop add period.
2) Raise the safety flap (9) and hold it
up, ensure that the mulching insert
has been removed.
3) Pick up the grass collection bag
by the handle, and position grass
collection bag on the lower hooks (a)
on the mower deck (Fig. C2).
4) Release the safety flap to lock the
grass collection bag into position.
Ensure the collection bag is installed
securely (Fig. C3).
NOTE: Depress the collection bag slightly to
ensure that it is completely installed.
REMOVING/EMPTYING GRASS COLLECTION
BAG
Hold the grass colleciton bag, lift the
safety flap (9) and hold up. Remove
collection bag (4).
C1
C3
C2
1
2
a
WARNING! Always check that the safety flap can close the discharge opening tightly
before using. Never lift the safety flap (9) when the lawn mower is being used without fitted
grass collection bag.
ASSEMBLY

18
model no. 060-0740-4
HANDLE ADJUSTMENT (SEE FIG. D)
The upper handle can be adjusted to 3
different height positions. Release the
locking cam lever, set the upper handle
to one of the three height positions,
and make sure to insert the pin into the
hole. Then reset the locking cam lever.
NOTE: Always check that the upper
handle is fixed firmly.
D
ASSEMBLY

19
STARTING AND STOPPING (SEE FIG. E1, E2)
STARTING
Connect the plug to the main and switch ON.
The switch box is provided with a lock-off button to prevent accidental
starting.
With one hand press and hold the safety button (5), AND WITH the other
hand squeeze the switch lever (1) towards the handle, and release the
safety LOCK-OFF button. The machine is now started; wait until the product
is at full speed before cutting the grass. Then use both hands to hold the
switch lever to keep it running.
STOPPING
Release the switch lever. The lever is spring loaded and will quickly return to
the off position upon release.
INSTALLING MULCH INSERT (See Fig. F)
1) Unplug tool, and wait for blade to
come to a complete stop
2) Raise the safety flap and hold it up.
3) Slide the mulching insert (12) into the
discharge opening until it is firmly in
contact with the deck.
4) Release safety flap and ensure it is
closed properly.
REMOVING MULCH INSERT (See Fig. F)
To remove the mulching insert so you can collect the grass add comma
follow the steps listed below:
1) Unplug mower, and wait for blade to come to a complete stop.
2) Raise the safety flap, and hold it up.
3) Grasp the middle of the insert, lift and pull out the mulching insert completely.
4) The safety flap is spring loaded. When you release it, the flap will return to
the closed position.
11 2
E1 E2
12
F
OPERATION

20
model no. 060-0740-4
ADJUSTING THE CUTTING HEIGHT (See Fig.
G)
The lawn mower can be set to 6 cutting
heights between 1 1/2” (3.8 cm) and 3
1/2” (8.8 cm).
1. Your mower features one touch cut
height adjustment
2. Move the cutting height adjustment
lever outwards then adjust to the
preferred position.
3. This system will adjust all four
wheels at the same time, up or down.
GRASS BAG FILL INDICATOR (See Fig. H)
To remind you to empty when the
grass collection bag is full, the
mower provides an indicator on the
top of bag to show the collection
status:
Empty status: flap float (a)
Fully status: flap fall down (b)
REAR DISCHARGE (See Fig. I)
The mower provides a rear discharge
function, so that you can mow
without the collection bag. The
debris will be discharged from the
rear chute.
2
1
G
a
b
H
I
WARNING! STOP RELEASE THE SWITCH LEVER, UNPLUG TOOL, AND WAIT FOR BLADE TO
COME TO A COMPLETE STOP. The blades continue to rotate after the machine is switched
off, a rotating blade can cause injury when the lawn mower is being used without grass
collection bag attached.
CAUTION: Do not touch rotating blades.
OPERATION
