CHANDLER LIMITED®
TG MICROPHONE
TYPE L
USER MANUAL
OFFICIAL
EQUIPMENT
UM TGMTL-101123

For more information, visit www.chandlerlimited.com. © 2023 Chandler Limited, Inc. All Rights Reserved. UM TGMTL-101123
Abbey Road Studios, EMI, TG, Curve Bender and their associated logos are trademarks of EMI (IP) Limited.
TG MICROPHONETYPE L
INTRODUCTION ------------------------------------------------- 3
TG Microphone Type L-------------------------------------------- 3
History ------------------------------------------------------ 3
IMPORTANT PROCEDURES & QUICK START--------------------------- 4
Connectivity & Power -------------------------------------------- 4
Warm-up----------------------------------------------------- 4
Power Down -------------------------------------------------- 4
Vocals ------------------------------------------------------- 4
OPERATING INSTRUCTIONS --------------------------------------- 5
Polar Pattern -------------------------------------------------- 5
Pad --------------------------------------------------------- 5
Dual Tone System ----------------------------------------------- 6
System A ----------------------------------------------------- 6
System B ----------------------------------------------------- 6
MAINTENANCE-------------------------------------------------- 7
Storage ------------------------------------------------------ 7
SERVICE -------------------------------------------------------- 7
United States -------------------------------------------------- 7
International -------------------------------------------------- 7
CE CERTIFICATION----------------------------------------------- 7

3UM TGMTL-101123
OFFICIAL
EQUIPMENT
INTRODUCTION
TG Microphone Type L
Thank you for purchasing the Chandler Limited TG Micro-
phone ‘Type L,’ you now own a piece of EMI/Abbey Road
Studios ocial equipment.
Continuing in the rich tradition of innovation at EMI and dat-
ing back to the early 1930s with Alan Blumlein, the father
of Stereo, the company’s rst coil and velocity ‘ribbon’ micro-
phones, and the “Blumlein pair” technique, Chandler Limited
and Abbey Road Studios introduce the third new EMI badged
microphone more than a half century, the TG Microphone
Type L.
Designed by Chandler Limited Founder and Chief Designer,
Wade Goeke, the TG Microphone Type L is a Field-eect
transistor (FET) solid-state large diaphragm condenser micro-
phone, intended as a utilitarian studio work-horse and de-
scended from the larger TG Microphone.
The Type L features core componentry found in the larger
TG Microphone, including— capsule, TG amplier and ‘Dual
Tone System’. However, apart from the larger TG Micro-
phone, the Type L has its own unique sound and voicings.
The Type L system includes: microphone, swivel mount, and
bamboo storage box.
Your Chandler Limited TG Microphone Type L has been
carefully crafted and built by hand at Chandler Limited’s fac-
tory in Shell Rock IA, U.S.A., using through-hole components
for the ultimate analog experience.
At Chandler Limited we are proud of our American made
products and we hope you like them!
Please feel free to call our shop anytime for help or ques-
tions.
Phone: [phone].
History
Conceived from meetings in 1967 between Abbey Road
and EMI’s Central Research Laboratories teams, the EMI
TG12345 Mark I desk ushered in a sea of change in sound
and exibility at Abbey Road Studios.
Installed in Abbey Road’s Studio Two in November 1968 and
making its debut on an 8-track recording by the Shadows, the
new transistorized solid-sate desk marked a departure from
the earlier REDD valve consoles.
The EMI TG12345 desk helped shape the sound of the Bea-
tles’ nal album, “Abbey Road,” which was markedly richer
sounding to that of the band’s earlier work. The sonic quali-
ties of classics like “Here Comes the Sun,” “Come Together”
and “Something” would have been very dierent without the
EMI TG12345.
From TG12345 console technology and the need for master-
ing consoles to perform as tape-to-disk or cutting desks, and
the further requirement of tape-to-tape transfers would give
rise to the now legendary EMI TG12410 transfer consoles.
Still in use today at EMI/Abbey Road Studios, the EMI
TG12410 transfer consoles and their heralded sound were
never available to the public.

4UM TGMTL-101123
IMPORTANT PROCEDURES &
QUICK START
Connectivity & Power
1. The Type L requires 48V phantom power to operate.
WARNING: Prior to connection, turn o any 48V
phantom power from preampliers or external inline
supplies to be used with the Type L.

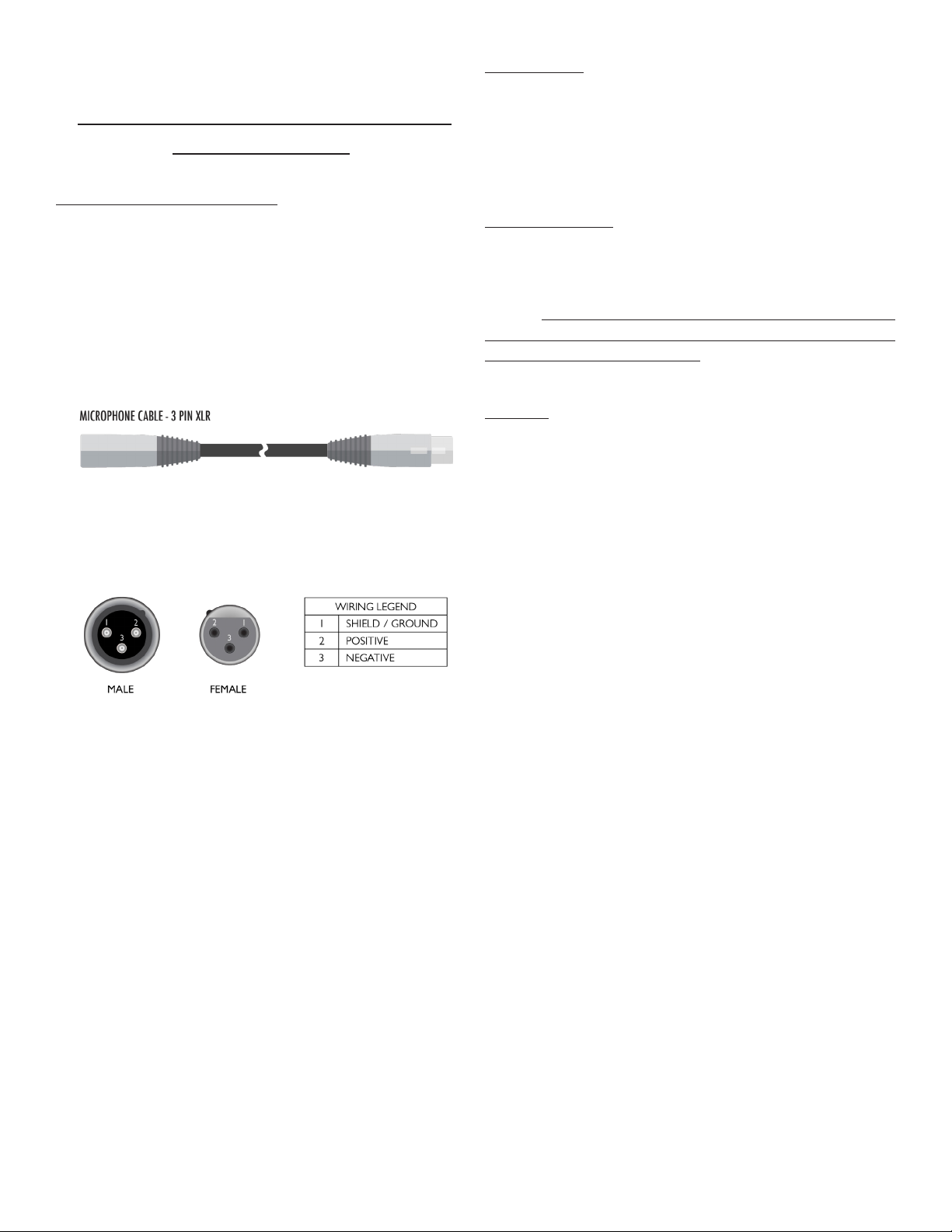

2. Connect the Type L to a microphone preamplier using
a standard XLR microphone cable.
NOTE: Modern microphone cable wiring standard is,
‘pin two hot,’ where hot is positive. The Type L is wired
for pin two hot.
3. Once the Type L is connected to the preamplier and
the output of the preamplier is patched to its destina-
tion, the preamplier’s 48V phantom power may be
activated.
NOTE: The output impedance of the Type L is 200
Ohms.
Warm-up
It is recommended for all electronics—once powered on—
to be given time to settle before use. Though optional…for
optimum results, prior to sound incident or usage, allow the
Type L to warm-up for a minimum of 3-5 minutes.
Power Down
Prior to disconnecting the XLR cable between the micro-
phone and preamplier, rst turn o 48V phantom power.
NOTE: Once 48V phantom power has been deactivated, it
is recommended to wait a minute for the microphone to fully
discharge before disconnection.
Vocals
For vocals we always suggest use of a pop lter. Large dia-
phragm condenser microphones (LDCs) when exposed to
moisture from a source at close proximity—such as a vocal—
can sometimes cause a temporary interruption of sound cap-
ture. For use on a vocal where a pop lter isn’t desired, it
may be possible to avoid eects of moisture by tilting the
microphone at an angle of 10-15º (degrees) away from the
mouth and the center of the capsule placed between the ball
of the nose and the upper lip, or between the lower lip and
chin, and not directly in line with the mouth.
TIP: The non-pop lter technique also minimizes plosives.

5UM TGMTL-101123
OPERATING INSTRUCTIONS
Polar Pattern
The directional characteristic of the Type L is Cardioid.
This unidirectional polar pattern discriminates against source
arriving at the rear of the capsule—and to a lesser degree at
the sides—in preference for sound incident at the front of
the microphone.
NOTE: Proximity eect is a natural occurrence of the cardioid
polar pattern, that is, where low-end is emphasized when the
sound source is closer to the microphone.
TIP: If the microphone is required to be placed in close prox-
imity to a source—such as an acoustic guitar—where capture
of low frequency data may be less desired, or in small envi-
ronments where natural build-up can occur, use of a low-cut
or rumble lter may be necessary.
Pad
Facility to decrease the sensitivity of the microphone by -10
dB exists via the on-board PAD. The PAD is located at the
rear of the microphone and below the head basket. The PAD
is actuated by placing the toggle switch towards -10 dB.
TIP: Use the PAD in scenarios where the sound incidence is
overloading the capsule. Examples of high SPL sources are—
drums, kick drum, bass or electric guitar cabinets.

6UM TGMTL-101123
Dual Tone System
The Dual Tone System facility of the TG Microphone Type L
is located at the rear of the microphone and below the head
basket, and is operable via a toggle switch. The Dual Tone
System provides two options, Aor B. System A and B modify
the input structure of the microphone and have a distinct ef-
fect upon how the microphone responds to the source and
the character of the sound captured.
System A
Input system A is rich in harmonic content, more forward
and characteristically what you’d expect from a TG preampli-
er. System A is suitable for a wide array of sources and is
comparatively more colored than system B.
System B
System B was intended to have a unique sound in contrast
to system A. Comparatively to system A, input system B is
cleaner or more pristine and embodies a ribbon like quality;
system B also runs about -6 dB lower in level.
System B with the on-board PAD engaged, is the extreme
SPL mode of the TG Microphone.
TIP: System A and B with the PAD engaged are both capable
of handling loud sources. However, if the source exceeds the
handling capacity of System A—with PAD engaged— then B
with the PAD is the logical choice.
Regardless of system B’s extreme SPL capability, it may be
used for any source including— vocals, acoustic guitar and
other lower SPL sources.
TIP: Use both system A and B when doubling parts—E.g.
acoustic guitars, electric guitars—to create interest and the
illusion of dierent setups for a part; pan the doubled part
hard right and left in the mix for maximum eect.

7UM TGMTL-101123
MAINTENANCE
Storage
WARNING: Turn the microphone system o and wait until
at least a minute to give the microphone a chance to fully
discharge before disconnecting the XLR microphone cable
from the Type L or the preamplier input.
When the TG Microphone Type L is not in use for extended
periods of time, please stow the microphone in the supplied
plastic dust cover and bamboo box; always store the micro-
phone in a room temperature environment.
NOTE: If the microphone is to be left out for daily use, take
care to further protect capsule by using the provided plastic
dust cover.
SERVICE
United States
Prior to sending in equipment for repair, please contact our
shop at the number below. We will assist you in trouble-
shooting, and if needed, we will issue an RMA# to return the
equipment for service.
Send Repairs To:
Chandler Limited, Inc.
Attention: Repairs
222 S. Cherry St.
PO Box 38 (if sending via the postal service)
Shell Rock IA 50670
Phone: [phone]
Email: [email protected]
International
Repair of Chandler Limited products purchased, outside of
the United States, is provided by local or regional authorized
Chandler Limited distributors. To obtain service or repairs,
please contact your local dealer or regional distributor for
further instruction.
Visit chandlerlimited.com for a list of authorized International
Distributors.
CE CERTIFICATION
Chandler Limited declares under its sole responsibility that all
products manufactured by them are in compliance with Elec-
tromagnetic Compatibility (EMC) Directive 2014/30/EU;
Standards: EN55103-1:2009+A1:2012; EN55103-2:2009;
EN55013:2013 and Low Voltage Directive (LVD) 2014/35/
EU; Standards: EN60065:2002+A1:2006+A11:2008+A2:20
10+A12:2011.

8UM TGMTL-101123
PRODUCT LIMITED WARRANTY
During the rst year from the date of the original purchase, this product is warranted to be free from defects in materi-
als and workmanship under normal use, service and maintenance. This warranty applies to the original purchaser and is
subject to the following terms and conditions:
What Is Covered: The product’s components as originally installed by the manufacturer that are defective in materials
or workmanship under normal use, service and maintenance, except expendables dened as vacuum tubes and meter or
badge lamps, which are covered by a lesser warranty period as set forth below.
What Is Not Covered By This Warranty: This warranty does not extend to or cover:
1. Any defect due to the negligence of others; failure to install, operate or maintain the product properly; unreason-
able use; accidents; alteration; use of unauthorized or non-standardized parts; acts of God; theft; vandalism; electri-
cal malfunctions (i.e., resulting from power surges, shorted or overloaded circuits, etc.), use of any power source
other than supplied by manufacturer; repair by anyone other than an authorized Chandler Limited representative;
or damage resulting from improper packing or mishandling by a shipper.
2. Normal wear and tear of parts.
3. Shipping, handling, packaging and delivery costs of the product.
Who Is Covered: The original purchaser.
Repair During The FirstYear for non-expendables: During the rst year, all defective product components that are
covered by this Limited Warranty will be repaired free of charge including parts and labor. The purchaser will pay all ship-
ping costs AND a $35 handling fee per unit.
Repair During The First 90 Days for expendables: During the rst 90 days, all defective expendables (vacuum tubes
and meter or badge lamps) that are covered by this Limited Warranty will be replaced or repaired free of charge including
parts and labor. The purchaser will pay all shipping costs and a $35.00 handling fee per unit.
WhatYou Must Do for Warranty Service (in the United States): If you live in the United States and your product
was purchased through a U.S. Dealer, please contact your dealer OR call 319-885-4200 or email support@chandlerlimited.
com.
WhatYou Must Do for Warranty Service (outside of the United States): For warranty service if you live outside
of the United States, please contact the dealer where you purchased the product.
Any products returned to Chandler Limited for repair should include: (1) complete description of the problem; (2) name,
address, phone number, fax number, and/or e-mail address; (3) receipt of original purchase; (4) power supply and all acces-
sories and cables. The purchaser is responsible for the shipping costs to and from Chandler Limited. Chandler Limited is
not responsible for damage resulting from improper packing and/or mishandling by a shipper.
If sent by UPS or Federal Express, ship to: Chandler Limited, 222 South Cherry Street, Shell Rock IA 50670
If sent by Postal Service, ship to: Chandler Limited, PO Box 38, Shell Rock IA 50670
The foregoing expresses Chandler Limited’s obligations and liabilities with respect to the quality of the product, its compo-
nents and accessories. All other warranties, express or implied, including the warranties of merchantability or tness for a
particular purpose are disclaimed. Chandler Limited shall not be liable for the loss or use of the product, its components
and accessories, inconvenience, loss or any other damages, direct or consequences arising out of the use of, or inability to
use the product or its components or damages resulting from or attributable to defects in the products or its components.
No one other than Chandler Limited has authority to extend or modify the terms of this limited warranty in any manner
whatsoever.

9UM TGMTL-101123
DISCLAIMER OF WARRANTY
EXCEPT FOR THE FOREGOING WARRANTIES, CHANDLER LIMITED HEREBY DISCLAIMS AND EXCLUDES ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO ANY AND/OR ALL IMPLIED WAR-
RANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY WARRANTY WITH RE-
GARD TO ANY CLAIM OF INFRINGEMENT THAT MAY BE PROVIDED IN SECTION 2-312(3) OF THE UNIFORM
COMMERCIAL CODE AND/OR IN ANY OTHER COMPARABLE STATE STATUTE.
LIMITATION OF LIABILITY
THE LIABILITY OF CHANDLER LIMITED, IF ANY, AND PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR DAM-
AGES FOR ANY CLAIM OF ANY KIND WHATSOEVER, REGARDLESS OF THE LEGAL THEORY AND WHETHER ARIS-
ING IN TORT OR CONTRACT, SHALL NOT BE GREATER THAN THE ACTUAL PURCHASE PRICE OF THE PRODUCT
WITH RESPECT TO WHICH SUCH CLAIM IS MADE. IN NO EVENT SHALL CHANDLER LIMITED BE LIABLE TO PUR-
CHASER FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND INCLUD-
ING, BUT NOT LIMITED TO, COMPENSATION, REIMBURSEMENT OR DAMAGES ON ACCOUNT OF THE LOSS OF
PRESENT OR PROSPECTIVE PROFITS OR FOR ANY OTHER REASON WHATSOEVER.
