Karma SET 6080 User manual

Instruction manual
E
www.karmaitaliana.it
SET 6080
SET 6080LAV
SET 6082
SET 6082PL
SET 6082LAV
VHF Wireless Microphone
Double VHF Wireless Microphone

32
Congratulation for your choice!
Congratulations for your choice! The Karma product you have purchased
is the result of careful planning by specialized engineers.
High quality materials have been used for its construction, to ensure its
functioning over time. The product is manufactured in compliance with strict
regulations imposed by the European Union, a guarantee of reliability and
safety.
Please read this manual carefully before starting to use the xture in order
to exploit its full potential.
Karma has several products’ accessories that can complete your device.
We invite you to see the whole range of our products by visiting our website:
www.karmaitaliana.it
where you will nd , in addition to all our items, detailed descriptions and
further documents related to the product.
We hope that you will be satised with your purchase and we thank you
again for your trust in our brand.
Introduction

Ulteriori informazioni su: www.karmaitaliana.it
32
Safety Notes
Safety notes
• Keep this User Manual for future reference. If you sell the product to
another user, be sure to give this manual to the next owner.
• Make sure the voltage of the power source used for the product is
correct.
• This product is not suitable for outdoor use.
• To avoid the risk of re or short-circuits never expose the xture to
rain or moisture.
• Do not operate the product in an ambient temperature higher than
35°.
• In the event of a serious operating problem, stop using the product
immediately. Never try to repair the product, but contact the
authorized technical assistance center.
• Repairs carried out by untrained people can lead to damage both to
the xture and to persons.
• Make sure the power cord is not damaged.
• Never disconnect the product from the power source by pulling on
the cord
CAUTION:
When you receive the product you have to check carefully
that the parcel is not damaged from shipping or open. Even
if the packaging is not damaged you have to check the
product’s conditions within three (3) days from the reception.
For any kind of problem found on the item, it is necessary
to address a claim to the seller and to our ofces (also by
e-mail), describing in detail the damage. Any claim received
beyond the 3-day time limit, will not be accepted. It is
suggested to save all the packaging, labels, delivery bill and
all that can be useful to solve quickly the problem.

54
Logos
This symbol alerts you to the presence of important operating and
maintenance, in the manual or in the documentation accompanying
the product
This symbol indicates that the product complies with international
standards RoHS (Restriction of certain Hazardous Substances)
which restricts the use of certain hazardous substances in electrical
and electronic equipment put on the European market from 1 July
2006. It is part of a series of EU Directives and environment and
‘ closely connected to the WEEE Directive ( Waste Electrical and
Electronic Equipment).
The symbol of the crossed-out dustbin indicates that the product
at the end of its life must be collected separately from other waste
. The user must , therefore , take the remote control integrates the
essential components come to an authorized disposal center for
collection of waste electronic and electrical , or returning it to the
dealer when buying new equipment of equivalent type , at a rate of
one to one. Appropriate separate collection for the decommissioned
equipment to recycling , treatment and environmentally compatible
disposal helps to prevent negative impact on the environment and
human health and promotes recycling of the materials making
up the product. Illegal dumping of the product by the user entails
the application of administrative sanctions pursuant to Legislative
Decree n . 152/2006 ( Art.255 Part 4 )
The CE mark indicates that this product complies with the European
Community standards EMC ( Electromagnetic Compatibility)
and LVD ( Low Voltage Directive ). Compliance documentation in
complete form is available at the company Karma Italian Srl.

Ulteriori informazioni su: www.karmaitaliana.it
54
Front and Rear Panel
N° Function/Description
1 Power Led indicator
2 RF MIC1 Led Signal
3 RF MIC2 Led Signal
4 Left Antenna
5Right Antenna
6 ON/OFF Button
7Jack unbalanced MIC - OUT with Jack Connector 6.3mm mono
8 Power Socket
Single Channel Base
Double Channels Base

76

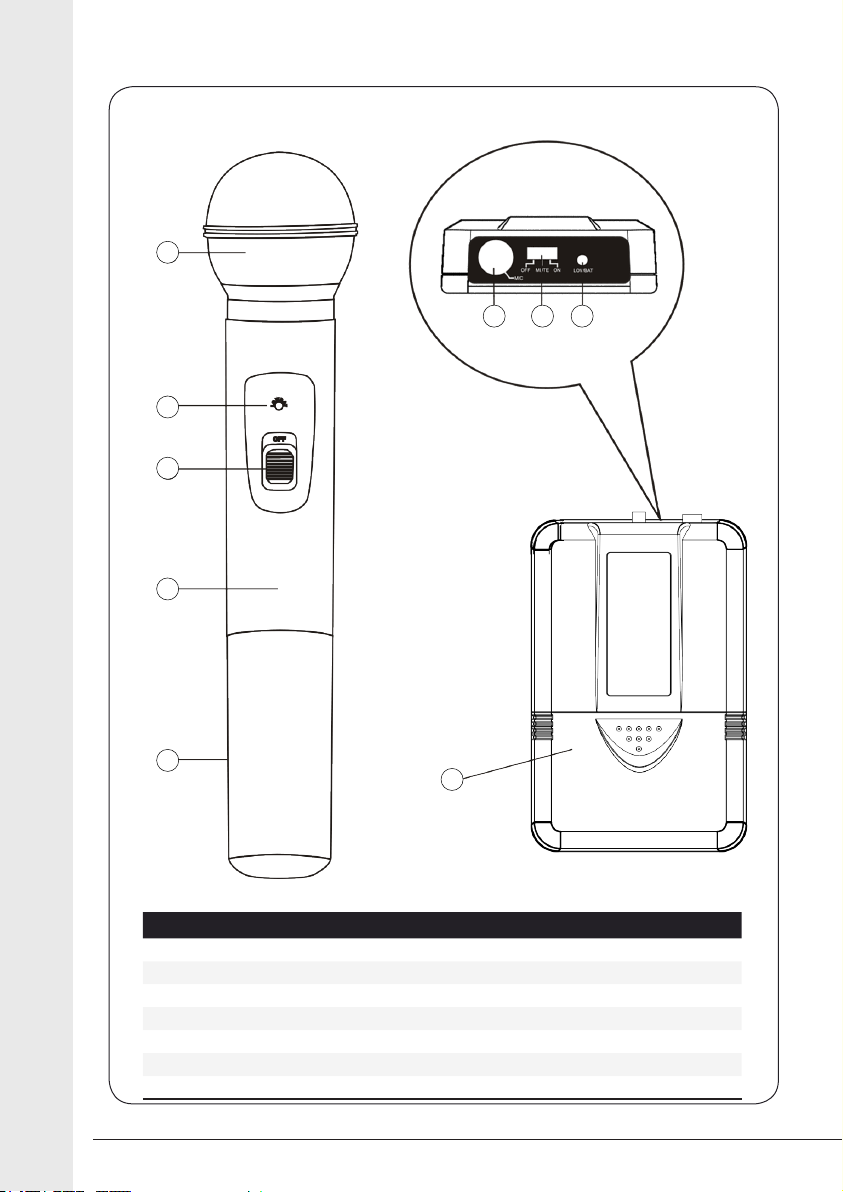

N° Function /Description
9Microphone grid - capsule housing
10 Battery status led indicator
11 Three position switch: off/ mute/ on
12 Plastic body
13 Battery housing
14 Socket for headset or lavalier microphone
Hand and Lavalier Microphones
Microphone: MW 6080
Lavalier: MW 6081
6
9
14 11 10
13
10
11
12
13

Ulteriori informazioni su: www.karmaitaliana.it
76
BATTERIES REPLACEMENT
When the led (2) lights up, indicating that batteries are running out, you can
easily replace them by removing the cover and putting in the two batteries
as shown in the picture. Please remember to waste batteries in an eco-
friendly way, by bringing them in the specic collection points.
SETUP EXAMPLE
The output from the receiver is a microphone signal. In this example the
receiver is connected to a microphone mixer, linked to an amplier that will
send the signal to the speakers. The microphone signal is unbalanced and
is supplied through 6,3mm mono sockets.
Connections

98
1. Please be sure that the batteries in the transmitter are charged
and if necessary replace them following the instructions.
If you have a handy microphone unscrew the lower part to open the battery
compartment, where you can put 2 AA batteries (not included). The same
batteries can be inserted in the headset version, by opening the front cover.
Be careful to respect the indicated polarities and remove the batteries from the
devices if you won’t use it for a long time.
2. If you need to connect the receiver to a mixer or an amplier, use the unbalanced
socket (7) and a cable with jack 6,3 mono connector.
3. Connect the included adapter to the back socket (8) and then to the 230V
mains.
4. After turning on the other xtures of your audio system, press the on/off button
(6) on the base.
5. If you own the headset version connect the microphone to socket (14). Use the
on/off button (11). Warning: the switch (11) has 3 positions: OFF, MUTE and
ON. Be sure to make two steps and to position it on “ON”. The transmitter can
be fastened to your belt thanks to the clip, allowing you to operate handfree.
The headset microphone can be worn behind the neck so that the microphone
will be in front of your mouth. Be careful not to bend the antennas or hide them,
as this could reduce the operative range.
6. In the same way, if you own a handy transmitter, press the on/off button (11).
For a while the led (10) will light on to conrm it is working correctly. Warning:
the switch (11) has 3 positions: OFF, MUTE and ON. Be sure to make two
steps and to position it on “ON”.
Operating Instructions

Ulteriori informazioni su: www.karmaitaliana.it
98
7. The led RF(2) on the receiver will light on to indicate the correct connection with
the transmitter. To improve reception slightly tilt the front antennas until you
obtain the best result.
8. WARNING: in order to work correctly, transmitter and receiver must operate
on the same channel. It is not possible to use more than one microphone on
the same channel. In case of contemporary use of more than one microphone,
each of them must operate on a different channel. This model is available in
different frequencies. For further information contact Karma’s ofces.
Operating Instructions

1110
Warranty certicate
The product is covered by
warranty, according to the current
regulations. We suggest to keep
the receipt or the invoice in order
to use it, in case of necessity, as
purchase proof.
Damages caused by negligence
or wrong use of the device are not
covered by warranty.
The warranty is no longer
effective if the item is modied or
disassembled by not authorized
people.
This warranty doesn’t envisage the
product’s replacement.
External components, batteries,
knobs, switches and any removable
or subject to wear and tear parts
are excluded from warranty.
Shipment for the return of faulty
items is at expense and risk of the
owner.
For all intents and porpuses the
warranty is effective only upon
exhibition of the invoice or of the
purchase receipt
HOW TO SEND THE PRODUCT
REGISTRATION FORM:
1. If you didn’t register the product on
our website www.karmaitaliana.it
we invite you to cut the form on the
page beside and to send it to our
ofces.
2. Please remember to ll both forms
as a copy will remain in the manual
and could be useful in the future.
Warranty certicate

Ulteriori informazioni su: www.karmaitaliana.it
1110
CERTIFICATO DI GARANZIA
GUARANTEE CERTIFICATE
CERTIFICATO DI GARANZIA
GUARANTEE CERTIFICATE
MODULO DI REGISTRAZIONE
REGISTRATION MODULE
MODULO DI REGISTRAZIONE
REGISTRATION MODULE
COPIA DA INVIARE A: COPIA DA CONSERVARE
Spett.le KARMA ITALIANA Srl Via Gozzano, 38 bis 21052 - Busto Arsizio (VA)
%

1312
Speciche Tecniche
Speciche tecniche Speciche tecniche
MODELLO / MODEL MODELLO / MODEL
DATA D’ACQUISTO PURCHASING DATE DATA D’ACQUISTO PURCHASING DATE
N. SCONTRINO O FATTURA RECEIPT/INVOICE NUMBER N. SCONTRINO O FATTURA RECEIPT/INVOICE NUMBER
TIMBRO E FIRMA DEL RIVENDITORE DEALER’S STAMP AND SIGNATURE TIMBRO E FIRMA DEL RIVENDITORE DEALER’S STAMP AND SIGNATURE
ACQUISTATO DA / PURCHASED BY ACQUISTATO DA / PURCHASED BY
COGNOME / SURNAME COGNOME / SURNAME
NOME/ NAME NOME/ NAME
VIA / ADDRESS VIA / ADDRESS
N° N°
PROV. PROV.
CITTÀ / CITY CITTÀ / CITY
C.A.P. / ZIP CODE C.A.P. / ZIP CODE

Ulteriori informazioni su: www.karmaitaliana.it
1312
COMPLIANCE DECLARATION
The product described in this manual is compliant with the
essential requirements of 1999/5/CE directive.
Karma Italiana Srl
This device operates on frequencies that are legal on the Italian territory and might not
be authorized in other geographic areas. We suggest to address to the local authorities
to ask for information about the frequencies authorized in your country.
Karma Italiana Srl

1514

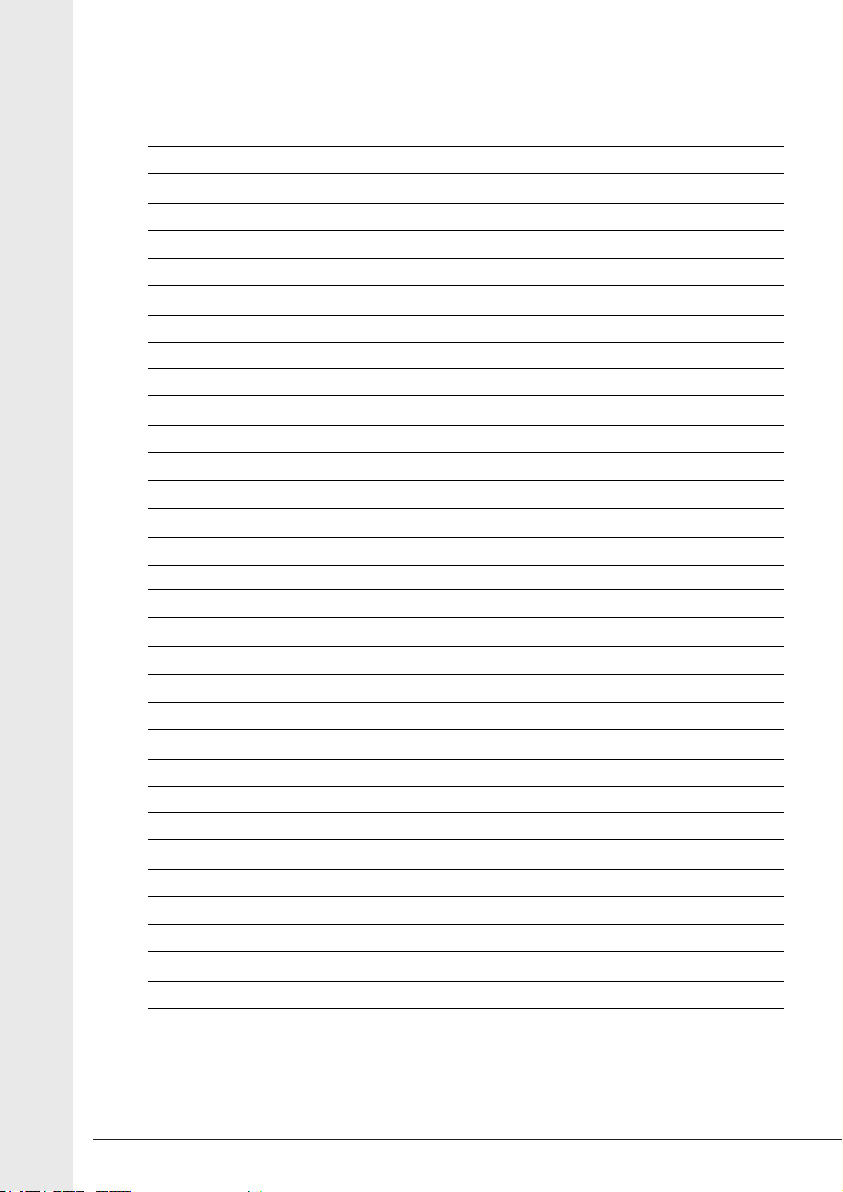

NOTE

Ulteriori informazioni su: www.karmaitaliana.it
1514
RECEIVER
Power Supply 13-15V / 300-500mA
Operative range Max 25 mt
Noise Signal > 85dB
Spurious > 70 dB
Output Audio Level 0 +/-300mV
Sinsibility -105dB
Operative Temperature da -10° a + 50° C
T.H.D. <0,5%
Audio dinamyc range >100dB
Frequency Responce 40 Hz - 20 KHz
Dimensions: 166 x 30 x 125 mm
Weight: 0,5 Kg
HAND MICROPHONE
Power Supply 2 x 1,5V (tipo AA) Not included
Current drain Max 25 mA
Modulation FM
RF Output: > 10dBm
Max deviation +/-70kHz
Spurious >45dB
Antenna Included
Autonomy Max 8 H
Dimensions: 255 x 50 x 50 mm
Weight 170 gr. circa
LAVALIER MICROPHONE
Power Supply 2 x 1,5V (tipo AA) Not included
Current drain Max 5 mA
Modulation FM
RF Output: > 10dBm
Max deviation +/-70kHz
Spurious >45dB
Dimensions: 63 x 100 x 21 mm
Weight 120 gr. circa
Specications

Via Gozzano 38 bis
21052, Busto Arsizio (VA) - Italy
Telefono +39 0331.628.244
Fax [phone]
www.karmaitaliana.it made in China
ver. 14.1
1622
