Chandler Limited EMI TG12413 LIMITER User manual
Plug-in Version 1.0 for TDM, RTAS, and AudioSuite
User’s Guide
Page 2
Copyright 2005 Chandler Limited LLC
Copyright 2005 EMI (IP) Limited
EMI and ABBEY ROAD are trade marks of EMI (IP) Limited.
Chandler Limited is a trade mark of Chandler Limited LLC.
Chandler Limited
Phone: (319) 885-4200
Fax: (319) 885-4202
Web site: http://www.chandlerlimited.com
Email: [email protected]
Abbey Road Studios
Website: http://www.abbeyroad.com/plugin
Credits:
Product Development Team: Abbey Road Studios & Chandler Limited
GUI and Programming: Cool Stuff Labs, Inc.
Graphics: Abbey Road Studios & Cool Stuff Labs
Documentation: Mike Freitas
Page 3
Table of Contents
1 — Introduction ........................................................................................................ 4
2 — Installation, Registration, and Authorisation ................................................... 6
Installing ...................................................................................................................... 6
Registering .................................................................................................................. 7
Authorizing .................................................................................................................. 7
3 — Using the TG12413 Limiter Plug-in .................................................................. 9
TG12413 Controls ..................................................................................................... 10
Adjusting Controls ..................................................................................................... 14
Bypassing .................................................................................................................. 14
4 — Operational Tips ............................................................................................... 15
Page 4
1 — Introduction
Welcome to the TG12413 Limiter Plug-in.
TG equipment was used on many classic records and this Limiter was featured on every
channel of TG consoles used to record The Beatles “Abbey Road”, several Pink Floyd
records including “Dark Side of the Moon”, and Paul McCartney. Now, the TG12413
Limiter Plug-in brings the same unique and authentic sonic possibilities to the world of
Digital Audio Workstations.
The TG12413 Plug-in is actually two Plug-ins in one, letting you choose between classic
and contemporary versions of this legendary compressor/limiter:
TG12413 1969
The TG12413 (1969) Plug-in is a recreation of the classic TG12413 Limiter
used in custom EMI and Abbey Road recording and mastering consoles from the
late 60’s and 70’s.
TG12413 2005
The TG12413 (2005) Plug-in is a recreation of the Chandler Limited TG1 Compressor. The
Chandler TG1 was remade from the original design information and circuit board
drawings as provided by Abbey Road and EMI to ensure extreme authenticity!
The TDM and LE Versions
The TG12413 Plug-in is available in TDM, RTAS, and AudioSuite versions and is
supported on Pro Tools HD, Pro Tools LE, and Pro Tools M-Powered systems (and
compatible Avid systems).
• The TDM version supports up to 192 kHz sample rates.
• The RTAS version supports up to 192 kHz sample rates.
• The AudioSuite version supports up to 192 kHz sample rates.
The TG12413 supports mono, mono-to-stereo, stereo, multi-channel, and
multi-mono formats.
Page 5
System Requirements
• Version 1.0 supports Macintosh OS X and Windows XP. (Check the Abbey Road
or Chandler Limited web sites for the most current support news.)
• The TG12413 Plug-in supports any Pro Tools HD, LE, or M-Powered system
capable of running Pro Tools software version 6.4 or higher.
• The TG12413 Plug-in requires an iLok Smart key for authorization and copy
protection. If you do not have an iLok, consult the Digidesign web site for
information on acquiring one for your Pro Tools software.
DSP and TDM Systems
The table provides the theoretical maximum number of mono instances of the TG12413
Plug-in supported on TDM systems. The second column is the number of instances that
can fit on one DSP, the third column is the total percentage usage of that DSP.
HD (“Presto”) DSP:
TDM insert delay: 2 samples
Multishell delay: 2 samples
Delay due to processing inside the EMI plug-in: 0 samples
2005 Mono 9 (99%)
2005 Stereo 5 (99%)
2005 LCR 3 (87%)
2005 LCRS / Quad 2 (77%)
2005 5.0 2 (94%)
2005 5.1/6.0 1 (58%)
2005 6.1 / 7.0 1 (67%)
2005 7.1 1 (75%)
1969 Mono 7 (89%)
1969 Stereo 4 (93%)
1969 LCR 2 (69%)
1969 LCRS / Quad 2 (89%)
1969 5.0 1 (58%)
1969 5.1/6.0 1 (67%)
1969 6.1 / 7.0 1 (77%)
1969 7.1 1 (87%)
Page 6
2 — Installation, Registration,
and Authorisation
Installing the TG12413 Plug-in involves the following steps:
1. Installing the Plug-ins.
2. Authorising your iLok Smart Key for the TG12413 using
the License Card provided.
Follow the instructions below to complete the installation, registration, and
authorisation process.
Installing
To install the TG12413 Limiter Plug-in:
1. Download the installer for your Pro Tools system, computer platform, and
operating system, from the Abbey Road or Chandler Limited web site. Or, insert
the TG12413 installer disc into your CD-ROM drive.
2. Double-click the installer. TDM users should install the TDM bundle, which
installs TDM, RTAS, and AudioSuite versions. LE users should install the LE
version, which installs RTAS and AudioSuite versions. .
3. Follow the instructions onscreen to install the Plug-ins.
When you are finished, remove the disc from your CD-ROM drive.
Registering is required in order to initiate the Plug-in Demo (Try it) process. In addition,
registering your purchase with Chandler Limited entitles you to periodic updates, as they
become available.
Page 7
Registering
To download the TG12413 Limiter Plug-In you will need Pro Tools 6.4
or greater, an ILOK, and an ILOK account.
1. First, point your internet browser to http://www.abbeyroad.co.uk/ilok/
2. Fill out the provided form and click the ‘Submit Query’ Button.
3. Your browser will start downloading the version of the plug-in you
selected to run on your system.
4. Once the download is complete, go to http://www.ilok.com and login.
When you are in, click the ‘You have licenses’ link. Then make sure your
ILOK is connected and scroll to the bottom of the page. Click the
‘Synchronize’ button, and then you should be ready to go.
5. Make sure the plug-in is in the proper folder to work with your system.
If you wish to purchase a full version or need support email:
Authorising the TG12413 Plug-in
To authorise your copy of the TG12413 Plug-in, do the following:
1. Make sure you have installed the Plug-in as instructed in the previous section.
2. Make sure you have an iLok Smart Key.
3. Launch Pro Tools.
4. When prompted to authorise the TG12413 Plug-in, follow the instructions
on-screen to “Use License Card.” This involves carefully separating the small
GMS chip from the larger License Card, and inserting the chip into your iLok when
prompted on-screen. This transfers your license from the card to your iLok.
5. When the process is complete, you can remove the GMS chip from your iLok.
(Tip: The small GMS chip can be snapped back into place in its License Card
for easier storage.)
Page 8
Customer Support
Technical support is available online. Please email Chandler Limited at:
Include your Online Store Invoice number, or your TG12413 Limiter Plug-In License
number, as well as your telephone number.
Downloads of the latest versions of the TG12413 Limiter Plug-In software, as well as man-
uals and other resources, are also available at the Chandler Limited web site:
http://www.chandlerlimited.com
Page 9
3 — Using the TG12413
Limiter Plug-in
Using the TG 12413 in sessions involves inserting either the 2005 or 1969 version of the
Plug-in on a track, then adjusting parameters as needed.
To insert the TG 12413 Plug-in on a track:
1. Create an audio track, aux input, or master fader.
2. Choose TG12413 (2005) or TG12413 (1969) from the track Insert
selector (see your Pro Tools guides for more information if you are unfamiliar
with inserting Plug-ins).
3. To adjust the Plug-in, see the next sections.
Using the AudioSuite version involves selecting the material to process, selecting the
desired TG12413 Plug-in (2005 or 1969) from the AudioSuite menu, adjusting the
AudioSuite parameters, then processing. See your Pro Tools documentation for more
AudioSuite instructions.
The TG12413 Plug-in supports all TDM sample rates up to 192 kHz, and can be used on
mono, stereo, and multichannel tracks up to 7.1 format (use the multi-mono version for
greater than stereo applications). The TG12413 also supports all standard Pro Tools Plug-in
conventions, including settings files, multi-mono channel linking, and Plug-in automation.
Page 10

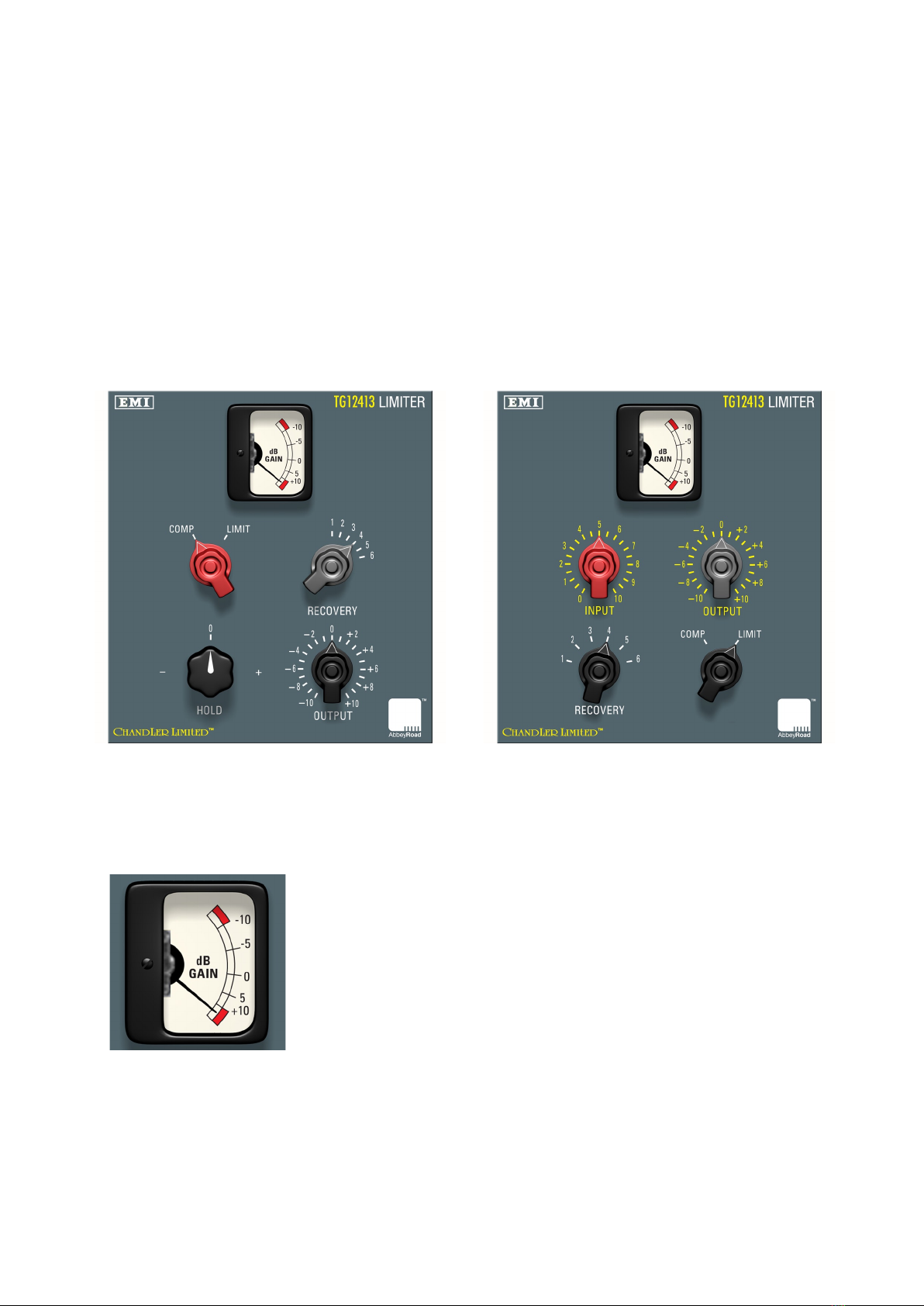

TG12413 Plug-ins and Controls
The TG12413 Plug-in is provided in two modules (1969, and 2005). Each of the
modules provides four controls and a gain meter. The two modules are shown below.
Fig. 1 — TG12413 (1969) Fig. 2 — TG12413 (2005)
Meter
The dB Gain meter shows gain reduction being applied
by the current compressor or limiter settings. The meter
indicators range from +10 to –10, which is identical to the
vintage TG unit. In actuality it shows gain reduction ranging
from 0 at the bottom to 20db at the top.
Fig. 3 — Gain
Reduction Meter
Page 11

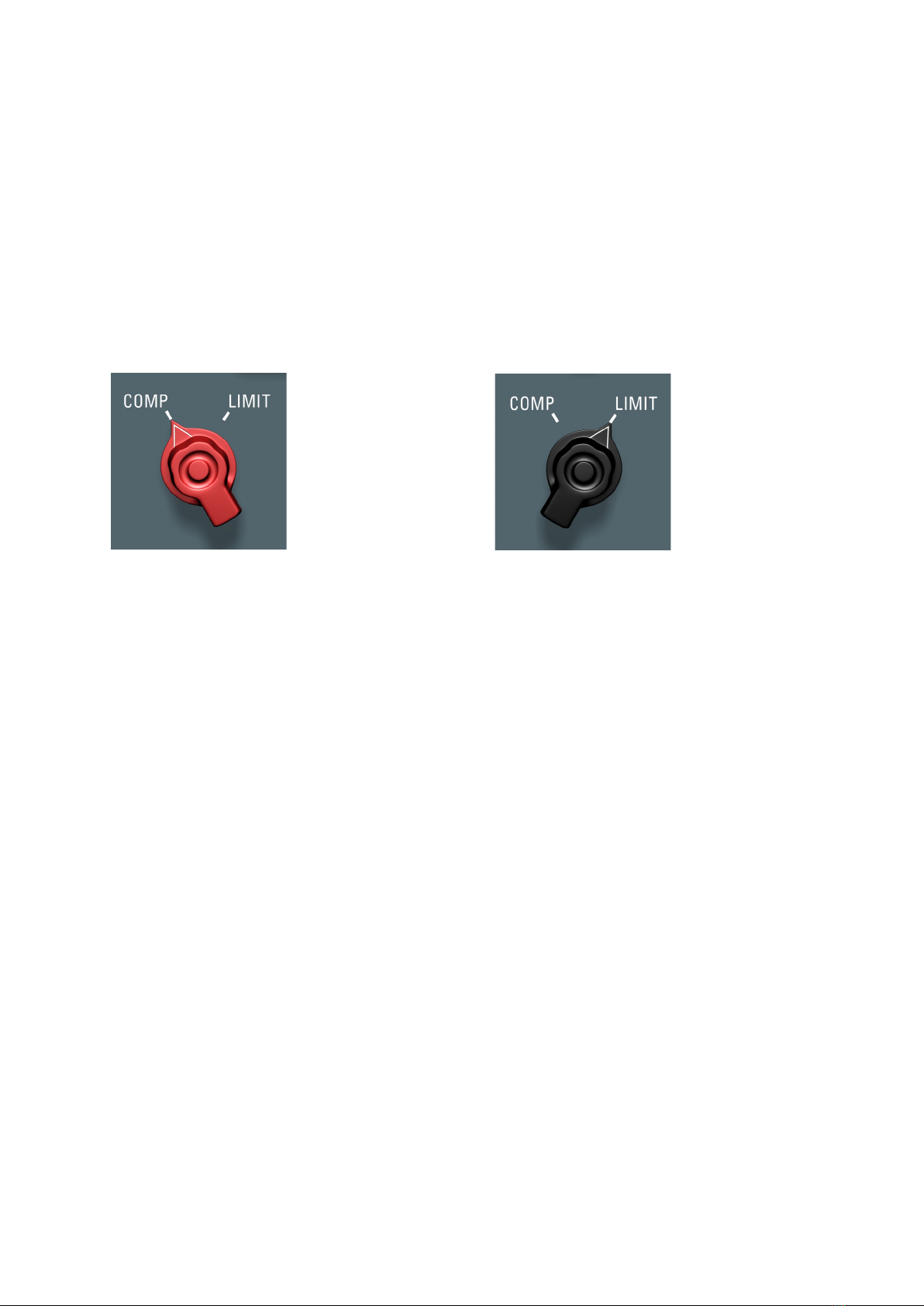

Comp/Limit
This switch selects between compress and limit function of the unit. It selects between a
2:1 compressor or as a limiter with up to 20db of limiting.
Fig. 4 — 1969 Module Fig. 5 — 2005 Module
The limiter has a very classic pumping/breathing sound, and while the compressor is
less drastic sounding it has a sound all its own. Both can be mean and nasty or more
subtle depending on the Input/Hold and Recovery settings (see below). As a general
rule limit might be more usable for tracking and effect type sounds, while comp might
be better for mixing.
Input Controls (Hold, and Input)
One of the fundamental differences between the 1969 and 2005 TG12413 Plug-in
modules is the Input or Hold control and corresponding response curves that each
provide. In essence their roles are reversed- Hold (1969 version) acts as a level back
off system to the Limiter while Input (2005 version) increases level into the Limiter.
You could say that the 1969 version is slightly more subtle while the 2005 can limit
more intensely.
Page 12

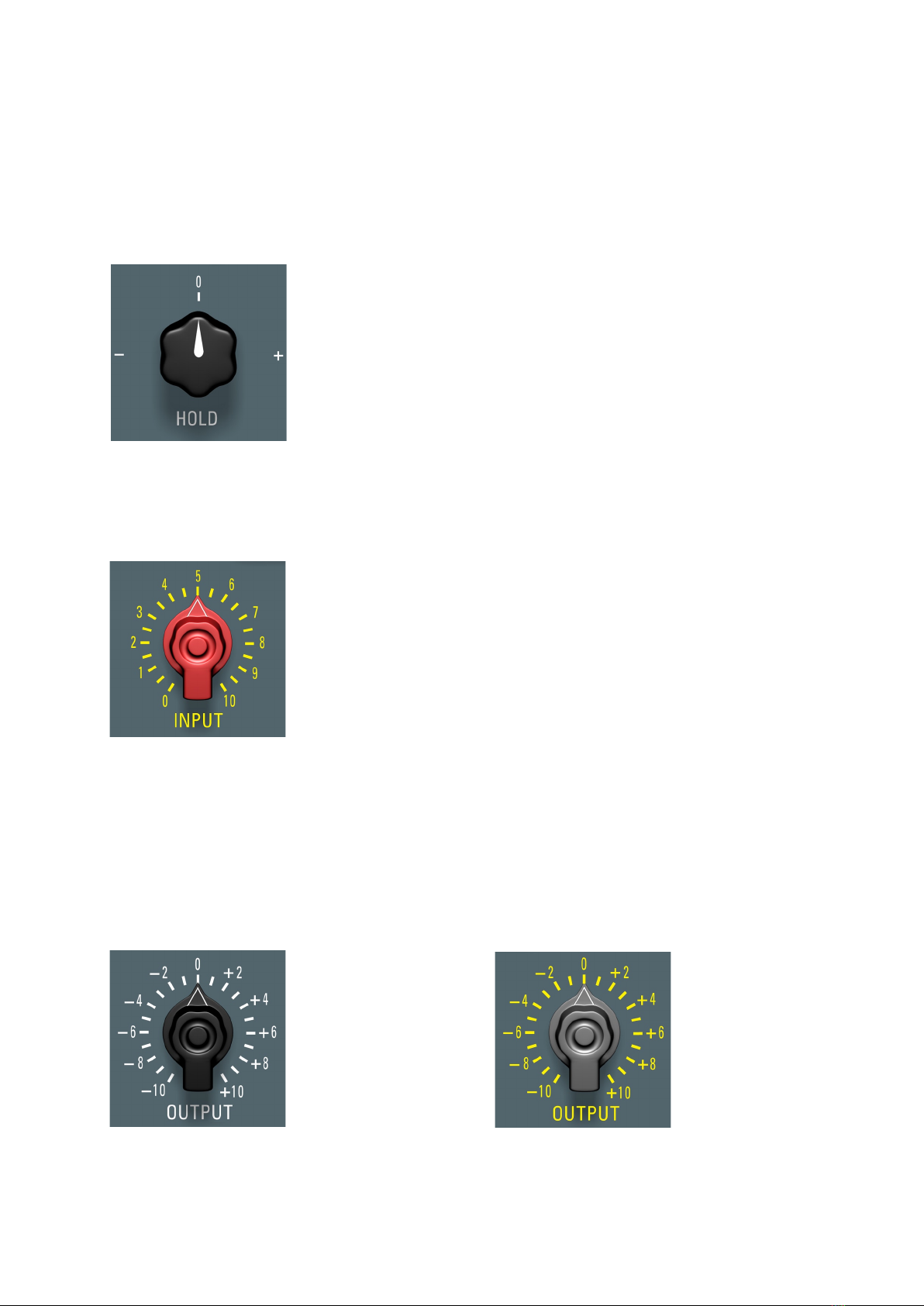

As previously mentioned the Hold control on the 1969 module
acts as a back off system to the Limiter side chain. Turning
the knob clockwise will give you more gain reduction. You will
notice that as the knob is turned to the left the meter rises as
the threshold point of the Limiter is reduced. For example if the
needle is set at -5 you will have the potential of 8db reduction.
Hold (TG12413 1969 Module Only)
The Input control functions as your input gain/threshold switch
which simply drives the Limiter harder as you turn it up. This
control emulates the 21-position switch available as a special
order option on the Chandler Limited/Abbey Road Special
Edition TG1 hardware. Its specially designed taper provides
smoother control at lower settings. Crank this up to really hear
the unit pump!
Input (TG12413 2005 Module Only)
Output
This is a 21-position switch set to 1 dB steps giving +/-10dB of output adjustment for level
matching as well as accurate, recallable gain make-up. Use this with the bypass control to
set unity output from the unit.
Fig. 8 — 1969 Module Fig. 9 — 2005 Module
Fig. 6 — 1969 Module
Fig. 7 — 2005 Module
Page 13
Recovery
This switch is marked 1-6 because the release times change when switching between
compress and limit. #1 being the fastest through to #6 being the slowest. This control is
important for varying the sound of the unit. As you slow compression it greatly affects the
amount and sound of the gain reduction. Listen closely to the changes it makes.
Fig. 10 — 1969 Module Fig. 11 — 2005 Module
Recovery Times by Mode (in seconds)
Settings 1 2 3 4 5 6
Limit Mode 0.05 0.1 0.25 0.5 1 2
Compress Mode 0.25 0.5 1.20 2.5 5 10
Attack Times
Limit Mode 8 ms Charging Time
Compress Mode 47 ms Charging Time
Page 14
Adjusting Controls
The TG12413 may be adjusted in two ways.:
• First is the standard Pro Tools “knob emulation.” Click and drag up/to the right
to increase a control setting, or drag down/to the left to decrease.
• Second, click on any part of the labelling around the control knob to go instantly
to a setting. This is meant to emulate the switches on an original TG Limiter.
To reset a control to its default setting:
• Option-click (if on Macintosh) or Alt-click (on Windows)
the desired control.
Bypassing
To bypass the TG12413 Plug-in:
•Click the Plug-in Master Bypass switch in the top of the Plug-in window.
Page 15
This chapter provides additional information and operational tips to help you get the most
out of the Chandler Limited TG12413 Limiter.
Vintage Limiting
The TG12413 can easily produce classic over-the-top limiting sounds from your favourite
vintage recordings. This is best done by boosting the Input on the 2005 or having the Hold
fully clockwise on the 1969 until you get the desired effect while adjusting the output gain
to match levels. Set Recovery to 1 (fastest) to give you the most bang! You can easily go
from smooth vintage to the craziest sound imaginable (like a Fairchild 670 about to
explode) by varying the gain in this way. You may also find it useful to boost up the Pro
Tools fader to send a higher signal to the Limiter.
EQ the Limiter
We have also had great results using a nice EQ such as a Pultec, or TG Channel MKII and
boosting frequencies into the limiter, causing it to clamp down hard on those areas and
produce some interesting pumping sounds. 5k on a vocal or 5k and 50hz on a drum room
mic will give you a lovely Beatles Sgt. Pepper flashback.
General Limiting Settings
For general use you may want to back off on the Input or Hold but you can get these
sounds by setting Recovery between 2-6 when the Input is still set high. This will work for
either compress or limit.
Getting Less Limiting
If you are getting more limit than you want at very low Input settings try setting the
Recovery times slower. Setting the Recovery between 3-6 can be a very effective way to
“get less” as it slows the attack times of the unit. You may actually see more reduction on
the meter but will hear less drastic effects from the Limiter.
4 — Operational Tips
Page 16
Drum Room Mics
A favourite way to use the TG12413 for drums is on a single room mic. Place it 5 – 10 feet
from the kick pointing down slightly. You may prefer a ribbon of some sort as they are less
bright and counteract the swishing you can get from the cymbals. Crank up the Input or
Hold and keep the Recovery fast. It works well to squeeze it very hard and then mix the
desired amount below the track.
Dual Limiter/Compressor
Running two channels in a series can be very cool! Patch them together and set the first to
limit with fast Recovery, and the second to comp with slower Recovery. Adjust the Inputs
for desired amount of reduction. Try this out:
Control Setting or Range
Input 4 to 7 or more
Output As needed
Comp / Limit Limit
Recovery 1 to 2
Control Setting or Range
Input 4 to 7
Output As needed
Comp / Limit Compress
Recovery 3 to 5
Limiter Settings: Compressor Settings:
For more help on settings check out the included presets, created by the Abbey Road
Engineers and Chandler Limited.
Table of contents
