DirectOut Technologies ANNA-LISA User manual

ANNA-LISA
User‘s Manual
Version 1.1

page 2 of 36 ANNA-LISA Manual - Version 1.1
Copyright
All rights reserved. Permission to reprint or electronically reproduce any document or
graphic in whole or in part for any reason is expressly prohibited, unless prior written
consent is obtained from the DirectOut GmbH.
All trademarks and registered trademarks belong to their respective owners. It cannot
be guaranteed that all product names, products, trademarks, requisitions, regulations,
guidelines, specifications and norms are free from trade mark rights of third parties.
All entries in this document have been thoroughly checked; however no guarantee for
correctness can be given.
DirectOut GmbH cannot be held responsible for any misleading or incorrect informa-
tion provided throughout this manual.
DirectOut GmbH reserves the right to change specifications at any time without notice.
DirectOut Technologies® is a registered trademark of the DirectOut GmbH.
© DirectOut GmbH, 2019

page 3 of 36ANNA-LISA Manual - Version 1.1
Table of contents
About This Manual 5
How to Use This Manual............................................................................... 5
Conventions .................................................................................................. 5
CHAPTER 1: Overview 6
Introduction ................................................................................................... 6
Feature Summary.......................................................................................... 6
How it works................................................................................................. 6
Applications................................................................................................... 7
CHAPTER 2: Legal issues & facts 8
Before Installing This Device......................................................................... 8
Battery - Safety Instructions.......................................................................... 8
Defective Parts/Modules ............................................................................. 9
First Aid (in case of electric shock)................................................................ 9
Updates ....................................................................................................... 10
Conditions of Warranty ............................................................................... 10
Intended Operation .................................................................................... 10
Conformity & Certificates ........................................................................... 11
Contact........................................................................................................ 12
Contents...................................................................................................... 12
Accessory.................................................................................................... 13
CHAPTER 3: Installation 14
Installing the Device .................................................................................... 14
Charging the battery.................................................................................... 15
CHAPTER 4: Operation 16
Introduction ................................................................................................. 16
Global Control.............................................................................................. 17
Signal Connections...................................................................................... 17
Battery......................................................................................................... 18
State ............................................................................................................ 19
Bluetooth® .................................................................................................. 19
Operating Principles .................................................................................... 20
Menu Structure ........................................................................................... 21
AES10 Spec Conformity.............................................................................. 22
Input Selection ............................................................................................ 23
Sync............................................................................................................. 23
Sample Rate................................................................................................ 24
Format......................................................................................................... 25
Generator .................................................................................................... 26
Amplitude.................................................................................................... 27
Eye Pattern.................................................................................................. 28
Jitter ............................................................................................................ 29

page 4 of 36 ANNA-LISA Manual - Version 1.1
CHAPTER 5: Troubleshooting and Maintenance 31
Troubleshooting........................................................................................... 31
Maintenance................................................................................................ 31
CHAPTER 6: Technical Data 32
Index 33

page 5 of 36ANNA-LISA Manual - Version 1.1
About This Manual
About This Manual
How to Use This Manual
This manual guides you through the installation and operation of the device.
Use the Table of Contents at the beginning of the manual or Index Directory at the
end of the document to locate help on a particular topic. You can access more
information and latest news by visiting on the DirectOut website at
www.directout.eu.
Conventions
The following symbols are used to draw your attention to:
TIPS
indicate useful hints and shortcuts.
NOTES
are used for important points of clarification or cross references.
WARNINGS!
alert you when an action should always be observed.

page 6 of 36 ANNA-LISA Manual - Version 1.1
CHAPTER 1: Overview
CHAPTER 1: Overview
Introduction
Welcome to ANNA-LISA, DirectOut’s battery powered and mobile analyser and
signal generator for MADI signals. ANNA-LISA provides a coaxial MADI I/O for
standard BNC cabling and a flexible SFP I/O to meet various connection standards
by using SFP modules. Input signals are analysed (e.g. signal level, jitter, sample
rate,...) and can be output or replaced by a generated signal (e.g. white/pink noise,
sine waves,...).
Feature Summary
MADI Ports 1 x SFP (empty cage without module)
1 x coaxial BNC connectors
MADI Formats 56/64 channel, 48k/96k Frame
Sample Rates 44.1, 48, 88.2, 96, 176.4, 192 kHz +/-12.5%
Bluetooth® v2.0+EDR support for remote control via mobile
devices
USB Port USB 2.0 (B) plug for charging.
Analysing Features Sample Rate, MADI Format, Signal Amplitude, Jitter,
Conformity with AES10 Spec, Eye Pattern
How it works
The signal of the selected input is analysed. Analysis results are displayed on the
device itself via simple ‘traffic light’ LEDs, detailed information can be obtained
with a remote software that connects Bluetooth®.
Standard MADI streams can be configured on the device itself. Three presets store
detailed settings for signal sources (white/pink noise, sine waves, routing of
incoming channels), gains and MADI settings.

page 7 of 36ANNA-LISA Manual - Version 1.1
CHAPTER 1: Overview
Applications
ANNA-LISA can be used in numerous applications where MADI connections are
used. Both proper signal analysis and test signal generation serve the aim of solid
operating conditions in MADI environments.
Typical applications include:
• ensuring stable signal connections
• detection of cabling issues (poor signal condition)
• line check of pre-installed cabling
• inspection of compatibility issues between different MADI transceivers
• ...
Navigation
MADI
SFP I/O
MADI
BNC I/O
USB
Power
Switch
Adjust Parameter

page 8 of 36 ANNA-LISA Manual - Version 1.1
CHAPTER 2: Legal issues & facts
CHAPTER 2: Legal issues & facts
Before Installing This Device
WARNING!
Please read and observe all of the following notes before installing
this product:
• Check the hardware device for transport damage.
• Any devices showing signs of mechanical damage or damage from the
spillage of liquids must not be operated.
• Do not use the device at extreme temperatures. Proper operation can
only be guaranteed between temperatures of 5ºC and 45ºC and a
maximum relative humidity of 80%, non-condensing.
• The cabinet of the device will heat up. Do not place the device close
to heating sources (e.g. heaters). Observe the environmental conditions.
• Do not dispose the device into fire, water or other liquids.
Battery - Safety Instructions
WARNING
This device contains a rechargeable lithium-ion polymer battery. Observe the
following safety instructions.
• Use only approved chargers and procedures. Improperly charging a cell or
battery may cause the cell or battery to flame or damage.
• The battery may be exchanged only by service staff that has been authorized
by DirectOut GmbH.
• The battery must be recycled or disposed of separately from general trash.
• Contact your DirectOut representative for exchanging the battery.
• Do not expose the battery to temperatures below 0°C or higher than 45°C.
• The battery is excluded from warranty claims.

page 9 of 36ANNA-LISA Manual - Version 1.1
CHAPTER 2: Legal issues & facts
Defective Parts/Modules
WARNING!
This device contains no user-serviceable parts. Therefore do not open the device.
In the event of a hardware defect, please send the device to your DirectOut repre-
sentative together with a detailed description of the fault.
We would like to remind you to please check carefully whether the failure is
caused by erroneous configuration, operation or connection before sending parts
for repair.
First Aid (in case of electric shock)
WARNING!
• Do not touch the person or his/her clothing before power is turned off,
otherwise you risk sustaining an electric shock yourself.
• Separate the person as quickly as possible from the electric power source
as follows:
- Switch off the equipment.
- Unplug or disconnect the mains cable.
• Move the person away from the power source by using dry insulating
material (such as wood or plastic).
• If the person is unconscious:
- Check their pulse and reanimate if their respiration is poor.
- Lay the body down and turn it to one side. Call for a doctor immediately.
• Having sustained an electric shock, Always consult a doctor.

page 10 of 36 ANNA-LISA Manual - Version 1.1
CHAPTER 2: Legal issues & facts
WARNING!
No compensation can be claimed for damages caused by operation of this unit
other than for the intended use described above. Consecutive damages are also
excluded explicitly. The general terms and conditions of business of DirectOut
GmbH are applied.
Conditions of Warranty
This unit has been designed and examined carefully by the manufacturer and com-
plies with actual norms and directives.
Warranty is granted by DirectOut GmbH over the period of 36 months for all
components that are essential for proper and intended operation of the device. The
date of purchase is applied for this period.
Consumable parts (e.g. battery) are excluded from warranty claims.
WARNING!
All claims of warranty will expire once the device has been opened or modified, or
if instructions and warnings were ignored.
For warranty claims please contact the dealer where your device was acquired.
Updates
DirectOut products are continually in development, and therefore the information
in this manual may be superseded by new releases. To access the latest documen-
tation, please visit the DirectOut website:
www.directout.eu.
This guide refers to firmware version 1.0.
Intended Operation
ANNA-LISA is designed for analysis and generation of MADI signals (AES10).

page 11 of 36ANNA-LISA Manual - Version 1.1
CHAPTER 2: Legal issues & facts
Conformity & Certificates
CE
This device complies with the basic requests of applicable EU guidelines. The ap-
propriate procedure for approval has been carried out.
RoHS
(Restriction of the use of certain Hazardous Substances)
This device was constructed fulfilling the directive on the restriction of the use of
certain hazardous substances in electrical and electronic equipment 2002/95/EC.
WEEE
(Directive on Waste Electrical and Electronic Equipment)
Due to the directive 2002/96/EC for waste disposal this device must be recycled.
For correct recycling please dispatch the device to:
DirectOut GmbH,
Leipziger Str. 32
09648 Mittweida
Germany
Only stamped parcels will be accepted!
WEEE-Reg.-No. DE 64879540
Radio
The installed bluetooth® antenna complies with the standards listed below:
• USA: FCC Part 15, Subpart B: 2008 Class B / FCC CRFTitle 47 Part 15 Subpart C
• FCC ID: T9J-RN42
• Europe: ETSI EN 301489-1 V1.8.1 / ETSI EN 301489-17 V.2.1.1 /
ETSI EN 301328 V1.7.1
• Canada: IC RSS-210 low power comm. device
• Certification Number: 6514A-RN42
EMC
The installed bluetooth® antenna complies with the standards listed below:
• USA: FCC CFR47 Part 15 subclass B
• Europe: EN 55022 Class B radiated / EN61000-4-2 ESD immunity /
EN61000-4-3 radiated field / EN61000-4-6 RF immunity /
EN61000-4-8 power magnetic immunity
Bluetooth®
The installed bluetooth® antenna complies with the standards listed below:
• BQB Listed: B014867- SPP and DUN profiles

page 12 of 36 ANNA-LISA Manual - Version 1.1
CHAPTER 2: Legal issues & facts
Contact
Sales:
DirectOut GmbH, Leipziger Str. 32, 09648 Mittweida, Germany
Phone: [phone] // Fax: [phone]
www.directout.eu
Manufacturer:
Leine-Weser-Labor GmbH, Brabeckstr. 121, 30539 Hannover, Germany
Contents
The contents of your ANNA-LISA package should include:
• 1 x ANNA-LISA
• 1 x USB cable
• 1 x product information
To complete the delivery please download from the
DirectOut website: www.directout.eu
• User Manual

page 13 of 36ANNA-LISA Manual - Version 1.1
CHAPTER 2: Legal issues & facts
Two different optical SFP transceiver for MADI transmission are available from
DirectOut GmbH:
• Multimode SFP transceiver with LC connectors (No: DOICT0129)
• Singlemode SFP transceiver with LC connectors (No: DOICT0130)
Specification of the optical SFP modules:
SFP Multimode Singlemode
Wavelength TX 1310 nm 1310 nm
Wavelenght RX 1310 nm 1310 nm
Distance 2 km 10 km
Powerbudget (dB) 11 dB 12 dB
Protocols Fast Ethernet OC3/STM1 Gigabit Ethernet, Gigabit
Fibre Channel
Bandwidth from 100 Mbit/s 1.050 Gbit/s
Bandwidth 155 Mbit/s 1.250 Gbit/s
Laser FP FP
Receiver Type PIN PIN
Connector LC LC
Wavelength TX min 1260 nm 1260 nm
Wavelength TX max 1360 nm 1360 nm
Wavelength RX min 1260 nm 1260 nm
Wavelength RX max 1620 nm 1600 nm
Transmit min - 19.00 dBm - 9.00 dBm
Transmit max - 14.00 dBm - 3.00 dBm
Receive min - 30 dBm - 21.00 dBm
Receive max
(Receiver overload)
- 5.00 dBm - 3.00 dBm
Temperature (min) 0° Celsius 0° Celsius
Temperature (max) 70° Celsius 70° Celsius
Type of DDM/DOM internal internal
Extinction Ratio 8.20 dB 9 dB
Accessory
The modules support all analysing features of ANNA-LISA.

page 14 of 36 ANNA-LISA Manual - Version 1.1
CHAPTER 3: Installation
Avoid damage from condensation by waiting for the device to adapt to the environ-
mental temperature. Proper operation can only be guaranteed between tempera-
tures of 5ºC and 45ºC and a maximum relative humidity of 80%, non-condensing.
Ensure that the unit has sufficient air circulation for cooling.
Keep any packaging in order to protect the device should it need to be dispatched
for service.
CHAPTER 3: Installation

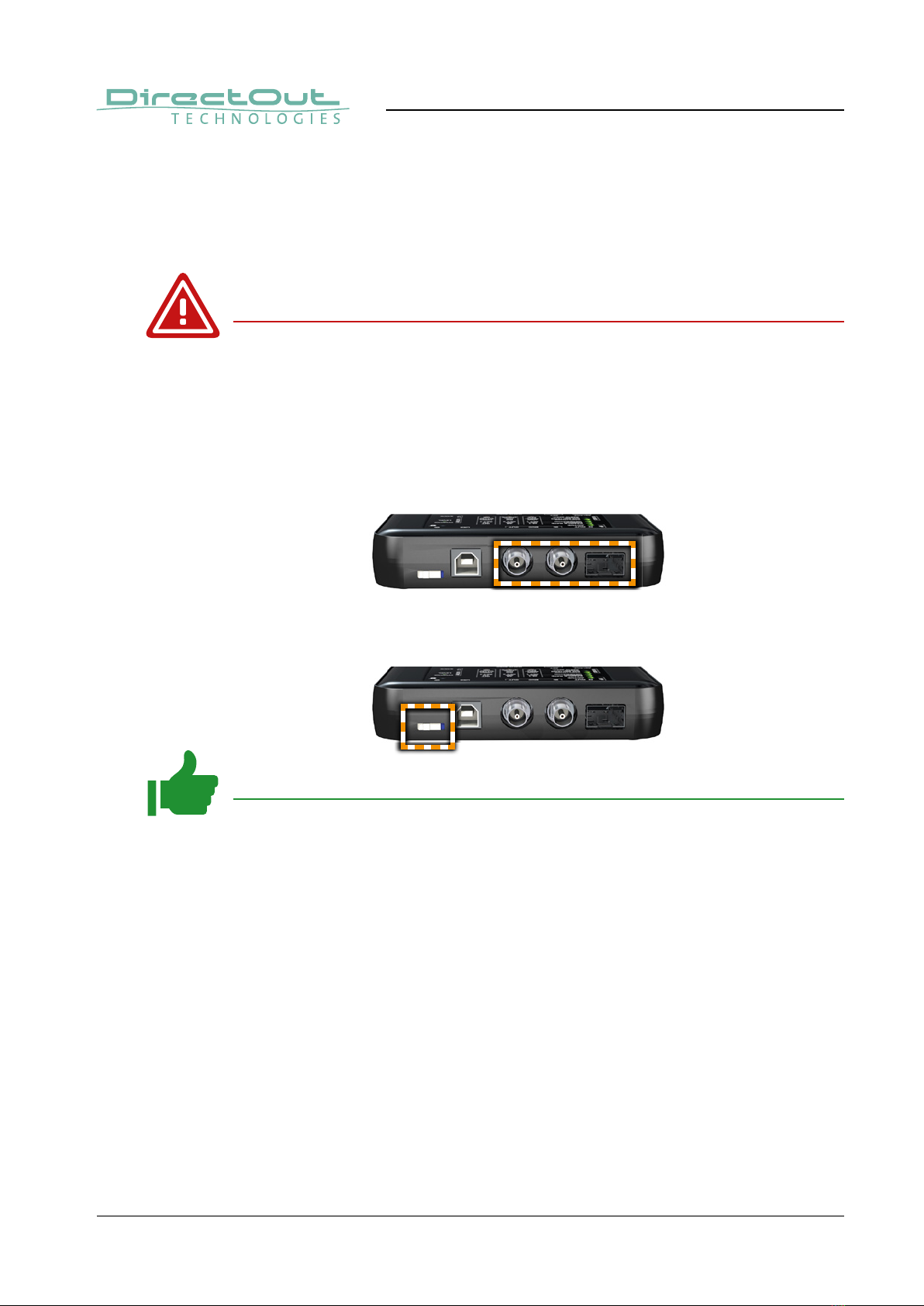

Installing the Device
1. Open the packaging and check that the contents have been delivered
complete and undamaged.
WARNING!
2. Connect signal cable(s) for the MADI signals.
3. Turn on the power switch.
TIP!

page 15 of 36ANNA-LISA Manual - Version 1.1
CHAPTER 3: Installation
Charging the battery
The battery ‘LEVEL’ led should be green. A yellow or red led indicates low level and
requires charging the battery.
To charge the battery switch off the device and and connect it to an external USB
power supply or USB computer port.
NOTE
If the battery is empty the device can be operated with an external USB power
supply. The battery can only be charged when the device is switched off.

page 16 of 36 ANNA-LISA Manual - Version 1.1
CHAPTER 4: Operation
Introduction
This chapter describes the basic operation of the device.
Note that throughout this manual, the abbreviation FS refers to sample rate or
sample frequency. So, when dealing with scaling factors, the following sample
rates can be written as:
• 44.1 kHz or 48 kHz = 1 FS
• 88.2 kHz or 96 kHz = 2 FS
• 176.4 kHz or 192 kHz = 4 FS
CHAPTER 4: Operation

page 17 of 36ANNA-LISA Manual - Version 1.1
CHAPTER 4: Operation
Global Control
The power switch is on the side panel. LEDs on the top panel inform about battery
level or charge state.
Power 1 Switch
Move slider to switch device ON or OFF.
USB USB 2.0 socket (Type B)
Connect here for charging the battery.
Signal Connections
ANNA-LISA provides two MADI I/Os:
• coaxial BNC port
• SFP cage to connect other media carrying MADI signals, e.g. fibre (single
mode/multi mode), different wavelengths etc.
BNC OUT / IN
2 x BNC socket (coaxial)
OUT: MADI output (64 ch), connect for MADI output
signal here.
IN: MADI input (64 ch), connect MADI input signal
here.
SFP
1 x SFP cage*
Insert SFP module here and connect MADI input/
output
*empty cage, module not included in delivery - see „Accessory“ on page 13.
2
1
2
1

page 18 of 36 ANNA-LISA Manual - Version 1.1
CHAPTER 4: Operation
Battery
The device can operate continously up to two hours with a fully charged battery.
The battery level is indicated by the ‘LEVEL’ led.
Battery - Charge LED (green) - indicating charge status
ON = charging battery
OFF = no charge
blinking = error
Battery - Level LED (green / yellow / red) - indicating battery
level while operation
green = charged (> 3.5 V)
yellow = needs charging soon (> 3,3 V)
red = immediate charging required (< 3.3 V)
NOTE
The operating time of the battery depends on the environmental conditions (tem-
perature, type of installed SFP module).
NOTE
See „Charging the battery“ on page 15.

page 19 of 36ANNA-LISA Manual - Version 1.1
CHAPTER 4: Operation

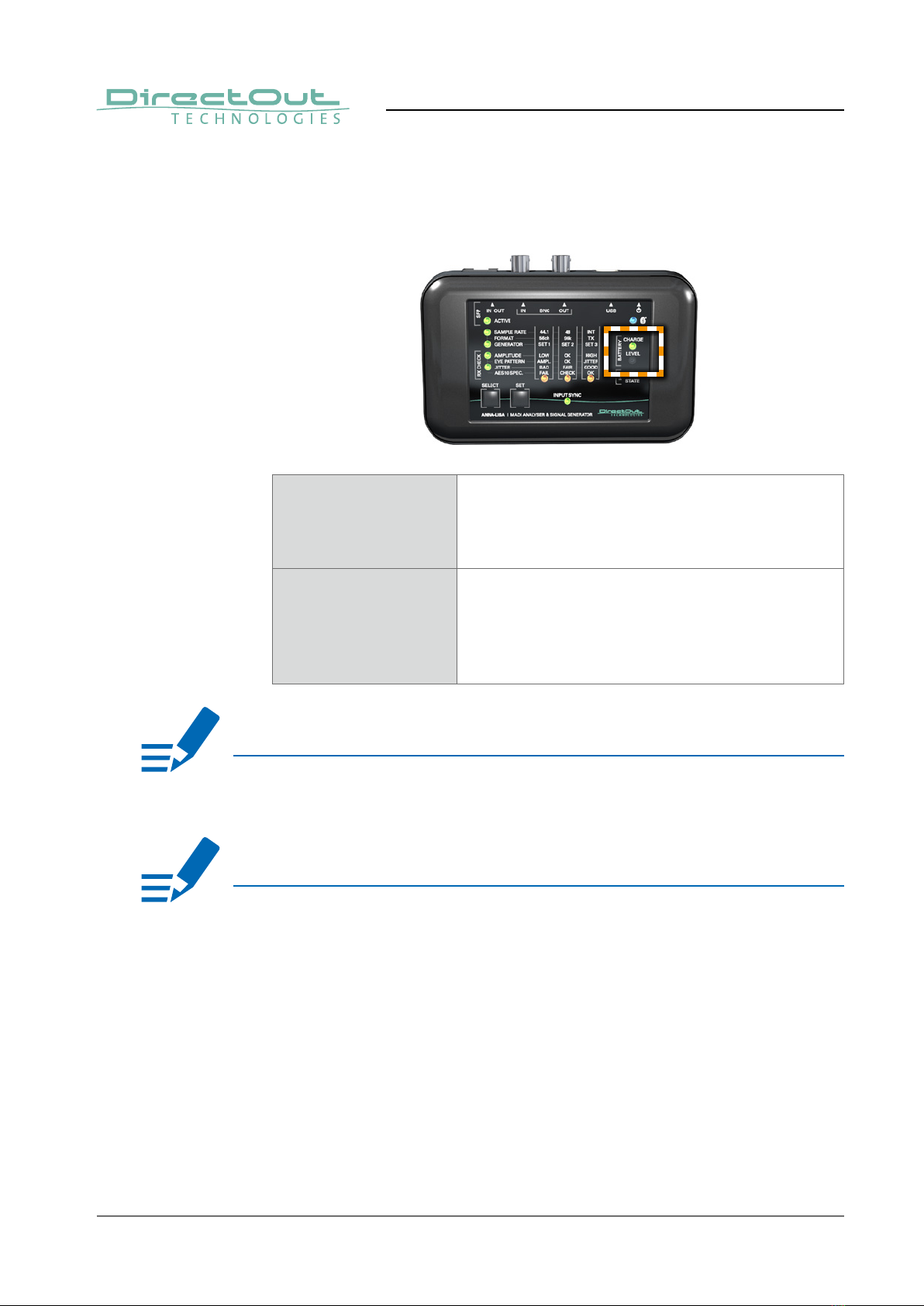

State
‘µC’ stands for micro controller- it controls the device.
STAT E LED (red) - monitoring device state
OFF = normal operation or device switched off
blinking = during firmware update or to indicate an
error
Bluetooth®
The device is equipped with a bluetooth® antenna for remote control via mobile
devices.
Bluetooth® LED (blue) - indicating connection state with
remote software
OFF = no remote connection active
ON = remote software is connected

page 20 of 36 ANNA-LISA Manual - Version 1.1
CHAPTER 4: Operation
Operating Principles
The device is operated locally by using a simple menu and two push buttons
‚SELECT‘ and ‚SET‘.
On the following pages each parameter and its corresponding values are de-
scribed. The „Menu Structure“ on page 21 provides a basic overview.
The LEDs in the collumn indicate the parameters.
The three LEDs in the row monitor the values of the selected parameter (except
the SFP ACTIVE parameter). The values are expressed by using different colors and
combinations of the three LEDs.
Parameters
Values
