Channel Lock VOM205P-C 2001 User manual

2.5 GALLON
WET/DRY VACUUM
MODEL: VOM205P-C 2001
CAUTION: FOR YOUR SAFETY Read and understand this
manual before use. Keep this manual for future reference.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Pay close attention to the Rules for Safe Operation, Warnings, and Cautions.
You will enjoy years of safe, reliable service if you use your tool properly and only
for the purpose for which it is intended.

TABLE OF CONTENTS
SECTION PAGE
Safety Instructions and Warnings . . . . . . . . . . . . . . . . . . . . . 1
Double Insulation Instructions . . . . . . . . . . . . . . . . . . . . . . 2
Extension Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Unpacking and Checking Carton Contents . . . . . . . . . . . . . . . . 4
General Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . 5
Dry Vacuum Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Liquid Vacuum Operation . . . . . . . . . . . . . . . . . . . . . . . . . 7
Blowing Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installing & Cleaning Reusable Cloth Filters . . . . . . . . . . . . . . . 10
10
Installing & Cleaning Foam Sleeve Filter . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Exploded View and Parts List . . . . . . . . . . . . . . . . . . . . . . . 12
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Thank you for purchasing this Channellock® wet/dry vacuum cleaner. Feel
engineered for optimal performance. This vacuum is capable of picking up liquids
and dry materials.
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL
INSTRUCTIONS

1
SAFETY INSTRUCTIONS & WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
Read and understand all instructions before using this vacuum. Read and
understand this owner’s manual and all labels on the Wet/Dry Vacuum cleaner
before operating. Safety is a combination of common sense, staying alert and
knowing how your vacuum works. Use this Wet/Dry Vac only as described in this
manual. To reduce the risk of personal injury or damage to your Wet/Dry Vac, use
only Channellock® recommended accessories.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
• Do not run vac unattended.
•
paints, natural gas, hydrogen, or explosive dusts like coal dust, magnesium
vapors or dust.
• Do not vacuum anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
• Keep cord away from heated surfaces.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord, plug or other parts.
• If your Wet/Dry Vac is not working as it should, has missing parts, has been
dropped or damaged, left outdoors or dropped into water, return it to an
independent service center.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull
cord around sharp edges or corners.
• Do not run Wet/Dry Vac over cord.
• Do not handle plug or the Wet/Dry Vac with wet hands.
• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic
materials.
• Do not use or store near hazardous materials.
•
when vacuuming liquids as described in the operation section of this manual.
• Do not allow to be used as a toy. Close attention is necessary when used by or
near children.
• To reduce the risk of injury from accidental starting, unplug power cord before
• Do not leave Wet/Dry Vac unattended when plugged in. Unplug from outlet
when not in use and before servicing.
• Turn off Wet/Dry Vac before unplugging.

2
• Do not put any object into ventilation openings. Do not vacuum with any
ventilation openings blocked; keep free of dust, lint, hair or anything that may
•
and moving parts.
• To reduce the risk of falls, use extra care when cleaning on stairs.
When using as blower:
• Direct air discharge only at work area.
• Do not use Wet/Dry Vac as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.

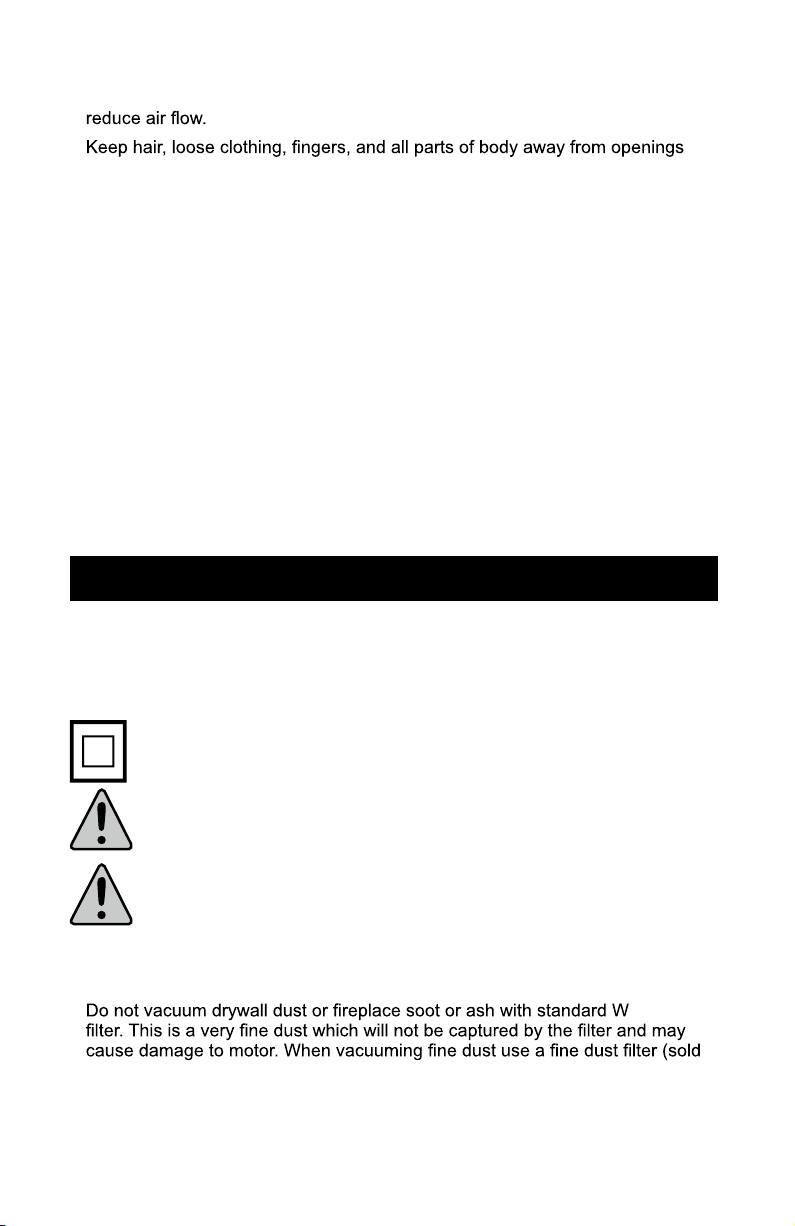

DOUBLE INSULATIONINSTRUCTIONS
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK - DO
NOT EXPOSE TO RAIN. STORE INDOORS.
This Wet/Dry Vac is double-insulated, eliminating the need for a separate
grounding system. Use only identical replacements parts. Read the instructions
for Servicing Double-Insulated Wet/Dry Vacs before servicing. Use this Wet/Dry
Vac as described in this manual. Observe the following warnings that appear on
the motor housing of your Wet/Dry Vac.
DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN
SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS.
WARNING: FOR YOUR OWN SAFETY, READ AND UNDERSTAND
OPERATOR’S MANUAL. DO NOT RUN UNATTENDED. DO NOT
PICK UP HOT ASHES, COALS, TOXIC, FLAMMABLE OR OTHER
HAZARDOUS MATERIALS, DO NOT USE AROUND EXPLOSIVE
LIQUIDS OR VAPORS.
CAUTION:
• et/Dry
separately).

3
EXTENSION CORDS
When using an extension cord with your Wet/Dry Vac refer to the following table
to determine the required A.W.G. wire size. Before using the cleaner make sure
the power cord and extension cord are in good working conditions. Make repairs
or replacements before using the vacuum cleaner. Only use extension cords that
are rated for outdoor use.
Length of Extension Cord
25 Feet 50 Feet 100 Feet 150 Feet
110V - 120V 7.5 Meters 15.25 Meters 30.5 Meters 45.7 Meters
AMPS A.W.G Wire Size
0-6 18 16 16 14
7-10 18 16 14 12
11-12 16 16 14 12
13-16 14 12 NOT RECOMMENDED
• To reduce the risk of electric shock-unplug before cleaning or servicing.
•
CAUTION: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS -
UNPLUG BEFORE SERVICING.
WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY
VACUUMM WITH A DOUBLE-INSULATED WET/DRY VACUUM,
TWO SYSTEMS OF INSULATION ARE PROVIDED INSTEAD
OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON
A DOUBLE-INSULATED APPLIANCE, NOR SHOULD A MEANS FOR
GROUNDING BE ADDED. SERVICING A DOUBLE INSULATED WET/DRY
VACUUM REQUIRES EXTREME CARE AND KNOWLEDGE OF THE SYSTEM,
AND SHOULD BE DONE ONLY BY QUALIFIED SERVICE PERSONNEL.
REPLACEMENT PARTS FOR A DOUBLE-INSULATED WET/DRY VACUUM
MUST BE IDENTICAL TO THE PARTS THEY REPLACE. YOUR DOUBLE-
INSULATED WET/DRY VAC IS MARKED WITH THE WORDS ‘DOUBLE
INSULATED’ AND THE SYMBOL (SQUARE WITHIN A SQUARE) MAY
ALSO BE MARKED ON THE APPLIANCE.

4
Power Switch

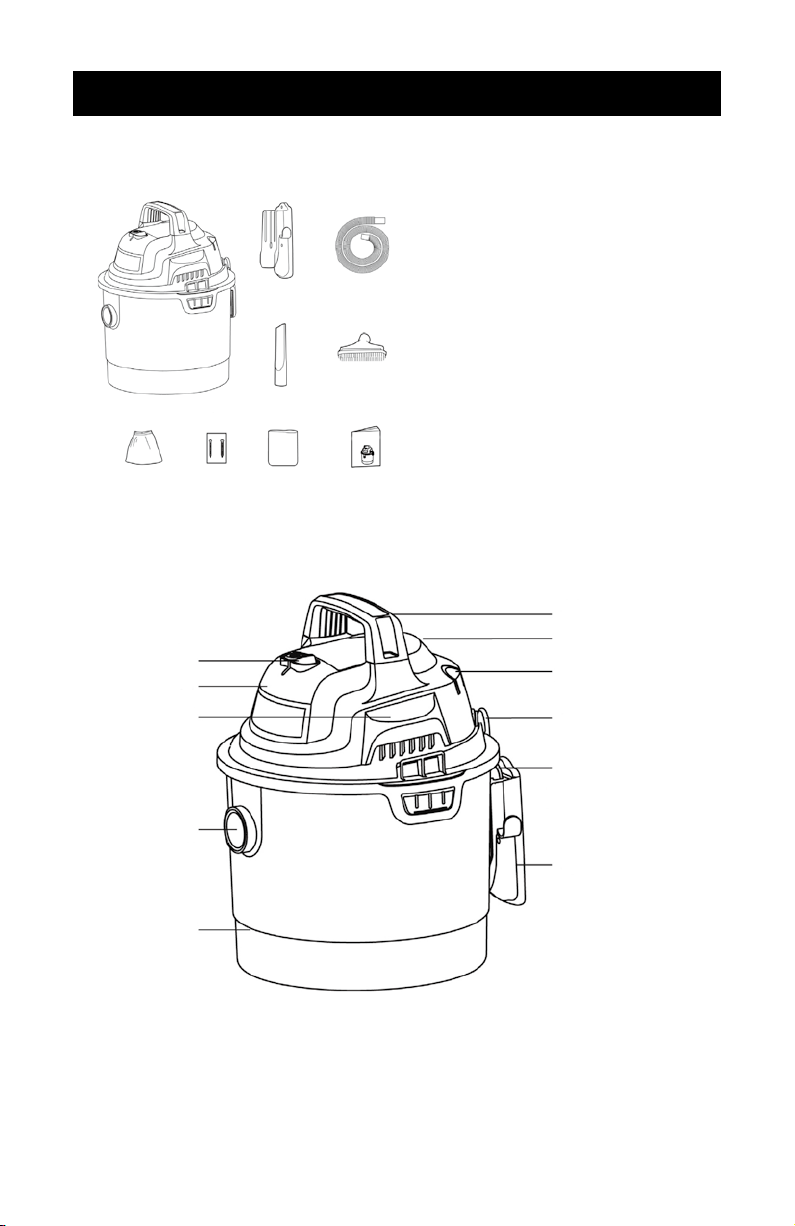

UNPACKING AND CHECKING CARTON CONTENTS
Key Description Qty
AVac Assembly ................1
BWall Mounting Support .........1
CHose ....................... 1
DCrevice Nozzle ...............1
E2-in-1 Utility Nozzle ............1
FCloth Filter................... 1
GScrews .....................2
HFoam Filter ..................1
IOperator’s Manual.............1
Remove entire contents of carton. Check each item against the carton
contents list.
A B C
D E
F G H I
Power Head
Hose
Storage
Vacuum Port
Container
Handle
Blower Port
Accessory
Storage
Cord Hook
Hook
Wall
Mounting
Support

5
WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET,
MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING
THE WET/DRY VAC.

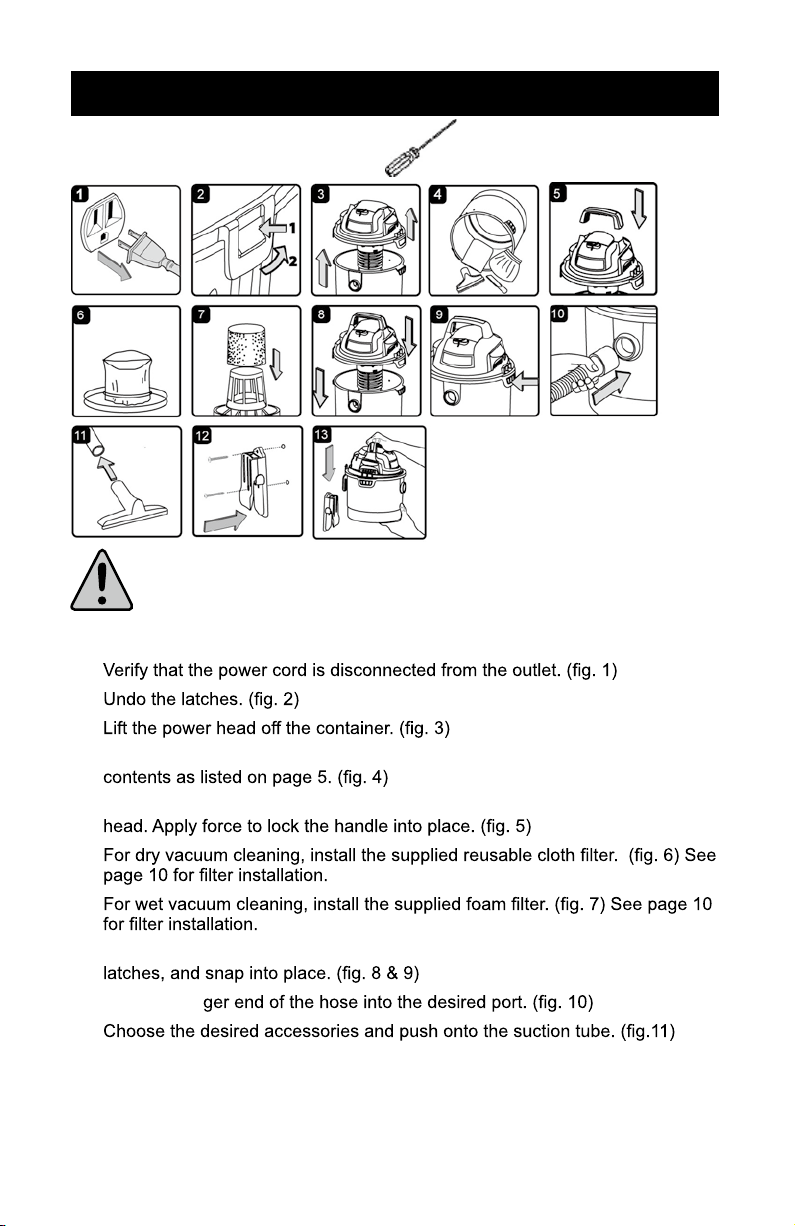

UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY
1.
2.
3.
4. Remove the contents from inside the container, make sure you have all
5. Find the handle and insert the ends into the handle opening on the power
6.
7.
8. Place the power head back on the container, aligning the top section with the
9. Insert the lar
10.
For your convenience this vacuum comes with a wall mounting support for
storage.
GENERAL ASSEMBLY INSTRUCTIONS
A Phillips head screwdriver is required.

6
WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION,
ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM
IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS
IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT
LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE
PAINTS, GASOLINE, ALCOHOL OR AEROSOL SPRAYS. EXPLOSIVE DUSTS
INCLUDE BUT ARE NOT LIMITED TO; COAL, MAGNESIUM, GRAIN OR GUN
POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS
OR DUST, DO NOT VACUUM TOXIC MATERIALS.
DRY-VACUUM OPERATION
DRY VACUUMING
POLARIZED PLUG
To reduce the risk of electrical shock, this appliance has a polarized plug (one
the plug in any way. Double insulation eliminates the need for the three wire
grounded power cord and grounded power supply system.
IMPORTANT!
•
• Do not screw the rack to drywall only. Secure the screws to a stud.
• Do not hang from or sit on the vacuum when on mounting rack.
11. Align the two screw holes so that they are over a stud and secure the
12.

7
LIQUID VACUUM OPERATION
1.
2.
our
10 for installation instructions.)
3. Place the power head section back on the container, and secure it in place

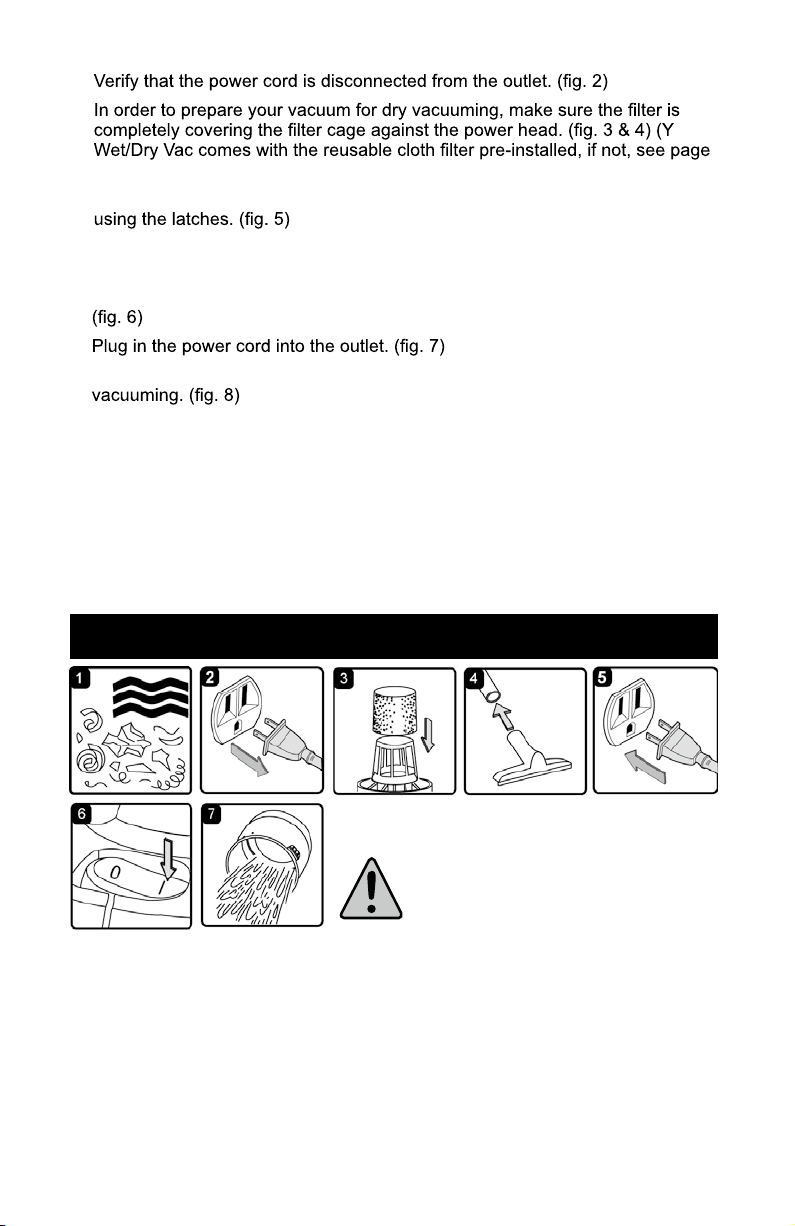

OPERATING INSTRUCTIONS: DRY VACUUMING
4. Insert the larger end of the hose into the vacuum port on the power head.
Push the required attachment onto the free end of the hose or extension.
5.
6. Turn the motor on by pressing the switch to the ‘I’ ON position and begin
7. Once you have completed vacuuming, press the switch to the ‘O’ OFF position
and unplug the power cord from the outlet.
O = OFF I = ON
DO NOT USE THE REUSABLE CLOTH FILTER FOR LIQUID VACUUMING.
WARNING: BE SURE TO
READ, UNDERSTAND, AND
APPLY INFORMATION,
ENTITLED ‘SAFETY
INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH
FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR.
FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED
TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS,
GASOLINE, ALCOHOL OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE
BUT ARE NOT LIMITED TO; COAL, MAGNESIUM, GRAIN OR GUN POWDER.
TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO
NOT VACUUM TOXIC MATERIALS.
LIQUID VACUUM CLEANING

8
BLOWING OPERATION
WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH
ANSI Z87.1 (OR IN CANADA, CSAZ94.3) BEFORE USING BLOWER.
1.
2.
DO NOT USE THE REUSABLE CLOTH FILTER FOR LIQUID VACUUMING.
OPERATING INSTRUCTIONS – WET VACUUMING
3.
4. Verify that the switch is in the ‘O’ OFF position before plugging the power
5.
6. After use, empty the container, clean and dry the inside and outside before
WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET,
MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING
THE WET/DRY VAC.
IMPORTANT! When vacuuming large quantities of liquids, do not immerse the
nozzle completely in the liquid; leave a gap at the tip of the nozzle opening to
action when the container reaches its maximum capacity. You will notice an
increase in motor speed. When this happens, turn off the machine, disconnect
from power supply, and drain the liquid into a suitable receptacle or drain. To
turn the machine off and remove plug from power supply. Empty the container,
clean and dry the inside and outside before storage.
REMEMBER!

9
IMPORTANT!

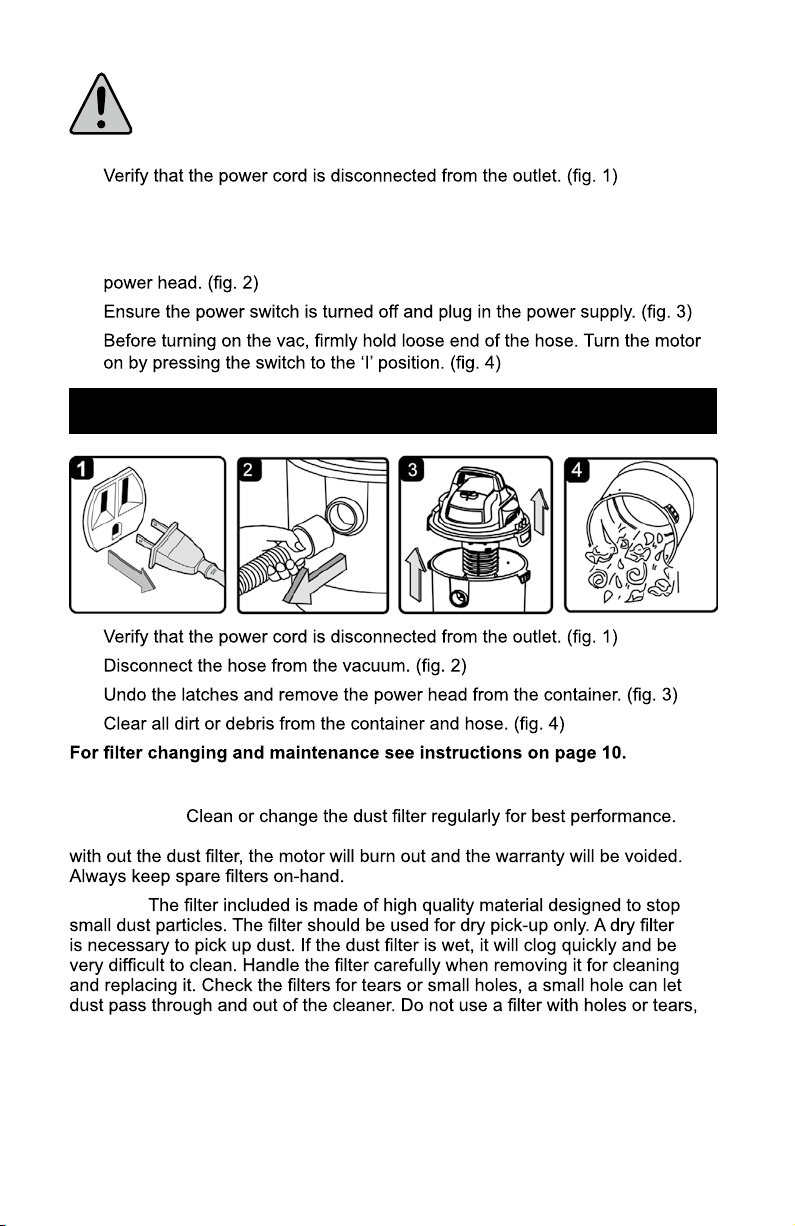

ALWAYS USE DUST FILTER FOR DRY VACUUMING. If the machine is used
NOTICE!
replace it immediately.
MAINTENANCE &FILTER CLEANING
1.
2.
3.
4.
WARNING: KEEP BYSTANDERS CLEAR FOR BLOWING DEBRIS.
WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST
THAT MIGHT BE INHALED.
1.
2. Make sure the container is empty before using as a blower.
3. Remove hose from the vacuum port.
4. Insert the larger end of the hose into the blowing port on the back side of the
5.
6.

10
WARNING: ALWAYS DISCONNECT THE PLUG FROM THE
POWER OUTLET BEFORE REMOVING THE POWER HEAD FROM
CONTAINER.

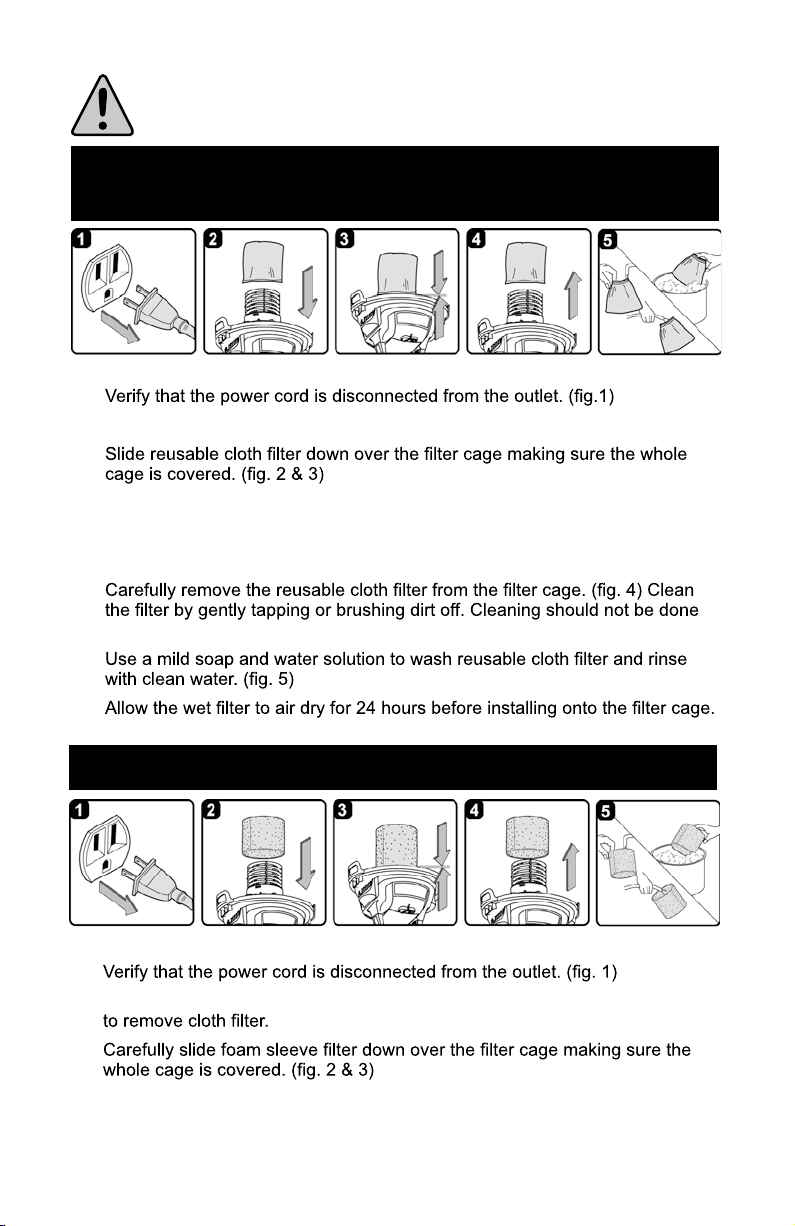

INSTALLING AND CLEANING REUSABLE
CLOTHFILTER
Installing Reusable Cloth Filter
1.
2. Remove power head and place in upside down position.
3.
4. Replace and lock the power head on to the container.
Removing and Cleaning Reusable Cloth Filter
1. With the removed power head in the upside down position.
2.
indoors in living areas.
3.
4.
INSTALLING AND CLEANING FOAM CLOTHFILTER
Installing Foam Sleeve Filter
1.
2. Remove power head and place in upside down position. Follow instructions
3.
4. Replace the power head on to the container.

11
Cleaning Foam Sleeve Filter
1. With the removed power head in the upside down position, carefully remove
2.
3.
TROUBLESHOOTING
WARNING! TO REDUCE THE RISK OF ELECTRICAL SHOCK -
ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET
BEFORE TROUBLESHOOTING.
SYMPTOM
Vacuum will not
operate.
POSSIBLE CAUSES
1. No power supply.
2. Faulty power cord.
3. Container full.
CORRECTIVE ACTION
1. Check power supply -
cord, breakers, fuses.
2. Unplug and check the
power cord. If damaged,
have it repaired by a
professional.
3. Empty Container.
Dust comes from the
motor cover. is missing or damaged.
1. Attach or replace the
and motor/speed
vibration.
1. There is a blockage in
the nozzle, hose, or the
vacuum inlets. Or the
1. Check nozzle, hose and
inlets for blockage. Take

12
KEY NUMBER DRAWING NUMBER DESCRIPTION QUANTITY
1 551200101 Handle 1
2 Power Head Assembly 1
3 551012115 Water Seal Cup Assembly 1
4 551012116 Filter Cage 1
5 Tank Assembly 1
5.1 551012104 Suction Seat 1
6 551012107 Mounting Rack Assembly 1
7 551098111 Rack Holder Assembly 1
8 551012109 1-1/4" Crevice Tool 1
9 300447 2-IN-1 Utility Nozzle 1
10 300450 2.5-4GAL VAC Foam Filter 1
11 300455 2.5GAL VAC Cloth Filter 1
12 551012108 1-1/4"X4' Hose 1

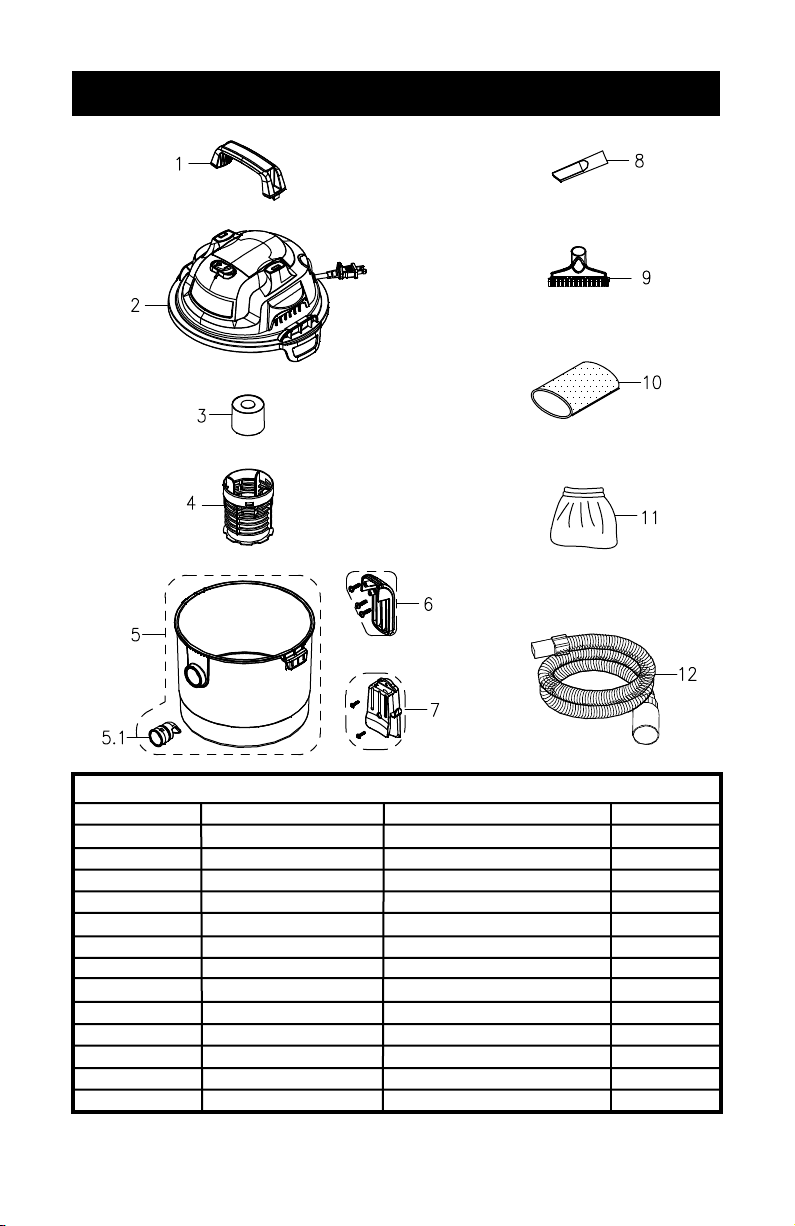

EXPLODED VIEW AND PARTS
300439 MANUAL PARTS LIST

13
CHANNELLOCK and CHANNELLOCK BLUE are registered trademarks of Channellock, Inc.
www.channellockproducts.com
Manufactured in China for Do it Best Corp. A Licensee of Channellock, Inc.
Fort Wayne, Indiana 46801 www.doitbestcorp.com
WARRANTY
We take pride in producing a high quality, durable product. This Channellock®
product carries a limited two (2) year warranty against defects in workmanship
and materials from date of purchase under normal household use. If product
is to be used for commercial, industrial or rental use, a 90 day limited warranty
will apply. Warranty does not apply to defects due to direct or indirect abuse,
negligence, misuse, accidents, repairs or alterations and lack of maintenance.
legal rights, and you may have other rights, which vary form state to state. For
product service call Customer Service at [phone].
