Channel Lock EATC608S-C User manual

ASH VACUUM
404247 Model: EATC608S-C 2001
Warning: For your own safety, read and understand
operator’s manual. Do not run unattended. Do not pick up
hot ashes or coals, toxic, amma-ble or other hazardous
materials. Do not use around explosive liquids or vapors.
Read and understand this manual before use.
Keep this manual for future reference.
3084514
www.channellockproducts.com

2
Warranty .........................................................................................................................................2
Safety Instructions & Warnings ......................................................................................................3
Double Insulation Instructions ........................................................................................................4
Extension Cords .............................................................................................................................4
Getting To Know Your Ash Vacuum ................................................................................................5
General Assembly Instructions.......................................................................................................6
LED Work Light Use.......................................................................................................................7
Ash Vacuuming Operation..............................................................................................................8
Blower Operation............................................................................................................................9
Filter Maintenance........................................................................................................................10
Machine Labels & Warnings......................................................................................................... 11
Troubleshooting ............................................................................................................................ 11
Exploded View & Parts List ..........................................................................................................12
SECTION PAGE
TABLE OF CONTENTS
WARRANTY
CHANNELLOCK® takes pride in producing a high quality, durable product. This CHANNELLOCK®
product carries a limited two (2) year warranty against defects in workmanship and materials from
date of purchase under normal household use. If product is to be used for commercial, industrial
or rental use, a 90 day limited warranty will apply. Warranty does not apply to defects due to direct
or indirect abuse, negligence, misuse, accidents, repairs or alterations and lack of maintenance.
Please keep your receipt as proof of purchase. This warranty gives you specic legal rights, and
you may have other rights, which vary form state to state. For product service call Customer
Service at [phone].

3
SAFETY INSTRUCTIONS & WARNINGS
• Do not run vac unattended.
• Do not vacuum, or use this Ash Vacuum near ammable liquids, gases, or explosive vapours like gasoline
or other fuels, lighter uids, cleaners, oil-based paints, natural gas, hydrogen, or explosive dusts like coal dust,
magnesium dust, grain dust, or gun power. Sparks inside the motor can ignite ammable vapours or dust.
• Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Keep cord away from heated surfaces.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord, plug or other parts.
• If the appliance is not working as it should, has missing parts, has been dropped or damaged, left
outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners.
• Do not run over the cord.
• Do not handle plug or the Ash Vacuum with wet hands.
• To reduce the risk of health hazards from vapours or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not use this Vacuum with a torn lter or without the lter installed.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning lter.
• Do not leave the Vacuum unattended when plugged in. Unplug from outlet when not in use and before servicing.
• The use of the vacuum can result in foreign objects being blown into the eyes. Always wear safety
goggles complying with ANSI Z87.1 (or in Canada CSAZ94.3) when operating vacuum.
• Turn off Ash Vacuum before unplugging.
• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked;
keep free of dust, lint, hair or anything that may reduce air ow.
• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.
ATTENTION: Vacuuming materials, which appear to have cooled down, may still be very hot inside. Hot
ash particles may ignite again with airow. Wait until the re is extinguished and the ashes have cooled
down before you begin cleaning. It is not recommended to quickly extinguish the re with water. Please
make sure that ashes are cold before you vacuum. Temperature exceeding 100°F (40°C) may damage
the vacuum cleaner and the components included. Continuously check tubes, ash lter, and vacuum
cleaner for excessive temperatures during operation. If you notice a temperature rise, switch off
IMPORTANT SAFETY INSTRUCTIONS
SAVE THIS MANUAL
FOR FUTURE REFERENCE.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
INJURY:
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM
Read and understand this manual and all labels on the Ash Vacuum before operating. Safety is a
combination of common sense, staying alert, and knowing how your vacuum works. Use this Ash
Vacuum only as described in this manual. To reduce the risk of personal injury or damage to your
Ash Vacuum, use only recommended accessories. For Household Use Only.
This vacuum is intended for removing loose, cool ash from the ash collection areas of stoves and
replaces. Do not vacuum soot. Soot is a combustible material generally found in deposits along
exhaust areas and chimneys.
Do not vacuum up hot, burning, or red hot objects (e.g. cigarettes, charcoal, ashes)
The temperature of the vacuuming material must be below 100°F (40°C). If it exceeds 100°F (40°C),
there is a risk of re.
CAUTION: Never use this product for vacuuming liquids. Only use this unit to vacuum dry dust
material!

4
DOUBLE INSULATION INSTRUCTIONS
This Ash Vacuum is double-insulated, eliminating the need for a separate grounding system.
Use only identical replacements parts. Read the instructions for Servicing Double-Insulated Ash
Vacuum before servicing. Use this Ash Vacuum as described in this manual.
Observe the following warnings that appear on the motor housing of your Wet/Dry Vac.
DOUBLE-INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE ONLY
IDENTICAL REPLACEMENT PARTS.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN.
STORE INDOORS.
WARNING:
WARNING:
WARNING:
MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS, TOXIC,
FLAMMABLE OR OTHER HAZARDOUS MATERIALS. DO NOT USE AROUND EXPLOSIVE
LIQUIDS OR VAPOURS.
SERVICING OF DOUBLE-INSULATED APPLIANCE
WITH A DOUBLE-INSULATED VACUUM, TWO SYSTEMS OF INSULATION ARE PROVIDED
INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON A DOUBLE-INSULATED
APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING BE ADDED. SERVICING A DOUBLE
INSULATED VACUUM REQUIRES EXTREME CARE AND KNOWLEDGE OF THE SYSTEM,
AND SHOULD BE DONE ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT
PARTS FOR A DOUBLE-INSULATED VACUUM MUST BE IDENTICAL TO THE PARTS
THEY REPLACE. YOUR DOUBLE-INSULATED VACUUM IS MARKED WITH THE WORDS
“DOUBLE INSULATED” AND THE SYMBOL (SQUARE WITHIN A SQUARE) MAY ALSO
BE MARKED ON THE APPLIANCE.
FOR YOUR OWN SAFETY, READ AND UNDERSTAND OPERATOR’S
• To reduce the risk of electric shock-unplug before cleaning or servicing.
• DO NOT use without lters in place.
CAUTION: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS- UNPLUG BEFORE SERVICING.
When using an extension cord with your Vacuum refer to the following table to determine the
required A.W.G. wire size. Before using the Vacuum, make sure the power cord and extension
cord are in good working conditions. Make repairs or replacements before using the vacuum
cleaner. Only use extension cords that are rated for outdoor use.
Length of Extension Cord
A.W.G. Wire Size
Not recommended
25 Feet
7.5 metres
50 Feet
15.25 metres
100 Feet
30.5 metres
150 Feet
45.7 metres
110V-120V
Amps
0-6
7-10
11-12
13-16
18
18
16
14
16
16
16
12
16
14
14
14
12
12
the vacuum cleaner immediately and disconnect it from the power outlet. Take the vacuum outside and
remove the power head.
CAUTION: In case of excessive temperatures, the hose, lter, or vacuum cleaner may be damaged.
Completely empty the vacuum cleaner and brush off the ash lter in a safe, well ventilated area after the
vacuuming. Let both items (vacuum cleaner and ash ilter) cool down under supervision.
EXTENSION CORDS

5

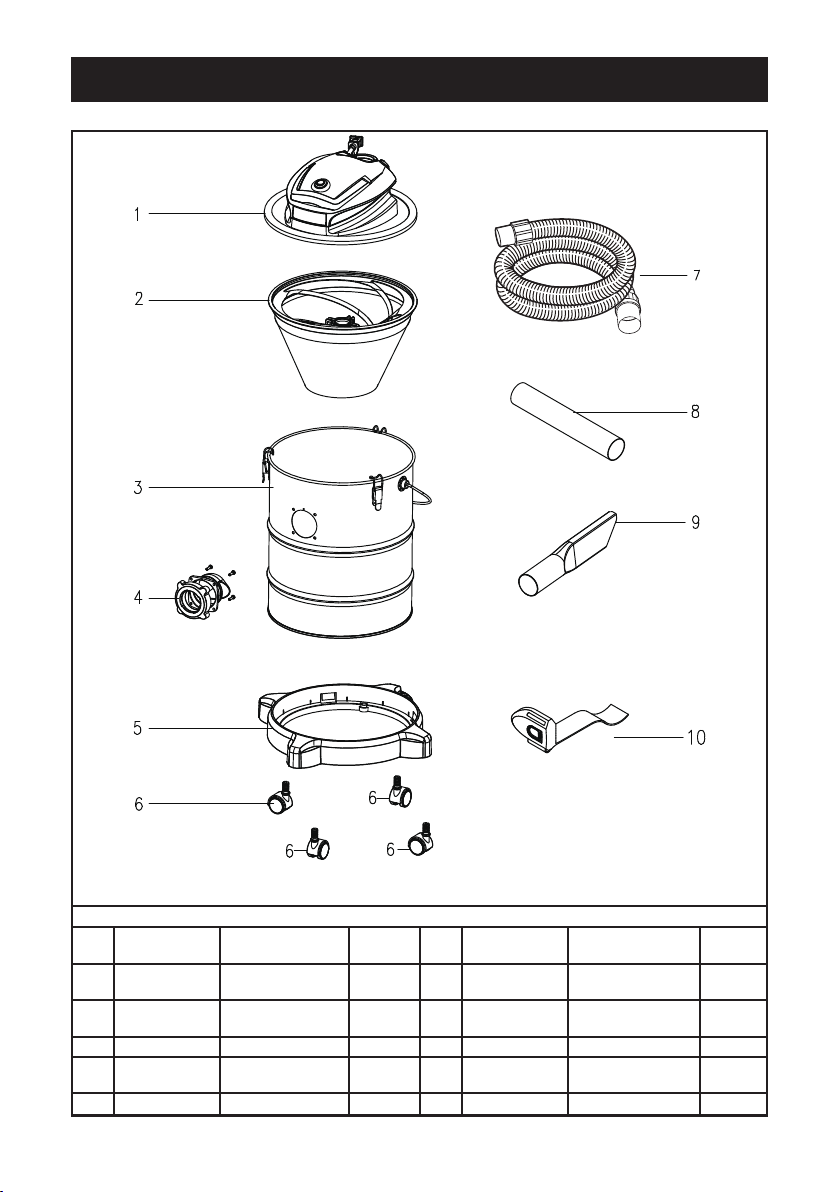

GETTING TO KNOW YOUR ASH VACUUM
Blower Port (Not Shown)
Power Head
Carrying Handle
Latch (1 of 3)
Vacuum Port
Caster (1 of 4)
On / Off Switch
Hose Storage Slot
Emptying Handle
Tank
Base
Remove entire contents of carton. Check each item against the carton contents list.
NOTE: The hose and accessories for this ash
vacuum are 1-1/2 inch (38.1mm) diameter.
Description...............................
Power Head.............................
Ash Filter..................................
Tank.........................................
Aluminum Wand.......................
Aluminum Hose........................
Aluminum Crevice Tool.............
LED Work Light........................
Base.........................................
Casters....................................
Key
A
B
C
D
E
F
G
H
I
QTY
1
1
1
1
1
1
1
1
4
I

6
GENERAL ASSEMBLY INSTRUCTIONS
1. Remove the Ash Vacuum from the package.
2. Unlock the latches and remove the power head lid. (Fig. 1)
3. Remove the contents from inside the tank and make sure you have all the parts listed on page 5.
(Fig. 2)
4. Turn the container upside down, and insert the casters on to the four feet of the container base.
Ensure that they are mounted correctly and "snap" into place. (Fig. 3)
5. Place the lter onto the rim of the tank. Make sure the edge of the lter ts snugly along the
edge of the tank. (Fig. 4)
6. With the lter installed, place the power head onto the container and secure it with the latches.
(Fig. 5)
7. Insert the hose into the vacuum port and connect the metal intake nozzle into the other end of
the hose. (Fig. 6)
3
6
2
1
4
5

7
LED WORK LIGHT USE
There are two replaceable button cell batteries in the LED Work Light. You can change them by
yourself when the LED is turned off.
Use only a CR 2016 3V button cell battery with your LED Work Light.
Use a properly size of slotted screwdriver to open the battery cover.
3
2
1
1 2
When vacuuming in a dark room or in the corner of a replace or stove, the LED Work Light can
help shed some light on the work area.
Attach the LED Work Light to the crevice tool or wand with the included hook and loop strap, and
switch it on when you need more light. (Fig. 1 & Fig. 2)
1. Insert the screwdriver into the slot on both sides of battery cover (Fig. 1) and remove the
battery cover.
2. Carefully replace both button cell batteries with a new set of batteries. (Fig. 2)
3. Close the cover by pressing the cover into the LED work light housing with proper force. (Fig. 3)
4. Check if the battery cover is closed and the light turns on and off.
CAUTION! This product contains a button battery. If swallowed, it could cause severe injury or
death in just 2 hours. Seek medical attention immediately!

8
ASH VACUUMING OPERATION

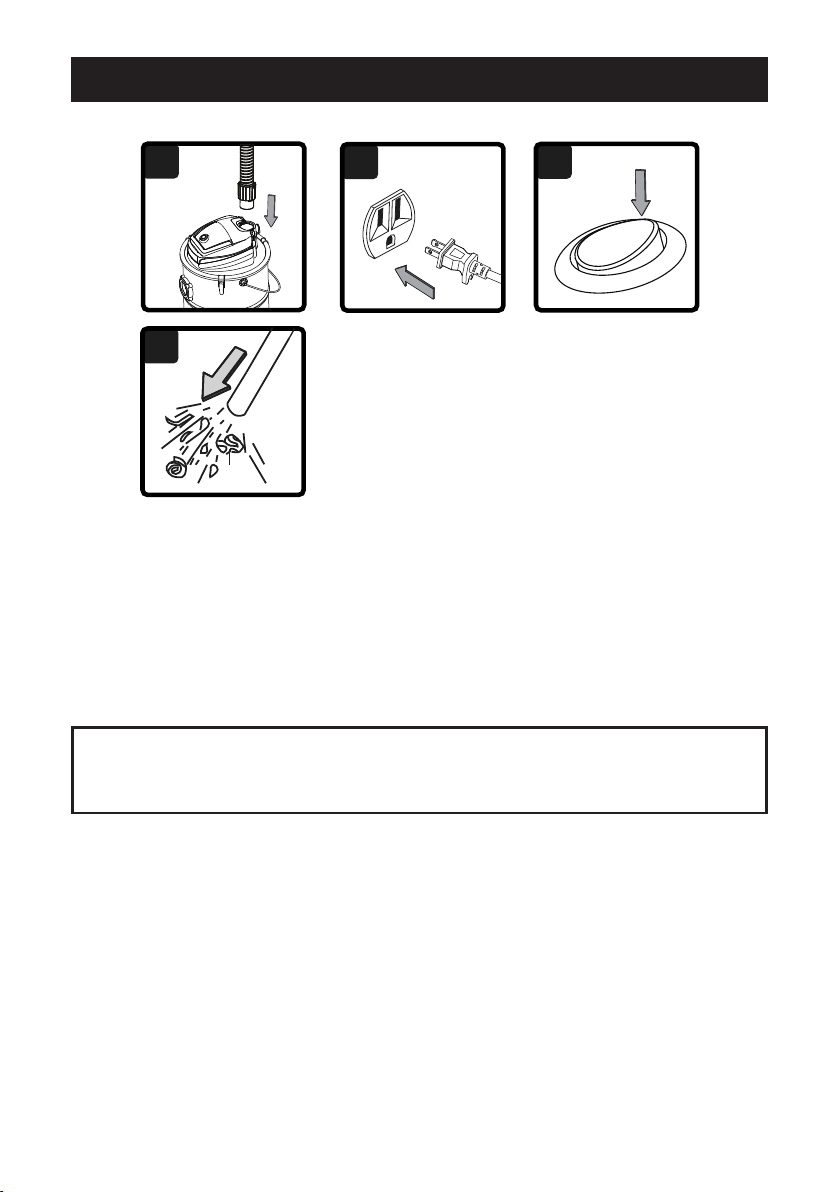

1. Make sure all parts are in place.
Never use ash vacuum without the lter in place.
Never use ash vacuum without the metal nozzle or crevice tool in place.
2. Make sure the power switch is in the "0" (OFF) position (Fig. 1).
3. Plug the power cord into the outlet, then turn on the ash vacuum by ipping the switch to the "I"
(ON) position. (Fig. 2 & Fig. 3)
4. Run the unit for 30 seconds after you have nished cleaning your stove or replace to ensure
all materials are safely captured in the container.
5. Once you have nished vacuuming, ip the switch to the "0" (OFF) position and unplug the
power plug.
POLARIZED PLUG
To reduce the risk of electrical shock, this appliance has a double polarized plug (with one blade
wider than the other). This plug will t in a polarized outlet only one way. If the plug does not t
fully in the outlet, reverse the plug. If it still does not t, contact a qualied electrician to install the
proper outlet. Do not change the plug in any way. Double insulation eliminates the need for
the three wire grounded power cord and grounded power supply system.
W ARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION,
ENTITLED “SAFETY INSTRUCTIONS & WARNINGS.” DO NOT VACUUM IN AREAS WITH
FLAMMABLE GASES, VAPOURS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE
GASES OR VAPOURS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT
TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.
EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN,
OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPOURS OR
DUST, DO NOT VACUUM TOXIC MATERIALS.
21 3
O
I
O
I

9
BLOWER OPERATION
WARNING! ALWAYS WEAR SAFETY GOGGLES BEFORE USING BLOWER. KEEP
BYSTANDERS CLEAR FROM BLOWING DEBRIS. WEAR A DUST MASK IF BLOWING
CREATES DUST THAT MIGHT BE INHALED.
This ash vacuum has blowing capabilities.
To use the blower feature follow the instructions listed.
1. Insert the large end of the hose into the blower connection in the top of the motor housing. (Fig. 1)
2. Ensure the power switch is turned to the "0" (OFF) position, then plug the power cord into the
electrical outlet. (Fig. 2)
3. Turn the motor on by ipping the switch to the "I" (ON) position. (Fig. 3)
4. The unit will now blow through the vacuum hose. This can be used to clear obstructions in the
hose, or to convert the vacuum to a blower. (Fig. 4)
123
4
O
I

10
FILTER MAINTENANCE
REMOVING AND CLEANING THE FILTER

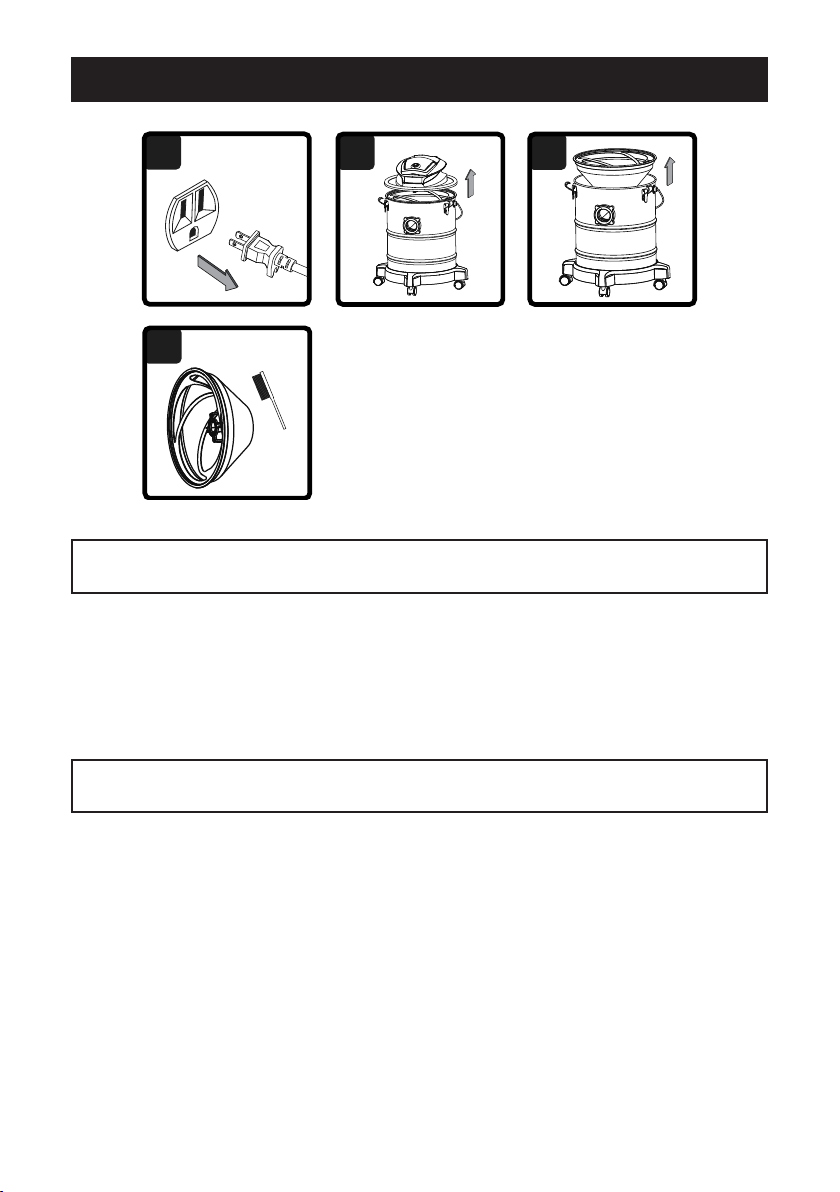

1. Verify that the power cord is disconnected from the outlet. (Fig. 1)
2. Remove power head. (Fig. 2)
3. Carefully Remove the lter from the container. (Fig. 3)
4. Clean the ash or dirt from the lter by gently tapping or brushing the ash or dirt off. (Fig. 4)
WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE
REMOVING THE POWER HEAD FROM CONTAINER.
IMPORTANT! CLEANING SHOULD NOT BE DONE INDOORS IN LIVING AREAS. FOR
OPTIMAL PERFORMANCE A NEW FILTER IS RECOMMENDED.
13
2
4

11
MACHINE LABELS & WARNINGS
Symptom Possible Causes Corrective Action
Vacuum will not operate.
1) Lack of power. 1) Check power supply –
cord, breakers, fuses.
2) The lter is not installed
correctly onto the micro-
switch.
2) Check the lter assembly
and make sure it is against
the switch.
3) Container full. 3) Empty collection and clean
or replace lters.
Dust comes out from motor
cover.
1) The lter is damaged or
installed incorrectly. 1) Reinstall or replace lter.
Reduced efficiency and
motor/speed vibration.
1) There is a blockage in the
hose, or the container inlet.
The cartridge lter is
clogged by ne dust.
1) Check hose and container
inlets for blockage. Take
off the lter and clean it. Or
install a new cartridge lter.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK-UNPLUG BEFORE
TROUBLESHOOTING.
Before using, read this manual carefully and make sure you have understood all the
warnings, instructions and controls.
Do not use in rain. Store indoors, to reduce the risk of electrical shock.
TROUBLESHOOTING

12
EXPLODED VIEW & PARTS LIST
404247 Manual Parts List
Part Drawing
Number Description Quantity Part Drawing Number Description Quantity
1 551166102 Power Head
Assembly 1 6 551021122 Caster 4
2 AVPF3 Ash Filter
Assembly 1 7 551166105 Aluminum Hose 1
3 551172101 Collection Tank 1 8551104116 Aluminum Wand 1
4 551163107 Vacuum Port
Assembly 1 9 551166106 Aluminum Crevice Tool 1
5551038112 Base 1 10 VLED LED Work Light 1
