Channel Lock VJC809PF-C 2001 User manual

8 GALLON
WET/DRY VACUUM
MODEL: VJC809PF-C 2001
CAUTION: FOR YOUR SAFETY Read and understand
this manual before use. Keep this manual for future
reference.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Pay close attention to the Rules for Safe Operation, Warnings, and
Cautions. You will enjoy years of safe, reliable service if you use your tool
properly and only for the purpose for which it is intended.

TABLE OF CONTENTS
SECTION PAGE
Important Safety Instructions . . . . . . . . . . . . . . . . . . . 1
Extension Cords . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 12
Repair Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Exploded View And Parts . . . . . . . . . . . . . . . . . . . . 13
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Thank you for purchasing this Channellock®wet/dry vacuum cleaner. Feel
®you are obtaining a high quality product
engineered for optimal performance. This vacuum is capable of picking up liquids
and dry materials.
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL
INSTRUCTIONS

1
IMPORTANT SAFETYINSTRUCTIONS
Read and understand all instructions before using this vacuum. Read and
understand this owner’s manual and all labels on the Wet/Dry Vacuum cleaner
before operating. Safety is a combination of common sense, staying alert and
knowing how your vacuum works. Use this Wet/Dry Vac only as described in this
manual. To reduce the risk of personal injury or damage to your Wet/Dry Vac, use
only Channellock® recommended accessories.
For Household Use Only.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
When using an electrical appliance, basic precautions should always be followed
including the following:
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
• Do not run vac unattended.
•
paints, natural gas, hydrogen, or explosive dusts like coal dust, magnesium
vapors or dust.
• Do not vacuum anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
• Keep cord away from heated surfaces.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord, plug, or other parts.
• If vac is not working as it should, has been dropped, damaged, left outdoors, or
dropped into water, take it to a service dealer for inspection and repair before
using it again.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull
cord around sharp edges or corners.
• Do not run Wet/Dry Vac over cord.
• Do not handle plug or the Wet/Dry Vac with wet hands.
• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic
materials.
• Do not use or store near hazardous materials.
•
when vacuuming liquids as described in the operation section of this manual.
• Do not allow to be used as a toy. Close attention is necessary when used by or
near children.
• To reduce the risk of injury from accidental starting, unplug power cord before
• Do not leave Wet/Dry Vac unattended when plugged in. Unplug from outlet
when not in use and before servicing.

2
• Turn off Wet/Dry Vac before unplugging.
• Do not put any object into ventilation openings. Do not vacuum with any
ventilation openings blocked; keep free of dust, lint, hair or anything that may
•
and moving parts.
• To reduce the risk of falls, use extra care when cleaning on stairs.
When using as blower:
• Direct air discharge only at work area.
• Do not use Wet/Dry Vac as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.
POLARIZEDPLUG
WARNING:
• For your own safety, read and understand owner’s manual.
• Do not allow unit to be in operation if unattended.
• Do not pick up hot ashes, coa
materials.
• Do not use around explosive liquids or vapors.
To reduce the risk of electrical shock, this appliance has a polarized plug (one
in any way. Double insulation eliminates the need for the three wire grounded
power cord and grounded power supply system.
Observe the following warnings that appear on the motor housing of your
Vac:
DOUBLE INSULATED -GROUNDING NOT REQUIRED - WHEN
SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS.
WARNING: To reduce the risk of electric shock, do not expose to rain.
Store indoors.
WARNING: When using as a blower, wear safety goggles labeled
“ANSI Z87.1” (Canada CSA Z94.3) on the package. Turn unit off
before setting on ground or releasing grasp of handle. Electric shock
could occur if used on wet surfaces. Direct tool discharge only at work
area. Do not direct discharge at bystanders. Keep children away.

3
EXTENSION CORDS
When using an extension cord with your Wet/Dry Vac refer to the following table
to determine the required A.W.G. wire size. Before using the cleaner make sure
the power cord and extension cord are in good working condition. Make repairs
or replacements before using the vacuum cleaner. Only use extension cords that
are rated for outdoor use.
Length of Extension Cord
25 Feet 50 Feet 100 Feet 150 Feet
110V - 120V 7.5 Meters 15.25 Meters 30.5 Meters 45.7 Meters
AMPS A.W.G Wire Size
0-6 18 16 16 14
7-10 18 16 14 12
11-12 16 16 14 12
13-16 14 12 NOT RECOMMENDED
This Wet/Dry Vac is intended for vacuuming wet and dry materials and may be
used as a blower.
Read this operator’s manual to familiarize yourself with the product features and
INTRODUCTION

Vacuum Port
Power Head
Drain
Accessory Storage
Handle
Latch
On/Off Switch
Caster
Caster Foot
Collection Tank
4
ASSEMBLY

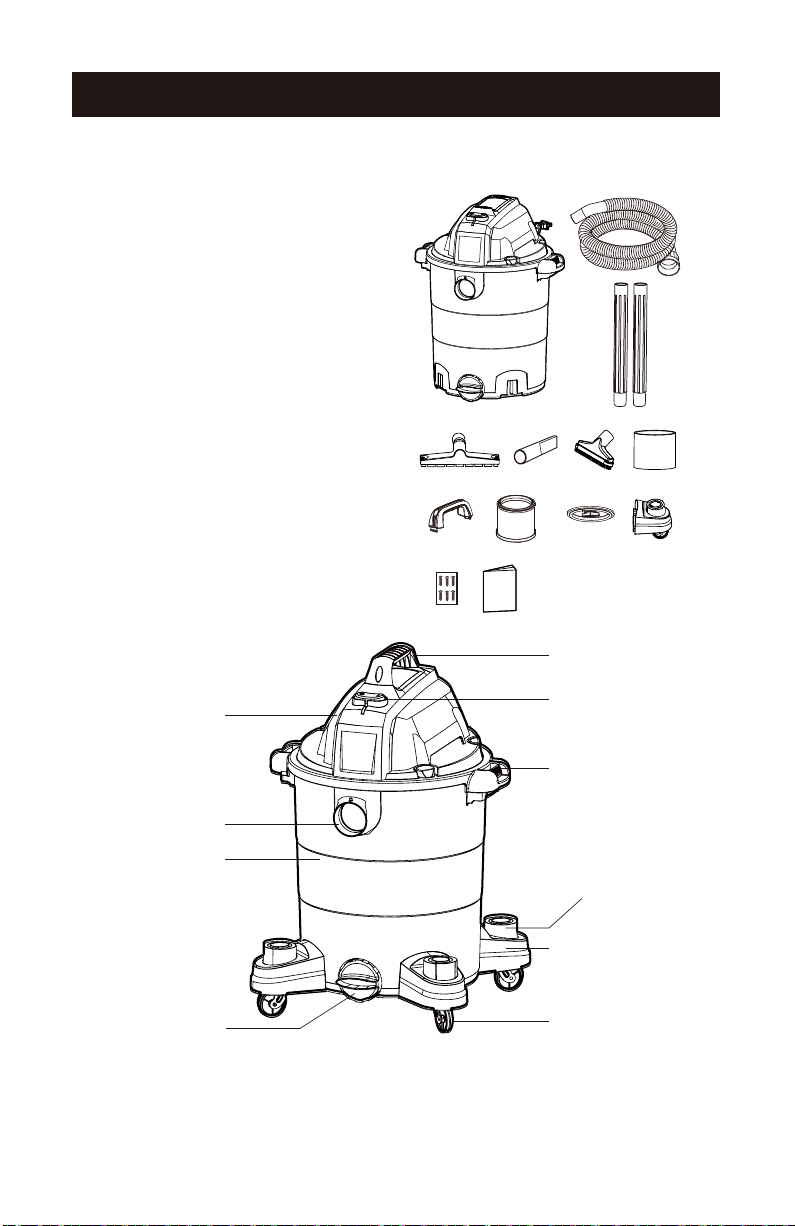

Carton Content List
Key Description Qty
A Vac Assembly .......... . . 1
B Hose Assembly......... . . 1
C Extension Wand ........ . . 2
D Floor Squeegee Nozzle . . . . 1
E Crevice Tool ........... . . 1
F 2-In-1 Utility Nozzle ..... . . 1
G Foam Sleeve Filter ...... . . 1
H Handle ............... . . 1
I Cartridge Filter ......... . . 1
J Filter Retainer ..........
.....
. . 1
K Caster Foot Assembly 4
L Screws ............... . . 6
M Operator’s Manual ...... . . 1
Remove entire contents of carton and check for parts inside the collection
tank. Check each item against the Carton Contents List.
A B
C
D E F G
H I J K
L M

2
5
10
4
8
9
7
11
1
3
6
5
WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET,
MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING
THE WET/DRY VAC.
UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY

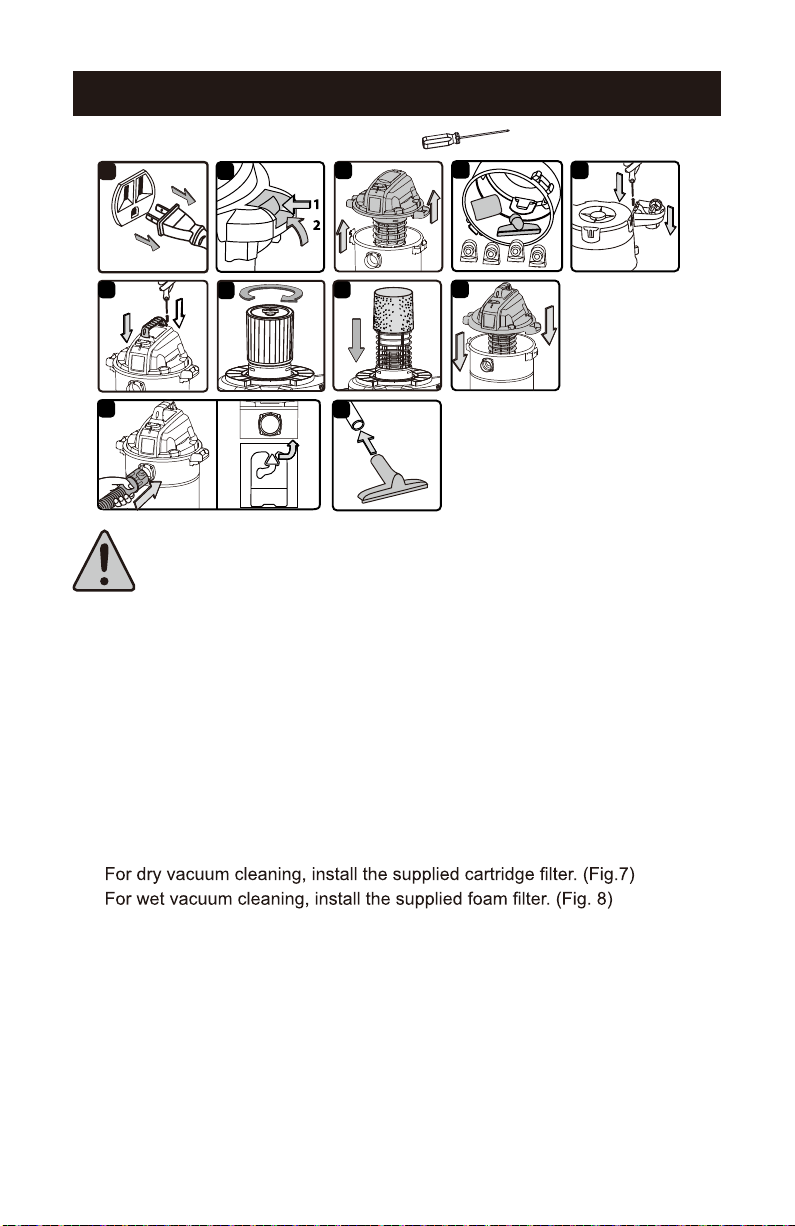

1. Ensure that the power cord is disconnected from the power outlet. (Fig. 1)
2. Undo the latches. (Fig. 2)
3. Lift the top section off the tank. (Fig. 3)
4. Remove the contents from inside the collection tank, make sure you have all
contents as listed on carton content list on page 5. (Fig. 4)
5. Turn the collection tank upside down and insert the four caster feet into the
slots on the collection tank and tighten with supplied screws. Verify that the
casters are mounted correctly. Do not over-tighten the screws. (Fig. 5)
6. Insert the handle into the slots on the power head and pressure into place.
(Fig. 6)
7.
8.
9. Replace the top section on the tank. (Fig. 9)
10. Align the top section with the clasps and snap into place by applying
pressure until clasps click. (Fig. 9)
11. Insert the large end of the hose into the front inlet of the tank and turn to lock,
Fit the required accessory on to the suction tube. (Fig.10 & Fig.11)
12. After vac use, store hose, accessories and cord as illustrated on page 11.
GENERAL ASSEMBLY INSTRUCTIONS
A Phillips head screwdriver is required.

3
6
1
4
5
7
6
WARNING: Be sure to read, understand and apply all the information
in the Important Safety Instructions section at the beginning of this
vapors, or explosive dusts in the air. Flammable gases or vapors
gasoline, alcohol, or aerosol sprays. Explosive dusts include but are not limited
to: coal, magnesium, grain, or gun powder. To reduce the risk of health hazards
from vapors or dust, do not vacuum toxic materials.

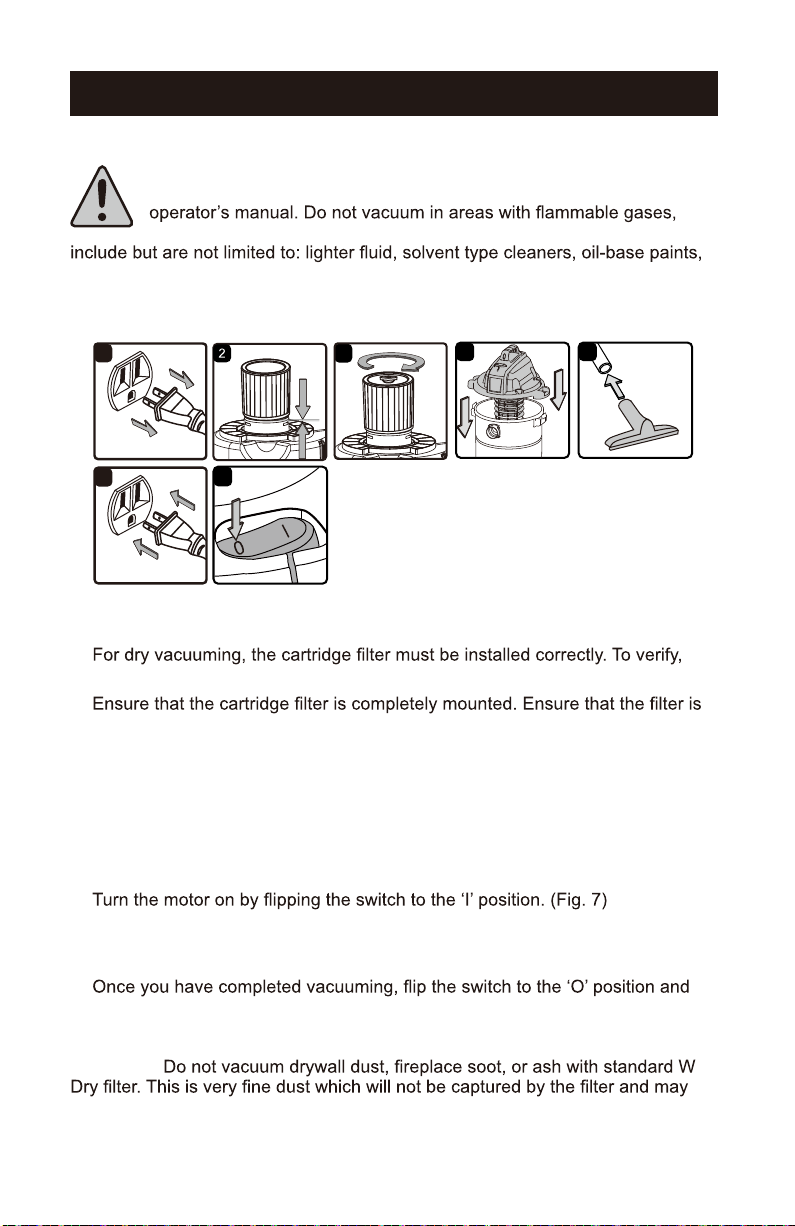

1. Ensure that the power cord is disconnected from the outlet. (Fig. 1)
2.
please refer to Installing Cartridge Filter on page 10.
3.
inserted all the way. (Fig. 2, Fig. 3)
4. Replace the top section on the tank, and secure it in place using the clasps.
(Fig.4 )
5. Insert the larger end of the hose into the front inlet on the tank and lock it
in place. Push the required attachment on to the free end of the hose or
extension. (Fig. 5)
6. Plug the power cord in to the power outlet. (Fig. 6)
7.
8.
unplug the power cord from the power outlet.
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.
CAUTION: et/
cause damage to motor.
OPERATION
VACUUMING DRY MATERIALS
O = OFF I = ON

6
7
4
2
3
5
1
7
WARNING: Be sure to read, understand, and apply all the information
in the Important Safety Instructions section at the beginning of this
vapors, or explosive dusts in the air. Flammable gases or vapors
oil-base paints, gasoline, alcohol, or aerosol sprays. Explosive dusts
include but are not limited to: coal, magnesium, grain or gun powder.
To reduce the risk of health hazards from vapors or dust, do not
vacuum toxic materials.
VACUUMING LIQUIDS
WARNING: Do not plug in power cord to power outlet, make sure
plug is disconnected before assembling the Wet/Dry Vac.
1. Verify that the power cord is disconnected from the outlet. (Fig. 1)
2.
Sleeve Filter on page 12 and secure power head back on the collection tank.
(Fig. 2)
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.
3. Fit the desired nozzle to the vacuum hose. (Fig. 3)
4. Verify that the power switch is in the ‘O’ OFF position before plugging the
power cord into the outlet. (Fig. 4)
5. Turn the motor on by pressing the switch to the ‘I’ ON position. (Fig. 5)
6. Once you have completed vacuuming, press the power switch to the ‘O’ (OFF)
position and unplug the power cord from the outlet.
7. After use, empty the collection tank by unscrewing the drain cap and drain
drain cap to the tank after draining.

2
1
3
5
4
8
BLOWING OPERATION
WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH
ANSI Z87.1 (OR IN CANADA, CSAZ94.3) BEFORE USING BLOWER.
WARNING: KEEP BYSTANDERS CLEAR FOR BLOWING DEBRIS.
WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST
THAT MIGHT BE INHALED.
This Wet/Dry Vac has blowing capabilities.
To use the blower feature follow the instructions listed.
1. Make sure the collection tank is empty before using as a blower.
2. Remove hose from the vacuum port.
3. Insert the large end of the hose into the blower connection in the top of the
motor housing. (Fig. 1)
4. Fit the desired attachment to the hose. (Fig. 2)
6. Ensure the power switch is turned off and plug in the power supply. (Fig. 3,)
7.
8. The unit will now blow through the vacuum hose and can be used to clear
obstructions within the hose. (Fig. 5)
IMPORTANT! When vacuuming large quantities of liquids, do not immerse the
nozzle completely in the liquid. Leave a gap at the tip of the nozzle opening to
action when the container reaches its maximum capacity. You will notice an
increase in motor speed. When this happens, turn off the machine, disconnect
from power supply, and drain the liquid into a suitable receptacle or drain. To
turn the machine off and remove plug from power supply. Empty the container,
clean and dry the inside and outside before storage.

12 3 4 5
4
2
1
3

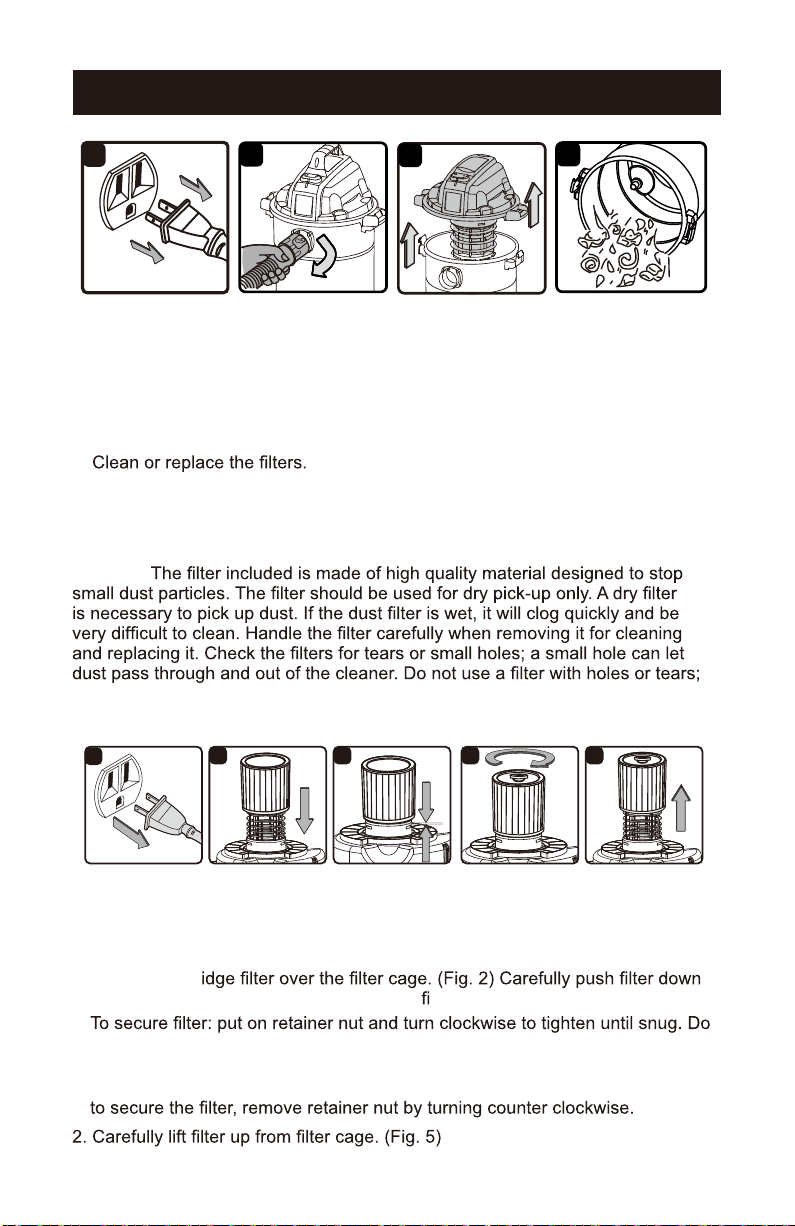

Installing Cartridge Filter
1. Verify that the power cord is disconnected from the outlet. (Fig. 1)
2. Undo the latches and remove the power head from the collection tank.
3. Place the power head upside down on a soft, clean surface.
4. Slide the cartr
until it is fully seated on the power head. ( g. 3)
5.
not over tighten. (Fig. 4)
Removing and Cleaning Cartridge Filter
1. Position power head in the upside down position. If the retainer nut was used
9
MAINTENANCE
1. Verify that the power cord is disconnected from the outlet. (Fig. 1)
2. Disconnect the hose from the vacuum. (Fig. 2)
3. Undo the latches and remove the power head from the collection tank. (Fig. 3)
Place the power head upside down on a soft, clean surface.
4. Clear all dirt or debris from the collection tank and hose into a proper waste
container. (Fig. 4)
5.
6. Check the hose, attachments, and power cord to verify that they have not been
damaged.
7. Place power head on collection tank and secure latches.
NOTICE!
replace it immediately.
INSTALLING AND CLEANING THE SUPPLIED CARTRIDGE FILTER
EMPTYING THE COLLECTION TANK

1 2 3
3a1a 2a
10
NOTE:
outdoors and not indoors.
3.
the inside wall of the container or brush the dirt off. Debris will begin to break
up, loosen, and fall.
IMPORTANT!
ALWAYS USE CARTRIDGE FILTER FOR DRY VACUUMING. If the machine is
WARNING: Always disconnect the plug from the power outlet before
removing the power head from the collection tank.
THIS VACUUM CLEANER IS DESIGNED TO USE CARTRIDGE FILTERS.
1.
2. Align the smal
over the post. (Fig. 2)
(Fig. 3)
INSTALLING A REPLACEMENT CARTRIDGE FILTER
Filter with Rubber Top
Filter with Plastic Top
1.
towards the power head. (Fig. 1a)
2.
3.
not over tighten. (Fig. 3a)
NOTE: Always retain the original retainer nut. Do not misplace it while removing

11
Installing Foam Sleeve Filter
1. Verify that the power cord is disconnected from the outlet. (Fig. 1)
2.
as shown on page 10 “Removing and Cleaning Cartridge Filter”.
3.
whole cage is covered. (Fig. 2 & 3)
4. Place power head on collection tank and secure latches.
Cleaning Foam Sleeve Filter
1. With the removed power head in the upside down position, carefully remove
2.
clean water. (Fig. 5)
3.
Cleaning and Disinfecting the Wet/Dry Vac
To keep your Wet/Dry Vac looking its best, clean the outside with a dampened
cloth, then dry with a clean towel. To clean the inside of the collection tank:
1. Empty debris out.
2. Wash collection tank thoroughly with warm water and mild soap.
3. Wipe out with dry cloth.
Before prolonged storage or as needed (i.e. after waste water pick up) the
collection tank should be disinfected. To disinfect the collection tank:
1. Pour 1 gallon of water and 1 teaspoon chlorine bleach into the collection tank.
2. Let solution stand for 20 minutes, carefully swishing every few minutes, making
sure to wet all inside surfaces of the collection tank.
3. Empty collection tank after 20 minutes. Rinse with water until bleach smell is
gone. Allow collection tank to dry completely before sealing the motor on the
collection tank.
Storage
Before storing your vac, the collection tank should be
emptied and cleaned. The cord should be wrapped around
the handle. The accessories should be stored as illustrated
above so they can be readily available when needed. Store
vac indoors.
INSTALLING AND CLEANING FOAM SLEEVE FILTER

12

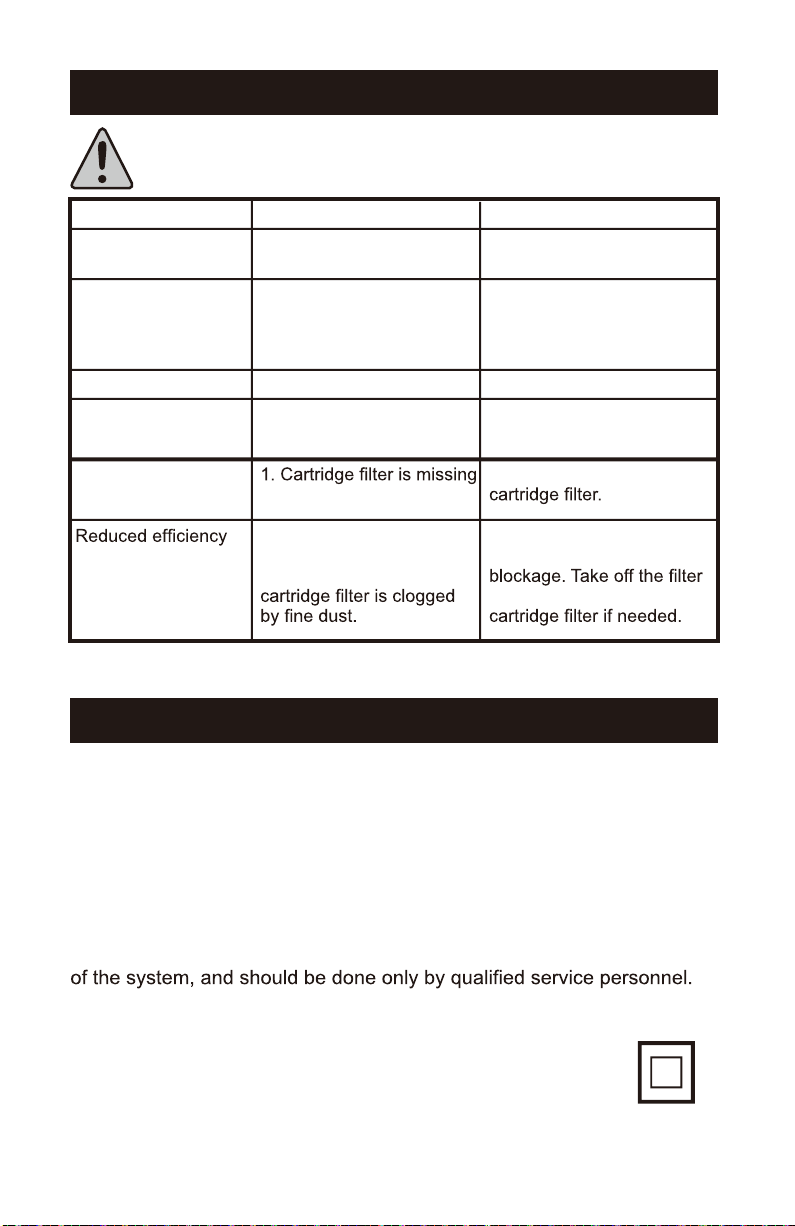

POSSIBLE CAUSES
1. No power supply.
2. Faulty power cord.
3. Collection tank is full.
4. Switch in the wrong
position.
or damaged.
1. There is a blockage
in the nozzle, hose, or
the container inlet. The
TROUBLESHOOTING
WARNING! TO REDUCE THE RISK OF ELECTRICAL SHOCK -
ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET
BEFORE TROUBLESHOOTING.
SYMPTOM
Vacuum will not
operate.
CORRECTIVE ACTION
1. Check power supply -
cord, breakers, fuses.
2. Unplug and check the
power cord. If damaged,
have it repaired by a
professional.
3. Empty collection tank.
4. Press the ON “I” button
on the power head.
Dust comes out of
motor cover.
1. Attach or replace
and motor/speed
vibration.
1. Check nozzle, hose
and container inlets for
and clean it. Install a new
REPAIR PARTS
8Gallon Wet/Dry Vac
Always order by part number, not by key number. Always mention the
model number when ordering parts. The model number is found on the
serial plate located on the vacuum.
WARNING: Servicing of double-insulated wet/dry vacuum. With double-
insulated wet/dry vacuum, two systems of insulation are provided instead
of grounding. No grounding means is provided on a double-insulated
appliance, nor should a means for grounding be added. Servicing a
double insulated wet/dry vacuum requires extreme care and knowledge
Replacement parts for a double-insulated wet/dry vacuum must be
identical to the parts they replace. Your double-insulated wet/dry vacuum
is marked with the words ‘double insulated’ and the symbol
(square within a square) may also be marked on the appliance.

KEY # PART NUMBER DESCRIPTION QTY
1 551049101 Handle assembly 1
1.1 551017125 Screw ST3.9*16 2
2 Power head 1
3 551005103 Water seal cup assembly 1
4 551005104 Filter basket 1
5 353879 WET/DRY Cartridge Filter 1
6 Tank 1
6.1 551011106 Suction seat 1
7 551002110 Drain cap with gasket 1
8 551069105 Caster Foot Assembly 4
9 551003111 1-1/4" Floor Nozzle 1
10 300442 9" Crevice Tool 1
11 300447 2-IN-1 Utility Nozzle 1
12 353780 Foam filter 1
13
14
365300
365303
19" Extension Wand
6' Hose
2
1
EXPLODED VIEW AND PARTS
365297 MANUAL PARTS LIST
13

CHANNELLOCK and CHANNELLOCK BLUE are registered trademarks of Channellock, Inc.
www.channellockproducts.com
Manufactured in China for Do it Best Corp. A Licensee of Channellock, Inc.
Fort Wayne, Indiana 46801 www.doitbestcorp.com
WARRANTY
We take pride in producing a high quality, durable product. This Channellock®
product carries a limited two (2) year warranty against defects in workmanship
and materials from date of purchase under normal household use. If product
is to be used for commercial, industrial or rental use, a 90 day limited warranty
will apply. Warranty does not apply to defects due to direct or indirect abuse,
negligence, misuse, accidents, repairs, alterations, and lack of maintenance.
legal rights, and you may have other rights which vary form state to state. For
product service call Customer Service at [phone].
14
