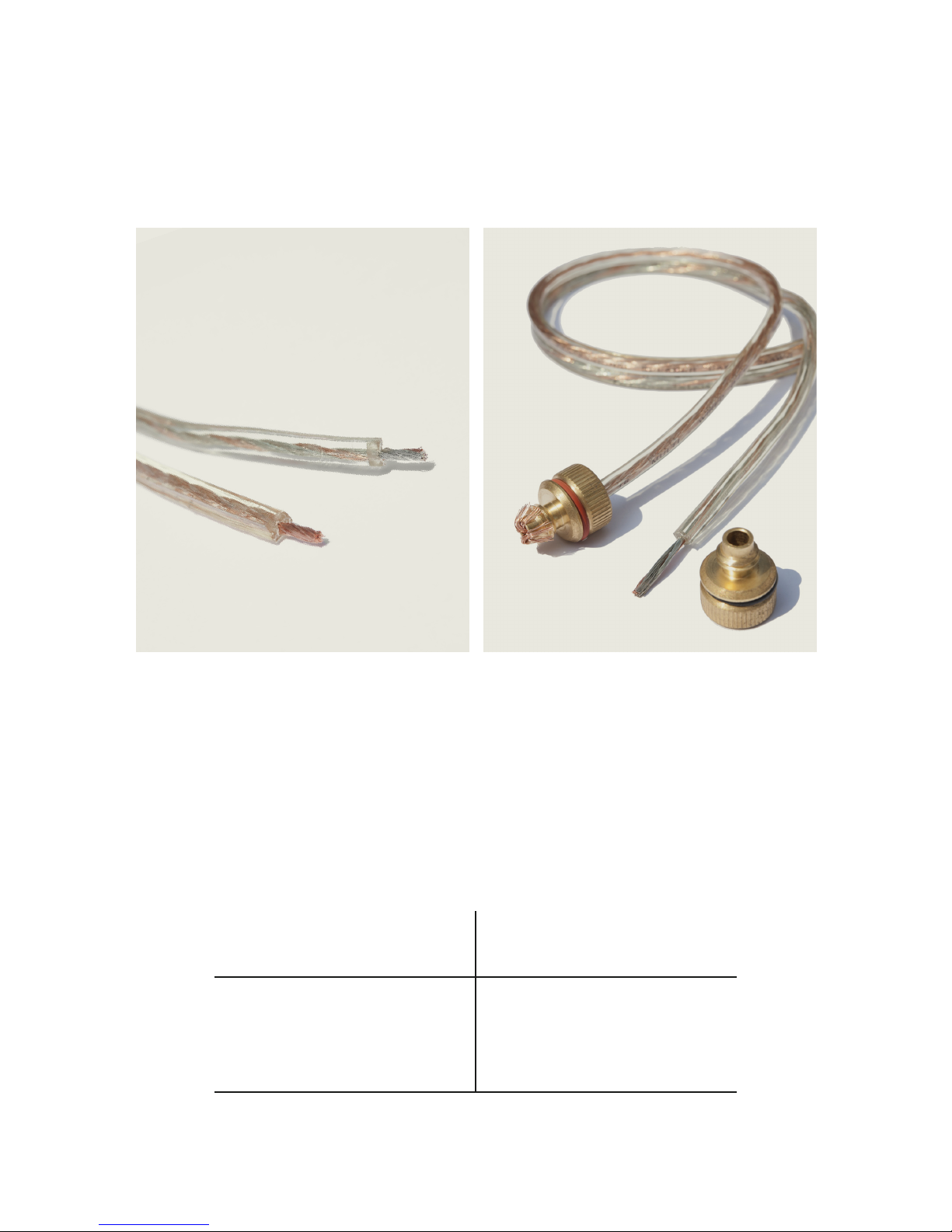

The best connection is obtained by using short lengths of board
cables. The cables should always be the bipolar-multithread type (in
no case should rigid single thread cable be used), preferably board,
such as the cables for hi-fi connections normally available in the
specialized shops. For those who wish to use ordinary electric wire, it
is advisable to keep to the following minimum requisites:
Connection Cable/
Distance
Amplifier/Speaker
Up to 5 meters
From 5 to 10 meters
Over 10 meters
Minimum Cable
Cross Section
0,75 sq. mm
1.00 sq. mm
2.00 sq. mm

5
EN
All connections should be made
with the audio equipment switched off.
The amplifier terminals are marked: red for the positive pole and
black for the negative. The input terminals of Chario speakers are
clearly marked with the indications + for the positive and – for the
negative inputs.
WARNING
The power output amplifier channels Left and Right must be
connected to the terminals on the back of the speaker indicated by
Left (+/-) and Right (+/-).
While connecting the amplifier to the speakers great care should be
taken not to confuse the polarities.
Electrical
Connection/

6

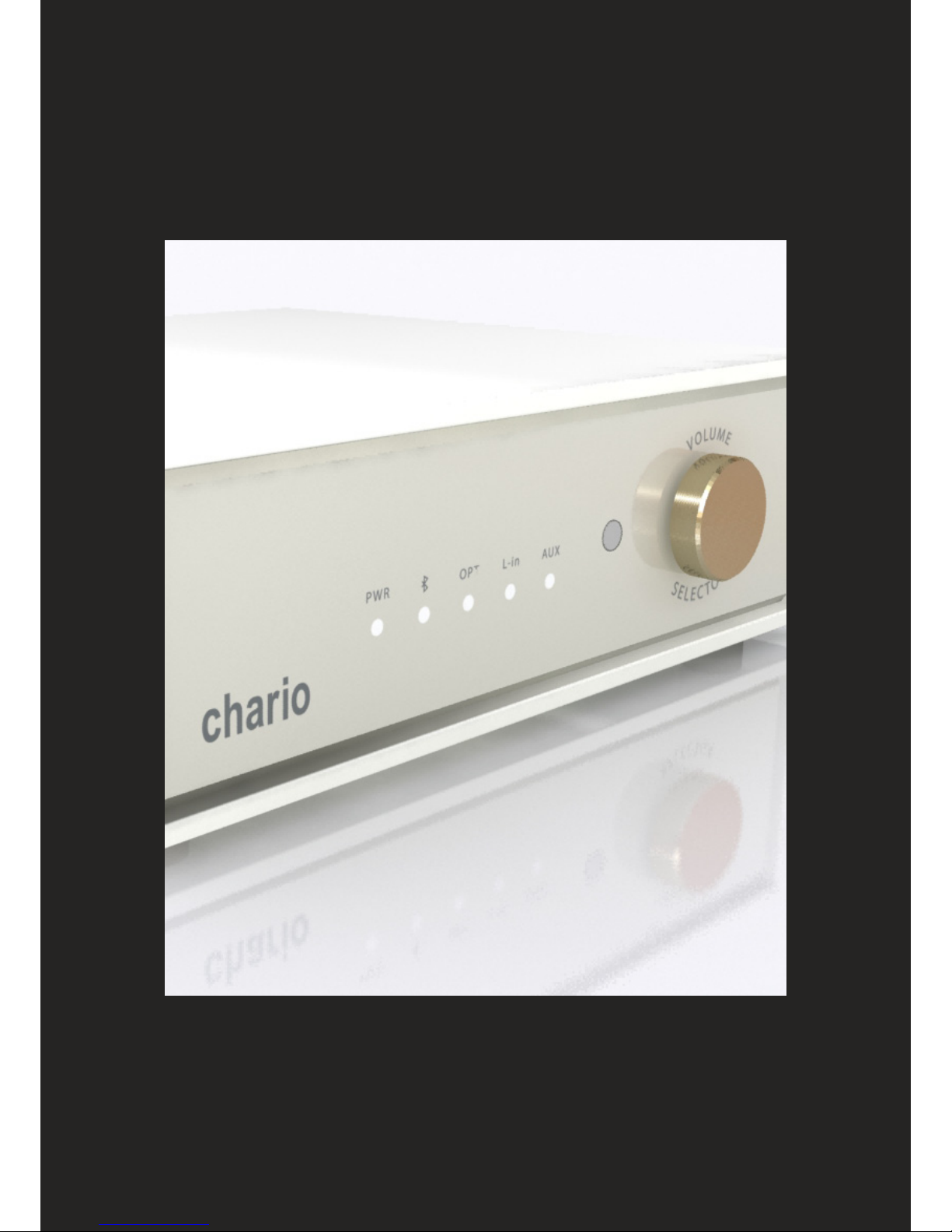

Amplifiers/
Chario_Quadro
100W stereo

7
EN
It is possible to use more powerful amplifiers than those suggested:
in this case, however it is necessary to be careful when regulating the
volume in order to avoid the speakers damage by sending them a too
powerful signal.
It is also advisable, if using a low powered amplifier, not to keep the
volume switch at the maximum level (especially if the tone controls
are changed) on order to avoid serious damage to the tweeters.
Generally, the recommended power amplifier has to be directly
proportional to the size of the listening room. It should have a
minimum electrical power of 1W each cubic meter. The power amplifier
is suitable for an impedance of 4 ohm.
For connections between source and amplifier, refer to the manuals
supplied with the devices.
Amplifiers/
N.B.
Inversion of the polarities will NOT damage the
speakers in any way. The quality of the sound will,
however, be impaired (with a considerable loss of the
power), and therefore the stereo image will be altered
with a difficult location of the sources.

8
Amplificatori/
Listening Room
User Manual / Interior Design
Preparation
of a listening room
Reflex
Chario
Reflex_Collection

9
EN
The environment have a fundamental importance to determinate the
quality of listening. The shape of the room , ornaments, furniture,
upholstery, curtaining, carpets, glasses and anything else do
determine the sonic performance of your living room.
The room should therefore be optimized by moving the furniture and
"calibrating” the reflecting and absorbing surfaces, in order to obtain
as much “acoustic neutrality” as possible.
To increase the performance of the room please contact acoustic
specialists for home entertainment.
Listening Room/

10

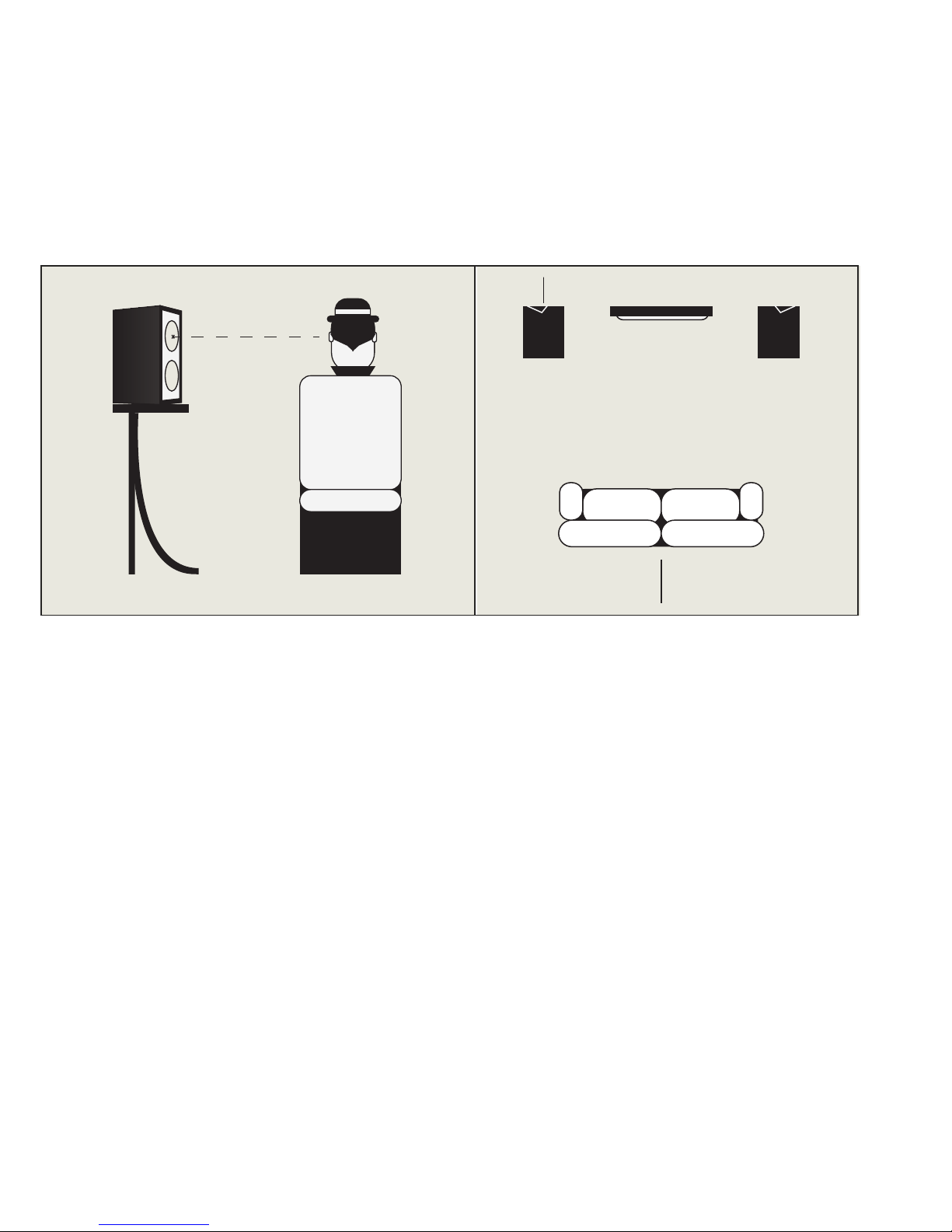

Once your room has been
optimized, it is necessary to
find the right position for
the speakers within it. Also
in this case (because of the
variety of possible solutions)
it is advisable to proceed
by tries, experimenting the
different positions, but always
remembering that:
- There should not be any bulky
object between the speakers and
the listener.
Speaker
Positioning/
- There should be at least 1
meter between the listener and
the wall behind him.
- To optimize the distance
between speakers increase
the distance between them
gradually, until you’ll hear a
"hole in the middle": that’s the
allowed maximum distance, so
just reduce it a bit.
10/15
cm
1 m
1,5 m
10/15
cm
1 m

11
EN
- The speakers should be
perpendicular to the wall for the
perfect operation of the BOXERTM
Engine.
- The tweeter should be more
or less at the same level of the
listener's ears.
If, for any reason, some of these
conditions cannot be met, it is
possible to modify the sound by
regulating tile tone controls or
by using an equalizer. It should,
however, be remembered that
in these cases more benefit is
achieved by attenuating the
frequencies rather than by
increasing them.
All the speakers can be use in
multichannel configuration.
10/15
cm
1 m

12
Stray Magnetic
Fields/
The speaker drive units create static stray magnetic fields that extend
beyond the boundaries of the cabinet. We recommend you keep
magnetically sensible devices (CRT television and computer screens,
computer discs, audio and video tapes, swipe cards and the like) at
least 0.5m from the speaker. OLED, LCD and plasma screens are not
affected by magnetic fields.

13
EN
Maintance and
Warrenties/
Please take the time to carefully read and follow these important
safety instructions.
Please save this sheet for future reference.
WARNING:
Do not expose this appliance to dripping or splashing, and do not place
objects filled with liquids, such as vases, on or near the appliance. As
with any electronic products, use care not to spill liquids in to any part
of the system. Liquids can cause a failure and/or fire hazard.
Do not place any free flames sources, such as lighted candles, on or
near the appliance.
Do not install near any heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
Consult the dealer or an experienced radio/TV technician for help.
Clean only with a dry cloth.
This product contains magnets, which can be harmful to pacemaker
wearers.
CAUTION
Make no modifications to the system or accessories.
Unauthorized alterations may compromise safety,
regulatory compliance, and system performance.
Guarantee will be invalidated as well.
