Harman CITATION TOWER User manual

OWNER’S
MANUAL
CITATION TOWER

2
/ IMPORTANT SAFETY
INSTRUCTIONS
Do Not Use Extension Cords
To avoid safety hazards, use only the power cord supplied
with your unit. We do not recommend that extension cords be
used with this product. As with all electrical devices, do not run
power cords under rugs or carpets, or place heavy objects on
them. Damaged power cords should be replaced immediately
by an authorized service center with a cord that meets factory
specications.
Handle the AC Power Cord Gently
When disconnecting the power cord from an AC outlet, always
pull the plug; never pull the cord. If you do not intend to use
your speaker for any considerable length of time, disconnect
the plug from the AC outlet.
Do Not Open the Cabinet
There are no user-serviceable components inside this product.
Opening the cabinet may present a shock hazard, and any
modication to the product will void your warranty. If water
accidentally falls inside the unit, disconnect it from the AC
power source immediately, and consult an authorized service
center.
Safe and Stable Placement
This product may become unstable and tip over during
earthquakes or if they are rocked, tipped or improperly
positioned.

3
/ TABLE OF CONTENTS
/IMPORTANT SAFETY INSTRUCTIONS............................................. 2
/INTRODUCTION ....................................................................................... 4
/WHAT’S IN THE BOX............................................................................... 5
/PRODUCT OVERVIEW ............................................................................ 6
/PLACEMENT................................................................................................ 9
/POWER ON ................................................................................................. 11
/SPEAKER SETUP ......................................................................................13
/USING YOUR CITATION TOWER ....................................................... 17
/SETTINGS....................................................................................................21
/SPECIFICATIONS.....................................................................................23
/TROUBLESHOOTING ............................................................................24
/TRADEMARKS ..........................................................................................26

4
/ INTRODUCTION
This manual includes information of CITATION TOWER (primary
and secondary speakers). We encourage you to take a few
minutes to read this manual, which describes the products and
includes step-by-step instructions to help you set up and get
started. Read and understand all the safety instructions before
using your product.
This product may have an important software update
available. Please follow the instructions to connect the
product to Wi-Fi to ensure that your product has the most
recent software updates.
Design and specications are subject to change without notice.
If you have any questions about these products, their
installation or their operation, please contact your Harman
Kardon retailer or customer service, or visit us at www.
harmankardon.com.

5
/ WHAT’S IN THE BOX
Carefully unpack the box and check if the following parts are
included. If any part is damaged, do not use it, contact your
Harman Kardon retailer or customer service.
3
4
1 2
1. Main unit (Secondary speaker)
2. Main unit (Primary speaker)
3. Bottom cover x 2
4. Power cord* x 2
*Power cord quantity and plug type vary by regions.

6
/ PRODUCT
OVERVIEW
Back Panel and Bottom
Secondary Primary
1
2
3
4
5

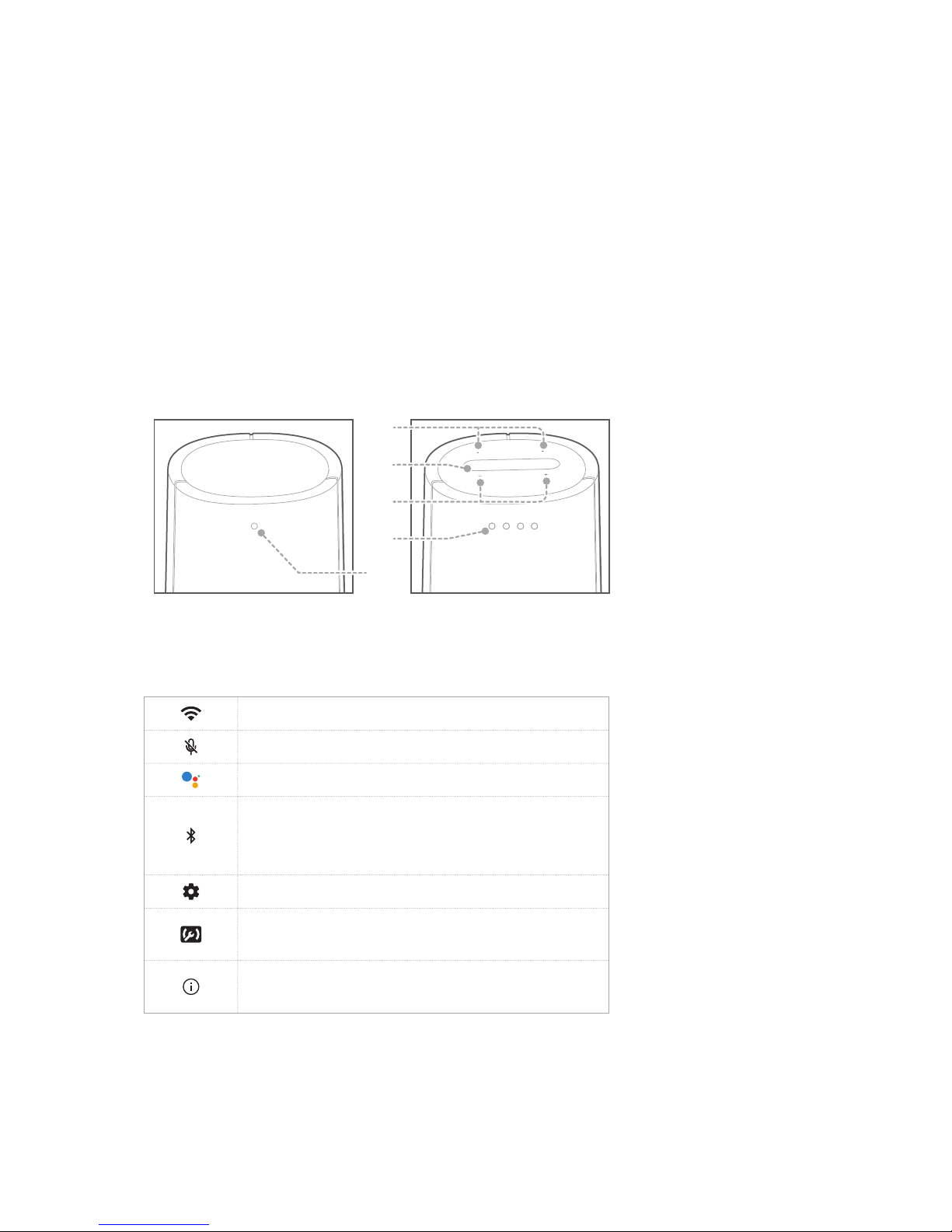

1. Microphones
2. Touch screen
Wi-Fi signal indicator.
Press to mute or unmute the microphone.
Press to activate Google Assistant.
Press to enter Bluetooth pairing mode.
Press and hold more than 3 seconds to disable
Bluetooth.
Press to customize the general settings.
Press to set up multi-channel surround sound
system with your CITATION SUB. (Optional)
Press to check the system information of this
product.
3. - / + (Volume)
• Press to decrease or increase the volume.

/ PRODUCT OVERVIEW
7
4. LED indicators (Google)
White (Breathing slowly) Listening
White (Breathing fast) Responding
Amber (Constant) Microphone muted
White (Breathing for three
times) Power on / system startup
5. LED indicator (WiSA)
White (Flashing) Pairing
White (Flashing) Out of range / Lost wireless
connection
White (Constant for 10
seconds and then light o)
Wirelessly connected with
CITATION BAR / ADAPT

/ PRODUCT OVERVIEW
8
Bottom Side
Secondary Primary
RESET POWER SERVICE 2SERVICE 1
mm 24.013
3
2
1
RESET POWER SERVICE
3
2
1
1. RESET
• Press and hold for 5 seconds to restore the factory
settings.
2. SERVICE
• For service personnel only.
3. POWER
• Connect to the power supply.

9
/ PLACEMENT
Place your CITATION TOWER on any at and stable surface
near an AC (mains) outlet.

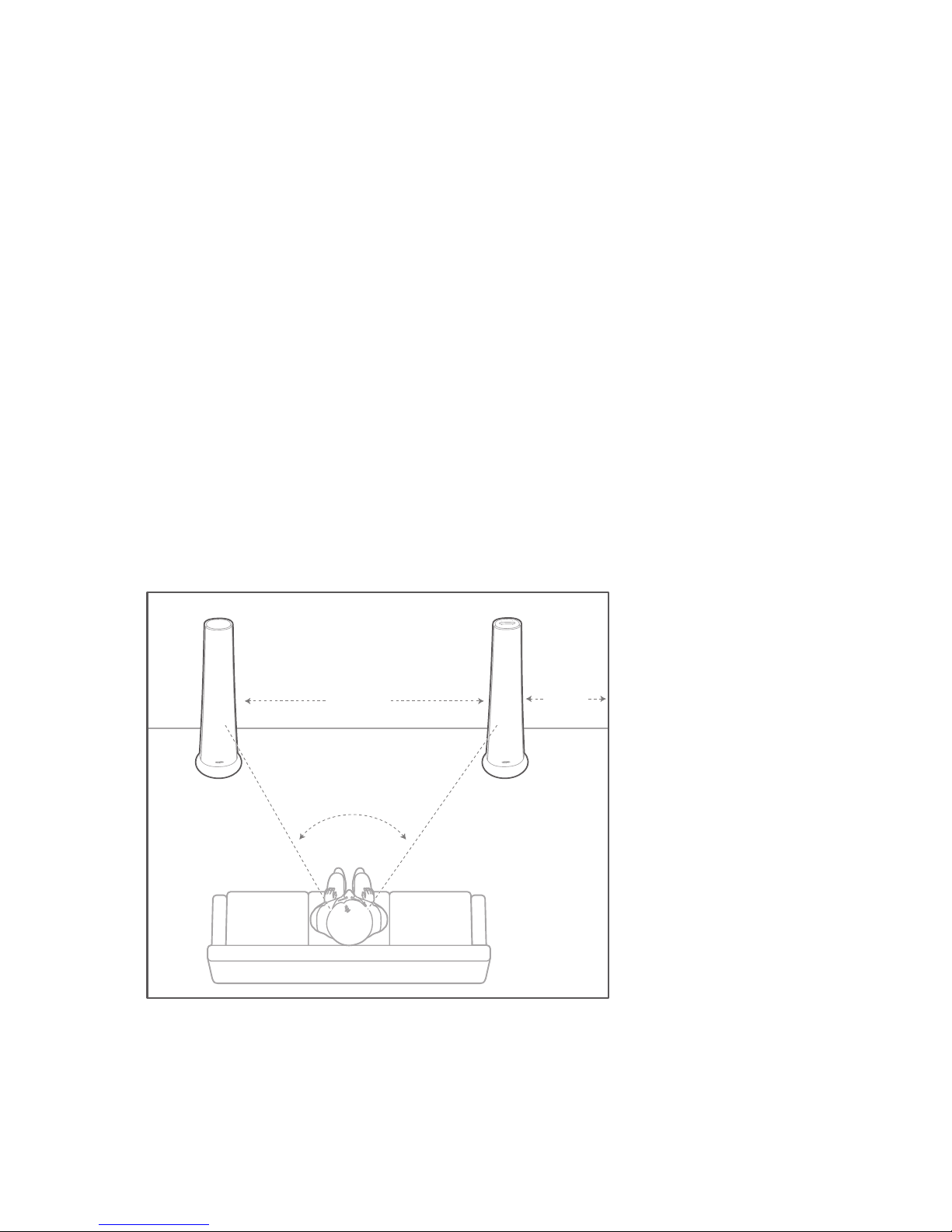

1) To achieve the best and most accurate stereo soundstage,
place the speakers 6-10 feet (1.8-3 m) apart, keep an angle
of 40-60 degrees between your listening position and both
speakers.
2) Bass output will increase as the speaker is moved closer to
a wall or a corner. For best sound quality, keep a minimum
distance of 20 in (51 cm) between the speakers and the side
and rear walls.
Primary
Secondary
6-10 feet
(1.8-3 m)
40° – 60°
> 20 in
(>51 cm)

/ PLACEMENT
10
* To avoid any interference, keep a minimum distance of 5
meters (16.4 feet) between the speakers and your Wi-Fi
router.
>5m

11
/ POWER ON
NOTES:
• Use the provided power cord only.
• When you disconnect the power cord, always pull the plug, never
the cable.

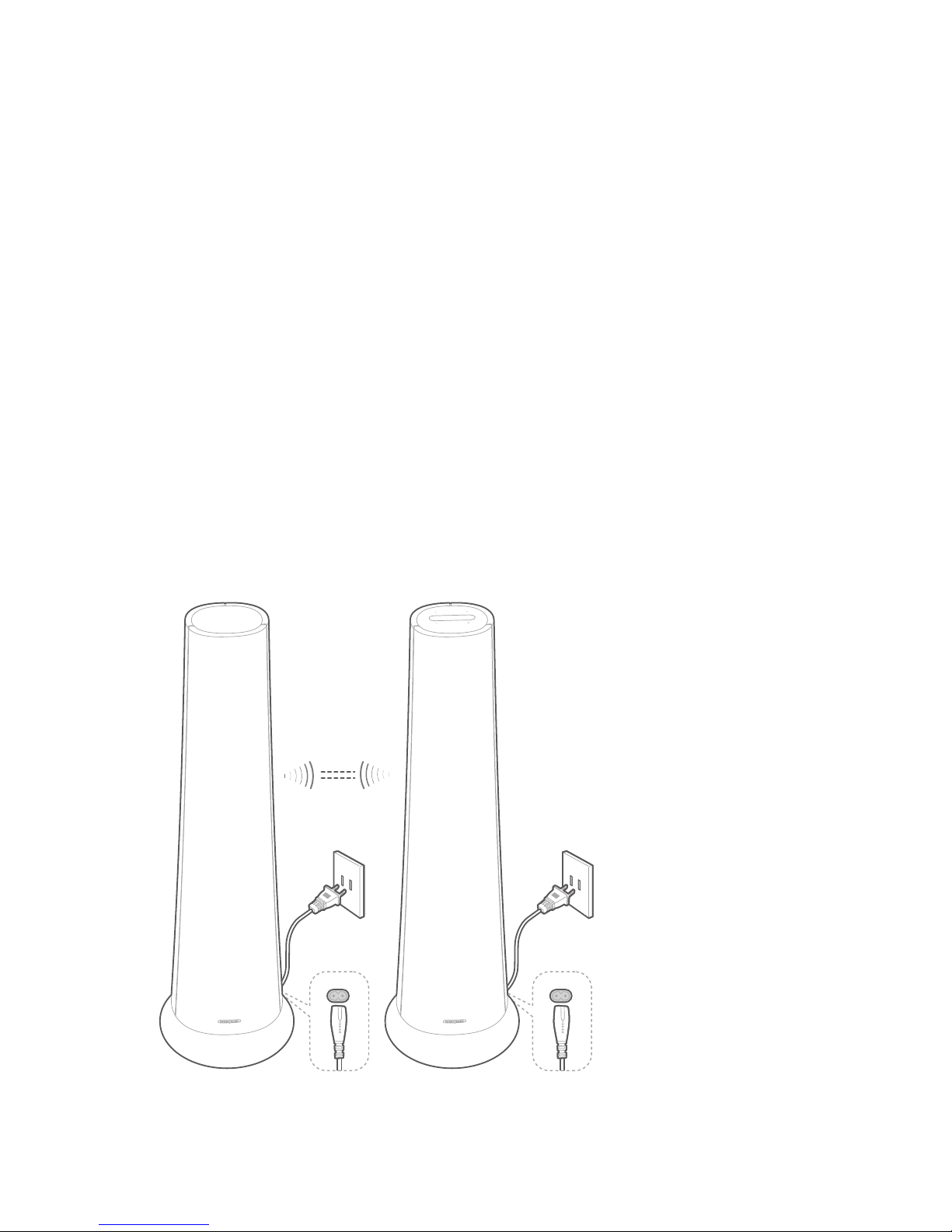

1) Plug one end of the AC power cord into the POWER
connector on the bottom of each speaker, then plug the
other end to an AC (mains) outlet.
ÆThe primary speaker will automatically power on and the
touch screen will turn on.
Secondary Primary
POWER
POWER

/ POWER ON
12

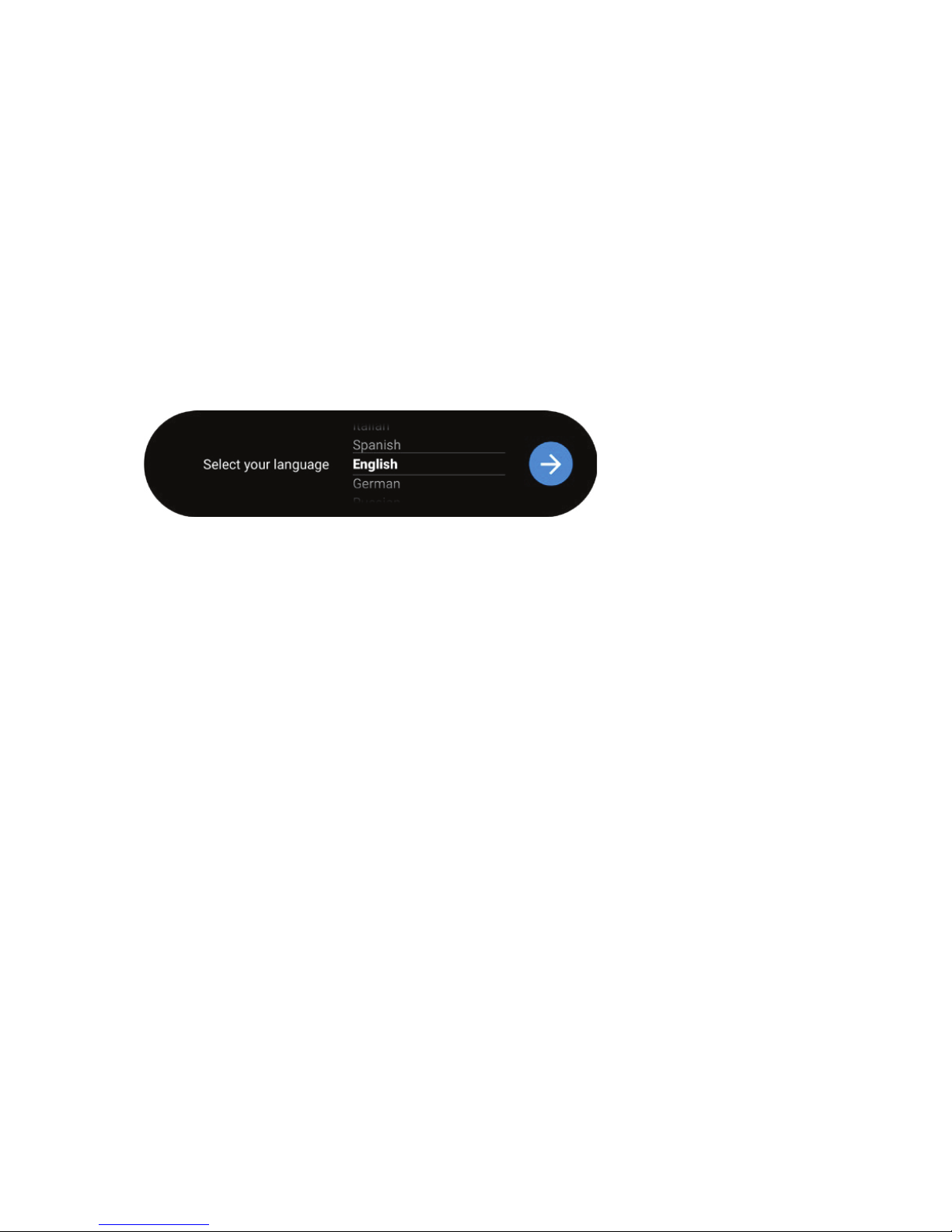

2) Select your language as instructed on the touch screen of
the primary speaker for the rst-time setting.
3) Press “MUSIC” to operate as standalone stereo speakers or
“VIDEO” to operate as a pair of satellite speakers (See the
“SPEAKER SETUP” section for details).

13
/ SPEAKER SETUP
Operate as Standalone Stereo Speakers
1) Press “MUSIC” on the touch screen of the primary speaker
to enter stereo mode. Your CITATION TOWER is required to
connect Wi-Fi with the Google Home app.

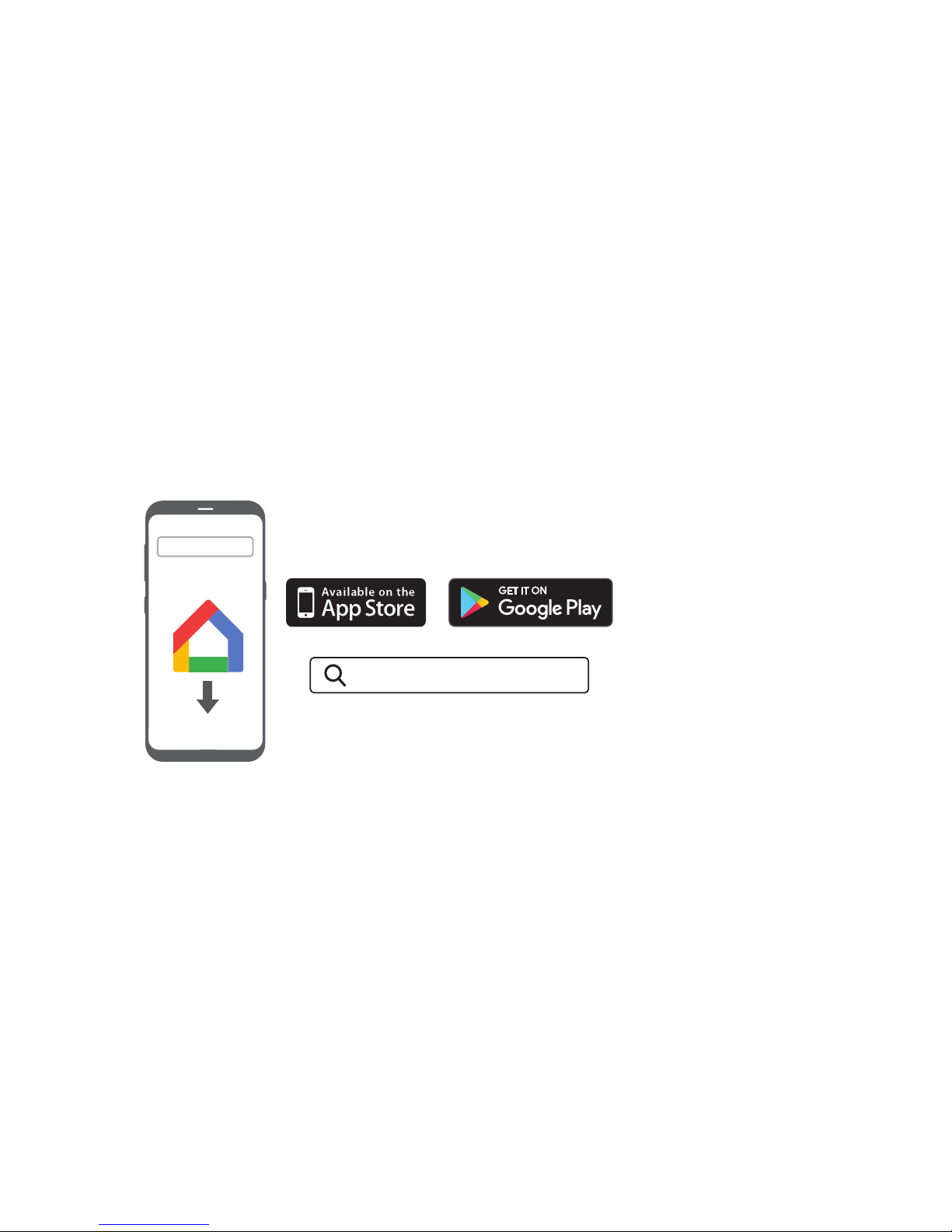

2) Download the Google Home app on your smartphone or
tablet.
Google Home
Google Home
3) Run the Google Home app and set up your CITATION
TOWER as instructed in the app. Always follow the
instructions in the app to complete the Wi-Fi setup.
4) Sign in with your Google account. If you do not have, create
a new one.
NOTES:
• If you encounter any setup issues, make sure to enable Bluetooth
and location services on your smartphone or tablet.
• In the Google Home app, you can rename this product. The
device name will remain during Bluetooth device discovery and
Chromecast streaming.
• Once this product is connected to the Internet, it will receive a
periodic over-the-air software update to improve performance.
This update may take a few minutes to complete.

/ SPEAKER SETUP
14
Operate as Satellite Speakers

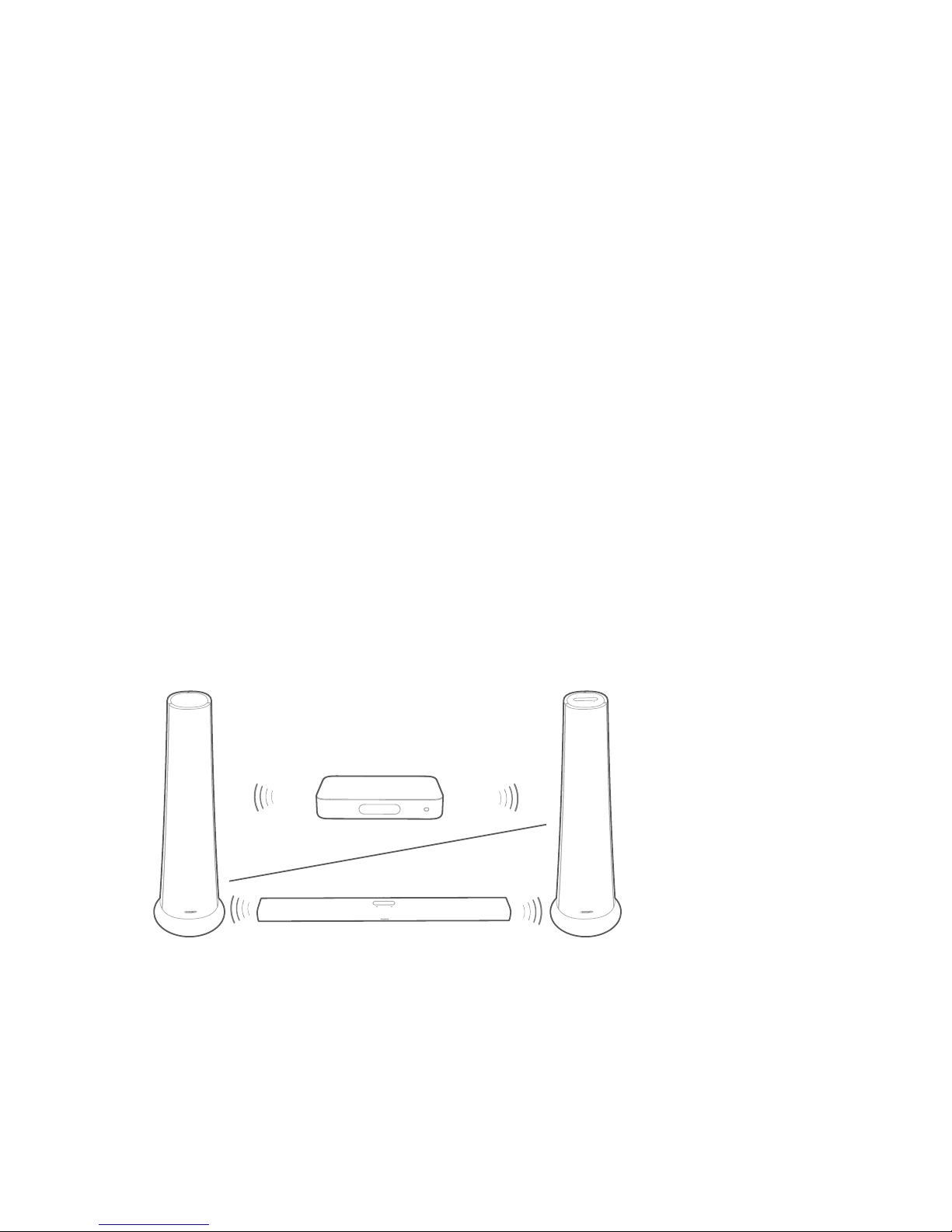

You can operate your CITATION TOWER as a pair of satellite
speakers with:
• CITATION BAR (sold separately): to set up a 3.0 channel
surround sound system.
• CITATION ADAPT (sold separately): to set up a 2.0
channel sound system for TV use case.
1) Press “VIDEO” on the touch screen of the primary
speaker to enter surround mode. Your CITATION TOWER
will become a pair of wireless satellite speaker for
CITATION BAR / ADAPT (sold separately).
2) Follow the on-screen instructions on your CITATION BAR /
ADAPT to complete the setup.

/ SPEAKER SETUP
15
Pair with CITATION SUB (Optional)
To enhance the bass performance, you can wirelessly pair your
CITATION TOWER with CITATION SUB (wireless subwoofer,
sold separately).
NOTES:
• For a successful setup, keep a maximum distance of 5 meters (16.4
feet) between the Citation Tower and your Citation Sub.
• If CITATION TOWER is powered o, the subwoofer will enter
standby mode.
• If you use a device near your CITATION TOWER and both use the
same frequency (2.4GHz or 5GHz), interference may cause some
sound interruption.
• The maximum transmission distance of the wireless signal
between CITATION TOWER and the subwoofer may vary
depending on your operating environment.
1) Power on both CITATION TOWER and CITATION SUB.
2) Press “Speaker Setup” > “Pairing” > “Subwoofer pairing” on
the touch screen to enter pairing mode.
ÆYou will hear a pairing chime once successfully
connected and “Subwoofer connected” will be displayed
on the touch screen.

/ SPEAKER SETUP
16
LED Indicator (CITATION SUB)
White (Flashing) Pairing
White (Flashing) Out of range / Lost
wireless connection
White (Constant for 10
seconds and then light o)
Wirelessly connected
with CITATION TOWER

17
/ USING YOUR
CITATION TOWER
Talk to Google Assistant
Your CITATION TOWER comes with the Google Assistant built-
in. You can play music, get the answer, manage everyday tasks,
and easily control smart devices around your home by using
your voice.
Press on the touch screen of the primary speaker to activate
the Google Assistant and then say your request.
When the CITATION TOWER is streaming music through
Chromecast or Bluetooth, you can say the wake word “Ok
Google” or “Hey Google” rst and then your request.
ÆCITATION TOWER will respond instantly.
NOTE:
• For the latest voice commands, please visit assistant.google.com.

/ USING YOUR CITATION TOWER
18
Play Music with Chromecast
With Chromecast built-in, you can stream music / tunes /
podcasts / playlists from 300+ music apps to your speaker by
simply tapping the Cast button.
1) Run the Chromecast enabled app on your smartphone or
tablet.
2) Press the icon in the app and select the CITATION
TOWER.
3) Press “Play” in the app.
NOTES:
• The name of this product is assigned during the Wi-Fi setup.
• The Citation speaker can support audio streaming but not video
streaming.
Multi-room Group Playback with Citation
Family
Citation speaker can support multi-room control provided by
Chromecast built-in.
In the Google Home app, simply create a group, add your
speakers together and then you have multi-room playability.
NOTES:
• Refer to Google Home app for more details.
• The amount of Chromecast speakers you can stream music
to depends on the bandwidth of your local wireless network.
Theoretically, an unlimited amount of devices can be connected to
stream the same song.
Play Music through Bluetooth
You can use your CITATION TOWER as a speaker for your
Bluetooth enabled smartphone or tablet.
1) Press Bluetooth on the touch screen to enter Bluetooth
pairing mode.

/ USING YOUR CITATION TOWER
19
ÆDuring the 10 seconds of reconnection period, or until a
successful connection, the white circle below icon will
blink.
Citation Tower
2) On your smartphone or tablet, select “Citation Tower” to
connect. You will hear a pairing chime once connected.
ÆWhen the music is playing, the track, title and artist of the
song will scroll on the touch screen.

/ USING YOUR CITATION TOWER
20
NOTES:
• If you have already connected the soundbar to Wi-Fi and changed
the device name, then select the new device name.
• To disconnect and pair another device, press and hold
Bluetooth for more than 3 seconds on the touch screen.
• The speaker automatically turns o after 20 minutes of inactivity.
• Bluetooth performance can be aected by the distance between
this product and your Bluetooth device and the environment of
operation.
• Keep a maximum distance of 10 meters (33 feet) between this
product and your Bluetooth device to avoid disconnection.
Playback Controls
• : Start, pause or resume play.
• / : Skip to previous / next track.
