User Manual
Wood insert F70L

1
TABLE DES MATIÈRES
DIMMENSIONS.........................................................................................................................................3
DECLARATION OF PERFORMANCE ...........................................................................................................4
GENERAL POINTS .....................................................................................................................................5
SECURITY ..................................................................................................................................................5
Presentation of the F70 L.........................................................................................................................6
ACCESSOIRES............................................................................................................................................6
ASSEMBLY OF THE OUTSIDE AIR UNION CONE........................................................................................6
PARTICULAR PRESCRIPTIONS CONCERNING THE OUTSIDE AIR INLET.....................................................7
SET UP THE DEFLECTOR ...........................................................................................................................7
DRAUGHT CONTROL OPERATION ............................................................................................................8
OPENING OF THE DOOR...........................................................................................................................9
COMBUSTION CONTROL OPERATION......................................................................................................9
HIGH AND LOW VENTILATION ...............................................................................................................10
ASSEMBLE OF THE FRAME (IN OPTION).................................................................................................11
ASSEMBLY OF THE CONVECTION MANTLE (IN OPTION)........................................................................12
INSTRUCTIONS FOR USER ......................................................................................................................12
General points....................................................................................................................................12
Recommended fuels ..........................................................................................................................12
Forbidden fuels ..................................................................................................................................12
Wood load..........................................................................................................................................12
INSTRUCTION FOR USE ..........................................................................................................................13
First lightings ......................................................................................................................................13
Lightning.............................................................................................................................................13
Maximum power operation ...............................................................................................................14
Nominal power operation..................................................................................................................14
Operation at a low speed...................................................................................................................14
Restarting of the combustion ............................................................................................................14
MAINTENANCE.......................................................................................................................................15
De-ashing ...........................................................................................................................................15
Window cleaning................................................................................................................................15
To change the seals............................................................................................................................15
Sweeping............................................................................................................................................15
SAFETY RULES.........................................................................................................................................16
CHIMNEY FIRES ......................................................................................................................................16
How to avoid chimney fires ...............................................................................................................16

2
AFTER SALES SERVICE.............................................................................................................................17
CONTRACTUAL WARRANTY ...................................................................................................................17
GENERAL POINTS ...............................................................................................................................17
Duration .............................................................................................................................................17
Legal warranty....................................................................................................................................17
Validity ...............................................................................................................................................17
EXCLUSION .............................................................................................................................................18
Wear parts..........................................................................................................................................18
WARRANTY CERTIFICATE .......................................................................................................................19

3

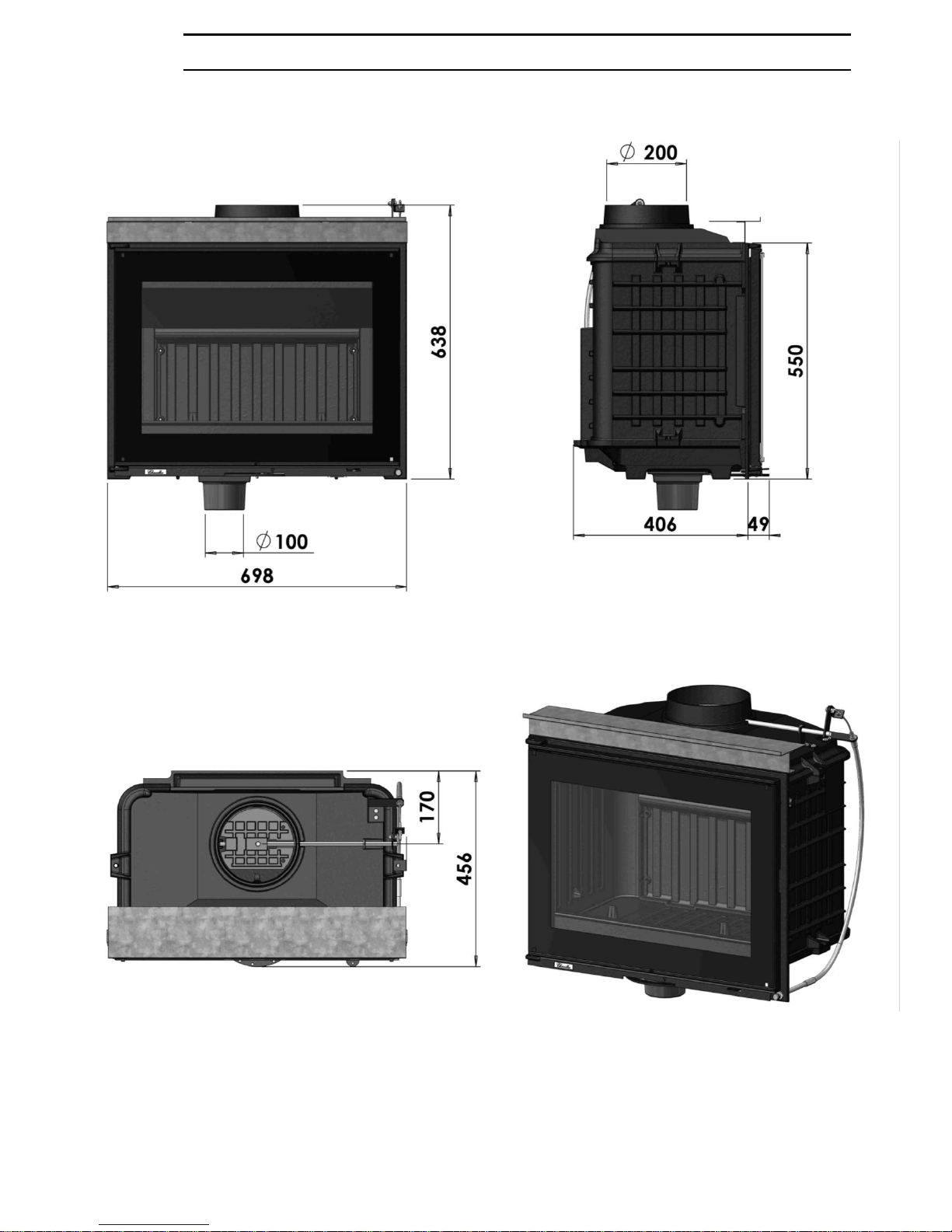

DIMMENSIONS

4
DECLARATION OF PERFORMANCE
N° 0033- RPC –01/07/2013
1. Code d’identification unique du produit type: insert à combustibles solides sans production d’eau chaude
EN 13229 :2001/A2 :2004/AC : 2007
2. Numéro de type, de lot ou de série ou tout autre élément permettant l’identification du produit de construction,
conformément à l’article 11, paragraphe 4 : Insert F70L
3. Usage ou usages prévus du produit de construction, conformément à la spécification technique harmonisée
applicable, comme prévu par le fabricant: Chauffage des locaux dans les bâtiments résidentiels sans
production d’eau chaude
4. Nom, raison sociale ou marque déposée et adresse de contact du fabricant, conformément à l’article 11, paragraphe
5: CHAZELLES Route de Marthon 16380 Chazelles –05.45.23.50.50.
5. Le ou les systèmes d’évaluation et de vérification de la constance des performances du produit de construction,
conformément à l’annexe V: Système 3
6. Le laboratoire notifié CTIF enregistré sous le numéro 1677 a effectué les tests pour la détermination des
performances déclarées, sur la base de l’essai de type selon le système 3 et a délivré, le rapport d’essais
N° TD 4099 .
7. PERFORMANCES DECLAREES
1. Les performances du produit identifié aux points 1 et 2 sont conformes aux performances déclarées indiquées au
point 7. La présente déclaration des performances est établie sous la seule responsabilité du fabricant identifié au
point 4.
Signé pour le fabricant et en son nom par:
M. Thierry MALLEREAU
Directeur Recherches et Développement
Responsable formation technique et Normalisation
Chazelles, le 29 juillet 2014
Caractéristiques
essentielles
Performances
Spécifications techniques harmonisées
SECURITE AU FEU
Réaction au feu
A1 SE
EN 13229 :2001/A2 :2004/AC : 2007
Distance aux matériaux
combustibles
Distances minimum aux matériaux combustibles :
7cm dont 3 cm d’isolant de résistance thermique
minimum de 0,7 m².kW a 50°C(ou de 0,4 m².kW à 200
°C), ayant un classement A1 ou au moins M0 ou A2-S1,
d0 entre le fond de l’appareil et le mur d’adossement.
Distance minimum entre la face vitrée de l’appareil et de
tout objet combustible : 120 cm
EN 13229 :2001/A2 :2004/AC : 2007
Risque de chute de braises
Conforme
Emission des produits de
combustion (nominale)
CO - 0.26 % à 13% O2
EN 13229 :2001/A2 :2004/AC : 2007
Température de surface
Conforme
EN 13229 :2001/A2 :2004/AC : 2007
Sécurité électrique
Conforme
EN 13229 :2001/A2 :2004/AC : 2007
Aptitude au nettoyage
Conforme
EN 13229 :2001/A2 :2004/AC : 2007
Pression maximale de service
-
EN 13229 :2001/A2 :2004/AC : 2007
Température de fumée à la
puissance (nominale)
227 °C
EN 13229 :2001/A2 :2004/AC : 2007
Résistance mécanique (pour
porter une cheminée/conduit de
fumée)
Conforme
EN 13229 :2001/A2 :2004/AC : 2007
PUISSANCE THERMIQUE
EN 13229 :2001/A2 :2004/AC : 2007
Puissance thermique (nominale)
9.50 kW
EN 13229 :2001/A2 :2004/AC : 2007
Rendement énergétique nominal
80.60 %
EN 13229 :2001/A2 :2004/AC : 2007

5
GENERAL POINTS
This manual is focused on the assembly, use and maintenance of the F70L insert.
It must be kept during the whole lifetime of the appliance.
The installation of a fireplace equipped with a Chazelles insert must comply with:
The regulations in force
-The instructions given in the documents supplied with the appliance.
All the local and national regulation, as well as European Union Standards, must be respected, for the installation
and use of the appliance.
IMPORTANT: previous check-up before the installation of the fireplace and the insert
Before processing to the installation of the fireplace, it is necessary to check previously the surrounding environment:
- If the smoke duct is compatible with the appliance characteristics
- If the safety distances towards flammable materials is respected
- If the characteristics of the surrounding walls of your fireplace are conform with the standards in force and/or
compatible with the recommendations of the manufacturer of the insert.
- If the combustion air inlet (mandatory for a good working of the appliance), is correctly sized.
- If the mechanical resistance of the floor is sufficient according to the weight of the fireplace and the insert.
SECURITY
Read carefully the manual delivered with the appliance before using your insert for the first time.
In case of doubt, please refer systematically to the manual.
An insert is a heating appliance. All the parts are very hot (>100°C). The handling of the different parts of the inserts
must be done exclusively with the operating devices delivered with the insert.
Watch carefully the kids, disabled people and old people when they stand near of the appliance.
Never place any flammable objects near of the appliance (sofa, tea table, etc…)
Please refer to the paragraph « SAFETY RULES ».
Never use the insert with highly flammable products (gas, petrol, etc…)
Sweep the smoke duct at least twice a season to prevent any fire risk.
It is absolutely forbidden to operate the insert with the door open.
If one part of the insert breaks (glass, bottom part, etc…), it is necessary to change the damage part before re-use
the insert.
Various removable elements (deflector, hearth grid, fire-dog), have to be removed from the appliance to avoid a
shock with the window of the appliance, during the installation.
Any kind of modifications on Chazelles insert is absolutely forbidden without the manufacturer consent.

6

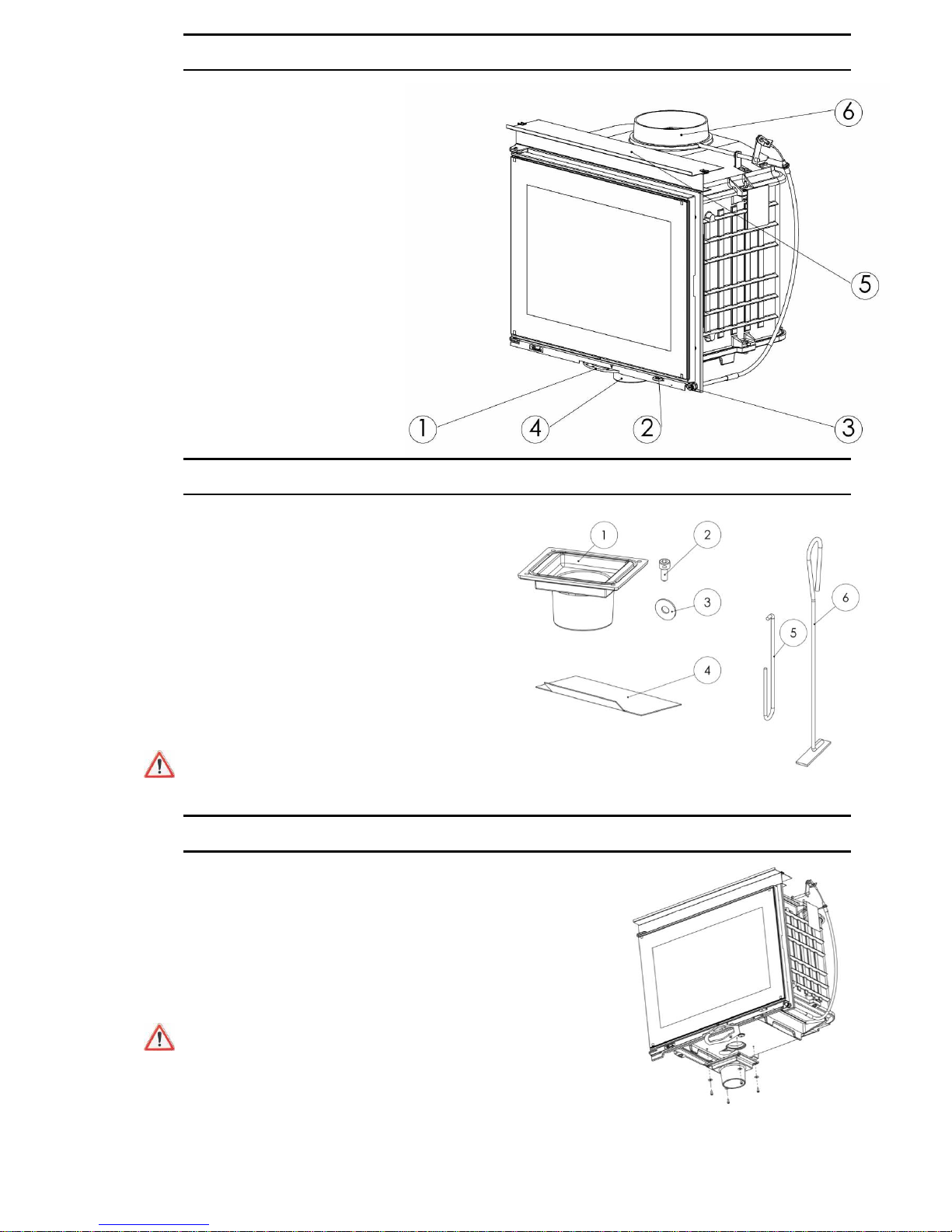

Presentation of the F70 L
1. Air control
2. Door lock
3. Draught control
4. Union cone for outside air
connection
5. Hood shutter
6. Union cone for smoke
connection
ACCESSOIRES
1. 1x Union cone for air
2. 4x Screws CHC M5-12
3. 4x Washers L5
4. 1x Deflector
5. 1x Cold hand
6. 1x Squeegee
Before installing the appliance, you must check if
any elements are missing.
ASSEMBLY OF THE OUTSIDE AIR UNION CONE
1. Lay down the appliance with great care.
2. Fasten the union cone with the 4 screws CHC M5-12 and their
washers
Whether the appliance is directly connected or not, it is mandatory to put
up the union cone for outside air.

7
PARTICULAR PRESCRIPTIONS CONCERNING THE OUTSIDE
AIR INLET
Please refer to the installation manual of the insert for the setup of the combustion air inlet.
There are 2 possibilities:
Creation of a new surround:
If a surround has to be created, you should set up the insert on a concrete sheet.
Rehabilitation of an existing surround
In this case, it is necessary to pierce the hearth concrete slab, following the
dimensions of the appliance (below). To facilitate the path of the shaft, you should make a
hole of Ø120 minimum.
SET UP THE DEFLECTOR
For maintenance and transport reasons, the deflector is a removable part of the appliance. It must
mandatorily be placed on the appliance to ensure a good operation of the insert.
1. Place the deflector into the appliance.
2. Lay the deflector on the
supports provided for
this purpose, on the
fond.
3. Leave the deflector on
the supports provided
for this purpose, on the
sides of the appliance.
Please check if the deflector is
steady.

8

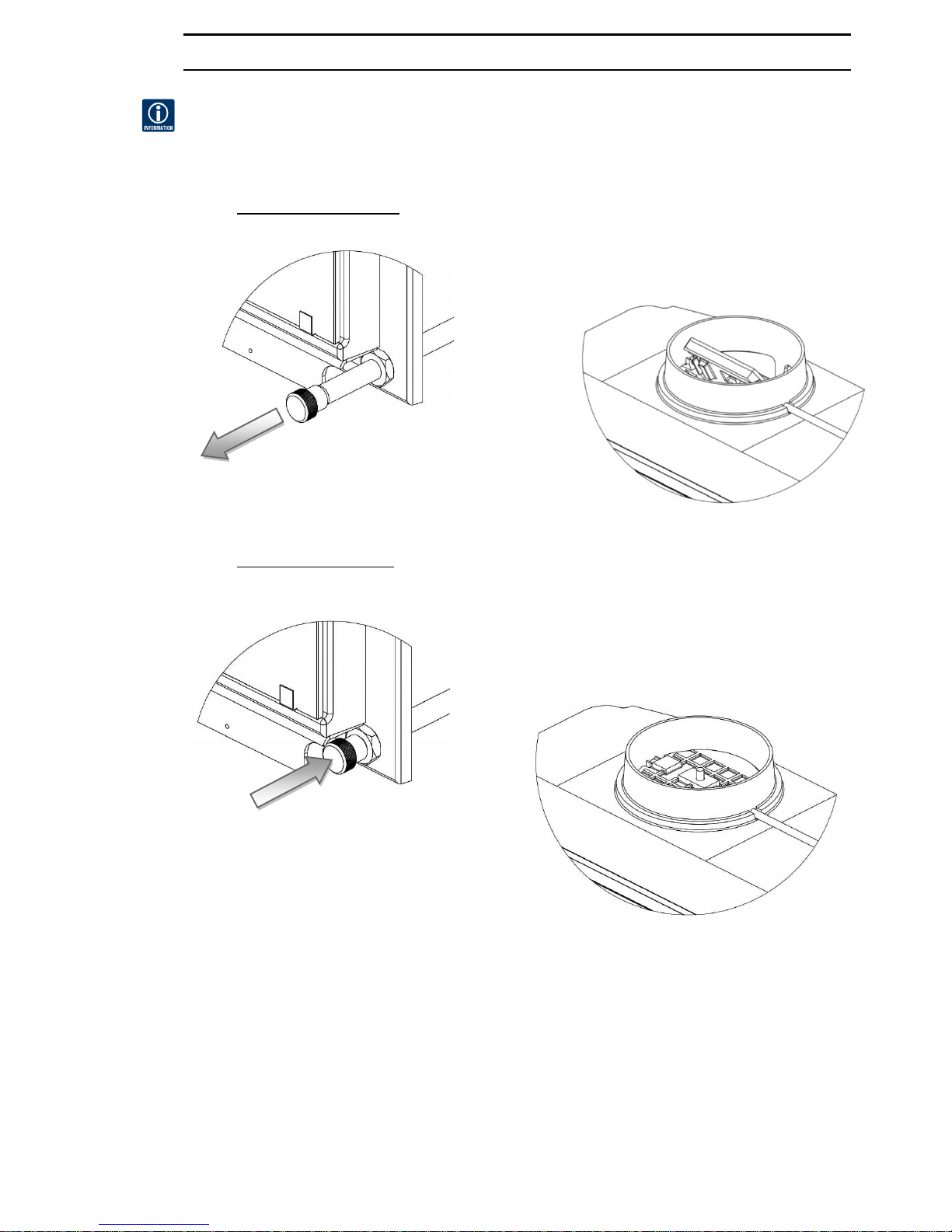

DRAUGHT CONTROL OPERATION
The aim of the regulation mechanism of the draught control is to adjust the draught. It allows, according to
the different phases, to act on the smoke flow. Then, it allows choosing the fire intensity and the power level
desired. Thus, it is important to check its good working order before installing the insert.
Opening of the draught control
Closing of the draught control

9
OPENING OF THE DOOR
Be careful, the opening of the door when it is hot, must always be done with the cold hand.

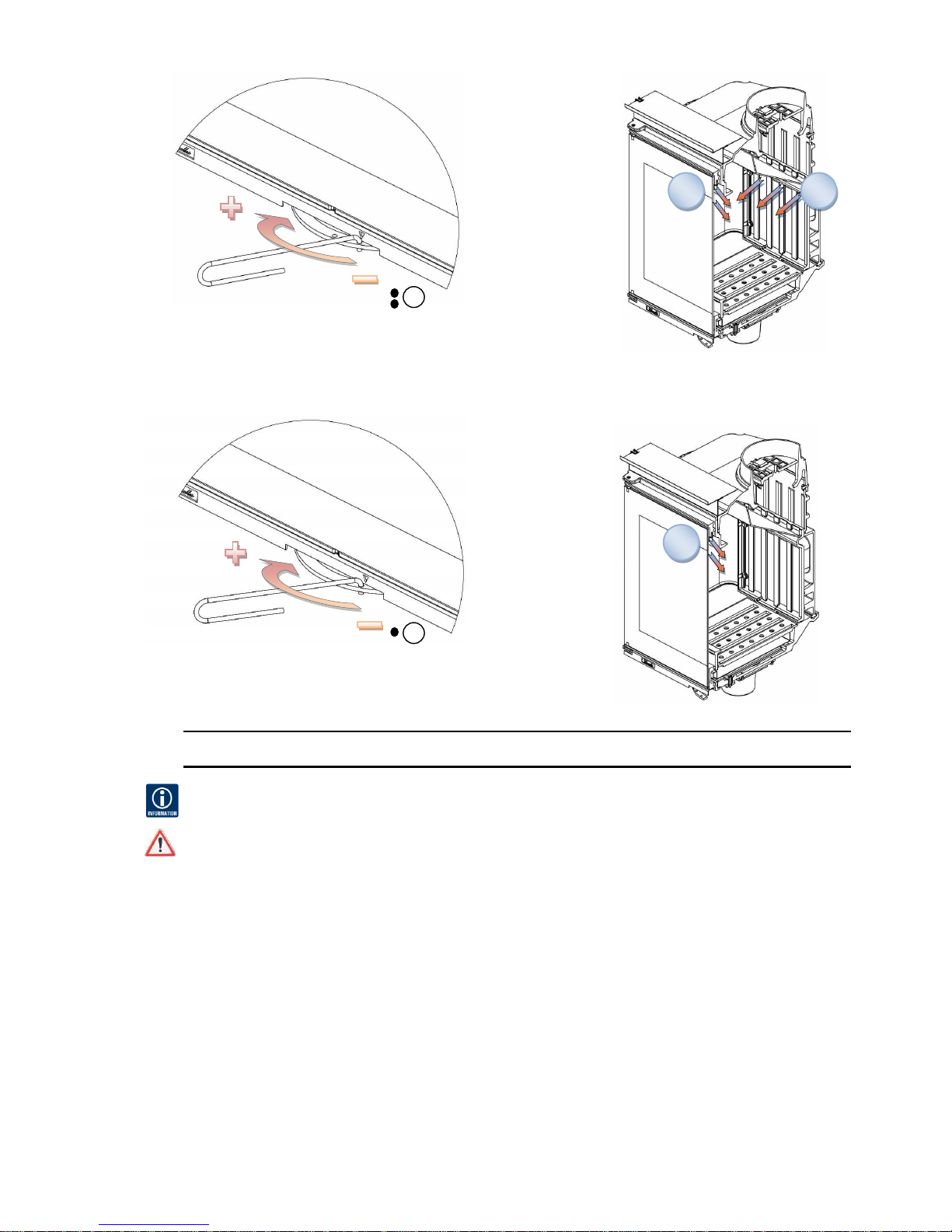

COMBUSTION CONTROL OPERATION
The aim of the combustion control is to adjust the combustion. It allows, according to its various positions,
to act on the primary and secondary air flow. It allows then, to choose the fire intensity and the power
desired.
For the firing, please refer to the paragraph “Use Instructions”.
Attention, combustion regulation must always be done with to the cold hand.

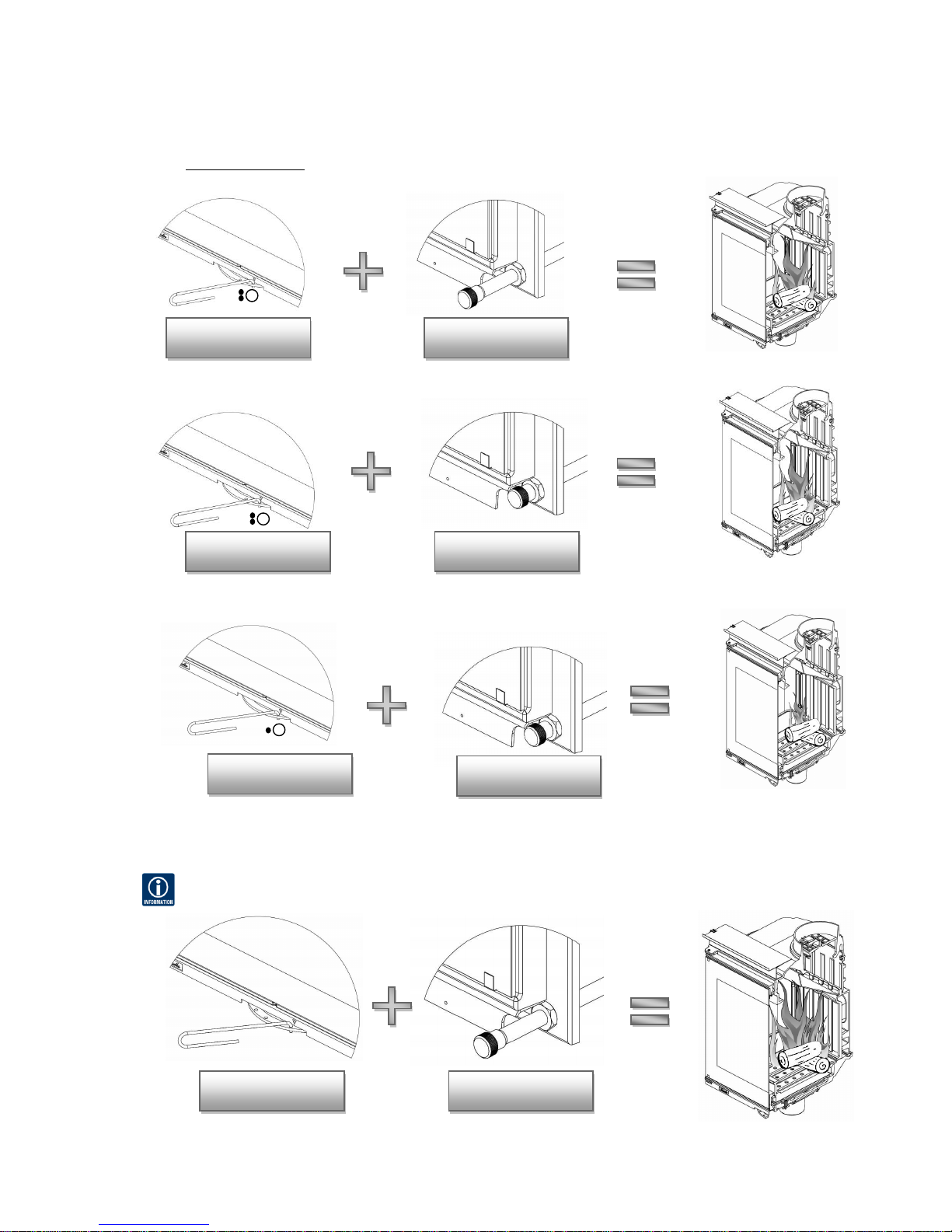

Adjustments:
Position A :
3
1
2
1
2

10
Position B :
Position C :
HIGH AND LOW VENTILATION
Please refer to the installation manual for the implementation of the ventilation around the appliance.
Attention, to avoid any kind of surrounds and insert overheating, the ventilations section (low and high),
must be scrupulously respected (pleases refer to the technical sheet of the appliance).
2
3
2

11

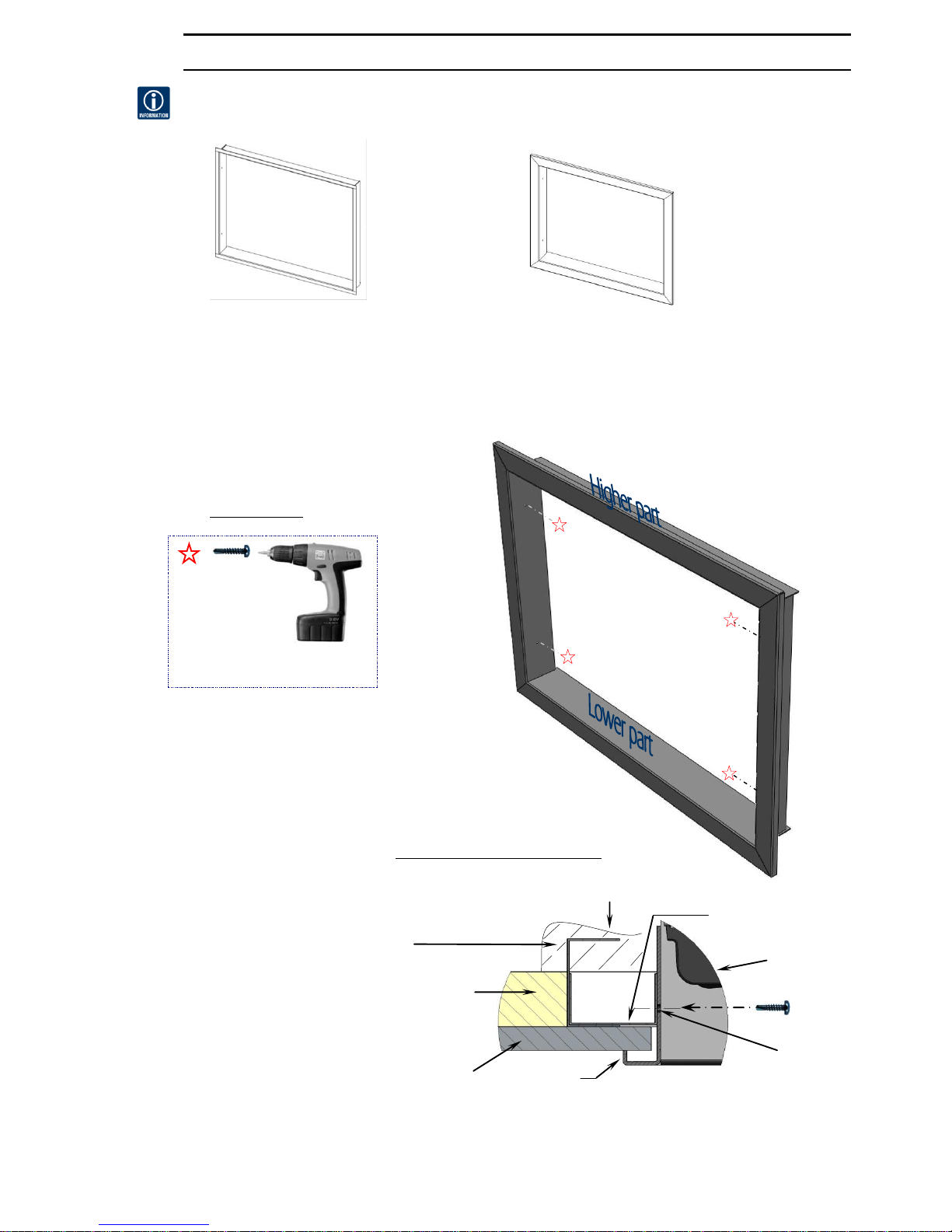

ASSEMBLE OF THE FRAME (IN OPTION)
For the frame options and their dimensions, please refer to the CHAZELLES frame manual.
- Place the frame on the insert
- Check for the balance of the frame
- Fasten the frame
Cadre à monter
Fasten the frame
Thanks to the 4
Screws supplied
(End pieceTorx T20)
Possible way to build the frame:
Mineral ceramique fiber
like Isolaine
Insulation
like
rockwool
+ Aluminium
BA 13
Jamb M48 from the bottom upwardst
For fixing BA 13
Insert
Path for
Metal sheet screw
Frame
Jamb M48 on the height of the insert
for frame fixation
Frame L
Ref: FOYACFFCADRELD7000
Frame S
Ref: FOYACFFCADRESD7000

12
ASSEMBLY OF THE CONVECTION MANTLE (IN OPTION)
For the assembly and installation, please refer to the manual for the
installation of the convection mantle kit.
INSTRUCTIONS FOR USER
Global warming is a concern for all of us. To preserve our environment we advise you an “intermittent” running of
your insert. Continuous running at a low speed, especially during the warmer periods (unfavourable draught),
using damp wood, involves an incomplete combustion, which favours nut-browns deposits and tar.
It is necessary to alternate slow running period by normal speed running period.
Favour an operation of your insert by using small loads.
General points
F70L inserts are made to be operated only with woods burning logs.
The maximal length of the logs is about 50 cm.
It is absolutely forbidden to use inside the appliance, another material than wood burning logs.
Recommended fuels
Broad-leafed hardwoods such as hornbeam, oak, beech and elm provide the best firewood.
We advise you to use very dry wood (20% dampness maximum), with 2 years’ covered storage after cutting, in
order to obtain the best results and avoid rapid bistrage of the flue and window
We strongly advise you to comply with the specifications per product reference in order to ensure your product a
maximum lifespan.
We strongly advise you against using resinous woods (pine, fir, spruce, etc.)
Forbidden fuels
All fuels other than wood are prohibited, coal and its by-products in particular.
Burning straw, cardboard and liquid fuels is dangerous and it must be avoided.
Wood load
For the durability of your appliance, please follow the recommended wood load (please refer to the technical
sheet)
Ref: FOYCAAK70D

13
INSTRUCTION FOR USE
First lightings
Don’t make a too strong a fire! The first lighting should be moderate and should not burn for more than three
hours.
Ne faites pas de feu trop vif ! Le premier allumage doit être modéré et ne doit pas dépasser trois heures de combustion.
During first lightings, solvents in the paintwork may give off unpleasant smells. Ventilate the room!
Lightning
We advise you to light the fire from the top. This way of lightning, simple and efficient, decreases CO emissions.
The logs will burn gradually from the top to the bottom.
Compared to the lightning from the bottom, this type of combustion goes slowly, with the result that particulates
matter are entirely burnt.
The fire is light from the top and burn to the bottom, like a candle!
-Put some logs (10 to 12 cm) criss-cross, and then 4 sticks of soft wood (birch, poplar…) of around 3 cm on 20 cm
which you will install like a rectangle on the fire-lighter.
Sticks and fire lighter are surrounded in red in the picture below.
Regulate the handles of the inserts like the following drawing:
- Set fire to the fire-lighter and leave the door slightly open to speed up the lightning.
- When the « kindling » is in fire, open the door, and load the appliance with the recommended fuel. Act on the
handles to obtain the power desired as described below.
Draught handle
Open position
Combustion handle
Position A

14
Maximum power operation
For an optimal heating: Load the appliance with 3 logs (diameter around 12 cm)
Nominal power operation
Operation at a low speed
Restarting of the combustion
To get a fast lightning, restart the fire with « kindling »: load wood and leave the door half open during a few minutes to
speed up the lightning. Keep an eye on the appliance during this operation.
Draught handle
Open position
Combustion handle
Position B
Draught handle
Closed combustion
Combustion handle
Position B
Combustion handle
Position C
Draught handle
Open position
Combustion handle
Position A
Draught handle
Closed position

15

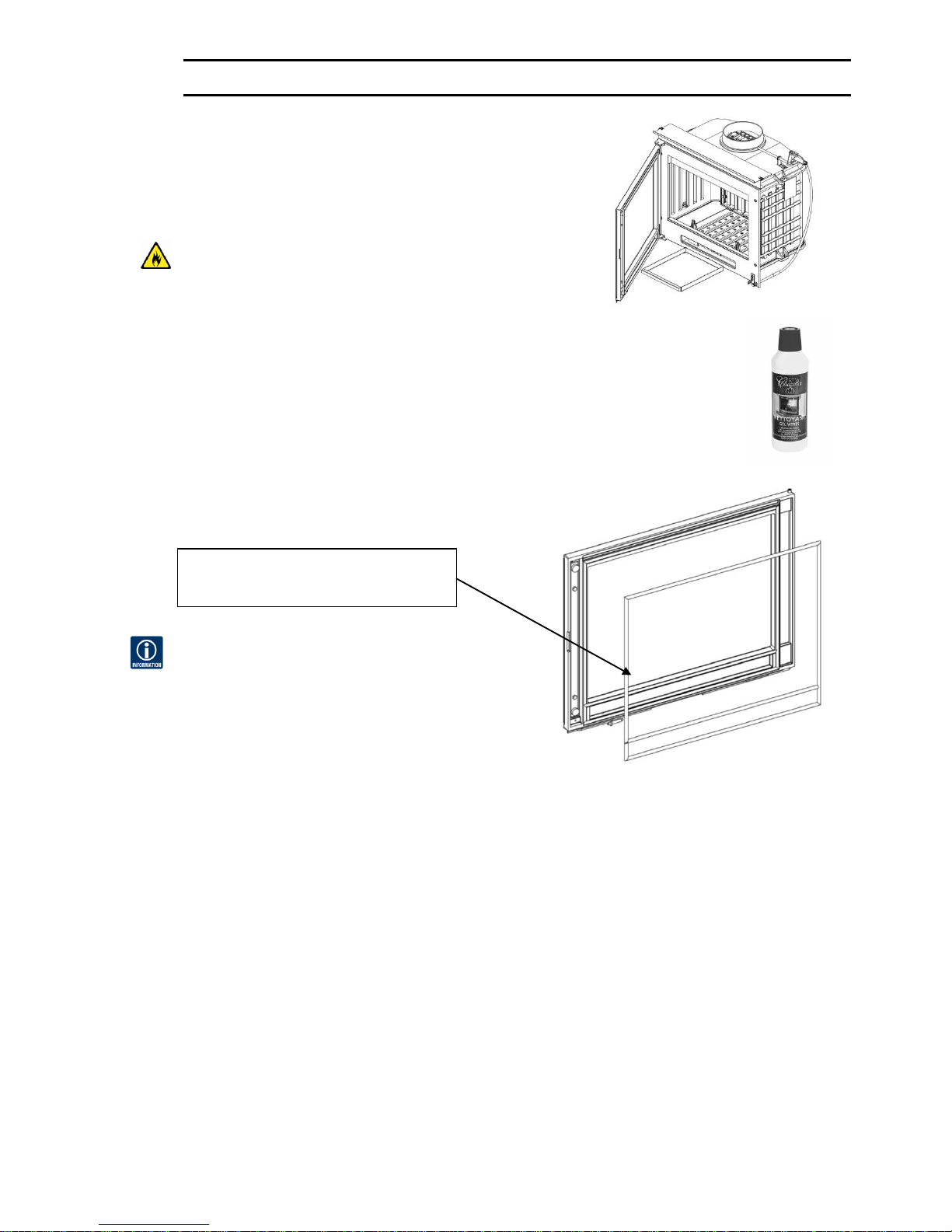

MAINTENANCE
De-ashing
The air required for combustion of wood arrives beneath the grid when the
primary air damper is open, and also keeps the grid cool. In order to obtain
optimal performance and avoid degradation of the grid due to overheating, it
is therefore essential to prevent its obstruction by regularly removing ashes.
Use the scraper to remove ash from the grille.
Empty the contents of the ash box into a metal or non-inflammable container
reserved exclusively for the purpose. Although ashes may appear cold, they
can remain very hot even after cooling for some time
Window cleaning
- Wait until the appliance is cool or cold before carrying out the operation.
- Protect the flooring under the door to prevent dirtying it.
- Clean the glass with a damp cloth.
- Spray the window with a cleaning product designed for this purpose (ask your retailer for advise),
complying with the instructions on the label.
- Wipe with a damp sponge.
To change the seals
In order to get an optimal combustion, we advise you to change
the seal every year.
Type : ceramic braid seal Ø9
Reference : 5AIT650_009
Lenght : 2.50m
Please refer to the seal kit manual for its installation
Sweeping
Mechanical sweeping of the flue is essential. It should be carried out at least twice a year, with at least one
sweeping during the heating season. A certificate should be issued by the contractor after completion of the
operation.
Take care to remove the baffle (raise it, move it forward, lower it and take it out).
Some models are equipped with a draught shutter which must be removed if it is detachable! (for reinsertion of
baffle and draught shutter, carry out steps for removal in reverse order).
- Thoroughly check the state of the appliance, elements ensuring airtightness in particular: seals and closing
mechanisms, etc.
- Clean the appliance with a brush and a vacuum cleaner.
If there is a problem, have the appliance or installation repaired by a professional.

16
SAFETY RULES
The fireplace radiates a lot of heat through the window glass. Do not place any heat-sensitive materials or
objects closer than 1.20 metres from the glass.
Never operate the appliance without the ash box in position.
When removing ashes, empty the ash box into a metal or non-inflammable container reserved exclusively for the
purpose.
CHIMNEY FIRES
In case of chimney fire, turn the primary air handle on position 3. Leave the door closed.
Remove any easily inflammable materials from the neighbourhood of the appliance.
Call the fire brigade and leave the premises.
Keep a watch on events outside (sparks from the chimneystack, for example).
How to avoid chimney fires
Chimney fires can very often be avoided simply by using dry wood!
Damp wood does not only diminish calorific power, it burns poorly (bistrage of the window) and generates
creosotes (tarring of the flue), which are highly inflammable!
Never reuse the appliance after a chimney fire without assessment by a qualified professional, who must check
damage to the flue, etc.
Mechanical sweeping of the flue is essential. It should be carried out at least twice a year, with at least one
sweeping during the heating season. A certificate should be issued by the sweeping company after completion of
the operation.
Following a long period on non-use, check that flues are unobstructed (insect nests for example) before relighting.

17
AFTER SALES SERVICE
We strongly recommend to only use replacement parts supplied by Chazelles
In case of problem, contact your installer. He is a professional who will find the best solution for you.
CONTRACTUAL WARRANTY
GENERAL POINTS
Travelling expenses, transport, labour, packaging and dismantling costs, as well as the consequences of non-use
of the appliance, resulting from operations under the guarantee, shall be borne by the customer.
Any malfunction of the appliance brought about by mechanical or electrical components not supplied by us and
which are prohibited in the documents regarding the heating appliances, is excluded from the guarantee.
Damage caused by use of any fuel other than wood, is excluded from the guarantee.
The guarantee does not apply in the following cases, (this is not an exhaustive list): installation and assembly of
appliances for which Chazelles is not responsible. Consequently, Chazelles should in no way be held responsible
for material damage or accidents to individuals, following a bad installation (which doesn’t comply with legal and
regulatory provisions). In the same way, Chazelles should in no way be held responsible for a normal wear and tear
of the equipment or its abnormal use, in particular in cases of use of the equipment in conditions different from
those for which it was dedicated to. It is formally prohibited to modify or transform the appliance.
Duration
The warranty period is 10 years, (for all parts manufactured by ourselves with the exception of wear parts), from the
date of delivery by the installer or the sales outlet.
The warranty can be applied during this period to all material or manufacturing defects. We shall only undertake to
replace, free of charge, parts recognised as defective after verification by ourselves.
Legal warranty
The arrangements of the warranty are not excluded from the purchaser’s use, of the equipment covered by the
legal warranty for hidden faults and defects, which applies in all circumstances under the conditions of Articles 1641
and following of French Civil Law.
Validity
The purchaser designated overleaf acknowledges having received installation instructions and agrees to comply
with them. The warranty is only valid if the appliance is used in compliance with recommendations set out in the
instructions supplied with the appliance.

18

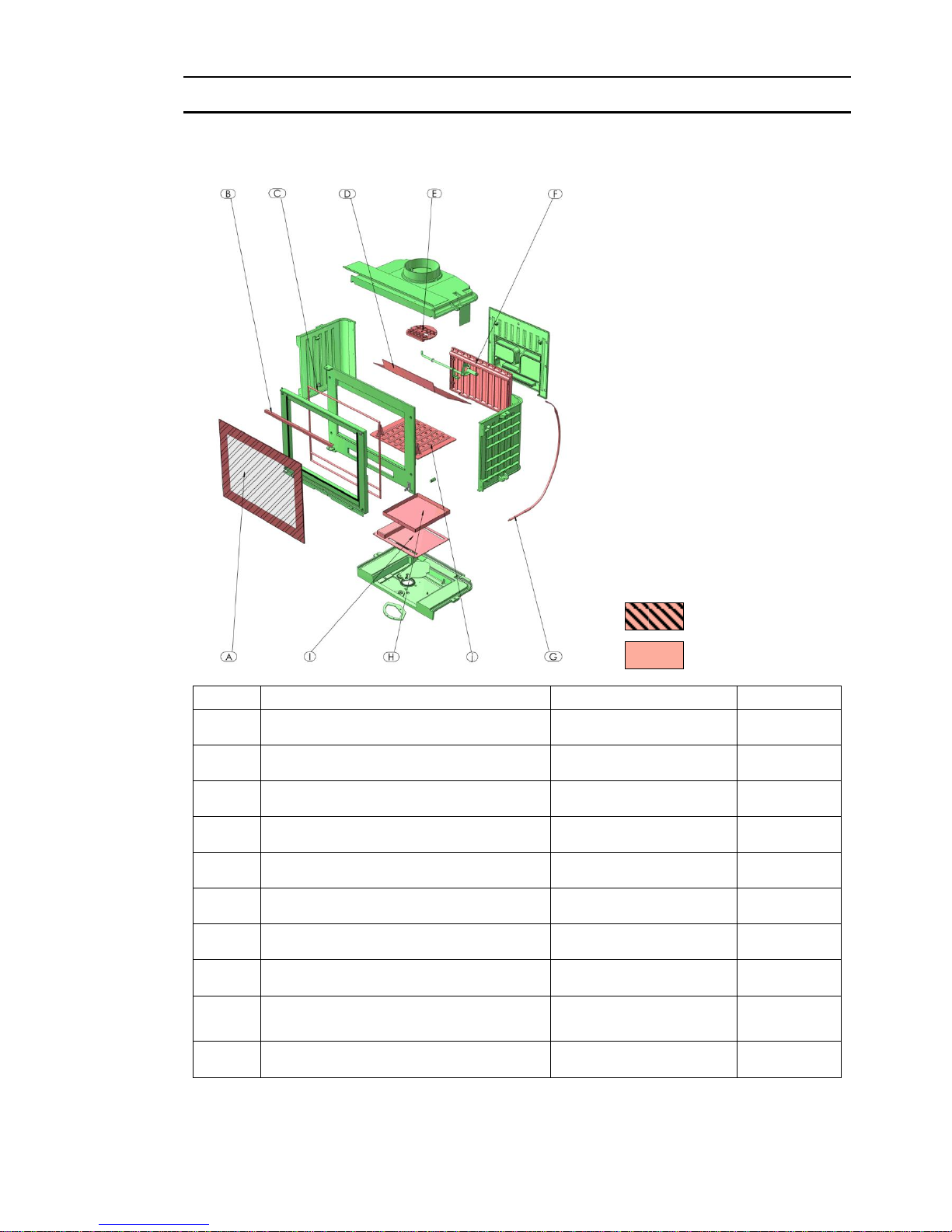

EXCLUSION
Wear parts
Wear parts are warranted one year from the date of delivery of the appliance.
INDICE
DESCRIPTION
CODE
Warranty
A
Serigraphic window -F70L-660x487
4AX60605720
Out of warranty
B
Air guide
1AT60605775
1 year
C
Tresse Eversil 9 noir
5AIT650_009
1 year
D
Deflector F70
1AT60605773
1 year
E
Damper
0FB605723
1 year
F
Interior sheet F70
0FB605728
1 year
G
SOLO stainless steel cable
C2999/84
1 year
H
Drawer F70
1AT60605782
1 year
I
Top sheet for air box + Secondary air box
1AT60605777
+ 1AT60605770
1 year
J
Cast iron hearth grid
0FB605708
1 year
Out of warranty
Wear parts

19
WARRANTY CERTIFICATE
The purchaser designated hereunder acknowledges
his/her awareness of the various informational documents on use and maintenance to ensure proper
operation of the appliance
PUSCHASER
Date:…………………………………………………………………………………
Last name:……………………………………………………………………………
First name :…………………………….………………………………………………
Address :……………………………………………………………………………………………………………………….………
……………………………………………………………………………………………..……………………………………………
……………………………………………………………………….…………………………………………….……………………
City:…………………………………………………………………………………
Country…
Firm
VENDOR: document to be returned within the month following purchase at the sales outlet for the
appliance
Reference:…………………………………………………..…………………
Designation of the appliance: ………………………………………………..
Last name:…………………………………………………………………………
First name :………………………………………………………………………
Address :……………………………………………………………………………………………….……………………
………………………………………………………………………………………………………………………………
………………………………………………………………
Email address :………………………………………………………………
Town :…………………………………………………………………
Country :……………………………………………………………………
Firm and retailer stamp :
