Chef cooking CFE532WB User manual

540MM UPRIGHT COOKERS
User Manual
CFE532WB, CFE532SB, CFE533WB, CFE536WB, CFE536SB,
CFE535WB, CFE537WB,CFE547WB, CFE547SB, CFE516SB,
CFG501WB, CFG504WB, CFG504SB, CFG503WB, CFG513SB,
CFG513WB, CFG517WB, CFG517SB, CFG505WB, CFG505SB
cooking
The Chef in Aussie kitchens
for over 70 years

2 Chef 540 Upright Cooker
The symbols you will see in this booklet have these meanings:
warning
This symbol indicates information concerning your personal safety
caution
This symbol indicates information on how to avoid damaging
the appliance
tips and information
This symbol indicates tips and information about use of
the appliance
environmental tips
This symbol indicates tips and information about economical
and ecological use of the appliance
CONGRATULATIONS
Congratulations and thank you for choosing your Chef upright
cooker. We are sure you will find your new appliance a
pleasure to use and a great asset to your cooking. Before
you use the appliance, we recommend that you read through
the whole user manual which provides a description of the
product and its functions. For future reference, please store this
booklet in a safe place.
To avoid the risks that are always present when you use a
gas appliance, it is important that the appliance is installed
correctly and that you read the safety instructions carefully
to avoid misuse and hazards.
This appliance complies with the requirements of Australia
standards AS/NZS 60335.2.6
Contents
Important safety instructions ...........................................3
Installation..................................................................4
Operating for the first time...........................................11
Installing your oven accessories....................................12
Using the gas cooker .................................................13
Using the electric cooker.............................................15
Using the grill ...........................................................17
General hints and tips ................................................17
Cleaning the cooker ..................................................18
Getting to know your oven ..........................................20
Oven guide..............................................................21
Trouble shooting........................................................28
Warranty .................................................................27
Important – check for any damage or marks
If you find the appliance is damaged or marked, you must
report it within 7 days if you wish to claim for damage/marks
under the manufacturer’s warranty. This does not
affect your statutory rights.
Information on disposal for users
• Most of the packing materials are recyclable. Please dispose
of those materials through your local recycling depot or
by placing them in appropriate collection containers
• If you wish to discard this product, please contact your
local authorities and ask for the correct method of disposal.
Record model and serial number here:
Model:..................................................................
Serial number: ........................................................
CONDITIONS OF USE
This appliance is intended to be used in household and
similar applications such as:
• Staff kitchen areas in shops, offices and other
working environments
• Farm houses
• By clients in hotels, motels and other residential
type environments
• Bed and breakfast type environments.
Important Information that may impact
your Manufacturer’s Warranty
Adherence to the directions for use in this manual is
extremely important for health and safety. Failure to strictly
adhere to the requirements in this manual may result in
personal injury, property damage and affect your ability
to make a claim under the Chef manufacturer’s warranty
provided with your product. Products must be used,
installed and operated in accordance with this manual.
You may not be able to claim on the Chef manufacturer’s
warranty in the event that your product fault is due to
failure to adhere this manual.

Chef 540 Upright Cooker 3
important safety instructions
To avoid an electric shock or fire
This appliance is NOT intended for use by persons
(including children) with reduced physical, sensory or
mental capability, or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
WARNING - Accessible parts may become hot during use.
To avoid burns, young children should be kept away.
Young children should be supervised to ensure they
do not play with this appliance.
DO NOT operate the hotplates with external timers or separate
remote control system.
During use this appliance becomes hot. Care should be
taken to avoid touching hot external, internal surfaces and
hot elements when in use. Use oven gloves.
This appliance must NOT be used as a space heater.
DO NOT install an after market lid or cover over this appliance.
DO NOT spray aerosols in the vicinity of this appliance
while it is in operation.
DO NOT store flammable materials in the appliance
storage drawer or near this appliance.
Ensure all specified vents, openings and airspaces are not
blocked
Install cooker, shelving and fittings in accordance with
the Guide and Installation Instructions, to avoid accidents.
DO NOT operate the gas appliance if the smell of
gas persists.
DO NOT MODIFY THIS APPLIANCE.
The cooking process has to be supervised. A short term
cooking process has to be supervised continuously.
Grill warnings
DO NOT leave grill on unattended.
Fat left on a grill dish is a fire hazard! Keep grill clean and
turn off grill immediately after use.
If gas burner does not light in 15 seconds, allow
one minute for gas to clear before trying again.
Placing thick portions of food under grill can be
a fire hazard.
DO NOT cover the grill dish insert with foil.
Separate grill model: Grill with door open
Grill in oven model: Grill with door closed
Oven warnings
DO NOT use oven door as a shelf.
DO NOT push down on open oven door.
If the gas oven does not light in 8 seconds, allow
1 minute for gas to clear before trying again.
DO NOT line oven with foil or place anything on the
bottom of the oven while baking, as trapped heat will
crack or craze the floor of the oven cavity liner.
DO NOT use poly-unsaturated oils (vegetable oils) as
this type of oil can cause black spots or deposits inside
the oven. This residue is very difficult to remove.
Hotplate and burner warnings
DO NOT allow pots to boil dry, as damage to hotplate
(and pan) may result.
DO NOT operate without a pot, fry pan etc on hotplates.
DO NOT allow cookware to overhang hob onto adjacent
bench tops, this will cause scorching to
the bench top surface.
Gas models: Ensure burner caps and crowns are in their
correct position.
Do not store items on the cooking surface, to avoid fire.
Unattended cooking on a hob with fat or oil can be
dangerous and may result in a fire.

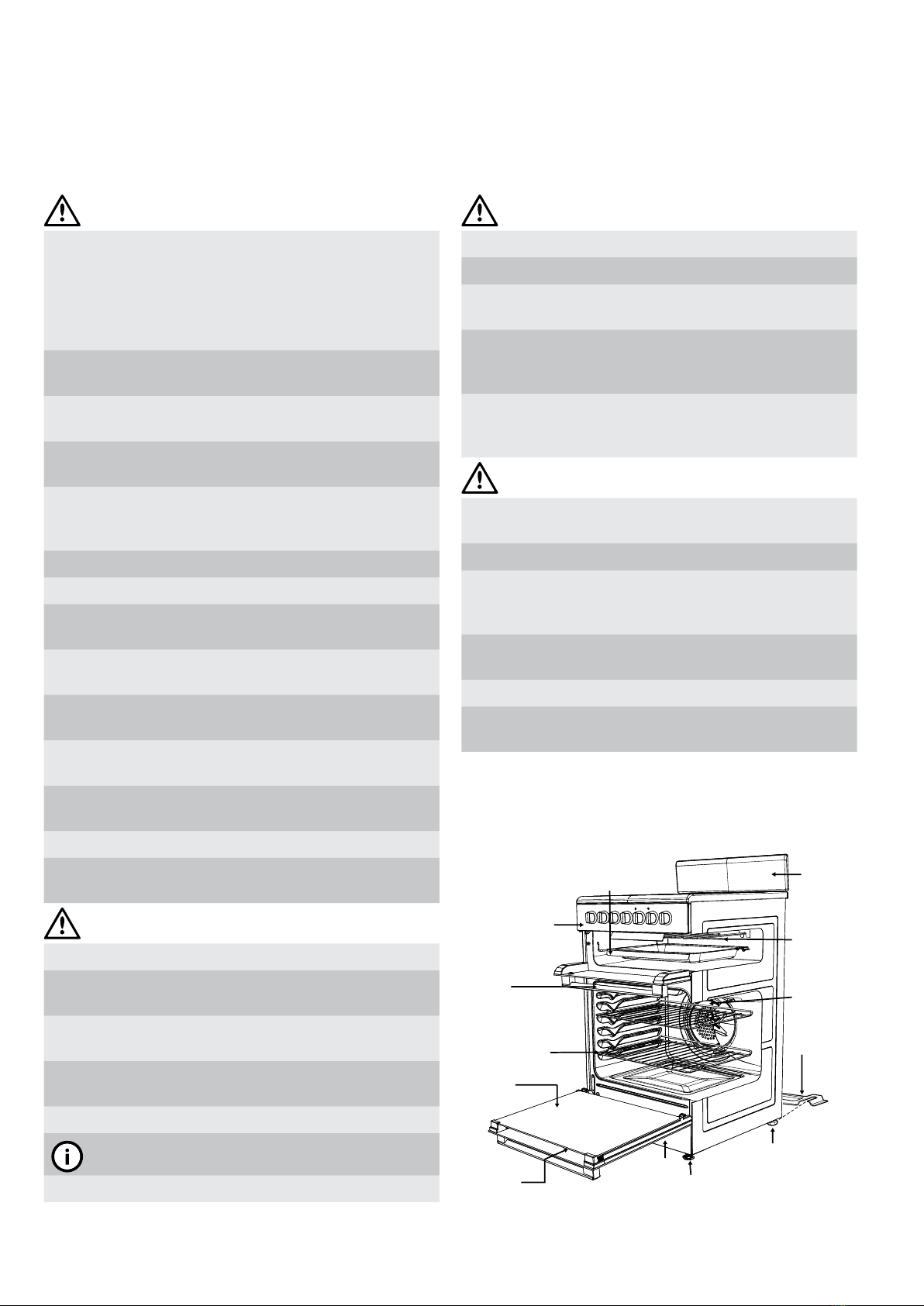

General appliance description
Electric Separate Grill Oven depicted
Control panel
Grill door
(where fitted)
Removable shelves
Oven door
Removeable inner glass
Kick panel
Front adjustable feet
Rear adjustable feet
Anti-tilt
(Fan forced
model)
Grill element
burner
Splashback
Grill with removable grill
dish side supports grill and
rack (where fitted)

4 Chef 540 Upright Cooker
installation
Location

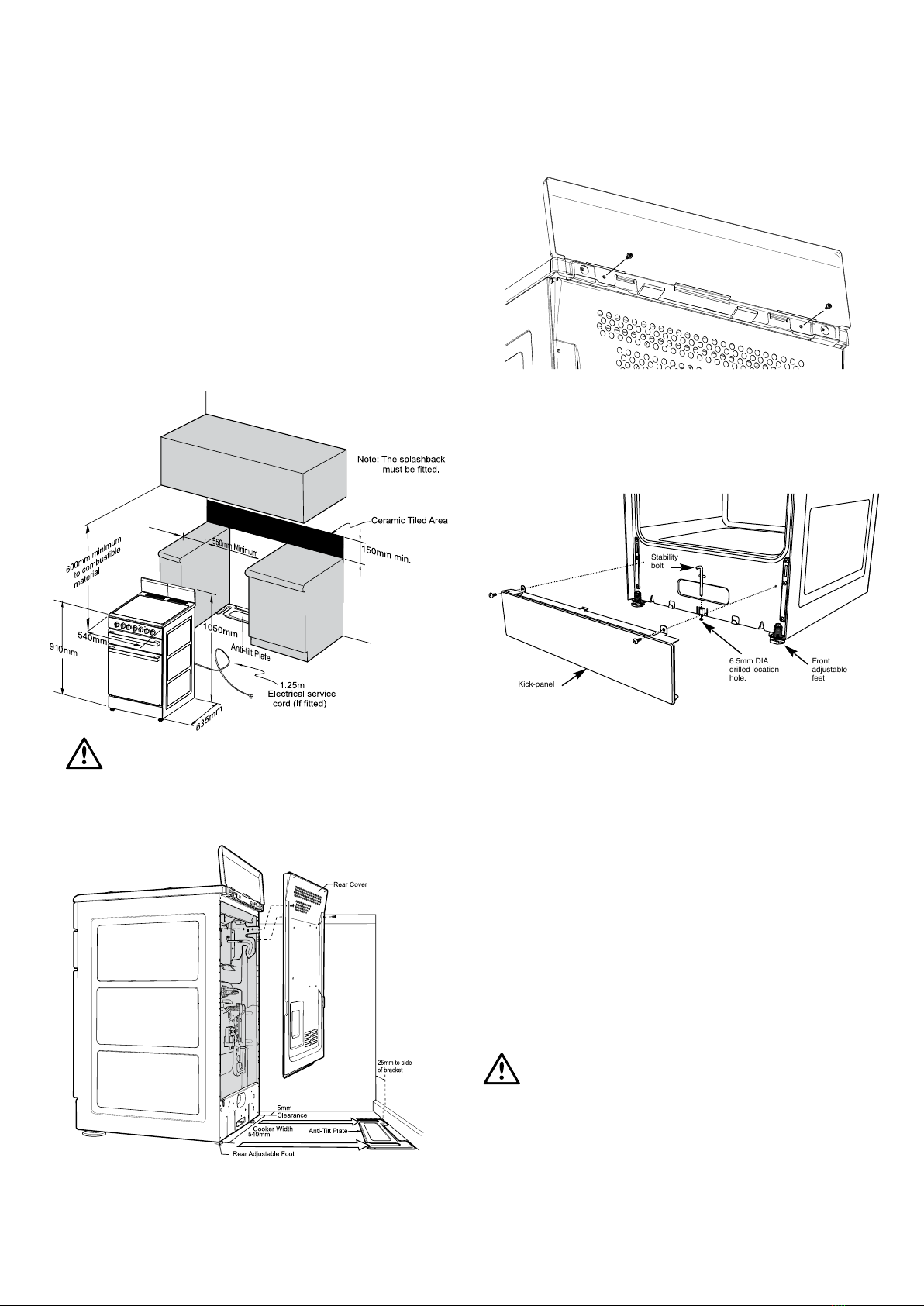

The appliance has been designed to fit a 550mm gap in kitchen
cabinetry or have free space on either side. Ensure the top of the
hotplate is at least 10mm higher than the level of the benchtop.
Electric hob models must not be installed in a corner; they must be
installed at least 100mm from the side wall.
Gas hob models must be installed with a minimum clearance of
100mm to side walls made of unprotected combustible material.
For gas models, refer to section 6.10.1 in AS/NZS 5601.1 for
all relevant clearance.
warning
In order to avoid accidental tipping of the appliance (for
example, by a child climbing onto the open oven door), the
anti tilt plate and stabilising bolt MUST be installed.
Position anti-tilt plate to the rear wall and 25mm from side of
cupboard. Securely fix anti-tilt plate to the floor with fasteners.
Adjust levelling feet on cooker as required.
Clearance to sidewall
(refer notes above)
Splash back must be fitted to the rear using two screws provided
Stabilising bolt
Kick-panel
Front
adjustable
feet
6.5mm DIA
drilled location
hole.
Stability
bolt
1. Remove oven door - to be done by qualified personnel only.
(Refer to procedure).
2. Remove screws from kick panel. To remove kick panel lift
kick panel upwards to release the two Location Tabs from
the holes in the bottom of the panel.
3. Position cooker into the ant-tilt plate and then mark the
position for the Stability Bolt hole on the floor.
4. Pull cooker out and drill the bolt hole, using a 6.5mm
masonry or wood drill. Minimum 30mm deep for concrete.
5. Reposition cooker back into place and fit the Stability
Bolt through the slot and into the drilled hole.
6. If the cooker is placed on a base, measures must be
taken to prevent the appliance slipping from the base.
7. Carefully remove any protective plastic film to prevent
damage to the appliance.
warning
For your safety this cooker is designed to be moved out of
position by a qualified person only.
The unit must be pushed up against the wall on installation.
On gas units check that the gas hose, if used, has not been
kinked during installation.

Chef 540 Upright Cooker 5

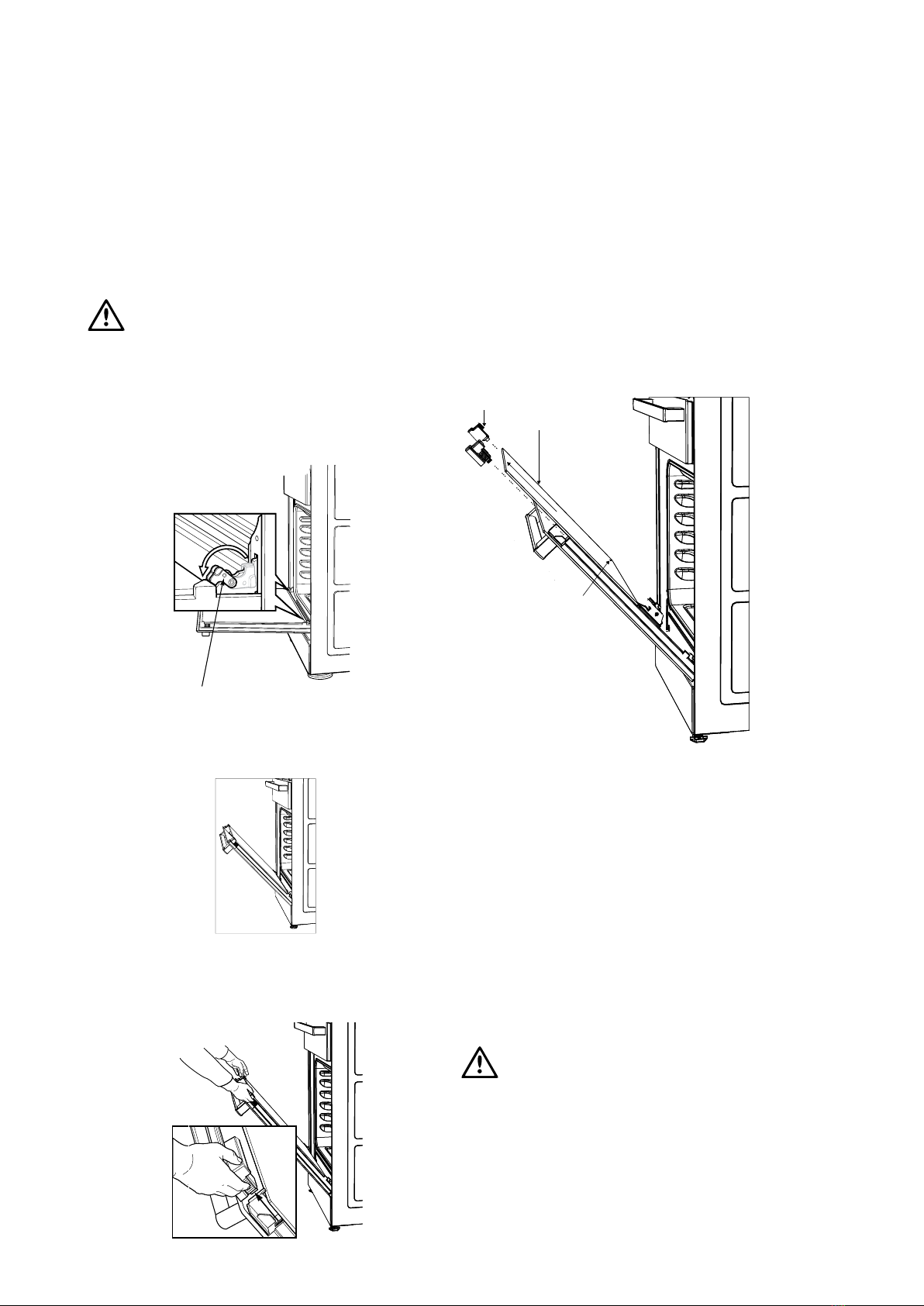

Procedure to remove the door
1. With door fully open, rotate the two stirrups
to its rest position (to engage the stirrups).
3. Close the door further.
5. Remove the door by lowering gently and pull
away from the frame of the oven. Care should
be taken not to damage kick panel and other
parts of the cooker.
2. Close the door until it stops against the stirrups.
4. Lift the door slightly and evenly while continuing
to slowly close the door.
installation
Stirrup

6 Chef 540 Upright Cooker
installation
Procedure to assemble the door
1. Hold door with both hands.
2. Locate both hinges into the frame slots at the
same time.
3. Ensure that the location notch drops into frame
slot. Care should be taken not to damage other
parts of the cooker.
4. Open door fully and rotate stirrups away from
you back to their original position.
5. Close the door fully.
6. Carefully remove any protective plastic film
to prevent damage to the appliance.
Stirrup
Frame slot
Hinge
Notch
Notch

Chef 540 Upright Cooker 7
Electric wiring requirements
The cooker MUST be installed in compliance with:
• Wiring connections in AS/NZS3000 Wiring Rules.
• Local regulations, municipal building codes and other
statutory regulations.
• Data Plate – Gives information about the rating and
is located behind the bottom of the oven door.
• A functional switch MUST be provided near the appliance in
an accessible position (AS/NZS3000 – Clause 4.7.1).
• Wiring MUST be protected against mechanical failure (AS/
NZS3000 – Clause 3.9).
• Disconnection from the fixed wiring must occur as required by
AS3000 wiring rules.
• This range must be connected with cable of 75°C rating
minimum.
• This product has passed the insulation resistance test after
manufacture. If the resistance reading is low at installation,
it is probably caused by moisture from the atmosphere
being absorbed by the elements after the range has been
produced. (pass at 0.01MΩ AS/NZS 3000 Wiring Rules
Clause 8.3.6.2).
• The cooker MUST be properly earthed.
• When connections are made to a multiphase 230/240V
supply, the bridge piece MUST be removed from between
the active connections.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Hard wiring
1. Remove rear panel.
2. Fit wires through hole at bottom centre using the appropriate
gland to protect insulation of wires from the hole edge. Note
that the secondary insulation of the wires will probably need
to be removed to fit through gland. If the conduit to appliance
is required to bend due to rear wall an elbow may be
required to achieve this.
3. Set the length of wiring from the gland to terminal block,
ensuring length is sufficient but not excessive.
4. Make connections to terminals and engage wires into plastic
clip. Cable tie as per diagram and secure plastic clip with
two long screws supplied.
5. Replace rear cover.
warning
Ensure wires cannot contact hot element ends or sharp edges.
Rated power input
Model Total kW A1 kW A2 kW
CFE532 8.2 2.2 6.0
CFE535 9.64 3.64 6.0
CFE536 8.2 2.24 6.0
CFE537 10.04 4.04 6.0
CFE547 9.64 4.04 5.6
installation
Plastic
Clip
Plastic
clip screw
securing
points
Cable tie
Gland

8 Chef 540 Upright Cooker
The following table shows the supply and operating pressures for various supplies.
Gas type Natural gas Universal LPG Propane
Supply pressure at inlet to appliance regulator
(if fitted)
1.13 (kPa)
Minimum 2.75* (kPa) 2.75* (kPa)
Operating pressure at
appliance test point 1.00 (kPa) 2.75 (kPa) 2.75 (kPa)
*If the regulator is placed upstream of the cooker inlet, as is normal for cookers operating on LPG, then the supply pressure
and operating pressure are the same. The following table shows the injector sizes for each burner.
The following table shows the injector sizes for each burner.
Injector Natural gas Universal LPG Propane
Low heat burner 1.00 mm 0.55 mm 0.62 mm
Medium heat burner 1.35 mm 0.70 mm 0.82 mm
High heat burner 1.60 mm 0.90 mm 0.95 mm
Intense heat wok burner 1.75 mm 1.00 mm 1.00 mm
Grill – main injector 1.50 mm 0.82 mm 0.82 mm
Oven – main injector 1.60 mm 0.82 mm 0.95 mm
Oven – bypass screw 0.73 mm 0.45 mm 0.45 mm
Checking pipe size
To work out a suitable pipe size for connection use the information in this table.
Gas Consumption (MJ/h)
Model Natural gas Universal LPG Propane
CFG503 58.1 45.7 56.5
CFG504 47 36.7 47.5
CFG513 60.2 48.2 58.3
CFG516 37.3 30.2 -
CFG517 49.1 39.2 49.3
CFG505 47 36.7 47.5
Operation on NG
• The appliance regulator MUST be orientated so that the
pressure nipple is accessible
• The arrow showing the direction of flow MUST be
pointed correctly
• The regulator has a ½” BSP internal thread at the inlet and outlet.
Gas requirements
This appliance must be installed by an authorised person, according to all codes and regulations of:
• AS/NZS 5601.1 (particular attention to clause 6.10.1 and figure 6.3 on page 97, and clause 6.10.1.11)
• Local gas fitting regulations, municipal building codes and other statutory regulations.
The cookers come in three gas types:
Natural gas, Propane and Universal LPG. If the cooker is required to use ULPG, a conversion kit can be obtained by
contacting the Customer Care Centre for details. Before installation, check that the cooker is suitable for the gas supply by looking
at the data plate behind the bottom of the oven door.
installation
1/2”B SP
Internal Thread
NG Regulator
Pressure test point
Also use information about the length
of the run, number of elbows, tees and
bends, the available service pressure
and the supply requirements. AS/NZS
5601.1 will help you with this matter.

Chef 540 Upright Cooker 9
Wiring connection for gas cooker
To allow for disconnection of the appliance after installation,
the plug must be accessible after installation, or a functional switch
must be provided near the appliance in an accessible position.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
Gas connection
Read these points before connecting to the gas supply:
• The cooker inlet connection point has a ½” BSP external
thread. See Diagram below
• A NG regulator or a LPG test point fitting is supplied
• It is recommended to fit the regulator or test point fitting to
the appliance connection point, then fit either hard piping
or a high level flexible connection (AS/NZS 5601.1
clauses 5.9 and 6.10.1.9) which is then attached to the
consumer hard piping
• Ensure installation allows withdrawal of appliance.
Restraining Device
Anchor Points
Gas
Connection Point
150mm 650mm
Operation on universal LPG/propane
1. The appliance inlet fitting provided MUST be orientated
so that the pressure nipple is accessible.
2. The inlet fitting has ½” BSP internal thread at the inlet
and outlet.

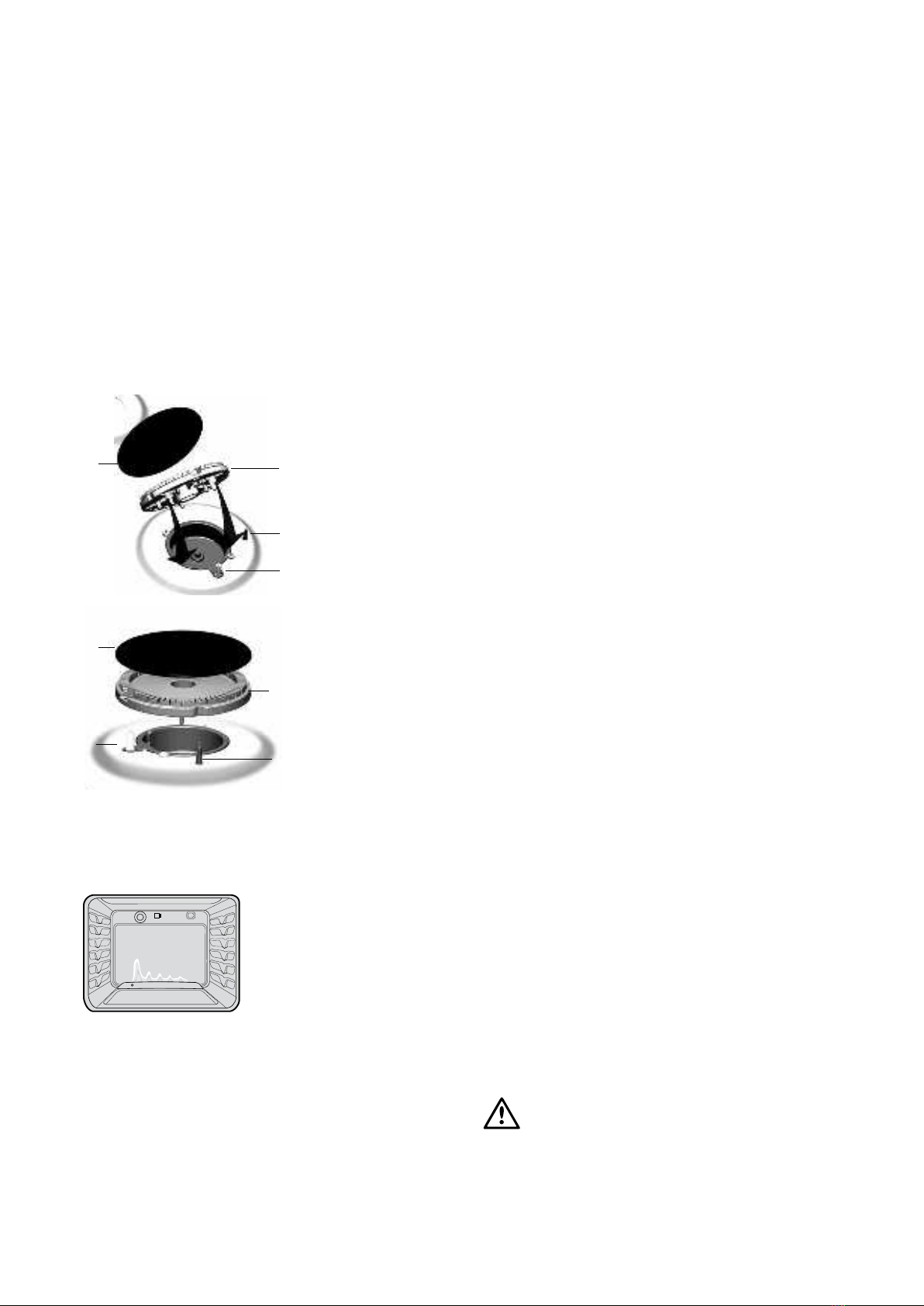

Operation on SNG
• If the cooker is to be used with SNG, then the grill burner
MUST be modified by the replacement of the shutter,
which fits into the throat of the grill burner
• A conversion kit can be obtained by contacting the
Customer Care Centre
Grill shutter
warning
1. Disconnect electric power before removing control panel.
2. Remove the control panel.
3. Remove the existing NG shutter securing screw (refer to
diagram above) and slide upwards to disengage from
grill burner.
4. Slide the SNG shutter into position and secure with screws.
Testing the gas cooker
warning
You MUST test the cooker after installation, before you hand
it over to the customer.
You MUST have a manometer and a connecting tube.
installation

10 Chef 540 Upright Cooker
Checking the gas supply
1. Check the manometer zero point is correct.
2. Connect the manometer to the cooker pressure test point.
This is located on the regulator or LPG inlet fitting.
3. Turn on the gas supply and the electricity (if applicable)
and try to ignite the gas. Note: It will take additional time
to light the gas for the first time, as air needs to be purged
from the pipes.
4. Check the operating pressure for the particular gas type
(see 'Gas Type' table).
• For LPG cookers: Adjust the regulator if necessary
(this may be remote from the cooker).
• For Natural Gas cookers: Regulators are supplied pre-
adjusted and configured by the component maker for use
with Natural Gas. The appliance installer is not required
to make an adjustment to obtain the correct outlet pressure
setting. An arrow on the base of the regulator indicates
the direction of the gas flow when the inlet and outlet
of the regulator are orientated correctly.
5. When the regulator has been fitted check for leaks from
the connections with soapy water.
Checking regulator function
With the appliance operating, check the outlet pressure:
1. When all the burners of the appliance are operating
at maximum.
2. When the smallest burner of the appliance is operating
at minimum, Under these conditions the outlet pressure
should not vary from nominal operating pressure of 1.0kPa
by more then ± 20% (ie ±0.20kPa for Natural Gas).
If the regulator appears to not be performing satisfactorily
then check the following points:
1. If the outlet pressure is consistently too low then.
• the inlet pressure may be too low and adjustment
of an upstream regulator may be needed, or
• an upstream regulator or valve with insufficient flow
capacity may be present in the gas supply line. It may be
necessary to repeat the checks whilst measuring both the
inlet and outlet pressure to determine if the inlet pressure
is in the range 1.13-5kPa.
2. Check that the regulator has been fitted to the gas supply
line in the correct orientation.
3. Replace the regulator if it fails to perform after the checks.
Testing cooker features
• Observe the flame appearance on each burner. If it is
smaller or larger than expected, then the injector size
needs checking
• If the flame is unsatisfactory, then refer to the Electrolux
Technical Publications and correct the fault if possible
• When maximum flame appearance is correct, check the turn
down setting on each burner. If incorrect, proceed as follows:
warning
1. Disconnect electric power.
2. Remove the control panel and adjust the bypass screw
mounted on the body of each hotplate control cock.
3. Check the ignition on all burners both separately and
in combination.
4. Check the operation of the electrical components,
if applicable.
5. When operating correctly, show customer how to use
the cooker.
6. If not operating correctly, advise the customer to ring
Electrolux service. Place a warning sign on cooker or
if dangerous, disconnect cooker.
installation

Chef 540 Upright Cooker 11
operating for the first time

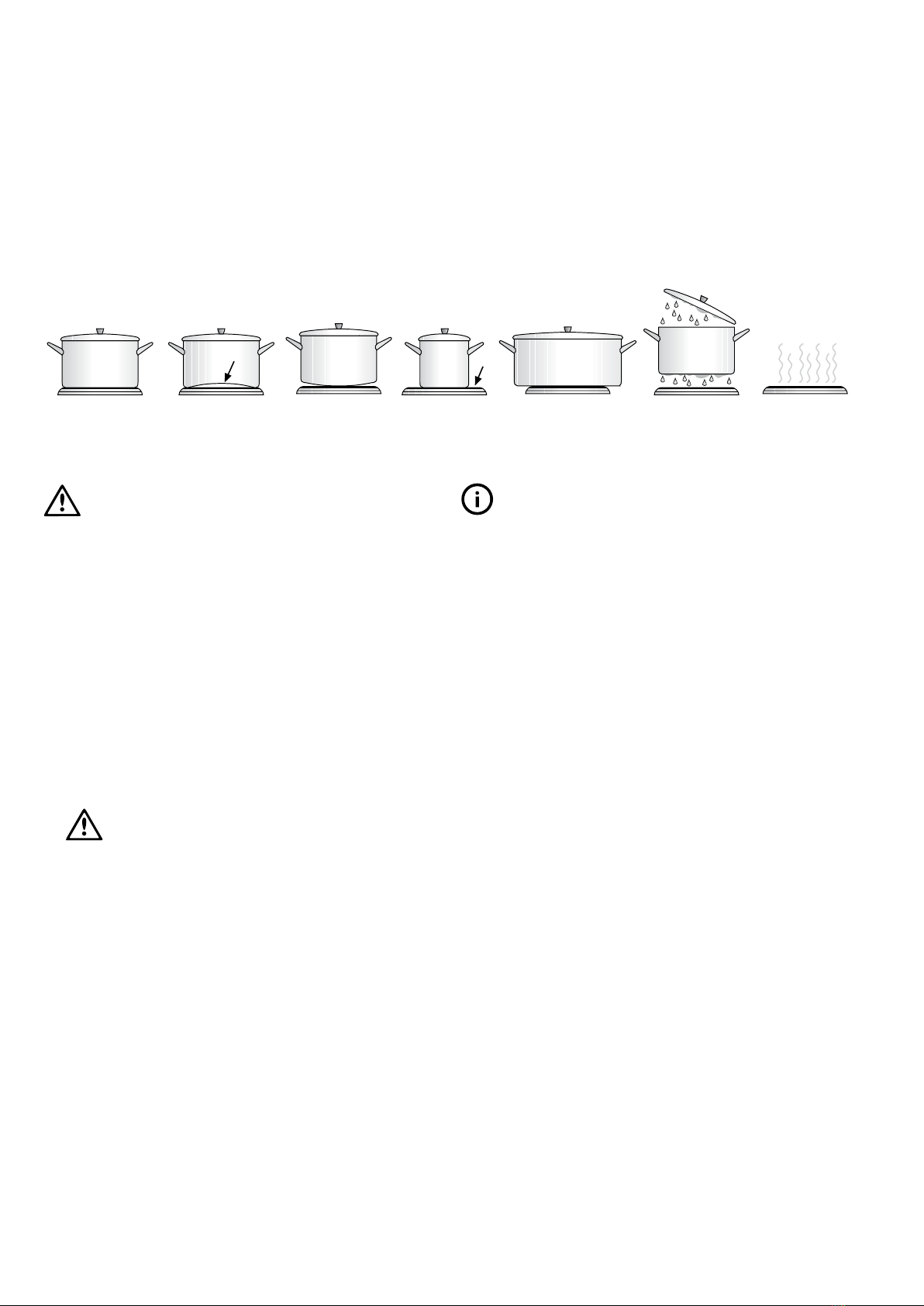

Choosing utensils for gas and electric hotplates
Refer to diagram below
Installation and service warning
• Only an authorised person must install and service this
appliance (Certificate of Compliance to be retained)
• In order to avoid tipping of appliance the anti-tilt plate
MUST be installed
• Appliances requiring connection to 230 – 240V MUST
be earthed
• An authorised person should inspect this appliance
every 5 years
• This appliance must NOT be installed on a base, box or
in a closed cupboard
• If the electrical supply cord is damaged, a qualified
person MUST replace the cord to avoid a hazard or
void your warranty
• Surrounding kitchen cabinets MUST
WITHSTAND 85°C
• In order to avoid a hazard the installation instructions
MUST be followed.
Before operating first time
1. Read all the Warning and Safety information.
2. Remove all internal boxes and bags from oven.
3. Clean out the oven interior with detergent and hot water
and polish with a soft cloth. DO NOT close oven door
until the oven is completely dry.
4. New appliances can have an odour during first
operation. It is recommended to ‘run in’ the oven before
you cook. Run the oven at 180°C for 2 – 4 hours and
ensure that the room is well ventilated.
5. If your appliance is fitted with solid hotplates, turn
heat setting to high for 3 minutes to fully harden the
hotplate coating.
GOOD BAD
(recessed base)
BAD
(convex base)
BAD
(undersize)
BAD
(oversize)
BAD
(moisture on hotplate)
BAD
(no utensil)

12 Chef 540 Upright Cooker
installing your oven accessories

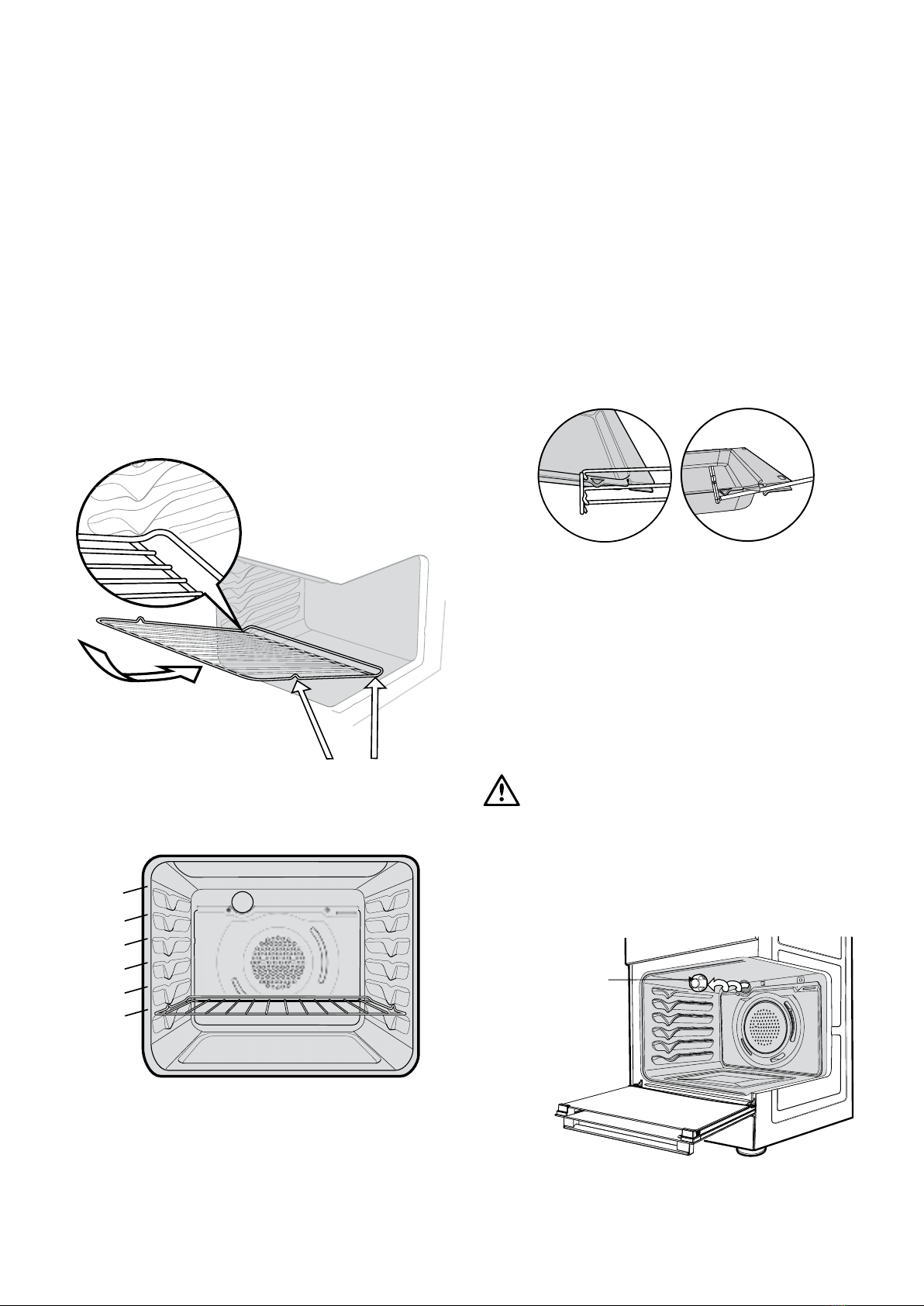

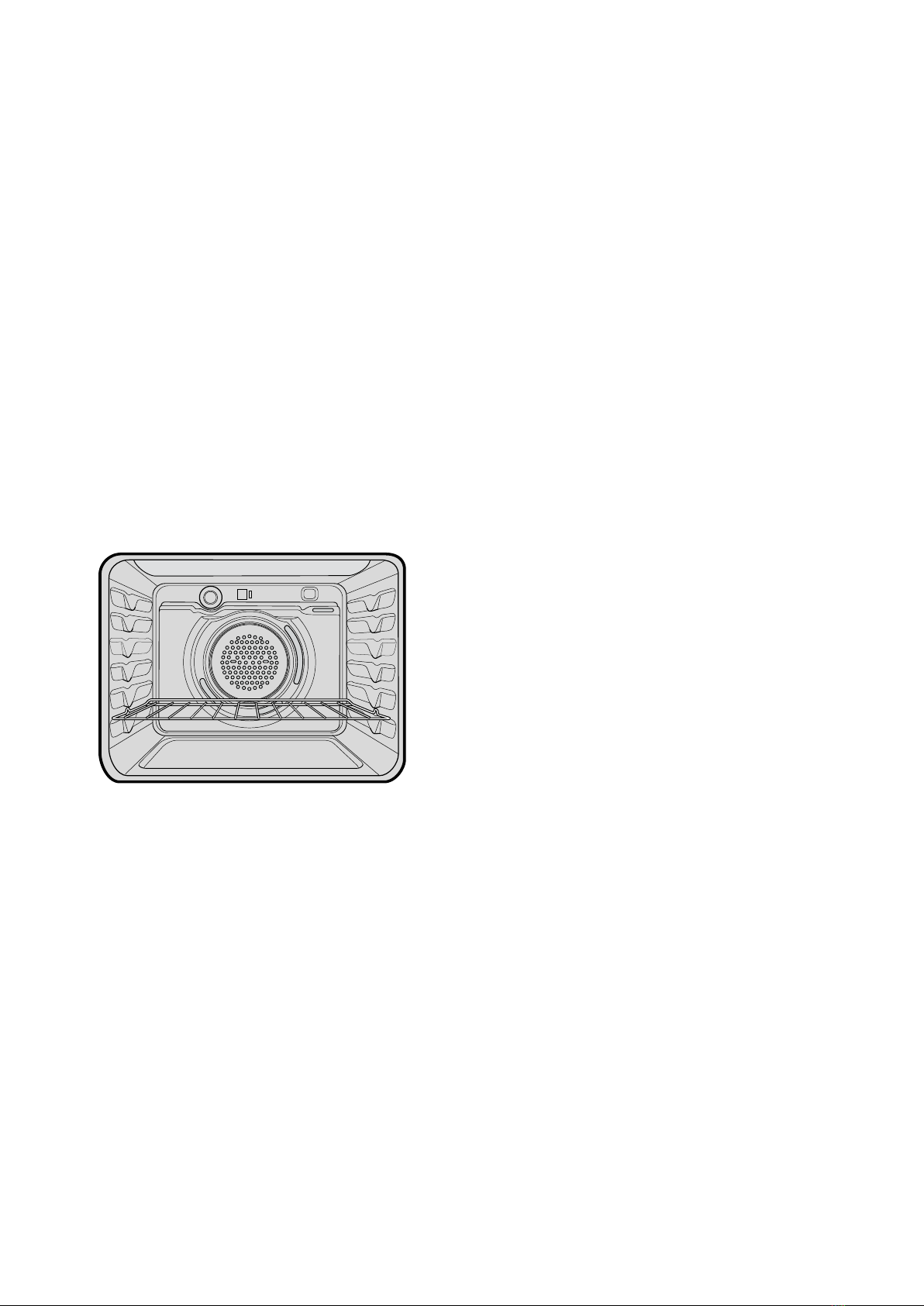

Fitting oven shelves
1. Ensure shelf orientation is correct (refer to diagram below).
2. Slide oven shelves onto oven supports (side runners) at an
angle until raised back of shelf is past the stop on oven
supports (side runners).
3. Lower front of shelf and push in until stop is reached.
4. To remove oven shelves, withdraw to the stop and raise
the front of shelf to clear the stop.
Oven shelf location
NOTE: the top ledge is not a shelf position.
There are no stops for shelf withdrawal.
Fitting the grill dish
Separate Grill: Ensure rear of the dish is engaged with the
side support before sliding backwards. To remove, simply
pull forwards and upwards.
To ensure proper grill operation, slide the grill dish fully
rearward to the stop.
To remove, simply pull forwards and upwards.
Engagement
of rear
of dish
NOTE: Models CFG505 and CFG517 contains single position
side racks.
Grill in Oven: see Fitting Oven Shelves
The grill dish with wire insert can be used in any of the two upper
height positions (shelf positions 4 and 5) between the runners.
NOTE: You must remove the grill dish when baking in the oven.
Replacing the oven light
warning
Ensure the appliance is switched off at power supply (not just
the control knobs) before replacing the light globe to avoid
possibility of electric shock.
Note the orietaton of the
side and rear features
1
2
3
4
5
Not a shelf
position
Turn light anti-clockwise
to remove it for globe

Chef 540 Upright Cooker 13
using the gas cooker

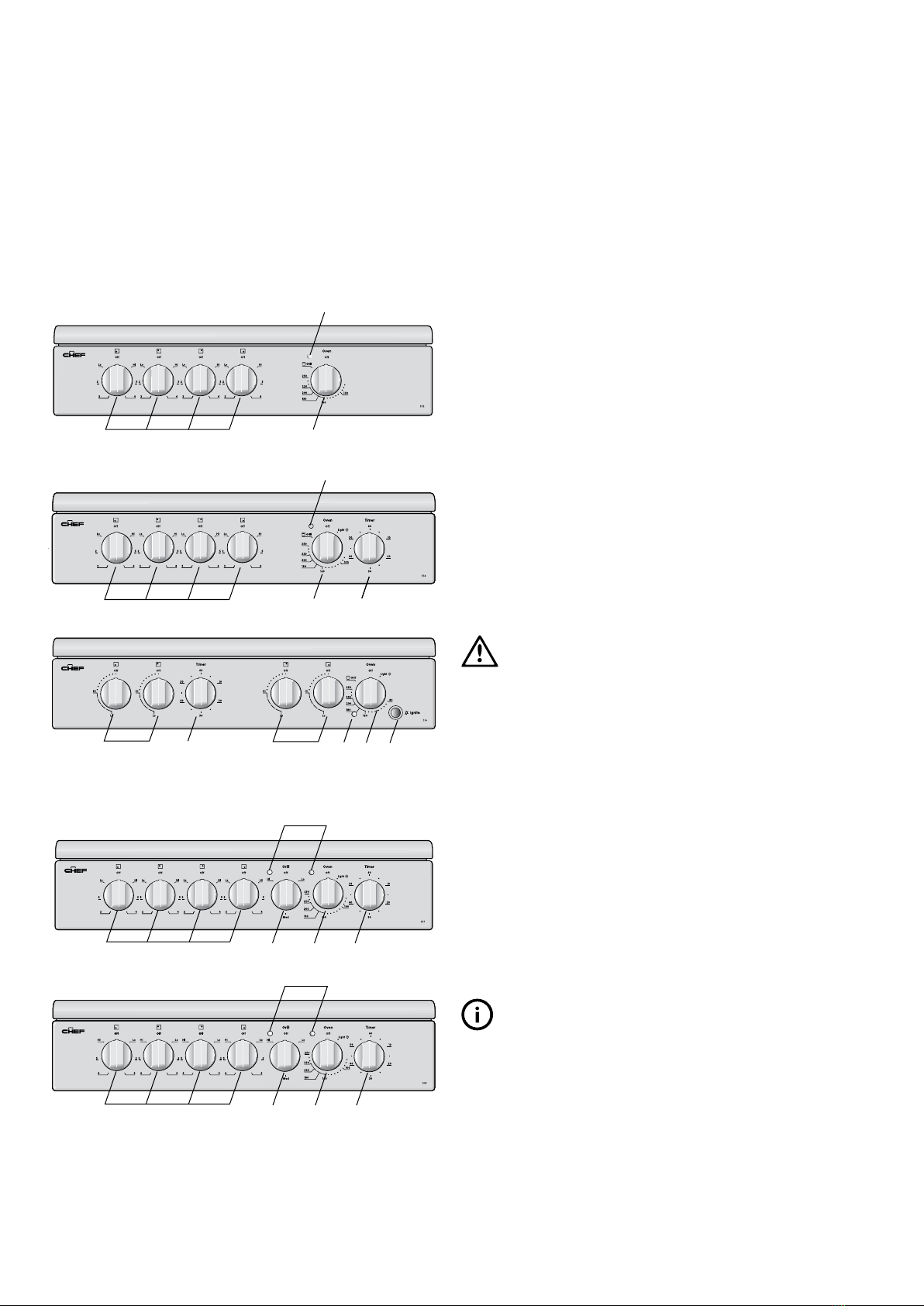

Gas oven features and descriptions 1. Burner Control Knob – sets burner temperature.
2. Grill Control Knob – sets grilling temperature.
3. Oven Control Knob – sets oven temperature.
4. Timer 60 Minute (where fitted) – sets reminder time.
When timer returns to zero, timer gives a short ring.
NOTE: for any time below 15 minutes, turn knob past
15 minutes, then back to required time setting.
5. Manual Grill or Oven Igniter or Hotplates
– ignites grill burner, oven burner or hotplates when
appropriate control knobs are set.
6. Light Switch (where fitted) – turns oven light on/off.
7. Fan Switch – turns oven fan on/off.
Gas oven conventional baking
The heat comes from the bottom oven burner. The temperature
at the centre of oven is the same temperature set on the
control knob. When oven is used on this mode, shelf position
is important, (refer to ‘Oven Guide’). As hot air naturally rises,
the upper half of the oven will be approximately 10°C
higher and the lower half approximately 10°C cooler than
the set temperature.
For best results from your gas oven use dark coloured trays
and baking dishes on a single shelf. Refer to ‘General Hints
and Tips’ section for more information.
For best baking results preheat oven for 30 minutes.
Gas oven fan forced baking
Fan Forced baking generally requires lower temperatures than
conventional baking. Most recipe books, unless stated, are for
conventional oven temperatures. It is recommended when using
the fan forced mode to reduce the oven temperature by 10°C.
In a fan forced gas oven the heat comes from the bottom burner.
Hot air is distributed by an electrically operated fan located
behind the rear wall of the compartment, providing an even
temperature on all shelf levels. This means batches of the same
food can be baked using multiple shelf positions simultaneously.
Fan Forced operation can be used for single shelf baking
with equal success.
For best baking results preheat oven for 30 minutes before
turning on the fan.
CFG504SBNG / CFG504SBLP / CFG504WBNG / CFG504WBLP
CFG503WBNG / CFG503WBLP/ CFG513WBNG / CFG513WBLP /
CFG513SBNG / CFG513SBLP / CFG501WBNG / CFG501WBLP
CFG517WBNG / CFG517WBLP / CFG517SBNG / CFG517SBLP
CFG505WBNG / CFG505WBLP / CFG505SBNG / CFG505SBLP

14 Chef 540 Upright Cooker
using the gas cooker
Gas hotplate
Ensure burner caps, crowns and trivets are properly
assembled.
For wok ONLY use the trivet and burner dedicated for
wok cooking.
Burner cap and burner crown must be clean and located
correctly for the burner to light.
Burner
Crown
Burner
Cap
Spark Plug
Flame Sensor
(Thermocouple)
Burner
Cap
Burner
Crown
Spark
Plug Flame Sensor
(Thermocouple)
Gas oven burner flame
From a cold start the oven burner flame will be higher
on the left hand-side. After reaching the set temperature, the
flame will become even. This does not affect cooking results.
LIGHTING GAS HOTPLATE, GRILL AND OVEN
Electronic ignition with flame safeguard
This hob is fitted with mains powered electronic ignition.
When the appliance has been connected and the power is
on, depressing ignite button will release sparks to all burners.
To light a burner, depress the corresponding knob fully
and while continuing to depress knob for approximately 5
seconds, turn anticlockwise to ‘HI’ position. The flame sensor
must warm-up in order for the flame to stay alight.
The knob may be released once the flame is established,
and turned further anticlockwise to reduce the flame height as
desired.
• Before releasing the knob, ensure the knob is fully
depressed.
• If the flame goes out when the knob is released, simply
repeat the ignition procedure again.
Hotplate Ignition – (Manual)
To light a burner, depress the corresponding knob fully
and while continuing to depress the knob approximately 5
seconds, turn anti-clockwise to 'HI' position. At the same time,
hold hand-ignitor next to the burner and ignite (hand-ignitors
not supplied). The flame sensor must warm up in order for the
flame to stay alight
Grill Ignition – Electronic
While pressing the electronic ignitor switch, depress the
corresponding knob fully and while continuing to depress
the knob for approximately 5 seconds, turn anti-clockwise to
'HI' position. The flame sensor must warm up in order for the
flame to stay alight.
Grill Ignition – Piezo
Depress the grill control knob fully and while continuing to
depress the knob for approximately 5 seconds, turn anti-
clockwise to 'HI' position. The flame sensor must warm up in
order for the flame to stay alight.
Grill – in Oven
Grill is electric and is operated by control knob only.
Oven Ignition – Electronic
While pressing the Electronic Ignitor Switch, push turn and
hold the Oven Control Knob to the desired temperature. Hold
Control Knob in for 15 seconds after ignition.
Oven Ignition – Piezo
With the left hand push and hold the Oven Control Knob in
and turn it a quarter of the way anti-clockwise. Keep the oven
Control Knob pushed in firmly and at the same time push the
Oven Piezo Ignitor button on the right hand side of the control
panel (several times if necessary). It will make a loud ‘clack’
noise as the Piezo mechanism creates a spark.
Hold control knob in for 15 seconds after ignition.
warning
• Keep hands clear of burners when lighting.
• If burner does not light within 5 seconds, turn knob to ‘Off’
position, allow gas to disperse, then try lighting again.
• Burners MUST be operated between ‘HIGH’ and ‘LOW’
settings only.

Chef 540 Upright Cooker 15
using the electric cooker

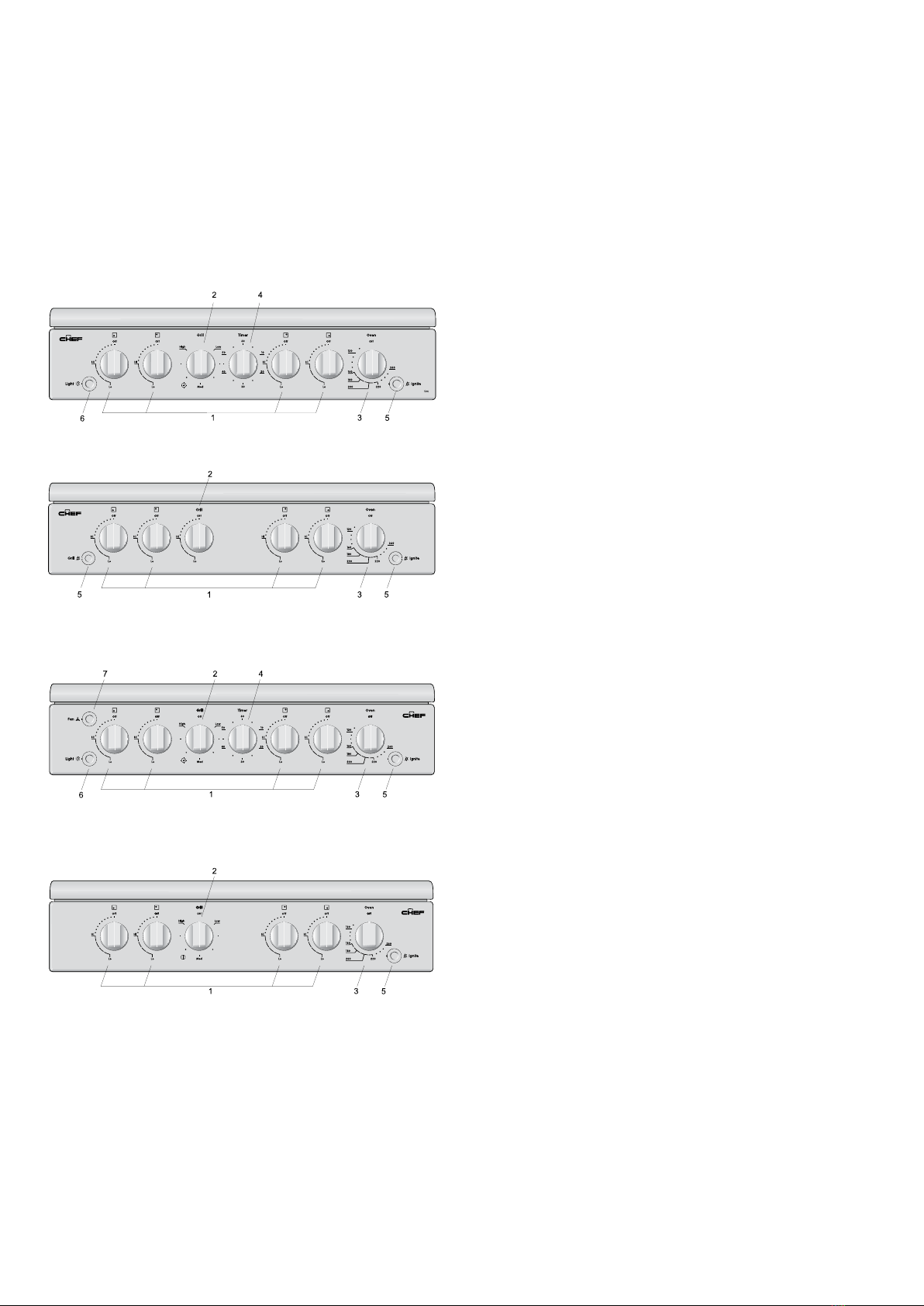

Electric features and descriptions
Grill in Oven Models
Separate Grill Models
1. Solid/Ceramic Hotplate Control Knob
– sets hotplate temperature.
2. Grill Control Knob – sets grilling temperature.
3. Oven Control Knob – sets oven temperature.
4. Grill/Oven Indicator Light(s) – Comes on when grill/
oven temperature knob is operated. Oven indicator light
cycles on and off when temperature is reached.
5. Timer 60 Minute – (where fitted) sets reminder time.
– When timer returns to zero, timer gives a short ring.
NOTE: For any time below 15 minutes, turn knob past
15 minutes, then back to required time setting.
6. Burner control knob – sets burner temperature.
7. Hotplates ignitor – ignites gas hotplates when appropriate
control knobs are set.
Solid hotplates
If present, the red dot in the centre of hotplate changes colour
when heated.
When necessary to keep element looking good, apply
coating of ‘hot plate protection’ onto solid hot plates.
Ceramic Hotplates
warning
If the surface is cracked, switch off the appliance to
avoid the possibility of electric shock.
• The ceramic cooktop is made from ceramic glass, a
tough, durable material that withstands heating and
cooling without breaking. However, it must be noted that
as it is glass, it may break, and must therefore be treated
with care. Should you have any questions about
the glass in your new appliance, please contact the
service centre by dialling 13 13 49
• The smooth glass surface has a pattern to show
where the elements under the glass are located
• When a hotplate is on, the hot surface warning light
will come on. After switching off, this light will continue
to glow until the temperature of the hotplate drops
below 60°C.
Electric oven conventional baking
Heat comes from two elements, one above and one below
the food. The bottom element is hidden below the floor of the
oven. As hot air rises naturally, the upper part of the oven will
be approximately 10°C higher than the set temperature and
the lower part of the oven approximately 10°C cooler.
For Grill in Oven Models, the grill dish must be removed
when baking.
For best baking results, preheat oven for 30 minutes, also
refer to ‘General Hints and Tips'.
CFE532WB / CFE532SB
CFE536WB / CFE536SB
CFE516SB
CFE533WB / CFE535WB / CFE537WB
CFE547SB / CFE533WB
4
4
1
1
1
1
2
2
3
3
5
5
6 5
5
6 4
4
4
2/3 7
2/3
2/3

16 Chef 540 Upright Cooker
Electric oven fan forced baking
In a fan forced electric oven the heat comes from the rear
oven element. Hot air is distributed by a fan behind the rear
wall of the compartment, providing an even temperature on
all shelf levels. This means, batches of food can be baked
using multiple shelf positions simultaneously.
Fan forced operation can be used for single food baking
with equal success.
Fan Forced baking generally requires lower temperatures than
conventional baking. Most recipe books, unless stated, are
typically for conventional oven temperatures. It is recommended
that when using the fan forced mode, reduce the oven
temperature by 10 degrees (refer to ‘Oven Guide’).
For best baking results preheat oven for 30 minutes.
using the electric cooker

Chef 540 Upright Cooker 17
general hints and tips
Using the Grill
• Separate Grill: Grill with door open.
Grill dish must be fully inserted.
• Grill in oven: Grill with door closed.
Hints general
• For best baking results preheat oven for 30 minutes
• The material and finish of baking trays and dishes used will
affect the way foods are baked, especially base browning.
• Enamelware, anodised aluminium, dark bakeware or non-
stick interiors and coloured exteriors will assist in maintaining
or reducing the baking time and increase base browning
• Ovenproof glassware or ceramics are poor conductors
of heat. The shiny surface of aluminium or polished steel
utensils and trays also reflects the heat rather then passing
it through to the food being baked
• Always place dishes centrally on the shelf to ensure
even browning
• Stand casseroles dishes or similar-type dishes on suitably
sized baking trays to prevent spillage onto the base of
oven to make cleaning of oven easier
• DO NOT place dishes, trays or baking pans
directly on the oven base as they become very hot and
will crack and craze the oven liner
• Use ovenproof cookware, which will withstand
temperatures of 250°C
• DO NOT use baking trays larger than 30 x 35cm
(12 x 14 inches) as they will restrict the circulation of the
heat and may affect cooking performance of the oven
• Use shallow casserole dishes in preference to deeper
ones as this shortens cooking time in the oven.
Conventional Oven
• The shelf position is critical. The temperature in centre
of the oven is the temperature shown on the oven control
knob. Single shelf baking gives optimal cooking results.
• DO NOT place baking trays, oven dishes or foil directly
on the base of oven, as trapped heat will crack and
craze the floor of the oven liner.
Fan Forced
• DO NOT place baking trays and oven dishes directly
against the grid covering the fan at the back of the oven
• DO NOT Place oven dishes directly on the oven base
• Make sure shelves are evenly spaced
• When baking more than one dish in fan forced oven,
place dishes centrally on shelves rather than several
dishes on one shelf
• When the oven is full you may need to allow a slightly
longer baking time
• When using different size trays or cooking different types
of food, cooking times may vary for each dish.
General tips
Condensation and Steam
• Always stand back from heated oven when opening oven
door to allow any build-up of steam or heat to release
• During cooking steam may be produced which can be
released when opening the oven door. This is quite normal
• If there is any build-up of condensation on the oven door
it is recommended that it be carefully wiped away either
during or after cooking.
Cleaning the cooker
Ovens and hotplates are made from steel and enamel. Do not
use abrasives and harsh scourers as they may scratch the surface
Do not use steam cleaners
Stainless Steel
• All grades of stainless steel can stain, discolour or become
greasy. You must clean these areas regularly by following
the procedures below if you want your appliance to look
its best, perform well and have a long life
• Care must be taken when wiping exposed stainless
steel edges as they can be sharp
• The front frame around the oven can be cleaned with
stainless steel cleaners if it comes soiled or discoloured
• A suitable cleaner can be purchased from Electrolux
Customer Care Centres
• Make sure you follow the polish or brushing lines in the steel.
General
• Always clean appliance after use, especially food
spillage. DO NOT use steel wool, wax polishes or
caustic based commercial cleaners as these will
damage your oven
• DO NOT use steam cleaners, as this may cause moisture
build-up especially in the glass door
• Door Glass – DO NOT use harsh abrasive cleaners or
sharp metal scrapers to clean glass since they can scratch
the surface, which may result in shattering of the glass.
warning
Door glass is a tough and durable material designed to
withstand heating and cooling without breaking. However it
must be remembered that it is glass and may break, therefore
must be treated with care.
If you have any questions about the glass in the oven please
contact the Service centre on 13 13 49.

18 Chef 540 Upright Cooker
Oven
• Do not remove the oven door
• Make sure oven knobs are in the off position
• Clean immediately after use as a warm oven is easier to clean
• Use detergent, hot water (and household ammonia/
cloudy ammonia if necessary) and a soft cloth. Dry thoroughly.
• Remove shelves when cleaning oven
• If there is a build-up of grease, place a small oven proof
dish containing ¼ cup (62mL) household ammonia/cloudy
ammonia and ¾ cup (187mL) water in the oven. Heat
oven to 110 degrees and turn oven off when 110 degrees
is reached. Leave over-night. The fumes will loosen stubborn
grease and stains. Remove bowl, wash with hot, soapy
water and dry well before closing oven door again.
Oven Shelves
• Chrome shelves: use detergent and hot water. If very
dirty use a non-abrasive nylon scourer
• Enamel dishes and tray: use detergent and hot water.
If very dirty a non-abrasive nylon scourer
• DO NOT clean oven parts with abrasive or
caustic-type cleaners.
Oven – Grill Dish and Insert
• After every use, and while still warm, sprinkle grill insert
with detergent and cover with wet paper towel as this will
loosen food particles and grease
• Wash pan and grid with hot, soapy water with a little
household ammonia/cloudy ammonia added. Rinse and
dry before replacing in position.
Ceramic Hotplates
• Clean with detergent and hot water and polish with
a soft cloth
• For harder to clean spills a blade scraper is supplied
• Aluminium foil, plastic and high sugar content food can
cause pitting if not removed before the hotplate has cooled.
• Sometimes SURFACE stains appear to be ‘bubble’ marks
under the ceramic glass. These can be cleaned off with a
razor blade scraper and ceramic cleaner.
cleaning the cooker
Solid Hotplates
• Solid hotplates are fitted with stainless steel trim rings,
which after initial use, change colour to light brown.
This is a normal characteristic of stainless steel and will
not affect the operation or performance of your hotplates
• Clean off any spillage after hot plate has cooled down
• At regular intervals, clean hotplate with a nylon scouring
pad and soapy water. Wipe clean then warm hotplate
for 30 seconds to dry the surface
• Apply ‘hot plate protector’’. Set hotplate on high for 3
minutes to allow coating to harden.
Gas Burners
• Flame port blockages should be removed with a small
metal cake skewer or nylon brush.
• Clean dirty spark plugs very gently with a nylon scourer.
DO NOT use steel wool. DO NOT bend spark plug as
it may break.

Chef 540 Upright Cooker 19
general hints and tips
Cleaning the Oven Door
Cool air circulates through the door to lower the surface
temperature on the outside of the oven door.
• Do not remove the oven door
• This product has a removable inner door glass.
To remove the inner door glass for cleaning
• Open the door fully to access the hinges then rotate
the “stirrups” on both hinges fully towards the door.
• Slowly close the door until it stops against the ‘stirrups’
(about 45°)
• To remove the top trims (2 off), press the ribbed release
clips at each end and lift top trim away from the door.
• Using both hands, gently remove the inner glass by
sliding out and lifting away from the door
• Inner door glass: some products have heat reflective
glass on the inner door glass. These are identified
by a black dot on the lower left hand corner of the
inner door glass.
The black dot to
be located on the
lower left hand
corner where
applicable
Inner glass
Top trims
• Wipe inner and outer glass gently with detergent
and warm water
• Wipe clean and dry thoroughly.
.
Re-Assembling the oven door inner glass
• Replace the inner glass back to the door with the black
dot located on the lower left hand corner where applicable
• Replace the top trim ensuring the clips snap back
into position
• Fully open the door, rotate the stirrups back to their
original position and close the door.
warning
DO NOT use the oven without the inner door glass fitted.
DO NOT use harsh abrasives on glass as this may damage
the glass
DO NOT place glass in dishwasher.
Hand wash only with a soft cloth and warm soapy water.
When dry, polish with a soft cloth and ensure the glass is dry
before re-assembly.
Stirrup

20 Chef 540 Upright Cooker
getting to know your oven
Getting to know your new oven with this
‘Simple Test Cake’
When baking, it is possible that there will be some variation
in colour. Therefore, we suggest to make this simple, easy
and delicious test cake to help you understand your new oven.
All ovens do sometimes have hot or cold spots, therefore it is
important to judge with your eye as you may need to rotate your
dishes during baking.
‘Simple Test Cake’
125g butter, softened to room temperature
1 cup caster sugar
1 teaspoon pure vanilla essence
4 large eggs
2 cups self-raising flour
pinch of salt
4 tablespoons (80mL) full-cream milk
Method:
1. Butter base and sides of two, 20cm straight-sided round
or square cake pans. Then line the base with grease
proof paper or baking paper.
2. Preheat oven to moderate ‘180ºC’ (170ºC fan forced) for
30m and ensure oven shelf is in position 2 of the oven.
3. Cream softened butter and sugar until light in colour.
4. Add vanilla essence.
5. Add eggs one at a time, beating well after each addition.
6. Sift flour and salt into the mixture and beat until
well combined.
7. Add milk and beat or stir to combine.
8. Spoon mixture equally between prepared cake pans.
9. Bake in preheated oven, position 2 for about 25 to 35
minutes. Tip: Insert a fine cake skewer into the cake mix.
If it comes out clean, or if the edges of the cake have
come away slightly from the sides of the cake pan, the
cake is ready.
10. Remove from oven and place on wire cake rack and
rest for 5 minutes before removing from cake pans. Cool
completely.
To Serve: sandwich together with your favourite jam or
conserve, and dust top with pure icing sugar.
FOOT NOTE: if desired, substitute butter for either margarine
or olive oil spread.
Recipe is based on the Australian standard metric 250mL cup
and 20mL tablespoon sets.
