Installation and User Manual
CRR612SB, CRR612WB, CRR612DB cooking

2
WELCOME
Thank you for purchasing this appliance. You’ve chosen
a product that brings with it decades of professional
experience and innovation. Ingenious and stylish, it has
been designed with you in mind. So whenever you use
it, you can be safe in the knowledge that you’ll get great
results every time.
LEGEND
The symbols you will see in this booklet have
these meanings:
WARNING!
This symbol indicates information concerning
your personal safety
CAUTION!
This symbol indicates information on how to avoid
damaging the rangehood
IMPORTANT!
This symbol indicates tips and information about
use of the rangehood
ENVIRONMENT!
This symbol indicates tips and information about
economical and ecological use of the rangehood
CONDITIONS OF USE
This appliance is intended to be used in household and
similar applications such as:
• Staff kitchen areas in shops, offices and other
working environments
• Farm houses
• By clients in hotels, motels and other residential
type environments
• Bed and breakfast type environments.
• Catering and similar non-retail applications
CONTENTS
3Important safety instructions
4Installation
6Operation and maintenance
7Warranty
RECORD MODEL AND SERIAL
NUMBER HERE:
Model:
Serial No:

3
SAFETY INSTRUCTIONS
Please read the user manual carefully and store in a
handy place for later reference. Pass the user manual on
to possible new owners of the appliance.
Read the following carefully to avoid damage or injury.
Note: You must read these warnings carefully
before installing or using the accessory. If you need
assistance, contact your Customer Care Department.
The manufacturer will not accept liability, should these
instructions or any other safety instructions incorporated
in this book be ignored.
ENVIRONMENT!
Remove and discard any packaging material before
using this accessory. Most of the packaging materials are
recyclable. Please dispose of those materials through your
local recycling depot or by placing them in the appropriate
collection containers.
WARNING!
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
• Ensure the rangehood is switched off before carrying
out maintenance, to avoid any possibility of electric
shock.
• Grease filters must be removed every four weeks
(maximum) for cleaning to reduce the risk of fire.
• Do not light a flambe under the rangehood.
• This rangehood is not recommended for barbecues.
• The exhaust air from the rangehood must not be
discharged into any heating flue, which may carry
combustion products from other sources.
• Exhaust air must not be discharged into a wall cavity,
unless the cavity is designed for the purpose.
• There must be adequate ventilation of the room
when the rangehood is used at the same time as
appliances burning gas or other fuels.
• Always cover lit gas burners with pots or pans when
the rangehood is in use.
• Always switch off gas burners before you remove pots
or pans.
CAUTION
• Accessible parts may become hot when used with
cooking appliance.
• Regulations concerning the discharge of air have to
be fulfilled.
•
Cleaning
• Wipe the rangehood body and flue with a sponge or
soft cloth soaked in warm soapy water, and dry with a
soft cloth, for stainless steel models apply a stainless
steel protector. Do not use oven cleaners or other
abrasive materials.
• There is a fire risk if cleaning is not carried out in
accordance with the instructions.
Electrical Connection
• Check that the mains voltage matches with the
voltage on the data plate inside the rangehood.
• Check that the installation complies with standards of
local gas and electricity authorities.
• If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
Accessories
• Use 125mm round exhaust ducting for best
performance.
• When using flexible duct always install duct with the
wire helix pulled taut to minimise pressure loss.
• Try to keep exhaust duct short and straight.
• Keep bends in the exhaust duct to a minimum.
• Do not restrict exhaust duct.
• Reducing the size of the exhaust duct will reduce the
airflow of the rangehood. Please read instructions
carefully. Service calls resulting from incorrect
installation will be charged for.
Exhaust air from the rangehood must not be discharged
into any heating flue which may carry combustion
products from other sources. In addition, exhaust air
must not be discharged into a wall cavity, unless the
cavity is designed for the purpose. Adequate ventilation
of the room must be ensured when the rangehood is
operating simultaneously with appliances burning gas or
other fuels. Installation must comply in all respects with
your gas and electrical authorities. This rangehood is an
indoor domestic appliance, and has been manufactured
and tested to comply with Australian and New Zealand
Standard AS/NZS 60335.1 and 60335.2.31
•Range hoods and other cooking fume extractors may
adversely affect the safe operation of appliances
burning gas or other fuels (including those in other
rooms) due to back flow of combustion gases. These
gases can potentially result in carbon monoxide
poisoning. After installation of a range hood or other
cooking fume extractor, the operation of open flued
gas appliances should be tested by a competent
person to ensure that back flow of combustion gases
does not occur.
Grease filters must be removed every four weeks
(maximum) for cleaning to reduce the risk of fire.
•
WARNING：Failure to install the screws or fixing device
in accordance with these instructions may result in
electrical hazards.
Means for disconnection must be incorporated in the
fixed wiring in accordance with the wiring rules.
•

4
INSTALLATION
Standard ducting installation
It is recommended that the unit be positioned at a
minimum of 600mm for an electric cooktop and 650mm
for a gas cooktop, and no further from the cooktop than
800mm. Then unit becomes less effective as the distance
from the cooking surface to the rangehood increase.
650
GAS
ELECTRIC
600
Fixing point dimensions
Parts supplied with hood
1 × Duct Spigot
4 × M6 × 40 screws
4 × Ø6 washers
Parts to be purchased
• Aluminium tape or cable ties to secure flue pipe
• Custom drawer fascia (if required)
• Ducting accessories
Minimum cabinet opening
Ducting accessories
For best performance Ø 125mm ducting is recommended
roof cowl
rigid flue pipe
flexible duct
flue joiner
carbon filter
AR125RC
AR125F
AR125FD
AR125FJ
wall vent kit
AR125WV
bend AR125B
ARCFD
Accessories can be bought from your local appliance
retailer, or in Australia / New Zealand at our online spare
parts and accessories store: shop.electrolux.com.au
470
598
210
280
158
175
20
42
121
ø
550
34

INSTALLATION
Drilling holes
Drill the holes on top wooden support.
• drill Ø7 hole
• drill Ø45 hole
• cut Ø130 hole
Ø45, for cable
clearance
Ø7, for hood
fastening screws
Ø130, for
470
Front of cabinet Door / hood fascia
36 210
200
268
Fixing duct spigot
Snap in duct spigot to the rangehood.
Fixing the rangehood
Use 4xM6x40 screws and washers supplied to fasten
the rangehood to the wooden support from upper side.
Fixing flue pipe
Fix a 125mm diameter noncombustible rigid flue pipe.
Fix flue pipe to the exhaust transition duct. Use cable ties
or aluminium tape to secure flue pipe to the duct spigot.
If using a flexible duct, install with the wire helix pulled taut
to minimise pressure loss and noise.
5
flue clearance
Ducted recirculating installation
If ducted recirculating installation is used, carbon filters
are recommended.
AR125WV
Optional carbon filter
An optional carbon filter will diminish cooking odours
in the recirculated air. Depending on the frequency of
use and the type of cooking, the expected life of carbon
filters from 1 to 6 months. Replacement is required. It
is recommended to use carbon filter for recirculating
installation. Using carbon filter will reduce the airflow of
the rangehood.
carbon filter
100

6

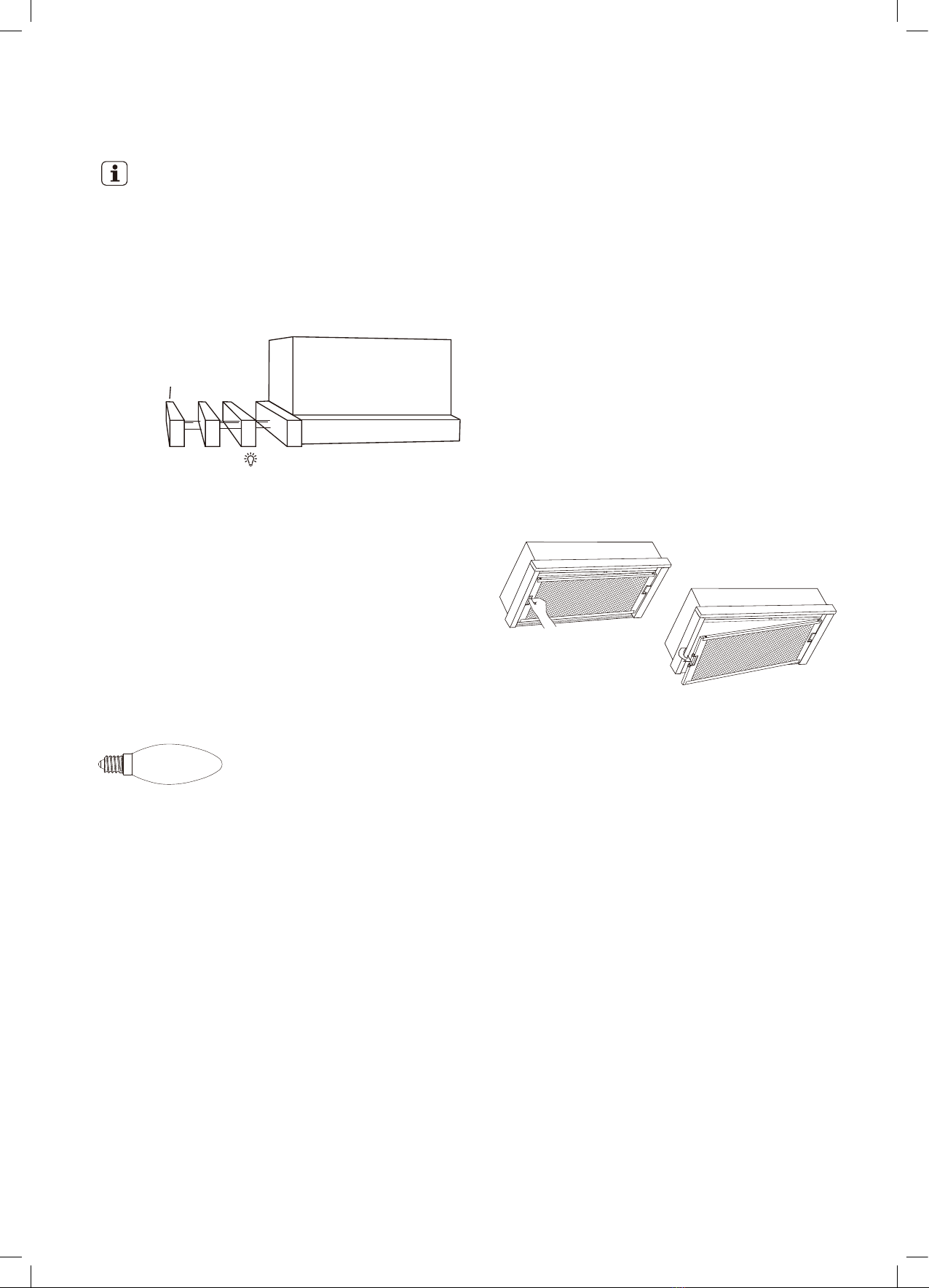

Fan speed
Press
Fig. 1
Fig. 2
OPERATION
IMPORTANT!
The Edison Screw lamps may have come loose
during transportation.
Ensure that lamps are tightened firmly into the
socket before power is applied.
The operation of the light and the fan are
controlled by the drawer action. (see diagram)
To replace the light globes
1. Open drawer and remove filter.
2. Turn mains switch off before removing lamp.
Replace with E14 LED (5.5W maximum) candle lamp.
The lamp assembly includes a silicone seal, this must be
replaced when a new lamp is used. The silicone seal is
placed over the lamp thread and then the lamp is screwed
into the holder. Ensure replacement lamp is tightened firmly.
Replacement lamps from Electrolux Parts Centres are
supplied with silicone seals.
Maintenance
To maintain efficiency and reduce fire risk, filters should
be removed every four weeks (maximum) for cleaning.
Soak and agitate filters in hot soapy water or washing
soda. Rinse, drain, shake well and replace.
Do not use caustic solutions or other corrosive agents.
The filters can be washed in the dishwasher,
recommended the filters be placed on the top shelf of
the dishwasher.
NOTE: Where fitted, optional carbon filter are intended
to be a disposable item and should be discarded
when saturated. Washing the carbon filter is not
recommended.
Remove filters for cleaning
1. Slide filter tray forward 1cm.
2. Push in clip on either side to release filter. Fig 1.
3. Pull filter downwards to remove. Repeat 2 & 3 for
models with a second filter. Fig 2.
4. Turn off mains switch before cleaning drawer and
rangehood body.
5. After cleaning, re-fit filters making sure the clip pins
are securely fitted into the locating holes in the
rangehood body and for twin filter versions, also
located in the pull out drawer section.
6. Holding clip in, push opposite side of filter up until pins
are over locating holes.
7. Release clip ensuring filter is securely fitted.
Safety Tips: Use of two hands for removal and re-fitting
of filters is recommended to avoid accidental dropping
of filters which could cause damage to your cooktop or
kitchen surfaces.
E14 5.5W LED -> DBL-5.5-H-E14-35/102
Suitable lamp for replacement

This document sets out the terms and conditions of the product
warranties forChef Appliances. Itis an important document.Please
keep it with your proof of purchase documents in a safe place for
future reference should there be a manufacturing defect inyour
Appliance. This warranty isin addition to other rights you may have
under the Australian Consumer Law.
1. In this warranty:
(a) ‘ACL’ or‘AustralianConsumer Law’ means Schedule 2 to the
Competitionand Consumer Act 2010;
(b) ‘Appliance’means any Electrolux product purchased by you and
accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorised servicedcentres;
(d) ‘Chef’ is thebrand controlled by Electrolux Home Products PtyLtd
of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341
in respect of Appliances purchased in Australia and Electrolux (NZ)
Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;
(e) ‘WarrantyPeriod’ means the period in clause 3 of this
warranty;
(f) ‘you’ means the purchaser of the Appliance not having purchased
theAppliance for re-sale, and ‘your’ has a corresponding meaning.
2. Application: This warranty only applies to new Appliances, purchased
and used in Australia orNew Zealand and isinaddition to (and does not
exclude, restrict, ormodify inany way) other rights and remedies under
alaw to which the Appliancesor services relate, including any non-
excludable statutory guaranteesin Australia and New Zealand.
3. Warranty Period:Subject to these terms and conditions, this warranty
continues for in Australia for a periodof24 months and inNew Zealand
for a periodof24 months, following the date oforiginal purchase of the
Appliance.
4. Repair or replace warranty: During the Warranty Period, Electrolux
or its ASC will, at no extra charge ifyour Appliance is readily accessible
for service, without special equipment and subject to these terms and
conditions, repairor replace any parts whichitconsiders to be defective.
Electrolux may, inits absolute discretion, choose whether the remedy
for a valid warranty claim is repair or replacement. Electrolux or its
ASC may use refurbished parts to repairyour Appliance. You agree that
any replaced Appliancesor parts become the property of Electrolux.
5. Traveland transportation costs:Subject to clause 7, Electrolux will
bear the reasonable cost of transportation, travel and delivery of the
Appliance to and from Electrolux orits ASC. Travel and transportation will
be arranged by Electrolux as part ofany validwarranty claim.
6. Proof ofpurchaseis required before youcanmake a claim under this
warranty.
7. Exclusions:You may not make a claim under this warrantyunless the
defect claimedis due to faulty or defective parts orworkmanship. This
warranty does not cover:
(a) light globes, batteries, or similar perishable parts;
(b) parts and Appliances not supplied by Electrolux;
(c) cosmetic damage which does not the operation of the
Appliance;
(d) damage to the Appliance caused by:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by
anyone other than an Electrolux authorised repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions suppliedwith
the Appliance;
In addition, Electrolux is not liable under this warranty if:
(a) the Appliancehas been, or Electrolux reasonably believes that the
Appliance has been, used for purposes other than those for which
the Appliance was intended, including where the Appliance has
been used for any non-domestic purpose;
(b) theAppliance is without authority from Electrolux in writing;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced
8. How to claim under this warranty: To enquire about claimingunder
this warranty, please follow these steps:
(a) carefully check theoperating instructions,user manual and theterms
of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
9. Australia: For Appliances and services provided by Electrolux in
Australia: Electrolux goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have theAppliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount toa major failure.
‘Acceptable quality’ and ‘major failure’ have thesame meaning as
referred to in theACL.
10. New Zealand: For Appliances and services provided by Electrolux
in New Zealand, the Appliances come with a guarantee by Electrolux
pursuant totheprovisions of the Consumer Guarantees Act, the Sale
of Goods Act and theFair Trading Act. Where the Appliance was
purchased in New Zealand for commercial purposes the Consumer
Guarantee Act does not apply.
11. You accept that if you makea warrantyclaim, Electrolux
and its agents including ASCmay exchange information in relation to you
to enable Electrolux to meet its obligations under this warranty.
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: CHEF RANGEHOODS
CRange_War_Jul19
Important Notice
Before calling for service, pleaseensure that the steps listed in clause8 above havebeen followed.
AUSTRALIA
FOR SERVICE
or to the address of your nearest
authorised service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call
FOR SPARE PARTS
or to the address of your nearest
spare parts centre in Australia
PLEASE CALL 13 13 50
For the cost of a local call
NEW ZEALAND
FOR SERVICE
or to the address of your nearest
authorised service centre in New Zealand
PLEASE CALL 0800 10 66 10
FOR SPARE PARTS
or to the address of your nearest
spare parts centre in New Zealand
PLEASE CALL 0800 10 66 20
7

Chef. We are part of the Electrolux family.
Share more of our thinking at electrolux.com.au
© 2019 Electrolux Home Products Pty Ltd
ABN 51 004 762 341
CMAN_Rangehoods_Feb21
For further information on all Chef appliances, or to obtain
detailed dimension and installation information, call into
your Retailer, phone or email our Customer Care team or
visit our website:
Australia
phone: ..........................................................13 13 49
fax:.......................................................1800 350 067
email: ............................. [email protected]
web:............................................chefappliances.com.au
like to know more?
