Chevrolet/GMC Silverado 2017 User manual

Silverado/Sierra/Sierra Denali
Owner’s Manual
17EN_OM_04 (SILVERADO/SIERRA/SIERRA DENALI - MID EAST - English)
2017 Silverado/Sierra/Sierra Denali
C
M
Y
CM
MY
CY
CMY
K
2k17_misc_Silverado_Sierra_SierraDenali_17EN_OM_04.ai 1 7/8/2016 11:22:21 AM2k17_misc_Silverado_Sierra_SierraDenali_17EN_OM_04.ai 1 7/8/2016 11:22:21 AM

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
Contents Introduction . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . 32
Seats and Restraints . . . . . . . . . . . 54
Storage ....................... 113
Instruments and Controls . . . . . . 118
Lighting . . . . . . . . . . . . . . . . . . . . . . . 173
Infotainment System . . . . . . . . . . 183
Climate Controls . . . . . . . . . . . . . . 221
Driving and Operating . . . . . . . . . 230
Vehicle Care . . . . . . . . . . . . . . . . . . 311
Service and Maintenance . . . . . 404
Technical Data . . . . . . . . . . . . . . . . 414
Customer Information . . . . . . . . . 425
Index .................... 427

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
2 Introduction
Introduction
The names, logos, emblems,
slogans, vehicle model names, and
vehicle body designs appearing in
this manual including, but not limited
to, GM, the GM logo, CHEVROLET,
GMC, the CHEVROLET and GMC
Truck Emblems, SILVERADO, Z71,
SIERRA, and DENALI are
trademarks and/or service marks of
General Motors LLC, its
subsidiaries, affiliates, or licensors.
This manual describes features that
may or may not be on the vehicle
because of optional equipment that
was not purchased on the vehicle,
model variants, country
specifications, features/applications
that may not be available in your
region, or changes subsequent to
the printing of this owner manual.
Refer to the purchase
documentation relating to your
specific vehicle to confirm the
features.
Keep this manual in the vehicle for
quick reference.
Danger, Warning, and
Caution
Warning messages found on vehicle
labels and in this manual describe
hazards and what to do to avoid or
reduce them.
{Danger
Danger indicates a hazard with a
high level of risk which will result
in serious injury or death.
{Warning
Warning indicates a hazard that
could result in injury or death.
Caution
Caution indicates a hazard that
could result in property or vehicle
damage.
Litho in U.S.A.
Part No. 17EN_OM_04 ©2016 General Motors LLC. All Rights Reserved.

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
Introduction 3
A circle with a slash through it is a
safety symbol which means “Do
Not,” “Do not do this,”or “Do not let
this happen.”
Symbols
The vehicle has components and
labels that use symbols instead of
text. Symbols are shown along with
the text describing the operation or
information relating to a specific
component, control, message,
gauge, or indicator.
M:Shown when the owner
manual has additional instructions
or information.
*:Shown when the service
manual has additional instructions
or information.
0:Shown when there is more
information on another page —
“see page.”
Vehicle Symbol Chart
Here are some additional symbols
that may be found on the vehicle
and what they mean. For more
information on the symbol, refer to
the Index.
0:Adjustable Pedals
9:Airbag Readiness Light
!:Antilock Brake System (ABS)
g:Audio Steering Wheel Controls
$:Brake System Warning Light
":Charging System
I:Cruise Control
`:Do Not Puncture
^:Do Not Service
B:Engine Coolant Temperature
O:Exterior Lamps
_:Flame/Fire Prohibited
#:Fog Lamps
.:Fuel Gauge
+:Fuses
3:Headlamp High/Low-Beam
Changer
(:Heated Steering Wheel
j:LATCH System Child Restraints
*:Malfunction Indicator Lamp
::Oil Pressure
g:Outside Power Foldaway
Mirrors
O:Power
/:Remote Vehicle Start
>:Safety Belt Reminders
7:Tire Pressure Monitor
_:Tow/Haul Mode
d:Traction Control/StabiliTrak
®
a:Under Pressure
M:Windshield Washer Fluid

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
4 Introduction

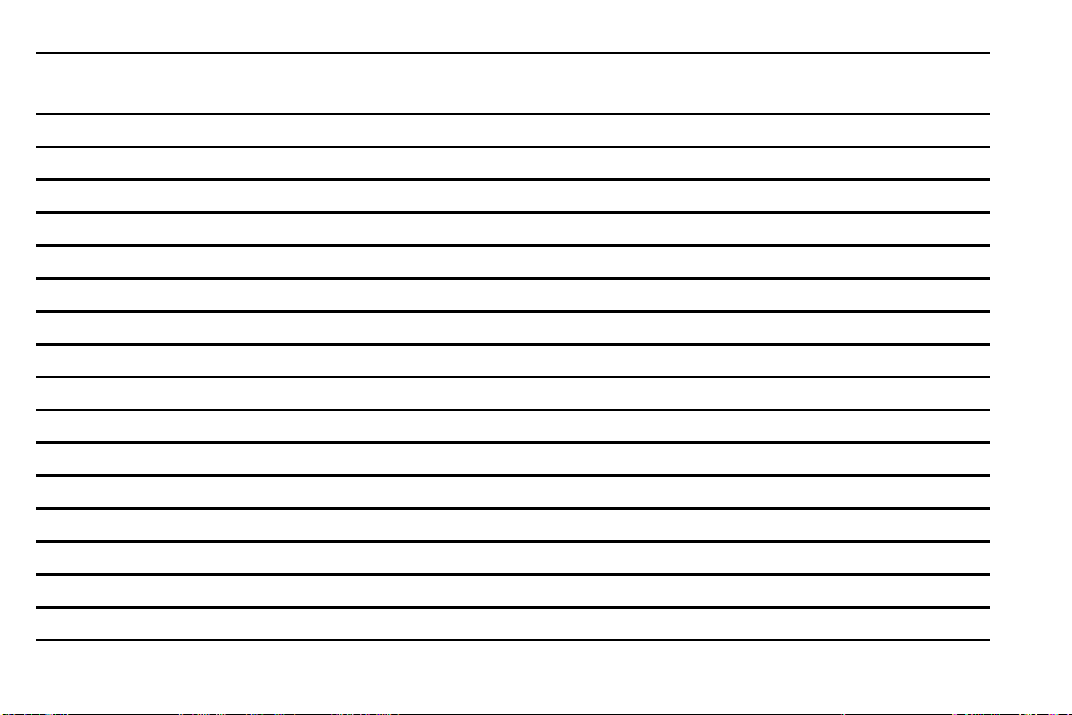

2NOTES

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
In Brief 5
In Brief
Instrument Panel
Instrument Panel . . . . . . . . . . . . . . . . 6
Initial Drive Information
Initial Drive Information . . . . . . . . . . 8
Remote Keyless Entry (RKE)
System . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Vehicle Start . . . . . . . . . . . 9
Door Locks . . . . . . . . . . . . . . . . . . . . . 9
Windows . . . . . . . . . . . . . . . . . . . . . . . 10
Seat Adjustment . . . . . . . . . . . . . . . 11
Memory Features . . . . . . . . . . . . . . 13
Heated and Ventilated Seats . . . 13
Head Restraint Adjustment . . . . 14
Safety Belts . . . . . . . . . . . . . . . . . . . . 14
Passenger Sensing System . . . 14
Mirror Adjustment . . . . . . . . . . . . . . 15
Steering Wheel Adjustment . . . . 16
Throttle and Brake Pedal
Adjustment . . . . . . . . . . . . . . . . . . . 17
Interior Lighting . . . . . . . . . . . . . . . . 17
Exterior Lighting . . . . . . . . . . . . . . . 18
Windshield Wiper/Washer . . . . . . 18
Climate Controls . . . . . . . . . . . . . . . 19
Transmission . . . . . . . . . . . . . . . . . . 21
Four-Wheel Drive . . . . . . . . . . . . . . 22
Vehicle Features
Infotainment System . . . . . . . . . . . 23
Radio(s) ....................... 23
Portable Audio Devices . . . . . . . . 24
Bluetooth
®
..................... 24
Steering Wheel Controls . . . . . . . 24
Cruise Control . . . . . . . . . . . . . . . . . 25
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . 26
Forward Collision Alert (FCA)
System . . . . . . . . . . . . . . . . . . . . . . . 26
Forward Automatic
Braking (FAB) . . . . . . . . . . . . . . . . 26
Lane Departure
Warning (LDW) . . . . . . . . . . . . . . . 27
Lane Keep Assist (LKA) . . . . . . . 27
Rear Vision Camera (RVC) . . . . 27
Parking Assist . . . . . . . . . . . . . . . . . 27
Power Outlets . . . . . . . . . . . . . . . . . 27
Universal Remote System . . . . . 28
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . 28
Performance and Maintenance
Traction Control/Electronic
Stability Control . . . . . . . . . . . . . . 29
Tire Pressure Monitor . . . . . . . . . . 29
Fuel (All Engines Except
L86 6.2L V8 Engine) . . . . . . . . . . 30
Fuel (L86 6.2L V8 Engine) . . . . . 30
Engine Oil Life System . . . . . . . . 30
Driving for Better Fuel
Economy . . . . . . . . . . . . . . . . . . . . . 31

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
6 In Brief

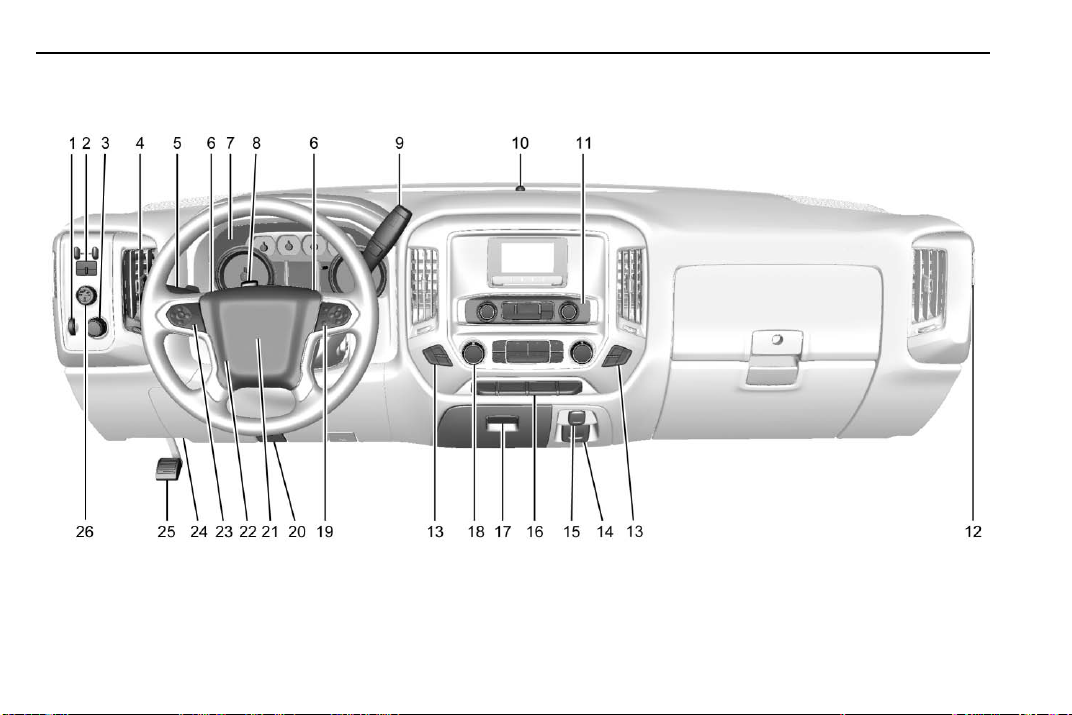

Instrument Panel
Base Shown, Uplevel Similar

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
In Brief 7
1. Instrument Panel Illumination
Control 0179.
2. Integrated Trailer Brake Control
(ITBC) System (If Equipped).
See Towing Equipment 0300.
3. Exterior Lamp Controls 0173.
Fog Lamps 0178 (If
Equipped).
4. Air Vents 0227.
5. Turn Signal Lever. See Turn
and Lane-Change
Signals 0177.
Windshield Wiper/
Washer 0120.
6. Favorite Switches (Out of
View). See Steering Wheel
Controls 0120.
Volume Switches (Out of View).
See Steering Wheel
Controls 0120.
7. Instrument Cluster (Silverado/
Sierra) 0127 or Instrument
Cluster (Sierra Denali) 0131.
8. Hazard Warning
Flashers 0177.
9. Shift Lever. See Automatic
Transmission 0258.
Tow/Haul Selector Button (If
Equipped). See Tow/Haul
Mode 0263.
Range Selection Mode (If
Equipped). See Manual
Mode 0261.
10. Light Sensor. See Automatic
Headlamp System 0176.
11. Infotainment 0183.
12. Passenger Airbag On-Off
Switch (If Equipped) (Out of
View). See Airbag On-Off
Switch 078.
13. Heated and Ventilated Front
Seats 061 (If Equipped).
14. Power Outlet 220/230 Volt
Alternating Current (If
Equipped). See Power
Outlets 0123.
15. Cigarette Lighter 0125.
Power Outlets 0123 (If
Equipped).
16. gTraction Control/Electronic
Stability Control 0275.
0Pedal Adjust Switch (If
Equipped). See Adjustable
Throttle and Brake
Pedal 0250.
{Cargo Lamp 0179.
XParking Assist Button (If
Equipped). See Assistance
Systems for Parking or
Backing 0281.
ALane Keep Assist (LKA)
(1500 Series) 0289 (If
Equipped).
@Lane Departure Warning
(LDW) (2500/3500 Series)
0287 (If Equipped).
5Hill Descent Control Switch
(If Equipped). See Hill Descent
Control (HDC) 0277.
Auxiliary Button (If Equipped).
See Add-On Electrical
Equipment 0310.
17. Ashtrays 0126 (If Equipped).
Instrument Panel Storage
0113 (If Equipped).

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
8 In Brief
18. Climate Control Systems (with
Heater Only) 0221 or Climate
Control Systems (with Air
Conditioning) 0222 (If
Equipped).
Dual Automatic Climate Control
System 0224 (If Equipped).
19. Steering Wheel Controls 0120
(If Equipped).
Driver Information Center (DIC)
Controls (If Equipped). See
Driver Information Center (DIC)
(Base Level) 0148 or Driver
Information Center (DIC)
(Uplevel) 0150.
20. Hood Release. See
Hood 0313.
21. Horn 0120.
22. Steering Wheel Adjustment
0119 (Out of View).
23. Cruise Control 0277.
Forward Collision Alert (FCA)
System 0284 (If Equipped).
24. Data Link Connector (DLC)
(Out of View). See Malfunction
Indicator Lamp (Check Engine
Light) 0141.
25. Parking Brake 0273.
26. Electronic Transfer Case Knob
(If Equipped). See Four-Wheel
Drive 0264.
Card Holder (If Equipped). See
Instrument Panel
Storage 0113.
Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.
Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)
transmitter functions may work from
up to 60 m (197 ft) away from the
vehicle.

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
In Brief 9
K:Press to unlock the driver door.
Press Kagain within three seconds
to unlock all remaining doors and
the tailgate.
Q:Press to lock all doors and the
tailgate. Lock and unlock feedback
can be personalized. See Vehicle
Personalization 0162.
7:Press and release one time to
initiate vehicle locator. Press 7and
hold for at least three seconds to
sound the panic alarm. Press 7
again to cancel the panic alarm.
See Keys 032 and Remote Keyless
Entry (RKE) System Operation 034.
Remote Vehicle Start
If equipped, the engine can be
started from outside of the vehicle.
Starting the Vehicle
1. Press and release Qon the
RKE transmitter.
2. Immediately press and hold /
for at least four seconds or until
the turn signal lamps flash.
Start the vehicle normally after
entering.
When the vehicle starts, the parking
lamps will turn on.
Remote start can be extended.
Canceling a Remote Start
To cancel a remote start, do one of
the following:
.Press and hold /until the
parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and then off.
See Remote Vehicle Start 036.
Door Locks
There are several ways to lock and
unlock the vehicle.
From outside, use the Remote
Keyless Entry (RKE) transmitter or
the key in the driver door.
From inside, use the power door
locks or push down or pull up on the
manual door locks.
From inside, pull the door handle
once to unlock the door. Pull again
to open the door.

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
10 In Brief
Power Door Locks
Crew/Double Cab Premium Trim
Shown, Other Models Similar
Base Trim
If equipped with power door locks:
Q:Press to lock the doors.
K:Press to unlock the doors.
See Door Locks 037 and Power
Door Locks 038.
Windows
Power Windows
Crew/Double Cab Premium Trim
Shown, Other Models Similar
If equipped, the driver door has a
switch to control all windows. Each
passenger door has a switch to
control that window. The power
windows work when the ignition is in
ON/RUN or ACC/ACCESSORY,
or when Retained Accessory Power
(RAP) is active. See Retained
Accessory Power (RAP) 0254.

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
In Brief 11
Press the switch to lower the
window. Pull the switch up to raise
it. See Windows 049 and Power
Windows 049.
Power Sliding Rear Window
If equipped, the power sliding rear
window works when the ignition has
been turned to ACC/ACCESSORY
or ON/RUN, or when Retained
Accessory Power (RAP) is active.
See Retained Accessory Power
(RAP) 0254.
Press the switch to open the
window. Pull the switch up to close
it. See Windows 049 and Power
Windows 049.
The power sliding rear window
cannot be operated manually. See
“Power Sliding Rear Window”in
Rear Windows 051.
Seat Adjustment
Manual Seats
To adjust a manual seat:
1. Pull the handle at the front of
the seat.
2. Slide the seat to the desired
position and release the
handle.
3. Try to move the seat back and
forth to be sure it is locked in
place.
See Seat Adjustment 056.
Power Seats
To adjust a power seat, if equipped:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.If equipped, raise or lower the
front part of the seat cushion by
moving the front of the control
up or down.

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
12 In Brief
.If equipped, raise or lower the
seat by moving the rear of the
control up or down.
See Power Seat Adjustment 057.
Lumbar Adjustment
Manual Lumbar
If equipped, move the lever up or
down repeatedly to increase or
decrease lumbar support.
See Lumbar Adjustment 057.
Power Lumbar
To adjust the power lumbar support,
if equipped:
.Press and hold the control
forward to increase or rearward
to decrease upper and lower
lumbar support at the same time.
.If equipped, press and hold the
control up to increase upper
lumbar support and decrease
lower lumbar support.
Press and hold the control down
to increase lower lumbar support
and decrease upper lumbar
support.
See Lumbar Adjustment 057.
Reclining Seatbacks
Manual Reclining Seatbacks
To adjust a manual seatback:
1. Lift the lever.
The seatback will automatically
fold forward.
2. To recline, move the seatback
rearward to the desired
position, then release the lever
to lock the seatback in place.
3. Push and pull on the seatback
to make sure it is locked.

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
In Brief 13
To return the seatback to the upright
position:
1. Lift the lever fully without
applying pressure to the
seatback, and the seatback will
return to the upright position.
2. Push and pull on the seatback
to make sure it is locked.
See Reclining Seatbacks 058.
Power Reclining Seatbacks
To recline a power seatback,
if equipped:
.Tilt the top of the control
rearward to recline.
.Tilt the top of the control forward
to raise.
See Reclining Seatbacks 058.
Memory Features
Crew/Double Cab Shown, Other
Models Similar
If equipped, the SET, 1, 2, and B
(Exit) buttons on the driver door are
used to manually store and recall
memory settings for the driver seat,
outside mirrors, and adjustable
pedals (if equipped).
Automatic Memory Recall and/or
Easy Exit Recall features may be
enabled in the Personalization
Menus.
See Memory Seats 059 and
Vehicle Personalization 0162.
Heated and Ventilated
Seats
Heated and Ventilated Seat
Buttons Shown, Heated Seat
Buttons Similar
If equipped, the buttons are on the
center stack. To operate, the engine
must be running.

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
14 In Brief
Press Ito heat the driver or
passenger seatback only.
Press Jto heat the driver or
passenger seat cushion and
seatback.
PressCto ventilate the driver or
passenger seat.
See Heated and Ventilated Front
Seats 061.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
See Head Restraints 055 and Seat
Adjustment 056.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.Safety Belts 064.
.How to Wear Safety Belts
Properly 065.
.Lap-Shoulder Belt 066.
.Lower Anchors and Tethers for
Children (LATCH System) 094.
Passenger Sensing
System
The passenger sensing system,
if equipped, turns off the front
outboard passenger frontal airbag
under certain conditions. No other
airbag is affected by the passenger
sensing system.
If the vehicle has one the indicator
pictured in the following illustration,
then the vehicle has a passenger
sensing system for the front
outboard passenger position unless
there is an airbag off switch on the
instrument panel endcap.
If there is an airbag off switch, the
vehicle does not have a passenger
sensing system. See Airbag On-Off
Switch 078.
The passenger airbag status
indicator will be visible on the
overhead console when the vehicle
is started.

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
In Brief 15
See Passenger Sensing
System 081.
Mirror Adjustment
Using hood-mounted air deflectors
and add-on convex mirror
attachments could decrease mirror
performance.
Exterior Mirrors
Manual Mirrors
If equipped, adjust manual mirrors
by moving them up and down or left
to right to see a little of the side of
the vehicle and to have a clear view
behind the vehicle.
See Manual Mirrors 044.
Power Mirrors
Base Power Mirrors
If equipped with power mirrors:
1. Press (1) or (2) to select the
driver or passenger side mirror.
2. Press the arrows on the control
pad to move the mirror up,
down, right, or left.
3. Adjust each outside mirror so
that a little of the vehicle and
the area behind it can be seen.
4. Keep the selector switch in the
center position when not
adjusting either outside mirror.
Uplevel with Power Folding
Mirrors
1. Press (1) or (3) to select the
driver or passenger side mirror.
2. Press the arrows on the control
pad while the indicator light on
the (1) or (3) button is
illuminated, to move the mirror
up, down, right, or left.
3. Adjust each outside mirror so
that a little of the vehicle and
the area behind it can be seen.
4. Press either (1) or (3) again to
deselect the mirror.
See Power Mirrors 045.

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
16 In Brief
If equipped with power folding
mirrors:
1. Press (2) to fold the mirrors out
to the driving position.
2. Press (2) again to fold the
mirrors in to the folded position.
For manual, power, and auto folding
mirrors, see Folding Mirrors 046.
The mirrors may also include a
memory function that works with the
memory seats. See Memory
Seats 059.
Interior Mirror
Adjustment
Adjust the mirror for a clear view of
the area behind the vehicle.
Manual Dimming Rearview Mirror
If equipped, push the tab forward for
daytime use and pull it for nighttime
use to avoid glare from the
headlamps from behind. See
Manual Rearview Mirror 049.
Automatic Dimming Rearview
Mirror
If equipped, the mirror will
automatically reduce the glare of the
headlamps from behind. The
dimming feature comes on when the
vehicle is started.
See Automatic Dimming Rearview
Mirror 049.
Steering Wheel
Adjustment
To adjust the steering wheel:
1. Hold the steering wheel and
pull the lever.
2. Move the steering wheel up
or down.
3. Release the lever to lock the
wheel in place.
Tilt and Telescoping Steering
Wheel
To adjust the tilt and telescoping
steering wheel, if equipped:
1. Push the lever (1) down to
move the steering wheel
forward or rearward. Lift the
lever up to lock the wheel in
place.

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
In Brief 17
2. Pull the lever (2) toward you to
move the steering wheel up or
down, then release the lever to
lock the wheel in place.
Do not adjust the steering wheel
while driving.
Throttle and Brake Pedal
Adjustment
If equipped, the position of the
throttle and brake pedals can be
changed.
The switch used to adjust the
pedals is on the center stack, below
the climate controls.
Lift the switch up to move the
pedals closer to your body. Press
the switch down to move the
pedals away.
See Adjustable Throttle and Brake
Pedal 0250.
Interior Lighting
Dome Lamps
There are dome lamps in the
overhead console and the headliner,
if equipped.
To change the dome lamp settings,
press the following:
OFF : Turns the lamps off, even
when a door is open.
DOOR : The lamps come on
automatically when a door is
opened.
ON : Turns all dome lamps on.
Reading Lamps
There are reading lamps in the
overhead console and the headliner,
if equipped. To operate, the ignition
must be in the ACC/ACCESSORY
or ON/RUN position or using
Retained Accessory Power (RAP).

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
18 In Brief
Press mor nnext to each reading
lamp to turn it on or off.
For more information about interior
lighting, see Instrument Panel
Illumination Control 0179.
Exterior Lighting
The exterior lamp control is on the
instrument panel to the left of the
steering wheel.
O:Turns off the automatic
headlamps. Turn the headlamp
control to the off position again to
turn the automatic headlamps
back on.
AUTO : Automatically turns on the
headlamps at normal brightness,
together with the following:
.Parking Lamps
.Instrument Panel Lights
.Taillamps
.License Plate Lamps
.Roof Marker Lamps (If
Equipped)
.Front/Rear Sidemarker Lamps
;:Turns on the parking lamps
including all lamps, except the
headlamps.
5:Turns on the headlamps
together with the parking lamps,
sidemarker lamps, and instrument
panel lights.
See:
.Exterior Lamp Controls 0173.
.Fog Lamps 0178.
Windshield Wiper/Washer
The windshield wiper control is on
the turn signal lever.
The windshield wipers are controlled
by turning the band with zon it.

Chevrolet/GMC Silverado/Sierra/Sierra Denali Owner Manual (GMNA-Localiz-
ing-MidEast-10293382) - 2017 - crc - 7/11/16
In Brief 19
1:Fast wipes.
w:Slow wipes.
3INT : Turn the band up for more
frequent wipes or down for less
frequent wipes.
OFF : Turns the windshield
wipers off.
8:For a single wipe, turn to 8,
then release. For several wipes,
hold the band on 8longer.
Lm:Push the paddle at the top of
the lever to spray washer fluid on
the windshield.
See Windshield Wiper/
Washer 0120.
Climate Controls
These systems control the heating, cooling, and ventilation.
Climate Control System (with Heater Only)
1. Fan Control
2. Air Recirculation
3. Air Delivery Mode Controls
4. Defrost
5. TEMP (Temperature Control)
