Abarth Grande Punto User guide


Dear Customer,
Thank you for selecting Abarth and congratulations on your choice of a Grande Punto Abarth.
We have written this handbook to help you get to know all your new Grande Punto Abarth features and use it in the best possible
way.
You should read it right through before taking the road for the first time.
You will find information, tips and important warnings regarding the driving of your car to help you derive the maximum from your
Grande Punto Abarth technological features.
You are recommended to read carefully the warnings and indications, marked with the respective symbols, at the end of the page:
personal safety;
the car’s wellbeing;
environmental protection.
The enclosed Warranty Booklet lists the services that Abarth offers to its Customers:
❒
the Warranty Certificate with terms and conditions for maintaining its validity
❒
the range of additional services available to Abarth Customers.
Best regards and good motoring!
This Owner Handbook describes all Grande Punto Abarth versions.
As a consequence, you should consider only the information which is related to the engine
and bodywork version of the car you purchased.
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 1

MUST BE READ!
K
REFUELLING
Only refuel with unleaded petrol with octane rating (RON) not less than 95 conforming to the European specifica-
tion EN 228.
ENGINE STARTING
Make sure that the handbrake is engaged; set the gearshift lever to neutral; fully depress the clutch without pressing
the accelerator, then turn the ignition key to AVV and release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
While working, the catalyst develops a very high temperature. Do not park the car over grass, dry leaves, pine nee-
dles or any other inflammable materials: risk of fire.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that allows continuous diagnosis of the components correlated with emissions to en-
sure better respect for the environment.
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 2

ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical accessories (that will gradually drain the battery), visit a Abarth
Dealership. They can calculate the overall electrical requirement and check that the car’s electric system can sup-
port the required load.
CODE card
Keep the code card in a safe place, not in the car. You should always keep the electronic card code written on the
CODE card with you.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring it stays in tip-top condition and safeguards its safety fea-
tures, its environmental friendliness and low running costs for a long time to come.
THE OWNER’S MANUAL CONTAINS…
… information, tips and important warnings regarding the safe, correct driving of your car, and its maintenance. Pay
particular attention to the symbols
"
(personal safety)
#
(environmental protection) !(the car’s wellbeing).
쇵
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 3

4
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DASHBOARD ...................................................................... 5
SYMBOLS ............................................................................... 7
THE FIAT CODE SYSTEM.................................................. 7
THE KEYS .............................................................................. 8
ALARM ................................................................................... 11
IGNITION DEVICE .............................................................. 12
INSTRUMENT PANEL ........................................................ 13
INSTRUMENTS ..................................................................... 14
RECONFIGURABLE MULTIFUNCTION DISPLAY .... 16
TRIP COMPUTER ................................................................ 25
FRONT SEATS ..................................................................... 28
REAR SEATS .......................................................................... 29
HEAD RESTRAINTS............................................................. 30
STEERING WHEEL .............................................................. 31
REARVIEW MIRRORS ......................................................... 31
CLIMATE CONTROL.......................................................... 33
MANUAL CLIMATE CONTROL SYSTEM .................... 34
AUTOMATIC TWO-ZONE CLIMATE
CONTROL SYSTEM ........................................................... 40
EXTERNAL LIGHTS............................................................. 47
WINDOW WASHING ....................................................... 49
CRUISE CONTROL ............................................................ 52
CEILING LIGHTS .................................................................. 54
CONTROLS........................................................................... 55
FUEL CUT-OFF SWITCH .................................................. 57
INTERIOR FITTINGS........................................................... 58
SKY-DOME SUNROOF ..................................................... 62
DOORS .................................................................................. 64
POWER WINDOWS/WINDOW WINDERS .............. 66
BOOT ...................................................................................... 68
BONNET................................................................................. 71
ROOF RACK/SKI RACK .................................................... 73
HEADLIGHTS ........................................................................ 74
ABS SYSTEM ......................................................................... 76
ESP SYSTEM .......................................................................... 78
EOBD SYSTEM ..................................................................... 83
TYRE PRESSURE MONITORING SYSTEM - T.P.M.S. . 84
SPORT BOOST ..................................................................... 87
WIRING FOR NAVIGATION SYSTEM ......................... 88
ACCESSORIES PURCHASED BY THE OWNER.......... 88
AT THE FILLING STATION ............................................. 89
PROTECTING THE ENVIRONMENT............................. 90
D
DA
AS
SH
HB
BO
OA
AR
RD
DA
AN
ND
DC
CO
ON
NT
TR
RO
OL
LS
S
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 4

DASHBOARD
LEFT HAND DRIVE VERSION
The presence and the position of the instruments and warning lights may vary according to the versions.
1. Side adjustable air vents - 2. Side fixed air vents - 3. Left steering column stalk: external lights - 4. Instrument panel - 5. Right
steering column stalk: windscreen, rear window wiper and trip computer controls - 6. Dashboard controls - 7. Wiring for naviga-
tion system (MY PORT) - 8. Central adjustable air vents - 9. Upper fixed air vent - 10. Front passenger’s air bag - 11. Glovebox -
12. Sound system - 13. Climate controls - 14. Ignition switch - 15. Driver’s air bag - 16. Steering wheel adjusting lever - 17. Con-
trol plate: front fog lights/rear fog lights/headlight aiming device/reconfigurable multifunction display
5
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX DASHBOARD
AND CONTROLS
F0M095Ab
fig. 1
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 5

6
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
RIGHT HAND DRIVE VERSION
The presence and the position of the instruments and warning lights may vary according to the versions.
1. Side adjustable air vents - 2. Side fixed air vents - 3. Left steering column stalk: external lights - 4. Instrument panel - 5. Right
steering column stalk: windscreen, rear window wiper and trip computer controls - 6. Dashboard controls - 7. Wiring for naviga-
tion system (MY PORT) - 8. Central adjustable air vents - 9. Upper fixed air vent - 10. Front passenger’s air bag - 11. Glovebox -
12. Sound system - 13. Climate controls - 14. Ignition switch - 15. Driver’s air bag - 16. Steering wheel adjusting lever - 17. Con-
trol plate: front fog lights/rear fog lights/headlight aiming device/reconfigurable multifunction display
F0M082Ab
fig. 2
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 6

7
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX DASHBOARD
AND CONTROLS
THE FIAT CODE SYSTEM
To further protect you car from theft, it
has been fitted with an engine immobilis-
ing system. This system is automatically ac-
tivated when the ignition key is removed.
An electronic device, in fact, is fitted in
each ignition key grip. The device trans-
mits a radio-frequency signal when the en-
gine is started through a special aerial built
into the ignition switch. The modulate sig-
nal, which changes each time the engine is
started, is the “password”, by means of
which the control unit recognises the key
and enables to start the engine.
SYMBOLS
Special coloured labels have been attached
near or actually on some of the compo-
nents of your Grande Punto Abarth.
These labels bear symbols that remind you
of the precautions to be taken as regards
that particular component.
fig. 3 F0M070Ab
The plate summarising the symbols used
can be found under the bonnet fig. 3.
OPERATION
Each time the car is started turning the ig-
nition key to MAR, the Fiat CODE sys-
tem control unit sends a recognition code
to the engine control unit to deactivate
the inhibitor.
The code is sent only if the Fiat CODE
system control unit has recognised the
code transmitted from the key.
Each time the ignition key is turned to
STOP, the Fiat CODE system deactivates
the functions of the engine electronic con-
trol unit.
If, at start, the code is not correctly rec-
ognized, the
Y
sign will be displayed (see
section “Warning Lights and Messages”).
If the code has not been recognised cor-
rectly, the warning light
Y
turns on (see
section “Warning lights and messages”).
In this case, the key should be moved to
the STOP position and then back to
MAR; if the lock continues, possibly try
again with the other key provided with the
car. If it is still not possible to start the car,
contact Abarth Dealership.
IMPORTANT Every key has its own code,
which must be memorised by the system
control unit. To memorise new keys, up
to a maximum of eight, apply to Abarth
Dealership.
Warning light
Y
coming on when driving
❒
If the
Y
sign is displayed, it means that
the system is automatically carrying out
the diagnosis cycle owing, for example,
to voltage drop).
❒
If the
Y
sign continues to be dis-
played, call the Abarth Service Network
and ask for assistance.
The electronic components
inside the key may be dam-
aged if the key is submitted to
sharp knocks.
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 7

8
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
To extract the metal insert, press button
B.
To refit it proceed as follows:
❒
keep button Bpressed and move the
metal insert A;
❒
release button Band turn the metal in-
sert Auntil hearing the proper lock-
ing click.
THE KEYS
CODE CARD fig. 4
(for versions/markets,
where provided)
The car is delivered with two copies of the
ignition key and with the CODE card
which bears the following:
Athe electronic code;
Bthe mechanical key code to be given
to the Abarth Dealership when or-
dering duplicate keys.
Make sure you have the electronic code
A-fig. 4 with you at all times.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never
be exposed to direct sunlight.
All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
fig. 4 F0M0006m fig. 5
A
B
F0M098Ab
KEY WITH REMOTE CONTROL
fig. 5
The metal insert Ais retractable and it op-
erates:
❒
the ignition switch;
❒
the door locks.
❒
fuel cap opening/closing (for versions/
markets, where provided).
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 8

9
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX DASHBOARD
AND CONTROLS
Button
Ë
shall be used for opening the
doors and the tailgate.
Button
Á
shall be used for closing the
doors and the tailgate.
Button
R
shall be used for remote
opening of the tailgate.
When unlocking the doors, the passen-
ger’s compartment lights will come on for
a preset time.
Button B should only be
pressed when the key is
away from the body, in particular
from the eyes and from objects that
can be spoilt (e.g. clothes). Make sure
the key can never be touched by oth-
ers, especially children, who may in-
advertently press the button.
WARNING

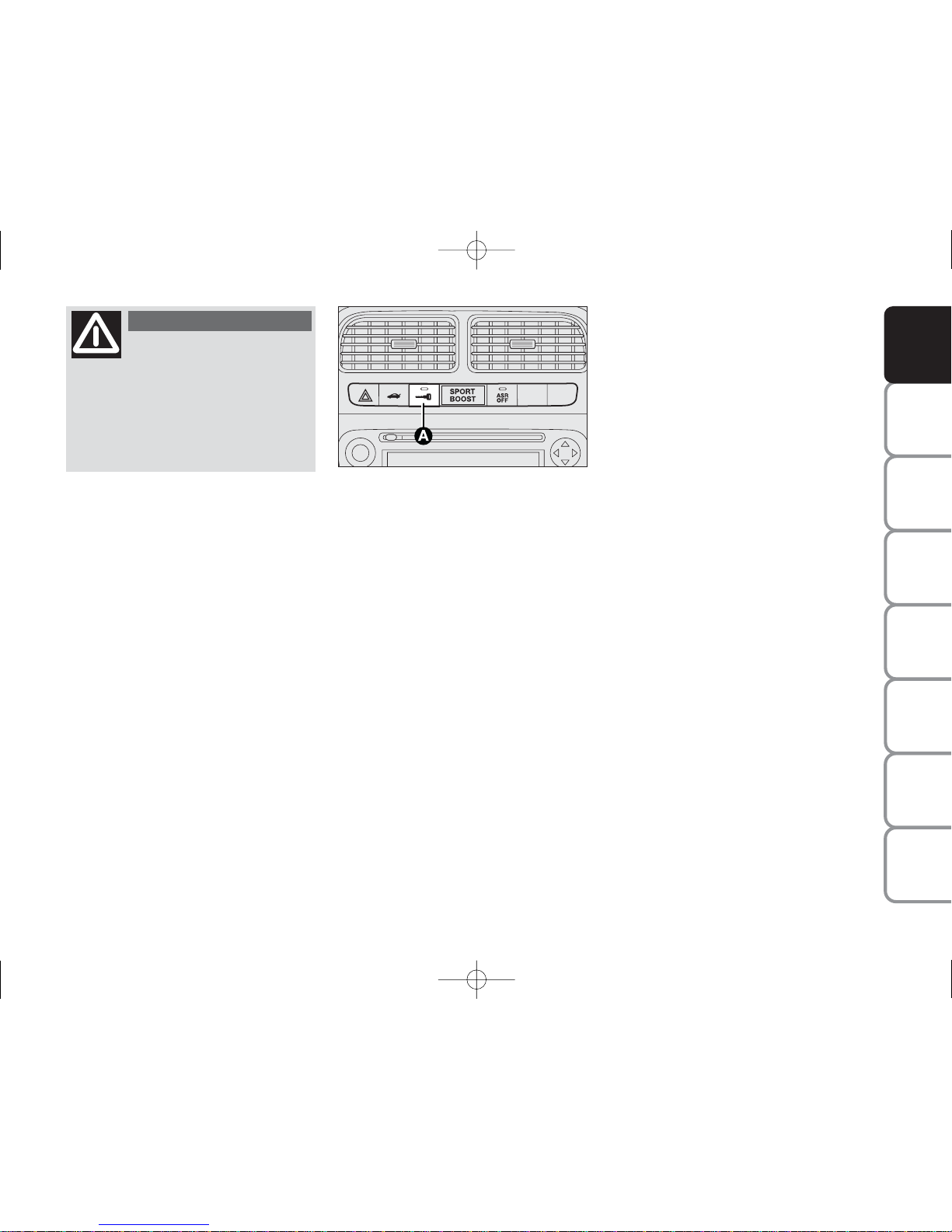

Dashboard led indications
When locking the doors, led A-fig. 6
switches on for about 3 seconds and than
starts flashing (deterrence function).
Once doors are locked, if one or more
doors or the tailgate are not closed cor-
rectly, the led and direction indicators
start flashing quickly.
fig. 6 F0M076Ab
Request for additional remote
controls
The system can recognise up to 8 keys
with incorporated remote control. Should
a new key with remote control be nec-
essary, contact a Abarth Dealership, tak-
ing with you the CODE card, a personal
identity document and the car’s owner-
ship documents.
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 9

10
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Replacing the battery of the key
with remote control fig. 7
Battery replacement:
❒
press button Aand open the metal in-
sert B;
❒
turn the screw Cto
:
using a fine bit
screwdriver;
❒
take out the battery case Dand replace
the battery Emaking sure that the bias
is correct;
❒
refit the battery case Dinside the key
and lock it turning the screw Cto
Á
.
Used batteries are harmful to
the environment. They should
be disposed of as specified by
law in the special containers
provided, or take them to a Abarth
Dealership, which will deal with their
disposal.
fig. 8 F0M071Ab
fig. 7 F0M097Ab
KEY WITHOUT REMOTE
CONTROL fig. 8
The metal insert of the key Ais fixed.
The key operates:
❒
the ignition switch;
❒
the door locks;
❒
fuel cap opening/closing (for versions/
markets, where provided).
REPLACEMENT OF REMOTE
CONTROL COVER fig. 7/a
To replace the remote control cover, fol-
low the procedure shown in figure.
fig. 7/a F0M100Ab
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 10

11
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX DASHBOARD
AND CONTROLS
ALARM
The car alarm system is available at Lineaccessori Abarth.
The main functions that can be activated with the keys (with or without remote control) are the following:
Type
Key without remote control
Key with remote control
Direction indicators flashing
(only with key with
remote control)
Door opening
Key turning
counterclockwise
(driver side)
Key turning
counterclockwise
(driver side)
Press briefly
button
Ë
2 flashings
Turning off
Door closing
form the
outside
Key turning
clockwise
(driver side)
Key turning
clockwise
(driver side)
Brief press on
button Á
1 flashing
Turning on
glowing steadily
for about 3
seconds followed
by deterrence
led flashing
Dead lock
activation
()
–
–
Double pressing
on button Á
3 flashings
Double flashing,
followed by de-
terrence
led flashing
Tailgate
opening
–
–
Pressing on
button R
2 flashings
Deterrence led
flashing
IMPORTANT Window opening operation is a consequence of a door unlocking control; window closing operation is a consequence
of a door locking control.
() for versions/markets, where provided
Window closing
()
–
–
Long press
(for over 2 seconds)
on button
Á
1 flashings
Deterrence led
flashing
Window openin
()
–
–
Long press
(for over 2 seconds)
on button
Ë
2 flashings
Turning off
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 11

12
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IGNITION DEVICE
The key can be turned to 3 different po-
sitions fig. 9:
❒
STOP: engine off, key can be removed,
steering column locked. Certain elec-
trical devices (e.g.: sound system, pow-
er windows…) can work.
❒
MAR: driving position. All electrical de-
vices are powered.
❒
AVV: engine starting (unstable posi-
tion).
The ignition switch is fitted with an elec-
tronic safety system that, in the event the
engine is not started, turns back the igni-
tion key to STOP before repeating the
starting operation.
STEERING COLUMN LOCK
Engaging
When the key is at STOP, remove the
key and turn the steering wheel until it
locks.
Disengaging
Rock the steering wheel slightly as you
turn the ignition key to MAR.
If the ignition device is tam-
pered with (e.g.: attempted
theft), have it checked over by
a Abarth Dealership as soon as pos-
sible.
WARNING
When getting out of the car,
always remove the key to
prevent any occupants from acci-
dentally activating the controls. Re-
member to engage the handbrake
and if the car is parked on uphill slope
to engage the first gear. If the car is
facing downhill, engage the reverse
gear. Never leave unsupervised chil-
dren in the car.
WARNING
fig. 9 F0M0015m
Never remove the ignition
key while the car is moving.
The steering wheel would automati-
cally lock as soon as you try to turn
it. This also applies when the car is
being towed.
WARNING
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the car with homolo-
gation requirements.
WARNING
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 12

13
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX DASHBOARD
AND CONTROLS
INSTRUMENT PANEL
LEFT HAND DRIVE VERSION
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EReconfigurable multifunction display
F0M049Ab
fig. 10
RIGHT HAND DRIVE VERSION
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EReconfigurable multifunction display
F0M072Ab
fig. 10
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 13

14
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
INSTRUMENTS
Instrument background color and type
may vary according to the version.
SPEEDOMETER fig. 12
It shows the engine speed.
REV. COUNTER fig. 13
Rev counter shows engine rpm.
IMPORTANT The electronic injection
control system gradually shuts off the flow
of fuel when the engine is “over-revving”
resulting in a gradual loss of engine pow-
er.
When the engine is idling, the rev counter
may indicate a gradual or sudden higher-
ing of the speed.
This is normal as it takes place during nor-
mal operation, for example when activat-
ing the climate control system or the fan.
In particular a slow change in the speed
preserves the battery charge.
fig. 12 F0M002Ab fig. 13 F0M003Ab
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 14

15
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX DASHBOARD
AND CONTROLS
FUEL LEVEL GAUGE fig. 14
This shows the amount of fuel left in the
fuel tank.
Etank empty
Ffull tank.
The reserve warning light Aturns on to
indicate that approximately 7 litres of fu-
el are left in the tank.
Do not travel with the fuel tank almost
empty: the gaps in fuel delivery could dam-
age the catalyst.
See the indications given in paragraph
“At the filling station”.
IMPORTANT The needle sets to Ewith
warning light Aflashing to indicate that the
system is failing. In this event contact
Abarth Dealership to have the system
checked.
ENGINE COOLANT
TEMPERATURE GAUGE fig. 15
This shows the temperature of the engine
coolant fluid and begins working when the
fluid temperature exceeds approx. 50°C.
Under normal conditions, the needle
should hover around the middle of the
scale according to the working conditions.
CLow engine coolant temperature
HHigh engine coolant temperature.
The turning on of the warning light B(with
a message on the reconfigurable multi-
function display) indicates that the coolant
fluid temperature is too high; in this case,
stop the engine and contact a Abarth
Dealership.
If the needle reaches the red
area, stop the engine imme-
diately and contact a Abarth
Dealership.
fig. 14 F0M004Ab fig. 15 F0M005Ab
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 15

16
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 18 F0R0019m
fig. 16 F0M2006g fig. 17 F0M050Ab
RECONFIGURABLE
MULTIFUNCTION
DISPLAY
The car may be equipped with reconfig-
urable a multifunctional display that, ac-
cording to the settings made, will show
useful driving information.
“STANDARD” SCREEN fig. 16
The standard screen shows the following
information:
ATime
BDate
DOdometer (distance travelled in kilo-
metres/miles)
ECar conditions (e.g. doors open, ice on
road, etc.)
FHeadlight aiming position (with dipped
beam headlights on only)
GOutside temperature
Rotating the starter’s key into MAR po-
sition, the main page will be displayed al-
so showing the date fig. 16 or the boost-
ing pressure of the turbocharger fig. 17
depending on the set-up selected from the
menu, caption “Homepage” (“Date” of
“Engine Info”).
CONTROL BUTTONS fig. 18
+To scroll the displayed menu and the
related options upwards or to in-
crease the displayed value.
MENU Press briefly to access the menu
ESC and/or go to next screen or to
confirm the required menu op-
tion.
Long press to go back to the
standard screen.
–To scroll the displayed menu and the
related options downwards or to de-
crease the value displayed.
Note Buttons +and –activate different
functions according to the following situ-
ations:
– to scroll the menu options upwards and
downwards;
– to increase or decrease values during
settings.
Note When opening one of the front
doors, the display will turn on and show
for a few seconds the clock and the km or
mi covered.
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 16

17
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX DASHBOARD
AND CONTROLS
SETUP MENU fig. 19
The menu comprises a series of functions
arranged in a “circular fashion” which can
be selected through buttons +and –to
access the different select operations and
settings (setup) given in the following para-
graphs. A submenu is provided for some
items (Clock and Unit setting).
The setup menu can be activated by press-
ing briefly button MENU ESC.
Single presses on buttons +or –will scroll
the setup menu options. Management
modes differ with each other according to
the characteristic of the option selected.
Selecting an option of the main menu
without submenu:
– press briefly button MENU ESC to se-
lect the main menu option to set;
– press buttons +or –(by single press-
es) to select the new setting;
– press briefly button MENU ESC to
store the new setting and to go back to
the main menu option previously select-
ed.
Selecting an option of the main menu with
submenu:
– press briefly button MENU ESC to dis-
play the first submenu option;
– press buttons +or –(by single press-
es) to scroll all the submenu options;
– press briefly button MENU ESC to se-
lect the displayed submenu option and to
open the relevant setup menu;
– press buttons +or –(by single press-
es) to select the new setting for this sub-
menu option;
– press briefly button MENU ESC to
store the new setting and to go back to
the previously selected submenu option.
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 17

18
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Example:
Türkçe Nederlands
Español
Português
Français
Polski
Italiano
Deutsch
BELT BUZZER
SET TIME
SEE RADIO
AUTOCLOSE
UNIT
LANGUAGE
BUZZER VOL.
BUTTON VOL.
MEMU ESC
briefly press
fig. 19
SERVICE
F0R2007g
TRIP B DATA
SPEED BEEP
EXIT MENU
PASSENGER BAG
English
On the standard screen, briefly press MENU ESC to start brows-
ing. Press +or –to browse within the menu. Note Only the short
menu may be accessed for reasons of safety while the car is moving
(“Brightness” and “Speed Beep”).
MENU ESC
briefly press
Year Mouth
Day
FIRST PAGE
RAIN SENSOR
(for versions/markets,
where provided)
SET DATA
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 18

19
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX DASHBOARD
AND CONTROLS
Note The speed may be set in the range
from 30 to 200 km/h, or from 20 to 125
mph according to the previously chosen
unit (see “Setting the distance unit”) de-
scribed below. The setting will in-
crease/decrease by five units each time
button +/–is pressed. Hold button +/–
pressed to increase/decrease the setting
rapidly. Complete the setting by briefly
pressing the button when you approach
the required setting.
– briefly press button MENU ESC to go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
To cancel the setting, proceed as follows:
– briefly press button MENU ESC: (On)
will blink on the display;
– press button –: (Off) will flash on the dis-
play;
– briefly press button MENU ESC to go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
Speed beep (Speed limit)
This function is used to set the car speed
limit (km/h or mph); when this limit is ex-
ceeded the driver is immediately alerted
(see section “Warning lights and mes-
sages”).
To set the speed limit, proceed as follows:
– briefly press button MENU ESC, the
display will show the wording (Speed
Buzz);
– press button +or –to select speed lim-
it activation (On) or deactivation (Off);
– if the function has been activated (On),
press buttons +or –to select the re-
quired speed limit and then press MENU
ESC to confirm;
001-027 Abarth GB:001-027 Abarth GB 22-09-2009 13:32 Pagina 19
Table of contents
Other Abarth Automobile manuals

Abarth
Abarth 595 User manual

Abarth
Abarth 500C User manual

Abarth
Abarth 595 User guide

Abarth
Abarth 124 SPIDER User manual

Abarth
Abarth Punto User guide

Abarth
Abarth 595 User manual

Abarth
Abarth Abarth Punto Evo User guide

Abarth
Abarth 2014 500 User manual

Abarth
Abarth 595 2015 Technical manual

Abarth
Abarth 124 SPIDER User guide
