How to Use this Manual
', !. -7
': ,
Using Your 1993 Chevrolet
Owner's Manual
Many people read their owner's manual
from beginning to end when they first
receive their new vehicle. This will help
you learn aboutthe features and
controls for your vehicle.In this
manual, you'll findthat pictures and
words work togethertoexplain things
quickly.
There are nine parts with color-tabbed
pages in this manual. Each part begins
with abrief list of contents,
so you can
usually tellat a glance
if that part
contains the information you want.
You can bendthe manual slightlyto
reveal the color tabsthat help you find a
part.
6
Part 1: Seatsand Safety Belts
This part tellsyou howtouse your seats
and safety belts properly.
Part 2: Features & Controls
This part explains howto start and
operate your Chevrolet.
Part 3: Comfort Controls & Audio
Systems
This part tells you how to adjust the
ventilation and comfort controls and
how
to operate your audio system.
Part 4: Your Driving and the Road
Here you'll find helpful information and
tips aboutthe road and howto drive
under different conditions.
Part 5: Problems on the Road
This part tellsyou what to do if you
have a problem while driving, suchas a
flat tire or engine overheating.
Part 6: Service & Appearance Care
Here the manual tellsyou howto keep
your Chevrolet running properly and
looking good.
Part 7: Maintenance Schedule
This part tells you whento perform
vehicle maintenance and what fluids
and lubricantsto use.
Part 8: Customer Assistance
Information
This part tellsyou how to contact
Chevrolet for assistance and howto get
service publications. It alsogives you
information on
ReportingSafetyDefects.
Part 9: Index
Here's an alphabetical listingof almost
every subject inthis manual. You can
use it toquickly find something you
want to read.
Service Station Information
This is a quick referenceof service
information.You can findit on the last
page of this manual.

Safety Warnings and Symbols
You will finda number of safety
cautionsin thisbook.We use yellow
and theword CAUTION to tell you
about things that could hurt you if you
were to ignorethe warning.
These meanthereis
somethingthat could hurt
I you or other people. 1
In theyellow caution area, we^ tell you
what the hazard is.Thenwe tell you
what to do to help avoid or reducethe
hazard. Please read these cautions.
If
you don’t,you or otherscould behurt.
You will also finda red circlewith a
slashthrough it in thisbook. This safety
symbol means:
Don’t
Don’t do this
Don’t let this happen
Vehicle Damage Warnings
Also, in thisbook you will findthese
blue notices:
NATICF
I
In theblue notice area,we tell you
about something. that can damage your
vehicle. Many times,this damage would
not be covered by yourwarranty,and
it
could .be costly. Butthe notice will tell
you what to do to help avoidthe
damage.
When you readother manuals, you
might see
CAUTION and NOTICE
warnings in different colors or in
different words.In this manual, we’ve
used the familiar words and colorsthat
Chevrolet has used for years.
You’ll also see warning labels on your
vehicle. They usethe same colors, and
the words
CAUTION or NOTICE.

How to Use this Manual
Vehicle Symbols
These are some of the symbols you will
find onyour vehicle. For example,these
symbols
are used on anoriginal battery:
These symbolsare importantfor you
and your passengers whenever your
vehicle is driven:
These
symbols have to do with your
lights:
Caution Possible Injury
Protect
Eyes by Shielding
Caustic Battery Acid
Could Cause Burns
Avoid Sparks or Flames
Spark or Flame Could
Explode Battery
Fasten Safety Belts
Door Lock/Unlock
la
Turn Signal Direction
Hazard Warning Flashers
Headlight High Beam
Parking Lights
pf

These symbolsare on some of your
controls:
Windshield Wipers
Windshield Washer
Windshield Defroster
Rear Window Defogger
Ventilating Fan
Power Window
These symbolsare used onwarning and
indicator lights:
Engine Coolant
Temperature
'*Yi
Battery Charging
Q I
System
Engine Oil Pressure
3f
Brake
Anti-Lock Brakes
Here are some other symbols you may
see:
Fuse
Trunk Release
Lighter
Horn
Speaker
Hood Release

I

belts .
Here YOU’II find information about
the seats in your Chevrolet
and how
to use your safety belts properly .
You can also learn about some
things you should not do with safety
Part I
Seats & Safety Belts
Seats and Seat Controls
......................................................................................... 12
Safety Belts
............................................................................................................. 15
How toWear Saf6ty Belts Properly
...................................................................... 20
Driver Position
...................
................................................................................... 21
SafetyBelt UseDuring Pregnancy
....................................................................... 24
Right Front Passenger Position
............................................................................. 25
CenterPassenger Position
..................................................................................... 25
Rear Seat Passengers
............................................................................................. 26
Children ..................................................................................................................
29
Smaller Children and Babies
................................................................................. 29
Child Restraints
.................................................................................................... 30
Larger Children ...................................................................................................... 38
Safety BeltExtender
............................................................................................. 40
Replacing Safety Belts Aftera Crash ............
1 ....................................................... 41

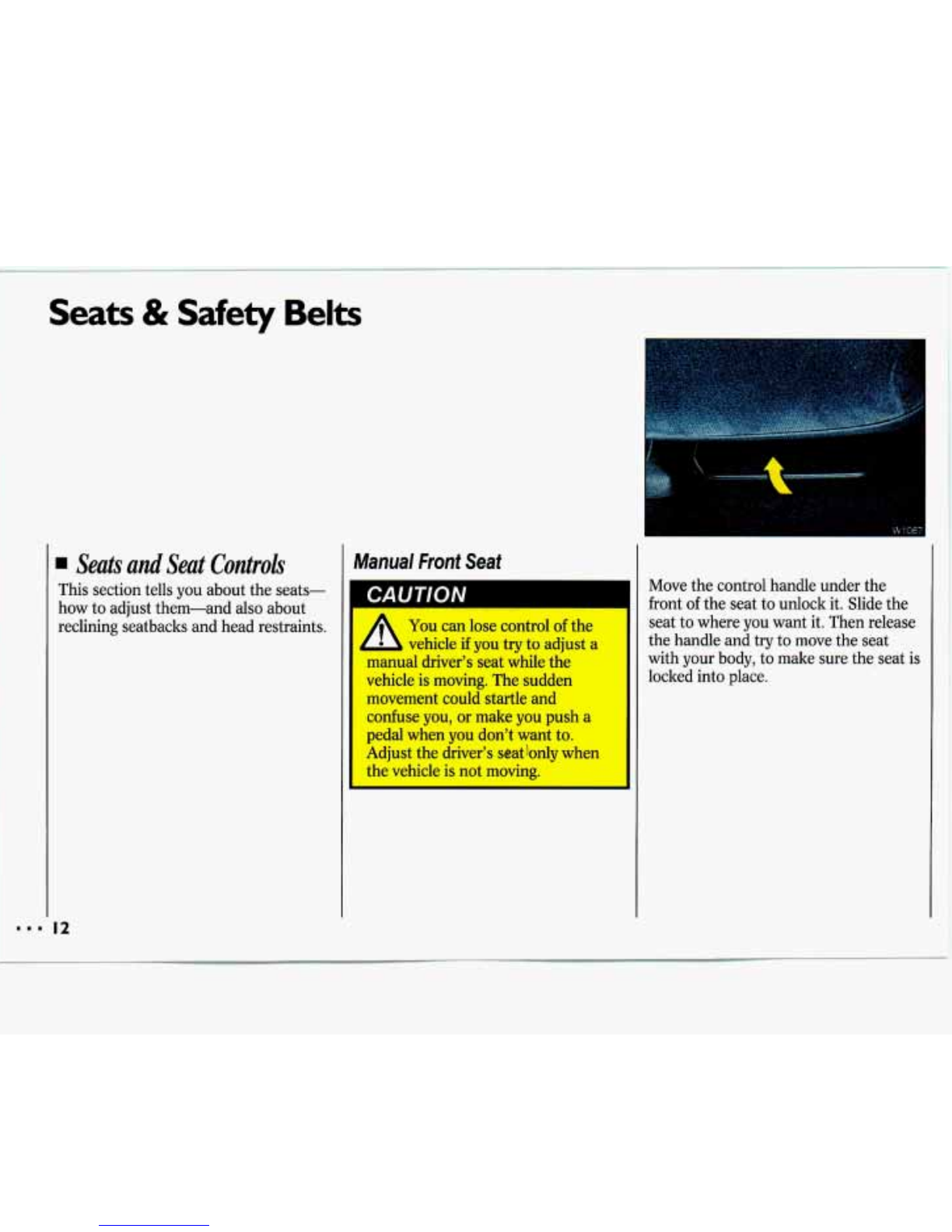

. Seats and Seat Controls
This section tells you aboutthe seats-
how to adjust them-and also about
reclining seatbacltsand head restraints.
Manual Front Seat
A You can lose control of the
vehicle
if you try to adjust a
manual driver's seat whilethe
vehicle is moving. The sudden
movement could startle and
confuse you, ormaleyou push a
pedal when youdon't wantto.
Adjust the driver's seat )only when
the vehicle
is not moving.
Move the control handle underthe
front
of the seat to unlock it. Slidethe
seat towhere you want it. Then release
the handle and
try to move the seat
with your body,to make sure the, seat is
locked into place.

Power Seat (opzronr)
To Adjust the Six-Way Power Seat:
Front Control
(A): Raise the front of
the seatby holding the switch up.
Hold the swit-ch down to lower the front
of the seat.
Center Control (B): Move the seat
forward or backby holdingthe control
to the front orback. Raise or lowerthe
seatby holding the control
up or down.
Rear Control (C) : Raise the rear of the
seatby holding the switchup. Hold the
switch downto lower the rear of the
seat.
Manual Four-Way Seat Adjuster
To tilt thewhole seat forward or
backward, squeezethe lever. Position
the seat where
you would like it, then
release the lever.
Reclining Front Seatbacks
(OPTION)
Lift the lever to releasethe seatback,
then tilt the seatbackforward or
backward, as desired. Releasethe lever
to lock the seatback
in place.
But don't have a seatback reclinedif
your vehicle is moving.

I
Seats & Safety Belts
A
. , .,.
2
Reclining Front Seatbacks (CONT.)
Sittingin a reclined position when your vehicle is in motion can be
dangerous. Evenif you buckle up, your safety belts can’t do their job
you’re reclined like this.
The shoulder belt can’t do its job becauseit won’t be against your body.
Instead, it will be in frontof you. In a crash you could go intoit, receiving neck
or other injuries.
The lap belt can’t
do itsjob either. In a crashthe belt could goup over your
abdomen. The belt forces would be there, notat your pelvic bones. This could
cause serious internal injuries.
’7
1
A
Head Restraints
Slide the head restraintup or down so
that the top of the restraint is closestto
the top
of your ears.
This position reducesthe chance
of a
neck injuryin a crash.
For proper protection whenthe vehicle isin motion, havethe seatbaclc uprij
:.
Then sitwell backin the seat and wear your safety belt properly.
-

Seatback Latches
In 2-door Chevrolets,the frontseat
folds forwardto let people getinto the
back seat.
Your seatback
will move backand forth
freely,unless you come to a sudden
stop. Then it will lock in place.
There’s onetime the seatbackmay not
fold without
some help from you. That’s
if your vehicle is parked facing downa
fairly steephill.
To folda seatback forward,push the
seatback towardthe rear as you liftthis
latch. Then the seatbackwill fold
forward. Thelatch must be down for
the seat to work properly.
I
. Safety BeS:
Ilzeyke For Everyone
This part of the manualtells you howto
use safety belts properly.It also tells
you somethingsyou should not do with
safety belts.

I
1.1 16
Safety Belts:
Zlwy’re For Everyone (Cont.)
This figure lightsup when you turn the
key to Run or Start when your safety
belt isn’t buckled,and you’ll hear a
tone, too. It’s the reminder tobuckle
up. In many statesand Canadian
provinces, the law saystowear safety
belts. Here’s why:
They work.
t
You never know if you’ll bein a crash.
If you
do have a crash,you don’t know
if it
will be a bad one.
A few crashesarevery mild. In them,
you won’t
get hurt even if you’renot
buckled up.And some crashes can be
so serious,like being hit bya train, that
even buckledup a person wouldn’t
survive. But most crashesare in
between. In many
of them, people who
buckle up can surviveand sometimes
walk away. Without belts they could be
badly hurt orkilled.
After
25 years of safety belts in vehicles,
the facts are clear. In
most crashes
buckling up does matter
. . . a lot!

Why Safety Belts Work
When you ride in or on anything, you
go as fast as it goes.
1. For example, if the bikeis going 10
mph (16 km/h), so is the child.
2. When the bike hits the block, it
stops. But the child keeps
going!
3. Take the simplest "car." Suppose
it's just a seat on wheels.

Seats & Safety Belts
5. Get it up to sped. Then stop the
G6ar.y' The rider doesn't stup.
8. or the safety bdtd
I
6. The person keeps going until
stopped by something- In a real
vehicle, it could be the
wind&". 0 0
