0 The 1997 Chevrolet Monte Carlo Owner’s Manual
1-1
2-1
3-1
4-1
5-1
6- 1
7-1
8-1
9-1
Seats and Restraint Systems
This section tells you how to use your seats and safety belts properly. It also explains the “air bag” system.
Features and Controls
This section explains how to start and operate your Chevrolet.
Comfort Controls and Audio Systems
This section tells you how to adjust the ventilation and comfort controls and how to operate your audio system.
Your Driving and the Road
Here you’ll find helpful information and tips about the road and how to drive under different conditions.
Problems on the Road
This section tells what todo if you have a problem while driving, such as a flat tire or overheated engine, etc.
Service and Appearance Care
Here the manual tells you how to keep your Chevrolet running properly and looking good.
Maintenance Schedule
This section tells you when to perform vehicle maintenance and what fluids and lubricants to use.
Customer Assistance Information
This section tells you how to contact Chevrolet for assistance and how to get service and owner publications.
It also gives
you information on “Reporting Safety Defects”on page 8-10.
Index
Here’s an alphabetical listing of almost every subject in this manual.You can use it to quickly find
something
you want to read.
i

GENERAL MOTORS, GM, the GM Emblem,
CHEVROLET, theCHEVROLET Emblem and the
name MONTECARLO areregistered trademarks
of
General MotorsCorporation.
This manual includes the latest information at thetime it
was printed.We reserve the right to makechanges in the
product after thattime without further notice. For
vehicles first sold inCanada, substitute the name
“General Motors
of Canada Limited” for Chevrolet
Motor Division whenever
it appears in this manual.
Please keep this manual in your Chevrolet,
so it will be
there if
you ever need it when you’reon the road. If you
sell the vehicle, pleaseleave this manual init so the new
owner can use it.
WE SUPPORT
VOLUNTARY TECHNICIAN
CERTIFICATION THROUGH
National Institute for
AUTOMOTIVE
SERVICE
EXCELLENCE
We support voluntary
technician certification.
For Canadian Owners Who Prefera
French Language Manual:
Aux proprictaires canadiens: Vous pouvez vous
procurer un exemplaire de ceguide en frangais chez
votre concessionaire
ou au:
DGN Marketing Services Ltd.
1500 Bonhill Rd.
Mississauga, Ontario
L5T 1C7
Litho in U.S.A. @CopyrightGeneral MotorsCorporation 1996
Part No. 10292307 B First Edition All Rights Reserved
ii
~. ~~
. . ..
_.

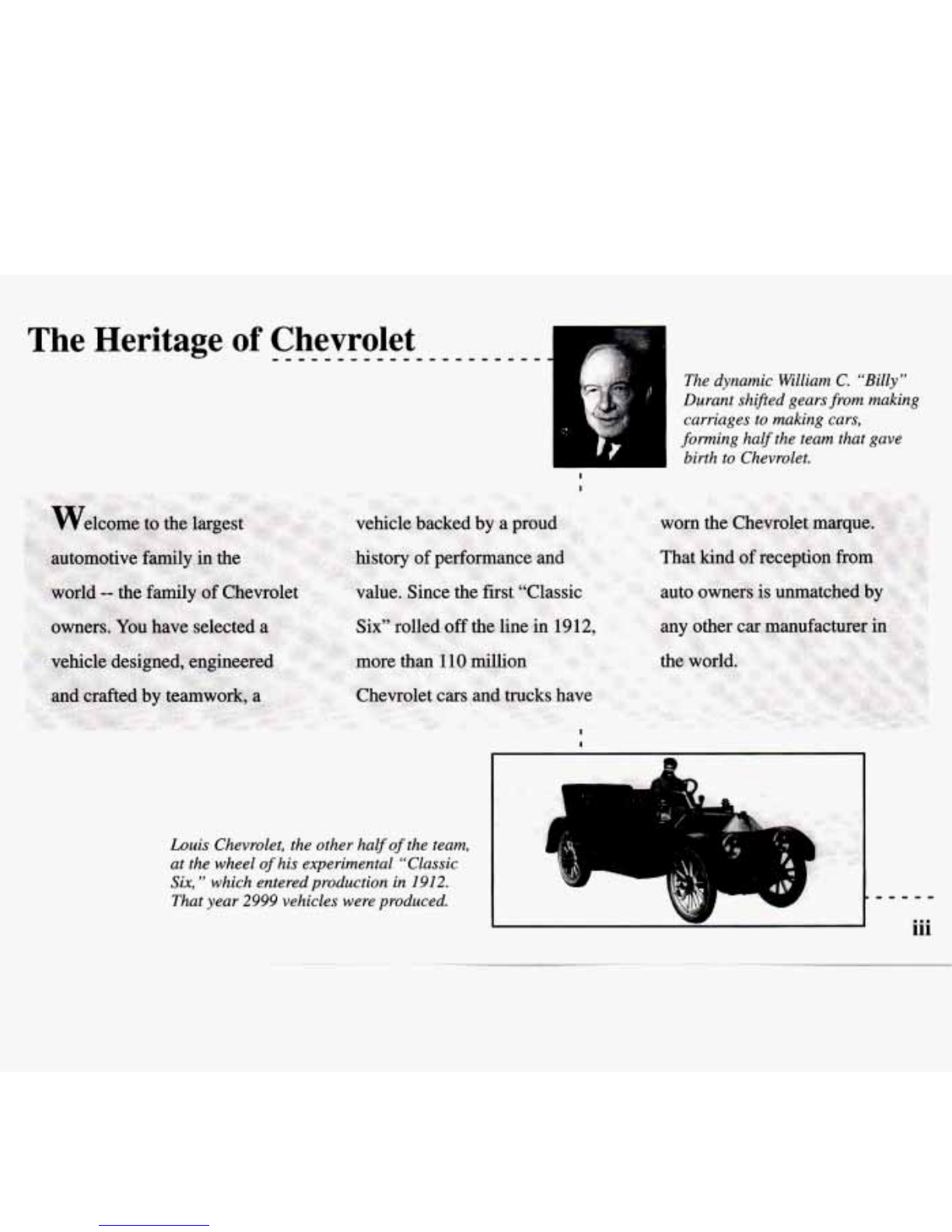

The Heritage of Chevrolet
_-____-_______-______
The dynamic William C. “Billy”
Durant shiftedgears frommaking
carriages to
making cars,
forming half the team that gave
birth to Chevrolet.
I
Louis Chevrolet,the other half of the team,
at the wheel
of his experimental “Classic
Six, ” which enteredproduction in I91 2.
That year 2999 vehicles were produced.
W

V

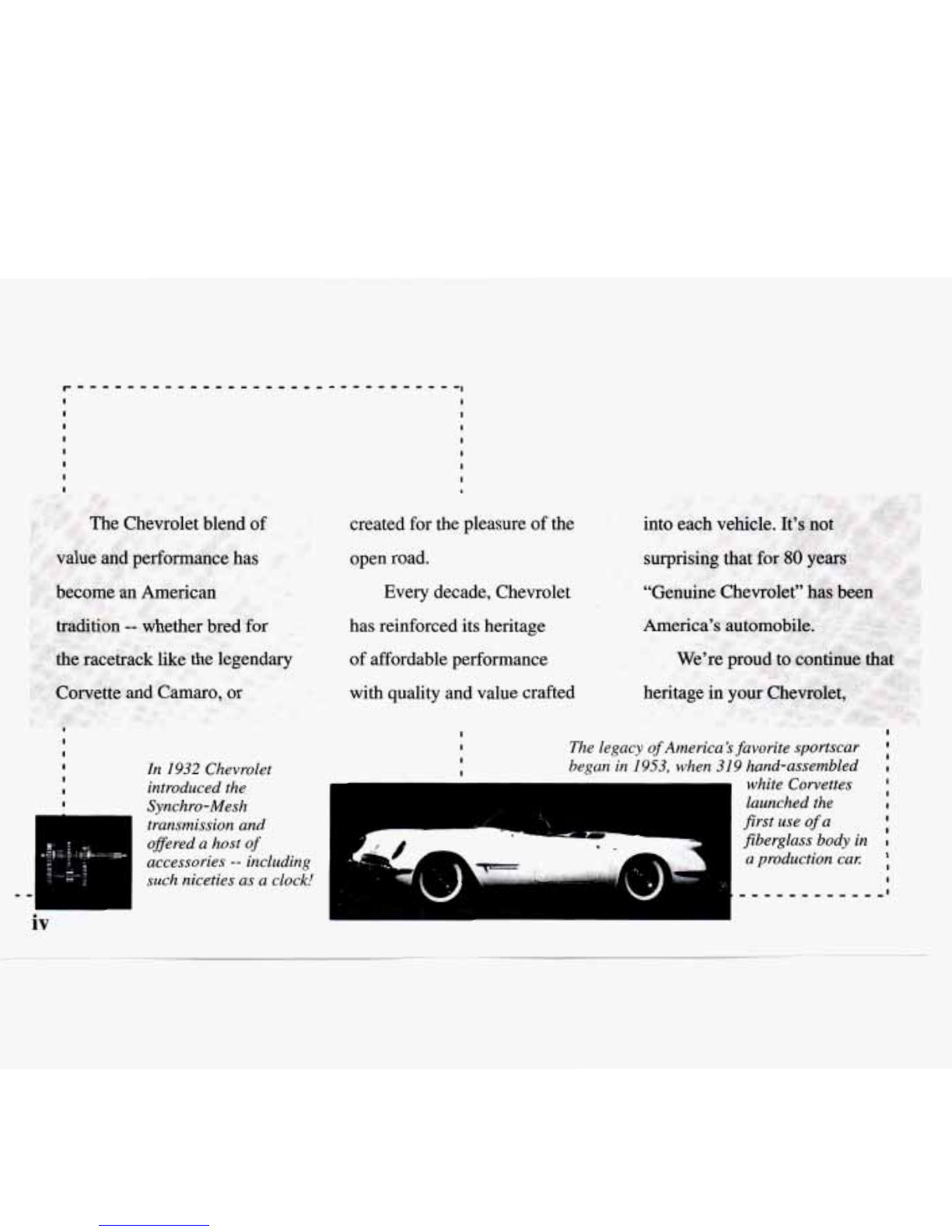

In 1932 Chevrolet
introduced the
Synchro-Mesh
transmissionand
oflereda host
of
accessories -- including
such nicetiesas a clock!
1
created for the pleasureofthe
open road.
Every decade, Chevrolet
has reinforced its heritage
of affordable performance
with quality and value crafted
I
I The legacy of America'sfavoritesportscar ;
I began in 1953, when 319 hand-assembled I
I
white Corvettes
launchedthe
I
first use of a I
jiberglassbody in I
aproduction ca1:
I
I
,,,,,,,,,,,,,I
1

and we are pledged to
make ownership of your
60s automotive excitement
included Chevrolet landmarks
like the Corvette Sting Ray,
the
sporty Camaro, and
powerplants like the
legendary
327 V8.
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I

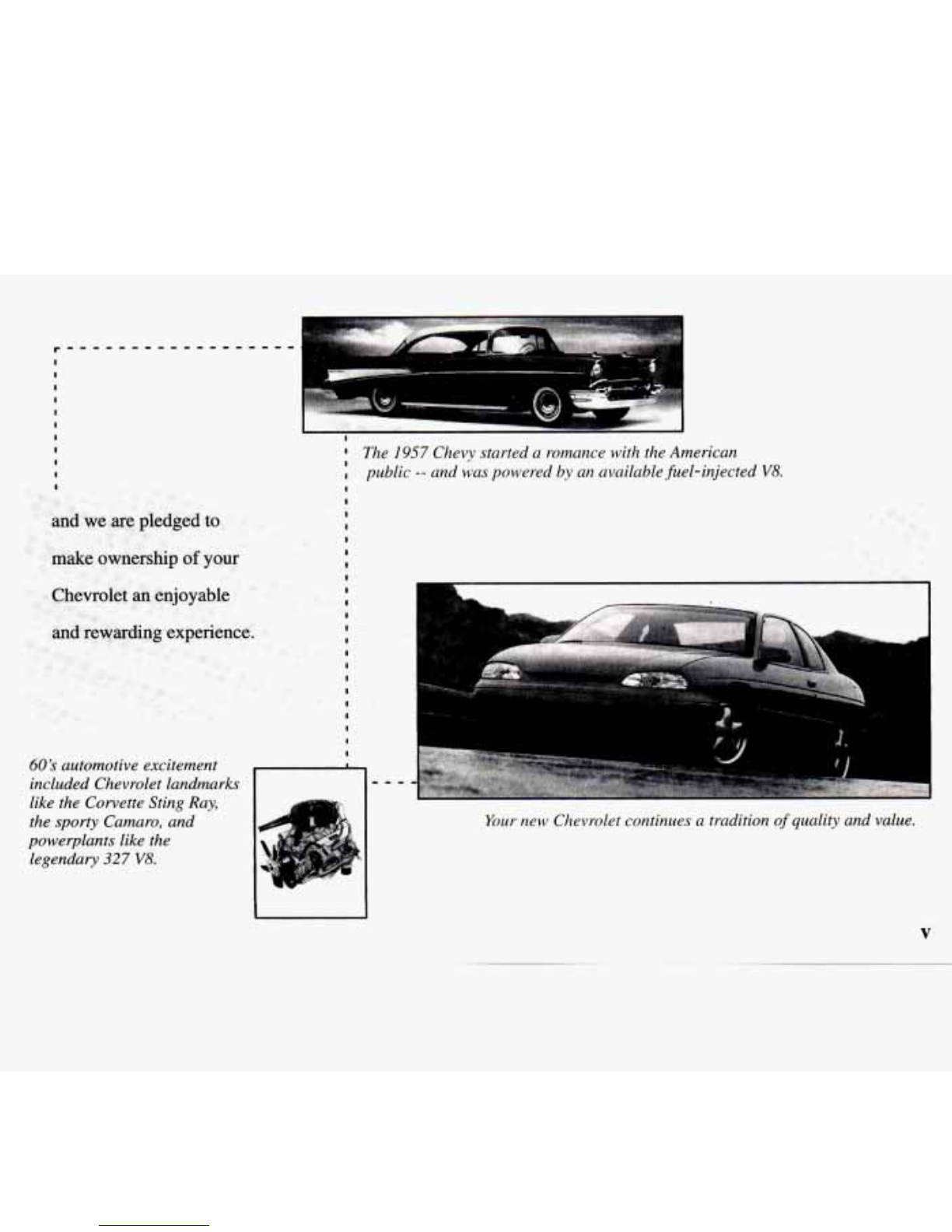

I The 1957 Chevy started a romance with theAmerican
; public -- and was powered byan available fuel-injected V8.
u
Yournew Chevrolet continues a tradition of quality and value.
V

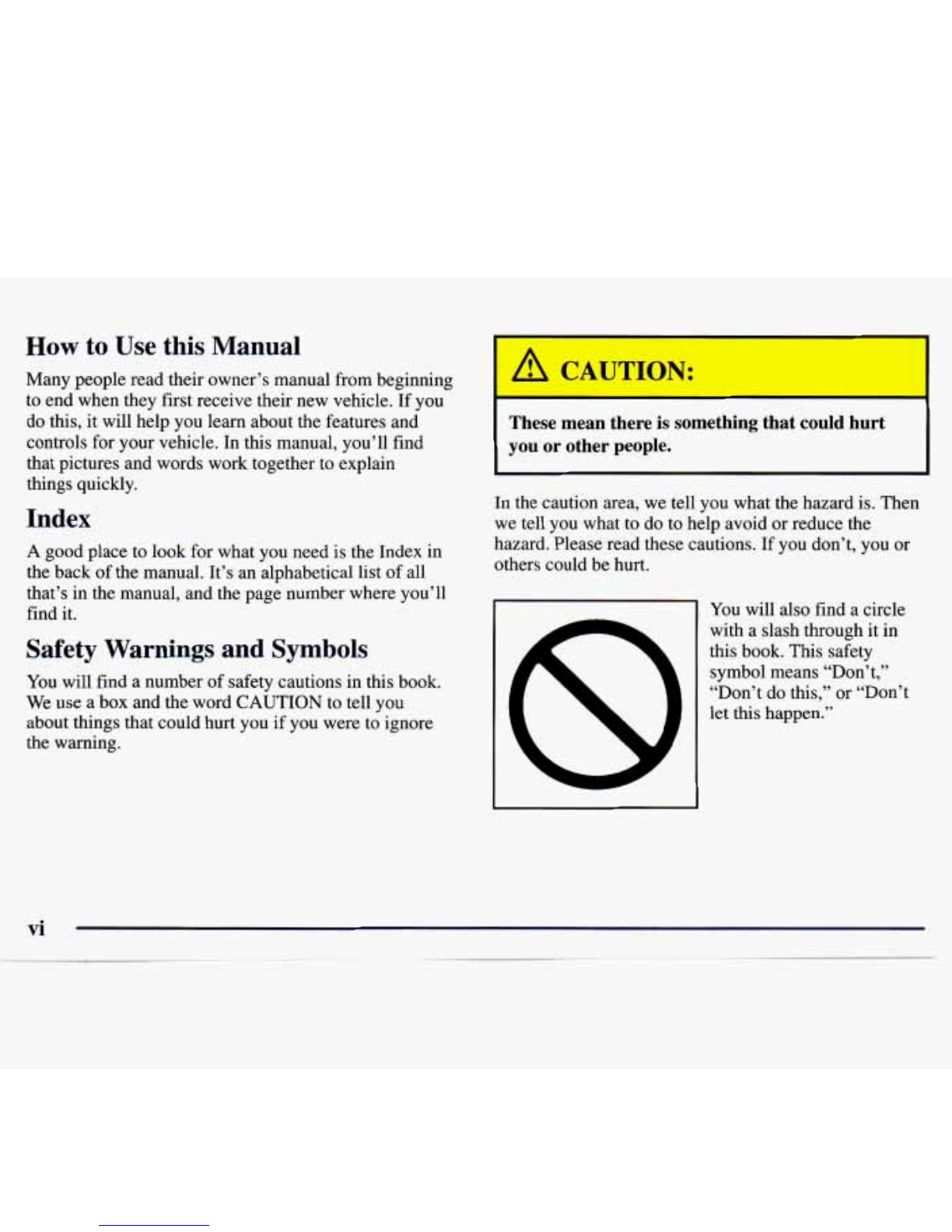

How to Use this Manual
Many people read their owner’s manual from beginning
to end when they first receivetheir new vehicle.
If you
do this, it will help you learn about thefeatures and
controls for your vehicle. In this manual, you’ll find
that pictures and words work together to explain
thingsquickly.
Index
A good place to look forwhat you need is the Indexin
the back of the manual. It’s an alphabeticallist of all
that’s inthe manual, and the pagenumber where you’ll
find it.
Safety Warnings and Symbols
You will find anumber of safety cautionsin this book.
We use a
box and the word CAUTION to tellyou
about thingsthat could hurt you if youwere to ignore
the warning.
A CAUTION:
These mean there is something that could hurt
you or other people.
In the caution area, we tell you what the hazard is. Then
we tell you what to do to help avoid or reduce the
hazard. Pleaseread these cautions.
If you don’t, you or
others could be hurt.
You will also find a circle
’ with a slash through it in
this book. This safety
symbol means “Don’t,”
“Don’t do this,” or “Don’t
let this happen.”
vi

Vehicle Damage Warnings
Also, in this book you will find thesenotices:
1 NOTICE:
These mean thereis something that could
damage
your vehicle.
In the noticearea, we tell you about somethingthat
can damageyour vehicle. Many times, this damage
would notbe coveredby your warranty, and it could
be costly. But the notice will tell
you what to do to help
avoid the damage.
When you readother manuals, you mightsee
CAUTIONand NOTICE warningsin different colors
or indifferentwords.
You’ll also seewarning labels on your vehicle. They use
the same words, CAUTION or NOTICE.

Vehicle Symbols
Theseare some of the symbols you may find on your vehicle.
These symbols
are important
for you and
your passengers
whenever your
vehicle is
driven:
These symbols
have
to do with
your lamps:
These symbols
are on some
of
your controls:
These symbols
are used on
warning and
indicator lights:
Here
are some
other symbols
you may see:
I
For example,
' these symbols
are used
on an
original battery:
WINDSHIELD
WIPER
POSSIBLE
A
CAUTION
INJURY FUSE
COOLANT
TEMP
-
PROTECT
EYES BY
SHIELDING
Q
SIGNALS e e
TURN
DOOR LOCK
UNLOCK LIGHTER
CHARGING
1-1
BATTERY
SYSTEM
CAUSTIC HORN
)cr
WINDSHIELD
DEFROSTER BRAKE
(0)
FASTEN
SEAT
BELTS
BURNS
SPEAKER
b
COOLANT
a
AVOID
SPARKS
OR
FLAMES
I
WINDOW
DEFOGGER
RUNNING
' 0
DAYTIME -
LAMPS * '
POWER
WINDOW ENGINE OIL
e,
PRESSURE FUEL
B
SPARK OR ,\I/,
COULD
FLAME
EXPLODE
BA'ITERY FOG LAMPS
# 0
VENTILATING
FAN ANTI-LOCK
(@)
BRAKES

Supplement to the 1997 Chevrolet Lumina and Monte Carlo Owner’s Manuals
Thisis a correction to information found on page 2-34and 2-35 (Lumina)andpage 2-34 (Monte Carlo).
Daytime Running Lamps / Automatic
Headlamp Control
Daytime Running Lamps (DRL) can make it easier
for others to
see the front of your vehicle during the
day. DRL canbe helpful in
many different dnving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset.
A light sensor on top of the instrument panel makes
the DRL work,
so be sure it isn’t covered.
The DRL system will make your high-beam headlamps
come on ata reduced brightness when:
Theignition is on,
The headlamp switch is off and
Theparking brake is released.
97LUMWCARL0001
When the DRL
are on, only your reduced intensity
high-beam headlamps will beon. The taillamps,
sidemarker and other lamps won’t be on.Your
instrument panel won’t be
lit up either.
When it’sdark enough outside, your DRL will turn off
and your low-beam headlamps will turn on. The other
lamps that come on with your headlamps will also
come on.
When it’s bright enough outside, the low-beam
headlamps will go outand DRL turns on your
high-beam headlamps at reduced intensity.
To idle your vehicle with the DRL off, set the parking
brake while the ignition is in
OFF or LOCK. Then start
your vehicle. The DRL willstay off until yourelease
the parking brake.
As with anyvehicle, you should turn onthe regular
headlamp system when you needit.
1

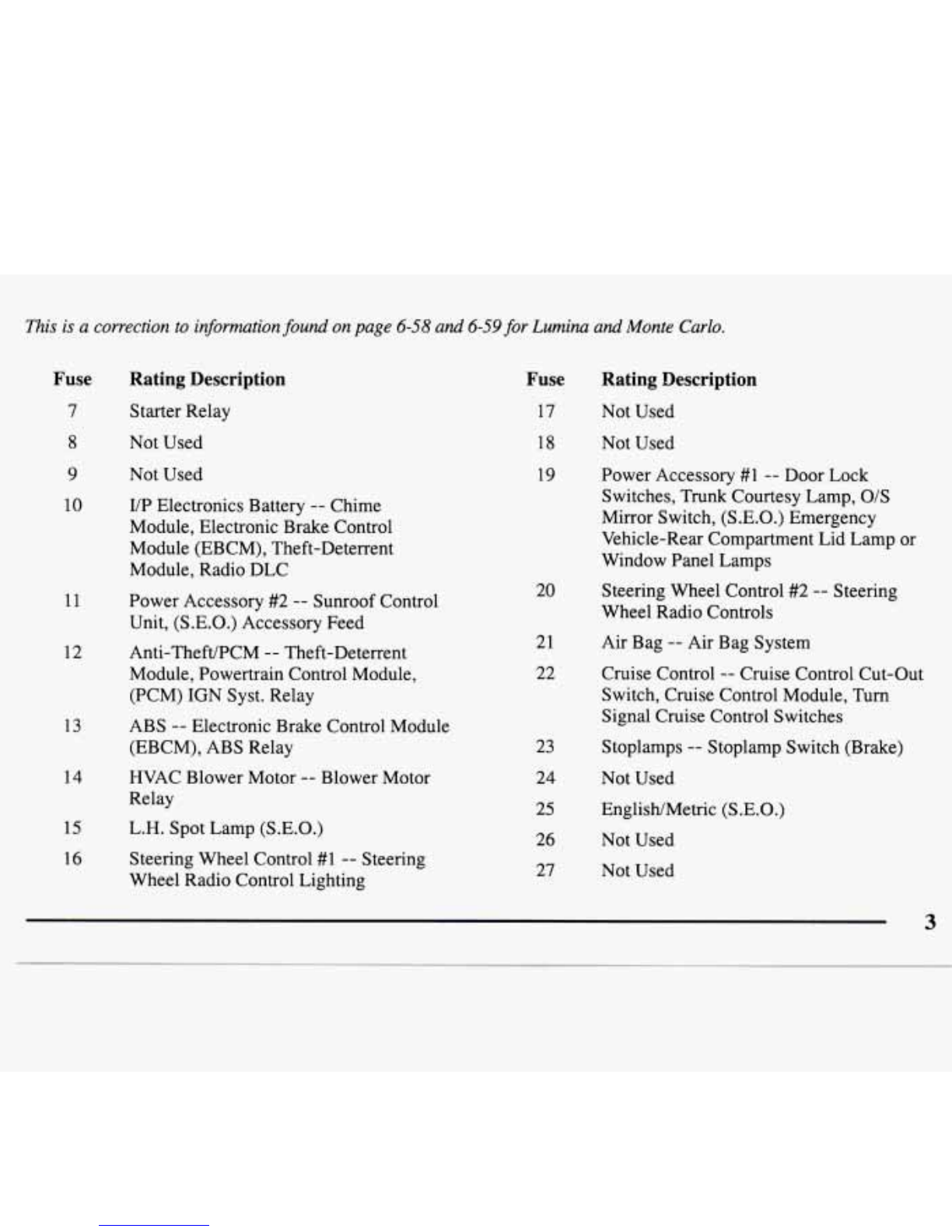

This is a correction to informationfound onpage 6-58 and 6-59 for Lumina and Monte Carlo.
Instrument Panel Fuse Block
B
Not Used
Circuit
BreakerDescription
C Power Windows
D Power Seats
E
Not Used
FuseRatingDescription
1
5
6
Cigar Lighter-- Instrument Panel and
Console Cigar Lighters
Not Used
Not Used
HVAC
-- HVAC ControlAssembly
Solenoid Box, Mix Motor, DRL Module,
HVAC Control Head, Defogger Relay,
(S.E.O.) Digital Speedometer
nazard Flasher
R.H. Spot Lamp
(S.E.O.)
A Not Used
2

This is a correction to informationfound on page 6-58 and 6-59 for Lumina and Monte Carlo.
Fuse
7
8
9
10
11
12
13
14
15
16
Rating Description
Starter Relay
Not Used
Not Used
VP Electronics Battery -- Chime
Module, Electronic Brake Control
Module (EBCM),Theft-Deterrent
Module, Radio DLC
Power Accessory #2
-- Sunroof Control
Unit,
(S.E.O.) Accessory Feed
Anti-Theft/PCM
-- Theft-Deterrent
Module, Powertrain Control Module,
(PCM)
IGN Syst. Relay
ABS
-- Electronic Brake Control Module
(EBCM), ABS Relay
HVAC Blower Motor
-- Blower Motor
Relay
L.H. Spot Lamp
(S.E.O.)
Steering WheelControl #1 -- Steering
Wheel RadioControl Lighting
FuseRatingDescription
17
18
19
20
21
22
23
24
25
26
27
Not Used
Not Used
Power Accessory
#1 -- Door Lock
Switches, Trunk Courtesy Lamp,
O/S
Mirror Switch, (S.E.O.) Emergency
Vehicle-Rear Compartment Lid Lamp or
Window Panel Lamps
Steering Wheel Control
#2 -- Steering
Wheel Radio Controls
Air Bag
-- Air Bag System
Cruise Control
-- Cruise Control Cut-Out
Switch, Cruise Control Module, Turn
Signal Cruise Control Switches
Stoplamps
-- Stoplamp Switch (Brake)
Not Used
EnglisWMetric
(S.E.O.)
Not Used
Not Used
3

fiis is a correction to information found on page 6-58and 6-59 for Lumina and Monte Carlo.
FuseRatingDescription
28
29
30
31
32
33
34
35
36
37
CTSY Lamps -- Vanity Mirrors, VP
CompartmentLamp,
US Lighted
Rearview Mirror, Dome Lamp
Wiper
-- Wiper Switch
Turn Signal -- Turn SignalFlasher
Not Used
Power Locks
-- Door Lock Relay,
Remote Keyless Entry Receiver
DRL
MDL -- Daytime Running Lamp
Module, (S.E.O.) Accessory Switch
Not Used
Not Used
Not Used
Rear Defog
-- Rear Window Defogger
SwitchRelay
Fuse
38
39
40
41
42
43
44
Rating Description
Radio -- Radio, Power Drop
UP Electronics Ignition Feed
--
Headlamp Switch,Instrument Cluster,
Chime Module, Keyless Entry Receiver,
Stoplampswitch (TCC and BTSI)
(S.E.O.) Accessory Switch
Not Used
Power Drop
Evap. Sol.
-- Evaporation Emissions
(EVAP) CanisterVent Solenoid Valve
Not Used
Not Used
45 NotUsed
4

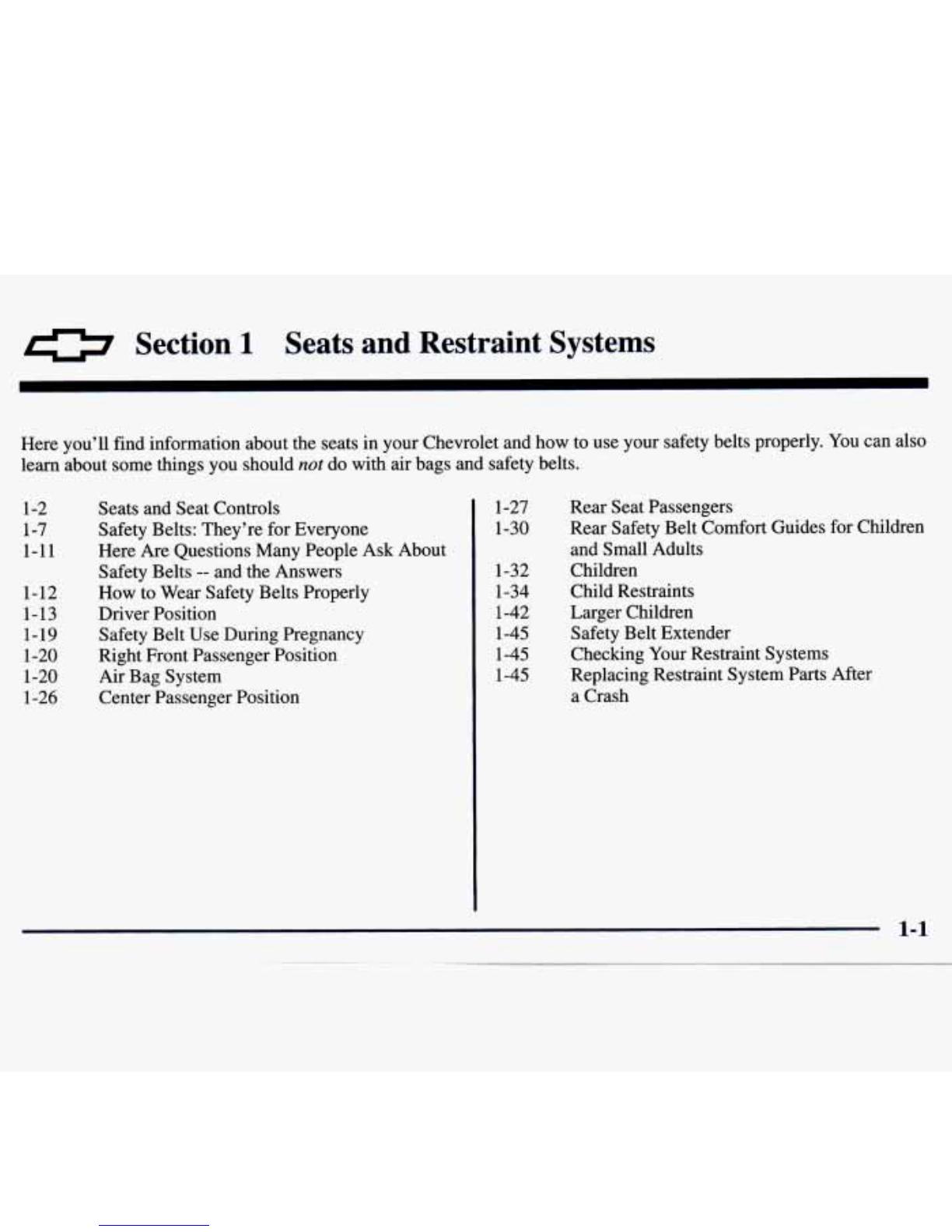

Section 1
Seats and Restraint Systems
Here you’ll find information about the seats in yourChevroletand how to use your safety belts properly. You can also
learn about some things you should
not do with air bags and safetybelts.
1-2
1-7
1-11
1-12
1-13
1-19
1-20
1-20
1-26
Seats and Seat Controls
Safety Belts: They’re for Everyone
Here Are QuestionsMany People Ask About
Safety Belts
-- and the Answers
How to Wear Safety Belts Properly
Driver Position
Safety Belt Use During Pregnancy
Right Front PassengerPosition
Air Bag System
Center PassengerPosition
1-27
1-30
1-32
1-34
1-42
1-45
1-45
1-45
Rear Seat Passengers
Rear Safety Belt Comfort Guides for Children
and SmallAdults
Children
Child Restraints
Larger Children
Safety Belt Extender
Checking
Your Restraint Systems
Replacing Restraint System Parts After
a Crash

Seats and Seat Controls
This section tells you how toadjust the seats and
explainsreclining seatbacks, foldingrear seats and
head restraints.
2-Way Manual Front Seat
I
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don’t want to. Adjust the driver’s seat only when
the vehicle is not moving.
Lift the bar underthe front of the seat to unlockit. Slide
the seat to where you want itand release the
bar. Try to
move the seat with your body to besure the seat is
locked into place.

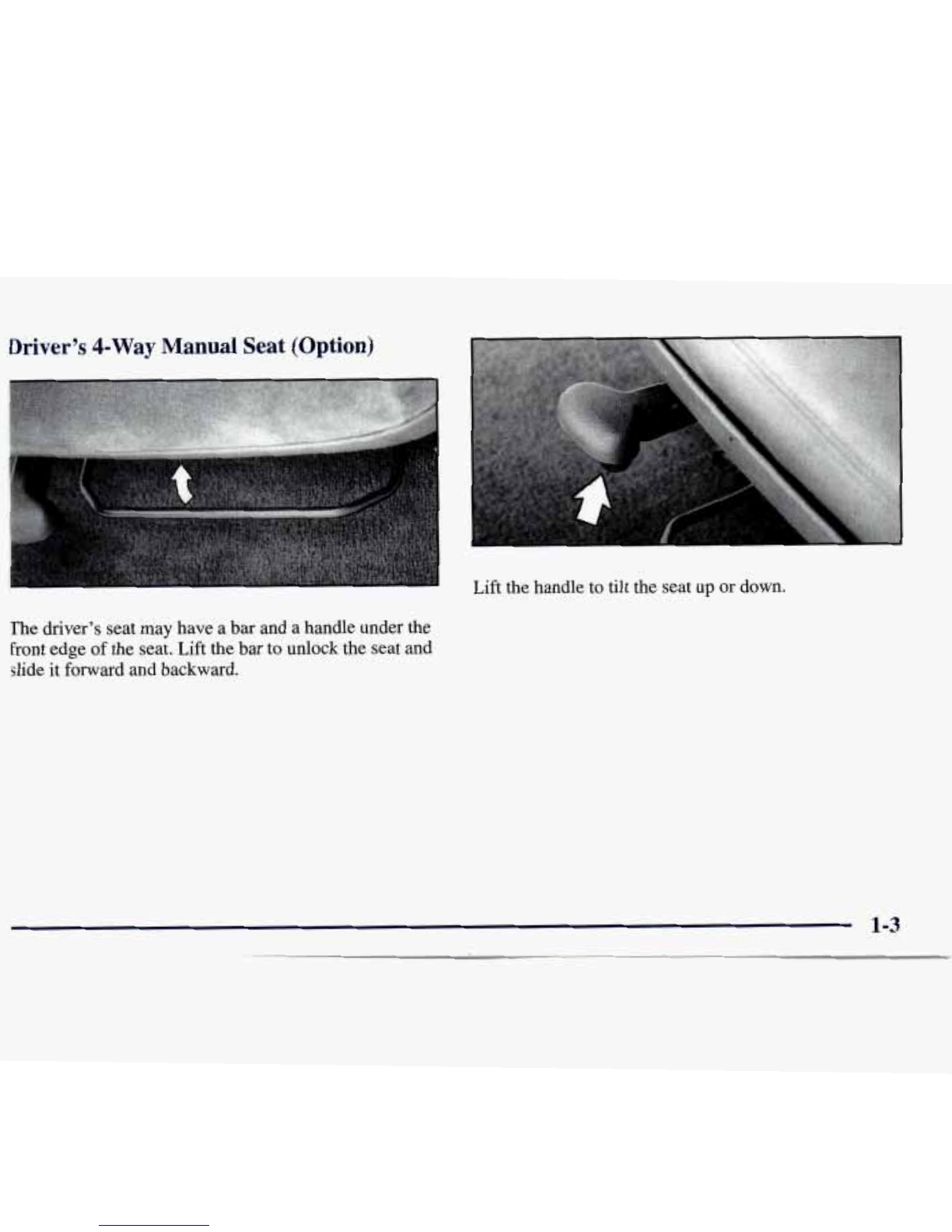

Driver's 4-Way Manual Seat (Option)
The driver's seatmay have a bar and a handle under the
Front edge of the seat. Lift the
bar to unlock the seat and
slide it forward and backward.
i
~
Lift the handle to tilt the seatup or down.
1-3

Driver’s Side Power Seat (Option)
FRONT (A): Raise the frontof the seatby holding the
switch up. Hold the switch down to lower the front of
the seat.
CENTER (B): Move the seat forward orbackward by
holding the control to the front or to the back. Raise or
lower the seat by holding the control up or down.
REAR (C): Raise the rear of the seat by holding the
switch up. Hold the switch down to lower the rear of
the seat.
Reclining Front Seatbacks
Lift the leverto release the seatback, then move the
seatback to where
you want it. Release the lever to
lock the seatback into place.
Pull up on the lever
without pushing
on the seatback and the seatback will
move forward.
1-4

c
But don’t have a seatback reclinedif your vehicle is moving.
Sittingin a reclined position whenyour vehicle is
in motioncan be dangerous. Even
if you buckle
up, your safety belts can’tdo theirjob when
you’re reclined like this.
The shoulder belt can’t do itsjob. In
a crash you
could go into it, receiving neckor otherinjuries.
Thelapbelt can’t doitsjob either. In a crash the
belt could goup over your abdomen. The belt
forces would bethere, not atyour pelvic bones.
Thiscould causeseriousinternalinjuries.
For proper protectionwhen the vehicle
is in
motion, have the seatback upright. Then sit well
back
in the seat and wear your safety belt properly.

Head Restraints
Slidethe head restraint upor down so that the top of the
restraint is closest to the top
of your ears.This position
reduces the chance of a neck injuryin a crash.
Seatback Latches
The front seatfolds forward
to let peopleget into the
back seat.Your seatback
will move back and forth
freely, unless youcome to a
sudden stop.Then it will
lock into place.
If your vehicle is parked facing down a fairlysteep hill,
the seatback may not fold withoutsome help from you.
To fold the locked seatback forward, push the seatback
toward the rear and liftthis latch. Then the seatback will
fold forward. The latch must be downfor the seat to
work properly.
Split Folding Rear Seat
Pull forward on the seat tab latch to fold the seat cushion
down. This feature allows you direct accessto the trunk.
To return the seatto its original position, push it back up
and make sure it latches.

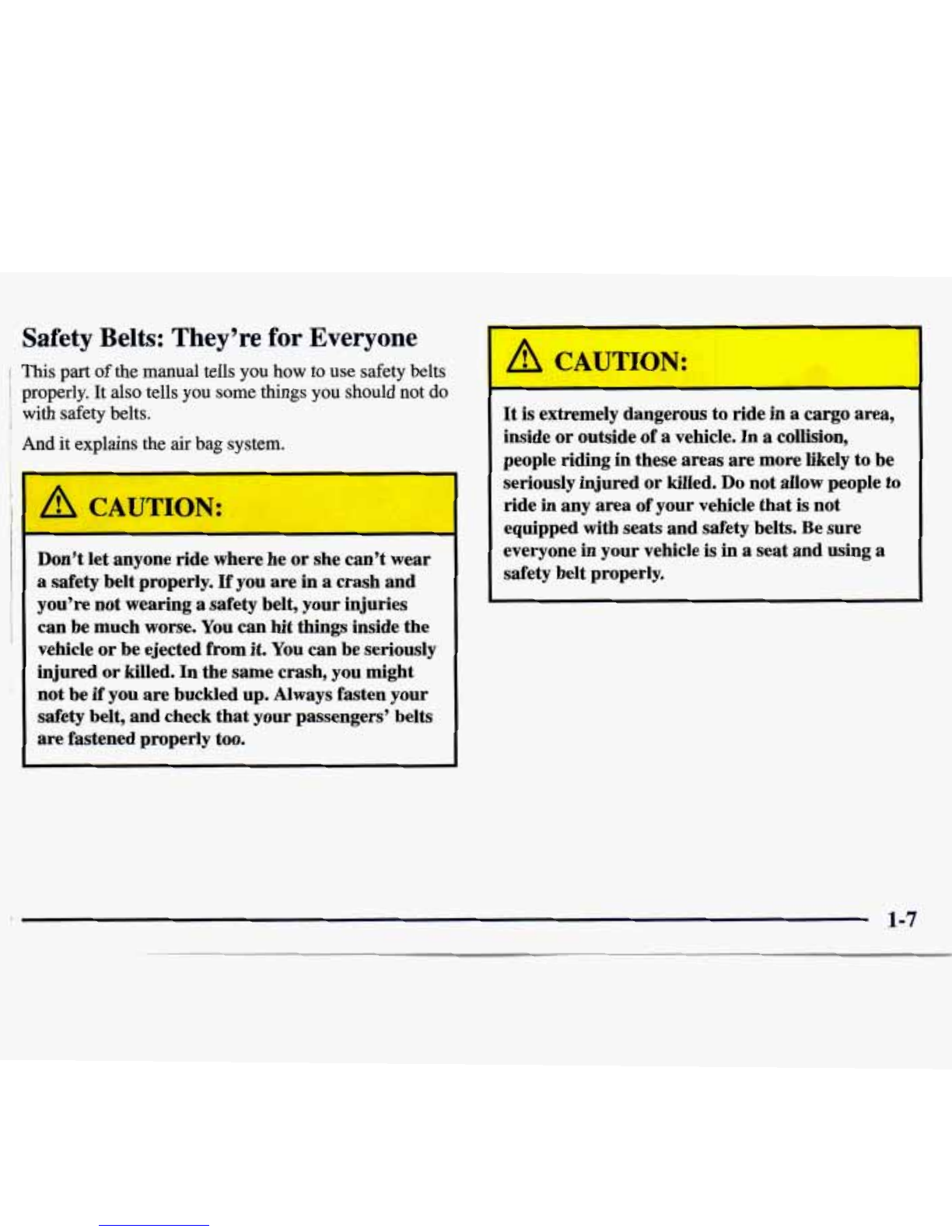

Safety Belts: They’refor Everyone
1 Thispart of the manualtells you how to use safety belts
j properly. It also tells you some thingsyou shouldnot do
’ with safety belts.
I
And it explains the air bag system.
Don’t let anyone ride wherehe orshecan’t wear
a safetybelt properly. If you are in a crash and
you’re not wearinga safety belt,your injuries
canbe much worse. Youcan hitthingsinside the
vehicle orbe ejectedfrom
it. You canbe seriously
injured orkilled. Inthe samecrash, you might
not be
if you arebuckled up. Alwaysfasten your
safetybelt, andcheck thatyour passengers’ belts
arefastenedproperlytoo.
It
is extremelydangerousto ride in a cargo area,
inside oroutside of
a vehicle. Ina collision,
people riding
in these areas aremorelikely tobe
seriouslyinjured orkilled. Do not allow peopleto
ride in any area of your vehicle that is not
equippedwith seatsand safety belts.Be sure
everyonein your vehicle isin
a seatand using a
safety belt properly.
1-7
