Chevrolet 2011 Volt User manual

Congratulations on your new Chevrolet Volt.
It’s an amazing vehicle, and we’re sure you’re eager to get behind the wheel and see what it can do.
For a quick introduction to the Volt, review this guide. It provides the basic information needed to charge
it, start it, and hit the road. Complete details can be found in your Owner Manual.
For additional information, please visit www.chevrolet.com/volt. To speak with a Volt Customer
Advisor, call 1-877-4-VOLT-INFO.

2
Driver
Information
Center Controls
Instrument Panel
Illumination
Control
Turn Signal Lever/
Pedestrian Friendly
Alert Lever/Exterior
Lamps Control
Audio
Steering
Wheel
Controls
Cruise
Control
Fuel Door
Release

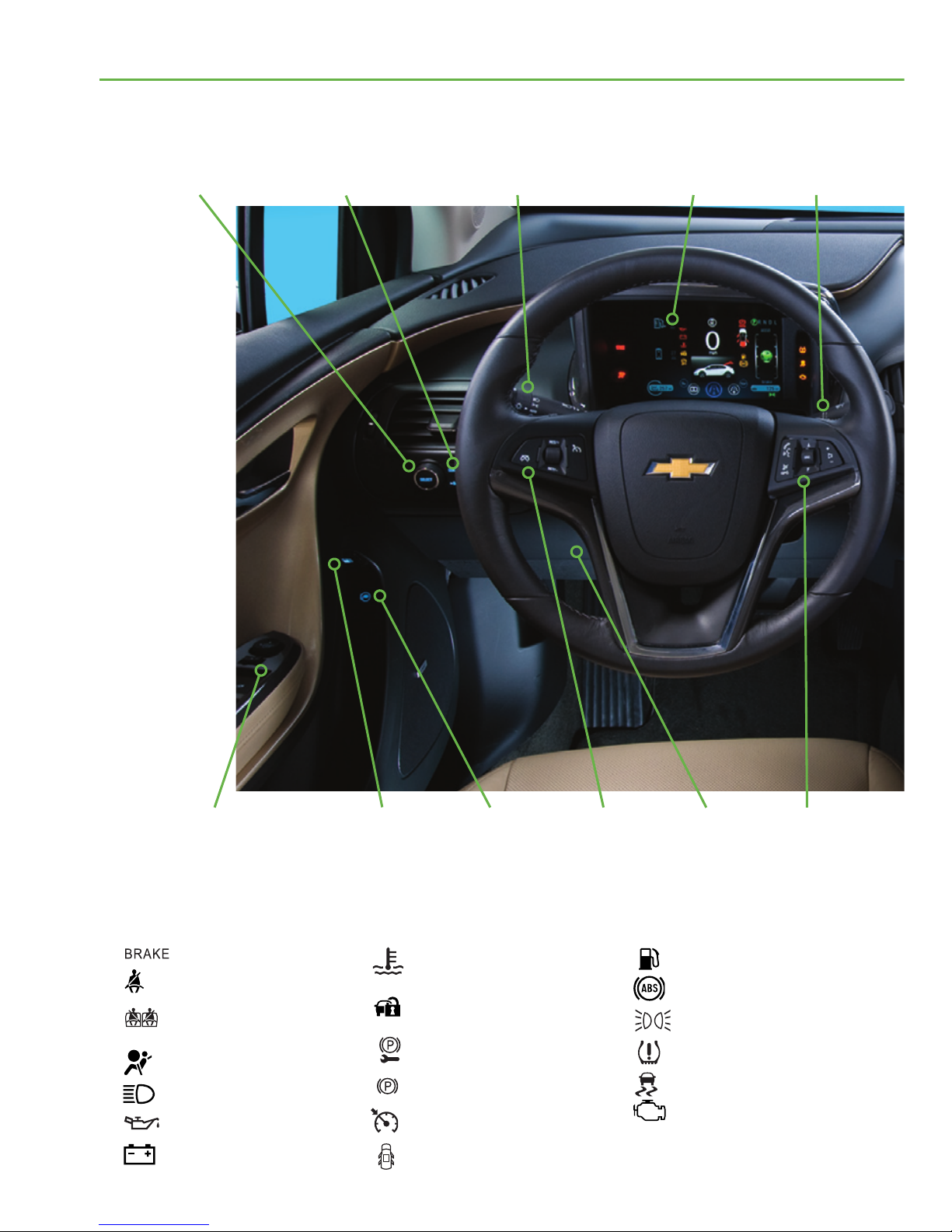

INSTRUMENT PANEL CONTROLS
Brake System
Safety Belt Reminder
REAR Seat Safety
Belt Reminder
Airbag Readiness
High Beam Headlamps
Engine Oil Pressure
12V Charging System
Engine Coolant
Temperature
Security
Service Electric Parking
Brake
Electric Parking Brake Set
Cruise Control
Door, Hood or Hatch Open
PARK
Low Fuel
Antilock Brake System
Lights On Reminder
Low Tire Pressure
StabiliTrak/Traction Control
Check Engine
Instrument
Cluster/Driver
Information
Center
Windshield
Wipers
Lever
Power Mirror
Controls/Power Window
Switches/Rear Door
Safety Lock Switch
Charge
Port
Release
Tilt/
Telescopic
Steering
Wheel Lever

3
Note: Refer to your Owner Manual to learn about the information being relayed by the lights, gauges
and indicators of the instrument cluster, as well as what to do to ensure safety and prevent damage
to your vehicle.
See Instruments and Controls in your Owner Manual.
Center
Stack
Display
Leaf/Drive
Mode
Power
Button
Infotainment
System
Climate
Controls/
Heated Seats
Charging
Status
Indicator
Hazard
Warning
Flashers Button
Electric
Parking Brake
Switch
Light
Sensor
Power Door
Lock/Unlock
Switch
CD/DVD
Eject

4
GETTING STARTED
See More
To get started driving your Volt, review the basic information in this guide along
with your Owner Manual. To view informative online videos about Volt operations,
scan the QR code in this guide with your smart phone. To scan a code:
1. Use the QR Code Reader on your smart phone or download a free reader to
your smart phone from your phone’s app store.
2. Start the reader.
3. Hold the phone over the code and shoot. Some phones will recognize the code
automatically.
Remote Keyless Entry (RKE)
The RKE transmitter performs several remote functions and must be in the vehicle to
operate the Volt.
Key Release
Press the top button to extend the key,
which can be used to unlock the driver’s
door.
Unlock
Press to unlock the driver’s door or
all doors.
Lock
Press to lock all doors.
Charge Port Door
Press to open the charge port door.
Remote Start
Press the Lock button and then press
and hold the button to start the vehicle
and condition the passenger cabin
temperature from outside. The heating or
air conditioning system and rear window
defogger (if needed) will turn on. Depend-
ing on conditions, the engine may start.
After entering the vehicle, press the brake
pedal and then press the POWER
button before driving.
Note:
– Press and hold the Remote Start button
again to cancel a remote start.
– Only two remote starts are allowed
between ignition cycles.
– It’s RECOMMENDED to use this
feature when the vehicle is plugged in
to allow energy from the wall outlet to
assist in getting the cabin to a comfort-
able temperature and to leave more
battery energy for driving.
Panic Alarm
Press and release to locate the vehicle.
Press and hold for three seconds to sound
the panic alarm.
See Keys, Doors and Windows in your Owner Manual.
Getting
Started
Basics
Sample

5
GETTING STARTED
POWER Button
The Volt features an electronic push-button start. The POWER button flashes when the
driver’s door is opened upon entry. Once the vehicle is ON, the button illuminates.
Note: The air conditioning compressor, pumps and fan may run at any time, even when the vehicle is
OFF, to cool or warm the propulsion battery.
Conditions for the Engine Starting
When vehicle power is ON, the engine may start to provide energy for heating and
cooling, independent of the vehicle being plugged in or completely charged. Some other
conditions that may also cause the engine to start include:
Starting the Vehicle/ON
With the vehicle in Park or Neutral, press the
brake pedal and then press the POWER
button. A power ON audio cue will sound.
The vehicle will not shift out of Park and will
display a Charge Cord Connected message
if the vehicle is still plugged in.
When ON, the instrument cluster will display an
active battery or fuel gauge. The engine will only
start if needed.
Stopping the Vehicle/OFF
Shift to Park and then press the POWER
button. A power OFF audio cue will sound.
– Propulsion battery charge is low
– Propulsion battery temperature is hot or cold
– Cold ambient temperatures
– Hood is open
– Engine and Fuel Maintenance
Modes (Occur only if the engine has
had very limited operation over a
long period)
See Driving and Operating in your Owner Manual.
Seat and Steering Wheel Adjustment
Before driving, adjust the seat and steering wheel to a comfortable position.
Pull down the lever (A) to unlock the steering
wheel and adjust its position.
Lift the handle (B) under the right-front side of
the seat to slide the seat forward or rearward.
Ratchet the side lever (C) up or down to raise
or lower the seat.
Lift the rear lever (D) to adjust the seatback.
See Seats and Restraints in your Owner Manual.
A
C
D
B

6
ELECTRIC AND EXTENDED-RANGE MODES
Volt is an electric vehicle with extended range capability. Plug it in, let it charge overnight,
and it's ready to run on a pure electric charge — gas- and tailpipe emissions-free. After
that, Volt keeps going, even if you can't plug it in. Volt uses a range-extending gas engine
that produces enough energy to power it for hundreds of miles on a single tank of gas.
Electric Mode
In Electric Mode, the Volt will not use gasoline or produce tailpipe emissions. During this
primary mode, the Volt is powered by electrical energy stored in its propulsion battery.
It can operate in this mode until the battery is depleted to a predetermined level.
Extended-Range Mode
Once the initial electric charge is depleted, the range-extending gas engine will start to
generate enough power to continue driving the vehicle. The engine ensures that you will
not be stranded by a depleted battery. The vehicle determines when the engine needs to
run. Engine speed will vary, depending on driving conditions, to optimize efficiency. The
engine will not fully charge the propulsion battery. The vehicle must be plugged in to
recharge.
Total Vehicle Range
The Total Range indicator displays the
total distance that can be driven, based on
the combined electric and extended range,
before recharging or refueling the vehicle.
The displayed electric and fuel ranges
are projections based on past vehicle
performance and charge/fuel level. The
displayed ranges will change based on
current driving style and climate settings.
See Driving and Operating in your Owner Manual

7
INSTRUMENT CLUSTER
The instrument cluster features a reconfigurable 7-inch LCD screen that displays a variety
of operating information.
The Simple Configuration displays basic information for Electric Mode and Extended-
Range Mode operation.
The Enhanced Configuration displays an additional driver efficiency gauge.
Driver Information Center
Use the Driver Information Center controls on the left side of the instrument panel to
change the instrument cluster display and access the menus.
CONFIG
Press to select the Simple or Enhanced
instrument cluster display configuration.
SELECT
Turn the knob to scroll through the menus.
Press it to select a highlighted item.
BACK
Press to move back or exit a menu.
See Instruments and Controls in your Owner Manual.
Simple Configuration shown

8
INSTRUMENT CLUSTER

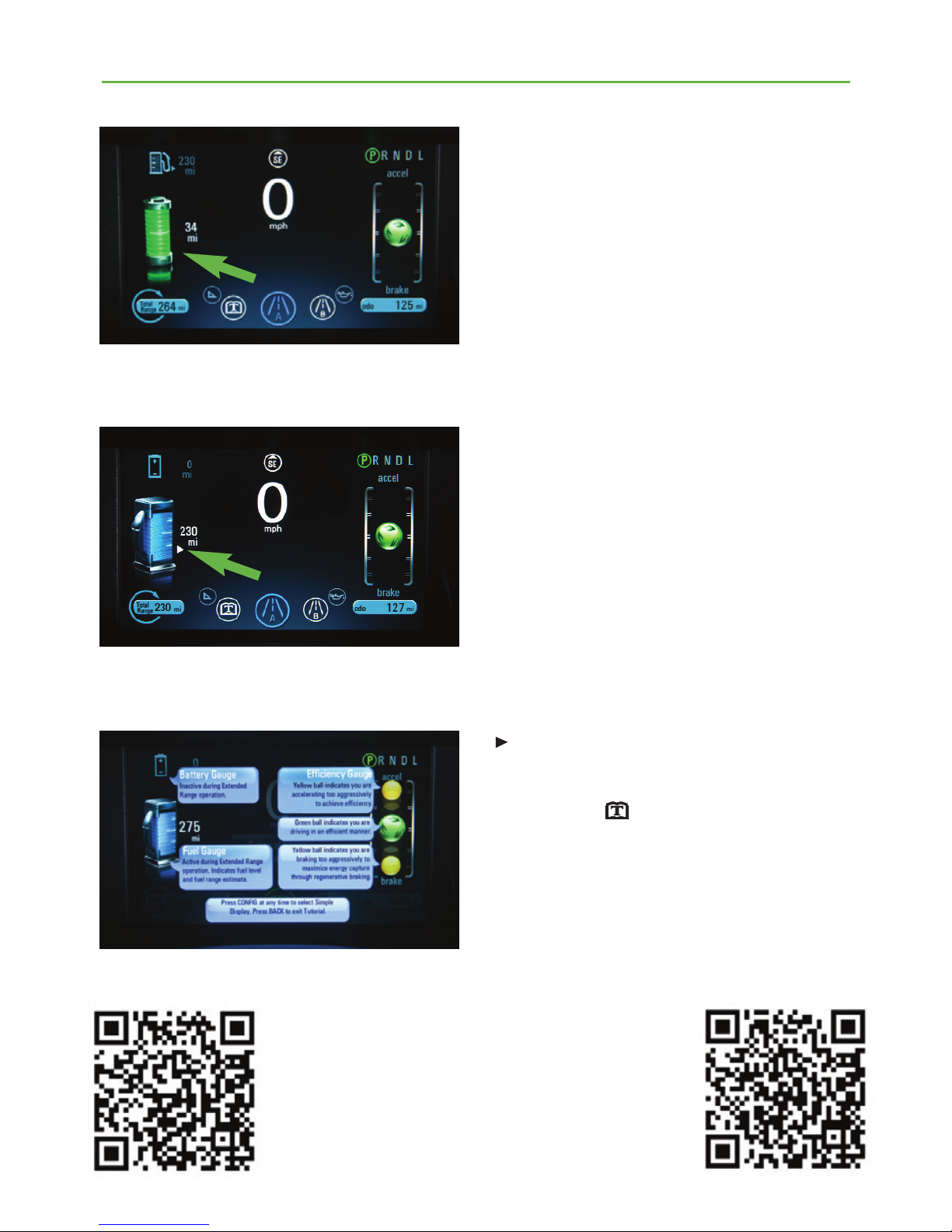

Electric Mode Display
The propulsion battery gauge and electric
range estimate are in color and displayed
in the foreground when the vehicle is
operating in Electric Mode. The fuel gauge
is grayed out.
Enhanced Configuration shown
The fuel gauge and fuel range estimate
are in color and displayed in the fore-
ground when the vehicle is operating in
Extended-Range Mode. The propulsion
battery gauge is grayed out.
Enhanced Configuration shown
Extended-Range Mode Display
To view a tutorial about the unique
features of the instrument cluster, with
the vehicle in Park, turn the SELECT
knob until Tutorial Mode is high-
lighted. Press the knob to select it.
See Instruments and Controls in your Owner Manual.
Enhanced Configuration shown
Cluster Tutorial
Configurable
Cluster
Display
Driver
Information
Center

9
EFFICIENCY
Driving Style
Your driving style plays a large role in the efficiency of the vehicle. Avoid rapid acceleration
or deceleration to help maximize energy efficiency and range. Electric range is maximized
at 50 mph and below. Higher speeds use more energy and significantly reduce electric
range.

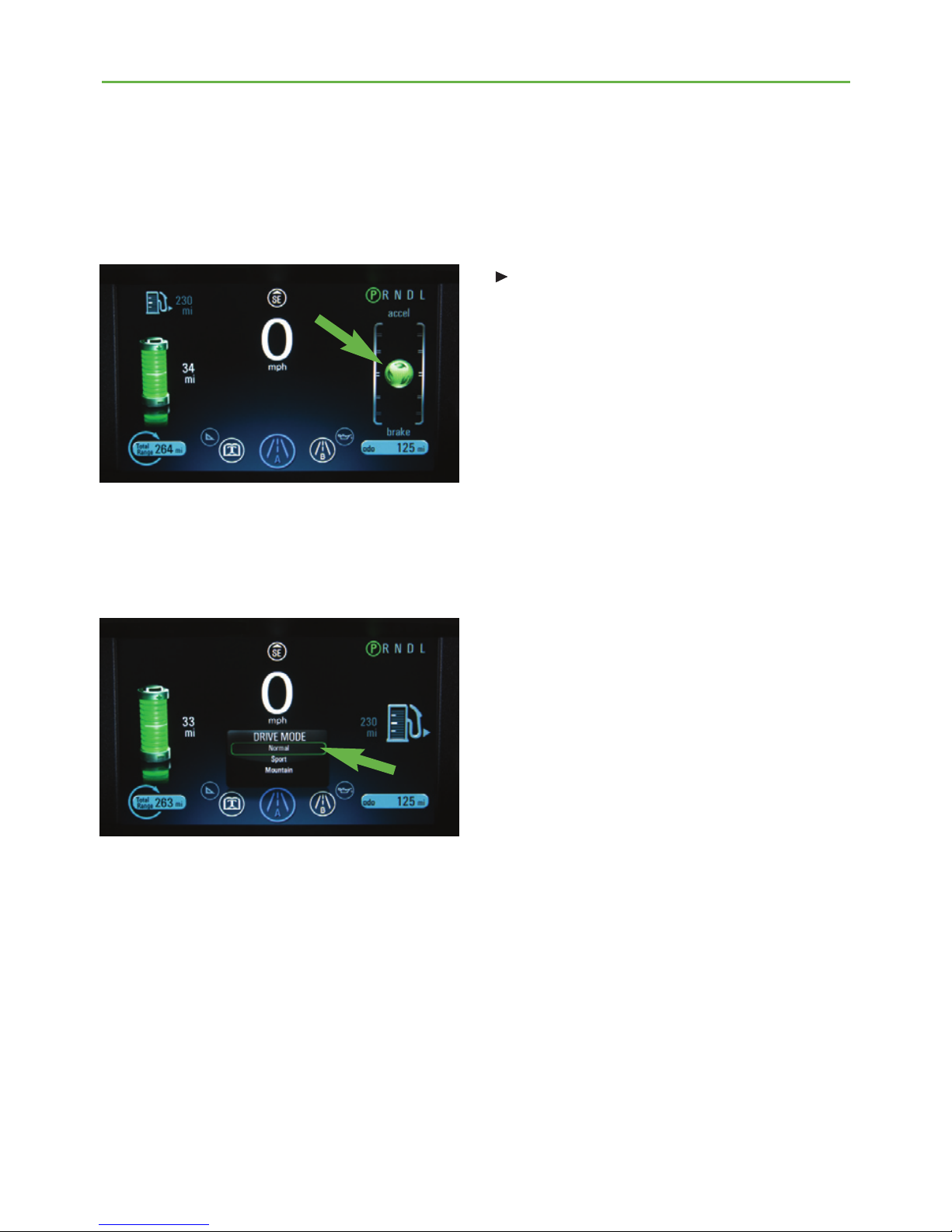

Press the CONFIG button to select
the Enhanced Configuration of the
instrument cluster to display the
efficiency gauge.
While driving, try to keep the spinning ball
in the Efficiency Gauge green and in the
center of the gauge. The ball will turn yel-
low and move up or down during inefficient
acceleration or aggressive braking. The
ball stops spinning when the vehicle stops.
Efficiency Gauge
Operating Modes
Press the DRIVE MODE button on the center stack to scroll through a menu of operating
modes when more performance is needed. After three seconds, the highlighted mode will
become active. At the next start, the vehicle will default to Normal mode.
Normal (Default)
Use when possible in normal driving
conditions for efficient operation; active
each time the vehicle is started.
Sport
Use when more responsive acceleration is
desired; reduces efficiency.
Mountain
Engage prior to entering mountainous
terrain (long grades of 5% or higher);
reduces efficiency but provides power to
maintain higher speeds on steep grades.
Climate Settings
Optimal efficiency is achieved with the heat, air conditioning and fan turned off.
When using the climate mode settings, the most efficient operation is in the following
order: FAN ONLY, ECO, COMFORT.
Use the heated seats (if equipped) to reduce the demand on the cabin heating system.
Heating the seats uses less energy than heating the vehicle interior.
See Driving and Operating in your Owner Manual.

10
EFFICIENCY

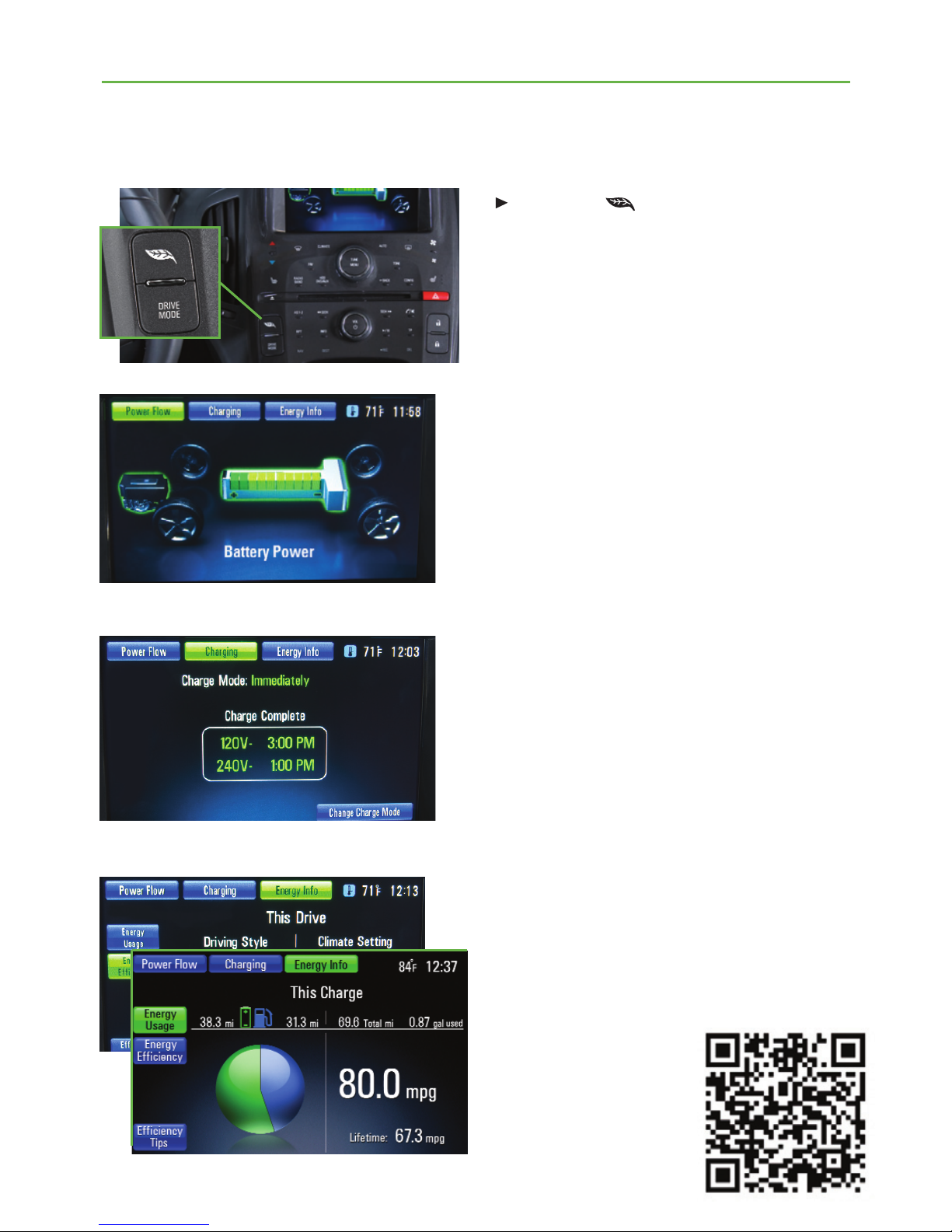

Center Stack Information Displays
The 7-inch LCD touch screen in the center stack displays Power Flow, Charging and
Energy Information.
Press the Leaf button on the center
stack and then touch the desired tab at
the top of the screen to display the
desired information.
Power Flow
The Power Flow screens show the power
flow between the propulsion battery, elec-
tric drive unit and engine. Each component
is highlighted when it is active.
Charging
The Charging screens show the charge
mode status. The vehicle has three
programmable charge modes:
– Immediately upon plug-in
– Delayed based on departure time
– Delayed based on electric rates and
departure time
Charge complete times are estimates and
most accurate at moderate temperatures.
Energy Information
The Energy Info screens show the energy
use (Electric Mode and Extended-Range
Mode) since the last time the vehicle was
fully recharged, energy efficiency over the
last drive cycle, and efficiency tips to
improve energy use.
See Instruments and Controls in your Owner Manual.
Power Flow screen
Charging screen
Energy Info screens
Leaf
Button

11
SETTINGS, SIGHTS AND SOUNDS
Infotainment/Vehicle Personalization Displays
The touch screen in the center stack also can be used to display and adjust Infotainment,
Vehicle Personalization and Climate Control settings.
Use the controls on the center stack
and the touch screen to access the
various menus and settings.
The center stack controls only need a
light touch to operate and work best
with bare hands. Use the finger pad
rather than the finger tip to minimize
response time. The controls will work
with most gloves, but may take longer
to respond. Remove gloves if neces-
sary for proper operation.
In the screen menus, an arrow on
the right side indicates a submenu is
available. A check mark next to an item
indicates it is selected/on.
Infotainment
The Infotainment system features radio, CD/DVD player (DVD video will play only when
the vehicle is in Park), auxiliary player, navigation, voice recognition and Bluetooth®
phone functions.
Connect an auxilary device to the input jack or USB port, located in the center console.
Vehicle Personalization
Some features can be customized to your preference. Press the CONFIG button on the
center stack to display the available personalization menus; use the TUNE/MENU knob
and BACK button or touch screen buttons to enter and select menu options.
To pair a Bluetooth phone, select Phone > Bluetooth > Add New Phone. Follow the
pairing instructions.
The Energy Usage screen will pop up each time the vehicle is turned off. To turn the
pop-up on/off, select Vehicle > Comfort and Convenience > Energy Usage Exit Pop-Up.
An audible tone sounds each time a button is pressed on the center stack. To turn the
tone on/off, select Vehicle > Comfort and Convenience > Button Chime.
To set the clock, press the TP (Time Program) control on the center stack. Use the
screen buttons on the display to adjust the time.
See Infotainment and Instruments and Controls in your Owner Manual.
Audio
System

12
SETTINGS, SIGHTS AND SOUNDS
Climate Controls
Press the CLIMATE button on the
center stack to view the Climate Control
touch screen.
Press the AUTO button on the center
stack to have the system operate
automatically.
The Climate Power gauge on the screen
displays the impact of the climate settings
on energy consumption. A lower percent-
age indicates less energy is being used.
Note: Under certain conditions, the engine will
start to ensure full heat and defrost capability.
See Climate Controls in your Owner Manual.
Pedestrian Friendly Alert
The pedestrian alert feature can help alert people who may not hear your vehicle
approaching when driving at low speeds, such as in a parking lot. The feature is available
only at speeds less than 40 mph (Not available in Park).
Pull the turn signal lever toward you. The high-beam headlamps will turn on and a soft-
note alert will sound. When the lever is released, the headlamps and alert will turn off.
See Lighting in your Owner Manual .
Low Ground Clearance
The low ground clearance of the Volt aids in the
aerodynamic efficiency of the vehicle. As a
result, the flexible air deflector under the front
fascia (bumper) may contact a parking block or
curb if the vehicle is parked too closely. Use
care when parking to avoid damage.
See Vehicle Care in your Owner Manual.
Electric Parking Brake
To apply the parking brake, pull the Parking Brake switch by the shift lever.
To release the parking brake, with the ignition ON, press the brake pedal and press the
Parking Brake switch.
See Driving and Operating in your Owner Manual.
PARK
PARK
PARKING
Climate
System

13
CHARGING
Battery
The Volt is powered by a lithium-ion high voltage battery pack, which holds its charge
efficiently and has no memory effect (so it doesn’t have to be run down completely before
recharging). Keep the vehicle plugged in, even when fully charged, to keep the battery
temperature ready for the next drive.
Start Charging
Charging
Basics
The provided 120-volt portable charge cord is
located in the storage compartment under the
cargo floor.
1. Plug the charge cord into an electrical out-
let. Charge cord indicators should be green.
Note: A reduced charging level is available on the
portable charge cord when the electrical current is
limited. Also, do not use an extension cord. See
your Owner Manual.
2. Press the Charge port door release
button, located on the driver’s door or RKE
transmitter, for one second.
3. Plug the charge cord into the vehicle’s
charge port located just in front of the
driver’s door. Squeeze the plug button on
the charge cord to use the flashlight to help
illuminate the charge port if needed.
4. The charging indicator on top of the instru-
ment panel will illuminate green and the
horn will chirp when properly connected.
If the vehicle is locked with the RKE trans-
mitter, the charge cord theft alert is armed
automatically after 30 seconds.
Note: When the theft alert is armed, the alarm will
sound when the plug is disconnected from the
locked vehicle.
To temporarily override a delayed charge
event, unplug the cord from the charge port
and then plug it back in within five seconds.
It will begin charging immediately.
See Driving and Operating in your Owner Manual.

14
CHARGING
Charging Status
The charging status indicator is located on the instrument panel near the windshield.
Note: Immediately after plugging in, the
charging status indicator may be amber for
up to five seconds before turning green.
The charging system may run fans and
pumps when the vehicle is turned off.
•Solid green with single horn chirp –
Vehicle is plugged in; battery is charging
•Slow (long pulse) flashing green with
double horn chirp – Vehicle is plugged in;
delayed battery charging
•Fast (short pulse) flashing green –
Vehicle is plugged in; battery is fully
charged
•Solid yellow – Vehicle is plugged in;
not charging
•No light – Vehicle is not plugged in OR
there is an issue with the charger or wall
outlet
•Horn chirps and no light – Electricity was
interrupted before charging was completed
Charging Time
Using a standard 120-volt household outlet will take approximately 10 hours to charge and
using a 240-volt charging station will take approximately 4 hours to charge.
Charging Mode
Press the Leaf button and then touch the Charging tab on the center stack touch
screen or press the Charge port door release button to view the current charge
mode status.
Programmable Charging
The Volt can be programmed for three charging modes: Immediate, Delayed Departure
Time, Delayed Rate and Departure Time.
On the Charging screen, touch the Change Charge Mode screen button to select a
charge mode.
End Charging
1. Unlock the vehicle with the RKE transmitter
to disarm the charge cord theft alert.
2. Unplug the charge cord from the vehicle by
squeezing the plug button.
3. Unplug the charge cord from the electrical
outlet.
4 Stow the charge cord.
See Driving and Operating in your Owner Manual.

15
CHARGING
Home Charging Station
Charging equipment with a rating of at least
240Volt/20Amp will provide the fastest charg-
ing time to recharge the propulsion battery.
Contact your dealer or a Volt Customer
Advisor for more information about an
available 240V home charging station.
1. Press the Fuel door release button,
located on the driver’s door, for one second.
The Wait to Refuel message will display on
the instrument cluster.
2. When the Ready to Refuel message
displays, the fuel door on the passenger’s
side of the vehicle will unlock. It will not
open automatically.
3. Press the rear edge of the fuel door; it will
pop open slightly. Open the door to refuel
the vehicle.
Fuel
Use premium fuel with an octane rating of 91 or higher.
Engine and Fuel Maintenance
The Engine Maintenance Mode will run the engine to keep it in good working condition
after approximately six weeks of no or very limited engine operation.
The Fuel Maintenance Mode tracks fuel age and will run the engine to use the fuel if the
average fuel age exceeds approximately one year.
See Driving and Operating in your Owner Manual.
Filling the Fuel Tank
FUELING

16
VOLT CUSTOMER ADVISORS
1-877-4-VOLT-INFO
(1-877-486-5846)
Chevrolet has a team of dedicated Volt experts ready to help owners. If you have any questions
or would like more information about your Volt, contact a Volt Customer Advisor.
!22738898!
Certain restrictions, precautions and safety procedures apply to your vehicle. Please read your Owner Manual
for complete instructions. All information contained herein is based on the latest information available at the time
of printing and is subject to change without notice. Copyright 2010 by General Motors. All rights reserved.
Always demand genuine GM Parts
ROADSIDE ASSISTANCE
1-888-811-1926 TTY Users: 1-888-889-2438
As the owner of a new Chevrolet, you are automatically enrolled in the Chevrolet Roadside
Assistance program, which provides roadside service for 5 years/100,000 miles at no expense
to you. This value-added service is intended to provide you with peace of mind as you drive in
the city or travel the open road.
Chevrolet’s Roadside Assistance toll-free number is staffed by a team of trained advisors who
are available 24 hours a day, 365 days a year, to contact a service provider for light services
(fuel delivery, jump-starts, flat tire and lock-outs) or make arrangements to tow your vehicle to
the nearest Volt Authorized Chevrolet dealer.
OnStar®
If you have a current OnStar subscription, press the OnStar button and the vehicle will send
your current GPS location to an OnStar Advisor who will speak to you, assess your problem,
contact Roadside Assistance and relay your exact location so you will get the help you need.
For more information about OnStar services, press the OnStar button, refer to the OnStar
Owner Guide, call 1-888-466-7827 or visit onstar.com.
MyVolt.com OWNER WEBSITE
MyVolt.com, a complimentary service for Volt owners, is a one-stop resource designed to
enhance your Volt ownership experience. Owners can communicate with their vehicle
online to check pertinent vehicle information and perform a number of remote commands.
Also available are online service reminders, vehicle maintenance tips, online owner
manual, special privileges and more. Sign up today at www.MyVolt.com.
22738898
