Chevrolet 2015 Cruze User guide

CHEVROLET CRU Z E OWNERS HANDBOOK

MyLink ........................................... 3
Audio system ............................... 51
Navi 650 / Navi 950 ................... 103
Contents Audio system .................................. 3
Colour Connected Radio ............. 55
1

Introduction .................................. 52
Radio ........................................... 64
Audio players ............................... 70
Phone .......................................... 87
Index .......................................... 102
Audio system
2

Introduction .................................. 52
Radio ........................................... 64
Audio players ............................... 70
Phone .......................................... 87
Index .......................................... 102
Audio system Introduction .................................... 4
Radio ........................................... 16
Audio players ................................ 22
Phone ........................................... 39
Index ............................................. 54
3

52 Introduction
Introduction
General information ..................... 52
Theft-deterrent feature ................. 53
Control elements overview .......... 54
Operation ..................................... 57
Personalisation ............................ 60
General information
The Infotainment system provides
Infotainment in your car, using the
latest technology.
The radio can be easily used by
registering up to 36 FM or AM radio
stations with the PRESET buttons
[1~6] per every six pages.
The integrated CD player can play
audio CD and MP3 (WMA) discs, and
the USB player can play connected
USB storage devices or iPod
products.
The Bluetooth phone connection
function (only available for Type A
model) allows for the use of wireless
hands-free phone calls, as well as a
phone music player.
Connect a portable music player to
the exterior sound input and enjoy the
rich sound of the Infotainment
system.
The digital sound processor provides
a number of preset equalizer modes
for sound optimisation.
The system can be easily adjusted
with the carefully designed adjusting
device, smart displayer, and
multifunctional menu dial regulator.
■ The "Overview" section provides a
simple overview of Infotainment
system's functions and summary of
all regulatory devices.
■ The "Operation" section explains
the basic controls for the
Infotainment system.
Note
This manual describes all options
and features available for the
various Infotainment systems.
Certain descriptions, including those
for display and menu functions, may
not apply to your vehicle due to
model variant, country
specifications, special equipment or
accessories.
Screen display
The screen display may differ from
the manual display since most screen
displays differ according to the
device's setup and vehicle
specification.
Introduction 53
Theft-deterrent feature
The Infotainment system has an
electronic security system installed to
prevent theft.
The Infotainment system only works
in the vehicle in which it was first
installed, and cannot be used by the
people who have stolen it.
General information ....................... 4
Theft-deterrent feature ................... 5
Control elements overview ............. 6
Operation ....................................... 9
Personalisation ............................. 12
4

52 Introduction
Introduction
General information ..................... 52
Theft-deterrent feature ................. 53
Control elements overview .......... 54
Operation ..................................... 57
Personalisation ............................ 60
General information
The Infotainment system provides
Infotainment in your car, using the
latest technology.
The radio can be easily used by
registering up to 36 FM or AM radio
stations with the PRESET buttons
[1~6] per every six pages.
The integrated CD player can play
audio CD and MP3 (WMA) discs, and
the USB player can play connected
USB storage devices or iPod
products.
The Bluetooth phone connection
function (only available for Type A
model) allows for the use of wireless
hands-free phone calls, as well as a
phone music player.
Connect a portable music player to
the exterior sound input and enjoy the
rich sound of the Infotainment
system.
The digital sound processor provides
a number of preset equalizer modes
for sound optimisation.
The system can be easily adjusted
with the carefully designed adjusting
device, smart displayer, and
multifunctional menu dial regulator.
■ The "Overview" section provides a
simple overview of Infotainment
system's functions and summary of
all regulatory devices.
■ The "Operation" section explains
the basic controls for the
Infotainment system.
Note
This manual describes all options
and features available for the
various Infotainment systems.
Certain descriptions, including those
for display and menu functions, may
not apply to your vehicle due to
model variant, country
specifications, special equipment or
accessories.
Screen display
The screen display may differ from
the manual display since most screen
displays differ according to the
device's setup and vehicle
specification.
Introduction 53
Theft-deterrent feature
The Infotainment system has an
electronic security system installed to
prevent theft.
The Infotainment system only works
in the vehicle in which it was first
installed, and cannot be used by the
people who have stolen it.
5

54 Introduction

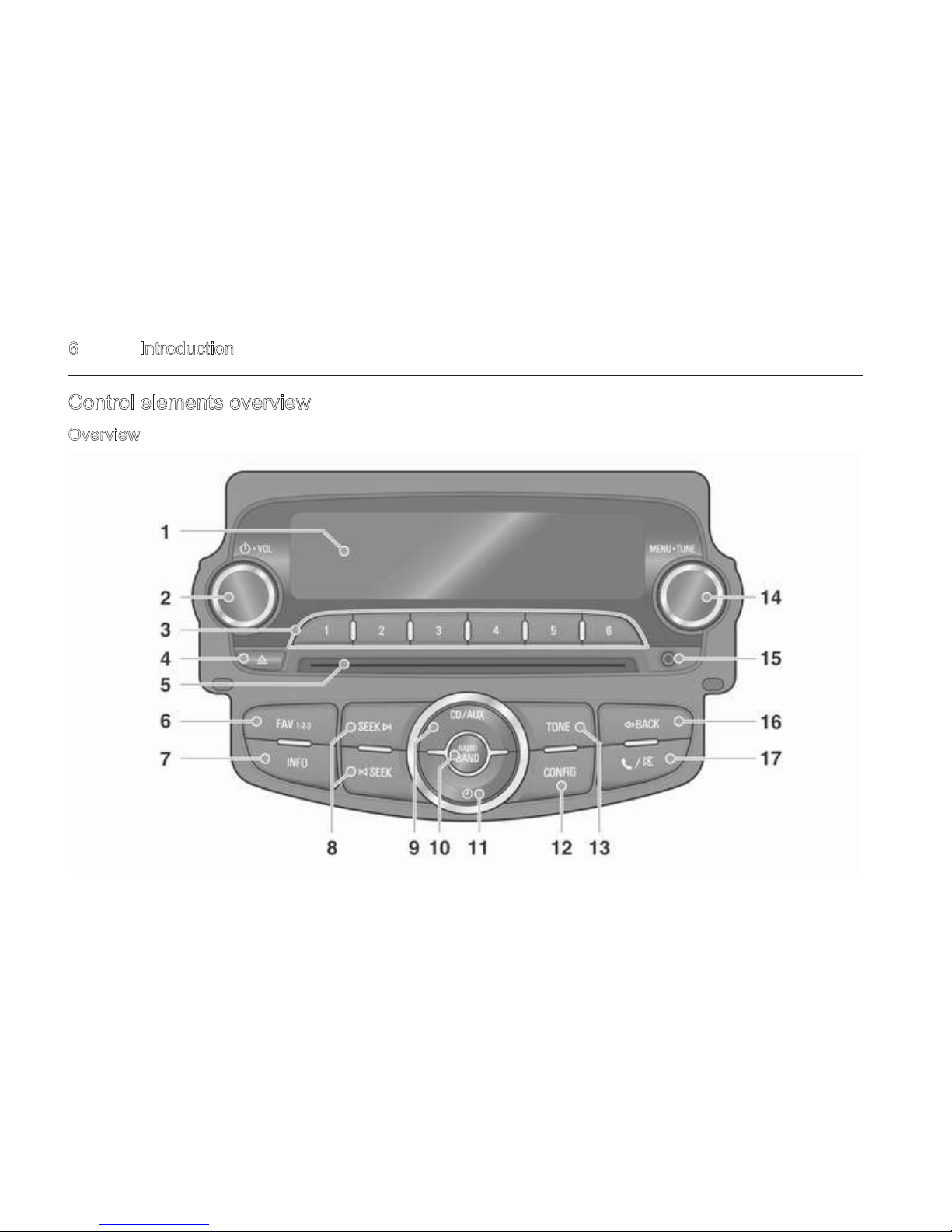

Control elements overview
Overview
Introduction 55
Type A: Radio + CD/MP3 + AUX +
USB/iPod + Bluetooth
Type B: Radio + CD/MP3 + AUX
1. Display
Display for Play/Reception/Menu
state and information.
2. POWER/VOLUME button with
control knob
◆ Turn the power on/off by
pressing this button.
◆ Turn the control knob to adjust
the overall volume.
3. PRESET [1 ~ 6 ] buttons
◆ Hold down any of these buttons
to add the current radio station
to the current Favourites page.
◆ Press any of these buttons to
select the channel linked to that
button.
4. EJECT button
Press this button and take out the
disc.
5. Disc slot
This is the slot in which compact
discs are inserted or taken out.
6. FAVOURITE [FAV1-2-3] button
Press this button to select the
page of saved favourite channels.
7. INFORMATION [INFO] button
◆ Press this button to view file
information when using the CD/
MP3/USB/iPod play modes.
◆ View information about a radio
station and the currently playing
song when using the radio
function.
8. dSEEKc buttons
◆ Press these buttons while using
the radio to automatically seek
stations with clear reception.
You can manually set the
broadcasting frequency by
holding down these buttons.
◆ Press these buttons while using
the CD/ MP3/USB/iPod play
modes to instantly play the
previous or next track.
You can hold down these
buttons to quickly rewind/
forward through the currently
playing songs.
9. CD/AUX button
Press button to select CD/MP3/
AUX or USB/iPod/Bluetooth audio
function.
10. RADIO BAND button
Toggle between FM or AM band
radio.
11. CLOCK button
To enter the Time and Date
Settings menu.
12. CONFIG button
Press this button to enter the
System Configuration menu.
13. TONE button
Press this button to adjust/select
the sound setup mode.
14. MENU-TUNE button with control
◆ Press this button to display the
currently functioning menu or
select/practice setup content
and setup values.
◆ Turn the control knob to move/
change setup content or setup
values.
6

54 Introduction
Control elements overview
Overview
Introduction 55
Type A: Radio + CD/MP3 + AUX +
USB/iPod + Bluetooth
Type B: Radio + CD/MP3 + AUX
1. Display
Display for Play/Reception/Menu
state and information.
2. POWER/VOLUME button with
control knob
◆ Turn the power on/off by
pressing this button.
◆ Turn the control knob to adjust
the overall volume.
3. PRESET [1 ~ 6 ] buttons
◆ Hold down any of these buttons
to add the current radio station
to the current Favourites page.
◆ Press any of these buttons to
select the channel linked to that
button.
4. EJECT button
Press this button and take out the
disc.
5. Disc slot
This is the slot in which compact
discs are inserted or taken out.
6. FAVOURITE [FAV1-2-3] button
Press this button to select the
page of saved favourite channels.
7. INFORMATION [INFO] button
◆ Press this button to view file
information when using the CD/
MP3/USB/iPod play modes.
◆ View information about a radio
station and the currently playing
song when using the radio
function.
8. dSEEKc buttons
◆ Press these buttons while using
the radio to automatically seek
stations with clear reception.
You can manually set the
broadcasting frequency by
holding down these buttons.
◆ Press these buttons while using
the CD/ MP3/USB/iPod play
modes to instantly play the
previous or next track.
You can hold down these
buttons to quickly rewind/
forward through the currently
playing songs.
9. CD/AUX button
Press button to select CD/MP3/
AUX or USB/iPod/Bluetooth audio
function.
10. RADIO BAND button
Toggle between FM or AM band
radio.
11. CLOCK button
To enter the Time and Date
Settings menu.
12. CONFIG button
Press this button to enter the
System Configuration menu.
13. TONE button
Press this button to adjust/select
the sound setup mode.
14. MENU-TUNE button with control
◆ Press this button to display the
currently functioning menu or
select/practice setup content
and setup values.
◆ Turn the control knob to move/
change setup content or setup
values.
7

56 Introduction
15. AUX port
Connect an exterior sound device
to this port.
16. PBACK button
◆ Cancel input content or return to
the previous menu.
17. PHONE/MUTE button
◆ Press this button to activate
Bluetooth phone mode (only for
Type A model) or to turn the
mute function on or off (only for
Type B model).
◆ Hold down the button to turn the
mute function on or off (only for
Type A model).
Steering wheel audio controls
Steering wheel audio control Type 1:
option
1. Mute/Hang up button
Press the button in any music play
mode to turn the mute function on
and off. In engaged mode, you
can press this button to reject calls
or to finish the call.
2. Call button
◆ Press the button to answer the
call or enter the re-dial selection
mode.
◆ Hold down the button to enter
the dialled call log or to move
back and forth from hands-free
mode and private call mode
during a call.
3. Source [dSRCc] button/control
knob
◆ Press the button to select a
sound play mode.
◆ Turn the control knob to change
the registered radio stations or
change the music being played.
4. Volume [+ -] buttons
◆ Press the + button to increase
the volume.
◆ Press the - button to decrease
the volume.
Introduction 57
Steering wheel audio control Type 2:
option
1. Mute/Hang up button
Press the button to turn the mute
function on and off.
2. Not available
3. Source [dSRCc] button/control
knob
◆ Press the button to select a
sound play mode.
◆ Turn the control knob to change
the registered radio stations or
change the music being played.
4. Volume [+ -] buttons
◆ Press the + button to increase
the volume.
◆ Press the - button to decrease
the volume.
Operation
Buttons and controlling device
The Infotainment system is operated
by using the function buttons,
multifunctional dial control knob, and
the menu indicated on the screen
display.
The buttons and control devices used
in the system are the following ones.
■ The Infotainment system buttons
and control knob
■ Steering wheel remote control
buttons
System on/off
Press the POWER/VOLUME button
to turn the system on.
Turning on the power will play the
previously chosen broadcasting
station or song. (However, it will be
different for Bluetooth audio
depending on the device.)
Press the POWER/VOLUME button
to turn the system off.
8

56 Introduction
15. AUX port
Connect an exterior sound device
to this port.
16. PBACK button
◆ Cancel input content or return to
the previous menu.
17. PHONE/MUTE button
◆ Press this button to activate
Bluetooth phone mode (only for
Type A model) or to turn the
mute function on or off (only for
Type B model).
◆ Hold down the button to turn the
mute function on or off (only for
Type A model).
Steering wheel audio controls
Steering wheel audio control Type 1:
option
1. Mute/Hang up button
Press the button in any music play
mode to turn the mute function on
and off. In engaged mode, you
can press this button to reject calls
or to finish the call.
2. Call button
◆ Press the button to answer the
call or enter the re-dial selection
mode.
◆ Hold down the button to enter
the dialled call log or to move
back and forth from hands-free
mode and private call mode
during a call.
3. Source [dSRCc] button/control
knob
◆ Press the button to select a
sound play mode.
◆ Turn the control knob to change
the registered radio stations or
change the music being played.
4. Volume [+ -] buttons
◆ Press the + button to increase
the volume.
◆ Press the - button to decrease
the volume.
Introduction 57
Steering wheel audio control Type 2:
option
1. Mute/Hang up button
Press the button to turn the mute
function on and off.
2. Not available
3. Source [dSRCc] button/control
knob
◆ Press the button to select a
sound play mode.
◆ Turn the control knob to change
the registered radio stations or
change the music being played.
4. Volume [+ -] buttons
◆ Press the + button to increase
the volume.
◆ Press the - button to decrease
the volume.
Operation
Buttons and controlling device
The Infotainment system is operated
by using the function buttons,
multifunctional dial control knob, and
the menu indicated on the screen
display.
The buttons and control devices used
in the system are the following ones.
■ The Infotainment system buttons
and control knob
■ Steering wheel remote control
buttons
System on/off
Press the POWER/VOLUME button
to turn the system on.
Turning on the power will play the
previously chosen broadcasting
station or song. (However, it will be
different for Bluetooth audio
depending on the device.)
Press the POWER/VOLUME button
to turn the system off.
9
