Chevrolet Captiva C140 User manual

Table of Contents
Introduction .........................................1
In brief .................................................3
Keys, doors and windows.................17
Seats, restraints................................45
Storage..............................................77
Instruments and controls ..................87
Lighting............................................125
Infotainment system........................135
Climate controls ..............................229
Driving and operating......................247
Vehicle care ....................................285
Service and maintenance ...............353
Technical data.................................365
Customer information .....................371

Memo

Introduction 1
Introduction
Introduction
Your vehicle is a designed
combination of advanced
technology, safety, environmental
friendliness and economy.
This Owner’s Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this
Owner’s Manual.
When this Owner’s Manual refers to
a repairer visit, we recommend your
Chevrolet Service Partner.
All Chevrolet Service Partners
provide first-class service at
reasonable prices. Experienced
mechanics trained by Chevrolet work
according to specific Chevrolet
instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this Manual
This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model variant,
country specifications, special
equipment or accessories.
The "In brief" section will give you
an initial overview.
The table of contents at the
beginning of this manual and
within each chapter shows where
the information is located.
The index will enable you to
search for specific information.
The Owner's Manual uses the
factory engine designations. The
corresponding sales designations
can be found in the chapter
"Technical data".
Directional data, e.g. left or right,
or front or back, always relate to
the direction of travel.
The vehicle display screens may
not support your specific
language.

2 Introduction
Danger, Warnings and
Cautions
We wish you many hours of
pleasurable driving
Chevrolet
{Danger
Text marked ?Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
{Warning
Text marked ?Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.

In brief 3
In brief Initial drive information
Unlocking the Vehicle

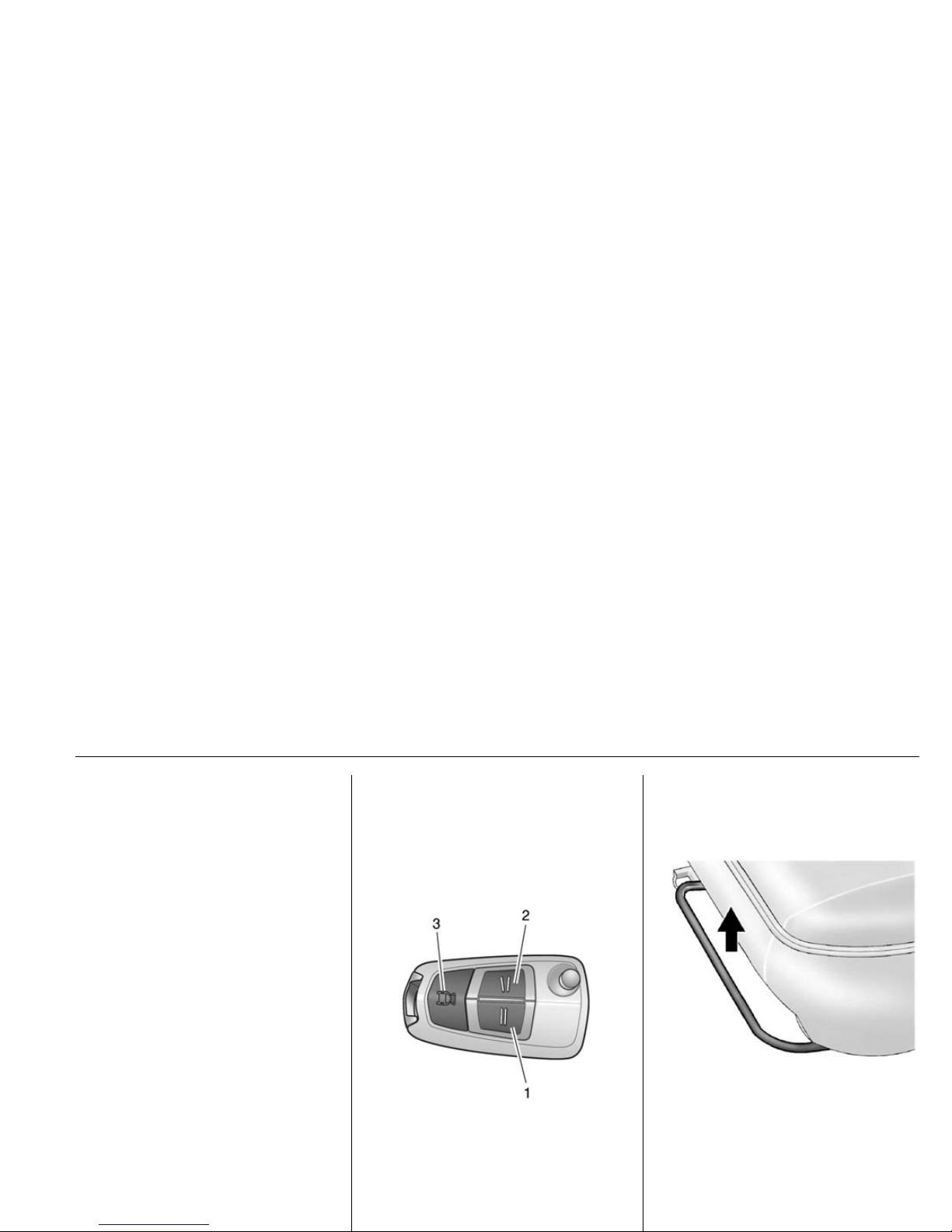

Radio remote control
C11E2076A
1. LOCK button
2. UNLOCK button
3. TALGATE WINDOW button
See Radio remote control on page
18.
See Central locking system on page
26.
Seat adjustment
Seat positioning
1968931
To move seat forward or backward,
pull the lever and slide seat to
desired position.
Release the handle and make sure
the seat is locked in place.
See Seat adjustment on page 48.
See Seat position on page 47.

4Inbrief
Seat backrests
C11E2053A
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Do not lean on seat when adjusting.
Seat height
C11E2054A
Pumping the lever on the outside of
the seat cushion until the seat
cushion is adjusted to the desired
position.
To lower the seat cushion, push the
lever down several times.
To raise the seat cushion, pull the
lever up several times.
Seat lumbar support
C11E2055A
To increase or decrease the driver's
seat lumbar support, move the lever
forward or rearward.

In brief 5
Head restraint adjustment
Height adjustment
C11E1015A
Pull the head restraint upwards.
To move down press the catch and
push the head restraint downwards.
See Head restraints on page 45.
Horizontal adjustment
C11E1010A
Pull the head restraint forwards. To
move back pull the head restraint
forwards. Then it is moved
automatically backwards.
Safety Belt
MD033
Withdraw belt from reel, guide it
untwisted across the body and
engage the latch plate in the buckle.
Tension the lap belt regularly whilst
driving by tugging the shoulder belt.
See Safety belts on page 58.

6Inbrief
Mirror Adjustment

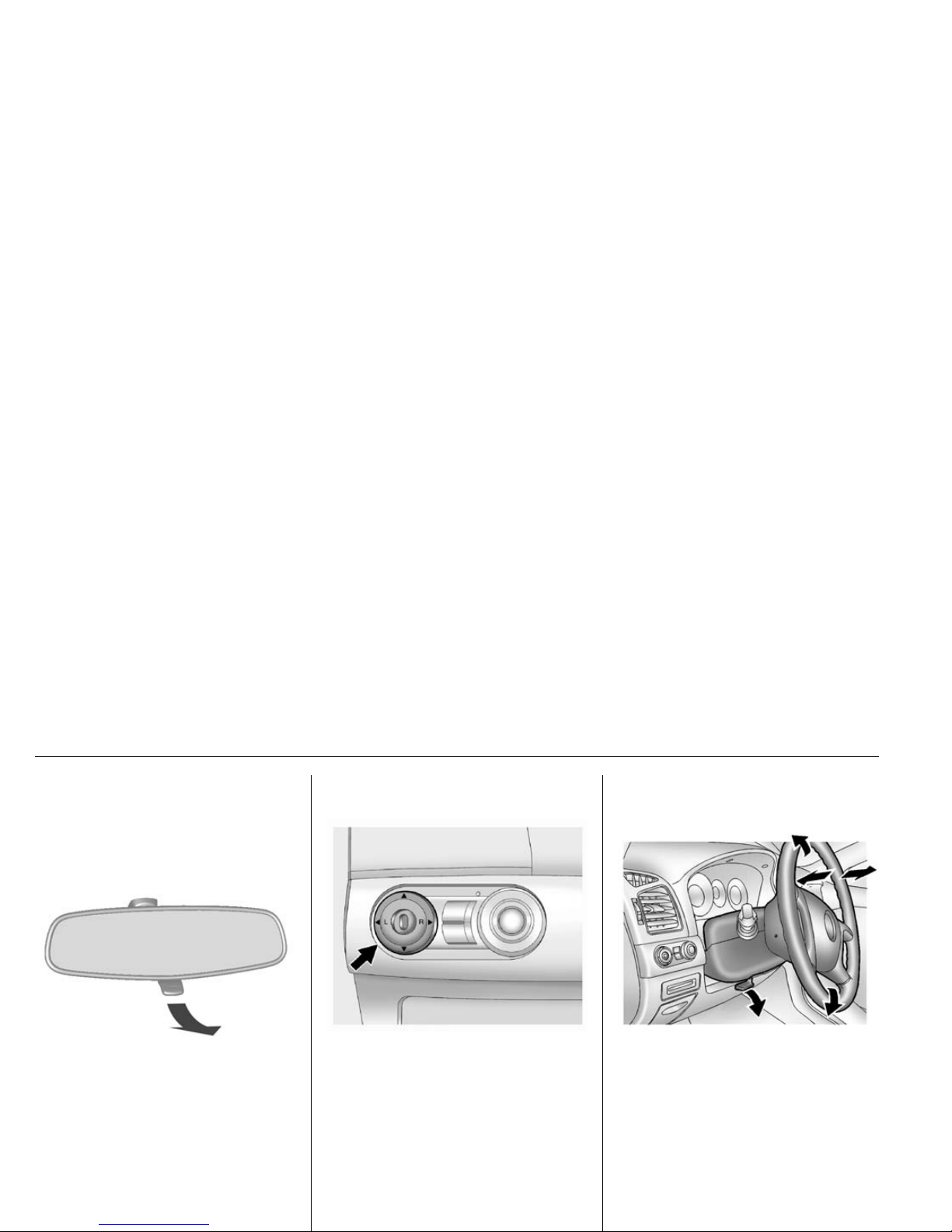

Interior mirrors
C11E3008A
To reduce dazzle, pull the lever on
the underside of the mirror housing.
See Manual rearview mirror on page
38.
Exterior mirrors
2178629
Select the mirror you want to adjust
by moving the selector switch to "L"
for LH mirror or to "R" for RH mirror.
See Remote control mirrors on page
36.
Steering Wheel Adjustment
C11E3010A
Unlock lever, adjust steering wheel,
then engage lever and ensure it is
fully locked. Do not adjust steering
wheel unless vehicle is stationary.

In brief 7
Instrument Panel Overview
LHD Vehicle
C3E1001A

8Inbrief
RHD Vehicle
C3E1002A

In brief 9
1. Air vents
2. Turn and lane / Exterior lamp
controls
3. Horn
4. Instrument cluster
5. Windshield wiper / Washer
6. Hazard warning flashers / ESC
OFF switch
7. Centre deposit box
8. DCS switch / Eco (stop/start)
switch or Park assist switch
9. Combination switch
10. Card holder
11. Coin storage
12. Hood release lever
13. Steering wheel audio controls
14. Cruise control / Climate control
buttons
15. Climate control systems
16. Shift lever
17. Electric parking brake (EPB)
switch
18. Eco switch
19. Cigarette lighter
20. Audio system
21. Glove box
22. Front passenger safety belt
reminder lamp / Passenger
airbag OFF indicator
Exterior Lighting
2238127
To turn the exterior lamps on or off,
turn the light switch knob. The light
switch has four positions as follows:
P(OFF): To turn off all lamps, turn
the knob to OFF position.
All lamps are off and return knob to
its original AUTO position.

10 In brief
AUTO: Exterior lamps and
instrument panel lamps are
automatically turned on or off
depending on external lighting
conditions.
;: The tail lamps, number plate
lamps, and instrument panel lamps
are illuminated.
2: The headlamps and all of the
above lamps are illuminated.
See Exterior lamp controls on page
125.
Headlamp high/low-beam
changer
C11E2071A
To switch from low to high beam,
push lever.
To switch to low beam, push lever
again or pull.
See Headlamp high/low-beam
changer on page 127.
See Flash-to-pass on page 128.
Hazard warning flashers
C11E2050A
Operated with the |button.
See Hazard warning flashers on
page 129.

In brief 11

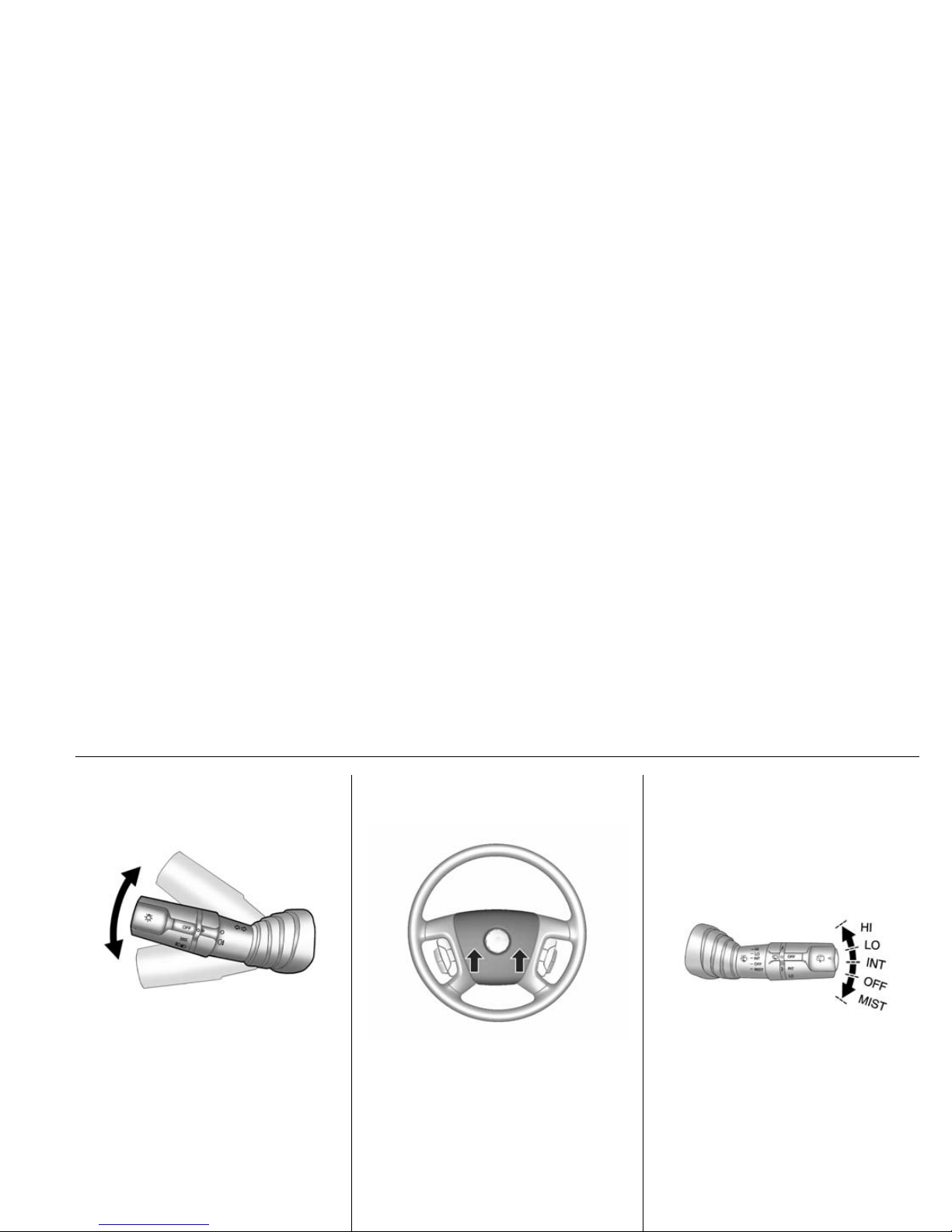

Turn and lane-change signals
2268202
lever up = right indicator
lever down = left indicator
See Turn and lane-change signals
on page 129.
Horn
C11E2039A
Press Y
Washer and Wiper Systems
Windshield wiper
2238054
To operate the windshield wipers,
turn the ignition ON and move the
windshield wiper / washer lever
upward.
HI: Continuous wipe, fast speed.
LO: Continuous wipe, slow speed.
INT: Intermittent operation.
OFF: System off.

12 In brief
MIST: Misting function.
See Windshield wiper/washer on
page 88.
Windshield washer
C11E2006A
Pull lever.
See "Windshield washer" under
Windshield wiper/washer on page
88.
See Washer fluid on page 307.
Rear window wiper/washer
Wiper
2274836
To operate the tailgate wiper, turn
the ignition ACC or ON and rotate
the end of the windscreen
wiper/washer lever upward.
The tailgate wiper operates in the
following three positions:
OFF: System off.
INT: Intermittent operation.
LO: Continuous wipe, slow speed.
See Rear window wiper/washer on
page 91.
Washer
C11E2007A
Press the button at the end of the
lever until the washers begin.
When you release the button, the
washers will stop, but the wipers will
continue to wipe for about three
times.
See Rear window wiper/washer on
page 91.

In brief 13
See Washer fluid on page 307.
Climate control
Heated rear window, heated
exterior mirrors
C3D2007A
Operated by pressing the =button.
See Heated mirrors on page 37.
See Heated rear window / windshield
wiper de-icer on page 41.
Demisting and defrosting the
windows
C11E4005A
Turn the air distribution knob to
DEFROST 5.
See "Defrosting windshield" under
Heating and ventilation system on
page 229.
See "Demisting windshield" under Air
conditioning system on page 232.
Transmission
Manual transmission
2457824
To change gears, fully depress the
clutch pedal, move the gearshift
lever into gear, and slowly release
the clutch.
To shift into reverse, press the button
on the back of the shift knob while
moving the shift lever into the
reverse position.
See Manual transmission on page
262.

14 In brief

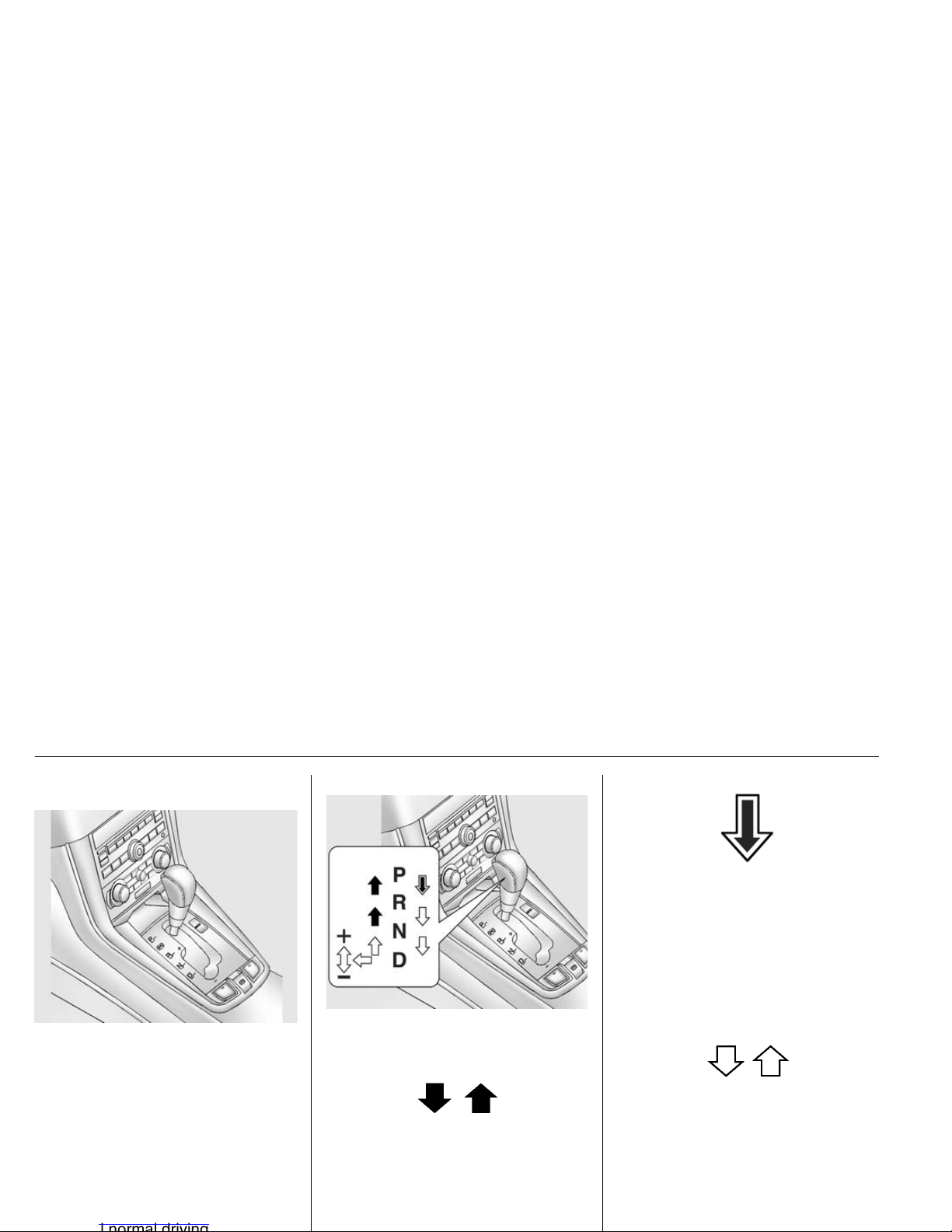

Automatic transmission
C3D3004A
P (PARK): Locks the front wheels.
Select P only when the vehicle is
stationary and the parking brake is
applied.
R (REVERSE): Select R only when
the vehicle is stationary.
N (NEUTRAL): Neutral gear.
D: For all normal driving conditions.
Allows the transmission to shift into
all 6 forward gears.
+, -: Manual mode position.
C11E3002A
MD174
Push the release button to shift.
Arrows indicate shifts that do not
require you to push the release
button.
C12E9003A
Depress the brake pedal and push
release button to shift.
Shifts that require you to push the
release button are indicated by
arrows.
MD173
Shift freely.

In brief 15
Getting Started
Check before starting off
Tire pressure and condition.
Engine oil level and fluid levels.
All windows, mirrors, exterior
lighting and number plates are
free from dirt, snow and ice and
are operational.
Proper position of seats, safety
belts and mirrors.
Check brake function at low
speed, particularly if the brakes
are wet.

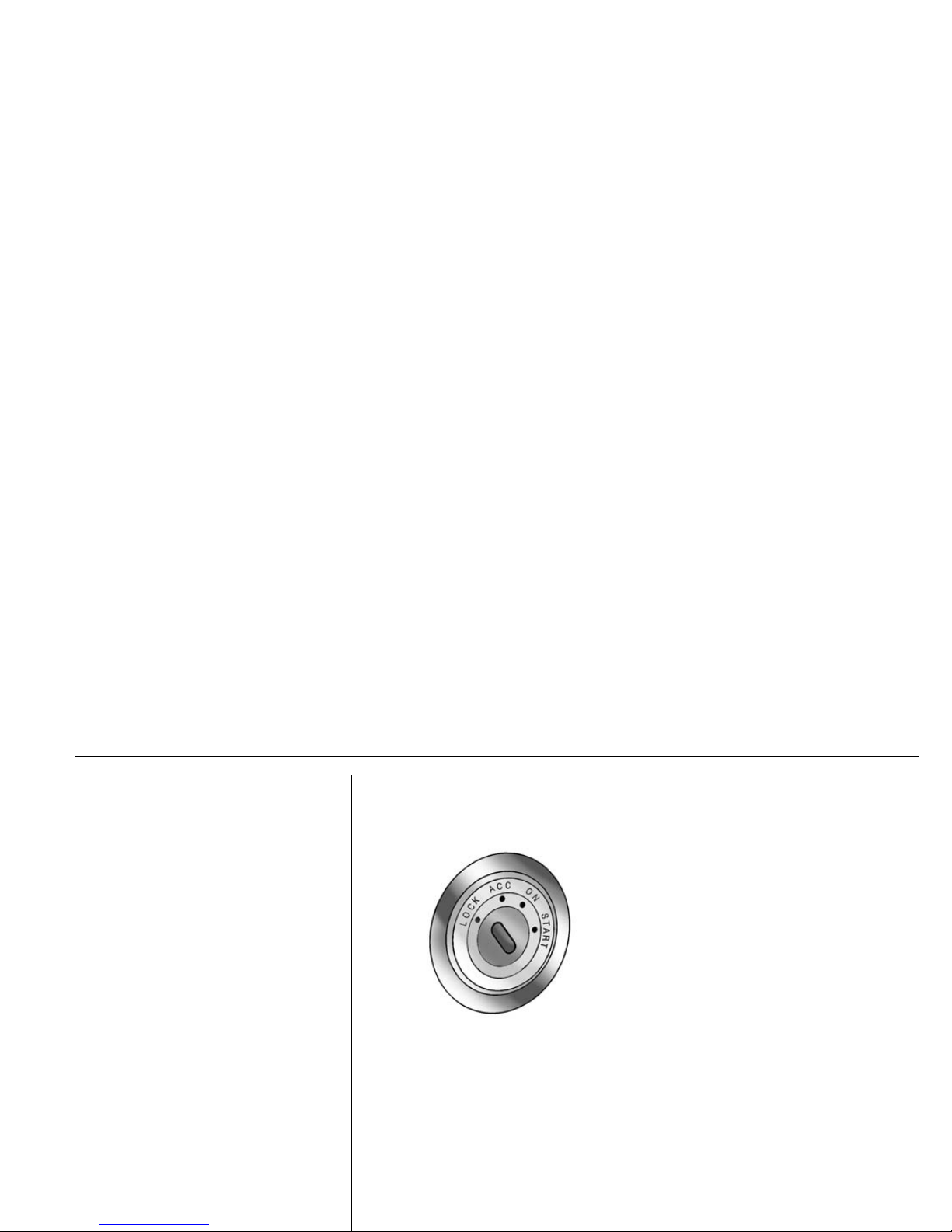

Starting engine with the
ignition switch
C11E3021A
Turn the key to position ACC,
move the steering wheel slightly
to release the steering wheel lock
Manual transmission: operate
clutch
Automatic transmission : Move
selector lever to P or N.
Do not accelerate
Diesel engine: turn the key to
position ON for preheating until K
goes out.
Turn the key to position START,
depressing the clutch pedal and
footbrake then release when
engine is running
Before restarting or to switch off the
engine, turn key back to LOCK.
Parking
Do not park the vehicle on an
easily flammable surface. The
high temperature of the exhaust
system could ignite the surface.
Always apply parking brake
without pressing release button.
Apply as firmly as possible on
downhill or uphill slopes. Depress
the footbrake at the same time to
reduce operating force.
Switch off the engine and ignition.
Turn the steering wheel until the
steering wheel lock engages.

16 In brief
If the vehicle is on a level surface
or uphill slope, engage first gear
or P position before switching off
the ignition. On an uphill slope,
turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear
before switching off the ignition.
Turn the front wheels towards the
kerb.
Close windows.
Lock the vehicle.

Keys, doors and windows 17
Keys, doors and
windows
Keys and locks ..............................17
Doors.............................................28
Vehicle Security.............................30
Exterior Mirrors..............................36
Interior Mirrors ...............................38
Windows........................................39
Roof...............................................43
Keys and locks
Keys
Replacement keys
The key number is specified on a
detachable tag.
The key number must be quoted
when ordering replacement keys as
it is a component of the immobiliser
system.
See "Lock" under Exterior care on
page 348.
Key with foldaway key section
C11E2075A
Press button to extend.
To fold the key, press the button and
fold the key manually.

18 Keys, doors and windows
Radio remote control
Used to operate:
Central locking system
Anti-theft alarm system
Tailgate window
C11E2076A
1. LOCK button: Locks all doors.
Hazard lamps will flash once and
the anti-theft system will be
activated.
2. UNLOCK button: Unlocks all
doors.
Hazard lamps will flash twice and
anti-theft system will be
deactivated.
In some countries, to unlock
driver’s door, press the UNLOCK
button once.
To unlock all doors, press the
UNLOCK button again within 3
seconds.
3. TAILGATE WINDOW button :
Releases the tailgate window
when pressed for about 1
second.
Note
LOCK, UNLOCK and TAILGATE
WINDOW buttons are not operated
while the key is in the ignition
switch.
Note
When you press UNLOCK button
on the remote keyless entry
transmitter, instrument panel
lamps will come on automatically
and stay on for about 30 seconds
until the ignition switch is in the
ACC position.
The radio remote control has an
approximate range of about 6
metres(20 feet). This range can be
affected by outside influences.
The hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
