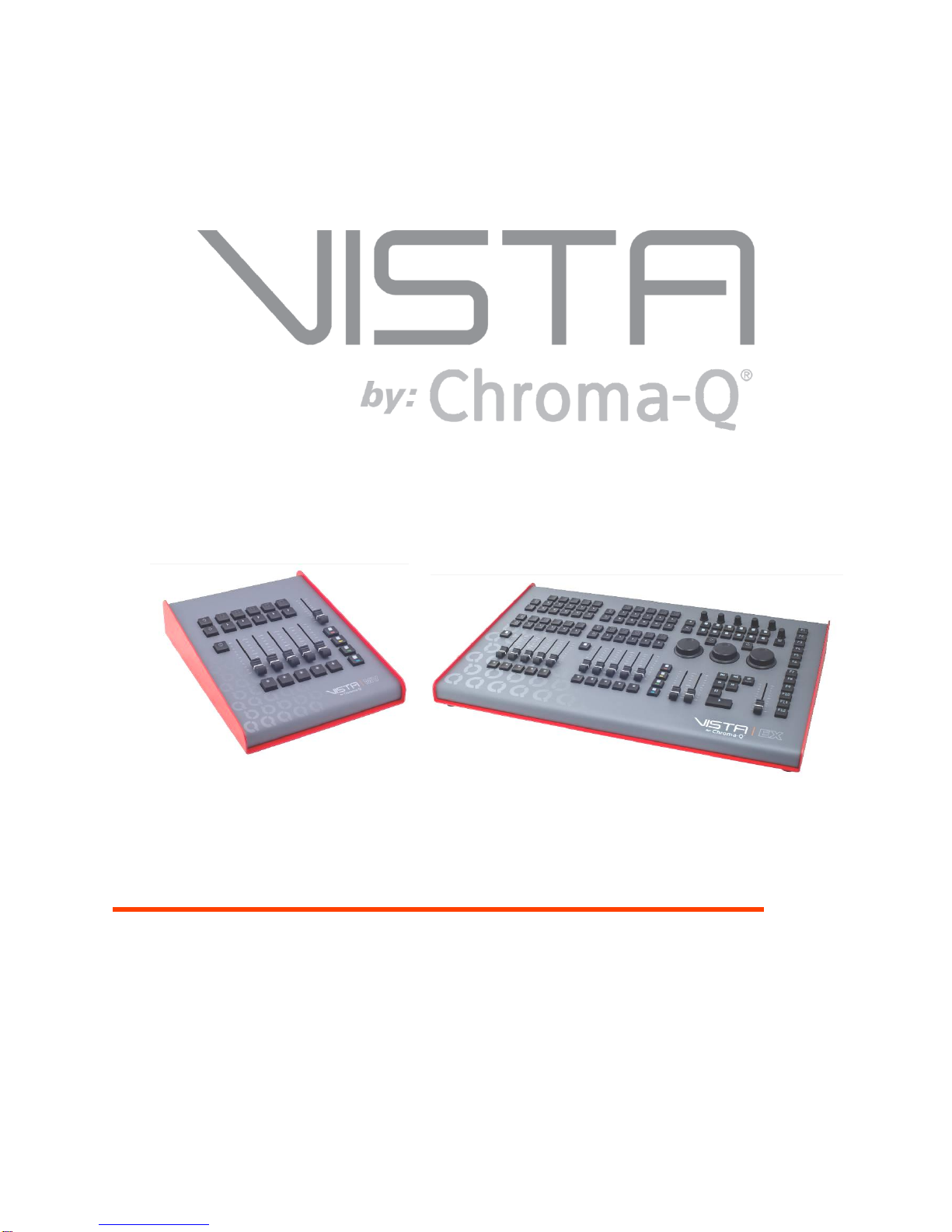

Chroma Vista MV User manual

Control Surface
Setup Guide

Chroma-Q Vista MV/EX User Manual 1 675-0701_V1.30 July 2018
www.chroma-q.com
Warranty Statement
Chroma-Q warrants to the original purchaser, with proof of purchase, that its delivered products
shall be free from defects in material and workmanship under normal use for a period of 24
months from date of shipment.
Chroma-Q will repair, or at its option, provide an equivalent item or replace, the defective
product during the stated warranty period. This warranty applies only to the repair or
replacement of the product and only when the product is properly handled, installed and
maintained according to Chroma-Q instructions. This warranty excludes defects resulting
from improper handling, storage, installation, acts of God, fire, vandalism or civil
disturbances. Purchaser must notify Chroma-Q in writing within 14 days of noticing the
defect. This warranty excludes field labour or service charges related to the repair or
replacement of the product.
The warranty contained herein shall not extend to any finished goods or spare parts from which
any serial number has been removed or which have been damaged or rendered defective
(a) as a result of normal wear and tear, wilful or accidental damage, negligence, misuse or
abuse; (b) due to water or moisture, lightning, windstorm, abnormal voltage, harmonic
distortion, dust, dirt, corrosion or other external causes; (c) by operation outside the
specifications contained in the user documentation; (d) by the use of spare parts not
manufactured or sold by Chroma-Q or by the connection or integration of other equipment
or software not approved by Chroma-Q unless the Customer provides acceptable proof to
Chroma-Q that the defect or damage was not caused by the above; (e) by modification,
repair or service by anyone other than Chroma-Q, who has not applied for and been
approved by Chroma-Q to do such modification, repair or service unless the Customer
provides acceptable proof to Chroma-Q that the defect or damage was not caused by the
above; (f) due to procedures, deviating from procedures specified by Chroma-Q or (g) due
to failure to store, install, test, commission, maintain, operate or use finished goods and
spare parts in a safe and reasonable manner and in accordance with Chroma-Q’s
instructions (h) by repair or replacement of engines without factory training.
The warranty contained herein shall not apply to finished goods or spare parts which are sold
“as is”, as “second-hand”, as used”, as “demo” or under similar qualifications or to
Consumables (“Consumables” is defined as any part(s) of goods or part(s) for use with
goods, which part(s) of goods or part(s) for use with goods are consumed during the
operation of the goods and which part(s) of goods or part(s) for use with goods require
replacement from time to time by a user such as, but not limited to, light bulbs).
The warranty contained herein shall not apply unless the total purchase price for the defective
finished goods or spare parts has been paid by the due date for payment.
The warranty contained herein applies only to the original purchaser and are not assignable or
transferable to any subsequent purchaser or end-user.

Chroma-Q Vista MV/EX User Manual 2 675-0701_V1.30 July 2018
www.chroma-q.com
This warranty is subject to the shipment of the goods, within the warranty period, to the
Chroma-Q warranty returns department, by the purchaser, at the purchaser’s expense. If no
fault is found, Chroma-Q will charge the purchaser for the subsequent return of the goods.
Chroma-Q reserves the right to change the warranty period without prior notice and without
incurring obligation and expressly disclaims all warranties not stated in this limited warranty.
Disclaimer
The information contained herein is offered in good faith and is believed to be accurate.
However, because conditions and methods of use of our products are beyond our control,
this information should not be used in substitution for customer's tests to ensure that
Chroma-Q products are safe, effective, and fully satisfactory for the intended end use.
Suggestions of use shall not be taken as inducements to infringe any patent. Chroma-Q
sole warranty is that the product will meet the sales specifications in effect at the time of
shipment. Your exclusive remedy for breach of such warranty is limited to refund of
purchase price or replacement of any product shown to be other than as warranted.
Chroma-Q reserves the right to change or make alteration to devices and their functionality
without notice due to our ongoing research and development.
The Chroma-Q Inspire range has been designed specifically for the lighting industry. Regular
maintenance should be performed to ensure that the products perform well in the
entertainment environment.
If you experience any difficulties with any Chroma-Q products please contact your selling
dealer. If your selling dealer is unable to help please contact [e-mail].
If the selling dealer is unable to satisfy your servicing needs, please contact the following,
for full factory service:
Outside North America:
Tel: [phone]
Fax: [phone]
[e-mail]
North America:
Tel: [phone]
Fax: [phone]
[e-mail]
For further information please visit the Chroma-Q website at www.chroma-q.com
Chroma-Q and Inspire are trademarks, for more information on this visit
www.chroma-q.com/trademarks.
The rights and ownership of all trademarks are recognised.

Chroma-Q Vista MV/EX User Manual 3 675-0701_V1.30 July 2018
www.chroma-q.com
Important Notice:
As per the requirements in the Occupational Safety and Health Administration standards for
product approval, please refer to the OSHA web pages http://www.osha.gov/dts/otpca/nrtl/
for information on the list of Nationally Recognized Testing Laboratories (NRTLs) and the
scope of recognition.

Chroma-Q Vista MV/EX User Manual 4 675-0701_V1.30 July 2018
www.chroma-q.com

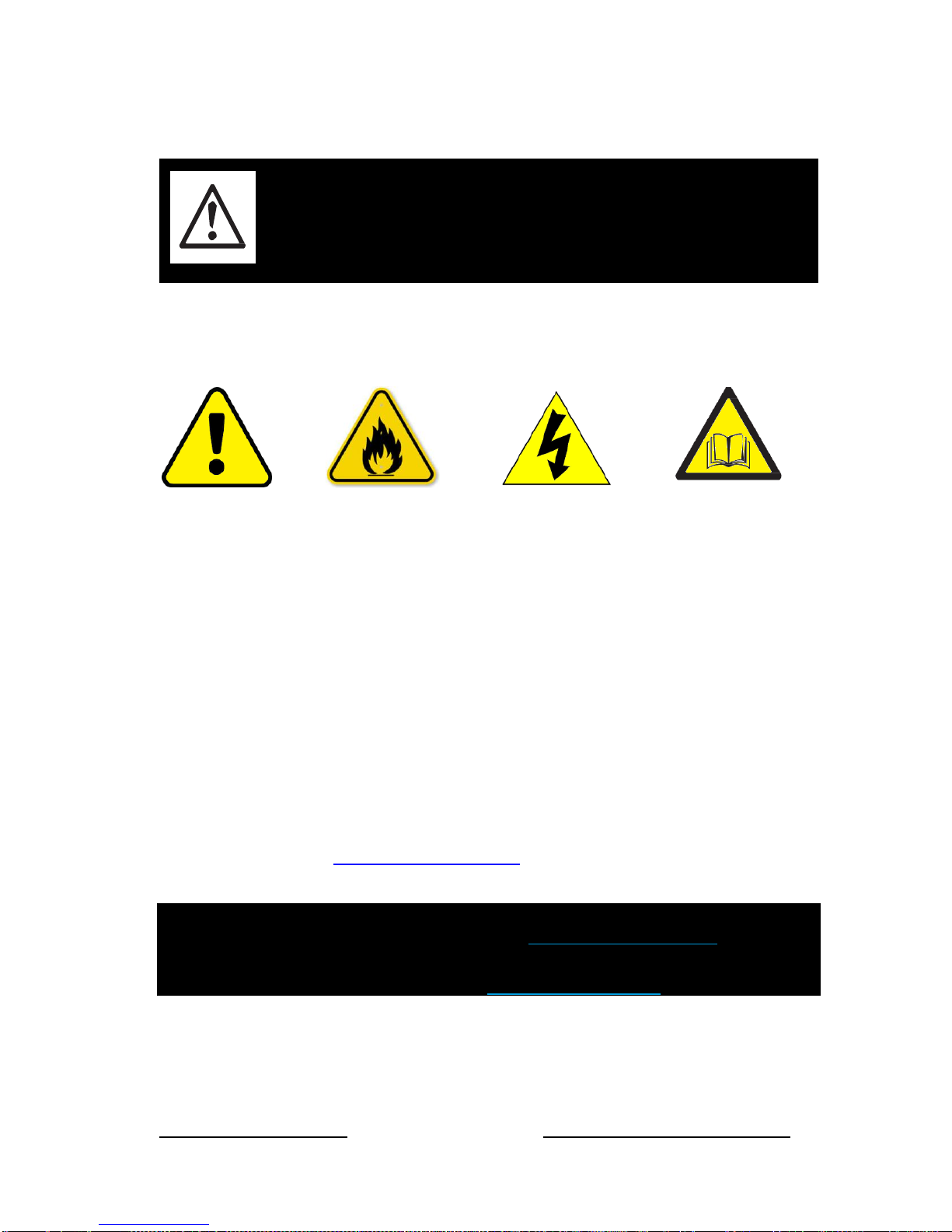

The following symbols are used to identify important safety information on the product
and in this document:
Warning!
Safety Hazard.
Risk of severe
injury or death.
Warning!
Fire Hazard.
Warning!
Hazardous Voltage.
Risk of severe lethal
electric shock.
Warning!
Refer to User
manual.
Warning!
•Read the user manual before installing and operating the Vista MV and EX by Chroma-QTM. For
future reference, keep and use the manual.
•Safety precautions given in user manual must be followed at all times and the manuals of all the
devices you connect it to. Observe all the warnings printed on devices and in manuals. Make sure
whoever is involved in working on or using the Vista by Chroma-QTM has carefully read and
understood all the safety precautions and listed warnings.
•Install, connect, operate and service devices only as described in this manual and in connected
devices’ manuals and only in accordance with local laws and regulations. All Chroma-Q manuals are
supplied with devices and are also available for download from www.chroma-q.com.
•Chroma-Q Vista EX and Vista MV do not have user-serviceable parts. Refer any operation not
described in this manual to [e-mail].
If you experience difficulties with any Vista by Chroma-Q products please contact your local dealer.
If your local dealer is unable to help then please contact vistas[email protected].
If you are having trouble finding what you are looking for on our website, then contact our Chroma-Q
marketing department by sending an email to [e-mail].
Safety information WARNING!
Read the safety precautions in this section
before installing, powering, operating or
servicing this
product.

Chroma-Q Vista MV/EX User Manual 5 675-0701_V1.30 July 2018
www.chroma-q.com
PROTECTION FROM ELECTRIC SHOCK
•Use only the cables specified in this manual and on the Chroma-q website at www.chroma-q.com
to interconnect devices in the installation. If the specified cables are not long enough for an
intended cable run, consult Chroma-Q for assistance in finding or creating a safe alternative
solution.
•Isolate the installation from power immediately if any product, power cable or power plug is in
any way damaged, defective or wet, or if it shows signs of overheating.
•Do not immerse a Vista MV and EX control surface in water or expose it to rain or mist
PROTECTION FROM BURNS AND FIRE
•Do not modify the Vista MV and EX in any way not described in this manual or install other
than genuine Chroma-Q parts. Use only accessories approved by Chroma-Q.
PROTECTION FROM INJURY
•Never try to repair the product. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized dealer or contact
[email protected].
Keep this User Manual for future consultation. If this product is used by another user, be
sure that they also receive this document.

Chroma-Q Vista MV/EX User Manual 6 675-0701_V1.30 July 2018
www.chroma-q.com
Table of Contents
Product overview ............................................................................................................................. 7
Welcome to the Vista by Chroma-Q™.......................................................................................... 7
What is a Vista USB Control surface?.......................................................................................... 7
Unpacking the Units ........................................................................................................................ 8
Vista MV included items................................................................................................................ 8
Vista EX included items ................................................................................................................ 8
Features ............................................................................................................................................ 9
Vista dongle...................................................................................................................................... 9
Vista Software package (sold separately) .................................................................................... 9
Power ON setup Vista MV/EX........................................................................................................ 10
Control Options.............................................................................................................................. 11
Main Controls.............................................................................................................................. 11
Playback Controls....................................................................................................................... 11
Technical Information.................................................................................................................... 12
control surface Installation.......................................................................................................... 12
Pin-Out Information..................................................................................................................... 12
Technical Specifications .............................................................................................................12
Drawings –Dimensions.............................................................................................................. 14
Maintenance.................................................................................................................................... 15
Warranty.......................................................................................................................................... 15

Chroma-Q Vista MV/EX User Manual 7 675-0701_V1.30 July 2018
www.chroma-q.com
Product overview
Welcome to the Vista by Chroma-Q™
Designed to be used with a portable PC or tablet PC, the Vista MV and EX are powerful and
flexible live USB control surfaces that are compact enough to be transported as carry-on
luggage. Small footprint with large capacity: The Vista MV offers 5 playbacks, while the
Vista EX offers 10 playbacks, including faders and flash buttons, a complete programming
section with encoder wheels, a master fader and more to make controlling your show a
breeze.
With the Vista MV and EX control surfaces you can fly your lightshow anywhere without even
checking in any luggage.
What is a Vista USB Control surface?
The Vista EX and MV control surfaces are operating control surfaces designed for use with the
Vista software running on a user supplied host computer. The host computer powering the
EX or MV product must be either Windows or OS system.
The Vista EX and MV control surfaces and the Vista software for the Windows or OS system
are purchased and supplied separately. Users will need both a control surfaces and
computer for the lighting control system to function.
All the inputs and outputs required to connect the lighting system to run a show are included:
•Two DMX outputs to connect lights and dimmers.
•One USB connector for PC connection.
•LED RGBW backlit key panel
Desktop lamp connection (EX only).
Please refer to the specifications section of this document for more information
System Requirements
•Windows 10
•Mac OSX 10.12 –10.8
•Intel® processor i3 (i5 or better recommended)
•2GB of RAM (4GB recommended)
•4GB of available hard disk space
•USB 2.0

Chroma-Q Vista MV/EX User Manual 8 675-0701_V1.30 July 2018
www.chroma-q.com
Unpacking the Units
Keeping the original packaging is strongly recommended for the ease of transportation and if the
item needs to be returned. We strongly recommend that you keep the original packaging for
ease of transport, or in case the item needs to be returned.
The Vista MV and EX control surfaces are supplied with:
Vista MV included items
Ref
PART
NUMBER
DESCRIPTION
QUANTITY
1
675-1000
CHROMA-Q VISTA MV USB CONTROL
SURFACE
01
2
1915-0005
USB 2.0 Type-A to Type-B cable
01
3
675-0701
QUICK START GUIDE CQ VISTA MV
01
Vista EX included items
Ref
PART NUMBER
DESCRIPTION
QUANTITY
1
676-1000
CHROMA-Q VISTA EX CONTROL
SURFACE
01
2
1915-0005
USB 2.0 Type-A to Type-B cable
01
3
676-0701
QUICK START GUIDE CQ VISTA
EX
01
4
900-0777
PSU 12VDC 5A 60W IEC XLR-4 pin
4FT
01
5
900-2113
IEC LOCK TO 5-15 POWER CORD
2M BLACK
01

Chroma-Q Vista MV/EX User Manual 9 675-0701_V1.30 July 2018
www.chroma-q.com
Features
Ref
Features
MV
EX
1
DMX OUTPUT
Two DMX XLR-5 female outputs.
The number of DMX channels available
depends on the type of dongle connected to
the system (e.g. 128, 512, 2048, etc).
Upgrades are available.
2
INPUT AND OUTPUT CONNECTIONS
2 DMX XLR-5 outputs (*Number of DMX
output channels is determined by dongle.
Software pack, including dongle, must be
purchased separately.)
3
USB to Host
N/A
One Type B
4
Desk Lamp
N/A
One standard XLR-3
connection for gooseneck desk
lamp (desk lamp not included)
5
USB A for Dongle
N/A
One type A (internal)
6
Power Light Indicator
Yes
7
LED backlit keys (RGB)
Yes
8
Faders
Yes
Vista dongle
The optional software package includes Vista dongle.
A dongle is a USB device that the Vista software requires to enable control output through either
the computer’s Ethernet connection or the control surfaces DMX outputs.
Vista Software package (sold separately)
The Vista Software package (purchased and supplied separately) includes:
• A software installation CD
• The Vista User Guide.
• A USB dongle –128, 256, 512, 1024, 2048, 4096 and 8192 channel versions available.
If purchased with a Vista EX, the vendor can install the dongle internally. If the dongle has not
been installed, follow the directions below.
• Dongle can be plugged into any available USB port on the computer or the rear panel of the
control surface, or• Contact the dealer to install the dongle to the internal USB port on the
control surface (EX only). If you choose this option we recommend using a qualified service
person. Please contact the nearest authorized dealer or contact vistasupport@chroma-
q.com for detailed installation instructions.

Chroma-Q Vista MV/EX User Manual 10 675-0701_V1.30 July 2018
www.chroma-q.com
Power ON setup Vista MV/EX
Ensure the Vista Software is installed on Windows or OS system. If the software has not been
installed, please refer to the instructions below:
1. Turn on the computer and Install Vista software (if not installed already). Refer to the
documentation supplied with the Vista software optional package.
2. To power on the Vista MV/EX control surface follow steps #3 and #4.
3. The Vista MV runs on 5VDC power supply so it can be plugged directly into the PC/MAC
using the USB 2.0 Type-A to Type-B cable.
4. The Vista EX control surface can only be connected to mains supply between 100-240VAC
using 12VDC 5A 60W power supply adaptor (XLR-4 pin) unit which is supplied with the control
surface.
5. Connect the dongle to a USB port on either the control surface or the computer. Skip this
step if the dongle has been installed into the internal port (EX only).
6. Connect the USB cable supplied with the control surface from the input USB port on the
control surface (Type B) to an output port USB 2.0 (Type A) on the Windows or OS computer
system.
7. The system will respond with a “Found new hardware” dialogue box asking "Can Windows
connect to Windows Update to search for software?"
8. Select “No, not this time” and click “Next”.
9. When the computer displays the "What do you want the software to do?
10. "Select" Install the software automatically (Recommended) and click “Next”.
11. Launch the Vista software.
Power LED operation –Vista MV/EX
The back-panel LED on continuously indicates that the USB link between the Vista control
surface and host computer is complete and ready for transmission. Once data
communication occurs, the LED flashes.

Chroma-Q Vista MV/EX User Manual 11 675-0701_V1.30 July 2018
www.chroma-q.com
Control Options
Control Type
MV
EX
Main Controls
•Blue, Green, Yellow, Red
modifier buttons
•Grand Master fader
button
•12 user configurable
function buttons
•Blue, Green, Yellow, Red
modifier buttons
•Power button
•Grand Master fader
button
Playback Controls
•5 Playbacks with faders
and flash buttons
•Playbacks feature;
Select and Go buttons
•Split mode allows control
of up to 15 Cuelists
•Playbacks can be
configured for control of
Groups, Presets and
more
•Page Up / Down buttons
•10 Playbacks with faders
and flash buttons.
•Playbacks feature; Blue /
White LCD, Select and
Go buttons
•Split mode allows control
of up to 30 Cuelists
•Playbacks can be
configured for control of
Groups, Presets and
more
•Page Up / Down buttons

Chroma-Q Vista MV/EX User Manual 12 675-0701_V1.30 July 2018
www.chroma-q.com
Technical Information
Control surface Installation
An external uninterruptible power supply can be connected if mains blackouts are anticipated.
Pin-Out Information
Description
Type
Pin Outs
Function
DMX512
Neutrik XLR 5-pin
Female “D”
type
1
2
3
4
5
Ground (screen)
Data Minus
Data Plus
Spare Data Minus
Spare Data Plus
Desk Lamp
Neutrik XLR 3-pin
Female “D”
type
1
2
3
Ground
Lamp (+ve)
NC
Technical Specifications
Control surface
Vista MV
Vista EX
Net Dimensions**
(W x H x D)
200mm x 65mm x 280mm / 8" x 2.5" x
11"
535mm x 75mm x 355mm /
21" x 3” x 14"
Net Weight
2 kgs / 4.5 lbs
6 kgs / 13 lbs
Shipping Dimensions
(W x H x D)
330mm x 235mm x 110mm/ 13'' x 9'' x
4''
550mm x 420mm x 130mm
/ 22'' x 17'' x 5''
Shipping Weight
4.5 kgs / 10 lbs
6.5 kgs / 15 lbs
Power Supply
USB Powered
12 VDC External PSU
Power Supply Voltage
5VDC
12V DC +/- 10%
Power Consumption
2.5W (max)
18W (max)
Power connector Input
USB (Type B)
XLR-4 pin male chassis
Data Connectors In/Out
Neutrik XLR 5-pin Female “D” type
Neutrik XLR 5-pin Female
“D” type
DMX outputs
2
2
Internal Dongle
0
1
Cooling System
Natural Convection
Natural Convection
Operating Temperature
0°C to 40°C
0°C to 40°C

Chroma-Q Vista MV/EX User Manual 13 675-0701_V1.30 July 2018
www.chroma-q.com
Construction
Powder coated Steel
Powder coated Steel
Color
Black / Gray / Red
Black / Gray / Red
IP Rating
IP20
IP20
Desk Light Socket
0
1
Backlit key panel
RGB
RGB
**For exact measurements please refer to the line drawings below

Chroma-Q Vista MV/EX User Manual 14 675-0701_V1.30 July 2018
www.chroma-q.com
Drawings –Dimensions
Vista MV
Vista EX

Chroma-Q Vista MV/EX User Manual 15 675-0701_V1.30 July 2018
www.chroma-q.com
Maintenance
With care the Vista MV and EX control surfaces will require little or no maintenance. If the front
panel requires cleaning, wipe with a mild detergent on a damp soft cloth. DO NOT spray
liquids onto the front panel. DO NOT use solvents for cleaning the front panel.
Warning: Do not allow the entry of liquids of any sort into the control surface chassis.
Warranty
All the new Vista MV and EX USB control surfaces by Chroma-QTM come with 2-year limited
warranty. The limited warranty covers any defects in material or workmanship under
recommended use during the warranty period.
For further information contact [e-mail].
If you experience any difficulties with any Chroma-Q products please contact your dealer. If
your dealer is unable to help please contact [e-mail]. If the dealer is
unable to satisfy your servicing needs, for full factory service, please contact,:
Outside North America:
Tel: [phone]
Fax: [phone]
[e-mail]
North America:
Tel: [phone]
Fax: [phone]
[e-mail]
For further information please visit the Chroma-Q website at www.chroma-q.com
