chromagen DET600S User manual

Read this manual carefully before operation
INSTRUCT ON MANUALI
KKKKKKKCOOKER HOOD
Pictures in this manual are for reference only, the product in kind prevail.
DET600S
DET900S

222

Contents
Warnings................................................................2
01
02
03
04
05
06
07
08
Notice of Installation...............................................4
Safety Warning.......................................................3
Use...................................................................8
Maintenance.........................................................
Trouble Shooting.................................................. 10
1
Contents
11
Disposal................................................................
09
Main Parameters..................................................
11
1
Contents.................................................................
9

zThis appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision. If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
zThere shall be adequate ventilation of the room when
the range hood is used at the same time as appliances
burning gas or other fuels.
zThe filter is made of high density aluminum.
Please do not use corrosive detergent for cleaning. The
proper function of the unit is conditioned by the
regularity of the maintenance.
zTo protect the main body from corrosive of the long time
accumulation of dirt, the cooker hood should be
cleaned with hot water with non-corrosive detergent
every two months.
zThere is a fire risk if cleaning is not carried out in
accordance with the instructions.
z
zThe air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels.
zThe minimum distance between the supporting surface
for the cooking vessels on the hob and the lowest part
of the range hood is 650 mm.
zRegulations concerning the discharge of air have to be
fulfilled.
zThe appliance uses 4 hob elements at most.
z
CAUTION :
used with cooking appliances.
Warnings
2
Accessible parts may become hot when
Do not flame under the range hood.
z

3
The appliance is not intended for use by young children or infirm
persons without supervisions.
Young children should be supervised to ensure they do not play with
the appliance.
Plug the power cord to socket outlet with earthing continuity terminal.
The cooker hood is for home use only, not suitable for barbecue, roast
shop and other commercial purposes.

according to the instruction.
Do not use open flame, or allow oil to go beneath the appliance.
If there is any fault occurred with the appliance, please call after-sale
service department.
Please keep the kitchen room ventilated.
Prior to any maintenance, cleaning operation, ensure the power is cut
off.
If the supply cord is damaged, it must be replaced by the manufacturer,
service agent or similarly qualified person in order to avoid a hazard.
The replaced power cord should be provided by manufacturer or seller.
If the plug or cord is damaged, please call after-sale service center.
There is a fire risk if cleaning is not carried out in accordance with the
instruction.
In case of damaged connecting wire, please refer to the manufacturer,
after-sale service personnel or other qualified technicians.
Use the unit according to the instructions to avoid any fire hazard.
The exhaust air must not be introduced into a smoke flue or chimney
that is used for exhausting fumes from appliances burning gas.
Follow the local laws applicable for external air evacuation.
Safety Warning

The cooker hood and its filter should be cleaned regularly

4
Notice of Installation
It can not share the same air ventilation tube with other appliance
such as gas tube, warmer tube, and hot wind tube. There will be
hazard of underpressure, combustion impaired and harmful gases
drawn back.
The bending of ventilation tube should be ≥120°,parallel or above the
start point/should be connected to the external wall.
placed horizontally to avoid
After installation, make sure that plug can be pulled out if necessary.

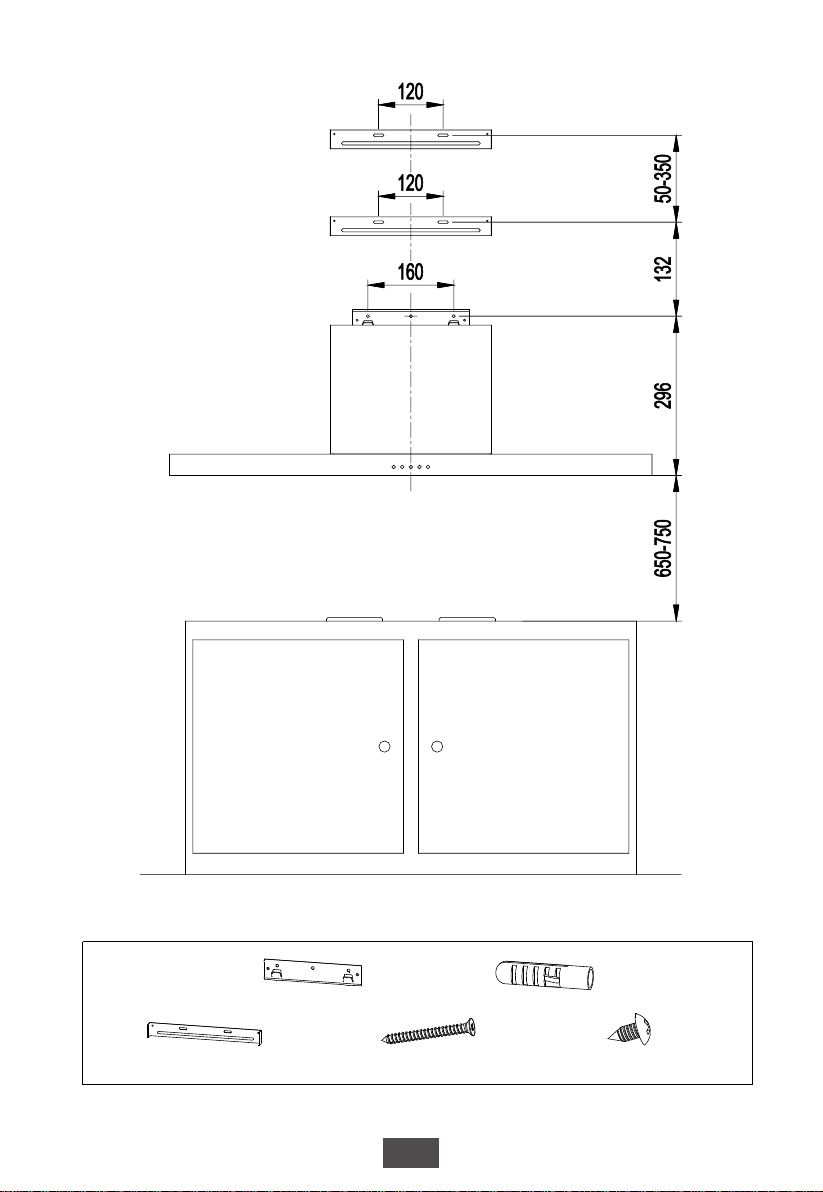

ed 650~750 mm up from the
Fig.1
Right Wrong
There shall be adequate ventilation of the room when the cooker
hood is working.
grease collection at one end. See Fig.1.
cooking plane for safe and a good effect. See Fig.2.
The cooker hood should be plac
Please make sure the installation plate is

Fig.2
5
Fig.3
2 x Chimney installation plates
7 x Plastic expansion pipes
7 x Screws(ST5*50)
1 x Installation plate
6 x Screws(ST4.2*9.5)

6

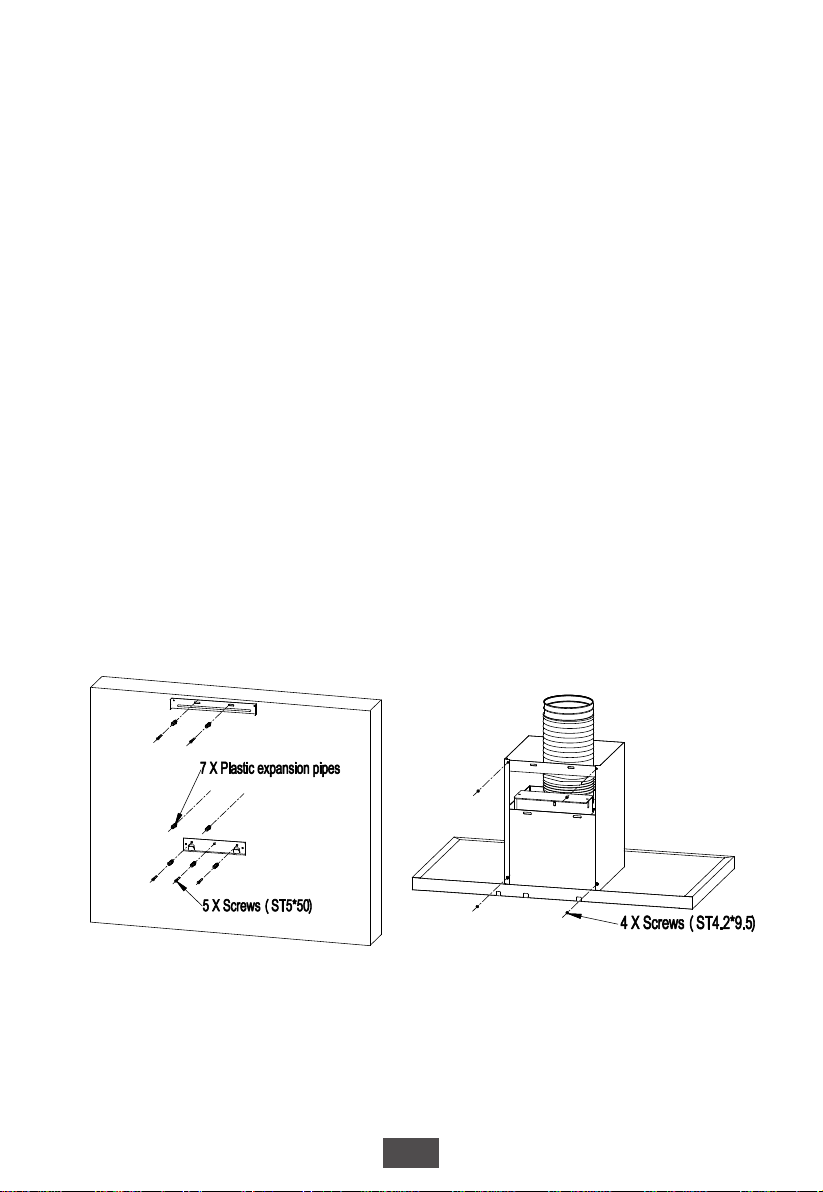

Fix installation plate and extension chimney installation plate, install
Fix the exhaust pipe and chimney on the main body, connect

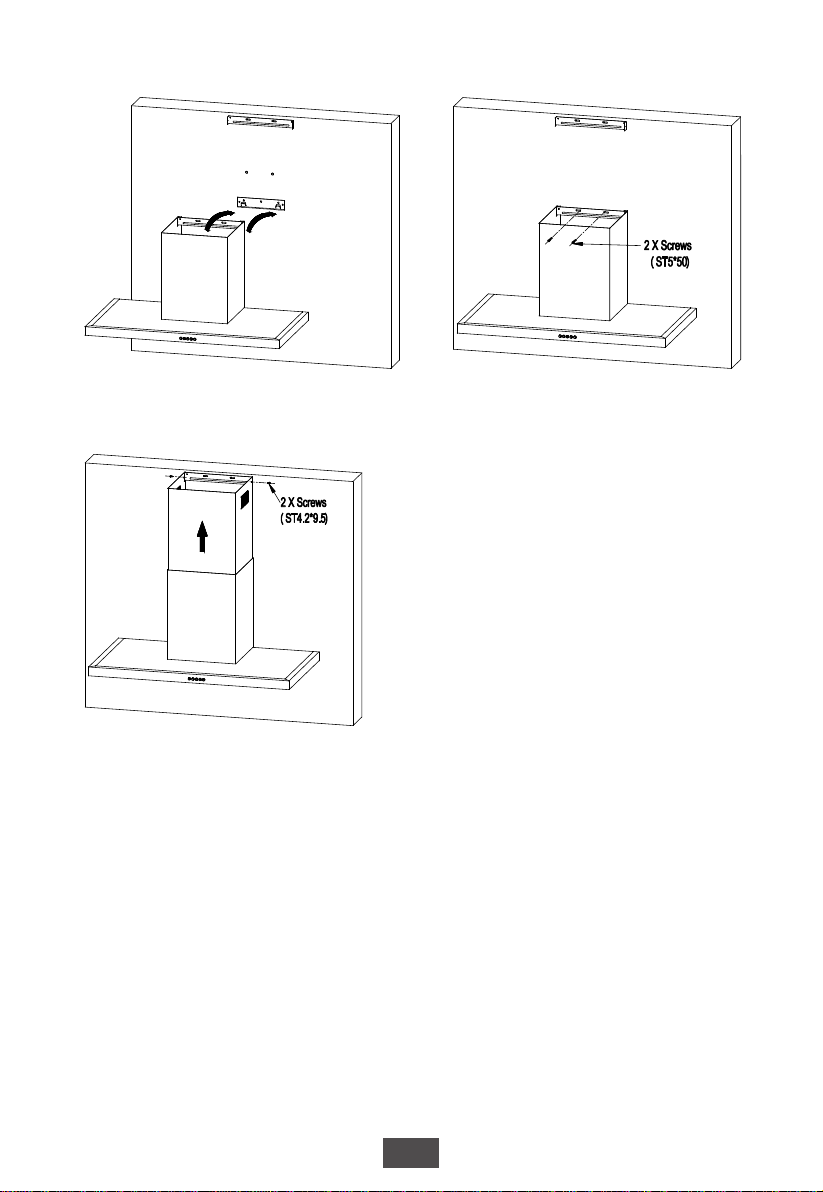

Hang range hood on the installation plate. See Fig.6.
After connecting the exhaust pipe well, fix chimney installation plate
Fix extension chimney. See Fig.8.
Installation
chimney installation plate and chimney. See Fig.5.
installation plate. See Fig.7.





the plastic expansion pipes of chimney installation plate on wall.
See Fig.4.
to prevent the range hood from accidently sliding off the
Accessories. See Fig.3. (Type and quantity of accessories is

subject to actual demand.)
Fig.4 Fig.5

7
Fig.6 Fig.7
Fig.8
7XScrews(M5*50)

222
8
Use
Speed adjustment. See Fig.9
Press Stop button, the motor will stop running.
Press the Low (speed) button, the motor runs at low speed.
Press the Mid (speed) button, the motor runs at mid speed.
Press the High (speed) button,
the motor runs at high speed.
Press the Light button, the two lighting lamps will come on.
Press it again and the lamps will be turned off.
Fig.9
Stop Low Mid High Light

9
Contents
Maintenance
Cleaning of the filters
Removing the filters according to Fig.10.
Put into a dishwasher with detergent, set the temperature below
Please do not use abrasive detergent for it will damage the hood.
Make sure that the hood is shut off before cleaning.
Replacement of the carbon filters ( )
Remove the filters see Fig.10.
The carbon filters are located at both end of the motor.
Apply reverse procedure to
It should be replaced after approximately 2-3 months of use.
The carbon filer cannot be washed or recycled.
Carbon filter is not supplied with your appliance.
60 degrees.
Turn the carbon filters until they are locked. S ee Fig.11.
Fig.10 Fig.11
al
remove the carbon filter.
Option

222
10
Trouble Shooting
Cause Solution
Light on, but motor
does not work.
The blades are blocked.
The capacitor is damaged. Replace capacitor.
The motor is damaged. Replace motor.
The internal wiring of motor is cut off /
disconnected. An unpleaseant smell
may be produced. Replace motor.
Both light and motor
Apart from the above mentioned, check the following:
Light damaged. Replace lights.
Power cord loose. Connect the wires as per the
electric diagram.
Oil leakage.
Outlet and the air ventilation entrance
are not tightly sealed. Take down the outlet and seal with glue.
Leakage from the connection of
U-shaped section and cover. Take U-shaped section down and seal with soap or paint.
Vibration.
The blade, if damaged, can cause
vibrating. Replace the blade.
The motor is not tightly fastened. Fasten the motor tightly.
The cooker hood is not tightly fixed. Fixed the cooker hood tightly.
Insufficient suction.
The distance between the cooker
hood and the cooker top is too large. Readjust the distance.
Too much ventilation from open doors
or windows.
Choose a new place to install the
appliance or close some doors /
windows.
The machine inclines.
The fixing screws are not tight
enough. Tighten the fixing screw and make it horizontal.
The hanging screws are not tight
enough Tighten the hanging screw and make it horizontal.
do not work.
.
Fault
Electrical Diagram
Electrical diagram see label on main body of the actual product.


222
1
1
Disposal
Please dispose of it at your local community waste collection /
recycling center and ensure it presents no danger to children
while being stored for disposal. The plug must be rendered
useless and the cable cut off to prevent misuse.
Main Parameters
egatloV
Rated Power
Lighting Power
Motor Power
Diameter of air tube
wolfriA
esioN
The air flow parameter is tested under conditions of 230V 50Hz when the
voltage is 220-240V~ 50/60Hz and without carbon filters.
~
220-240V~50/60Hz
333W
2 X 1.5W
330W
150mm
800m /h
3
≤
74dB

222

222






recommendations and instruction regarding installation, maintenance
The manufacturer shall decline all responsibility if the foregoing
and use are not observed and respected when using the cooker hood.
17 –23 Redwood Drive, Dingley Village, VIC, Australia 3172
CHROMAGEN AUSTRALIA PTY LTD
