Chrysler TOWN & COUNTRY 2009 User manual

TOWN & COUNTRY
2009 OWNER’S MANUAL
Chrysler LLC
81-026-0917 First Edition Printed in U.S.A.
2009 TOWN & COUNTRY

VEHICLES SOLD IN CANADA
With respect to any Vehicles Sold in Canada, the name
Chrysler LLC shall be deemed to be deleted and the
name Chrysler Canada Inc. used in substitution therefor.
DRIVING AND ALCOHOL
Drunken driving is one of the most frequent causes of
accidents.
Your driving ability can be seriously impaired with blood
alcohol levels far below the legal minimum. If you are
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab, a friend, or use public transportation.
WARNING!
Driving after drinking can lead to an accident. Your
perceptions are less sharp, your reflexes are slower,
and your judgment is impaired when you have been
drinking. Never drink and then drive.
This manual illustrates and describes the operation of
features and equipment that are either standard or op-
tional on this vehicle. This manual may also include a
description of features and equipment that are no longer
available or were not ordered on this vehicle. Please
disregard any features and equipment described in this
manual that are not on this vehicle.
Chrysler LLC reserves the right to make changes in
design and specifications, and/or make additions to or
improvements to its products without imposing any
obligation upon itself to install them on products previ-
ously manufactured.
Copyright © 2008 Chrysler LLC

TABLE OF CONTENTS
SECTION PAGE
1
INTRODUCTION .............................................................3
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ...............................9
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE ...............................97
4
UNDERSTANDING YOUR INSTRUMENT PANEL ................................... 235
5
STARTING AND OPERATING .................................................329
6
WHAT TO DO IN EMERGENCIES ...............................................417
7
MAINTAINING YOUR VEHICLE ...............................................439
8
MAINTENANCE SCHEDULES ..................................................493
9
IF YOU NEED CONSUMER ASSISTANCE ..........................................511
10
INDEX ....................................................................521
1
2
3
4
5
6
7
8
9
10

INTRODUCTION
CONTENTS
䡵Introduction ...........................4
䡵How To Use This Manual ..................4
䡵Warnings And Cautions ...................6
䡵Vehicle Identification Number ...............6
䡵Vehicle Modifications/Alterations ............7
1

INTRODUCTION
This Owner’s Manual has been prepared with the assis-
tance of service and engineering specialists to acquaint
you with the operation and maintenance of your vehicle.
It is supplemented by a Warranty Information Booklet
and various customer-oriented documents. You are
urged to read these publications carefully. Following the
instructions and recommendations in this manual will
help assure safe and enjoyable operation of your vehicle.
NOTE: After you read the manual, it should be stored
in the vehicle for convenient reference and remain with
the vehicle when sold, so that the new owner will be
aware of all safety warnings.
When it comes to service, remember that your authorized
dealer knows your vehicle best, has the factory-trained
technicians and genuine Mopar威parts, and is interested
in your satisfaction.
HOW TO USE THIS MANUAL
Consult the Table of Contents to determine which section
contains the information you desire.
The detailed Index at the back of this Owner’s Manual
contains a complete listing of all subjects.
Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this Owner’s Manual:
4 INTRODUCTION

INTRODUCTION 5
1

WARNINGS AND CAUTIONS
This Owner’s Manual contains WARNINGS against op-
erating procedures that could result in an accident or
bodily injury. It also contains CAUTIONS against proce-
dures that could result in damage to your vehicle. If you
do not read this entire manual, you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is found on the
left front corner of the instrument panel, visible through
the windshield. This number also appears on the Auto-
mobile Information Disclosure Label affixed to a window
on your vehicle, the vehicle registration and title. NOTE: It is illegal to remove the VIN.
Vehicle Identification Number
6 INTRODUCTION

VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to an accident resulting in serious injury or
death.
INTRODUCTION 7
1

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
䡵A Word About Your Keys ................. 12
▫Wireless Ignition Node (WIN) ............. 12
䡵Sentry Key威Immobilizer System ............ 15
▫Replacement Keys ..................... 16
䡵Vehicle Security Alarm System — If Equipped . . 18
▫Rearming Of The System ................ 18
䡵Illuminated Entry System — If Equipped ...... 20
䡵Remote Keyless Entry (RKE) — If Equipped .... 21
▫Using The RKE Transmitter .............. 21
䡵Remote Starting System — If Equipped ....... 28
▫How To Use Remote Start ............... 28
䡵Door Locks ........................... 32
▫Manual Door Locks .................... 32
▫Power Door Locks — If Equipped .......... 33
䡵Windows ............................. 37
▫Power Vent Windows — If Equipped ....... 37
▫Power Windows ...................... 38
2

䡵Sliding Side Door ....................... 42
▫Power Sliding Side Door — If Equipped ..... 43
▫Sliding Side Door Child Protection Lock ..... 47
䡵Liftgate .............................. 50
▫Power Liftgate — If Equipped ............ 51
䡵Storage Bin Safety Warning ................ 54
▫Safety Warning ....................... 54
䡵Occupant Restraints ..................... 55
▫Lap/Shoulder Belts .................... 57
▫Automatic Locking Retractors (ALR) Mode
— If Equipped........................ 62
▫Seat Belt Pretensioners .................. 63
▫Enhanced Seat Belt Use Reminder System
(BeltAlert威).......................... 63
▫Seat Belts And Pregnant Women ........... 65
▫Seat Belt Extender ..................... 65
▫Supplemental Restraint System (SRS) -
Airbag ............................. 65
▫Airbag System Components .............. 66
▫Front Seat Airbag Features ............... 67
▫Airbag Deployment Sensors And Controls .... 71
▫Event Data Recorder (EDR) .............. 76
▫Integrated Child Booster Seat — If Equipped . . 78
▫Integrated Child Seat — If Equipped ........ 81
▫Child Restraints ....................... 81
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

䡵Rear Seat Delete Feature (Commercial Vehicles
Only) — If Equipped..................... 90
▫Restraining Infants And Small Children With
Seat Delete Feature (Commercial Vehicles
Only) .............................. 91
䡵Engine Break-In Recommendations .......... 93
䡵Safety Tips ............................ 94
▫Safety Checks You Should Make Inside The
Vehicle ............................. 94
▫Periodic Safety Checks You Should Make
Outside The Vehicle .................... 95
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Remote Keyless Entry (RKE) transmitter
with integrated ignition key and a Wireless Ignition
Node (WIN) with integral ignition switch. You can insert
the double-sided key into the ignition switch with either
side up.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similarly to
an ignition switch. It has four operating positions, three
with detents and one that is spring-loaded. The detent
positions are OFF, ACC, and ON. The START position is
a spring-loaded momentary contact position. When re-
leased from the START position, the switch automatically
returns to the ON position.

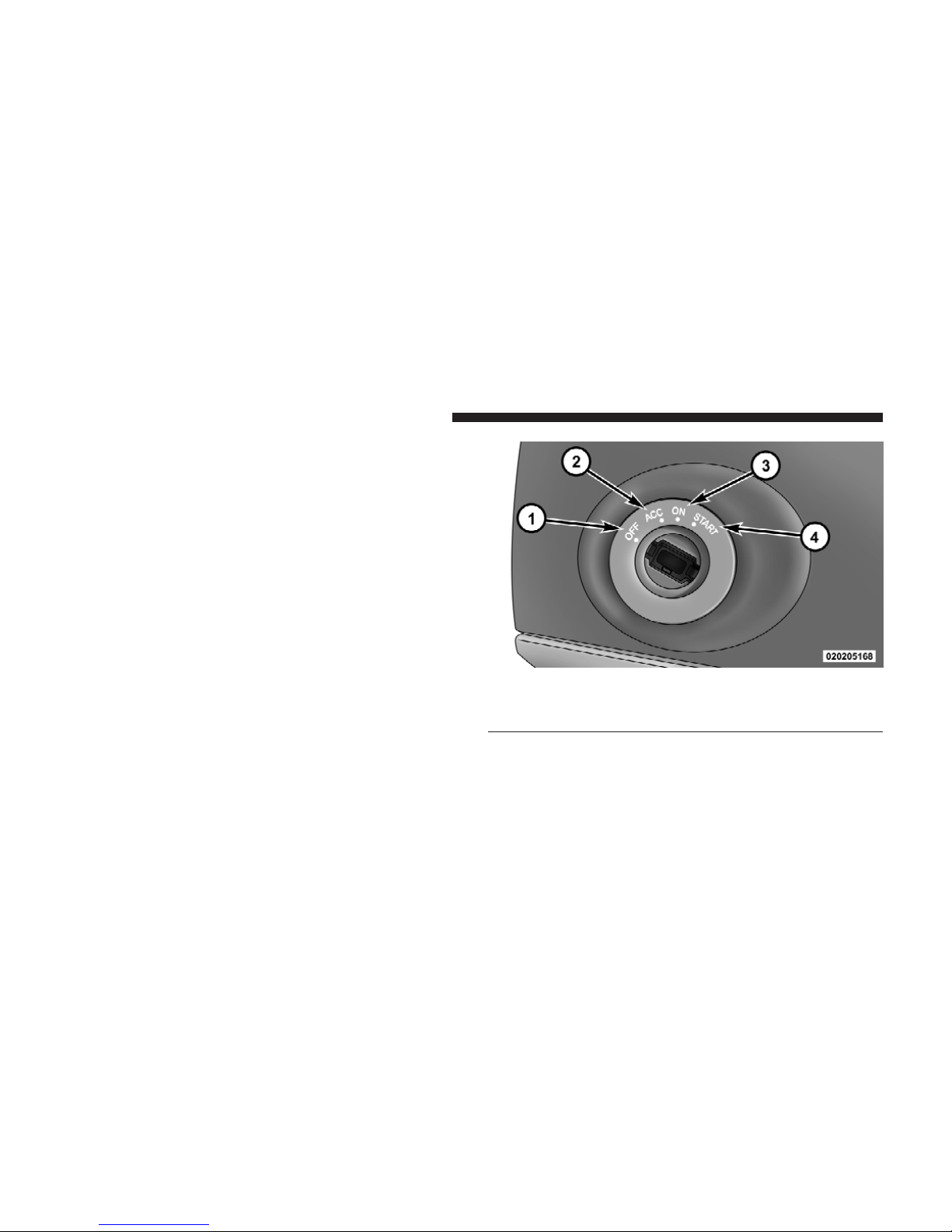

WIN Ignition Positions
1–OFF 3–ON
2 – ACC (ACCESSORY) 4 – START
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

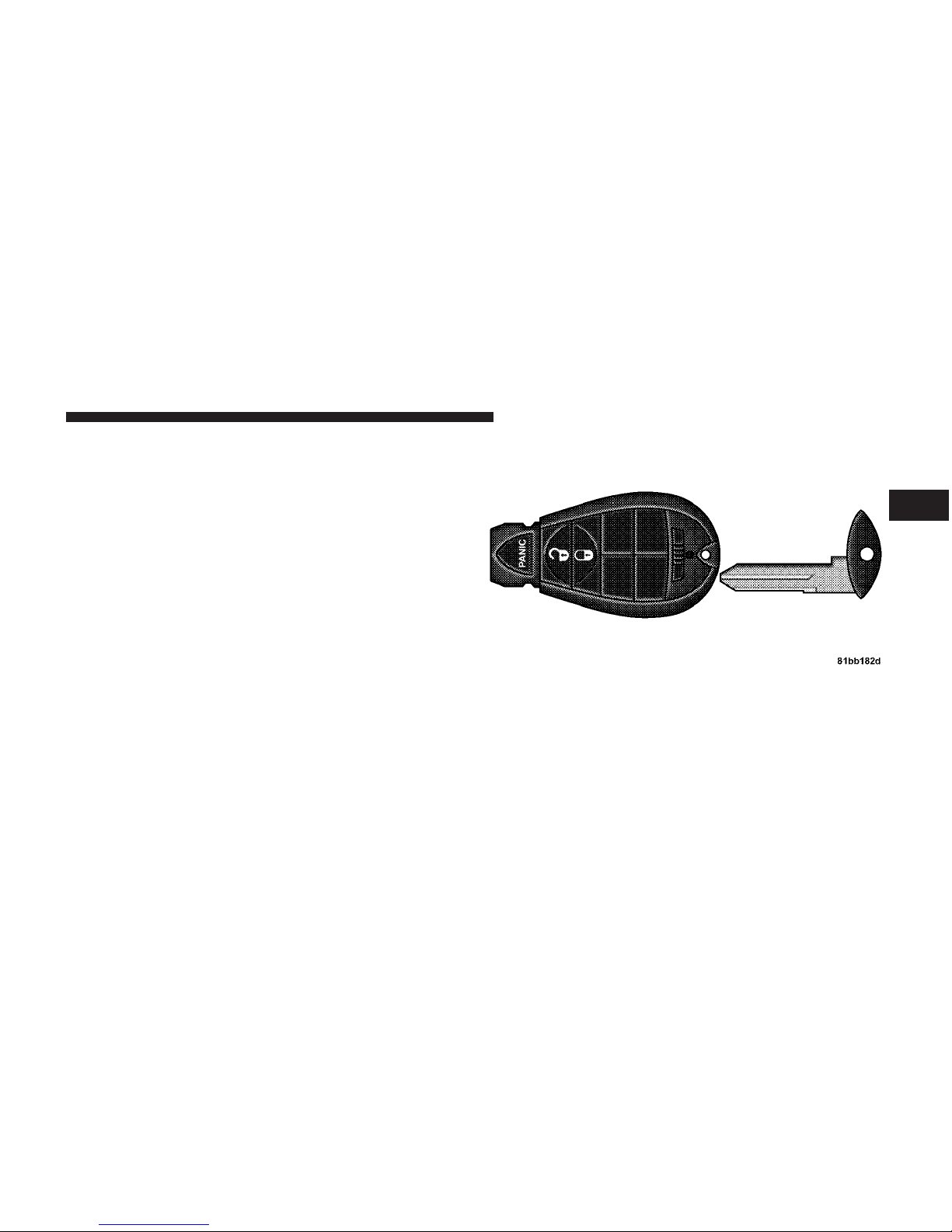

Integrated Ignition Key
The integrated ignition key operates the ignition switch.
It also contains the Remote Keyless Entry (RKE) trans-
mitter and a Valet Key, which stores in the rear of the RKE
transmitter.
The Valet Key allows for entry into the vehicle should the
battery in the vehicle or the RKE transmitter go dead. The
Valet Key is also for locking the glove box. You can keep
the Valet Key with you when valet parking.
To remove the Valet Key from the RKE transmitter, slide
the mechanical latch at the top of the RKE transmitter
sideways with your thumb and then pull the key out
with your other hand. NOTE: You can insert the double-sided Valet Key into
the lock cylinder with either side up.
Valet Key Removal
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

Tip Start Feature
1. Do not press the accelerator pedal during this process.
2. Insert the integrated ignition key into the ignition
switch.
3. Turn the ignition switch to the START position and
release it as soon as the starter engages.
The starter motor will continue to run and will disengage
automatically when the engine begins running.
Ignition Key Removal
Place the shift lever in PARK. Turn the ignition key to the
OFF position and then remove the key.
NOTE: Power window switches will also remain active
for up to 90 seconds after the ignition switch has been
turned OFF, depending upon the accessory delay setting.
Opening the front door will cancel this feature.
WARNING!
NEVER leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all doors
when leaving the vehicle unattended.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Key-In-Ignition Reminder
If you open the driver’s door with the integrated ignition
key in the ignition, a chime will sound to remind you to
remove the key.
NOTE: The Key-In-Ignition reminder only sounds
when the integrated ignition key is placed in the OFF or
ACC position.
SENTRY KEY姞IMMOBILIZER SYSTEM
The Sentry Key威Immobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if an invalid RKE transmitter is used to start the
engine.
After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check,
it indicates that someone used an invalid RKE transmitter
to start the engine. Either of these conditions will result in
the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

NOTE:
• The Sentry Key威Immobilizer system is not compatible
with aftermarket remote starting systems. Use of these
systems may result in vehicle starting problems and
loss of security protection.
• Exxon/Mobil Speedpass™, additional RKE transmit-
ters, or any other transponder-equipped components
on the same key chain will not cause a fault unless the
additional part is physically held against the RKE
transmitter being used to start the vehicle. Cell
phones, pagers, or other Radio Frequency (RF) elec-
tronics will not cause interference with this system.
All of the RKE transmitters provided with your new
vehicle have been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only RKE transmitters that are programmed to
the vehicle electronics can be used to start and operate
the vehicle. Once an RKE transmitter is programmed to a
vehicle, it cannot be reprogrammed to any other vehicle.
CAUTION!
Always remove the keys from the vehicle and lock all
doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of RKE trans-
mitters. Duplication of RKE transmitters may be per-
formed at an authorized dealer or by using the Customer
Key Programming procedure. This procedure consists of
programming a blank RKE transmitter to the vehicle
electronics. A blank RKE transmitter is one that has never
been programmed.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE: When having the Sentry Key威Immobilizer
system serviced, bring all vehicle RKE transmitters with
you to the authorized dealer.
Customer Key Programming
If you have two valid RKE transmitters with integrated
keys, you can program new RKE transmitters to the
system by performing the following steps:
1. Insert the first valid integrated key into the ignition
switch and turn the ignition switch to the ON position for
at least three seconds, but no longer than 15 seconds.
Turn the ignition switch to the LOCK position and
remove the first key.
2. Insert the second valid integrated key and turn the
ignition switch to the ON position within 15 seconds.
After 10 seconds, a chime will sound and the Vehicle
Security Light will begin to flash. Turn the ignition switch
to the LOCK position and remove the second key.
3. Insert a blank integrated key into the ignition switch
and turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will sound
and the Vehicle Security Light will stop flashing, turn the
ignition switch ON again for three seconds, and then turn
it OFF.
The new integrated key is programmed. The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat the above steps to program up to eight keys. If
you do not have a programmed RKE transmitter with
integrated key, contact your authorized for details.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

NOTE: If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
General Information
The Sentry Key威system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM SYSTEM — IF
EQUIPPED
The Vehicle Security Alarm system monitors the vehicle
doors for unauthorized entry and the ignition switch for
unauthorized operation. When the alarm is activated, the
system provides both audible and visible signals. For the
first three minutes, the headlights and Vehicle Security
Light will flash repeatedly and the horn will sound. For
an additional 15 minutes, only the headlights and Vehicle
Security Light will flash. The engine will run only if a
valid key is used to start the vehicle.
Rearming Of The System
The Vehicle Security Alarm system will rearm itself after
the 15 additional minutes of headlights and Vehicle
Security Light flashing, if the system has not been
disabled. If the condition which initiated the alarm is still
present, the system will ignore that condition and moni-
tor the remaining doors and ignition.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
