Chrysler 2004 Crossfire User manual

Table of Contents
1. Arrangement of controls . . . . . . . . . . . . 2
2. Display - Overview . . . . . . . . . . . . . . . . . 3
3. General operation . . . . . . . . . . . . . . . . . 4
3.1. Switching on/ off . . . . . . . . . . . . . . . . . . . 4
3.2. Adjusting the volume . . . . . . . . . . . . . . . . 4
3.3. Sound settings . . . . . . . . . . . . . . . . . . . . 4
Bass (BASS) . . . . . . . . . . . . . . . . . . . . . . 4
Treble (TREB). . . . . . . . . . . . . . . . . . . . . . 4
Balance – Volume distribution
left/right (BAL) . . . . . . . . . . . . . . . . . . . . . 4
Linear adjustment (LINEAR) . . . . . . . . . . . . 5
Switching mute function on/off (MUTE) . . . 5
4. Radio operation . . . . . . . . . . . . . . . . . . . 6
4.1. FM operation . . . . . . . . . . . . . . . . . . . . . . 6
4.1.1. Switching on FM modes . . . . . . . . . . 6
Station search FM (FM1, FM2). . . . . . . . . . 6
Scan search FM (SC) . . . . . . . . . . . . . . . . 6
Manual frequency tuning FM (MAN) . . . . . . 6
Requesting/storing FM stations. . . . . . . . . 7
4.1.2. BEST FM (Best Station) function. . . . . 7
4.1.3. FM autostore (AS) . . . . . . . . . . . . . . . 7
4.1.4. RBDS functions. . . . . . . . . . . . . . . . . 8
Programme type ID (PTY) . . . . . . . . . . . . . 8
Programme type scan search (PTY). . . . . . 8
4.2. AM operation . . . . . . . . . . . . . . . . . . . . . 9
4.2.1. Switching on AM modes . . . . . . . . . . 9
AM station search . . . . . . . . . . . . . . . . . . 9
Scan search AM (SC) . . . . . . . . . . . . . . . . 9
Manual frequency tuning AM (MAN) . . . . . 10
Requesting/storing AM stations . . . . . . . .10
4.2.2. AM autostore (AS) . . . . . . . . . . . . . . 10
5. CD operation . . . . . . . . . . . . . . . . . . . 11
Notes on compact discs (CD). . . . . . . . . . 11
5.1. Selecting CD function . . . . . . . . . . . . . . .11
5.2. Inserting/ Ejecting CDs . . . . . . . . . . . . . .11
Skipping tracks forwards/backwards . . . . 12
Scan function (SC). . . . . . . . . . . . . . . . . . 12
Fast forward/rewind . . . . . . . . . . . . . . . .12
Displaying relative time . . . . . . . . . . . . . . 12
Random Play (RP) . . . . . . . . . . . . . . . . . . 13
5.3. Temperature Protection Circuit . . . . . . . .13
6. User menu . . . . . . . . . . . . . . . . . . . . . 14
6.1. Calling up/exiting the user menu. . . . . . . 14
User memory (USER) . . . . . . . . . . . . . . . . 14
Setting Mono/Stereo . . . . . . . . . . . . . . . . 14
Setting the DRIVER . . . . . . . . . . . . . . . . . 15
Telephone mute characteristics . . . . . . . . 15

1. Arrangement of controls
11
346 7 8 95
2
110
12
 %VVERKIQIRXSJGSRXVSPW
Volume control – on / off switch
CD eject button (1)
Mute button (7)
Sound button (2)
Sub-menu selection button (3)
CD button (4)
FM radio button (6)
AM radio button (5)
Manual frequency setting button (9)
Right rotary control/push button
Multifunction buttons
Display
1
2
3
4
5
6
7
8
9
10
11
12

2. Display - Overview 
 (MWTPE]3ZIVZMI[
Display for radio - FM
BEST – station display / memory location number
Abbreviation for stereo - reception
Set station
Abbreviation for active scan search
Display for radio - AM
Memory location number
Set station
Abbreviation for active scan search
Display for CD operation
Current track
Abbreviation for random play
Abbreviation for active scan function
1
2 3 4
1
2
3
4
1
2 3
1
2
3
1 2 3
1
2
3

3. General operation
 +IRIVEPSTIVEXMSR
7[MXGLMRKSRSJJ
• Volume control – press on/off button.
• With the ignition key.
If the unit was switched off via the ignition, the
unit will switch on, when the ignition is switched
on again. After switching off the ignition, the unit
can be prevented from switching off by pressing
the volume control within 3 seconds.
Note
When the ignition is switched off, the unit can be
switched on by pressing the volume control button,
but it will switch off automatically after 1 hour.
% NYWXMRKXLIZSPYQI
Turn volume control to right / left. The current
volume level appears briefly on the display.
7SYR WIXXMRKW
The following functions can be called up: BASS,
TREB (Treble) and BAL (Balance – volume
distribution left/right).
Bass and treble settings (values from -9 to +9) for
the AM/FM wavebands and CD mode are stored
separately. The setting for balance is stored
commonly for all modes (values from -9 to +9).
After 6 seconds without any action, or by pressing
3, 4, 5, 6or 7, the current setting
can be quit. The new setting is stored.
Bass (BASS)
Press 2repeatedly until BASS appears.
Set the desired bass level by turning the right rotary
control/push button.
If the right rotary control/push button is pressed,
the treble level adjustment is accessed.
Treble (TREB)
Press 2repeatedly until TREB appears.
Set the desired treble level by turning the right
rotary control/push button.
If the right rotary control/push button is pressed,
the balance adjustment is accessed.
Balance – Volume distribution left/right (BAL)
Press 2repeatedly until BAL appears.
Set the desired balance by turning the right rotary
control/push button.
If the right rotary control/push button is pressed,
the bass adjustment is accessed.

3. General operation 
Linear adjustment (LINEAR)
The tone values for the set signal source
(e.g. radio/FM) are set to 0 (mean value) -
LINEAR.
Press and hold button 2for more than
4seconds.
All tone values for signal sources radio and CD are
set to 0 (mean value) -
ALL LINEAR.
Press and hold button 2for more than
8seconds.
Switching mute function on/off (MUTE)
With the mute function, the sound is muted in all
modes and wavebands.
To activate the mute function, press 7.
The mute function is cancelled by pressing 7
again or by turning the volume control.

4. Radio operation
 6E MSSTIVEXMSR
*1STIVEXMSR
4.1.1. Switching on FM modes
The following modes can be set:
•FM 1 (FM memory level 1)
•FM 2 (FM memory level 2)
•BEST FM (function “Best Station“)
•FM AS (FM autostore function)
Press 6repeatedly until the desired FM mode is
selected.
When changing between the various FM modes, the
last selected station remains set.
Station search FM (FM1, FM2)
The radio searches in descending/ascending order
of frequency.
To activate station search, turn the right rotary
control/push button to the left/right.
Note
The station search can also be started at FM AS.
Scan search FM (SC)
An automatic station search can be started. The
first run is performed on an insensitive plane, all
further runs on a sensitive plane. Receivable
stations can be heard for 8 seconds.
Press the right rotary control/push button, and the
abbreviation SC is displayed.
Press the right rotary control/push button if you
wish to keep the received program.
Note
Scan search begins at the currently set frequency.
Once the scan begins, it will continue until either a
station or program is retained or until another mode
is selected.
Manual frequency tuning FM (MAN)
To activate manual tuning, press 9.
Set the desired frequency by turning the right rotary
control/push button. The tuning steps for FM and
BEST FM are in 200 kHz increments.
On the left side of the display, MAN indicates that
manual tuning is active.
To exit the manual tuning feature, press 9again.

4. Radio operation 
Requesting/storing FM stations
Storing: 10 frequencies or programs can be
stored on FM 1 and on FM 2.
Press a multifunction button for 3 seconds in order
to store the desired transmitter. A signal tone con-
firms the selection.
Request: Press multifunction button - .
The stored station is called up.
4.1.2. BEST FM (Best Station) function
The BEST FM function is a memory that automati-
cally stores stations in order of their signal quality
(reception quality).
This memory is constantly updated.
To call up function BEST FM press 6repeatedly
until the display shows BEST FM.
Once the BEST FM function is activated, the best
station is always displayed to the left of the general
display. Press the right rotary control/push button
in order to select this station.
Transmitters with a better or worse reception
quality can be selected by turning the right rotary
control/push button to the left or the right. The
selected station is set by pressing the right rotary
control/push button.
Note
Once a station is selected, it takes about 8 seconds
before the best station is again displayed on the
BEST station display.
4.1.3. FM autostore (AS)
The 9 current stations with the strongest signal will
be stored on station buttons - in the
order of their signal quality.
Press 6repeatedly until FM AS is displayed.
To perform an autostore scan, press multifunction
button repeatedly until
AS-SEEK is dis-
played.
The autostore memory level is identified on the
display with AS.
To select the stored stations, press - .
1 0
1 9
AS
1 9

4. Radio operation
4.1.4. RBDS functions
RBDS - General:
This car radio is capable of receiving RBDS signals
(RBDS = Radio Broadcasting Data System) on the
VHF bands. RBDS is a technique for the transmis-
sion of inaudible information in the VHF broadcast-
ing range. This means that the broadcaster sends
information to be analyzed by the auto radio.
All receivable RBDS stations are displayed with their
RBDS station names.
If all criteria for evaluating RBDS information are not
met, the unit will only display the frequency.
The information transmitted by the stations con-
tains also alternate frequencies. Alternate frequen-
cies have the same program content as the set
station.
Using these alternate frequencies, the radio can
conduct an evaluation and constantly tune into the
best-quality frequency with the same program con-
tent.
PTY (Program Type):
RDS stations can broadcast the station’s program
type (does not apply to all stations)
Examples of program types:
•NEWS - News service
•SOFT - Soft music
•INFORM - Information programs
•NOSTALGA - Nostalgia
•SPORTSSports reports
•JAZZ - Jazz music
•TALK - Talk
•CLASSICL - Classical
•ROCK- Rock music
•R B - R &B
•CLS ROCK - Classic rock
•SOFT R B - Soft R&B
•ADLT HIT - Adult hits
•LANGUAGE- Language program
•SOFT RCK - Soft rock
•REL MUSC - Religious music
•TOP 40 - Top 40
•REL TALK - Religious talk
•COUNTRY - Country music
•PERSNLTY -Personality
•OLDIES - Oldies
•PUBLIC - Public
•WEATHER - Weather forecast
•PTY 24 - 28 - Not specified
•NO PTYNo program type

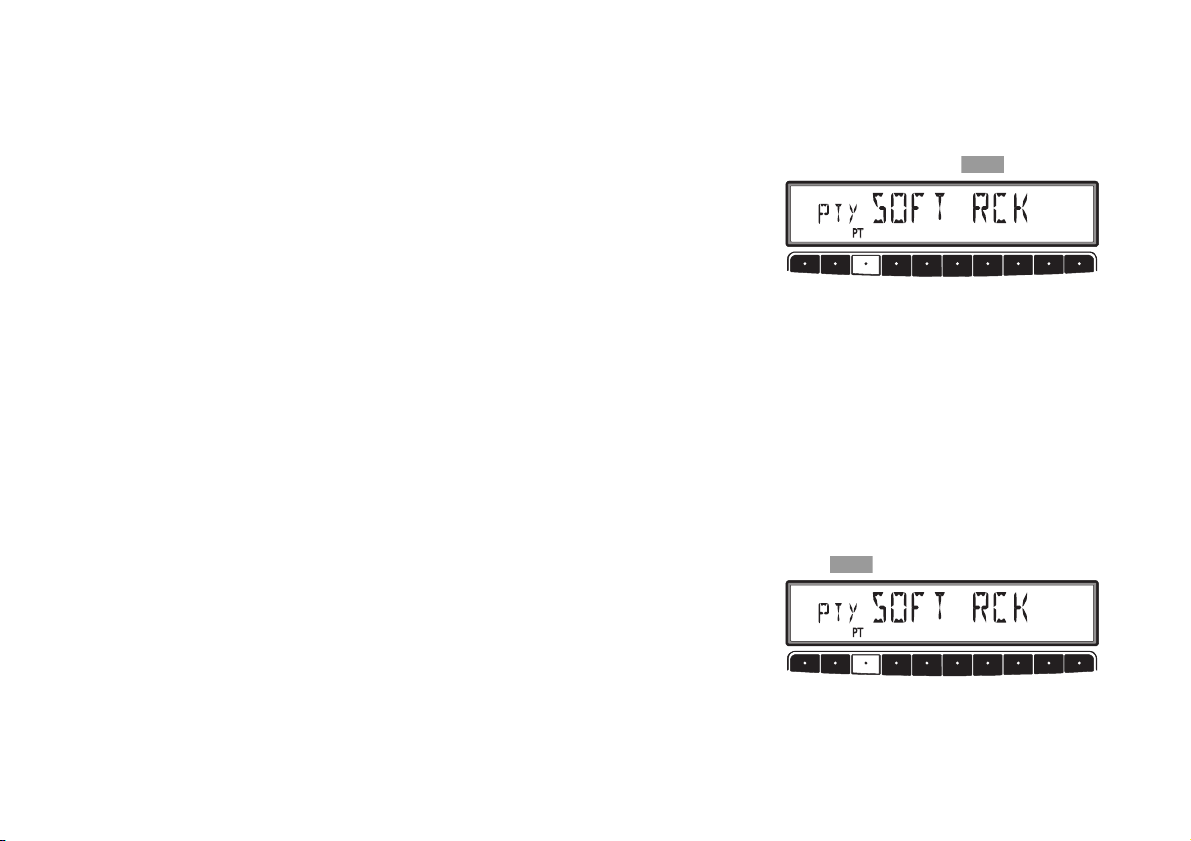

Programme type ID (PTY)
The program type of the selected station can be
displayed.
For this purpose, press 3in FM mode, then
press multifunction button .
The selected station’s program type is displayed
for 10 seconds (e.g. SOFT RCK = soft rock
music).
For further information, see “4.1.4. RBDS
functions” on page 8.
Programme type scan search (PTY)
The radio plays stations with a selectable PTY in
order of ascending frequency for 8 seconds each.
To activate the program type scan search, press
3in FM mode, then press multifunction
button .
PT
PT

4. Radio operation 
You can pre-select one of the currently available
PTY by turning the right rotary control/push button
left or right. Pressing the right rotary control/push
button will confirm the selection and the program
type scan search begins.
The abbreviation SC signals the active scan search.
Press the right rotary control/push button again if
you wish to keep the received program. The
previously heard program is selected if no station
with the selected PTY is receivable.
Note
Some stations do not transmit a PTY ID. In this
case, the display shows NO PTY, and no scan
search is possible.
%1STIVEXMSR
4.2.1. Switching on AM modes
The following modes can be set:
•AM (AM wave bands)
•AM AS (AM autostore function)
Press 5repeatedly until the desired band or
operation mode is selected.
When changing the waveband or the mode, the last
selected station is set.
AM station search
The radio searches in descending/ascending order
of frequency.
To activate station search, turn the right rotary
control/push button to the left/right.
Scan search AM (SC)
An automatic station search can be started. The
first run is performed on an insensitive plane, all
further runs on a sensitive plane. Receivable
stations can be heard for 8 seconds.
Press the right rotary control/push button, and the
abbreviation SC is displayed.
Press the right rotary control/push button if you
wish to keep the received station.
Note
Scan search begins at the currently set frequency.
Once the scan begins, it will continue until either a
station is retained or until another mode is selected.

 4. Radio operation
Manual frequency tuning AM (MAN)
To activate manual tuning, press 9.
Set the desired frequency by turning the right rotary
control/push button.
On the left side of the display, MAN indicates that
manual tuning is active.
10kHz tuning steps are performed.
To exit the manual tuning feature, press 9again.
Requesting/storing AM stations
Saving: 10 transmitters can be stored under
station buttons. Seek the desired station and press
multifunction button - , until the station
button number appears.
Request: Repeatedly press the multifunction
button - . The stored station is called
up.
4.2.2. AM autostore (AS)
The 9 current stations with the strongest signal will
be stored on station buttons - in the
order of their signal quality.
Press 5repeatedly until AM AS is displayed.
To perform an autostore scan, press multifunction
button repeatedly until
AS-SEEK is dis-
played.
The autostore memory level is identified on the
display with AS.
To select the stored frequencies, press -
.
Note
In general, there is no need to perform an autostore
scan search (AS-SEEK). The stations saved from an
autostore scan search will remain stored until
another scan search is performed.
1 0
1
0
1 9
AS
1
9

5. CD operation 
 '(STIVEXMSR
Notes on compact discs (CD)
Sound interruptions may occur if the CD is soiled.
In order to ensure the highest tone quality, please
note the following:
• Always touch the CD at the edges only. Keep the
disc clean and never touch the surface.
• Never stick anything on the CD.
• Protect CDs against direct sunlight and from
heat sources such as heaters etc.
• Before playing the CD, it should be cleaned with
a special, commercially available cleaning cloth,
wiping from the center outwards. Solvents such
as petrol, thinners or other commercially
available cleaners and anti-static sprays must not
be used.
Note
The system may not be able to play copy-protected
CDs or CDs with CD-ROM sections which do not
correspond to the audio CD standard.
7IPIGXMRK'(JYRGXMSR
Press button 4, the display shows CDS.
If no CD is present, the display briefly shows NO
CDS, and the radio mode remains active.
-RWIVXMRK)NIGXMRK'(W
Insert the CD into the CD slot with the printed side
up. The unit automatically pulls in the CD and briefly
displays the number of tracks and total playback
time for the CD. The unit then begins to play back
the CD, beginning with the first track (the display
shows TRACK).
After playing the last track, the unit automatically
begins to play the first track of the CD again.
To eject a CD, briefly press 1. The CD is ejected
and can be removed.
Please note
The CD is not ejected when the unit is switched off,
it remains in the CD slot.

 5. CD operation
Skipping tracks forwards/backwards
Turn right rotary control/push button to right / left.
If the right rotary control/push button is turned
further, several tracks can be skipped in forward or
reverse directions. The unit switches to the first
track once the last track is reached. Analogously, it
switches from the first track to the last track.
If a track has been playing for more than 8 seconds
when the skip back function is triggered, the device
returns to the beginning of the track.
If the track has been played for less than 8 sec-
onds, the device will skip to the next track.
Scan function (SC)
Using the scan function, all following CD tracks are
played back for 8 seconds each.
Push the right rotary control/push button, until the
display shows SC.
Press the rotary control/push button again to
terminate the scan search.
Fast forward/rewind
By pressing multifunction button the Fast
Forward function (audible) is activated. Conversely,
if you press multifunction button the fast
rewind function (audible) is activated. The relative
time is displayed during this function.
Fast forward / rewind terminates when the
multifunction button is released. The relative time is
displayed for a further 8 seconds.
Displaying relative time
By pressing multifunction button the relative
time of the currently playing track is displayed for
approx. 8 seconds.
T

5. CD operation 
Random Play (RP)
Using the random generator function, the tracks of
the current CD are played in random order.
By pressing multifunction button the random
play function is activated. The abbreviation RP
appears on the display.
By pressing the multifunction button again,
the “Random play” function is deleted.
8IQTIVEXYVI4VSXIGXMSR'MVGYMX
To protect the laser diode from excessive heat, a
temperature protection circuit is integrated into the
unit.
When this protection circuit is activated, CD
TEMP appears for 8 seconds.
The unit switches back to the last selected signal
source (FM or AM).
After a cool down period, the CD mode may be
called up again. However, if the temperature is still
too high, the unit again switches back to the
previously selected signal source.
RP
RP

 6. User menu
 9WIVQIRY
The following functions can be customized to your
personal needs in the user menu.
•USER - User memory
•M/S - Mono/Stereo setting
•DRI ERLHD / RHD setting
•PHONE - Telephone characteristics
•LED - LED setting
'EPPMRKYTI\MXMRKXLIYWIVQIRY
Call up the user menu by pressing 3for longer
than 3 seconds. USER appears on the display.
Another user action must take place within 6 sec-
onds, otherwise the user menu is exited automati-
cally.
The current setting can also be quit and the selec-
tion saved by pressing 4, 5, 6or 7.
User memory (USER)
The specific user memory saves the sound settings
and the last received station when the unit is
switched off.
Call up the user menu.
One of three users can now be selected by turning
the right rotary/push button: USER 1, USER 2
and USER 3.
If the right rotary control/push button is pressed,
”Setting Mono/Stereo” is called up.
Setting Mono/Stereo
In order to suppress reception-related interference,
three different parameters can be set for reception
optimization.
•STO AUTO: Setting for normal operation – i.e.
the unit switches from stereo to mono reception
and back, depending on the reception conditions
(for nearly all reception areas, this is the optimal
setting).
•STEREO: Setting for exceptional conditions –
i.e. the unit is constantly set to stereo reception
(e.g. for private broadcasters in urban areas).
•MONO: Setting for reception conditions with
constant reflection – i.e. the unit is constantly set
to mono.
Call up the user menu. Press the right rotary
control/push button repeatedly until STEREO,
STO AUTO or MONO is displayed, depending on
the currently selected setting.
Now turn the right rotary control/push button to
select STEREO, STO AUTO or MONO.
If the right rotary control/push button is pressed,
“Setting DRIVER” is called up.
Note
This setting is saved in dependence to the set user.

6. User menu 
Setting the DRIVER
If a telephone with hands-free operation is installed,
the call is routed through the speaker system. The
setting DRIVER is used to set the appropriate
speaker side (left/right hand drive).
Call up the user menu. Press the right rotary
control/push button repeatedly until DRI ER L
or DRI ER R is displayed, depending on the
currently selected setting.
Now turn the right rotary/push button to select
DRI ER L (LHD) or DRI ER R (RHD).
If the right rotary control/push button is pressed,
the menu item “Telephone mute characteristics” is
called up.
Telephone mute characteristics
If a telephone with hands-free operation is installed,
the call may be routed through the speaker system.
This eliminates the need for an additional speaker.
However, the signal lines (NF – telephone input and
earth – telephone input) must be connected to the
car radio.
The following settings are available:
•PH MUTE - Switching radio to mute
•AUDIO PH - Telephone call via the car radio
Call up the user menu. Press the right rotary
control/push button repeatedly until AUDIO PH
or PH MUTE is displayed, depending on the
currently selected setting.
Now turn the right rotary control/push button to
select AUDIO PH or PH MUTE.
If the right rotary control/push button is pressed,
the menu item “User memory (USER)” is called up.
For both settings, PHONE is displayed in case of
an incoming call.
The current audio source is muted. In this situation,
you can only change the volume and the sound
settings for the telephone call at the unit.
