CIC 100 SERIES User manual

OWNER’ S MANUAL: CIC-100-DVT-8·CIC-100-DVT-6·CIC-100-IC-8
CIC-100-IC-6·CIC-100-POINT-6
Thank you for purchasing CIC AudioTM 100 series speakers. These speakers offer exceptional performance and power
handling in flush-mounted designs. Each model features extra-high sensitivity to assure concert volume levels, even
with low-powered distribution systems.
The 100 Series is engineered to handle the dynamic range of multi-channel audio technologies like Dolby Digital and
DTS as well as traditional two-channel sources. These in-ceiling speakers deliver high-end tonal balance and a clear
distinction between musical notes.
The line comprises two-way models including 6.5’and 8’glass fiber with NBR surrounds for lasting performance,
indoors or out, and dual voice coil, Black Pearl tweeter configurations permit one 100 series speaker to
deliver stereo sound to any room.
Regardless of application, serious audiophile listening or home theater, we recommend that you take the time to read
this manual thoroughly before connecting speakers to your amplifier or receiver. In the highly unlikely event that you
should experience a problem with set-up or operation, please contact one of our authorized dealers for assistance, or
contact us directly.
SAFETY INSTRUCTIONS
INSTALLATION GUIDELINES
SPEAKER INSTALLATION
CARING FOR YOUR SPEAKER
MAINTENANCE AND SERVICE
WARRANTY
SPECIFICATIONS
4
4
4
4
2
3
3
[SAFETY INSTRUCTIONS]
1. Read Instructions - All the safety and operating instruc-
tions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instruc-
tions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in
the operating instructions should be adhered to.
4. Follow Instructions - All operating and other instruc-
tions should be followed.
5. Water and Moisture - The appliance should not be used
near water - for example, near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming
pool, etc.
6. Carts and Stands - The appliance should be used only
with a cart or stand that is recommended by the manufac-
turer. PORTABLE CART WARNING
7. Wall or Ceiling Mounting - The appliance should be
mounted to a wall or ceiling only as recommended by the
manufacturer.
8. Ventilation - The appliance should be situated so that its
location or position does not interfere with its proper venti-
lation. For example, the appliance should not be situated on
a bed, sofa, rug, or similar surface that may block the
ventilation openings; or placed in a built-in installation, such
as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
9. Heat - The appliance should be situated away from heat
sources such as radiators, stoves, or other appliances that
produce heat.
10. Power Source - The appliance should be connected to
a power supply only of the type described in the operating
instructions or as marked on the appliance.
11. Power Cord Protection - Power supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed up or against them, paying partic-
ular attention to cords at plugs, convenience receptacles,
and the point where they exit from the appliance.
12. Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
13. Nonuse Periods - The power cord of the appliance
should be unplugged from the outlet when left unused for
a long period of time.
14. Object and Liquid Entry - Care should be taken so
that neither objects fall nor liquids spill into the inside of the
appliance.
15. Damage Requiring Service - The application should
be serviced by qualified service personnel when:
a. the power supply cord or the plug has been damaged,
b. objects have fallen onto or liquid has been spilled into the
appliance,
c. the appliance has been exposed to rain,
d. the appliance does not appear to operate normally or
exhibits a marked change in performance, or
e. the appliance has been dropped or the cabinet damaged.
16. Servicing - The user should not attempt to service the
appliance beyond those means described in the operating
instructions. All other servicing should be referred to quali-
fied service personnel.
17. Grounding or Polarization - Precautions should be
taken so that the grounding or polarization means of an
appliance is not defeated.
Explanation of Graphical Symbols
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to alert
you to the presence of un-insulated’dangerous
voltage: within the product’s enclosure that
may be off sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert you to the presence
of important operating and maintenance (servic-
ing) instructions in the literature accompanying
the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock, do not remove
cover (or back). No user-serviceable parts inside. Refer servic-
ing to qualified service personnel.
APPLICABLE FOR USA, CANADA OR WHERE APPROVED
FOR USAGE
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE PLUG TO WIDE SLOT, INSERT FULLY.
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS
LA BORNE CORRESPONDANTE DE LA PRESE ET POUSSER
JUSQU AU FOND.
CIC 100 SERIES
BLACK
PEARL
TWEETER
FLANGE CLAMP
SCREWS (4x)
FLANGE
MICRO-FLANGE GRILLE
CIC-100-IC-8
&
CIC-100-IC-6
MICRO-FLANGE GRILLE
CIC-100-POINT-6
MICRO-FLANGE GRILLE
CIC-100-DVT-8
&
CIC-100-DVT-6
FLANGE CLAMP
SCREWS (4x)
FLANGE

_
[FIG. 3]
CIC-100-DVT-8 CIC-100-DVT-6 CIC-100-IC-8 CIC-100-IC-6 CIC-100-POINT-6
[INSTALLATION GUIDELINES]
For proper connection and therefore full enjoyment of your new CIC AudioTM 100
series speakers, we encourage you to read this owners’ manual thoroughly, even if
you are very familiar with installing speakers. Speaker placement is very subjective.
Placement follows the guidelines for the developers of in- ceiling speakers, yet is also
guided by personal preferences. The proper spacing, location and adjustment of
in-ceiling speakers are critical for complete enjoyment of your new speakers. This
manual covers these topics thoroughly. Choose the appropriate mounting location for
each speaker.
NOTE: When deciding upon a location, consider the following:
· Be certain your speaker wires can be run to or are accessible from these locations.
· Make certain the wall or ceiling material is sturdy enough to support the weight and
vibration of the speakers.
· Be certain the area behind the speaker is free of obstacles such as wall studs,
electrical wiring, pipes, etc.
· Each speaker should be positioned properly, relative to the listening area for good
coverage.
· Audio performance and room-to-room isolation will be improved if there is some
fiberglass insulation placed loosely behind the speaker.
[SPEAKER INSTALLATION]

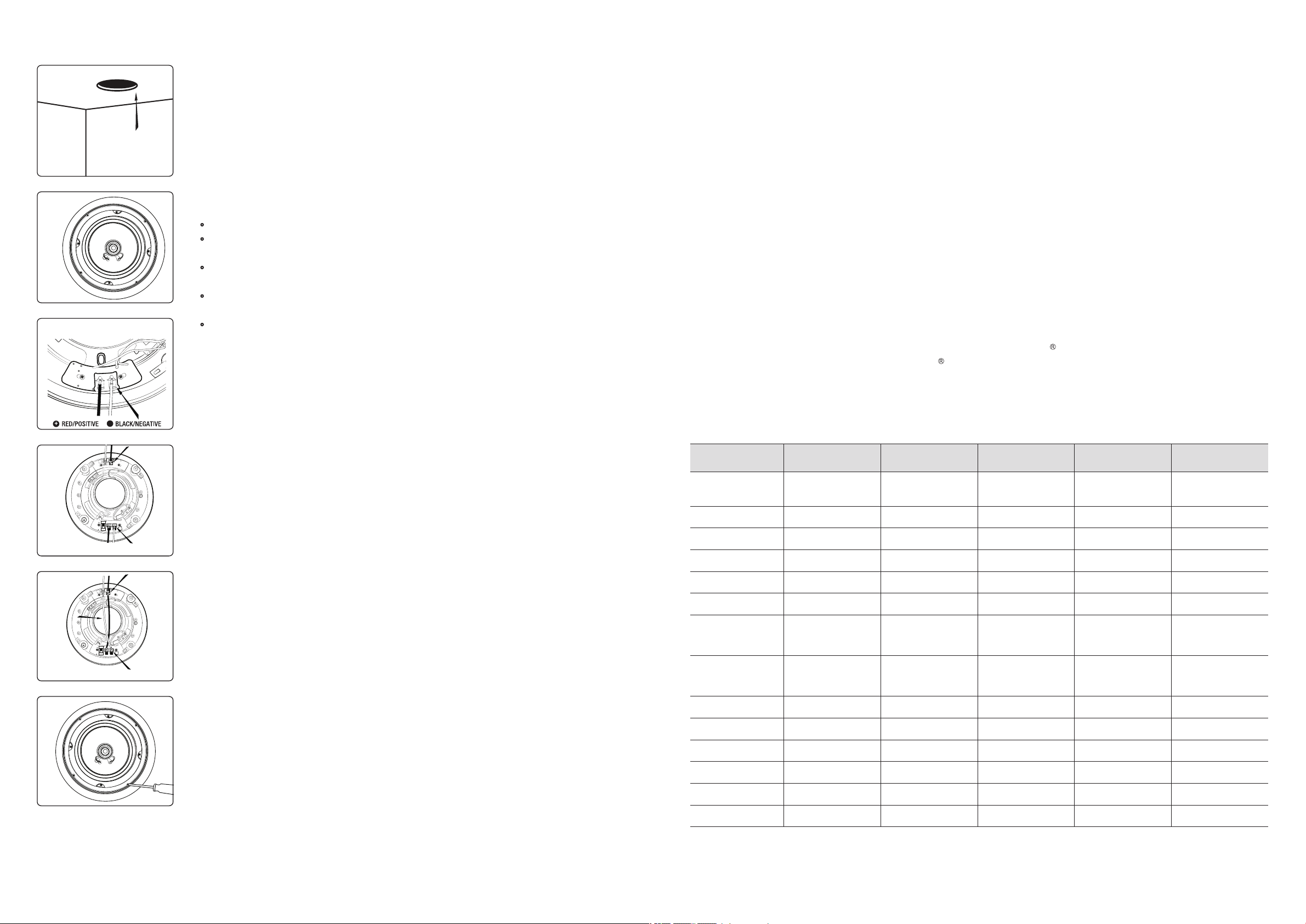

STEP 1: Using the supplied cutout template,carefully mark the area to be cut out.
Using a drywall knife or saw, cut a hole in the drywall and prepare the speaker wires
for connec-tion to the speaker terminals. (Fig. 1 for CIC-100-DVT-8, CIC-100-DVT-6,
CIC-100-IC-8, CIC-100-IC-6 & CIC-100-POINT-6).
STEP 2: Remove the grille from the speaker assembly (Fig. 2). If it is necessary to
paint the speaker grille to match the ceiling, we recommend that you do so with sever-
al light coats of matching spray paint.
STEP 3: Connect the speaker wires to the input terminals on the rear of the speaker,
making sure no loose strands are exposed (Fig. 3).
STEP 4: NOTE: For the CIC-100-DVT-6 there are several hookup options. For stereo
point-source operation, connect the speaker wires to the left AND right channel input
terminals on the rear of the speaker (Fig. 4). Make sure no loose strands are exposed.
Please make sure to check your hookup polarity for proper operation.
For Surround/Mono: The CIC-100-DVT-6 may also be used as a surround speaker
for home theater applications. For the SURROUND or MONO mode of operation,
connect your speaker wire to either the left OR right channel input as above (Fig. 5).
Next, connect 2 jumper wires from this same input terminal to the corresponding input
terminals on the opposite side of the speaker. Connect the red positive terminal to
opposite red terminal and black negative terminal to opposite black terminal.
This speaker may be set to either the bipole OR dipole mode of operation using the
selector switch on the rear panel.
Please note that the speaker is a 6 ohm speaker in this configuration.
STEP 5: Carefully position the speaker in the cutout hole. Using a screwdriver, rotate
the four clamps to secure the speaker to the drywall (Fig. 6). CAUTION: DO NOT
OVER-TIGHTEN.
Note: The CIC-100-POINT-6 have an angled baffle which allows the speaker to be
pointed toward the listening position. Rotate the baffle in the cutout until it is pointing
in the desired direction prior to tightening the clamping screws.
STEP 6: Carefully replace the grille by pressing it into the gap between the flange and
the baffle. Enjoy!
Description
Nominal Impedance
[SPECIFICATIONS]
Rms Power
Max Power
Sensitivity (1W@1m)
Frequency Response
Tweeter
Woofer
Standard
Finish Dims
Cutout Dims
Mounting Depth
Grille
Weight(speaker only)
Wide Sweet PointWide Sweet Point
Hi-Fi 6.5' In-Ceiling
Speaker
Hi-Fi 8' In-Ceiling
Speaker
Hi-Fi 6.5’In-Ceiling
LCR Speaker
Hi-Fi 6.5' Dual Voice
Tweeter Speaker
Hi-Fi 8' Dual Voice
Tweeter Speaker
400-058-5288 | www.cicaudio.com
[CARING FOR YOUR CIC AudioTM SPEAKER]
All CIC AudioTM speakers are finished with a high degree of craftsmanship in either hand polished paint or vinyl
laminates. We recommend using a lint-free rag with a small amount of glass cleaner to maintain the long-lasting beauty
of the finish. Avoid products containing silicones, oils, oil derivatives, or solvents. Use a damp cloth on enclosures
finished in vinyl laminates.
[MAINTENANCE AND SERVICE]
Because of CIC AudioTM speaker's uncompromising quality control programs, it’s unlikely that your speakers will ever
need service if connected and used as outlined in this Owners’Manual. In the unlikely event that a problem does occur,
please contact your CIC AudioTM dealer. Your dealer has the necessary factory-authorized parts and trained tech-
ni-cians to quickly restore your speaker to its original performance specifications.
[WARRANTY]
LIMITED WARRANTY: CIC AudioTM provides a limited lifetime warranty for its speakers and electronic components to
the original purchaser. Purchase must be made from an authorized CIC AudioTM dealer.
This warranty does not cover service or parts to repair damage caused by misuse, abuse, damage while in transit, alter-
ations, unauthorized repairs, failure to follow instructions, fire, flood or any other cause beyond the reasonable control
of CIC AudioTM. Defects in speaker cabinets or grilles must be brought to the attention of your dealer immediately after-
purchase. This warranty will be void if the products’serial number has been altered or removed.
Should your CIC AudioTM product require service, please call the DVACOR customer service department for a return
authorization. All merchandise returned to DVACOR Group without prior authorization will be refused. For your return
authorization number, please call 400-058-5288.
[FIG. 2]
[FIG. 1]
[FIG. 6]
[FIG. 5]
R
L
1u6 1u6
100 v 100 v
Bi
Di
1u6 1u6
100 v 100 v
SURROUND OR MONO CONFIGURATION
[FIG. 4]
R
L
1u6 1u6
100 v 100 v
Bi
Di
1u6 1u6
100 v 100 v
STEREO POINT-SOURCE CONFIGURATION
6Ohms + 6Ohms 6Ohms
10W + 10W 10W
60W + 60W 120W
6Ohms
10W
150W
86dB 88dB
6Ohms + 6Ohms
10W + 10W
80W + 80W
86dB88dB
60Hz - 20kHz 60Hz - 20kHz60Hz - 20kHz60Hz - 20kHz
Dual 0.75' Black
Pearl silk tweeter
Dual 0.75' Black
Pearl silk tweeter
0.75' Black Pearl
silk tweeter
360 °variable
0.75' Black Pearl
silk tweeter
360 °variable
0.75' Black Pearl
silk tweeter
360 °variable
8.89’ (226mm)
8.11’ (206mm)
3.3’ (84mm)
10.5’ (265mm)
9.65’ (245mm)
3.7’ (95mm)
White White White WhiteWhite
1.3KG
Wide Sweet Point
8.89’ (226mm)
8.11’ (206mm)
3.3’ (84mm)
1.2KG
Wide Sweet Point
10.5’ (265mm)
9.65’ (245mm)
3.7’ (95mm)
1.52KG
6Ohms
10W
120W
86dB
60Hz - 20kHz
Wide Sweet Point
9.38’ (238mm)
8.19’ (208mm)
4.5’ (115mm)
1.32KG1.6KG
8' Graphite-Injected
Woofer
NBR surround
6.5' Graphite-Injected
Woofer
NBR surround
8' Graphite-Injected
Woofer
NBR surround
6.5' Graphite-Injected
Woofer
NBR surround
6.5' Graphite-Injected
Woofer
NBR surround
This manual suits for next models
5
