CIFARELLI M1200US Instructions for use

MIST BLOWER
M1200US
Instruction and maintenance
manual
Translated from the original Italian version
Version 02 dated 17/10/2019
Warning
This instruction manual is integral part of the machine,
so keep it with care.
Please read carefully this instruction book before using the
mist blower. An improper use can cause serious or fatal
injury.

Cifarelli S.p.A - Italy
Page 2

Mist blower M1200US
Page 3
INTRODUCTION
We thank you for buying Cifarelli’s mist blower.
The mist blower that you have bought is a device to effect treatments with
chemical products or other necessary liquids to fight bugs and illnesses that can
strike both the cultivations and the plants.
It is very important to know, observe and apply the safety norms to avoid the risk
of serious injury, fatal too, towards himself, third person or serious damages to the
environment.
For this reason, it is fundamental that you read carefully and understand the
instructions and the warnings of this manual; for any clarification on these
instructions, please contact Cifarelli's distributor/seller.
It is also important that you follow the instructions of the producer of the chemical
that you are going to apply: read carefully the label of the container.
Your mist blower is a professional equipment; do not lend it or do not rent it
without attaching this instruction manual.
Due to the continuous improvements Cifarelli S.p.A. submits its own production to,
the mist blower M1200US may be subject to changes or modifications without any
notice and/or obligation of adaptation of the machines previously sold.

Cifarelli S.p.A - Italy
Page 4
INDEX
Machine data.......................................................................................................................5
Symbols ..............................................................................................................................6
Safety Norms ......................................................................................................................6
State and local requirements.........................................................................................7
Personal protections......................................................................................................7
Prohibitions....................................................................................................................8
Fuelling..........................................................................................................................8
Safety checking of the machine.....................................................................................9
Warning.........................................................................................................................9
Packing........................................................................................................................11
Standard supplies ............................................................................................................12
description of the parts of the machine........................................................................12
Assembly ..........................................................................................................................13
Parts of the machine....................................................................................................13
Adjusting of the handle................................................................................................14
Adjusting of the shoulder straps..................................................................................15
Quick release of the shoulder strap.............................................................................15
Fueling operation .............................................................................................................16
Preparation of the Fuel................................................................................................16
Fuelling........................................................................................................................17
Mist blower controls ........................................................................................................18
Handle.........................................................................................................................18
Regulator of the liquids flow ........................................................................................19
the mist blower.................................................................................................................20
Before to start..............................................................................................................20
Starting........................................................................................................................20
Filling of the liquid tank................................................................................................23
Treatment....................................................................................................................24
Engine in running-in period..........................................................................................24
Stopping the engine.....................................................................................................24
Use as a blower...........................................................................................................25
Transport of the machine.............................................................................................25
After using ...................................................................................................................25
Storage norms..................................................................................................................26
Check-up and maintenance.............................................................................................27
Table for Maintenance and Inspections.......................................................................27
Air filter ........................................................................................................................28
Fuel filter......................................................................................................................28
Fan protection..............................................................................................................28
Cylinder fins.................................................................................................................29
Cleaning of the liquid tank ...........................................................................................29
Carburettor ..................................................................................................................29
Spark plug ...................................................................................................................30
Trouble shooting..............................................................................................................31
Discarding and Disposal .................................................................................................33
Optionals...........................................................................................................................33
Technical data ..................................................................................................................36

Mist blower M1200US
Page 5
Please note: the packing of the machine has been equipped with some labels
containing the model and the serial number of the machine itself; these labels can
be taken off and stuck on the pages containing the machine’s data and the CE
certificate.
MACHINE DATA
Model code
Serial number engine
Serial number body (if any)__________________________________________
For any communication or spare parts order it is better to give serial N° of the
machine.
Bought from _________________________________________________
Address _________________________________________________
Telephone _________________________________________________
Bought date _________________________________________________
O
OW WN NE ER R’ ’S S D DA AT TA A
Name of the owner ________________________________________________
Address ________________________________________________
________________________________________________
________________________________________________
Telephone________________________________________________

Cifarelli S.p.A - Italy
Page 6
SYMBOLS
Here as follows you can find the description of the pictograms used in this manual;
some of them are also present on the machine.
CAUTION!GENERAL
WARNING
READ OPERATOR’S
MANUAL
WHILE USING THE
MACHINE IT ISN’T
ALLOWED THE PRESENCE
OF EXTRANEOUS
KEEP A SAFE DISTANCE
CAUTION!THROWN OR
FLYING OBJECTS
CAUTION!TOXIC RISK
CAUTION!HOT
SURFACES,RISK OF
BURNS
CAUTION!FLAMMABLE
MATERIAL
CAUTION!TOXIC
SUBSTANCES
CAUTION !
ELECTRIC SHOCK
HAZARD
WORK CLOTHES MUST BE
WORN
RESPIRATORY
PROTECTION MUST BE
WORN
EYE PROTECTION MUST
BE WORN
HEARING PROTECTION
MUST BE WORN
HAND PROTECTION
(GLOVES)MUST BE WORN
FOOT PROTECTION MUST
BE WORN (BOOTS)
GENERIC PROHIBITION
CAUTION
NO FIRE OR SPARK
CAUTION
NO SMOKING
WARNING:USE IS STRICTLY
FORBIDDEN TO PACEMAKER
CARRIERS OR OTHER
ELECTRICAL /ELECTRONIC
MEDICAL DEVICES.

Mist blower M1200US
Page 7
SAFETY NORMS
This symbol indicates very important instructions contained in this
manual. Therefore please take particular care to the paragraphs marked
with this symbol.
WARNING
Before starting to work it is very important to carefully read and follow all
the safety norms described in this chapter. The no-application of these
norms can cause serious physical damages.
WARNING
Before using this machine, contact your doctor to check for any diseases
that may prevent you from using this device.
WARNING
If the serial number on the label or the ones relative to the safety norms
come off or it becomes difficult to read them, please ask for them to our
head office free of charge (mentioning model and serial number) in order
to place them again.
OTHERWISE THE MANUFACTURER REFUSES ALL RESPONSIBILITY.
S
St ta at te e a an nd d l lo oc ca al l r re eq qu ui ir re em me en nt ts s
The engine is NOT equipped with a Spark Arrester System complying with the
requirements of SAE Recommended Practice J335 and California Codes 4442
and 4443. All national forest land and land managed by states of California,
Maine, Washington, Idaho, Minnesota, New Jersey and Oregon require
internal combustion engines to be equipped with a spark arrester screen by
law. Other states and federal agencies are enacting similar regulations.
Operating this engine in a state or local where such regulations apply, could result
a violation of the law.
Note: When using a mist blower for logging purposes, refer to Cod of
Federal Regulation, Parts 1910 and 1928.
P
Pe er rs so on na al l p pr ro ot te ec ct ti io on ns s
It is advised to wear working clothes while using this machine.
During the application of chemical products it is obligatory wear a suitable
mask for the protection of the respiratory system; the inhalation of
chemical products can cause serious injury or the death. Please contact
a doctor in case of allergic reaction and/or of respiratory difficulty.
To reduce the risk of injury to the eyes, please wear safety glasses with
lateral protections.
In case of continuous using, the user can exceed the daily personal
exposure level of 80 dB(a).
Therefore, an efficacious personal hearing protection, as the anti-noise
headphones, must be worn, in compliance with art 46 DL 277.
Anyway it is advised to undergo to a periodic hearing check up.
Always wear rubber gloves resistant to the chemical products; their
contact with the skin can cause irritations and/or injures.

Cifarelli S.p.A - Italy
Page 8
Always wear rubber boots resistant to the chemical products; their
contact with the skin can cause irritations and/or injures. It is advised to
wear steel toe boots with no-slip soles.
Never wear large clothes, short trousers, sandals, necklaces, bracelets
or similar. Keep hair properly fastened if its length is over the shoulders.
P
Pr ro oh hi ib bi it ti io on ns s
WARNING
The use of this machine is strictly forbidden for people with
pacemakers or other electrical / electronic medical devices.
Don’t smoke, don’t eat, don’t drink while using the machine.
It is forbidden the use of this machine to the minors.
Never start the engine indoors: exhaust gas may kill.
Don’t climb ladders or trees with the machine on the shoulders.
Never work with this machine if you are tired, sick or under effect of
alcohol, drugs or medicines: the user has to be in perfect physical
conditions.
Never use the machine if it is partially assembled but only completely
assembled; all the protections (of the engine etc.) must be always
entire, at their place, in the same position as indicated in this manual.
Replace all parts eventually damaged.
In case of not authorized alterations on the machine the user will be
the only responsible of any possible accident.
Never leave unattended the machine when it is running.
It is forbidden the use of the machine with an insufficient lighting level
when the user in not able to visibly check both the ground and the
crops.
During the use never direct the air flow coming out from the pipe
against people or animals, even if the liquid tap is closed.
F
Fu ue el ll li in ng g
Never fuel when the engine is running or when the machine is on the
shoulder of the operator.
Remember that fuel is highly inflammable and produces toxic fumes. Mix
and pour fuel only outdoors (poisoning or choking risk) and where there
are no flames, sparks, fires or similar. Always remove fuel tank cap slowly.
Don’t smoke while preparing mixture or re-fuelling.
Any fuel reserve has to be stocked and transported in suitable
homologated tanks, far from children and from heat, following the
relative rules.
Check any possible fuel leakage; always wipe off any possible fuel
leakage. Change immediately your clothes if impregnated with fuel.
Before starting the engine, keep yourselves at a distance of at least 10
feet (3 meters) from fuelling site.

Mist blower M1200US
Page 9
S
Sa af fe et ty y c ch he ec ck ki in ng g o of f t th he e m ma ac ch hi in ne e
For your safety, please check periodically the consumption and the
integrity of the following spare parts :
Code
Description
Code
Description
21.164.00
Elbow
0G.324.00
Mixture tank
0G.321.02
Fan cover
0G.284.01
Cap of mixture tank
21.136.02
Fan
0G.423.00
Liquid tank
21.138.03
Frame
0G.406.00
Cap of liquid tank
24.144.00
Shoulder straps
12.050.01
Engine cover
0G.316.02
Control handle
12.047.01
Silent-blocks
W
Wa ar rn ni in ng g
B
BE EF FO OR RE E S ST TA AR RT TI IN NG G: :
Use this machine only for the uses described in the manual.
Remember that the user is responsible towards third person in the
working area of this machine.
Start the engine only following the procedure indicated on this
manual. Please follow the instructions of use here pointed out.
Adjust the shoulder straps according to the user’s height in order to
get the machine close-fitted on both back and shoulders.
Check the existing of local norms regarding, above all, using hours
and noise levels concerning this product and comply with them.
Be sure that near you a first aid kit will be available as foreseen by the
DIN 13164 norm. Replace immediately any medicine used. Make sure
to always have at your disposal a tank with at least 15 litres of clean
water. In case of helping request to the qualified people, always
inform them about: place, description of the happening, number of
wounded people, kind of wound and name.
Ensure that all screws are well positioned and tightened. Make sure
that the silencer has been correctly assembled and it works well,
never use the machine without silencer.
Check that the four spring silent-blocks (between the frame and the
engine) are entire and well tightened.
Verify that the machine is entire; in case of falling or heavy impact,
check eventual damages; in case of doubt, turn off immediately the
machine, if it is running and contact a Cifarelli Service Centre.
Before starting the engine, verify the closing of liquid tap.
Be sure that there are no extraneous nearby. If anybody comes
closer, stop the engine immediately.
The ignition system of the machine generates a very low intensity of
electromagnetic field which may interfere with some pacemakers. In case
you have a pacemaker, before using this machine, consult your physician
and/or the pacemaker manufacturer to reduce eventual risk of serious
and/or fatal injury.

Cifarelli S.p.A - Italy
Page 10
D
DU UR RI IN NG G T TH HE E U US SE E: :
Wear the machine with both the shoulder straps on the shoulders.
Keep yourselves always in upright, firm and balanced position, never
plies the back while wearing the machine.
Never spray against people or animals or property.
Always turn off the engine before removing the machine from the
shoulders.
The use of the mist blower gets tired; tiredness can cause the loss of
control of the machine with possible lesions or damages towards
himself or third party. If you feel tired, take a break.
Take care about the presence of eventual obstacles on the ground
(branches, roots, rocks, etc.). In particularly pay attention in condition
of wet ground or damp.
Never walk backward while spraying.
If possible make the treatment with chemicals in the early morning or
late afternoon. This because usually is less windy and the plant and
ground temperature is lower so you have less evaporation.
Don’t work in windy days and never work spraying against the wind.
A prolonged use of any power tool exposes the user to vibrations that
may cause a phenomenon known as Raynaud’s syndrome (known as
the “white fingers disease”) and the carpal tunnel syndrome; the
symptoms are cold fingers, prickle and/or numbness to the hand with
a reduced ability to feel and regulate the temperature of the limb and it
may cause circulation and nerve damage and tissue necrosis.
However the reasons for a predisposition are unknown but the cold
climate, smocking and some illnesses of the circulation of the blood,
together with the vibrations, can be factors of development of the
diseases as the syndrome of Raynaud and the syndrome of the
carpal tunnel.
Although Cifarelli's blower is equipped with an anti-vibration system,
for professional users (who uses the machine in a constant and
continuous way), it is advisable to:
Wear gloves.
Check the anti-vibration system every time the machine is used.
Grab well the handle but without tighten too much.
Take breaks frequently.
Even applying the above-mentioned precautions, in some
predisposed subjects may occur the symptoms mentioned before; in
such case you have to contact a physician.
During the use of the mist blower, please check periodically that the grid
of protection of the fan (that is located behind the backrest) is not
obstructed by the presence of extraneous parts (as leaves, etc.).
Remove all the objects as stones, piece of broken glass and all that can
be thrown during the work.

Mist blower M1200US
Page 11
Remember that exhaust and other parts of the engine warm a lot
during the use; to avoid the risk of burns, don’t touch the parts of the
engine after stopping. Let these parts be cooler before touching them.
To avoid the risk of fire and burns, it is necessary to keep the zone
around the exhaust clean by removing leaves, sprigs and any
possible residues of oil.
Let the engine cool in a plain place, away from any material that can
take fire.
U
US SE E O OF F T TH HE E C CH HE EM MI IC CA AL L P PR RO OD DU UC CT TS S: :
Follow meticulously the safety indications, instructions, warnings,
dosage and techniques suggested by the manufacturers of the
chemical products that you use for the treatment. Such substances
are toxic and can be harmful for You and for the environment.
Never use inflammable liquid chemical products.
Never use a dosage superior to those suitable, it could cause serious
damages to the crop treated and to the environment.
In case of accidental contact or ingestion of chemical product,
immediately consult the instruction of the manufacturer. In case of
doubt, contact without delay a doctor, having available the label of the
chemical product.
Verify that during the fuelling of the chemical and the use of the
machine there is no leakage; in such case, stop at once the machine.
Always clean accurately with water the liquid tank after the use,
paying attention to don’t waste in the environment the water after the
cleaning because it contains chemical product.
Wash oneself carefully and wash the clothes used during the work.
During the production, the Cifarelli doesn't know any possible harmful
effects caused on the machine by the chemical products in commerce
as indicated by the diective 2009/127/CE.
A
AB BO OU UT T T TH HE E M MI IS ST T B BL LO OW WE ER R: :
The spare parts used for repairing must exclusively be "Cifarelli"
original parts in order to grant the safety level of the machine.
Store the machine with empty tanks, cold engine and in a way that
none part of the machine may injury someone.
The user can only do the maintenance operations described in this
manual; all other operations have to be done by an authorized
Cifarelli's assistance centre. All maintenance operations (except the
adjusting of the carburettor) have to be executed with the switch
(Picture 10 position 2) on “0” position.
P
Pa ac ck ki in ng g
All CIFARELLI machines are packed in carton boxes to avoid any damage during
the transport. The carton used is a raw material and it can be re-used or recycled.
(recycling of paper).
Each box has to be properly stamped a symbol for recycling:
DON’T WASTE IN THE ENVIRONMENT.

Cifarelli S.p.A - Italy
Page 12
STANDARD SUPPLIES
d
de es sc cr ri ip pt ti io on n o of f t th he e p pa ar rt ts s o of f t th he e m ma ac ch hi in ne e

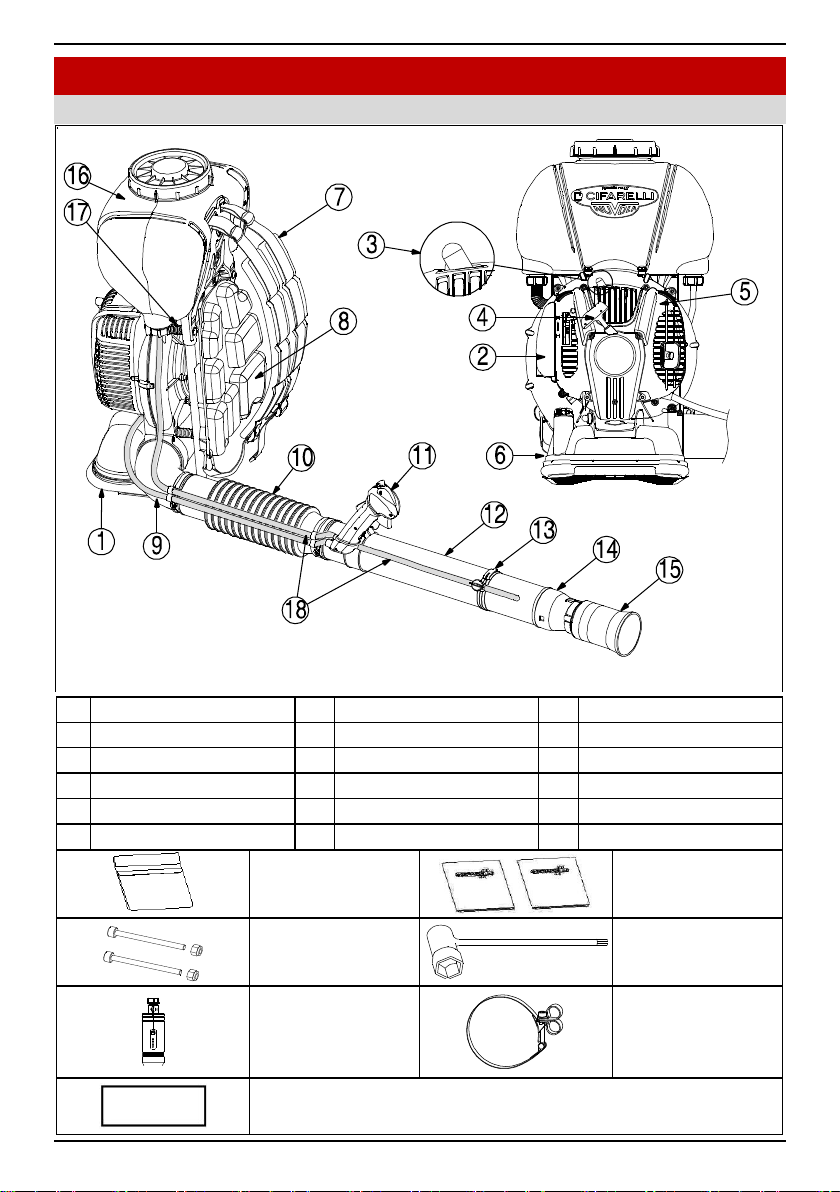

Picture 1 - Parts of the blower
1
Frame
7
Shoulder starps
13
Liquid tap
2
Air filter
8
Cushion
14
Spreader
3
Spark plug cap
9
Elbow
15
Wide spray jet
4
Starter
10
Flexible pipe
16
Liquid tank
5
Cover of the engine
11
Control handle
17
Silent-blocks
6
Fuel tank
12
Throwing pipe
18
Liquid hose
Spanners bag
Instruction manual
and spare parts
manual
Nr. 2 screws TCEI
M5x65 + Nr. 2 nuts
M6 self-locking
Spark plug
spanner with
integrated
Fuel mixing bottle
Nr.2
Clamps Ø 90
Code 24.141.00: bypass to exclude the passage of liquids
through the handle

Mist blower M1200US
Page 13
ASSEMBLY
P
Pa ar rt ts s o of f t th he e m ma ac ch hi in ne e
For the assembly of the mist blower, read the instructions as reported below.
Observing the Picture 2 here on the left and after the Picture 3:
1. Insert the elbow (Picture 1 pos.9) between the fan
cover.
2. Lock the elbow with the two screws by using the
hexagonal key integrated in the spark plug spanner
(everything is endowed in the spanner bag).
3. Observing the Picture 3, insert the clamps present
in the spanners bag, into the two ends of the flexible
pipe (Picture 1 pos.10), without tightening them.
4. Connect the flexible pipe (Picture 1 pos.10) to the
elbow (Picture 1 pos.9) and to the throwing pipe
(Picture 1 pos.12) being careful that the cone C
(Picture 3)is oriented toward the throwing pipe.
5. Raise the blocking lever, Picture 4 pos.1.
6. Insert the handle (Picture 1 pos.11) on the throwing pipe (Picture 1 pos.12).
7. When you found the right position, block the handle by lowering the block lever.
8. Insert the corrugated sheath of the handle and the liquid hose Dthrough the
loops of the two clamps; now screw the screw of the clamps with the endowed
spanner.
9. Insert the two liquid hoses (Picture 1 pos.18) Dand Eon the handle (Picture 1
pos. 11) as shown in the Picture 3 in the square A.
10.In case you want to exclude the passage of liquids through the handle, connect
the liquid hoses as shown in square B, using the plastic transparent connector
present in the spanners bag.
11.To get a wide exit, insert the wide spray jet (Picture 1 pos.15) on the spreader
(Picture 1 pos.14).
Picture 2 - Assembly of the
elbow
Picture 3 - Assembly of the mist blower
D
D
E
C

Cifarelli S.p.A - Italy
Page 14
A
Ad dj ju us st ti in ng g o of f t th he e h ha an nd dl le e
The right position of the handle is very
important to work comfortably. To adjust
the position of the handle, proceed as
follow:
1. Raise the blocking lever, Picture 4
pos.1.
2. Find the working position more
comfortable, sliding the handle and
modifying the inclination too.
3. When you have found the right
position, block the handle by lowering
the block lever.
WARNING
The adjusting of the handle has to be done with the engine turned off.
Picture 4 - Adjusting of the handle
1

Mist blower M1200US
Page 15
A
Ad dj ju us st ti in ng g o of f t th he e s sh ho ou ul ld de er r s st tr ra ap ps s
Before to use the mist blower, it is very important to reach the correct weight
balance of the machine on your shoulders. This can be obtained by regulating
straps length to get the machine close-fitted on both back and shoulders.
We remind you that a well balanced machine is very important when operating on
not smooth grounds.
To tighten the shoulder straps, pull the ribbon as shown in the Picture 5.
To loosen the shoulder straps, lift the buckle with the movement shown in the
Picture 6.
Q
Qu ui ic ck k r re el le ea as se e o of f t th he e s sh ho ou ul ld de er r s st tr ra ap p
In case of emergency it is possible to remove quickly the mist blower from the
shoulders with the following procedure:
1. With one hand, press the tabs of the quick
release placed on the right shoulder strap
(shown in square in the Picture 5) as shown
in the Picture 8.
2. Accompanied with your bust the movement
that will execute the machine, slightly tilting
toward left: the mist blower will fall from your
shoulders.
WARNING
The adjusting of the position has to be done with the engine turned off.
Picture 5 Position of the
shoulder straps
Picture 6 Tightening the
shoulder straps
Picture 7 Loosening the
shoulder straps
WARNING
Read the following instruction for quick removal of the machine
from the shoulders in case of emergency.
Picture 8 Quick release

Cifarelli S.p.A - Italy
Page 16
FUELING OPERATION
This engine can work with a mixture of both leaded or unleaded petrol and oil for
two strokes engine but never use petrol mixed with alcohol.
WARNING
The use of gasoline containing ethanol with a greater rating of 10% can
damage the engine.
The use of gasoline with a lower octane rating may increase the
temperature of the engine with a consequent risk of piston seizure and
damages to the engine.
WARNING
There are different kinds of oil to be used together with leaded or
unleaded petrol. Always use only suitable oil for the petrol with which you
prepare the mixture.
Never use automobile engine oil (for 4 strokes engine or diesel) but only use oils
suitable for 2 strokes engine (2T).
The petrol used has to be “fresh”. After 1 month storage, the petrol is no longer
fresh. If you utilize a previous prepared mixture, mix it up again before using.
With leaded petrol use only mineral oil with a ratio of 25:1, then mix 25 parts of
petrol for each oil part (4%).
With unleaded petrol use only synthetic oil, suitable for this kind of petrol, with a
ratio of 32:1 (3%) or 50:1 (2%) as specified by the manufacturer of the oil you are
using.
P
Pr re ep pa ar ra at ti io on n o of f t th he e F Fu ue el l
WARNING
The use of unsuitable mixture as, for example, unsuitable oil for two
strokes engine, mineral oil used with unleaded petrol or incorrect mixture
can invalidate warranty.
Remember that fuel is highly inflammable and produces toxic fumes. Mix
and pour fuel only outdoors (poisoning or choking risk) and where there
are no flames, sparks, fires or similar.
Don’t smoke during the preparation of the fuel and during the fuelling.
WARNING
Never prepare the mixture inside the tank of the machine.
The fuel must be prepared and stored in suitable and clean cans,
properly closed. The use of plastic cans unsuitable to store fuel may
cause engine damage and invalidate the warranty.

Mist blower M1200US
Page 17
U
US SI IN NG G T TH HE E E EN ND DO OW WE ED D B BO OT TT TL LE E
In order to help mixing the fuel, each machine has
been supplied with a bottle for mixing fuel in ratios
25:1 (4%) or 50:1 (2%).
Please observe the Picture 9 and proceed as follows
to prepare one litre of mixture:
The mixture is ready for fuelling.
In case you use a can to prepare the fuel, this has to be properly clean and you
should take care to shake the mixture at least for one minute so that the oil can
mix itself with the gasoline.
Here as follows the tables with the correct percentages of oil and gasoline.
F
Fu ue el ll li in ng g
Never refuel when the engine is running.
To refuel the tank, read the following procedure:
Put the machine on a clean and smooth surface.
Unscrew the fuel cap slowly in order to allow to escape gas vapor and fumes
from the tank to reduce the risk of fire and/or personal injury.
Pour slowly the fuel into the tank.
Close the tank by screwing firmly the cap.
Wipe immediately off any fuel leakage.
Picture 9 - Fuel mixing bottle
1.
Fill the bottle with gasoline till position 1.
2.
To prepare a mixture 50:1 (2%), add oil till
position 2.
To prepare a mixture 25:1 (4%), add oil till
position 3.
3.
Screw the cap on the bottle
4.
Shake for at least 30 seconds.
Table for fuel mixture –MINERAL OIL
Leaded petrol (Lt)
25:1=4% Oil ( ml )
2,0
80
4,0
160
5,0
200
8,0
320
10,0
400
Table for fuel mixture –SYNTHETIC OIL
Unleaded Petrol (Lt)
32 :1 = 3% Oil (ml )
50 :1 = 2% Oil (ml)
2,0
62.5
40
4,0
125
80
5,0
156
100
8,0
250
160
10,0
312
200

Cifarelli S.p.A - Italy
Page 18
MIST BLOWER CONTROLS
H
Ha an nd dl le e
Observe the pictures here below to understand how to use the controls of the
handle (Picture 1 pos.11) on the throwing pipe:
Observing the Picture 10:
To start the engine, the switch pos.2 has to
be positioned on “1”.
To accelerate, press the lever pos.1
together with the accelerator security lever
pos.3.
If you want to work with steady RPM, press
the security lever pos.3 and together move
the steady throttle lever pos.4 toward the
mark “+” to increase the RPM of the engine.
To decrease the RPM of the engine, move
the steady throttle lever toward the mark “-“.
To turn off the engine, move the switch
pos.2 to “0”.
Observing the Picture 11:
The switch in pos.5 activate or block the
automatic opening of the liquid tap included
in the handle.
When the switch is in low position, the
opening of the tap is automatic while
accelerating. With the throttle at the idle, the
tap remains closed.
When the switch is in high position, the tap is
always open whatever it is the position of the
throttle. To slide the switch pos.5 upward, it
is necessary to press simultaneously the
throttle lever (Picture 10 pos.1).
Picture 10 - Controls on the handle
1
Throttle lever
2
Power switch
3
Accelerator security lever
4
Steady throttle lever
5
Switch for blocking the tap in the position
of MAXIMUM opening
Picture 11 - Switch for the
automatic liquid tap
1
3
5
2
4

Mist blower M1200US
Page 19
R
Re eg gu ul la at to or r o of f t th he e l li iq qu ui id ds s f fl lo ow w
On the throwing pipe (Picture 1
pos.12) is present the liquid tap
(Picture 12 pos. A) that allow the
opening and the closing of the
liquid flow toward the exit.
The liquid flow rate is set by the
regulator (Picture 1 pos. B).
Rotate the spreader (Picture 1
pos. B) clockwise or
counterclockwise sense to select
one of the 9 positions desired.
Please refer to the following table that give an indication about the liquid flow in the
ten positions of the regulator. Please note that:
The flows are calculated with the engine at full throttle (max RPM), the
throwing pipe in horizontal position and using clean water; using liquids with a
different density the flow can change.
These flows are only an indication; we suggest the use of ULV attachment if
you need an accurate dosage of the chemicals.
Picture 12 –Regulator of the liquid flow
Table of liquid flows
Position of the
regulator of flow
Litres/minute
Position of the
regulator of flow
Position of the
regulator of flow
Position of the
regulator of flow
Position of the
regulator of flow
Position of the
regulator of flow
Litres/minute
1
0,1
6
3,0
2
0,7
7
3,2
3
1,4
8
3,4
4
2,1
+
3,5
5
5
2,7
The Cifarelli’s mist blower M1200US is designed in order to perform
treatments with the same efficacy even with the throwing pipe oriented in
the vertical direction; to make more comfortable such treatments, the
machine is equipped with a rotating elbow (Picture 1 pos.9).
A
B

Cifarelli S.p.A - Italy
Page 20
THE MIST BLOWER
B
Be ef fo or re e t to o s st ta ar rt t
Please read carefully the chapter "Safety precautions" which will indicate you all
the precautions required for mist blower using.
Place the machine on the ground in a smooth site.
Verify that the switch (Picture 10 position 2) is not in “0”position (turned off).
Be sure that no one is close to the machine and/or in front to the throwing pipe.
S
St ta ar rt ti in ng g

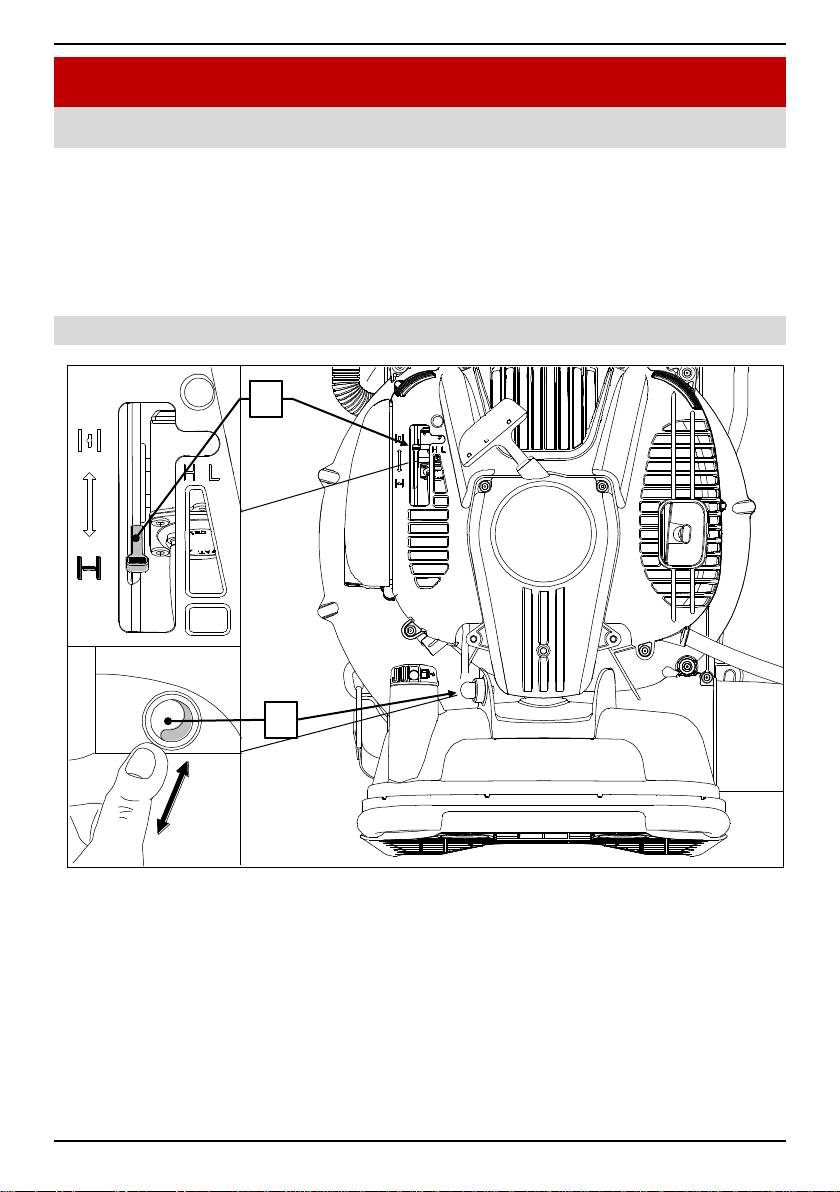

The Picture 13 show the bulb Aand the choke lever B, necessary for the starting
of the engine.
Picture 13 - Carburettor commands
A
A
B
B
